Power-Flo LX 1HP, 115V, Single Spd. Pump - W3SP1580



Part # W3SP1580

By Hayward Pool Products

  4.62 Average



Part # W3SP1580

Product Description

Inyo Recommended Pumps


Above-Ground Pump Series

The Hayward Power Flo LX Pool Pump is a new and improved high-performance pump series designed for the rigors of above-ground and on-ground type swimming pools. Combining durable, corrosion-proof construction with advanced features and options, Hayward Power Flo LX Pool Pump sets the standard for value and performance.


  • Voltage = 115
  • Pipe Size = 1.5"


  • Above-ground/on-ground pools
  • High performance motor with stainless steel shaft and automatic thermal overload protector for maintenance-free operation
  • Exclusive corrosion-proof PermaGlass XL™ housing for all-weather performance and quiet operation
  • 100% drip proof, heat-resistant double sized seal for long motor life

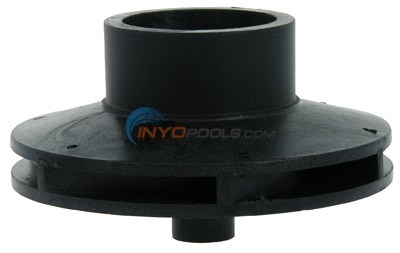

  • High performance impeller provides up to 15% better performance than standard Power-Flo
  • Drain plug for easy maintenance of pump
  • Massive strainer basket has extra leaf-holding capacity

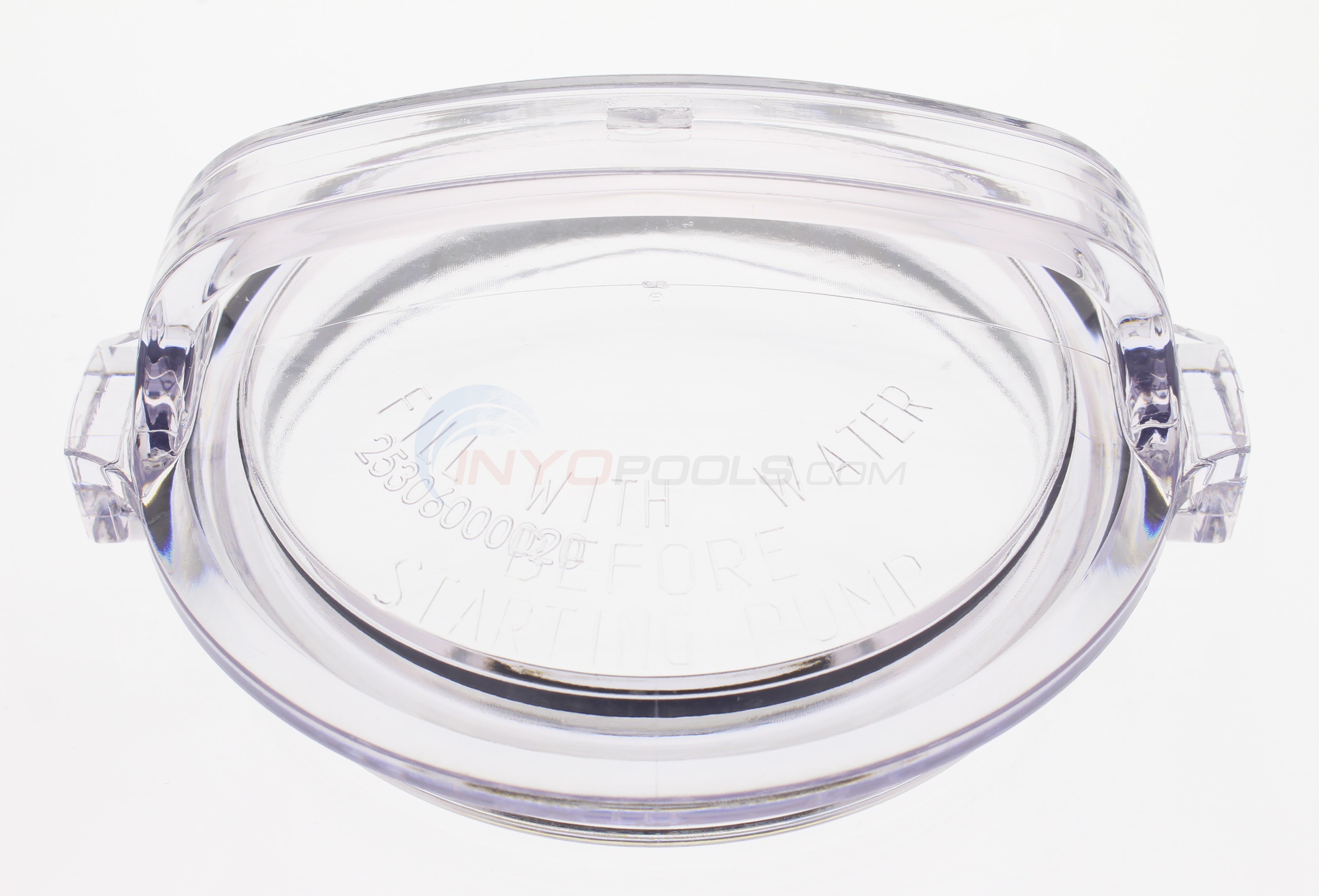

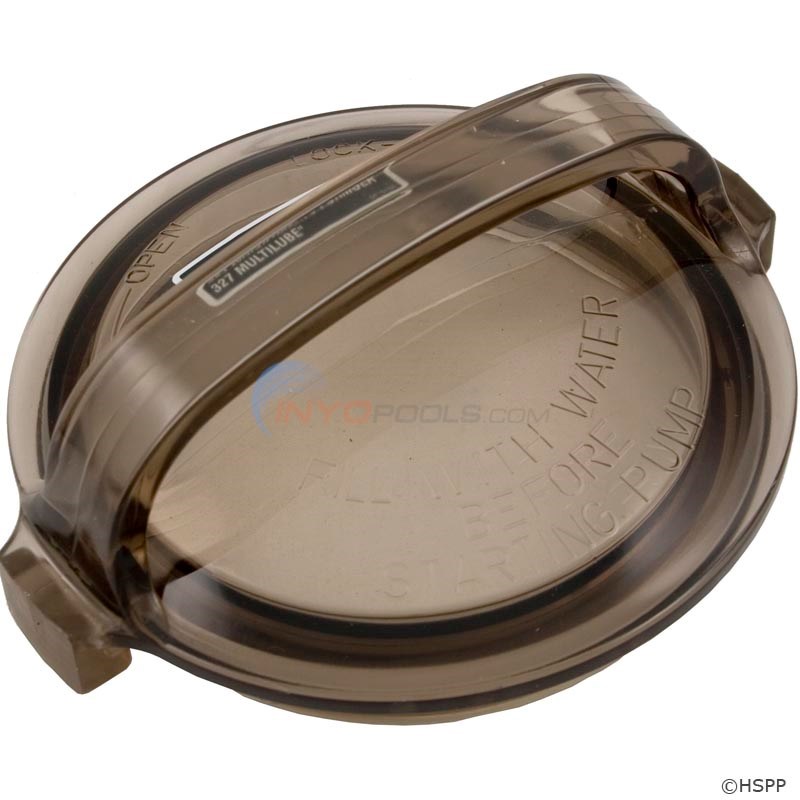

  • Clear cover lets you see when basket needs cleaning

Performance Data:

Pump Output (GPM) vs. Total Resistance To Flow (Feet of Head)
Model Number 10 ft 20 ft 30 ft 40 ft 50 ft
SP1575LX 80 76 64 44 -----
SP1580 86 86 75 58 27
SP1580X15 91 91 80 62 32


Click here for more Hayward Pool Pumps

Product Specifications

1 HP
115 V
Port Size:
1.5 in.
Cord Type:
Standard 3-Prong
Cord Length:
3 ft.

?     Asked on 6/29/2020 by stan

Have aW3EC40C92S filter system. Need a new pump. What is correct ordering #

A  Answered on 10/23/2020 by InyoPools Product Specialist Hector F.

Hi Stan, the replacement complete pump for your W3EC40C92S system is the Hayward Power Flo Matrix pump model W3SP1592

?     Asked on 6/1/2020 by Ariel Contreras

Just want to know if this is the same pump as the attached picture? thanks


A  Answered on 10/22/2020 by InyoPools Product Specialist Eric J.

Good morning Ariel. Thank you for choosing inyo pools That is correct the w3sp1580 is the correct pump to replace the picture you have.

?     Asked on 5/31/2020 by Ariel Contreras

Hello I just want to know if this pump is the same as I have on the picture? and on your picture the products output going to the filter is vertical can It be switch to horizontal? thank you


A  Answered on 10/20/2020 by InyoPools Product Specialist Hector F.

Hi Ariel, yes this model Hayward PowerFlo LX pool pump will be the original complete pump for your PowerFlo Lx model S48L2A6A8.

?     Asked on 5/30/2020 by

if my pool came as a package would my skimmer be a hayward too

A  Answered on 6/9/2020 by InyoPools Product Specialist Hector F.

Not necessarily. It would really depend on the package that particular retailer set up for you.

?     Asked on 5/7/2020 by Jacqueline L Cooper

What O ring fits this strainer ?

A  Answered on 12/8/2020 by InyoPools Product Specialist Hector F.

Hi Jacqueline, the part number for the strainer lid o ring for the Hayward Powerflo LX pool pump series is 5111-18B

?     Asked on 5/2/2020 by

I just purchased the powerFlo LX 1.5 for my above ground pool, but my old sand filter can’t handle the pumps pressure for more than a couple minutes. What is the smallest compatible sand filter for this pump?

A  Answered on 1/7/2021 by InyoPools Product Specialist Hector F.

Hello, on average a 1.5 hp Hayward PowerFlo LX pool pump matches well with an 18-21 inch diameter above ground pool sand filter.

?     Asked on 4/15/2020 by Derek

What is the best pump for a 33rd round above ground pool?

A  Answered on 12/2/2020 by InyoPools Product Specialist Megan C.

If you are not restricted to use a certain pump as many of the pump/filter combos by Pentair, StaRite, and Jacuzzi will require the original pump that was sold with it to make the connections from the pump and filter. A 1.5HP or 2.0HP is a great choice (For round above ground pools over 24 ft.  (pools with more than 15.300 gallons) use a 1.5 HP pump.) The Hi-Flo Above Ground Pool Pump 1.5 HP 115V with CORD & 24 HOUR TIMER - PD11506-TIMER (Standard 3-Prong Plug) is a very nice pump that would work great for a 33' round pump. Here is the link to the other above ground pool pumps we offer http://www.inyopools.com/productlisting/pumps_aboveground.aspx

?     Asked on 8/18/2019 by Chris Graham

do they make a 3/4 hp

A  Answered on 8/18/2019 by InyoPools Product Specialist Michelle B.

Hello, Unfortunately, we do not carry this in 3/4hp.

?     Asked on 7/26/2019 by Claire P

Looking to replace the capacitor in this motor, but I don't see it on the part list. Before taking it out, is there any way to know what capacitor it uses? Thank you.

A  Answered on 7/26/2019 by Industry Professional

sorry but no. You will need to at least look at the capacitor to get the mfd rating to match it up. You should be able to get the information without removing. If removing, be very careful & you will need to discharge the capacitor after removing the leads as it can still hold voltage.

?     Asked on 5/29/2019 by Dolores

Bought the Haywood above ground Power Flo LX. It has no ON/OFF switch. How does it work? How do I turn it off and on?

A  Answered on 5/29/2019 by InyoPools Product Specialist Steve M.

Dolores, the Hayward Pool Products Power-Flo LX 1HP, 115V, Single Spd. Pump is shipped less the On/Off switch. The On/Off Motor Switch - SPX1500S8 would be compatible with the  Hayward Pool Products Power-Flo LX 1HP, 115V, Single Spd and is available for individual sale.

  • Commented on 5/29/2019 by Product Owner

    Will it work without the on off switch? I have never ever heard of such a thing. Selling a pump without the ability to turn off and on.

    • Commented on 6/6/2019 by InyoPools Product Specialist Patrick P.

      Dolores, The pump will work without the switch it will always be running when plugged in. Most pool owners purchase one of these Pool Pump Timers that the pump plugs into, you then set your timer to have the pump turn on and off at certain points throughout the day.

?     Asked on 4/22/2019 by Penny Womble

I need to replace a 1hp in ground pump volts230/115. rpm 3450fr56j, HZ60. not sure what you need. What we have now is Century UST1102

A  Answered on 4/22/2019 by InyoPools Product Specialist Lennox H.

Hi, Penny. This will NOTbe a good option. Please provide the pump housing model or an image of your pump so that we can provide you sih some options.

?     Asked on 7/15/2018 by

When wiring the receptacle or plug-in for the pump, is a 20 amp breaker sufficient or do I need a 30 amp breaker?

A  Answered on 7/18/2018 by InyoPools Product Specialist Lennox H.

Hi. A 20 amp breaker will be sufficient if this pump will be the only equipment running on that breaker. If not, then a larger capacity breaker is required.

?     Asked on 5/14/2018 by

I have an hayward power-flo lx sp1580z2 and i am looking for a replacement on/off switch do you sell this?

A  Answered on 5/15/2018 by InyoPools Product Specialist Lennox H.

Hi. The replacement switch for that model pump is Part #SPX1500S8

?     Asked on 2/7/2018 by

what is the rpm

A  Answered on 2/8/2018 by InyoPools Product Specialist Lennox H.

Hi. The RPM of this pump is 3450.

?     Asked on 7/29/2017 by John

I have a Hayward SP1580Z2. Has a twist plug. Can I replace w/ SPX1250WA Straight prong?

A  Answered on 7/30/2017 by InyoPools Product Specialist Alex V.

John, If you have a twist lock cord, your local code may require it. I would recommend checking with a local electrician to see if the use of a 3 prong cord is allowed.

?     Asked on 7/2/2017 by Karen

I have an older A O Smith SP1510 1HP I need to replace which motor is compatible.

A  Answered on 7/2/2017 by InyoPools Product Specialist Alex V.

Karen, You can use the BN25 motor. I would also recommend replacing the shaft seal

?     Asked on 6/3/2017 by Richard

I have a Hayward Power-Flo pump, on the tag the model # is 317P387 also on the tag in small letters it has SP125J. It is leaking water from the pump where it joins the motor. Are parts still available for this unit?

A  Answered on 6/4/2017 by InyoPools Product Specialist Patrick P.

Hi Richard, Yes parts are available for your Hayward Power Flo pump and you may find those parts here on our Hayward Power Flo LX Parts Page

?     Asked on 5/25/2017 by Neil

Can you recommend a cartridge filter that goes with this pump?

A  Answered on 5/25/2017 by InyoPools Product Specialist Patrick P.

Hi Neil, I would suggest the Hayward SwimClear C100S for this pump

?     Asked on 5/6/2017 by Gary

looking to replace a sp1580x15tlfp 1.5 hp..I assume that sp1580x15tl 1.5 is what I need.. Would a 1hp.work on a 18ft..above ground pool? Thank you

A  Answered on 5/7/2017 by InyoPools Product Specialist Lennox H.

Hi, Gary. Yes, a 1HP pump is sufficient for an 18' above ground pool. The pump you have has a twist lock power cord so you will need p/n SP1580TL.

?     Asked on 3/11/2017 by Don Murphy

Need A Haywood In ground pool pump, Had A Max-Flo worked great, Pool is 15 x 30 3ft to 6ft deep.

A  Answered on 3/15/2017 by InyoPools Product Specialist Andy O.

Hello Don- Can you provide us with either what HP pump you currently have or the size of the filter that you have so we can get the right size for you please?

?     Asked on 6/30/2016 by Andrew Chambers

how to change the electrical cord on Hayward pump

A  Answered on 7/4/2016 by InyoPools Product Specialist Lennox H.

Hi Andrew, You can follow the steps in our How To: Wire A Pool Pump for instruction.

?     Asked on 6/27/2016 by Don

I have a 6 year old Hayward Pump Power Flo LX model #S48E48A04 HP 40GPM It does not have a basket. It is being used in a water feature and supplies enough water. I would like to replace this unit with a new Hayward product. Either a new Power Flo LX or the Power Flow II. What new model would be the equivalent? SP1580, SP1775? Thank you

A  Answered on 7/3/2016 by InyoPools Product Specialist Alex V.

Don, If it's a Power Flo LX, the SP1500 series Power Flo will replace it. The SP1580 would be correct if you are replacing a 1HP pump.

?     Asked on 6/8/2016 by

Is there a warranty?

A  Answered on 6/8/2016 by InyoPools Product Specialist Matt S.

The Hayward Power-Flo LX has a 1-year manufacturer warranty.

?     Asked on 5/31/2016 by

Please provide approx. GPM flow rate for Hayward 1hp type SP (15021X ESG through sand filter, pool heater and 20 ft. of 1 1/2 hose. I am guessing about 60 GPM, but would like an expert opinion. Thanks, Vic

A  Answered on 6/5/2016 by InyoPools Product Specialist Lennox H.

Hi Vic, With 20 feet of head this pump  produces a flow rate of 86 gpm.

?     Asked on 5/27/2016 by Jayne

I have a Hayward Power Flo LX SP1580z2 pump and I need the part # for the strainer basket housing.

A  Answered on 5/27/2016 by InyoPools Product Specialist Alan M.

The Power-Flo Strainer Housing comes with the basket and is part number SPX1500cap. You can click on the link and go straight to the item page to view it. Thank you!!!

?     Asked on 4/20/2016 by Gary

I have a 1hp hayward proflow sp-1510-z1-xehc, what is the gph or gpm is this pump?

A  Answered on 4/20/2016 by InyoPools Product Specialist Robert M.

Hello Gary - The flow rate depends on the feet of head. At 30' of head, the pump will push 75 GPM.

?     Asked on 4/2/2016 by

I have a Hayward Power Flow LX pump that has a disposable fabric filter for my above ground pool. The motor is shot . Is there a replacement A O Smith motor (SP8E48A04) or can I get the complete pump system with fabric filter?

A  Answered on 4/2/2016 by InyoPools Product Specialist Lennox H.

Hi, This pump uses the BN25 replacement motor, if the filter canister is good you can just replace the motor and Shaft Seal SP1500KA.

?     Asked on 9/13/2015 by patrick

I have a 300 gal water fountain with a 24 inch sheer descent , currently own a Hayward 1580 1 hp but it has too much water flow for the sheer descent. I'm looking for something smaller . How many hp has the sp1540c can't seem to find the specs, also what kind of filter would be good for this application. Thanks!

A  Answered on 9/16/2015 by InyoPools Product Specialist Lennox H.

Hi Patrick, The SP1540C pump is not HP rated but is rated on the flow rate which is 40 GPM.

?     Asked on 8/18/2015 by Mary

I currently have a Power Flo Matrix SP 1510-Z1-XEHC but it just died on me. I don't seem to find a replacement for this exact pump. I'm wondering if the listed pump would be ok as replacement. My current pump connects on the side to the filter. This appears to be on top. Can that be turned so it connects properly or is there another part that I would need. Thank you for your help.

A  Answered on 8/20/2015 by InyoPools Product Specialist Lennox H.

Hi Mary, The Hayward Matrix 1 HP w/ Switch Motor (SP1510Z1XE) will be the correct replacement motor. The Power-Flo LX 1HP, 115V, Single Spd. Pump discharge can be rotated. Instructions on how to rotate the discharge can be found in our How To Rotate the discharge port on your Hayward Power Flo Pump.

?     Asked on 7/24/2015 by

Is the cord the three prong twist and lock type? Is this pump suitable for a 15x30 with a 52inch wall?

A  Answered on 7/24/2015 by InyoPools Product Specialist Hector F.

This model does not have the twist lock plug and is suitable for a 15 by 30 ft, 52 inch pool. You just need to be sure that the gallons per minute rating for the pump is compatible with the filter that you have. The model of this pump with the twist lock is SP1580TL.

?     Asked on 6/18/2015 by

does this model come with the cord

A  Answered on 6/18/2015 by InyoPools Product Specialist Patrick P.

Yes this pump comes with a 6' cord included.

?     Asked on 6/16/2015 by JD

I have a 21' above ground pool and the pump motor is going out was looking for a replacement but cant read all the info on motor label. its a Hayward power flo pump and I can read 40gpm, amps 8.0 and sp-1540-z1-dw? I have a sp1510-z-1-esc that someone gave me but it doesn't have the power as my other! can you recommend one similar. thanks.

A  Answered on 6/18/2015 by InyoPools Product Specialist Lennox H.

JD, Depending on what size filter you have, the Power-Flo LX 1HP, 115V, Single Spd. Pump could be a suitable replacement.

?     Asked on 6/6/2015 by Steve

can I order this with a twist lock cord?

A  Answered on 6/6/2015 by InyoPools Product Specialist Joe S.

The part you are looking for is SP1580TL

?     Asked on 6/6/2015 by Steve

Would this pump be compatible with a Proline (Namco) sand filter for a 24' round above ground pool? The filter is a 22" diameter and says max flow rate of 55 GPM.

A  Answered on 6/6/2015 by InyoPools Product Specialist Dennis R.

Steve - Yes a 22" Proline (also called Astral 1800 Series) sand filter is compatible with a Power Flo LX !HP Pump.

?     Asked on 5/30/2015 by Sally

We have a Power Flo Matrix #sp1510-C1-XEHC, it is getting hot and shutting down, what motor should this be replaced with, it is a 1hp

A  Answered on 5/30/2015 by InyoPools Product Specialist Patrick P.

Hi Sally, You would need the 1 HP Hayward Matrix Replacement Motor and a Hayward Matrix Shaft Seal.

?     Asked on 5/22/2015 by John Heidenreich

I currently have a Power-Flo LX 1.5HP pump motor. Will a Power-Flo LX 1HP pump motor work with my current pump ie Does the 1HP and 1.5HP motors use the same pump? Thank You

A  Answered on 5/23/2015 by InyoPools Product Specialist Lennox H.

John, If you 're want to change just the motor from 1.5hp Thru Bolt Motor to 1hp Thru Bolt Motor you can, however you will need to change the to a 1hp PowerFlo LX Impeller  to match the hp of the current motor.

?     Asked on 5/17/2015 by Jennifer F

I have the Power Flo LX pump and it says the model # is SP1580Z2. Do you know if this would be the correct pump to replace it with? Thank you!

A  Answered on 5/17/2015 by InyoPools Product Specialist Patrick P.

Yes this would be the proper replacement pump for the Hayward SP1580Z2 pump.

?     Asked on 10/30/2014 by Barry

I intend to replace my circa 1985 American Products pump with your Hayward Power-Flo SP1580. Can I use the current electric cord which has two wires, Black and Red? Also does the unit come with full wiring info?

A  Answered on 10/31/2014 by InyoPools Product Specialist Robert M.

Hello Barry - You can use your existing cord as long as it is being plugged into a 115v outlet. A wiring diagram will be on the label of the new pump motor.

?     Asked on 5/2/2013 by Guest

Does the Hayward Power Flo pump come with a power cord?

A  Answered on 5/2/2013 by InyoPools Product Specialist Patrick P.

Yes this comes with a 6 ft. standard 110/115v cord.

?     Asked on 7/11/2007 by Guest

Does this pump come with an on/off switch? What is the amp draw of the motor?

A  Answered on 7/11/2007 by InyoPools Product Specialist Patrick P.

This motor does not come with an on/off switch.  We recommend the following timer for 1hp models:  http://www.inyopools.com/Products/02400001004822.htm.  For 1.5hp models, we recommend this timer: http://www.inyopools.com/Products/02200022032590.htm.   Amp draw for the 1hp motor is 13.8 amps, and 15 amps for the 1.5hp motor.

?     Asked on 7/4/2006 by Guest

What is the voltage on this unit? How long is the manufactures warranty? If the system requires repairs during warranty, what do I do?

A  Answered on 7/4/2006 by InyoPools Product Specialist Patrick P.

This pump runs on 115V power. This unit comes with a 1 year manufacturer's warranty. If the pump needed repair, you would call Hayward directly and they would put you in touch with a warranty service station in your area.
