What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
I just finished replacing the shaft seal on my booster pump. As soon as I turned the pump on water was leaking from the shaft seal. Is it defective or am I doing something wrong?
Reply
Depending on the model, the installation of a booster pump shaft seal can be slightly different than a pool pump shaft seal. Some booster pump and pool pump shaft seals require that a silicone sealant be used on the outer areas of the metal seat of the shaft seal. The seal will need to be lightly hammered into the body of the pump. You can use a 1 inch PVC coupling or a piece of 1 1/4 inch PVC pipe and a rubber mallet. This procedure will apply to any pool pump or booster pump using a >PS-1000 style shaft seal.
Reply
my motor is making noise it is not too loud but its unknowing i don't know should i replace the motor or is their any other option to fix it i know the noise is coming from motor it self maybe the bearings are bad but is there any solution for it ? please help me
thank you
Reply
Hello Shah - We would recommend replacing the motor. The bearings can be replaced but it is not a simple process. You can view our guide on "How to Replace Motor Bearings".
Reply
I am looking at replacing my pool motor which Your website says this one is the correct replacement. If I were to go to a two speed motor, which one would fit, and what gasket kits would I need to make this happen? Thanks and Blessings!
Reply
Hi Kevin, You would require this 1 HP Dual Speed Replacement Motor. As far as the gaskets go we would need for you to reply back to our email letting us know the model of pump you have (i.e. Pentair Whisperflo, Sta-Rite DuraGlas, Sta-Rite Max-E-Glas, etc..)
Reply
I need to replace this pump, what else do I need to complete the project?
Reply
You would also need a tune up kit, we would need to know the make and model of your pump to suggest the proper tune up kit. Pump examples would be Pentair Whisperflo, Pentair Challenger, Sta-Rite Dura Glas, etc..
Reply

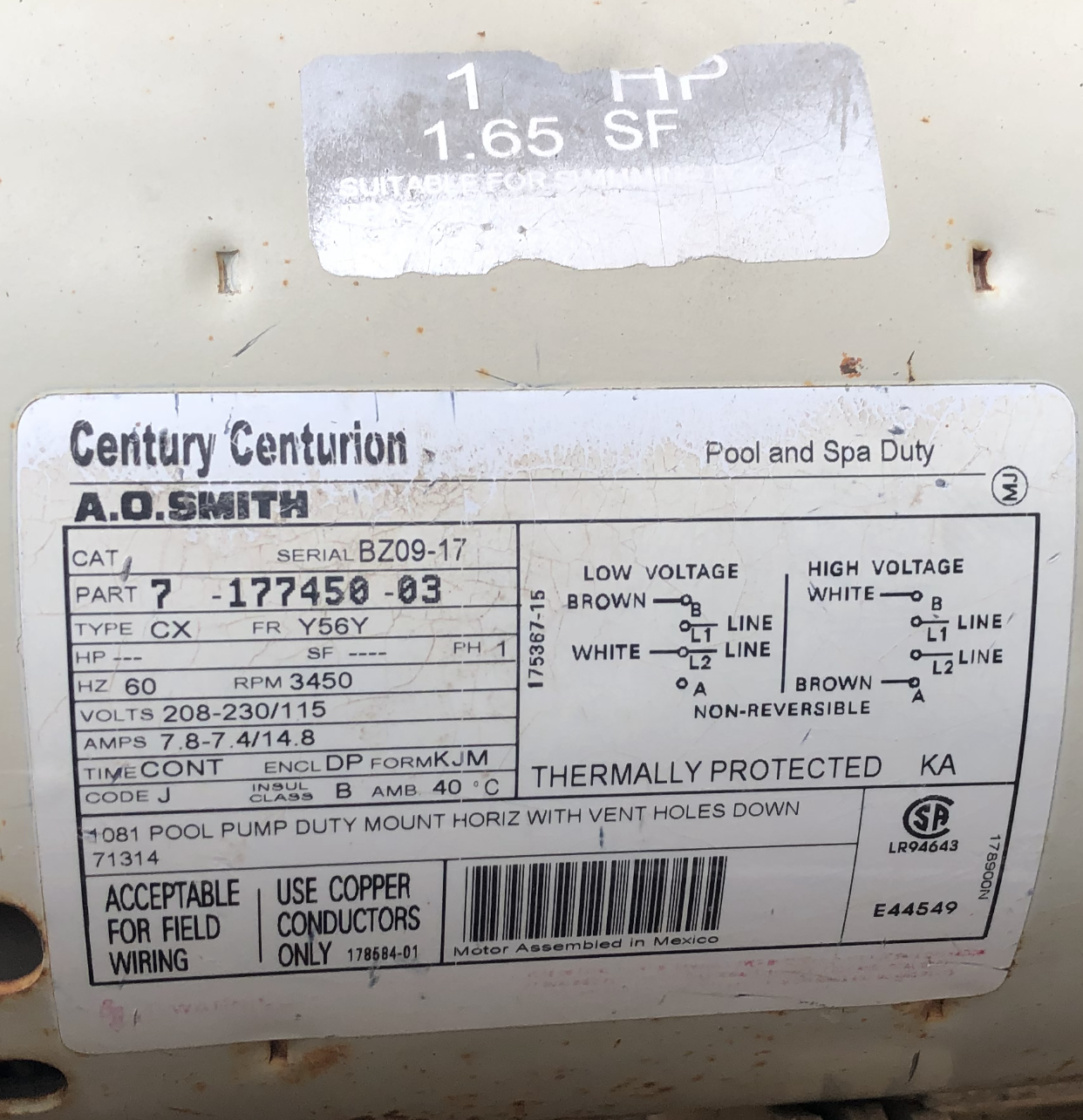

I have the pump below that I need to replace. Can you confirm for me which model pump I need as a replacement? I would also like to know which other items such as the tuneup kit will needed to complete the installation. Just want to make sure I have everything I need when I go to install it. Please let me know which items I need and I will order from you. Thx
Century Centurion / A.O. Smith
Serial BW3-27
Part 7-177450-03
Type - CX
FR-Y56Y
RPM - 3450
Volts - 208-230/115
Amps - 7.8-7.4/14.8
Reply
The B841 is the correct motor replacement and we would need the front plastic pump model that the motor is mounted to in order to cross reference which tune up kit that you'd need.
Reply
Hello... can you cross check this motor to replace an old MagnaTek Century Centurion part # 10-177450-03? I looked at the alternate numbers in your listing but did not see my old motor.
Reply
Hi John, The 1 HP Motor EE - Full Rate (B2841) will be a replacement to the MagnaTek p/n 10-177450-03.
Reply
will this pump replace Century Two Speed A.O. Smith pump motor with part number 7-196030-05, type CXPM vots 230 1 hp
Reply
We are showing that the 7-196030-05 corresponds to the B2980 3/4 HP 230V Dual Speed Motor if you do indeed have the 1 HP model then you would require the B2982 1 HP 230V Dual Speed Motor.
Reply

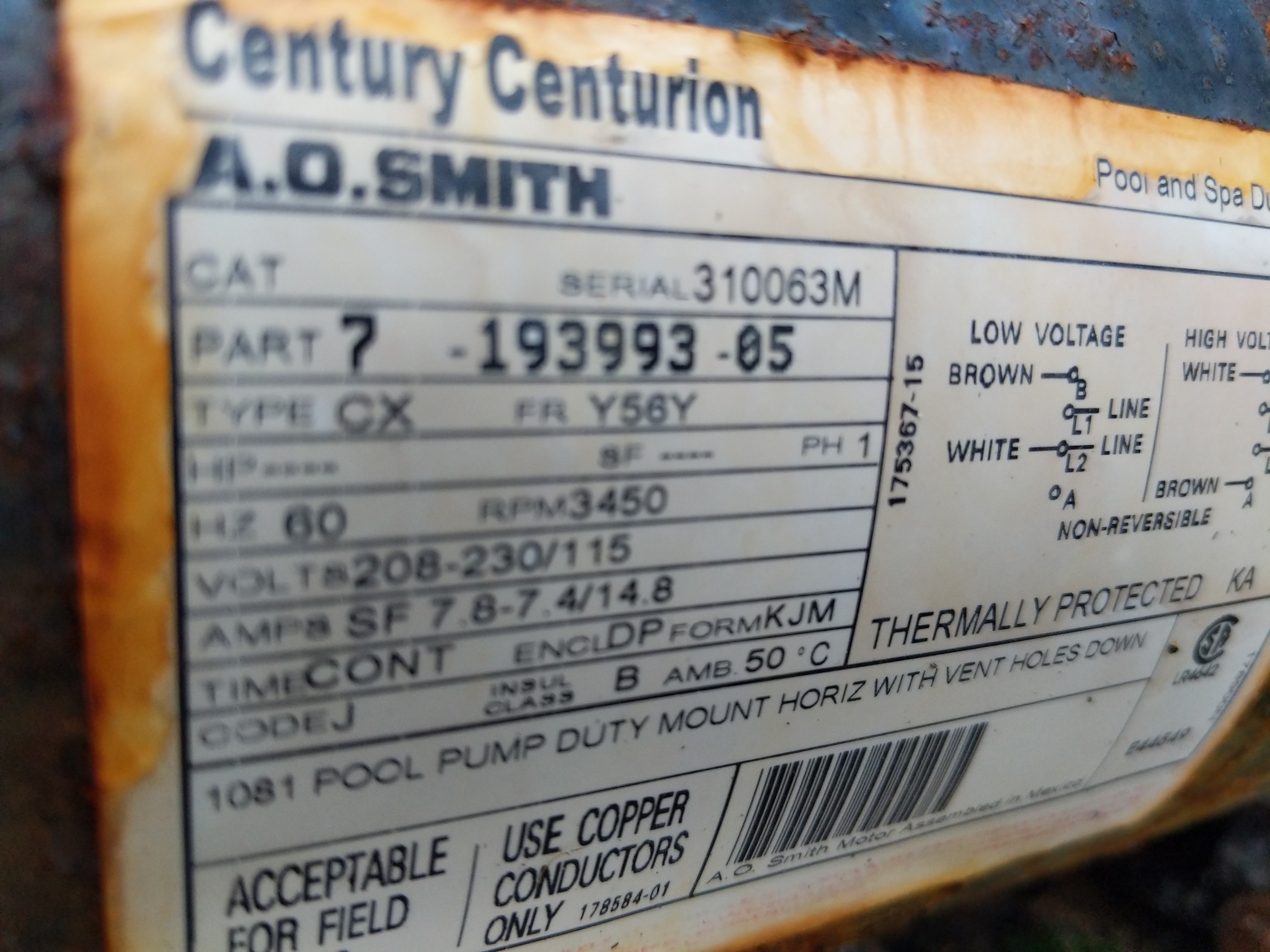

Does this motor replace 193993 from A O Smith? the label on my motor does not list the HP or SF. Thanks for your help.
Reply
Hi, The A.O. Smith 1 HP Motor EE - Full Rate (B2841) will be the correct replacement for the 193993.
Reply
I have a WFE-4 Square Flange Motor. The decal says its a Pentair Part O-177450-03. Cross Reference tells me its a 71314. What is the correct A.O. Smith replacement motor?
Reply
Hi GVP, This A.O. Smith 1 HP EE Full Rate Motor (B2841) will be the correct replacement motor for your WFE-4 pump. When replacing the motor we also recommend getting the Pentair/Purex Whisperflo Tune Up Kit p/n GOKIT32 or GOKIT32SALT.
Reply
Regarding my question below about a WFE-4 Square Flange Motor.Is there a 2-speed replacement motor you can recommend to use?
The decal says its a Pentair Part O-177450-03. Cross Reference tells me its a 71314.
Reply
Inyopools.com,
I currently have a K63CXESD-4791 Emerson 1HP pool pump with 56Y frame. Which route would you recommend going.. Energy efficient or Dual speed (and very very quiet) for a 10,000 gallon pool and which model? At the same time, I am trying to reduce my bill by 30 to 50 percent.
Thank you in advance. Your help is greatly appreciated.
Thank you and have a great day!
New pool owner,
Donte Avery
Reply
Hi Donte, The 2-Green 1 HP Full Rate Dual Speed Motor (B2982T) would be the recommend option.
Reply
I am replacing my motor for my pool water feature. Part #B841. Does this include the seal kit?
Reply
Hi JAB, The pump seal kit is not included with the motor if you can provide us with the model of the pump housing we can find out if a seal kit is available.
Reply
Will this motor fit my WFE 4 pentair whisperflo pump
Reply
Hello, Yes this WFE-4 motor is the Pentair manufacturer OEM replacement motor for the Whisperflo pump series. We would also recommend that you replace the seals with the Tune Up Kit Pentair/Purex Whisperflo. This seal kit includes the shaft seal and all the replacement the o-rings.
Reply
Can I replace the Centurion pool pump Part #7-177080-24 with #B2841 and B2848?
I didn't see on the B2841 web page that it's compatible to 7-177080-24.
What's the difference between B2841 and 841, B2848 and 848?
Reply
Yes the 7-177080-24 can be replaced with either B2841 or B2848. The B2841 is the energy efficient version and the B2848 is the standard version. The B2841 and B841 are the same motor the B2841 is just the newest part # but some motor still have B841 on them so that's why we list both #'s.
Reply
What are the part numbers of the shaft seal and O rings for the Centurion pool pump B2841?
Reply
I would need the model of your pump, not the motor, to determine the correct shaft seal and o-rings for your pump.
Reply
Would this motor fit a Will this pump fit a Hayward Tri Star model SP3207Z1BER with a 1.0 HP motor and a 56Y frame?
Reply
I need to replace the capacitors on this pump. Does this pump have both run and start capacitors? What are their replacement numbers?
Reply
Hi William, This Motor only uses a 50 MFD 370 Volt Run Capacitor (RD-50-370) it does not have a start capacitor.
Reply
We have a Magnetek Centurion II Switchless motor we can not read any of the numbers on the tag except 236...8460....then on the end of the tag is 175367-15. We are not sure of the horsepower, but our pool is 17,500 gal.
Is there a reset button anywhere on the motor??? It does have power going to it because when the timer is turned on it makes a clicking sound like something is stuck.
Need HELP bad in Port Richey Florida,
Thanks
Nancy R.
Reply
Hi Nancy, None of the number's provided cross references to a replacement motor, if you can can send is photos of the label and of the pump housing we can see what we can find.
Reply
Hi all, I have a Century Centurian 1 HP pool pump, #177450 . I wanted to calculate the energy it uses per day to determine if I can replace it with a more efficient pump. 115V X 14.8A = 1702 W. If the pump runs for 4 hours/day, can I say that my energy use per day is 1.7Kw x 4 hrs = 6.8 kph? What pump will most drastically reduce my energy usage today? Thanks!
Reply
Peter, If you are looking at reducing energy costs, I would recommend a variable speed pump. Reducing the rpm's, will help save on energy costs. Please note that the variable speed pump run at 230/240v. You can view the variable speed pumps we carry here.
Reply
I have a Pentair WFE-4 pump that has a motor that is howling and shuts down after about 30 seconds. After about 1 minute it will start up again and do the same thing. The shaft is not turning so I think it is easier to change the motor. What would be the proper replacement motor?
Reply

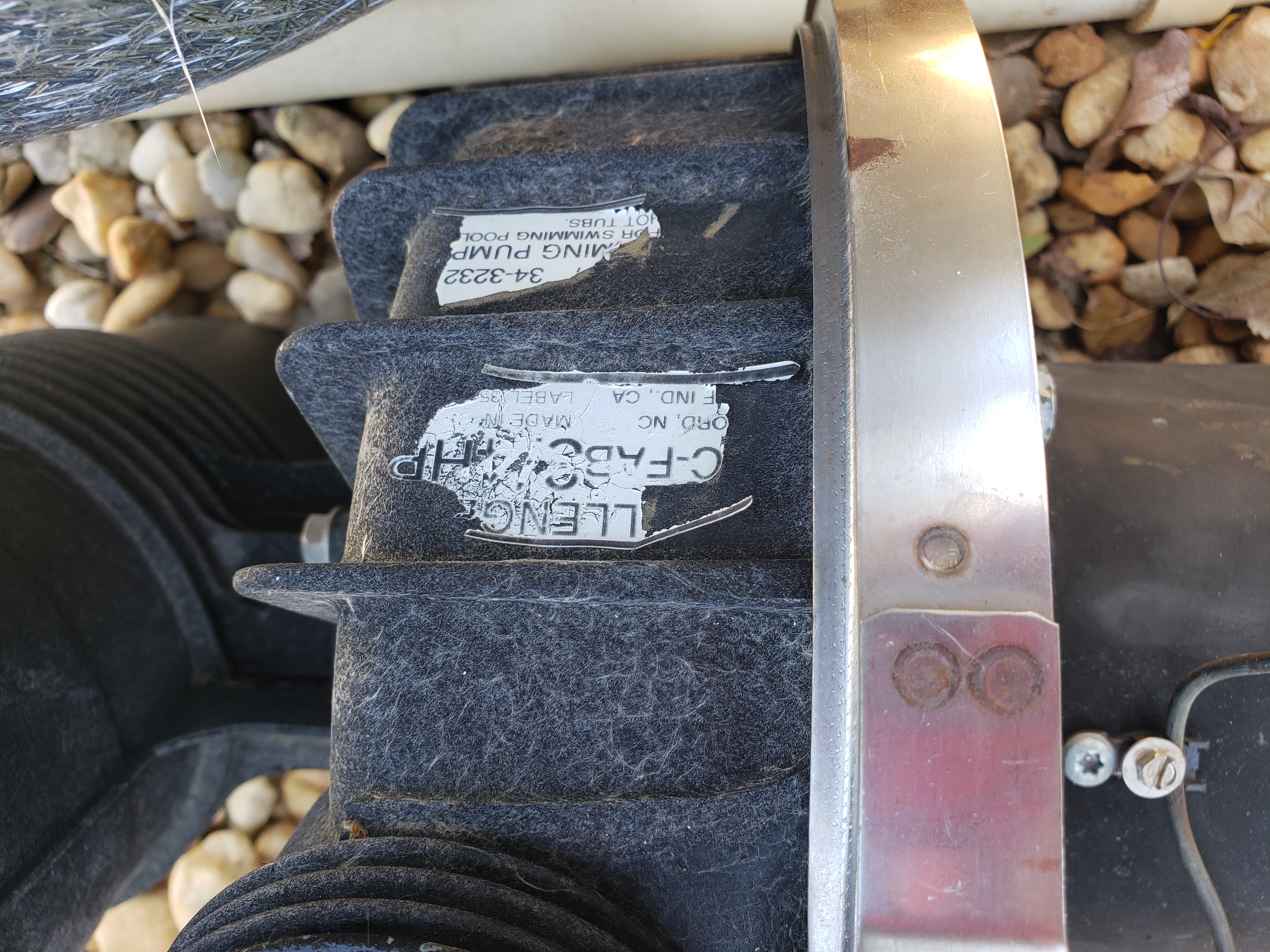

need to replace a motor for a pac fab pump but the label is sun bleached. There is a serial # on the inside 6084AX CD22
Reply
Hello Chris, from what I got off of the 6084AX it pulled up 1 HP Square Flange Motor (C1245, B2853) please make sure your specs match up and frame. I would highly recommend also a GOKIT which has all your seals, orings, and gaskets.
Reply
Hi,
I need t replace the Motor of a Pentair Wisperflo:
Pump Model # WF-26
Part # 011773
Motor # 177475
Hp 1.5
S.F. HP 1.65
Questions:
1) Mine says 1.5 HP with Total HP 1.65. Will this model that is 1 HP (less) but same total HP 1.65 work? I also see that the description of B2842 (also a 1 HP) mentions my Motor # 177475, but this one does not.
2) Can I get this one in Almond color? So it matches the pump?
Reply
Hi, Joe. Based on your pump model and info, you can use the B2841 (energy efficient) or B2848 (standard). The Pentair OEM Motor - 071314S is the almond color motor for the WF-26 pump.
Reply
Our pool company hooked the pool sweep up to the pool pump recently, and now the pump has burned out. It's a Pentair Whisper flo 1.65 pump. Should the replacement pump motor be 1 hp or 1.5 for a 20 gal. pool...or more since it's trying to run the polaris pool sweep too?
Reply
The replacement motor for a Whisperflo with a total horsepower of 1.65 is the 1 HP Motor EE - Full Rate (B2841, B2841V1). You will also need the shaft seal assembly or tune-up kit, that you can find by clicking here. The horsepower is determined by the gallons of the pool and other areas. Please view our How to Size a Pool Pump for Your In-Ground Pool link. If you need further assistance you may email us at upload@inyopools.com
Reply
I need to replace my 1HP Pentair model O-177450-03 motor. I think the replacement parts to order are the Part # B841 motor and Part # 5250-106 shaft seal. Is that correct? Thanks!
Reply
Yes sir, those are the correct replacement parts for your WhisperFlo.
Reply
Hello, I'm wondering if this pump would replace an A.O. Smith part # 7-177450-03, 56Y, 60hz, 3450 RPM, 208-230/115 Volt, 7.8-7.4/14.8 AMPS motor? Also, what seals would be required.
Reply
Hello- The 1 HP Motor EE - Full Rate (B2841, B2841V1) is the correct motor replacement and we would need the front plastic pump model that the motor is mounted to in order to cross reference which tune up kit that you'd need.
Reply
I'm looking for a replacement for my jet pump motor. The original Hot Spring Classic motor is Sta-rite 30215 (1 hp) motor. I cannot find specs on the original motor. It says Max-E-Glas on it.
Reply
Good afternoon Gary Johnson, I would need the service factor (SF) off of your old motor. This is a Full rated motor meaning it has a SF of 1.65 giving it a total Hp of 1.65hp. The motor you had on there was a 1hp I just need to know if its full rated or up rated.
Reply
I'm replacing the terminal board on a Pentair wfe-4 208-230/115 volts i thought i took a picture of it before i pulled the wires but i don't have one and ineed to know which wire goes where. i belive i have it correct but i don't know for sure. is there a diagram or a picture of a properly wired terminal borad? thanks
Reply
Hi, AJ. You can view our How To: Replace the Terminal Board on an AO Smith Motor for wiring instructions.
Reply
My pump is a Pentair 7-177450-03. Is the pump you advertise compatible with mine or is it actually a diiffernt pump I would need? Please advise.
Thanks,
Robert
Reply
Hi, The B2841 motor is the direct aftermarket replacement to the Pentair 7-177450-03. The only difference is the color.
Reply
I have B2841 replacement pool pump motor. I have WhisperFlow WFE-4 model pump. What is the recommended tune-up kit part number?
Thanks,
Ken
Reply
Hi, Ken. The Pentair/Purex Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT is the kit needed for the Whisperflo pump.
Reply
Hi,
I am looking at replacing my pump, current pump Century MODEL:BPA450, CAT: BPA450, PART: 0-F56AB02A01-03, HP:1.65, SF:1.0 Volts:208-230 and Amp:7.8-7.4/14.8, Type:CX, Frame: Y56Y. Will this HP motor be a good replacement pump? Most things match except that the HP is higher then my current one and SF is lower, it is reversed?
Also is there a better (energy efficient/quieter) model that can go with similar volts/amp/wiring?
Thanks,
Ranchi
Reply
Yes, the B841 would be a suitable replacement motor for your pump.
Reply
hi, I have a Century B2841 and would like to change it to a B2854. will that fit??
Thanks
Reply
Hi, Wolfgang. The B2841 motor you currently have will provide you with the same total horsepower as the B2854 using less energy. That's because the B2841 is a full rate motor with a high service factor. When you multiply the rated hp by the service factor you get the total permissible horsepower.
Reply
Hi I am looking to replace motor on a Jandy Stealth Model# SHPM1.5 Serial # R09FA0374. All the specs match the current A.O Smith motor. Is this the correct replacement?
Reply
Hello Jason, If you are looking to replace the motor with an Energy Efficient 1.5HP version, I would recommend the B842 1.5 HP Motor EE Full Rate (B2842).
Reply
I have a motor pool B2848 brand new HP= 1 SF 1.65 volts 230/115 RPM 3450 FR Y56Y who replaced my old motor pool B848. There is no water pressure to move the KREEPY KRAULY . Do you recommend to buy the B2841? The motor pool is 75 feet away from the electrical panel.
Reply
Hi, Fernando. I would recommend the B2841 motor because it's an energy efficient replacement for the B2848 motor.
Reply
Hello,
I'm just about to order a new B2841 Century Motor 1HP motor and I'm wondering if there is any advantage to upgrading to a 1.5 HP.
I'm happy with the 700 Gal bed 5 jet spa hooked up to a 250 BTU Pentair Heater and a blower but that little extra power of water to help the tired body after a hard days work maybe good or not so good. Saying that, I don't want to be be surfing the waves either.
Thanks for your input
Reply
Hello Glenn-When upgrading the motor size you have to take a couple things into consideration. The first would be whether or not your filter can handle the additional flow rate by the higher HP. The second being that you will need to change the impeller and possibly diffuser on the pump. The only advantage to going to a higher HP would be to increase the waterflow. But keep in mind it will use more energy as well.
Reply
Century Centurion, A.O. Smith, Serial #BY09-15, Part # 7-177475-20, Type CX, FR Y56Y, 1HP, 60 HZ, 3450 RPM, Volts 230/115, Amps 8.0/16.0, Time CONT, ENCL DP,FORM KJM, Code F, insulated class B, AMB 40 degrees C.
What replacement part do I need?
Reply
Hi, Stephen. You can use this B841 motor as an energy efficient replacement for p/n 7-177475-20.
Reply
shaft kit found this # on impellor c105-138pe
Reply
Hi. James. You would need the Sta-Rite Dura-Glas & Max-E-Glas Pump Tune Up Kit - GOKIT54 based on the impeller p/n provided.
Reply
Need to replace USQ1102 115/230 1HP. Wet end # 2R A5E-124L there may be something before the 2R label is damaged. Will this pump work for me? And what other parts will be needed? Thanks!
Reply
By the partial model number you provided I believe what you have is the Sta-Rite Dura-Glas so the seal kit you need to go with that motor is part number GOKIT54.
Reply
I need a new pump motor mine is burned up, the part number is 01-177450-03 for the motor I have, will this motor work on my pump? Also are there any parts that I'll need that don't come with this?
Reply
Hi Robbie, Yes this would be the correct replacement motor for your 01-177450-03 motor.
Reply
My pool pump is making a terrible noise. Needs to be replaced I'm sure, but has no name on it. It is made in China and says UST1102 on top and UAK Regal Beloit EPC, Inc. on the bottom of the label. It is Motor Model C48K2N143C1C, Serial 21313CH. It is 115/230 volts and 1 HP. RPM 3450 FR 56J HZ.
What pump do I need to purchase?
Reply
You would need to replace it with the UST1102. You should also replace the seals and gaskets. In order to cross-reference the correct seals you would need to have the model name or number of the front pump housing that the motor is bolted to.
Reply
I am looking to replace the motor on my whisperflo wf-4 pump which one is recommended
Reply
Hello Robert, your replacement motor is 1 HP Standard Motor - Full Rate (B2848) and you want to replace seals with Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
We need to replace our pool pump. I can't find anything on the existing part #. What do I need to know to look for the right pump. I have all the specifications, but can't find a comparable one. Mine is a A.O. Smith / Century Centurion part # 7 -184981 -23
Reply
This motor you have listed (1 HP EE Full Rate B2841 shows my serial number (7-165199-05) as an alternate so should be the correct motor for my pool, Can you tell me what tune up kit I need for it?
Thanks.
Reply
Yes you are correct this is the proper replacement motor for your 7-165199-05 motor. We would need to know the make and model of your pump to determine your seal kit. Could you email us a few photos showing a wide shot of your pump including where the plumbing goes in and out of the pump. You can reply to this email with photos or send them to upload@inyopols.com
Reply
I have a MagneTek 177450 which is 1 1/2 hp. When I enter the part # the replacement is only 1hp is this correct?
Reply
Yes, this would be the correct replacement motor. Its total horse power is equivalent to the 1.5 horse power up rated version. It can be a little confusing but they are same motor but this model is a little more energy efficient then the standard 1.5 hp up rated version.
Reply
Can I use this b2841v1. 1hp motor to my Challenger pump model CHII-N1-2F? And what type of seal kit will be needed?
Reply
I have a Century Centurion/ A.O. Smith Motor that i need to replace but can't find the right match it seems.
This is the information from the Label:
Cat: (blank), Serial: 306093M, Part: 7-193985-04, Type: CX, Frame: P56Y, Hp:(*****), Sf: (*****), Ph: 1, Hz: 60, Rpm: 3450, Volts: 230/115, Amps: SF 7.1/14.2, Time: CONT, Encl: DP, Form: KJM, Code: L, Insulated Glass?: B, Amps: 50C
Reply
I have a Cat B 841, Part 8-165199-05 HP 1.0 motor that needs to be replaced, Century Centurion. What are the best models for replacement? Thanks, Lloyd.
Reply
Hi, Lloyd. This Century B2841 is the direct replacement motor. There is not a better single speed option.
Reply
I have to replace my pump motor. Not sure which motor I need. There is no Cat # but Part # 7-193993-05, Type CX, Frame Y56Y is on the plate. It is a century cemturion motor and the pump it is going on is a Flo Pro model FHPM 1.0 1 hp-self priming pump
Reply
What is the replacement motor for a pump model number SF-N2-1A, part number 340042. 1 HP S.F. HP 1.25/.15, 3450/1725 rpm, 230V
Reply
Hi, Michael Sedam. The Century B981 motor is the correct replacement for model # SF-N2-1A. I would also recommend that you get the Superflo Tune Up Kit - GOKIT78.
Reply
thanks for your support.If I chose ECM16SQU motor, is any other accessories needed for the pump? Pump model is WhisperFlo WFE-4, 1 hp,1.65 service factor
Reply
Hi, Jing. You will need to purchase the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I have a Pentair Pool Filter motor. It is a part number A.O. Smith 177456-03 and a Y56Y. What is the replacement for this? Any advice is greatly appreciated. Thank You
Reply
I have a Pentair WhisperFlo WF26 with Century Centurion motor 8-177475-20. 1.5 hp 1.1 S.F. FRy56y
I would like to know if I can use the Century B2841V1 with 1.0 hp and 1.65 S.F. for more efficiency?
I read in your Q&A elsewhere that you had suggested Century B2854 as the replacement motor for the WF26.
Thank you.
Reply
Hi, Clement. This Century B841 can be used as an energy efficient replacement option. I will also recommend getting the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
What is an EE replacement for the Century Centurion , Serial#CA12-06, Part# 7-177079-04, FR = P65Y, HP = .75, SF = 1.65 ?
Reply
Looking to replace the motor on a Pentair WFE-4, Part # 011513. Motor # 177450. Just double checking this is the right one. Thanks.
Reply
Hi, Mike. Yes, this B2841 is the correct replacement. I will also recommend getting the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I am looking for a replacement motor for pentair WFE-26 1.5 HP. Spec on motor tag is Q-177450-3, FR y56y type cx volts 208-230/115, amp 7.4-7.8/14.8. Thanks
Reply
This would be the correct replacement motor for your pump. You can also use the GOKIT32 for a chlorine pool or the GOKIT32SALT for a saltwater swimming pool for the seals and gaskets.
Reply
I Have a Jandy Pro Series model #FHPM1.0 pool pump with the bearings going out. Will this motor fit this pump? Is there a bearing replacement kit?
Thanks. Dennis
Reply
WhisperFlo WFE-4 and the seal is blown multiple times over the last 2 years. Just opened pool and the motor is leaking underneath again. Motor is over 5 years old. Motor is also making a high pitched noise for the first time, but running fine. Worth tuning up again or should the motor be replaced? Thanks
Reply
Hi, Craig. You can replace the motor and the seals. This B841 along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT are the parts you'll need.
Reply

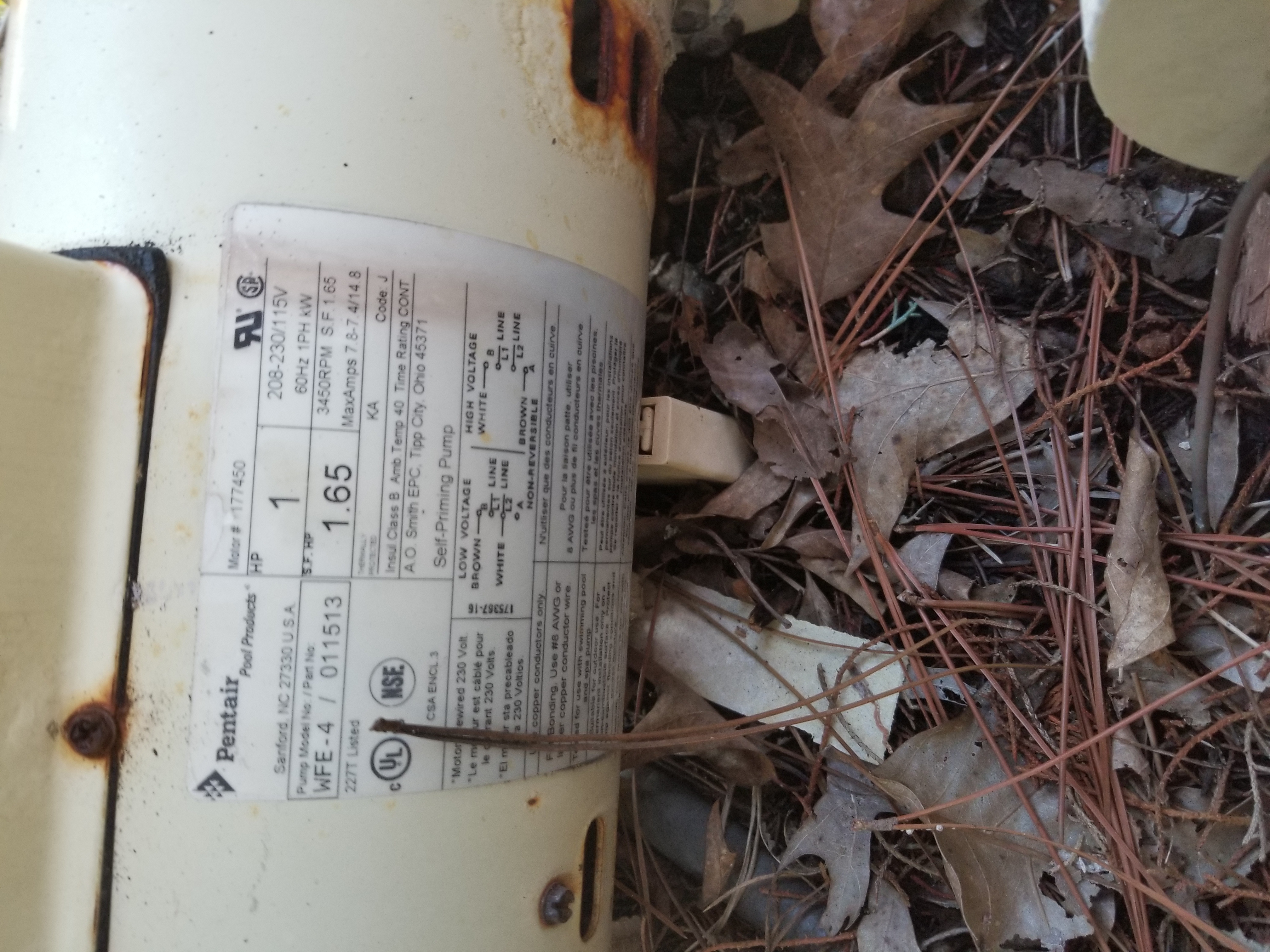

I need to replace Pentair WFE-4; part no. 011513; motor #196233; 1 HP. Is this the right replacement model? Thanks.
Reply
Hi. Yes, this is the correct replacement motor for the WFE-4 pump. You should also get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I need a replacement for my Pentair pump motor (part no. 7-177474-01). Is this the one I need?
Reply
Hello will the Part B841 MFG Code B284 Replaces QC1102 looks like it is not TEFC Totally enclosed will it actually be a complete replacement for QC1102 and ok to be located outside?
My existing QC1102 on a WhispareFlo Pentair pump will not turn over hums a lot and once I get the air (can't figure that one out) it usually starts but will trip the breaker first each time it trys to start automatically. Should I replace the motor or keep trying to find out why I am getting air in the system?
Reply
Hi, Kevin. This B2841 will replace the QC1102 motor. The humming and tripping of the breaker could be more than a faulty capacitor, possibly the motor winding. I will also recommend getting the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT with this B2841 motor.
Reply
I am currently using the B2848 motor for my challenger 1hp pool pump. I have had the pump for 15years. The motor is starting to make some noises. Also I would like a more energy efficient pump. Would the B2841 be a good replacement for me?
Reply

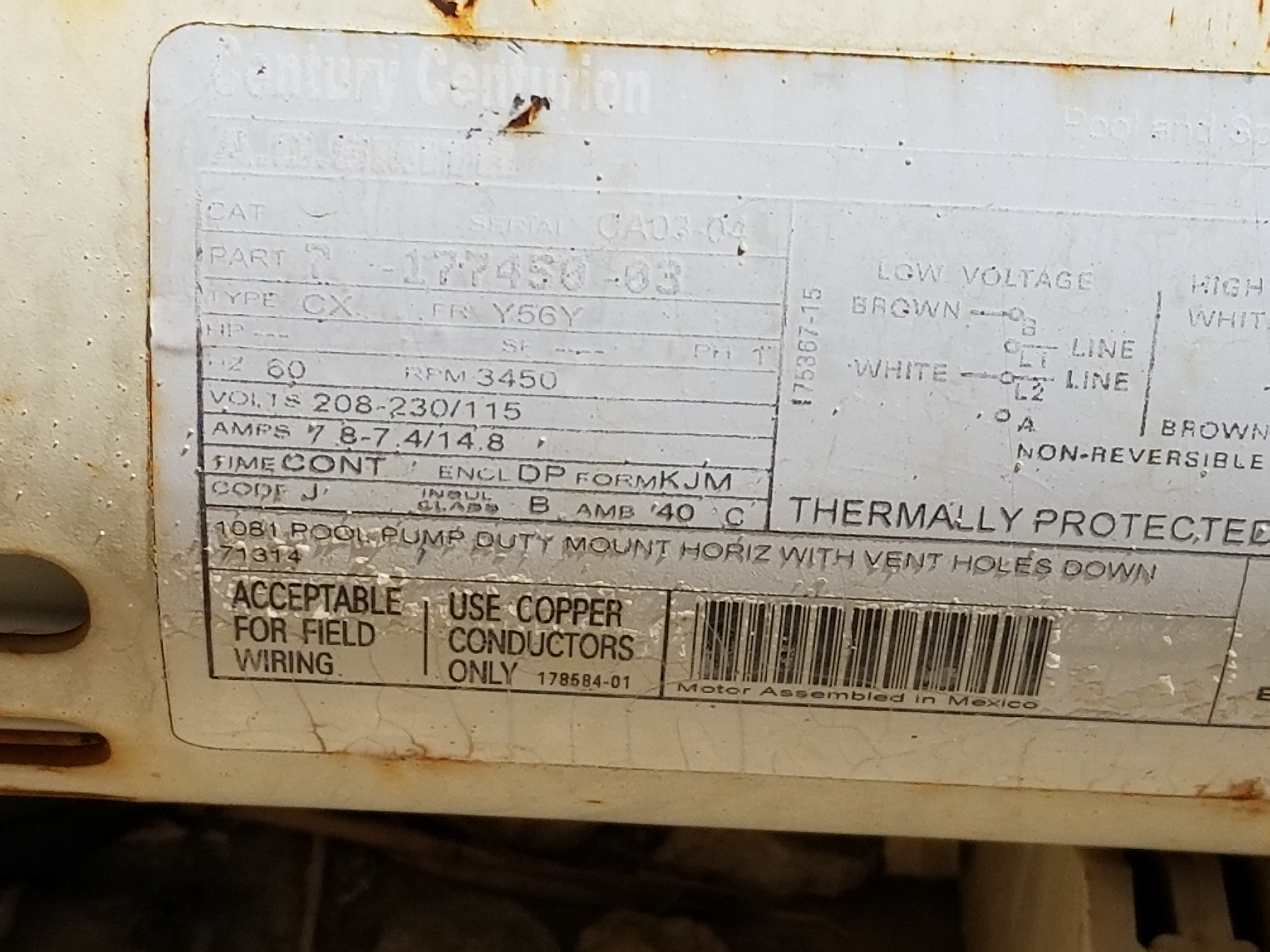

I have a Century Centurion part # 7-177450-03 with a WhisperFlo pump. It looks like your B2841 would work but not available in California. Your recommendation please? I also have solar heating for the pool. Is a variable speed a better way to go?
Please explain advantage if that is your recommendation. Thanks
Reply
Hi, HGC. Since you're in California, your replacement options will be the B2982 - Dual Speed Motor or the ECM16SQU - Variable Speed Motor. The variable speed option will provide you with a wider operation selection allowing you to maximize your energy savings and functionality over the dual speed motor which will require an external controller or switch. Whichever option you choose, I will also recommend that you get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
Hi, I don't have any flow through the filter, and suspect the motor gone bad, oddly this happened after switching on the solar heater with older rubber panels! Now I have some murky dark water in the filter basket? I am in California and have a Century Centurion A.O. Smith motor with Part # 7-177450-03, serial # BW3-13 attached to a Purex Triton whisper flo pump - high perfomance pump. What would be the best energy efficient replacement?
Reply
Hi, Alex. Since you're in California you can replace your motor with a single speed motor, you can only use a Dual Speed - B2982 or Variable Speed - ECM16SQU. You will also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply

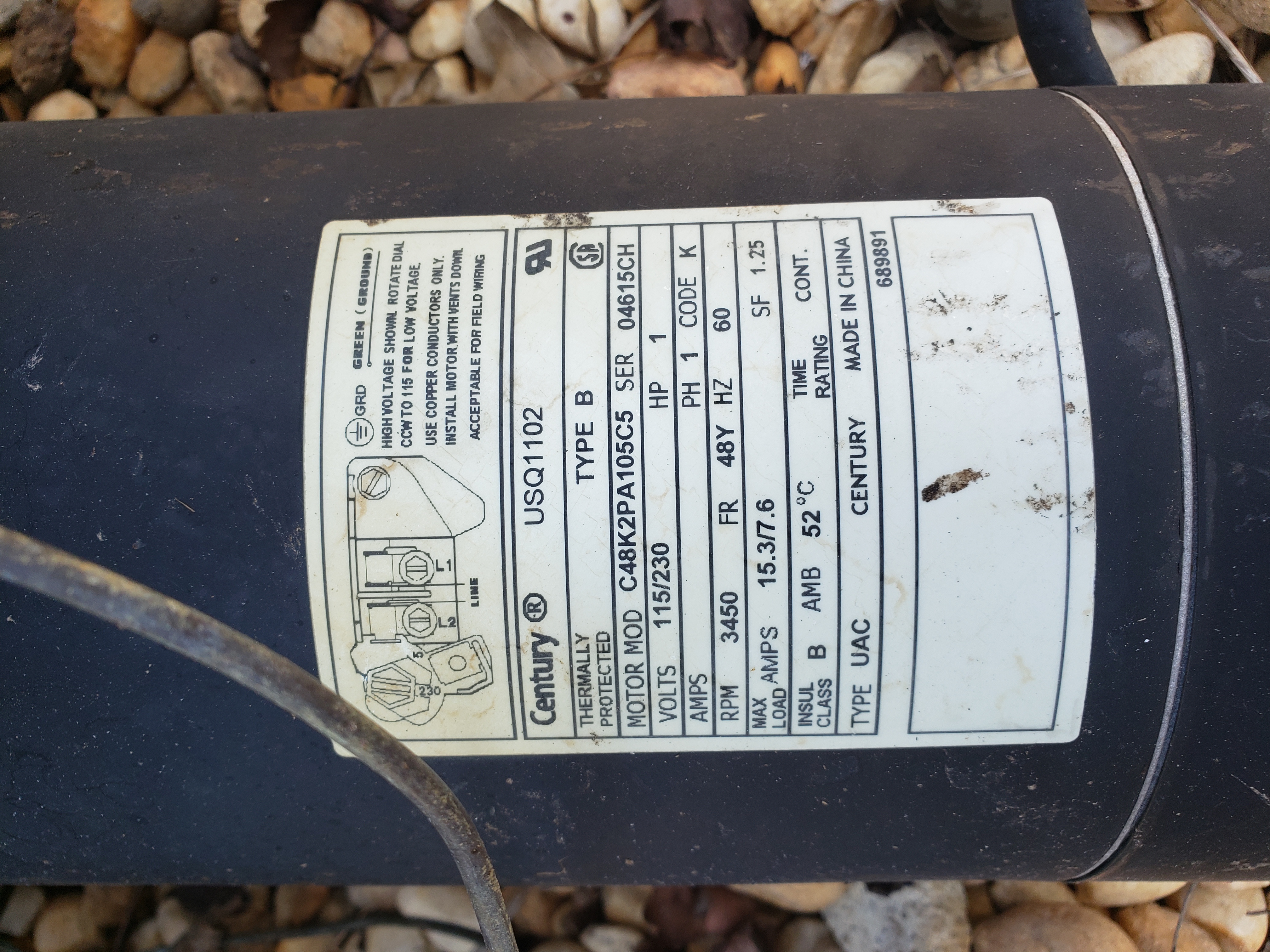

Is this the best motor to replace a USQ1102? The original motor looked like this and lasted 15 years. I've been through 2 in the last 5 years. They run extremely hot and I also wondered if a higher HP motor (1.5 vs 1) would last longer. I have a 20 circuit so should be OK.
Reply
Hi, Pete. This B2841 is a suitable replacement for the USQ1102 motor. It hard to say without knowing what caused the other motors to fail prematurely. Worn pump parts like the impeller, diffuser, high/low voltage, improper ventilation etc can cause a motor to run hot.
Reply
Hi! I'm planning to order PART # B841 to replace a two speed motor. See pics with current motor and pump. What shaft seal do I need? Thanks!
Hi Reed, You will require this Jandy Flo Pro Shaft Seal for your pump.
Reply
I have a Pentair 0-177450-03 moter loud bearings will I need any seal kit to swap moter
Reply
Hello, What is the brand and the model of the pump you have? If you are unsure, can you please take a side view picture of the entire pump ?
Reply
I need to replacement a pump (with kit) It's an O. Smith Centurion CAT B847 Part O-177079-04 (fountain pump) Type CK Frame P56Y HP 3/4 SF 1.65 PH 1 HZ 60 RPM 3450 Volts 230/115 AMPA 7.1/14.2 Time CONT ENCL DP Form KJM Code Inbul class B AMB 50 degrees C 1081 Pool Pump duty mount with vent holes down
Is there an upgrade to this that will fit?
Reply
Hi, Bob. They're a few options as far as an upgrade based on what you want to do. You can use this B2841V1 along with the impeller to increase the pump's water flow or just running a higher hp motor.
Reply
The current (dead) pump is just a 3/4 HP, the one you suggest is 1 HP, so I assume this would be an upgrade with water flow. What is included in the gasket kit, etc?
Reply
Hi, Bob. The direct replacement to your original motor is Part # B2661. The seals are specific to the pump housing which we will need from you.
Reply
Your answer to my last question was : Hi, Bob. The direct replacement to your original motor is Part # B2661. The seals are specific to the pump housing which we will need from you. Reply An here is where the problem lies.....I am not familiar enough with this pump....I have specs and a picture to this point...are we stuck?
Reply
Bob, Please provide a picture of your pump housing with is what the motor is mounted to.
Reply
O.K....where do I get the seal info. in order to provide that to you? I assumed there was a seal kit specific to this particular pump....no?
Reply
Bob, Please provide pictures of your pump so that we can identify it and get you those parts.
Reply

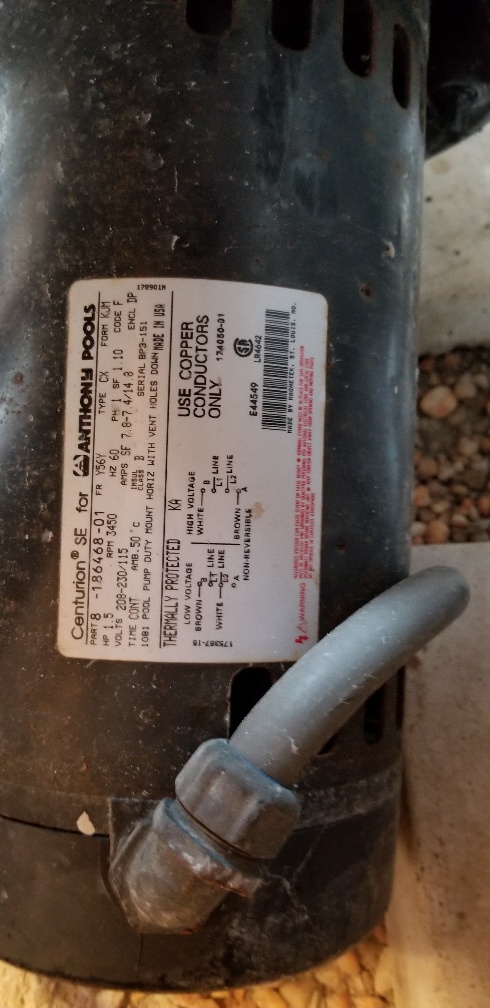

Hi, Looking to replace my pump motor.
The label reads Centurion SE, Part number: 8-186468-01, HP 1.5, RPM 3450, FR: Y56Y, TYPE: CX, CODE: F, TIME: CONT
I notice this is only a 1-HP motor. Would this be a proper replacement for what I currently have and would going from 1.5HP to 1HP decrease any performance? My primary reason to replace the motor for a newer energy efficient and hopefully cheaper electric bill. The current motor is at least 20 years old. Other options appricated
Hi Barry. This B2841V1 is the correct replacement motor. You will not lose performance because this 1 HP Full Rate motor has a Total HP (THP) of 1.65. Replacing your existing motor with either a Dual Speed - B2982 or a Variable Speed - ECM16SQU are your highest energy efficient options.
Reply
Additional question: The EMC16SQU your recommending above has a frame style of 48Y. Will this fit, my frame is a Y56Y?
Reply
Hi, Barry. Yes, it will. The 48Y Frame motor includes a spacer that will allow it to fit.
Reply
Looking to replace my pool motor. It's listed as an Efficient Model #1203175402 and is a 1HP 115/208 RPM 3450. Can you recommend a replacement motor.
Thanks
Dave
Reply
I have an older Century Centurion whisperflow part 7 - 177450 -04 CA03-04 1hp 3450 rpm. 1 speed. What motor can I use to only replace the motor? It is also a square flange.
Hello, This will be the proper motor replacement for your pump.http://www.inyopools.com/Products/00200017039437.htm?Keywords=7-177450-03
Reply
Hello, You've said I can use the B2841V1 motor to replace my current one Thank You. Now I just need to know what else I would need such as which and if I need a shaft seal, O rings etc. I'm a female doing this on my on lol.
Reply
Hello, What would be the model number of the entire pump?
Reply
I had a single speed motor and now upgraded to B2841V1 two speed motor. Had to Chang to 4 strand wire, black, white, red, ground. I have found conflicting information online for wiring. L1, L2, A, green. The only one I know for sure is green is ground. Otherwise which is the high speed, low speed and common?
Reply
Hi. This B2841V1 is a single speed motor, not a dual speed. A dual speed motor will have a wiring diagram on the motor that you can reference. We can assist you with the wiring if you provide a picture of the motor and your controller.
Reply
I need to replace motor on a Jandy 1hp stealth hi head pump. Dual voltage. Do I need pump seal also.
Please advise
Replacing AC Smith pool pump motor. Cat B228SE. 1.0 HP what pump do i need to replace with? It is square
Reply
Hello, With the model number provided, you will need motor number http://www.inyopools.com/Products/07501352022109.htm?Keywords=b228seWe also highly recommend changing the o-rings on the pump, to reseal the motor. We will need to know the brand and the model of the entire pump. If you are unsure of the model number of the entire pump, can you please send a side view picture of the pump?
Reply
Replacing a B854 that was a replacement for another b4
Is there any reason to increase pump to a 165SF from the 1.1?
Need to increase efficiency and reduce power cost - looking at above motor if no need to increase power
runs 6 return jets, 5 fountain round jets, 16k gal
suggestions??
Reply
Hello.
I need to replace a Magnetek / Century Centurion 10-177450-03 pool pump motor. is this the correct replacement? Does it come with the an impeller? if not what is the correct impeller replacement?
Thanks
Reply
Hi David, Yes this motor is the correct replacement motor for the Magnetek / Century Centurion 10-177450-03 This motor does not come with the impeller however the impeller normally does not need to be replaced unless the impeller is broken. We suggest replacing your shaft seal. To suggest the proper shaft seal or impeller we would need to know the make and model of your pump common models are the Pentair Whisperflo, Pentair SuperFlo, Jandy Stealth, etc.. Could you reply back with the model of your pump or you can send us some photos. To send photos simply click on the reply link below and upload your photos.
Reply
motor/pump is running very loud. Can I replace the motor without changing the pump? Motor # 177450, 1HP. What would be the replacement motor?
Thanks Pete
Reply
Hi Peter, The motor on this page is the correct replacement for your 177450 motor. We would suggest a Tune Up Kit when replacing your motor but we would need to know the make and model of your pump. Common pump models are the Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. Could you give us the model information for your pump, simply click the reply link below to do so.
Reply
Pentair Whisperflo , WFE-4, Part#011513
Reply
Thanks Peter, you will also require the Whisperflo Tune Up Kit when you replace your motor.
Reply
Does this motor come in Almond
Reply
Yes here is the Almond 1 HP Full Rate Version of this Motor
Reply
Would this motor replace mine.
Ralph, We would suggest the USQ1102 1 HP Replacement Motor over this B2841V1 Motor. When replacing your motor we would suggest a seal kit. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Sta-Rite Dura Glas, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
I really appreciate your help.
I am looking to replace the motor on my Pentair whisperflo wf4 part #011580 1hp motor model # 177475 with this motor will I also need the tuneup kit.
Yes this motor will work as a single speed energy effiicient replacement motor and the seal kit for a chlorine pool is the GOKIT32 and for a saltwater swimming pool it would be the GOKIT32SALT.
Reply

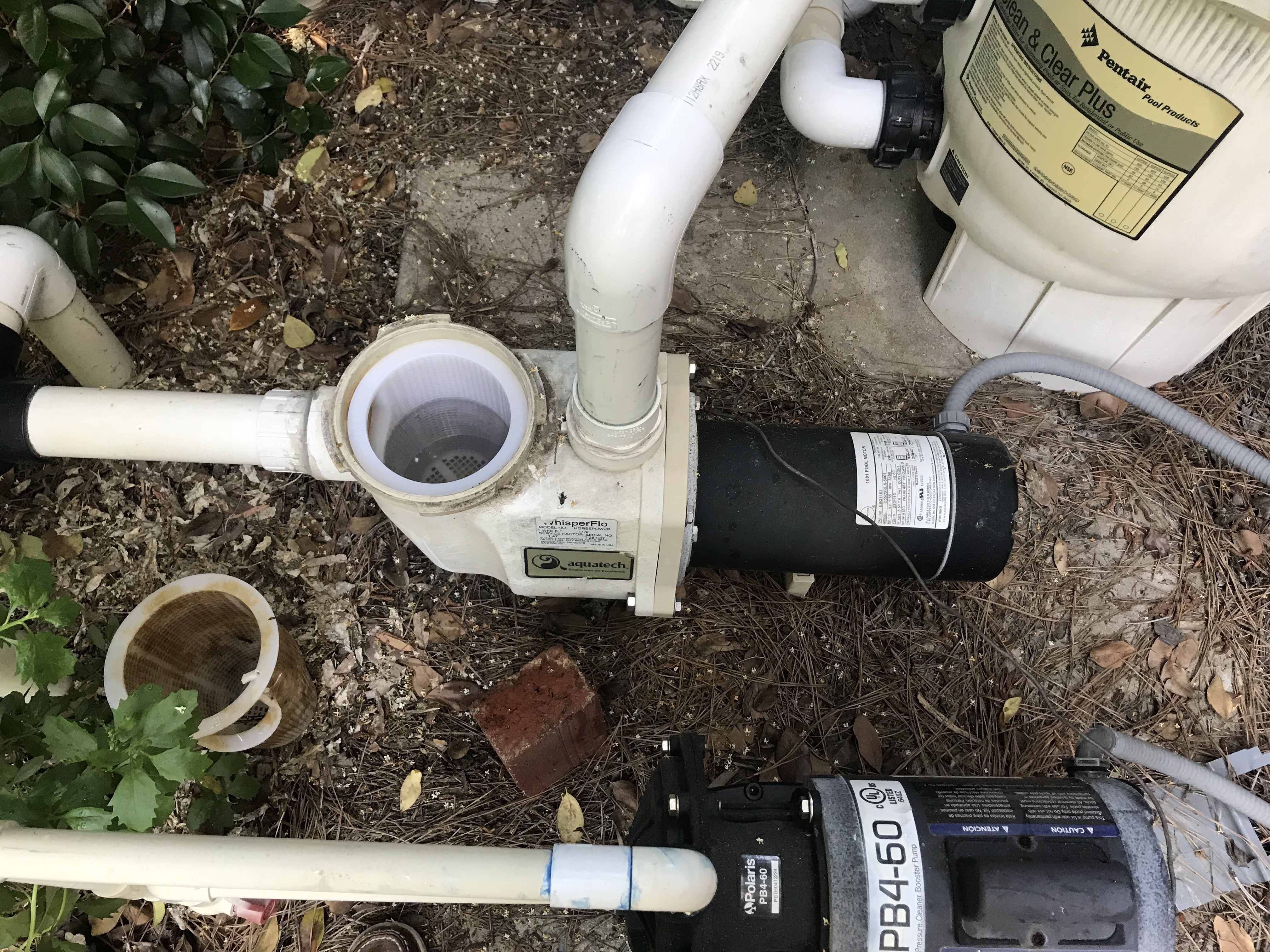

Will this motor replace the one in the picture I am sending ?? We have a 21' round pool 52' walls and our current motor is very loud and I think the barrings are on there way out. We have a Jacuzzi cartage filter system with this. Thank you!!
Hi Linda, No you will need this BN25 1 HP Replacement Motor We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Jacuzzi SLR, Jacuzzi Cygnet, Jacuzzi Magnum, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
The pump we have is not hard wired now forgot to add that.
Reply
Hi Linda, The BN25 Motor can also be hard wired.
Reply
Sorry meant to say the BN25 can be hardwired or you can use your exsisting 3 prong plug from your old pump and connect to your new motor. So you should be all good.
Reply

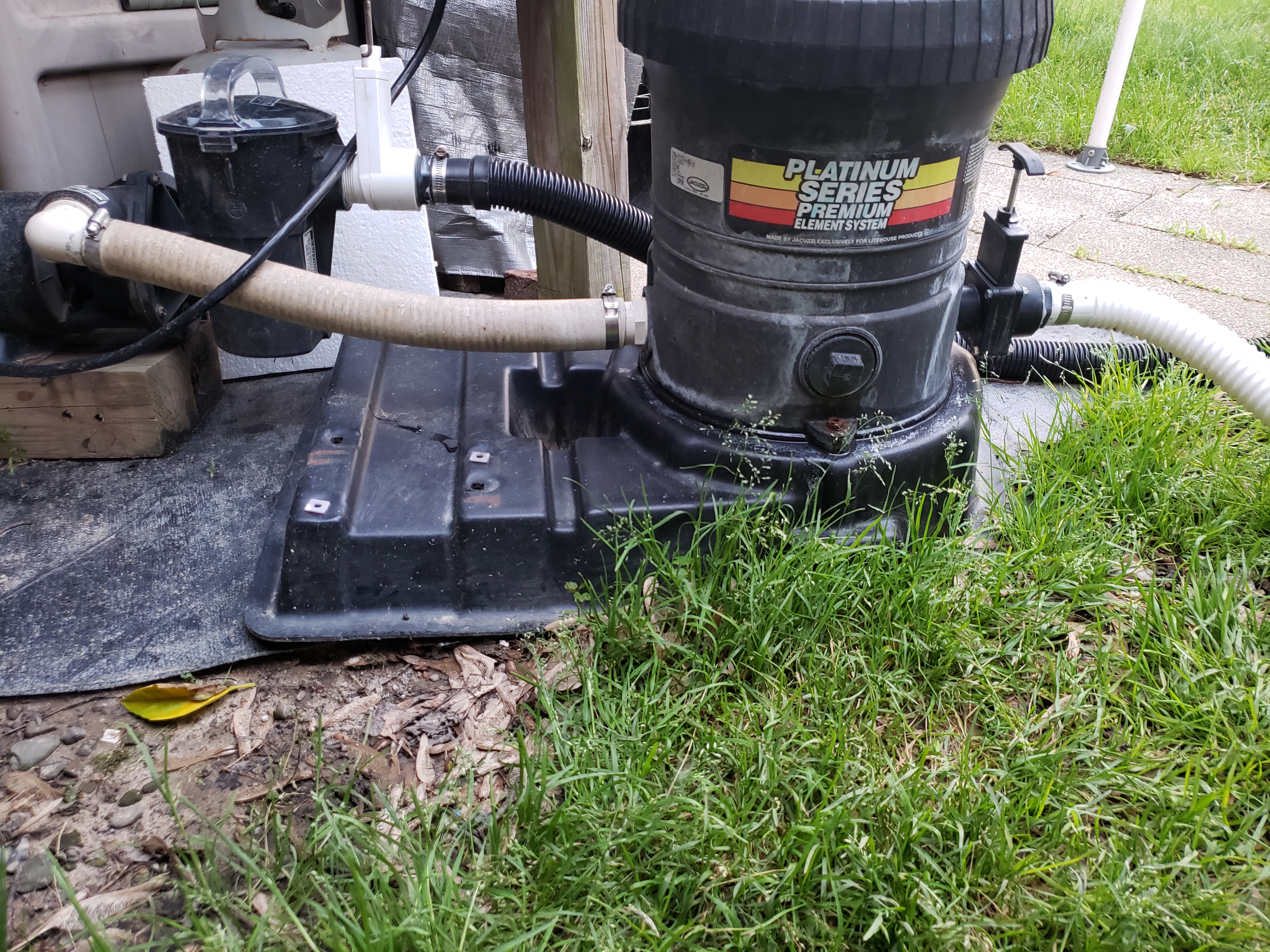

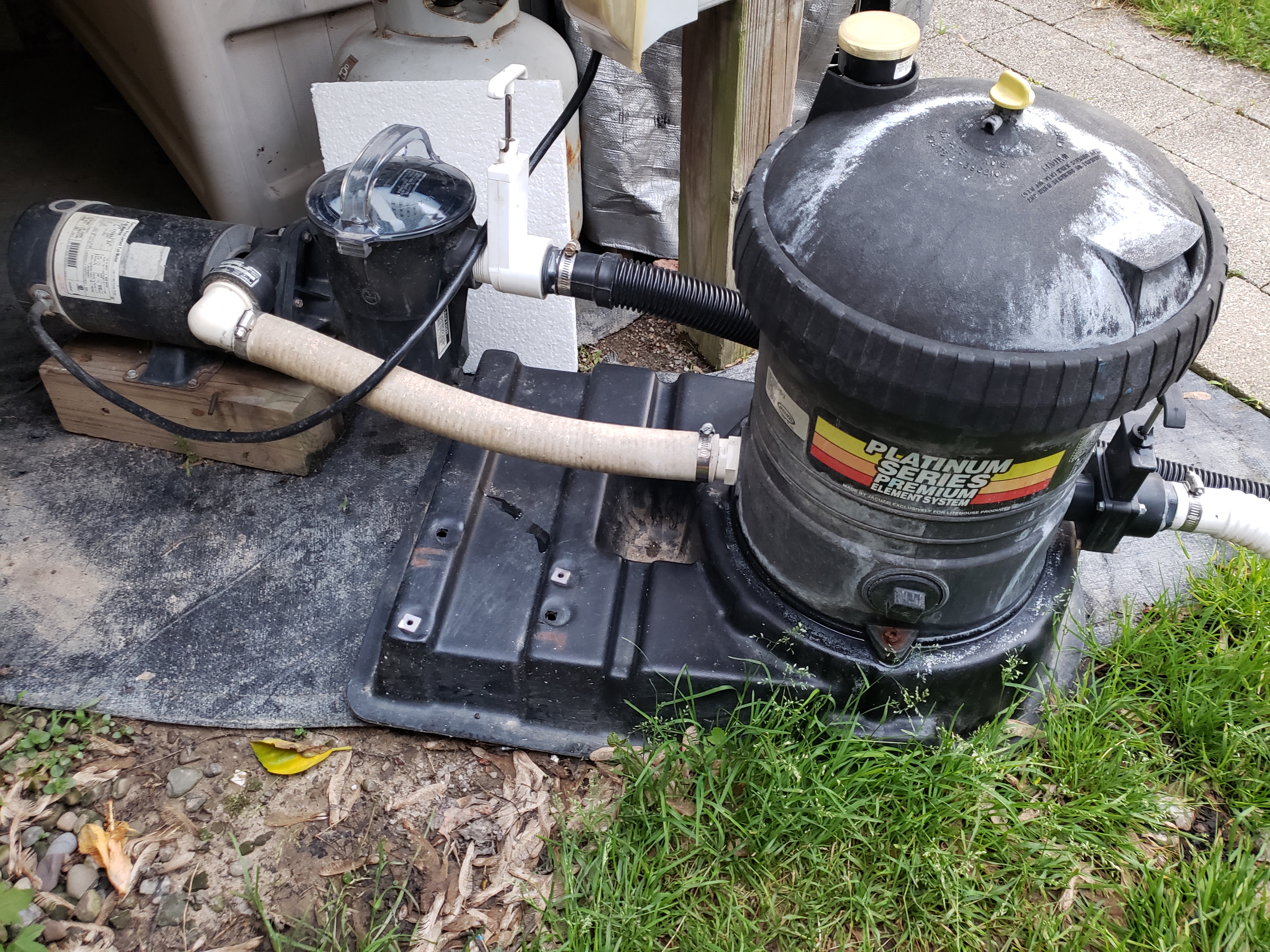

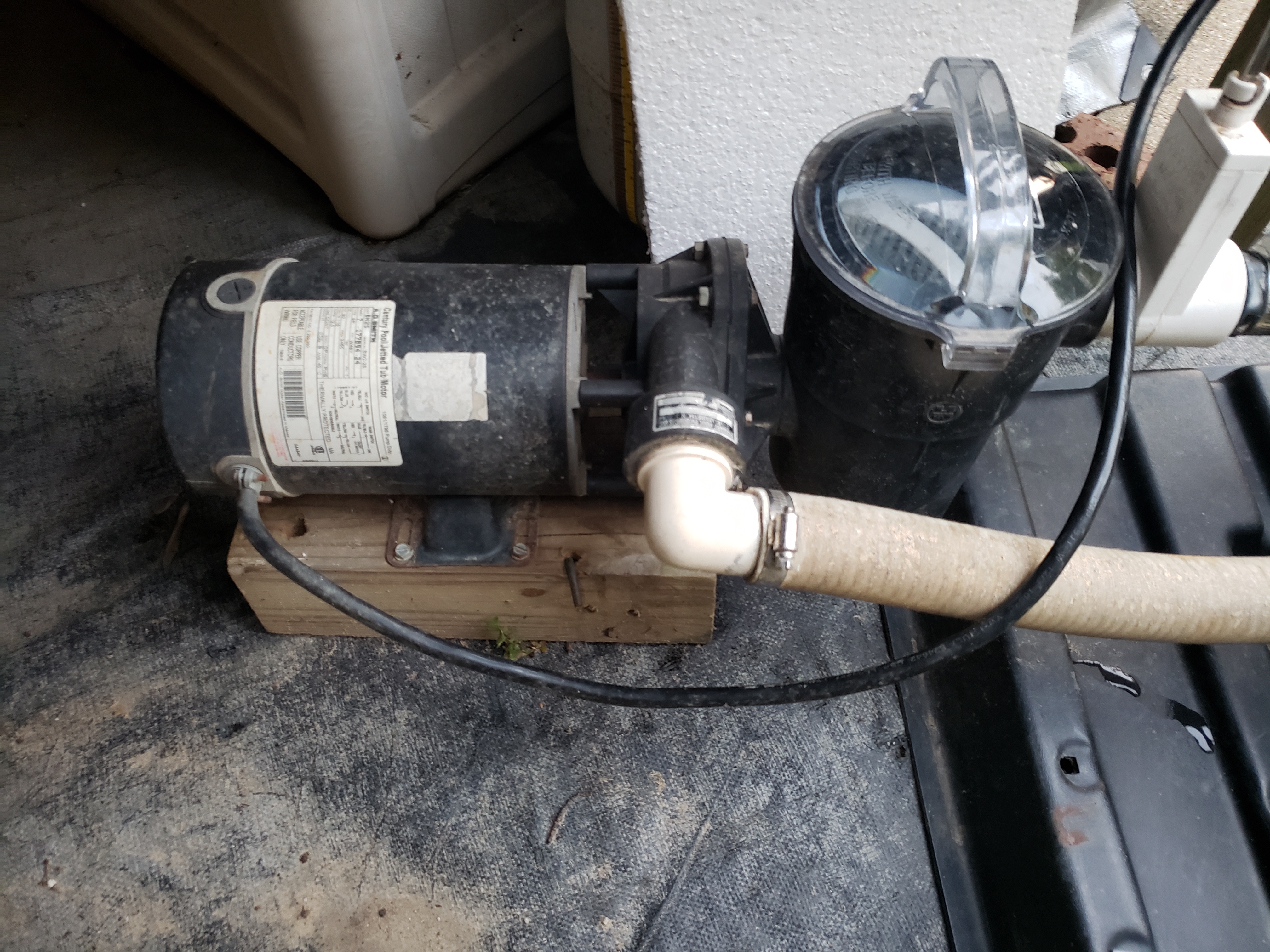

This is the motor and filter system we have now. We just want to replace the motor.
Thanks Linda those phots are quite helpful you will Need this Hayward Power Flo Shaft Seal when you replace your BN25 motor.
Reply
I need a replacement motor for our Pentair Whisperflo Pump. Will this motor work or do you recommend another?
Hello - the replacement motor for your Pentair WhisperFlo WFE-6 would be the 1.5 HP Square Flange 56Y Full Rate EE Motor - B2842
Reply
Thanks! What about the seal kit for this motor for a salt water pool? Also, will I be able to use the same propeller that I'm using with the motor I have now?
Reply
As long as the impeller is not severely worn or damaged then yes you can use it again. The seal kit for a chlorine pool is the GOKIT32 and for a saltwater pool is the GOKIT32SALT.
Reply
We had a dual speed 1 HP Century motor on our inground salt water pool. Can we replace that motor with this motor which single speed?
So the basic question is can we replace a dual speed with a single speed motor?
Reply
Hi, Brett. Yes, you can replace a dual speed motor with a single speed motor. The Total HP of the single speed motor must be equal or greater.
Reply
I have a wisperflo pump and I need to replace the motor. It is a Century Centurion A.O Smith Part 7-177450-03.
It is a saltwater 20k gallon salt water pool with a passive solar system. I attached the pool pump part diagram. What is the correct replacement motor and is there a more powerful one I can replace it with?
I am replacing the motor on my Sta-Rite Max E Pro P6E6E-206L, the motor model number is AE100EHL will this motor work. I also need a Seal kit to go with it what model number should I use?
Reply
Hello, You will need gokit79, http://www.inyopools.com/Products/00500017072606.htm
Reply
yes it is the correct motor. Use go kit # GO-KIT79 ( 90-438-2079 )
Reply
Would the replacement for a Pentair WFE-4 A.O. Smith motor # 177450, be Part # B841
Manufacturer Code B2841V1?
Yes, the A.O. Smith 1 HP Square Flange 56Y Full Rate EE Motor - B2841V1 would be a direct replacement for your existing motor, model number,177450 on your Pentair Whisperflo Standard Full Rate Energy Efficient 1 HP Pump - WFE-4.
Reply
Hi, I need to replace a Magnetek / Century Centurion 8-177450-03 pool pump motor. is this the correct replacement? And if so, are there any other items that we will need to purchase along with this part? We have a Pentair Triton II TR-100 sand filter. I will attach pictures. Thank you
Hi, Alma. This B2841V1 motor along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT are the parts you will need for your model pump.
Reply
I need a new motor. Having a hard time finding a replacement.
Pump Model WFE-26/Part No. 011518 Motor# 177450 1.5 HP
Hi, Ron. This B2841V1 motor is an energy-efficient replacement. You will also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
That motor is only 1HP?
Reply
Can this motor replace the B854 motor on the Jandy Stealth SHPM pump, as the total HP ends up being the same?
Reply
I just purchased a home with an I ground pool that has a Pentair challenger 1 HP pump. I’m interested in putting a more energy efficient motor in. Will this pump accept an energy efficient, dual speed or variable speed motor? I included a picture of pump motor.
Thank you
Hi, Liam. Yes, you can convert those pump to operate more efficiently by replacing the motors. The SQS1102R or ECM16SQU are your options.
Reply
The ecm16squ has a 48y flange and my Pentair motor has a 56y flange. Will I have to modify the ecm16squ to make it fit?
Reply
Liam, No modifications will need to be made other than using the Motor Spacer Pad which is included with the motor.
Reply
Thank you.
Reply
I need to replace a Century Centurion A.O Smith Part 7-177450-03 pump motor and want to make sure this is the correct replacement. Also, is it compatible with my existing seal plate and impeller? Thanks.
Hi John, Yes this is the proper replacement motor for your 7-177450-03 motor. Yes this motor will work with your existing seal plate and impeller. We would suggest a seal kit when replacing your motor. This motor is most commonly used on the Pentair Whisperflo and Pentair SuperFlo. Here is the Seal Kit for Pentair WhisperFlo and here is the Seal Kit for Pentair SuperFlo. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi, I have a Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1, and it is leaking. What is the correct shaft kit I would need for this item?
Hi, Tom. In order to locate the correct pump shaft seal, you will need to provide us with the pump housing model, name and or a picture. We're unable to use the motor info.
Reply
Do these help?
Hi Tom, thanks for the photos those were helpful! You will need this Sta-Rite Dyna Glas Seal Kit
Reply
I am looking for a replacement motor and required seal kit for my pool pump. It is for an in ground pool with DE filter, approximately 20,000 gal. Is this the correct high efficiency pump for my application? I have attached a photo of the tag on the original motor, and the model of the pump assembly.
Thank you!
Hi Joel, Yes this is the correct replacement motor the motor included in your photo. You will also need a Pentair Ultra Flo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Does motor B841 replace
Old motor part 0-173840-23
Reply
Hi Robert, No the B841 is not the proper replacement motor for your 0-173840-23 motor and you will need this B625 Replacement Motor which we do have in stock ready to ship!
Reply
I have the following WF-4 Filter and the below motor that was replaced by former owner. The bearing sound like they are beginning to go. Can I replace this Standard Motor with a dual motor without replacing filter/impeller.
The most energy-efficient motor will be this 1.65 HP Variable Speed Replacement Motor. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump. When you replace your motor you will require this Whisperflo Seal Kit
Reply
Is there a cheaper version DS in the $200 - $250 range?
Reply
As far as energy-efficient motors go there would not be one in the $200 - $250 range. You would be looking at this standard efficiency USQ1102 Replacement Motor as being the proper motor for your motor in your photo. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? Once we get this photo we can make the proper recommendation for the seal kit. Simply click the reply link below to upload your photos.
Reply
The pump picture shows that it is 1HP and 1.65 SP. The motor is only 1.25SP. THe prior owner may have replaced with a smaller than need motor. Would this replacement be a better option as it is 1.65 and EE? B2841V1 A.O. Smith Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1
Reply
Thanks for the reply. The following is the side view.
Yes this motor is the more energy-efficient version of your WF-4 motor. This motor is 1 HP with a 1.65 Service Factor giving it a True HP of 1.65 which matches what is listed on your pump.
Reply
I think I am going to go with your original suggestion and get the VS speed for $399. Since I am switching from standard motor will I Need a new switch/timer to support a VS?
Reply
Hi.. If you are using a standard yellow dial timer to turn the single pump on and off currently then no additional items would be needed. If you are doing something more elaborate using an indoor controller then could you give us the details of your control system.
Reply
Hi. We need to replace this motor. We have a Jandy stealth pump. Do we need o-rings and a new seal?
Hi Caryn, Could you please provide thee model # and serial # of your pump this should be on a sticker on the black plastic pump housing. Once we receive this info. we suggest the proprer parts.
Reply
Hello, I need to replace a magnetek part 8 -184948-21 pool pump motor. I don't know what to replace it with.
Reply
You will require this UCT1102 Motor when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
If you need a better shot let me know and thank you.
Hi Russell, Thanks for the photos! You will also require this Jacuzzi Magnum Seal Kit.
Reply
In need new pump motor does this one work for or can you send me what the match that will work good to replace this old one..
This B841 motor is the correct single speed replacement motor for your model. The seal kit for a saltwater pool is the GOKIT32SALT that you can view by clicking here and the seal kit for a standard chlorine swimming pool would be the GOKIT32 that you can view by clicking here.
Reply
Is this a replacement for a Century Centurian part number 7-177450-03? Is this a two speed pump?
Reply
Hello, I need a replacement for my motor and wonder if this is the right one? I attached both the pump and motor I have at the moment.
Hello, this is the direct single speed replacement motor for your motor part number 177450. It is recommended to also replace the seals, so for a chlorine swimming pool it would be the GOKIT32 and for a saltwater pool, it will be the GOKIT32SALT.
Reply
Will this replace Century Part # 7-177450-03?
Reply
Hi Nicole, yes this will be the correct single speed replacement motor for your motor part number 7-177450-03. Also, it is recommended to replace the seals and gaskets as well however we will need to know the model name or number of the front pump wet end housing that the motor attaches to in order to confirm for you.
Reply
is this right one for my motor?
Hi Renjie, the correct replacement motor for your motor part number 168453 is the 5232X. When replacing a pool motor we do suggest a Seal Kit. We will need to know if you have the Pentair/ Pac Fab Challenger CH or CF series pool pump. If you can not locate that model number information you can also get the impeller and or diffuser part number which will also serve as a clue. Once we get that information we can make the proper recommendation for your seal kit.
Reply
Looking for replacement pump. Current pump Century part 0-184980-23.
Reply
Hi Michael, the correct replacement single speed motor for your motor model 184980 is the 5210X. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I see this is the correct replacement for my pump. I have converted to a salt water pool what other items would I need to purchase to replace the motor
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Our current model is 7-177450-03 what would be the replacement if we wanted a variable speed motor? What are all the parts we would need to do the replacement to support a salt water pool
Hello, the correct replacement variable speed motor for the motor included in your photo is the ECM16SQU. You will also need a Pentair Whisperflo saltwater seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What’s the difference between the B2841 and B2841V1. Can the V1 replace a B2841 (not V1)
Reply
Hello, yes the B2841, B841, and B2841V1 are all the same motor models with just alternate part numbers. Many of these pool and spa motors have alternate part numbers. It also recommended to replace the seals when replacing a motor. In order to locate those, we will just need to know the front pump wet end housing model name or number that the motor attaches to. You can also reply to this with a few images uploaded of that housing if you need assistance.
Reply
Is this the replacement for part # O-0193993-05?
Reply
Hi, yes this is the correct replacement motor for your motor. part number 193993. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hi! I'm looking for the go kit (seal package) for the Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1
Thanks.
Reply
Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.
Reply
Hi, can you verify that this is the correct replacement pump for this? Also are you able to tell me the correct seal kit based on this these photos?
Thank you
Hi, yes this is the correct replacement motor for your motor model EB841. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please locate the impeller, and or the diffuser part number that will be marked on them. Once we get that information we can make the proper recommendation for your seal kit. You can utilize our live online chat feature so we can locate the kit for you as well.
Reply
Hi, there should be a total of 3 photos, unfortunately the data info for the pump has worn off.
Hi Ryan, you have a Pentair/Pac Fab Challenger pool pump. There are two kits for this pump as there is a CH and CF series. In order to confirm which series that you have you will need to locate the impeller or diffuser part number which will be marked on them and we can further advise.
Reply
I need a replacement motor for a magnetek 7-177450-03, can you advise?
Hi, yes this is the correct replacement motor for your motor model EB841. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please locate the impeller, and or the diffuser part number that will be marked on them. Once we get that information we can make the proper recommendation for your seal kit. You can utilize our live online chat feature so we can locate the kit for you as well.
Reply
I need a rotor and seal also
Hi James, can you please get us an image of the entire pump so we can confirm the series pump that you have. Once we get that we can confirm the impeller and seal kit for you.
Reply
Looks like the serial number for this motor cross references with my part # 7 - 193993 - 05 (label attached). I noticed in the text that California compliance suggests a different model from a choice of two. Can you confirm this or will this "Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1" be the appropriate replacement for me? Thanks much.
Hi, yes this is the two motor options listed are correct replacements for your motor part number 193993 in the state of California. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Thanks Hector, photos are attached. The manual is for Jandy Stealth Series Pumps but it covers two models: SHPF and SHPM. I do not know which I have. Perhaps the photos will help. The seal kit sounds like a important option. Let me know if you need any more information. Thanks much.
Hi Kenneth, just to confirm, the two motor models listed under the B841 are correct options for the state of California, and also you have a Jandy Stealth SHPF series pool pump. This series doesn't actually have a seal kit however the shaft seal is listed on key number 5 being an old-style shaft seal. You will also want to replace key numbers 13 and 15 on the parts diagram here.
Reply

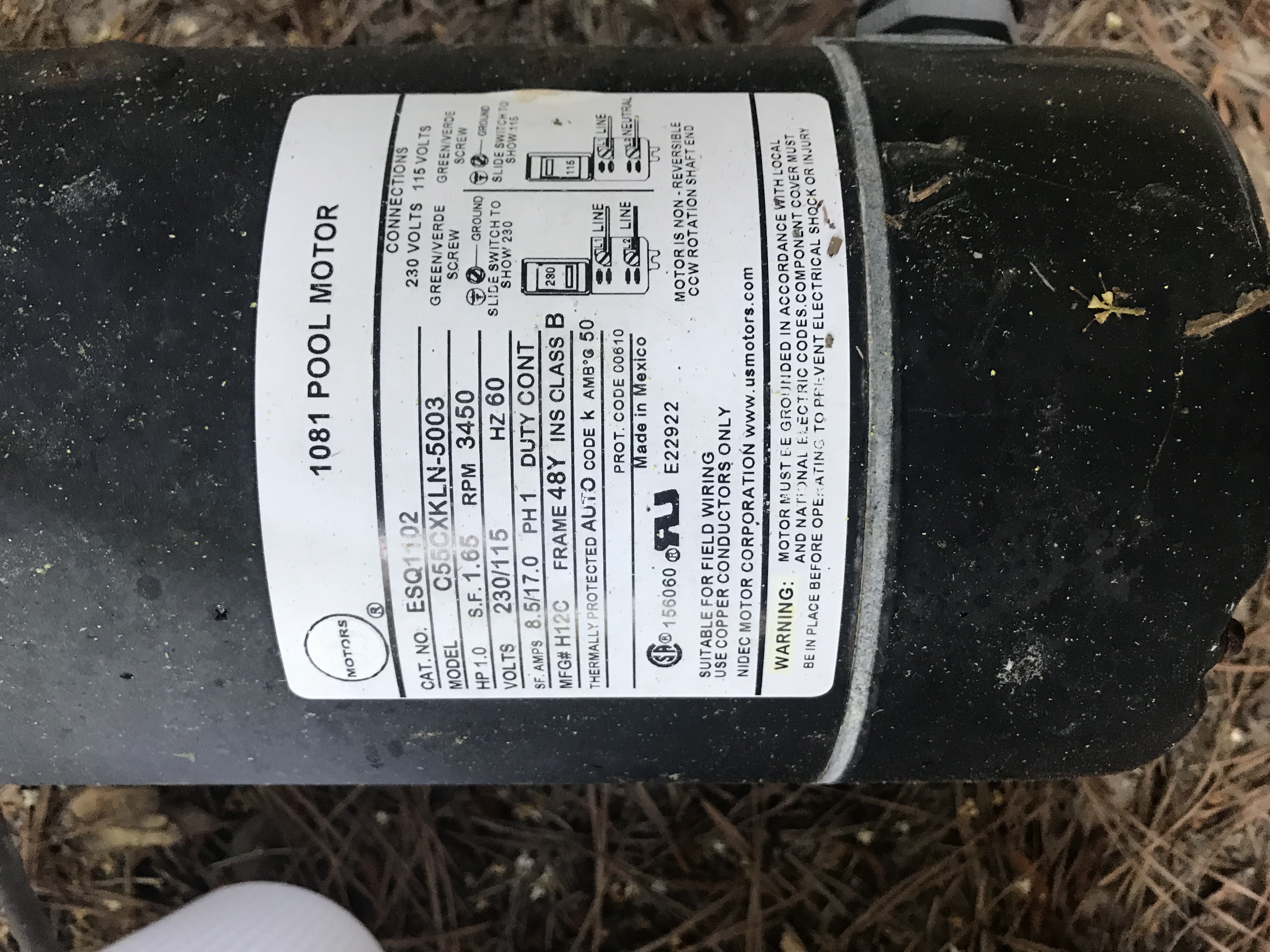

I need to replace my current C55CXKLT pool pump motor. Will this EE one work as a replacement?
Pictures attached
Hello Louis, yes you would be able to use the Century Motor 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1.
Reply
I have a model WFE4 poolpump.
the part number.on the 1hp motor is 0-177450-03 what motor do you have is comparable.
Reply
The B841/B2841V1 is the drop-in replacement motor for a Pentair WFE-4 pump.
Reply
Starting cap failed, looking for replacement. See attached.
Considering motor replacement - in Ca so dual or VS are my choices. Please advise options.
Great website!
need replacement pump and seal for jandy stealth model #shpf 1.0
pump part # o-193993-05 serial # 31208CH
JANDY STEALTH MODEL #SHPF1.0
PUMP HAS NOISE WHEN TURN ON
PLEASE ADVISE WHAT PARTS TO REPLACE. THANKS
Yes, this is the correct replacement motor for the motor included in your photo. You will also need this Jandy Stealth Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello. Is this the correct pump to replace my existing pump (see attached). Could you also please identify which "tune-up" kit I should use when replaced (seals etc). What is your return policy? Don't plan to return just worried if I purchase the wrong pump, I'll be stuck with it.. Thanks
Thank you for contacting Inyo Pools, I need some more info to better answer your question. Can you send pictures of the pump and motor. Any Pictures of stickers on the front housing where the basket is.
Reply
I've been advised that the B2841V Motor is the one I need. What seal kit (or parts would I need for a replacement on an Anthony Centrifugal Pump? I've attached pics. Thanx.
We do not have a kit for the Anthony Centrifugal Pump. We have the individual seals. The shaft seal is part number 5250-100. The seal plate o-ring is part number 4610-37. The diffuser ring is part number 5001-12. The cover o-ring is part number 5050-14B.
Reply
I have a Jandy Stealth SMPH1.5 and need a motor replacement I am assuming because it is very loud all of a sudden. I saw this is the motor I need but can you please direct me to the seals or anything else needed to replace the motor. Thank You
Hello Stacey. The Century Motors 1.0 HP Full Rate Motor model B2841V1 is the correct replacement motor for the Century Centurion Motor model 0-193993-05. It is recommended that the motor shaft seal, back plate o-ring, and diffuser o-ring be replaced at the same time. Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring, Generic - R0446300 9-1/2" ID, 3/16" Cross Section O-521 Diffuser O-ring - R0622000 Jandy Stealth SHPF & SHPM Series Pump (2008-Current)
Reply
I have a Pentair WhisperFlo pump, 0-177450-03. It looks like this is the correct motor. What seal replacement do I need for this one? Thanks, Don
Good day, yes based on the information provided this would be the correct replacement motor and the seal kit needed would be the GOKIT32.
Reply
Will this replace my current motor and fit the pump? Which shaft seal will I need?

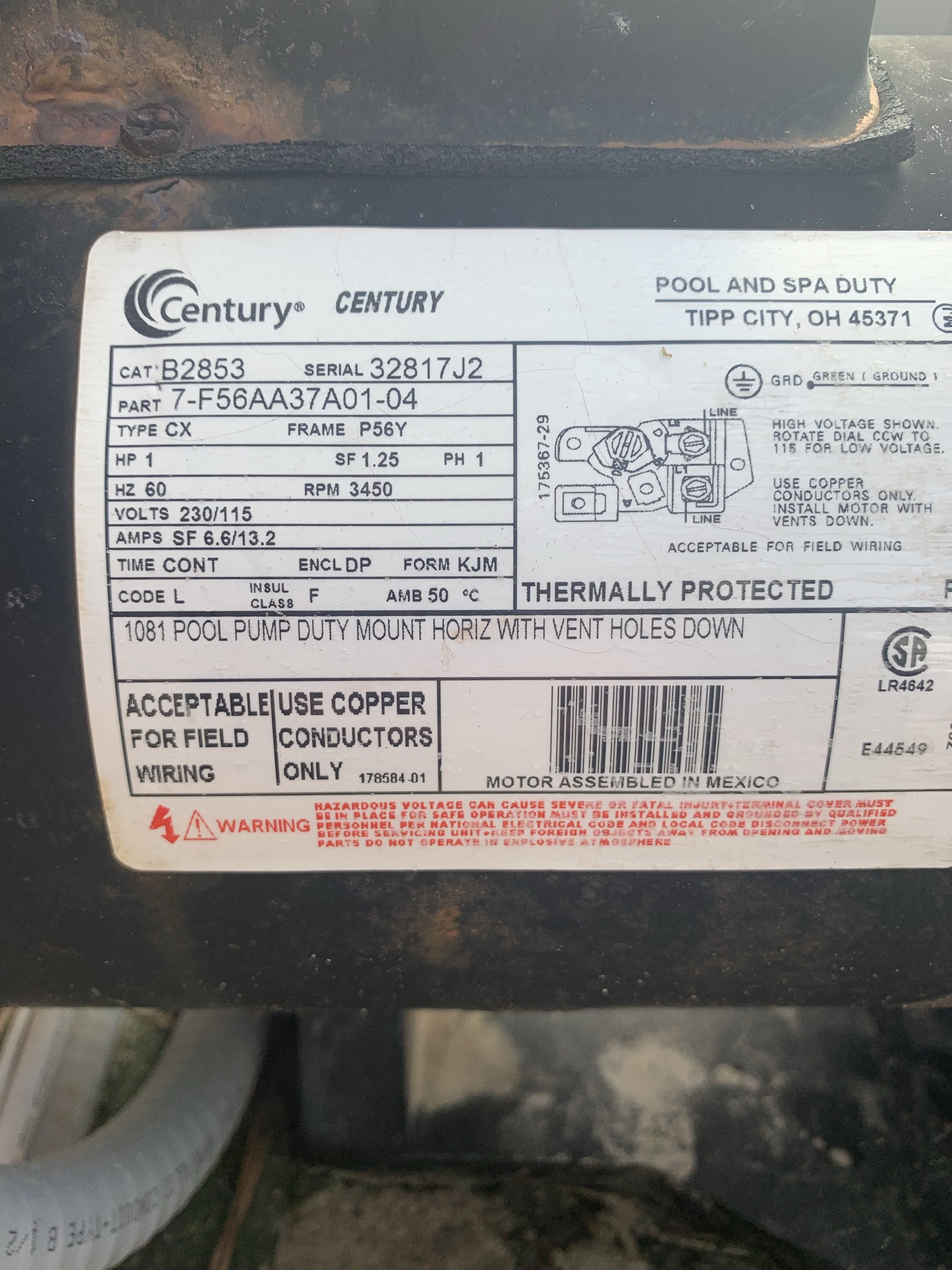

Hello Oliver. The Century Motors 1.0 HP Up Rate Motor model B2853 is the direct replacement for your Century Motors B2853 number 7-F56AA37A01-04. Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 The GOKIT73 contains the motor shaft seal, square housing o-ring, and diffuser o-ring necessary to complete this project for your Pentair Challenger Pool Pump model CFII-N1-1A. Tune Up Kit Pac Fab Challenger CFII/Pinnacle Series - GOKIT73
Reply
Sorry , meant to attach pics.
Reply
Thank you for contacting Inyo Pools, Other than the motor label is there in information on the pump housing? Can you send pics of the housing?
Reply
I emailed you all the pictures because I was not sure if these went through. Please check your email for a message from me. Thank you!
Reply
Thank you for placing the order, I will reply to this for assistance for others who may have the same application. Motor model 7-177450-03 may replace with Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1 https://www.inyopools.com/Products/00200017039437.htm?Keywords=7-177450-03 The pump wet-end is the American Products Ultra-Flo https://www.inyopools.com/pool_parts_american_products_ultra_flo.aspx
Reply
Will this replace my motor?
Hi Mark, yes, the B2841V1 will be a perfect replacement for your old motor. Let us know what the model of the pump is that the motor attaches to so we can help you choose a new motor shaft seal or Tune-Up Kit to ensure a leak-free installation.
Reply
I have a WFE-26 whisper flow pump p/n 011518 with 1.5 hp motor what is the replacement motor
Reply
Hello. The Century/Magnetek 1.5 HP Up Rate Motor model B2854 is a compatible replacement motor for the Pentair Whisperflo model WFE-26. The Century Motors 1.0 HP Full Rate Energy Efficient Motor model B2841V1 is also a compatible replacement motor for the WFE-26. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the necessary parts to complete this project. GOKIT32 Attached please find the Whisperflo exploded parts diagram for reference. Pentair Whisperflo Pump
Reply
Is this the correct replacement motor for the pentair 011513?
Yes, the Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1 will be a perfect replacement for the motor on your WFE-4 WhisperFlo pump. Don't forget to get the Tune-Up Kit for Pentair/Purex Whisperflo - GOKIT32 to ensure a leak-free installation.
Reply
Please help. Need to replace this 1.5hp motor. Is this the correct one I need?
Hello Kevin. The Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1 is a compatible replacement motor for the A O Smith Century Centurion Motor model 7-177450-03. The B2841V1 is a more energy-efficient replacement motor than the Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854. The B2854 is also a compatible motor replacement for the 7-177450-03.
Reply
Need to replace my Jandy sheer descent motor (the old one had flames shooting out of it today) and I am buying the B2841V1 but the video suggested a new Go kit and I don't know which one to purchase. It is going on a Jandy SHPF 1.0 1 HP. Any help would be greatly appreciated.
Hello Amy. There is no GOKIT for the Jandy Stealth model SHPF. The Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring Diffuser O-ring Magic Lube O-ring Lubricant are the parts necessary to complete the motor replacement. Attached please find the Jandy Stealth SHPF exploded parts diagram for reference.
Reply
I have this motor that went bad, will this B2841v1 be a right replacement for it. Also what kit will I need, thank you!
Hello Kyle. The Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 is the direct replacement. The Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1 is a compatible replacement - an additional 0.4 HP. The Tune Up Kit Sta-Rite Dura-Glas & Max-E-Glas Pump 1998 To Present - GOKIT54 contains the seals and gaskets necessary to complete the motor replacement, Sta-Rite Pump model P2RA5E-124L.
Reply
Dear,
Can I replace/upgrade my broken motor (see photo) with this one? My current set up is 1.5 inch Pipe ID, with cartridge filter can stand 120 GPM flow rate. TIA.
Best,
Kevin
Hello Kevin, the correct direct replacement motor used on your pump is the motor model B853. If you're wanting to increase the strength of your pump the wisest approach is to use a variable speed pump as the original licensed pool contractor specked out your specific build for a single speed pump. In your case the variable speed motor replacement is the ECM16SQU. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist in locating that.
Reply
-(TB-1032-12).jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(TB-1032-12).jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Century (A.O. Smith) 1.0 HP Full Rate EE Motor, Square Flange 56Y Frame, Single Speed - Model B2841V1")
