I need a motor replacement for a Hayward Max-flo II pump
A.O. Smith
Model# C48D32A04 Ser# 28309FM
.75 hp.
SP-2705-Z1m
Will this motor fit?
Thanks.
Bruce.
Reply
Hello Bruce, That motor will not work. The reason is the motor for a Hayward Max-Flo 2 is a square flange and the motor you had selected was a round flange. This is the correct part number is SPX2705Z1M .
Reply
Hello, I have a Haywood super pump by AO Smith. The mod # is C48J2ZN131B1,,Ser #, 8H02, 3/4 hp. 115/230 v , amps 11 & 5.5, SF 1.0,, FR 56J PH 1. WHAT PUMP DO I NEED TO REPLACE IT WITH?
Thanks
Reply
Mr. Brown, Based off the specs of your current motor, the replacement motor for your pump is a UST1072. The manufacturer recommends replacing your shaft seal whenever you replace your motor. The shaft seal for the Super Pump is part # SPX1600Z2
Reply
We have this model motor on our in ground pool system and when we went to turn it on for the spring opening it will not start. It doesn't hum or make any noise like it wants to start . Can you give us any direction? We bought our house late in the summer last year and it was running fine then. after being shut down for the winter its not starting up now?
Reply
Hello Kimberlynn - It is not uncommon for a motor to seize up over the winter. It may need to be replaced. We have a troubleshooting manual. This may help diagnose the issue.
Reply
will this motor replace an A.O. Smith - M56J - 3/4 HP - 3450 RPM - 115/230v - SF1.00 - 1PH - 4.4/8.8 amps
Reply
Looking over the questions and answers below, there are two places where a replacement motor is said to be the UST1072 and a new shaft seal is recommended. However, the two shaft seal part numbers are different, yet they are supposedly for the same motor. Which is the correct shaft seal part number for the UST1072 3/4 HP pump?
Reply
ChrisP, That's because this motor can be used on several different pumps, but the shaft seals are unique to that specific pump housing. So in order to get you the specific shaft seal you need we will need to know the manufacturer and model of your pump housing. Pump xxamples would be Hayward Super Pump, Hayward Super II, Jacuzzi Magnum, Hayward Max- Flo, etc..
Reply
Will the AO Smith .75 HP motor with round flange replace an AO Smith 1.5 HP motor in my Hayward Super II Pump? The current pump is too large for the 75 cu ft filter.
Reply
Gene T, You can replace your current 1.5HP motor with this 3/4HP UST1072 motor. However you will also need to change your impeller to a 3/4HP Impeller for Hayward Super II Pump match the current HP and would recommend getting a Tune Up Kit.
Reply
Hi, l need to replace an inground pool motor A. O. smith model c48l2n13451 which has the following specs. 1-1/2 HP, rpm 3450, volts 115/230, amps 18.6/9.3 Could you let me know which motor I need?
Reply
Hi Carlos, We do carry the motor for your pump and you would require the UST1152 1-1/2 HP Replacement Motor.
Reply
Wiring a new motor and when I removed the cover I found a white/black wire with a terminal loose, not connected to anything. Theother end goes to what I think is the thermal overload with a light blue wire. Where does this white/black wire terminate?
Reply
George, These "How To" guide may help you determine where that wire goes, How To Replace the Thermal Overload Protector on an AO Smith Motor and How To Wire A Pool Pump.
Reply
I have a hayward 5060 3/4 horse pump . will this motor have the same mounting configuation?
Reply
Hi Gene, The proper replacement motor for your Hayward 5060 Booster Pump would be the ST1072 Replacement Motor.
Reply
I've got a Hayward Super Pump, 3/4 horse. The motor is an AO Smith C48J2N131B1. Motor started for barely a second twice this morning and after that nothing. Pump impeller spins so the motor is not bound up....thinking capacitor? And beyond that question - if I opt to replace is this the correct motor?
Reply
will AO Smith round flange 3/4 HP motor fit on Hayward pump
Reply
We would need the model, part or cat number of the motor and the model of the front plastic pump housing to confirm whether this motor would be compatible.
Reply
Will the 56 J Frame 3/4 HP Motor bolt up where a 56 C Frame motor was?
Reply
Hi Ed, The bolt pattern will be the same but the shaft on the 56C Framer motors are Keyed not threaded. It will not work with the pump that you have.
Reply
I have replaced my .5 Hp motor with a .75 hp motor. It runs for about 10 minutes then overheats tripping the thermal breaker, I saw a tip to check the impeller size, should I have changed the impeller with the motor upgrade?
Reply
Hi Walt, Yes you would need to change the impeller to match the hp of the motor. If you can provide the manufacture and model of the pump you have I can get you the correct Impeller.
Reply
My Hayward pool pump (model SP2605X7) currently has a 3/4 HP Century motor (B227SE; Frame M56J) attached to it. Please confirm that UST1072 is the correct replacement for this motor. But if that's not correct, please tell me which motor I should use. Thanks!
Reply
Jeff- The UST1072 A.O. Smith Round Flange 3/4 HP Up Rate Motor would be the correct replacement motor for your sp2605x7 hayward super pump.
Reply
How do I get the motor unhooked from the housing( Black Plastic)
Reply
MARK END FRAMES - Mark the end frames and shell with a magic marker so the motor can be reassembled in the original configuration.VIEW END BOLTS - The motor is held together end to end with four through bolts. The heads of these bolts are shown in the picture.REMOVE THROUGH BOLTS - Unscrew the four through bolts and pull them out.KNOCK OFF FRONT END BELL - Using a hammer, lightly tap off the front end bell to separate it from the motor's shell.PULL OUT ROTOR AND SHAFT ASSEMBLY - Pull the motor's rotor and shaft assembly out of the motor's shell.
Reply
is the UST1072 a self priming motor? I have one that has model #C48J2N131B1 that is Hayward Super Pump but it does say self priming on the pump. the above items all show on the pump I have now so would the UST1072 be a replacement for my pump?
Reply
Hi, The pump design is what can categorize the pump as self priming not the motor. The UST1072 would be the correct replacement motor for you model # C48J2N131B1 and will fit your Hayward Super Pump which is self priming.
Reply

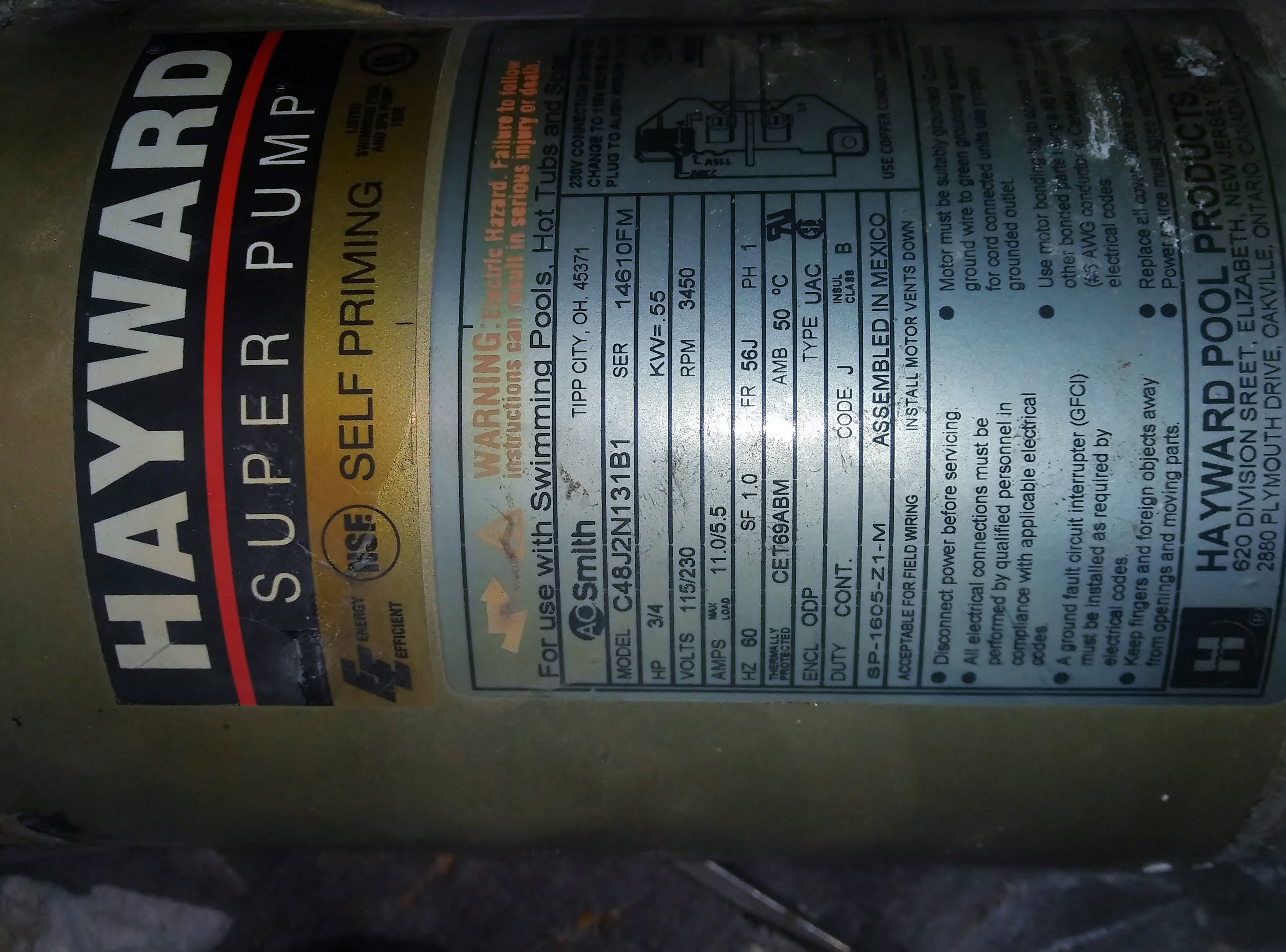

I have model #C48J2N131B1, 115/230, 3/4HP, Ser #12911FM, FR 56J, RPM 3450,amps 11.0/5.5, SP1605Z1M - does the UST1072 replace this motor? Also, is the GOKIT3 all that I would need if I ordered the UST1072?
Reply
Hi Stephanie, Yes, the replacement for your motor (C48J2N131B1) is the UST1072. The tune up kit pertains to the make and model of your pump- not necessarily the motor. Gokit3 is for a Hayward Super Pump. If you can confirm you have a Hayward Super Pump, then yes, this is all you need to replace your motor.
Reply
I am replacing motor with UST1072 motor on my Hayward assy. SP2805X7.
What gasket and seals kit do I need. Need part number and cost
Reply
Armando, The correct gasket kit for your Hayward Max-Flo SP2805X7 is the GOKIT1. If you have a saltwater pool I suggest the GOKIT1SALT.
Reply
If the motor hums but does not turn, is it possible that it is the capacitor that is at fault? It is a starting capacitor, correct?
Reply
i have a haward rs750 pump 3/4 hp motor model # k48k2n104 and i need to replace the motor in the ust 1072 or the st 1072 the right one also what gasket kit will need thanks for the help
Reply
Hi Ben, The A.O. Smith 3/4 HP Full Rate Energy Efficient Motor (CT1072) will be the correct replacement motor however you could use the A.O. Smith 3/4 HP Full Rate Motor (ST1072). If you use the ST1072 it is cheaper but it will cost more to operate that the CT1072. The Hayward Super II Pump Tune Up Kit (GOKIT2) will also work with the RS Pumps.
Reply
Replacing 3/4 hp motor on Hayward super pump,the one that all the numbers match doesn't have the compactior on it,is it gonna work
Reply
Jerry- Over the years, designs and engineering on motors have changed. Not having a capacitor on top of the UST1072 A.O. Smith Round Flange 3/4 HP Up Rate Motor will not affect performance at all and will work on your super pump.
Reply
I have an AO Smith SP1610Z2MC dual-speed motor and I would like to replace it with this motor. Is that possible? And what else would I need?
Reply
Hello- The correct replacement motor for your SP1610Z2MC would be the 5387x Motor 56j Thrd Full 2sp 1hp. It is also recommended that your purchase a replacement shaft seal or go kit. But we would need to know the model of your pump not just your motor.
Reply
I have a A.O. Smith motor that is used as a well pump motor. I want to replace the motor and impellar because the bearings are making noise. It is a UST 1072, Mod. C48J2N131C1C, 3/4 HP ROT-CCWPE. What motor, impellar, seals and gasket kits would I need to replace the existing pump. Thanks for your help.
Reply
Hi John, This A.O. Smith Round Flange 3/4 HP Up Rate Motor (UST1072) will be the correct replacement motor, however in order to get you the correct impeller, seals and gasket we would need to know the model of the pump that the motor connects too. If you can provide the manufacture and model we can locate those parts for you.
Reply
I am looking for a rebuild seal kit for Century UST1072. What kit would I need to purchase.
Reply
my auxillary pump motor just went bad today when opening pool, its a hayward pump 3/4 horse, volts is 115/230,,amps is13.3/6.9-6.8,,,,model # C48D62A04,, 3450 RPM. Its the pump that runs my pool cleaner. can you give me the correct replacement pump number?
Reply
I need a capacitor for my Jacuzzi A.O.Smith 3/4 HP (7-184947-22) motor (motor is 230/115 volts, and 3450 RPM). The capacitor is rusted so can't get the part number from it. Thanks!
Reply
I have a C48J2N131B1. The pool is 18,000 gallons and the pump is located about 30' away.
The problem is we are not getting alot of suction. The pump seems to be undersized and I would like to go bigger. What do you recommend? Thanks!
Reply
Hi Art I think the 1 HP PureLine Prime would be a great option for you.
Reply
I have a Heyward 6060 booster pump motor C48D62A04. What is the correct motor to purchase for this pump?
Reply
Hi Richard you would require this 3/4 HP Booster Pump Replacement Motor
Reply
I have a Hayward C48J2N131B1 that is frozen up and not turning/working. The basket part is still in good shape as I bought it just 5 years ago. What is the part number I need for the replacement motor/pump? Serial number is 22709FM
Reply
Hi Dan,Yes that would be the correct replacement motor. If it's a super pump the shaft seal you'll need to replace when you replace the motor is gokit3, if it's a super 2 then the shaft seal is gokit2.
Reply
i only need the motor to replace my pump. Current one is model c48j2n131b1 Only last few numbers are different from this one on site Will this model work on my pool in replacement. Concerned of fit into basket
Reply
Hi Mike, The UST1072 motor is the correct replacement for the c48j2n131b1 motor.
Reply
I have an Emerson 1081 pool motor. Catalog # EST1072 3/4 HP RPM 3450 volts 230/115 60HZ Which replacement motor should I get?
Thank You ,
Jennifer
Reply
Im going to replace my Hayward Pool Pump motor which is an A.O.Smith model # C48J2N131C1C. The horsepower is 3/4. What else do i need (i.e. New gaskets or anything like that)?
Reply
Hi Joe, could you let us know the model of your Hayward Pump? The most popular model is the Hayward Super Pump and if you do have a Super Pump then you will need this Hayward Super Pump Tune Up Kit.
Reply
need to replace the plastic switch in back of motor that the two wires connect. one small screw hold it own.. two copper trips engage when motor is started.
Where do I find that part?? Model# C48J2N131B1
Reply
Hi Johnny, Click link >A.O. Smith Motor Parts to locate available motor replacement parts.
Reply
I have an A.O. Smith motor that is going out. The tag says it's a K48K2N104. What would be the correct replacement motor for that? Do you carry that motor and how much is it. Thank you.
Reply
The Energy Efficient A.O. Smith Round Flange 3/4 HP Full Rate Motor CT1072 will be the correct replacement motor based on the model information you provided.
Reply
Hello,
I noticed my pump is putting out 5v out of the case ground to my bonding network. Does this mean my pump is going bad?
Reply
Hi Jacek, From what I've gathered from various forums stray voltage is somewhat normal for household appliances. You may want to have an electrician or your power company check it out just to be safe.
Reply
I have a Hayward SP2610X15 Super Pump with ao smith motors c48j2n131b3. The motor is a square flange but it appears the round flange is now recommended. I'll appreciate knowing the replacement model and if I need anything else (I think I need the pump tune up kit and a shaft seal but I'm not certain) Thanks very much for your help.
Reply
Hi Howard, The mounting plate that the motor bolts to is square but the motor flange is considered round or C-Faced. The model number you provided SP2610X15 cross references to a UST1152 as the replacement motor but the motor number C48J2N131B3 is replacement by the UST1072 motor. So if the motor was downsized then you will need the UST1072 motor along with the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hello, Currently have 1/2 hp model SP1600Z1M (S48H2N122B1). Running 1/2 HP at 120V and have had to replace the pump 2x in past 10 years. Thought I would up the waterfall pump to 3/4HP. Will this give me a better chance for a longer life? Don't want to change out anything other than the motor. Is this the correct 3/4HP replacement motor (i.e. to match up to the front of the pump)? Thanks
Reply
Hi Don, Unfortunately, increasing the hp of the pump will not ensure that the motor will last longer. The ST1052 is the correct replacement but if you want to increase the hp you can go with the UST1072, Impeller SPX2605C and the Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
When I purchase the UST1072 pump, do I need an electrician or a plumber to install it? Thank you Nancy-jo
Reply
Hi Nancy-jo, If you're unable to install it yourself then you will have to hire an electrician/pool professional to install it.
Reply
Would this size motor be the one I needed if my booster pimp is 3/4 as well? Thanks
Reply
This motor is common to pool pumps, but the real question is what booster pump do you have. Here is a link to the Booster Pump Page. Once on the page listing you can identify your pump. Just below the pump picture is a replacement part link which will include the correct replacement motor.
Reply
what is price for start and run capacitors for A O Smith UST 1072 motor for Hayward superpump? In stock?
Reply
I own a 3/4 HP Haywood Super Pump. Model C48J2N131B1. Would a UST1072 motor and Gokit 3 be the correct replacement. Thanks
Reply
Hello Gary,Yes the A.O. Smith Round Flange 3/4 HP Up Rate Motor - UST1072 and the Tune Up Kit Hayward Super Pump - GOKIT3 are the correct parts to replace for the 3/4HP Super Pump.
Reply
I also own a 3/4 HP Haywood Super Pump. Model C48J2N131B1. Motor making loud noise. Before I replace motor should I first try changing out the bearings?? Or how do you know you need to replace motor instead.?
Reply
Hi, If the motor is more than 3 years old then you're better off replacing the entire motor.
Reply
I have a jacuzzi mangum force pool pump and need to replace the 3/4 hp motor. Is this a suitable replacement for what I have? My current Smith motor has a model # 7-184948-22.
Reply
Hayward super pump model. C48J2N131 Is that the same as C48J2N131B1
Reply
Good Afternoon, Kevin it is the same motor you can see alternates in the description.A.O. Smith Round Flange 3/4 HP Up Rate Motor - UST1072
Reply
We have a GE 5KC38PN252IAX 3/4hp 115v single phase. Which AO Smith pump replaces it?
Reply
Hello, CS. The model number or part number provided is an invalid part number. I have sent you an email to help assist you with your request.
Reply
I have an Emerson Motor - SP1607Z1BERCA .99 THP, 0.75 FRHA 1.32 SF that has burned out. What would be the replacement motor for this?
Reply
Good morning John, What pump is this off of. Just wanted to confirm if it is round or square flange and what the frame size is.
Reply
I installed this motor on my Hayward Super Pump to replace a .75 HP original motor.
The water pressure is very LOW ... not even close to the original one. What is wrong?
Reply
If the original was a full rate motor instead of a up rate motor that could be the difference of almost 1/2 total horsepower. Also, did you replace the shaft seal when replacing the motor?
Reply
i have a hayward pump, model #" c48j2n131b3, that seems to have burned it out. What do I need to replace it? Will a replacement motor fit in the exisiting housing?
Reply
Good morning Ed, I am showing replacement motor UST1072. I would recommend getting a gokit. Which is a kit that contains the correct o-rings and shaft seal you will need in the changing process. You will need to provide us with what type of pump you have in order to get the correct one. If you need help with this. Feel free to give us a call.
Reply
Thanks for your reply, Adam. We have a Hayward Century max flow C48J2N131B3 pump 3/4hp. Do you need any other information?
Reply
Evening Ed, The Tune Up Kit Hayward MaxFlo - GOKIT1 is what you need
Reply
I want this same mounting motor with more horsepower. What model # do I need for a 1 hp or a1.5hp
Reply
Hi, Larry. You can use the 1 HP - UST1102 or the 1.5HP - UST1152 as a replacement. However, you will first have to confirm if your system can handle the additional water flow and you will also have to change the impeller to match the motor's hp.
Reply
have a 3/4 hp super pump that will not turn on immediately when powered. It does hum some. it does start after about 45mins. I did take apart and checked impeller for debris. none found. Could the problem be the capacitor?
Reply
Good afternoon Andrew, It does sound like a capacitor issue you can type in the specs of your capacitor in our search bar and it will pull up a replacement.
Reply
so i have this pentair pump that is making loud noise....sounds like a bearing. question. will this replace what i have. the numbers match up as far as hp abd revs. rpm. mine mounts horizonal with vent holes down. thank you
Reply
Hello- To determine what model motor will work on your pump we would need to know the model or part number from the motor or the model of your entire pump.
Reply
will this pump fit on a Hayward SP2607X10 housing
Reply
The direct replacement is the A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102 It is recommended to replace the SHAFT SEAL 201 (GENERIC) - AS-1521 or the Tune Up Kit Hayward Super Pump - GOKIT3 any time replace the motor or impeller to prevent water damage. Click here to view the Hayward Super Pump Parts Diagram for all parts available.
Reply
I have a Hayward booster pump model 5060 with an AO Smith motor model c48j2n143bb 4 HP that I need to replace. Is the model UST2072 the correct replacement? What tune-up kit do I need?
Reply
The motor model numbers that you provided, unfortunately, do not cross reference on our site nor under a google search. But we do show the original replacement motor for the Hayward booster pump model 5060. It would be key number 11 on the parts diagram here. Lastly, we do not have a seal kit for that pump but would recommend to change the seals on keys 5 and 6.
Reply
I have a Hayward Max-Flow pool pump SP2805X7. The motor is slow starting and I believe needs replacing. P/N model # on motor is C48J2N131B1 also another number on the label is SP-1605-Z1-M. It is an AO Smith motor 3/4 HP, 115-230V, RPM 3450. Can you please provide me with the correct replacement motor P/N and the "Go Kit" as well.
Thanks,
Reply
Will this motor work as a replacement for my Hayward RS 750. The motor is A.O. Smith model K48K2N104 SER 8C05.
Reply
Will this motor work as a replacement for my Hayward SUPER II PUMP (3/4 HP).
The model is C48J2N131B3 SER 08113J2.
Thx ;-)
Reply
Hi, Hal. The Century UST1072 is the correct replacement motor. I would also recommend a Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
Do you have a motor that is 1 hp that will fit the specs of motor UST-1072. Would like to go to a 1 hp if possible. Thanks
Reply
The model UST1102 is the 1 hp version of this motor. Please keep in mind that if you want the full 1 hp to be utilized then you may need to change the impeller and diffuser. Also if the filter is not capable of the extra gallons per minute flow it can damage it.
Reply
If I order this pump today, when can I expect delivery?
Reply
Hello, depending on the order itself normal ground shipping is 3-5 business days, if it is a special order item it would depending on the item. This would be processed after the holiday weekend on Tuesday.
Reply
Hello,
I was looking for the seal kit for this motor, the pump model is C48K2N143C2C, Serial number 8103, volts 115/230, RPM 3450. Also do you have a replacement impeller for this motor>
Reply
In order to cross reference the seals for the pump we would need the model of the front pump housing that the motor bolts to. You can submit that information through our support request page with images of it if you are not sure.
Reply
I have a u.s. motor for in ground pool. the model number is K63CXEPZ-4767 hp 1.5 rpm 3450. volts 208-230/115
cat # EB796 I am trying to find this motor with a round head. Do you have a compatible Hayward motor, or this motor on your web page. If so could you please send me that information.
Reply
Hi kt, Thanks for the part #'s those helped, you will require this B796 Replacement Motor
Reply
I wish to replace a haywood super pump 3/4 hp motor model c48j2n131b1, 115/230 v, sp1605z1m. can you price it.
Reply
The replacement motor would be the UST1072, and we recommend to replace the seals using the GOKIT3 or GOKIT3SALT for a salt water pool. Now if you need to replace the entire pump then the model would be the SP2605X7.
Reply
Hi there. I am trying a pump compatible to the Hayward Super Pump SP-1600-Z1-M with 1/2 HP 15 Volts HZ 60 SF 1.2 FR 56J PH1.
Model # is S48H2N122B1
Reply
Pump model is C48J2N131C1C. What motor replace it? What else should I purchase? Can I install this myself?
Reply
Hi, William. This Century UST1072 is the correct replacement motor. You would need to replace the pump seal, but we'll need to know the housing model. Most homeowner can replace a pool pump motor, you can view our How To Replace A Pool Pump Motor guide for instructions.
Reply
To replace the seal will gokit 3 work? Housing number SP-1600-0. Super pump MODEL C48J2n131c1c.
Reply
Hi, William. The Super Pump Kit - GOKIT3 is compatible with the Hayward Super Pump 1600 Series.
Reply
I have a polaris model 5KC49KN2596X, Serial FO75J250553. Is this pump interchangeable?
Reply
Hi, Bruce. The Century B625 Motor is the correct replacement, this UST1072 Motor is not interchangeable.
Reply
I have a polaris booster pump that needs a new motor. Is this a suitable replacement for the A.O. Smith/Century B625?
Reply
Hello Shane, You will need a Motor Polaris Threaded Shaft .75hp (b625) for a Polaris booster pump.
Reply
Is this the correct replacement motor for an A O Smith Hayward Super pump motor, 3/4 H model #C48J2N131B1 SP 1605-Z1-M
Reply
Hi, Barbara. Yes, this Century UST1072 Motor is the correct replacement for the Hayward Super Pump model #C48J2N131B1. I would also recommend getting the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a Hayward Super II pump, 3/4 hp, kw .55, model K48K2N104; I would like to replace the motor with an energy-efficient pump. Can I do that?
Reply
I am looking for motor to replace my pump with Model C48J2N131B3 but I could not find this model any more. What pump I can buy to replace it? Thanks
Reply
Hi, Jimmy. This Century UST1072 motor is the replacement for model # C48J2N131B3.
Reply
I have a Hayward pump Mod#B127, with a Century motor, CAT B127, part # 0-164302-24, S56J frame, 230/115 volts,
Amps SF 6.0/12.0, Code J, 3450 RPM
What replacement motor should I use? Should I replace the bearing (motor/pump has started to make a high pitch sound). Very load.
Reply
I have a Hayward Super Pump Model c48j2n131 that runs quiet but seems to be over heating. It will shut itself off and then kick back on by itself once it cools down. What could be causing this? Will I need to buy a new pump? If so would this pump match my old one?
Reply
Hi, Dustin. The motor could be drawing too many amps, volts, improper ventilation and or a damaged impeller can cause a motor to overheat. The Century UST1072 Motor is the direct replacement for the C48J2N131 motor.
Reply
I have a SP2305X7 Hayward pump that's shuts off when heated & turns on when cooled down. Obviously there's something wrong with the motor my question is what motor would be the replacement motor for this model.
Reply
Rocklyn, The replacement motor for the SP2305X7 would be the SPX2705Z1M.
Reply
how many gallons per hour (or gallons per minute) does the century ust 1072 3/4 hp pump?
Reply
Hi. Unfortunately, the flow rate is not based on only the motor but the complete pump. If you can provide the pump model along with the Feet of Head of your pool I will be able to calculate the flow rate of your pump.
Reply
I have a client with a Model # RS4G24912 above ground pool pump motor, with the following specs: hp=1.0, amps=10.2, voltage=115/120vac, rpm=3450, phase=1, fr=48 . Could you identify which replacement motor should be ordered?
Reply
Hi Rob, This BN25 1 H.P Replacement Motor would be the proper replacement for the RS4G24912 above ground pool pump motor.
Reply
I need a replacment motor for Hayward RS750CA 3/4hp AMPS 6.5/13.0 230v/115. IT HAS ONE OF THOSE ROUND THING ON TOP OF THE MOTOR. THANK YOU IN ADVANCE FOR YOUR HELP!
Reply
I have a Salt system with a Hayward Super Pump 3/4 hp motor Model C48J2N131B1. The replacement you listed is the UST1072 A.O. Smith. Please confirm...
The only difference I can tell is the Code. My Code is J while the replacement is Code H. Will this be an issue?
Reply
No, this will not be an issue. The UST1072 will work fine for you.
Reply
whats the difference between code J and code H and the max load of my old pump says 11.0/5.5
Reply
Hi, Sheila. The Motor code is the NEMA code letter that specifies locked rotor kVA per HP (volts multiplied by locked rotor amps, divided by 1000 times rated HP). It is used to determine the correct size breaker needed in the electric box. A code J is 7.1 - 7.99 and Code H is 6.3 - 7.09. If you can provide the Part or Model of number of your original motor I can locate the replacement.
Reply
I need to replace a motor booster pump. 3/4 Hp N56CZ frame. Part # 0-173840-23 A.O. Smith what is your recommendation.
Reply
I have UST1072 pump for my underground pool. When I turn on the pump, it pumps the water fine. But after an hour or so the volume of pumped water goes down. The reading on pressure gauge remains the same which is little less than 20. But it does not pump enough water for the vacuum unit to move at the bottom of the pool and that stays in one place. What might be the problem?
Reply
Hi, Gill. It sounds like you have a water flow issue that could be caused by your filter or pump. I'm leaning towards your filter because if it was the pump, the issue will start at the begin of the pump cycle not a few hours in. Check out our How Do I Correct Low Water Pressure? and How to Correct Low Water Pressure in Your Pool System guides.
Reply
I have a Jacuzi pump for my pond filtration. It is about 10 years old. Suddenly, 2 days ago, the motor gets hot and cuts off power, probably a thermal switch. When the motor cools down it starts by itself, runs for about 10 mins and the on/off cycle repeats. Why is the motor suddenly started getting hot to trip the thermal switch?
The label on the motor is very hard to read. What I can read is R.O.Smith. It is a 3/4 HP pump.
Which motor you recommend for replacement?
Raj
Reply
Hi. Several issues can cause the motor to run hot. Please check out our How To Fix a Hot Pump Motor and Why Is My Motor Running Hot? guides to diagnose your issue. We will need more info like the Service Factor(SF) of your current motor to confirm which motor is the replacement.
Reply
I have the A O Smith century 184980-23 motor. Is this the correct replacement and will I need any seals or gaskets. Thanks
Reply
Your web site says that the A.O. UST1072 is California Title 20 compliant. Is that true?
Reply
Hi. Yes, the UST1072 is compliant with California Title 20, see the Regulatory Advisory.
Reply
My pump motor Model is C48J2N131B3 with AMP 11-5.5. Does this motor work for or equivalent to. Thanks.
Reply
Hi, Jay. Yes, this UST1072 motor will work as an equivalent replacement for the C48J2N131B3 with AMP 11-5.5.
Reply
Does this come with the correct seals and gasket for the replacement of the motor mentioned in this post?
Reply
Hi Charles, No this does not come the seals. Could you send us a few photos of your pump? One of the motor label with the information like HP, Amps, Volts, SF, etc.. and second wider shot showing the complete pump including the plumbing going in and out of the pump. To supply the photos simply click on the reply link below to upload your photos. Once we get this information we will let you know all the items you need.
Reply
Pics of pump
Charles thanks for the photos those are quite helpful. You will require this Hayward Super Pump Seal Kit
Reply
Please,what is the delivery time if I order today ?
Reply
HI, Philippe. Your order will ship the following business day and will be delivered on the third business day after the ship date. If
Reply
Looking for a replacement for my Hayward Super Pump motor. Your A.O, Smith has a slightly different model number. Hayward is C48J2n131B1, will you A.O. Smith 3/4 line up correctly?
Greg
Reply
Yes, the UST1072 will replace the C48J2N131B1 and fit correctly.
Reply
I'm wiring my motor to run at 230, everything I see on line shows a three lead cable. I have a four lead cable coming in a black, white, red, and copper or ground wire. Do you have a wiring diagram as to which wires go to L1 and which wires go to L2?
Thanks you
Dave
Reply
Hi, Dave. Instructions are available in our How To Wire A Pool Pump guide.
Reply
I need to replace my haywood super pump 1 hp model C48K2N143B1. Can I replace this with a 3/4 hp model and still get the same amount of RPM? I don't see a 1hp in your selections.
Reply
Hello, This will be the proper motor replacement. http://www.inyopools.com/Products/00200017001331.htm
Reply
Will this motor work for C48J2N131B1
Reply
Yes this the appropriate replacement motor for a C48J2N131B1. We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know your pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
Hi....my part number reads as 0-173840-23. (AP Smith 3/4 HP
is UST1072 the right replacement for the above part ?
Reply
Hello, This will be the correct motor you will need. http://www.inyopools.com/Products/00201319001532.htm?Keywords=0-173840-23
Reply
Hello,
I need tp replace my Hayward Pump Motor SP-1807-Z-1-BE, Model K48K2N104. Is this the right motor?
Reply
Hi David, Yes this motor will work as a replacement for your current motor. However, your current motor is an energy efficient version of this motor which costs about 20% less to operate. If you wanted to stay with the energy efficient version then you will need this UCT1072 3/4 HP Energy Efficient Replacement Motor. We do always suggest a Seal Kit when replacing a motor. To determine the proper seal kit we will need to know the model name of your Hayward pump, common pump names would be Super Pump, Max Flo, Super II, etc.. To supply this information click the reply link below, also if it is easier you can send a few photos. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
I have a A.O. Smith model C48J2N131A4 Ser. 8C95 motor (which is part of the UST1072 family as I understand it). Its single switch is no longer working. It is the 'old style' switch, can I replace it with the newer single switch - 629002-001?
Hello, This will be the replacement motor you will need. http://www.inyopools.com/Products/44400017084338.htm
Reply
3/4 HP ROUND FLANGE 56 J UP RATE MOTOR PL1072 IS REPLACEMENT FOR C48J2N131A4 IS THIS WHAT YOU ARE LOOKING FOR?
Reply
My current motor's stock number is USQ1072 and label states FR: 48 Y and SF: 1.27 HP: 3/4 Watts: 3450 volts: 115/230. My question is will the UST1072 motor be a compatible replacement? I noticed the frame is different, 48Y on current vs 56J. Also, noted different SF, 1.27 on current motor.
Hi, Marco. Unfortunately, this UST1072 motor cannot be used as a replacement because of the frame style. The USQ1072 is the direct replacement. You will also need to get the Sta-Rite Dura-Glas/Max-E-Glas Tune Up Kit - GOKIT6 (Pre-1998) or GOKIT54 (1998-Current).
Reply
Hi, thanks for your answer. I noticed on a post just below dated 6/3/19, where energy efficient motor is mentioned. Is there an energy efficient motor comparable to the USQ1072?
Reply
Hello,
I just installed this motor yesterday. Yesterday it was working fine, today I turned it on and it just hums. What happened?
Reply
So sometimes the shaft seal doesn't sit correctly after installation. Please double-check and review using our "How to replace the motor on your pool pump" guide to confirm and please give us a call if that does not resolve the issue.
Reply
Pump is clicking, run for while then shuts off.
Reply
Hello, Is this a new pump? If it is, that means there is something not wired properly. Are you wired for 115 or 230v? Can you please send a picture of how you wired the motor?
Reply

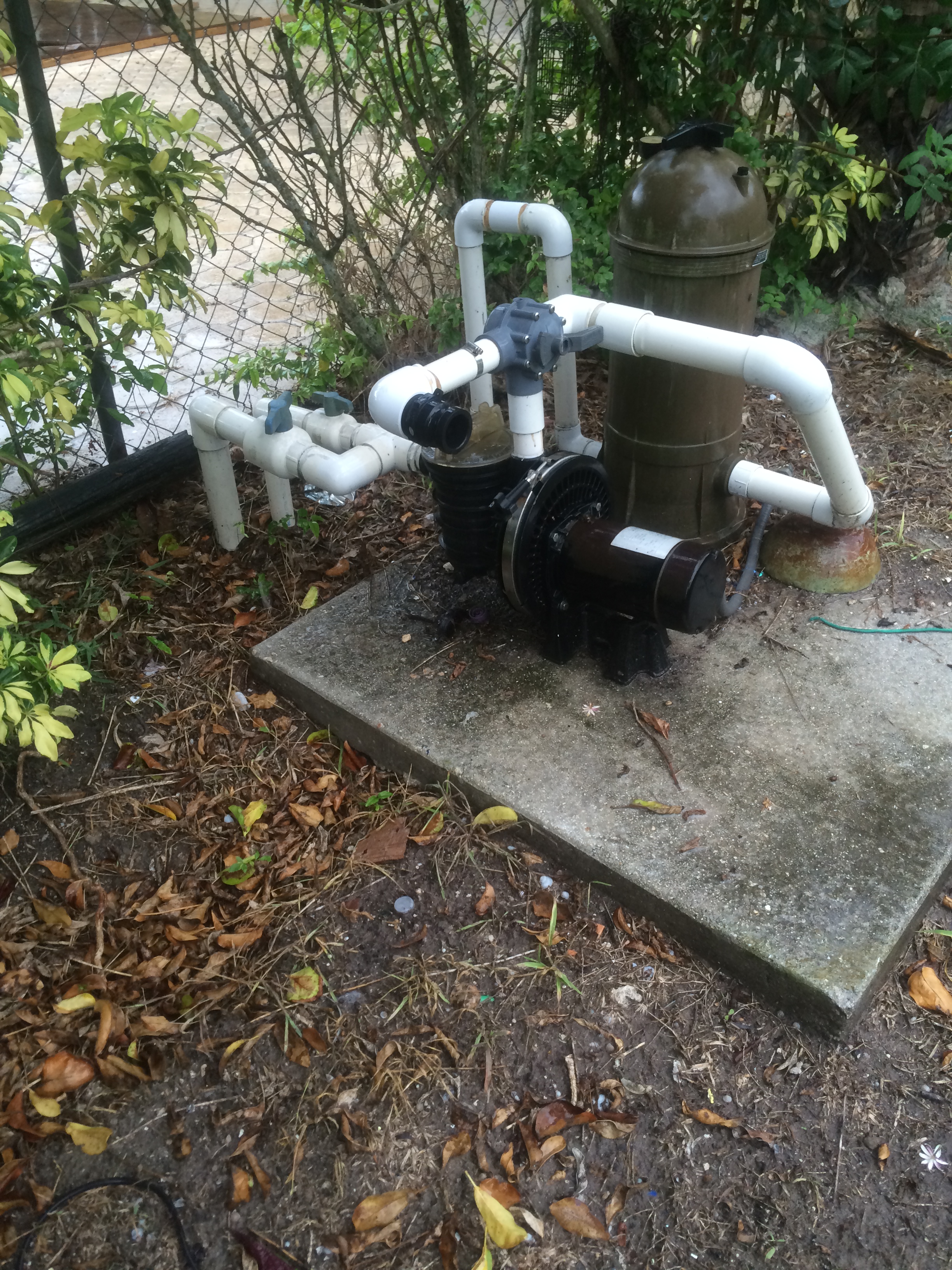

I need to replace this pump(see attached photos). I have found a few that are similar, but nothing exact. Maybe I'm reading too much into it. It is used for a marine a/c unit(s). This is for a customer and there is a time constraint as he needs to lift his vessel out of the water to change this out. Thanks in advance for your time and information.
We need to replace a AO Smith Motor model S48J2A13 ser 7183 2-speed 115V 60Hz motor for a tub spa pump. Can you specify the replacement for this motor?
Thank you.
Reply
Hi, Mark. The correct replacement motor you will is the A.O. Smith 3/4 HP Thru-Bolt 48Y Dual Speed Motor - BN36.
Reply
I have a UST1072 Century pool pump. Model C48J2N131C1C - Serial# 07214CH. We need a replacement but we need to know how old this pump is. If I remember right, the original pump was replaced by this pump around 2014.
Can you advise how old it is? Also, is this the correct pump for us? Our pool is inground but small, only about 15000 gallons. The original installation was a Hayward pump. Thank you
Reply
Hi, Marie. Your motor was manufactured in March 2014. This is the correct replacement.
Reply
Thanks for responding! Can you give me an idea of how much this cost? I am having someone replace it...it only lasted 5 years. That does not seem like a very long time as the one we had before lasted 9 years. Should we use a Hayward brand as that is what the rest of the pool mechanics are?
Reply
Marie, The cost of the motor can be viewed on the product page. I'm not sure how much it will cost to have it installed. The Hayward OEM option SPX1605Z1MBK or SPX1605Z1M are also manufactured by Century.
Reply
I searched for a replacement motor for a Super Pump model sp2605x7 with a c48j2n131b1 motor. What came up was an AO Smith UST1072 and a Pureline replacement, also a UST1072. The former costing $138.99 and the latter $114. Isn't this the same pump? Is there any difference besides the price? Also,isn't the UCT1072 a replacement for my old motor? It didn't come up in the search. The GOKIT3 would be the right one for any of these motors, correct?

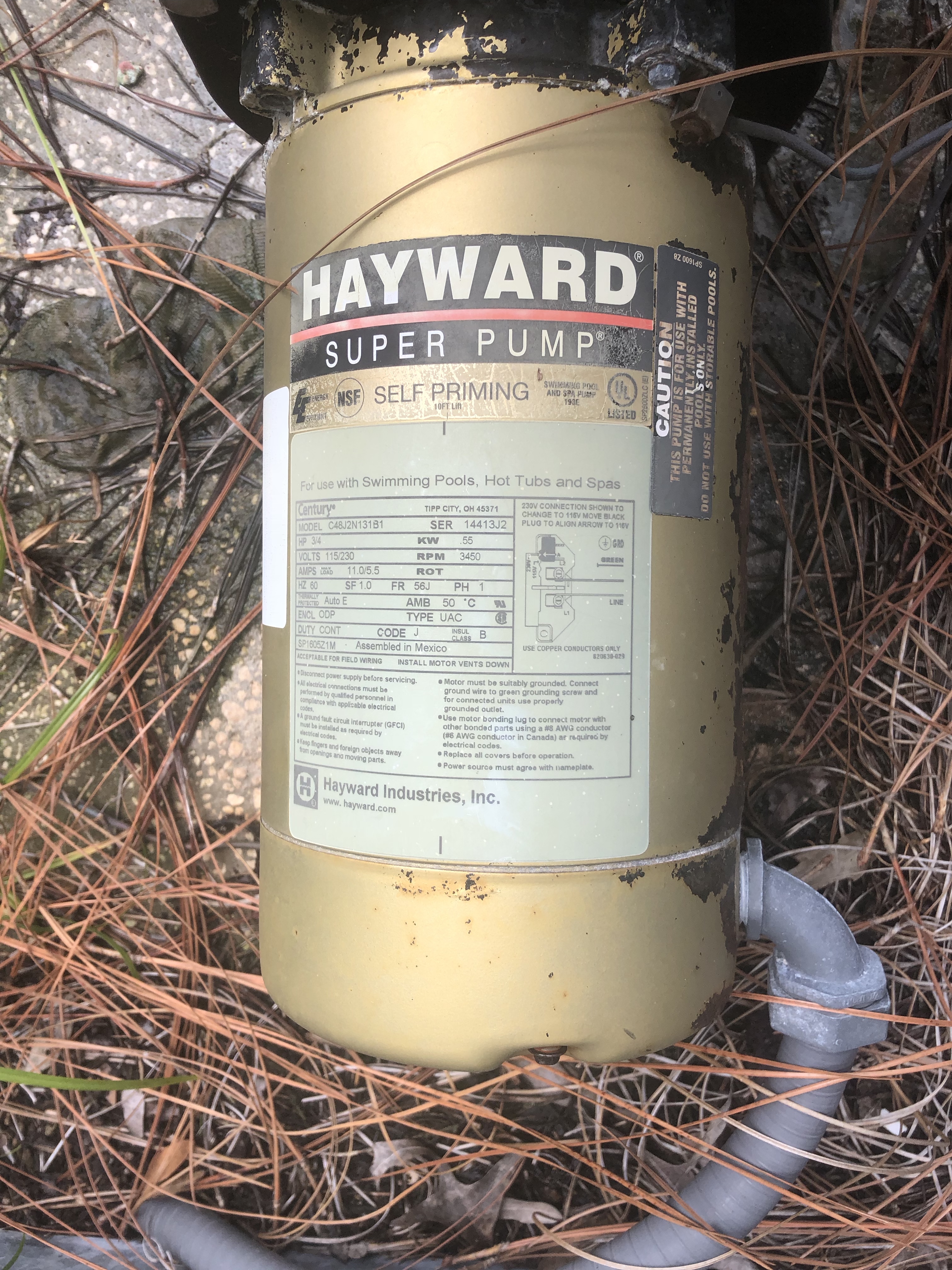

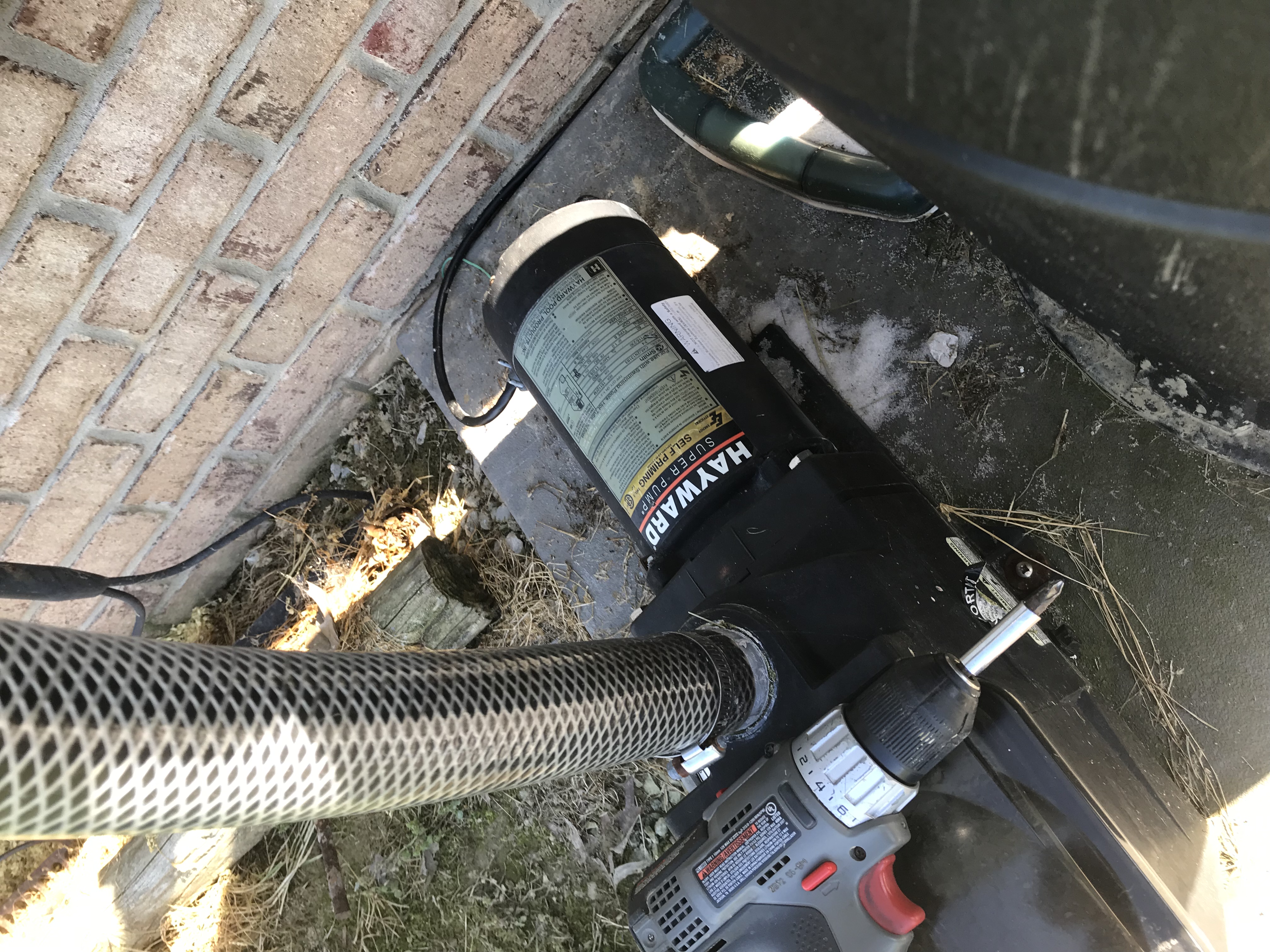

I have a Hayward Pump. See attached pics. I was able to pull these off the labels. Will this motor work with the pump?
C48J2N131B3
SP3005X7AZ
Hi, Ervey. Yes, this UST1072 motor is the correct replacement. You will also need to get the Hayward Super II Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
is this motor the same as the c48j2n131B3 I noticed it is C1C in stead of B3what is the difference
Reply
Yes, this is the correct replacement motor for the motor model c48j2n131B3. The manufacturer uses a number of plants or even vendors that end up providing multiple alternate part numbers for the same motors When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have a Hayward Super Pump II Model sp3005X7AZ with a 3/4 power an AO smith Model C48J2N131B3 motor. Will this work as a replacement?
Reply
Hi Antonio, yes, this is the correct single speed replacement motor for the motor model C48J2N131B3. You will also need a Hayward Super II seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi I have a Hayward Superpump II (SP30056X7AZ) and wanted to know if this motor is the right replacement.
Hi,
I just wanted to confirm that this is the right replacement for the attached photos? Also, could it possibly be upgraded to a 1HP motor?
Thank you.
Hello Richard, Yes the UST1072 would be the correct replacement. Be sure to make sure your filter can handle a little more gallons per minute and you should be able to go to a Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102
Reply
im sending pictures of my pump motor that needs to be replaced. as you can see the head will not come off. do you have it and whats the cost.
Hi Randy, Can you send a photo of the side of the pump which houses the basket as this will help determine the items needed. Also if you watch this video here starting at the 1 minute mark as it will show you how to remove your impeller and motor mounting plate - Video on How to Remove Impeller and Motor Mounting Plate
Reply
Hi I was wondering if this is the correct replacement for the pump in the pictures below? Also, I saw in other comments/questions that there is an "energy efficient" model for about double the price. Is there any stats on how much the average savings is with one of those?
Thanks,
Hi Richard, Yes this is the correct replacement motor for the pump in your photos. When replacing your motor you will need this Hayward Super Pump Seal Kit. Here is a link giving the stats on How Much Money You can Expect to Save with a Variable Speed Pool Pump
Reply
Thank you for your response, based on other comments the the energy efficient model number appears to be: UCT-1072 Just wanted to confirm that this would work and be an alternate for the UST-1072 and would the recommended seal kit for the UST-1072 be the same or would i need a different one if i went the energy efficient route?
Reply
Yes, Richard, the UCT1072 is the correct Energy Efficient version you will not save as much with the UCT1072 motor as the variable speed but you will still have some savings over the UST1102 motor. You will use the same Hayward Super Pump Seal Kit
Reply
Hello, I have and SP 2605X7 similar to the one in the picture in the original message. Could you help me with the replacement motor? I tried replacing the capacitor but did not work. I checked the resistance and have no readings all zeroes. What is the motor and which kit i should buy?
Reply
Hi Luis, the single-speed replacement motor for the original SP2605X7 is the UST1072, the seal kit for a chlorine pool is the GOKIT3, and the seal kit for a saltwater pool is the GOKIT3SALT.
Reply
Can someone tell me if I got the seal gasket all the way off on my impeller? If I didn’t, how do I get this remaining piece off? What do I use? This impeller piece looks rusty do I need a new one? I will provide a picture. I ordered a replacement motor and I had a Hayward Super Pump, model C48J2N131B1
Hi Chris, you will need to remove the metal collar still on the impeller shaft. You can use pliers and pull it off. Rust on the impeller isn't a big deal. It seems okay. As long as there are no cracks or broken pieces off of the impeller it will be okay to reuse.
Reply
I have an older Hayward Booster pump Model number 6060 with a another model number on a placard C48D62AD4 what pump motor would work with this? Thanks I would need the seal kit as well. Thanks
Does this replace AO Smith model C48K2A14?
Reply
Hi Mark, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Will this motor replace Century 1081 pool pump duty motor:
# 8-164276-20
3/4 HP
K56J frame
3450 RPM
Hi Alan, the correct replacement motor for your motor part number 164276 is 5221X. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have an A O Smith model 5060 part C48K2N143B4 what replacement motor will work. This is currently not in use as it gets too hot
Reply
Hello, the correct replacement motor for the motor model C48K2N143B4 is the ST1072. You will also need a Hayward 5060 shaft seal part number 3260-78 when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I think I need to replace my motor, it only hums and then shuts off and gets extra hot. Is this the right replacement for my motor? It’s a Hayward Super Pump 3/4 HP.
Yes this is the correct replacement motor. You will also need this Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Need a 3/4 motor replacement... Is the the correct replacement for what i have now.
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Resending just in case you did not get the pic. Needing a motor replacement. thank you
Hi Mark, yes this is the correct replacement motor for your motor model c48j2n131b1. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Need recommendations for replacement motor.
Hi Matthew, yes this is the correct replacement motor for your motor model c48j2n131b1. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hello. I have this pump for my 20,000 gallon pool and would like to replace the motor. The diagrams that match my pump seem to be Jandy PlusHP Original PHP, although the label on my pump says HHPlus Series. The pump was installed in 2003. The motor doesn't say directly what the horsepower is so I am having a hard time determining the appropriate replacement. Could you please tell me which pump motor would be the correct replacement? (Along with any shaft seal kit.) Thanks!
Hi, Victor. The B127 - 3/4 HP Round Flange 56J Full Rate EE Motor is the correct replacement. There is not a kit available, the Shaft Seal - R0338200, Seal Plate Gasket - G-413, Diffuser O-ring - R0558701, and Lid O-ring - R0558800 will have to be purchased separately.
Reply
I need a capacitor for Century/Hayward 3/4 HP. Model number is C48J2N131B1. The motor also shows this number below the model number : SP1605ZIM. Can you tell me what the capacitor number for it is and if you have it in stock?
Reply
Will this pump work to replace my 3/4 hayward? Hayward Super Pump 3/4 HP Model; C48J2N131B1? Also what else would i need to buy to make sure it fits my pump right?
Hello Brandon,Yes, based on the photo and the information provided the Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 would be the correct motor. We would also suggest changing the seals and gaskets which will be Tune Up Kit Hayward Super Pump - GOKIT3.
Reply
Hi! will this work to replace my current motor (pictured below). The motor is extremely loud and comes on and off when it wants to. The motor is old. Thank you!
Hi Ruben, yes this is the correct replacement motor for your motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump or quickest, provide those to us via our online chat feature so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have the A.O. Smith Round Flange 3/4 HP Up Rate Motor Item #UST1072 which I purchased from here in 2012 and again in 2018. The barons are loudly whining when we turn the pump on.
Is this the motor that replaces the A.O Smith one I currently have?
Will this motor last longer than the 2 years that the A.O. Smith one did?
Which Tune up kit do I order with this pump?
Reply
I reviewed the order history and see that you placed a new order for the UST1072 and GOKIT3 for your Super Pump, thank you! Water entering the motor shaft or vents, in most cases is the culprit for bearing failure or improper water levels in the pool. I recommend replacing the SPX2605CKIT in the future when you need to replace the motor again. The wet-end parts have an estimated lifespan of 10-years, after 10-years the kit or the whole pump/motor should be replaced as it has completed its lifespan.
Reply
Hello, The original pump (pictured) not working due to a defected coil and needs to be replaced. Can you tell me if this 3/4 HP motor is suitable and can you export to Grenada in the Caribbean. Thank you.
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a 29.000 gal in ground pool have 3/4 hp ust 1072 motor.would a 1 hp be better
Reply
It is not recommended to upgrade your motor to add HP to your pump. You will also need to change out some internal parts and than also check to see if your pool filter can handle the new HP of the pump. If you do decide to increase your HP. I would suggest changing out the entire pump and than sizing the proper filter for that pump.
Reply
I need to replace the motor on my Hayward model 6060. Is this the correct motor?
I am showing the correct replacement motor for your 6060 (C48D62A04) is the... Century 3/4 HP Square Flange 56Y Full Rate EE Motor - B2661
Reply
I need a replacement pool pump motor. Century Pool & Spa Motor - 0-173840-23 Type CS, Frame , 3/4 HP, SF 1.5, 230 / 115, Amps SF6.4/12.8, RPM 3450.
Reply
Hello Anthony. The Century Motor 3/4 HP model UST1072 is NOT a compatible replacement for the Century Motor model 173840. The Century Motor model B625 is the correct replacement. The Century Motor model 173840 has a rating of 0.75 HP 1.5 SF THP 1.13. The Century Motor model B625 matches these criteria. (Horsepower [HP] X Service Factor [SF} = Total Horsepower {THP}. The Century Motor model UST1072 has a rating of 0.75 HP 1.0 SF 0.75 THP. Booster Pump Replacement Motor - B625
Reply
Is this a suitable replacement for the Century B668 motor?
Hello Stuart. The Century Motors 3/4 HP Up Rate Motor model UST1072 is NOT a compatible replacement for the Century Motors model B668. The B668 is a .75 HP with a 1.5 Service Factor (SF) for a total horsepower (THP) of 1.13. Additionally, the shaft length beyond the motor housing is 4 7/16". Attached please find a link to the direct replacement Century Motors model B668. Letro Booster Pump 3/4 HP Motor - B668
Reply
will this pump replace my model c48jn131b1 will i need any adapters or just streight bolt on
Reply
Hello Eugene. The Century Motors 3/4 HP Up Rate Motor model UST1072 will replace your motor C48J2N131B1. No adapters or special fittings are required.
Reply
I'm looking to replace the motor on a Hayward Super pump 3/4 hp. Model # is C48K2N143B1. It's a FR 56J as shown in the picture. Will this one work alright? Any fitting or new gaskets needed?
Thanks much!
Reply
Hello. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the compatible replacement for the motor model C48K2N143B1. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. The GOKIT3 for the Hayward Super Pump contains the parts necessary to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
My pump is running for 2 minutes and shuts off for 7 minutes. Looking at replacing motor, can i replace my motor with this one? My motor in Century UT1072 Model Mod C48J2N131C1C Ser 34118J2. If this will work is the plug on this one a 20A 250V plug, because that is the receptacle that is installed. What else will I need to go with this? Is this in stock and how quickly can I get it?
Thank you for your help,
Bonnie
Reply
Hello Bonnie. The Century Motors 3/4 HP Up Rate Motor is the correct replacement for the Century Motors UT1072. This motor is in stock. Attached please find INYO Pools Shipping Policy. Shipping Policy Expedited Shipping Options are available at Check Out. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time as the motor. These parts are specific to the manufacturer/model of the pump and not the motor. Manufacturer/model information is visible on the Information Plate located on the body of the wet end. If this information is no longer visible or present, please provide several photos of the pump inclusive of the intake and discharge plumbing and a recommendation can be made.
Reply
HAYWARD SUPER PUMP 3/4 HP ,the motor A.O SMITH MODEL C48J2N131B1, THESE THE RIGHT REPLACEMENT MOTPR?
Reply
Hello Virgilio. The Century Motors 3/4 HP Up Rate Motor model UST1072 is a compatible replacement for your Hayward Super Pump model C48J2N131B1. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the parts necessary to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Is the Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 compatible to the 1081 pool motor /model # K63CXEAZ-5229?
Reply
Hello David. The Century Motors 3/4 Up Rate Motor model UST1072 is NOT a compatible replacement for the Polaris Booster Pump Motor model K63CXEAZ-5229. The motor shaft lengths are different. Polaris Booster Pump 3/4 HP Motor - B625 It is recommended that the motor shaft seal and backplate o-ring be replaced concurrent with the new motor. Booster Pumps 2011 to Current require: Pump Shaft Seal 3/4" PS-201 O-ring,Backplate for PB4-60 - R0536600 Booster Pumps 1994 to 2011 require: Pump Shaft Seal 5/8" - PS-1000 O-ring, Bracket To Volute (258) O-Ring
Reply
What is the replacement motor for a c48j2n131bi 3/4hp and what kit do I need for it.
Reply
Hi Sam, the Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 will replace your old C48J2N131B1 motor perfectly but the seals are specific to the pump and not the motor. Let us know what the model of the pump is that the motor attaches to so we can recommend a new motor shaft seal or Tune-Up Kit to ensure a leak-free installation.
Reply
My pump motor shuts off, seems to over heat, some time later after cooling off, it runs OK. Is the pump failing? If so do you have a replacement motor? Should I replace the pump filter housing as well as the motor?
Hello. From the scenario described, it would appear that the thermal overload is disrupting motor operation. Attached is a brief tutorial Using the Proper Test Equipment to Troubleshoot Pool Motors Note Section - Protector (Thermal Overload). If the Thermal Overload measures within the norm, the other motor issues are indicated. The Century 3/4 HP ST1072 would be the correct motor replacement for the Century motor model C1099. The Hayward Super Pump GOKIT3 contains the seals and gaskets that should be replaced concurrent with the new motor. If the pump housing has integrity there is no need to replace it.
Reply
Will this motor fit SP2605X7 Hayward Super pump?
Reply
Hello Howard. The Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 is a compatible motor replacement for the Hayward Super Pump Sp2605X7. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the seals and gaskets necessary to complete the new motor installation. Attached please find the Hayward Super Pump exploded parts diagram for reference.
Reply
It appears this UST1072 is a good replacement for my Hayward Super Pump motor C48J2N131B3 SP-1605-Z1-MBK, except for the AMPS (my motor says 11.0/5.5). Does this matter?
Hi Kelli, the UST1072 motor will be a perfect replacement for the motor pictured on your Super Pump. This newer motor was designed a bit better for more efficiency; the horsepower and service factor are the same. Be sure to add a GOKIT3 or a GOKIT3SALT if you have salt water for a leak-free installation and check out our guides on How To Replace a Pool Motor Shaft Seal and How To Replace the Motor on Your Pool Pump for some helpful tips
Reply
I have a Hayward Max-Flo-II 3/4 HP Square Flange Up Rate Motor - SPX2705Z1M, will this replacement motor work with my current pool pump system?
Reply
Hello, the UST1072 has a different frame than your current motor (round vs square flange), and the total horsepower of the SPX2705Z1M is a quarter step above the total horsepower of the UST1072. The motor replacement I would recommend would be the USQ1102, as the USQ1102 has a similar total horsepower as your current motor.
Reply
