I just purchased a v-green 165 motor. The instructions for the 270 are very clear on how to wire it to my SWG so it will only come on at a set time with a set flow rate. I do not see this info for the 165 controller. Any suggestions? My current controller is all analog. I guess I could wire my SWG on a separate timer, but I would prefer to set it up like described on the 270 (direct from the controller on the motor)
Reply
Hello Ken - The 165 does not have the auxiliary like the 270. We spoke with the Century rep and he said the best thing you can do is just wire the 165 and your SWG to the timer. That way they will both come on and turn off at the same time. The 165 will still hold it's programming (bubble memory) so it will run in the set speed when it does turn on.
Reply
I have a Hayward 1hp pump now that just froze up on me. Can I use this 1.65 hp pump? Mine is a 56J frame with a round face.
Reply
Hi Dennis, Yes this would be the correct replacement for your Hayward 1 HP 56J frame and I think you would be really happy with this motor. I would also suggest a Pump Tune Up Kit when replacing your motor.
Reply
I have a hydramax II 1.5 hp motor.Can I assume the ECM65CU round flange will give equivalent performance or better at 1.65 hp
Reply
Jim, You can expect the same performance at 3450 rpm's . Anything lower will reduce the watwer flow thus the energy savings.
Reply
how to reset the speeds on the ECM16CU motor
Reply
The V-Green 165 user interface has a “Reset to Factory Defaults” feature to restore the schedule settings back to the original values programmed at the factory. The user must press and hold the STOP and OVERRIDE buttons for three (3) seconds to reset the settings back to factory defaults. All of the UI bar graph LED’s will flash three (3) times to confirm the settings were restored to factory defaults
Reply
What are my options for replacing 1 hp Hayward super pump motor C48K2N143B1. Energy efficiency and reliability are top priority.
Reply
There are a few options on replaceing this motor with other more energy efficient models. There is the single speed energy efficient model being the UCT1102, the dual speed model being the B973T, and the the variable speed model ECM16CU. For this last model you would need to change the impeller, possibly the diffuser and lastly would need to make sure that the filter is compatible with the added pressure. The pump and filter model would be needed to confirm whether the pump parts will need to be replaced as well as if the filter is compatible.
Reply
re: The filter that the pump will be used with is a Haward DE4800, the pool is an in ground rectangle 20 'x 40' with depth of 3.5' to 8'.
Reply
Yes, this filter is compatible with the max flow rate of this model motor and pool surface area.
Reply
I am replacing a 1.5 HP Single Speed Hayward Super Pump. Is this the correct replacement? Will it match up to all the existing pump parts?
Reply
Yes this would be the proper variable speed motor replacement for your Hayward 1-1/2 HP Super Pump. When replacing your motor we would also suggest a Hayward Super Pump Tune Up Kit.
Reply
What is the warranty on this motor?
Reply
The warranty for the ECM16CU 1.65 HP Variable Speed Pool Pump Motor Round Flange is 18 months from install or 24 month from manufacture date (which ever comes 1st).
Reply
Hi There. I have a hayward 1.5 HP single speed pump. Model number C48LN134B1 with round flange. Can I replace my pump with this one? Will it be a direct fit and plug and play? Thnx
Reply
Hi Taz, If you have 220 volts going to the motor the 1.65 HP Variable Speed Pool Pump Motor Round Flange will replace your current C48LN134B1 model motor.
Reply
I'm looking to replace my ao smith C48L2N134B1 (super pump) motor to this vs pump. The motor I specified is 1.5 hp, SF 1. will this vs be a direct swap out using existing impeller & diffuser?
Reply
Hi, The 1.65 HP Variable Speed Pool Pump Motor Round Flange (ECM16CU) would be a direct replacement for the C48L2N134B1 motor and you can keep the existing impeller and diffuser. I would recommend getting the Hayward Super Pump Tune Up Kit (GOKIT3)
Reply
Hi, I am replacing a Hayward Super 2 1.5 Part # 7-181093-03 which is the proper var speed pump
?and do I need any other parts?
Reply
Hi Bryan, The 1.65 HP Variable Speed Round Flange Motor (ECM16CU) would be the correct variable speed motor. You would also need a Hayward Super II Pump Tune Up Kit.
Reply
I have a A.O. smith model ST1152 pool motor, it died and want to replace it with a variable speed motor. The ST1152 is a 1.5 HP, 56J frame, 1.5 SF. Is the ECM16CU and equivalent motor to use to replace? I noticed the SF is not same on the ECM16CU.
ECM16CU
Reply
Hi Tom, The A.O. Smith 2.7 HP Round Flange Variable Speed Pool Pump Motor (ECM27CU) would be the more suitable replacement for the ST1152 motor.
Reply
Can I use this the V-green 1.65 HP Variable speed motor to replace a Century 1081 Pool Pump 1 HP 1 SF attached to a Hayward Super Pump and a Hayward S240 sand filter?
Reply
Hello, Yes this 1.65 HP Variable Speed Pool Pump Motor Round Flange will work with a 1 hp Hayward pump and your sand filter.
Reply
Will this Vgreen 1.65vs round flange fit on my Hayward Northstar pump housing. The housing appears to extend over the motor and I want to confirm it will fit since there is a programming box on top of the motor..
Reply
Hello Ron - The V-Green 1.65 will not fit the Hayward Northstar pump housing.
Reply

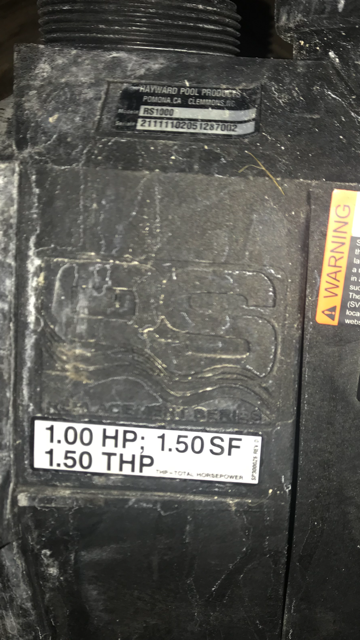

Hi, I have a Hayward RS1500 pump and an AO Smith 1.5hp motor (but thats about all I can make out on label)...
If I want to go variable speed, is this the right motor? Anything else I need?
Thanks.
Reply
Hello, yes the ECM16CU will fit the Hayward RS series pumps. We would recommend ordering a GOKIT2 that will include your shaft seal and housing o-rings.
Reply
I need to run at least 30 GPM through my heat pump. How do I figure out how to determine how low of an rpm I can go to make sure I get 30 gpm?
Reply
Hi Bob, You will have to use a process of elimination when trying to figure the GPM that you actually want this motor to produce. Also the type of pump that this motor is attached too will also play a factor in the GPM depending on the feet of head of your pool.
Reply
I need to replace my Pentair 2 HP part# 7-177476-20 motor with matching pump.(square flange). I read that I may need to change my impeller. My impeller has no numbers on it other than handwritten 7645 on it, Will this motor work and do I need to get another impeller for this to work properly? What other parts will I need?
Reply
Hi Randall, This motor will not work with your pump. You will need the V-Green 2.7 HP Square Flange Variable Speed Pool Pump Motor (ECM27SQU) in which you would not have to change the impeller. If you want to go with the smaller variable speed motor then you will need to change the impeller. We will need to know the model of the Pentair pump you have in order to get you the correct impeller and other parts yopu wll need.
Reply
Is this motor, at this price new or refurbished?
Reply
Hi, This motor is new not refurbished. It will be warranted for 18 months from install or 24 month from manufacture date (which ever comes 1st).
Reply
I have a Jandy Aqualink RS8 upgraded to Rev T and a Jandy SHPF2.0 pump configured with a 1 HP impeller. The motor is on its last legs, I assume the square face version of this motor will fit. My question is whether this motor has the digital input and compatibility to allow the Aqualink to control the pump? Do I need some sort of interface between the Aqualink and motor?. I have a new 1HP impeller, seal, O rings, etc. Thanks.
Reply
Hi George, Unfortunately the Jandy Aqualink will not be able fully control this motor. It will only tell the motor when to come on/off. Then you will have to use the interface on the motor to operate the desired speed and run time.
Reply
I have a Hayward Super Pump motor Part # C48K2N143B1. Is this pump a replacement for that pump? Can this pump or the dual speed version of this pump work with a Hayward Prologic system or does the timer override it? Do I need a connector to make it work with the Prologic system.
Reply
Hi Ken, The ECM16CU variable speed motor can replace your C48K2N143B1 motor. It can also be wired to the ProLogic controller but only allow you to tell the motor when to turn on/off, which is just supplying power to the motor. You will have to ue the on board interface to set the speed and speed duration. The STS1072R would be the recommended dual speed motor to work with the ProLogic system. Which ever motor you decide to get we also recommend getting a Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
I have a pentair Intelliflo vs+svrs pump that I am replacing. Will this pump work for me?
Reply
Hello, Thomas. If the motor needs to be replaced, you will need to install the Motor 3.2kw Pmsm Vfd (350105s) PART# 5074-34 along with the PENTAIR SHAFT SEAL ASSEMBLY OEM (071734S) PART#5074-16. Click here to view the complete list of parts available for replacement on the Pentair IntelliFlo VS 3050 & VS + SVRS Models. Alternatively, if you would like to replace it with another VS+SVRS I would best recommend viewing the Hayward EcoStar Variable Speed Pump SVRS MODEL# SP3400VSPVR.
Reply
I have a Hayward Super Pump with a Century C48L2N134C2 motor. I am looking to upgrade to a variable speed motor. Will this motor fit my pump? Also, is it a good fit if it does? I have a 28,000 gallon pool with two skimmers on one two inch line reduced to 1.5" coming into the three way valve, a 1.5" main drain line, and a single 1.5" return line split between two returns. Thank you.
Reply
Hi Dustin, The ECM16CU VS Motor will replace the MOD # C48L2N134C2 and will mount to the Hayward Super Pump. We also recommend that you get the Hayward Super Pump Tune Up Kit p/n GOKIT3 or GOKIT3SALT.
Reply
Does this motor have a timer feature and an auxiliary to hook a salt chlorine generator to? If not, is there a motor you suggest for the Hayward Super Pump that does? Pool is 28,000 gallons. Thanks.
Reply

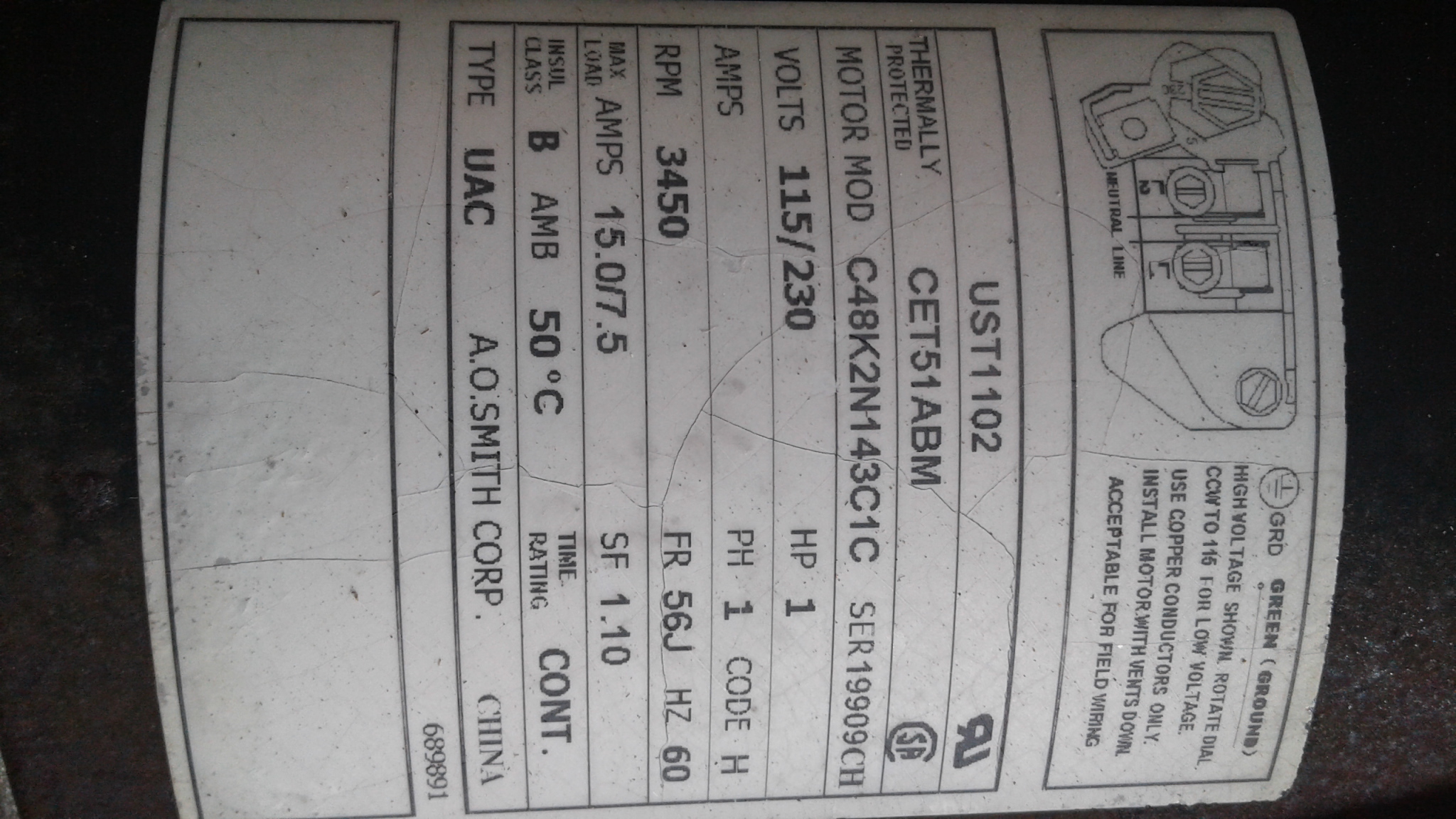

I currently have a UST1102 1 HP pump motor that needs to be replaced. I am interested a Variable Speed Pump Motor as a replacement.I see two different HP ratings on variable speed motors on your website. My pool size is 20' x 40' x 8' (deep end) x 3' (shallow end). We have no heater. It is a salt water system. Please advise as to which HP rated motor is need and the part number for ordering. Thanks
Reply
Hi Conley, The ECM16CU VS motor will be the correct replacement for UST1102 motor.
Reply
I am trying to replace motor on jandy stealth jhpu1.5. With an ao smith centurian motor. I'm also upgrading my filter to a four cartridge even though my pool is small (about 12000 gallons). Would this 1.65 or the ecm27cu work with my set up? Also, would the V-green automation adaptor kit allow it to communicate with the Hayward omnilogic automation system that controls my salt generation? Thanks!!!
Reply
Hi Matt, the 1.65 would be a great choice for a variable speed replacement motor on a 12,000 gallon pool. I also like going with a large 4 cartridge filter I think this would be an awesome set up. The V-green automation adaptor kit would work with your Hayward Control System.
Reply
Is the ECM16CU the correct replacement motor to fit a Hayward SP2300VSP Max-Flo VS? The round flange is listed to replace the Max-Flo, but visually the square flange looks closer to what the original pump/motor looks like externally.
Reply
Hi Chris, The Max-Flo VS Pump will us the ECM16SQU motor but the Max-Flo Pump will use the ECM16CU.
Reply

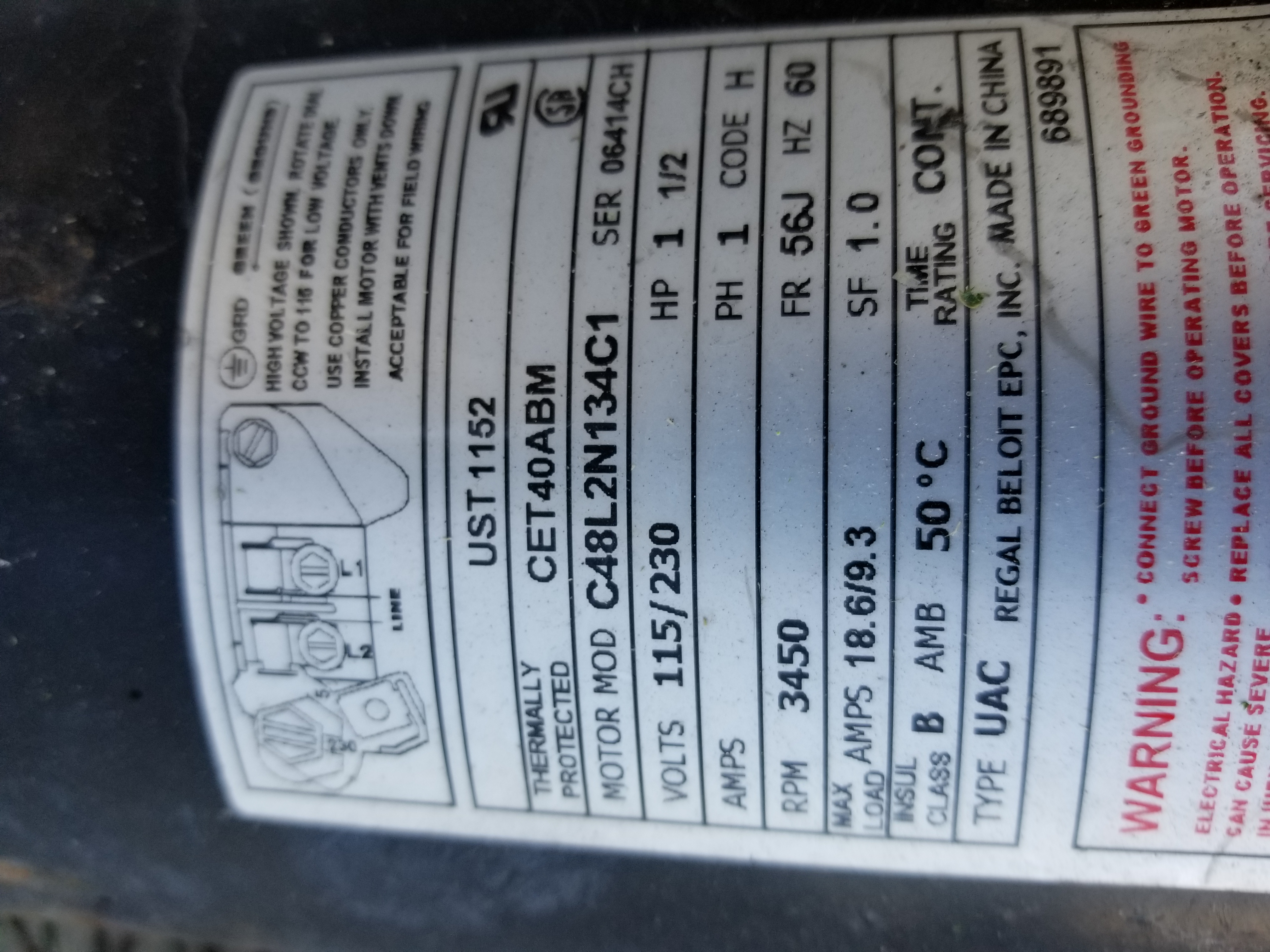

The UST 1152 replacement motor on my Hayward Super Pump SP-2610-X15 got an open on the windings. I want to replace it with the ECM16CU. The voltage at the motor terminals is 244V. I see the nameplate rating for the ECM16CU is 208-230V. I had the power company check to see if the voltage from the service transformer was too high. They checked it and said 244V is within their allowed tolerance. Is the ECM165CU okay to run continuously at 244V? Thanks for your help.
Reply
Hi Jay, Yes, the ECM165CU can run continuously at 244V. The allowable range for voltage is +/- 10% of the valve shown on the motor label. So the upper voltage limit is 253V.
Reply
I have a A.O. Smith B228SE single speed motor that needs to be replaced. Would the ECM16CU be a good replacement for this motor? I am interested in upgrading to a variable speed motor.
Reply
This variable speed motor would be a good replacement for the B228SE 1 HP motor. However, you may want to replace your impeller with a 1.5 HP impeller to take advantage of the higher speeds on the variable speed motor.
Reply
Is it very difficult to program Part # ECM-16CU assembly?
Reply
Leo, the ECM16CU is pretty simple to program. For a step-by-step guide on how to program it, take a look at the V-Green Owner's Manual.
Reply
I wanted to purchase the 1.65 hp variable speed pump to replace my UST1102 pump. I use a Hayward super pump and a Hayward ec65a filter. I already have a replacement 2hp impeller. Would it hurt to use that or should I get the 1.5hp impeller. Also will I need a new diffuser? Seal/gasket kits?
Reply
Hi Matt, Unfortunately, you would need to get a 1.5 HP Hayward Super Pump impeller as your 2 HP impeller will overwork this 1.65 HP motor causing it fail quickly. We would also suggest a Hayward Super Pump Tune Up Kit when replacing your motor.
Reply
Will this motor replace my broken single speed A.O. Smith C48K2N143B3 attached to my Hayward Super II pump?
Reply
Yes, this motor will replace your C48K2N143B3 attached a Hayward Super II pump, the C48K2N143B3 is a 1 HP motor so if you wanted to get the full output of the motor you would need a 1.5 HP Hayward Super II Impeller We also suggest a Hayward Super II Tune Up Kit when replacing your motor.
Reply

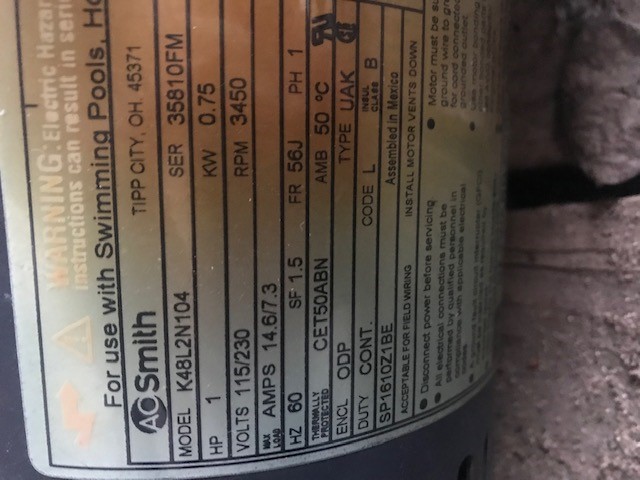

It's time to replace my A.O. Smith single speed pump motor. I have a K48L2N104 motor using 230v, 1.5", 1 HP, .75 kw, 14.6 max load amp, 60 HZ, SF 1.5, FR 56J attached to a Hayward Replacement Series pump RS1000.
Will the ECM16CU replace the K48L2N104 ok? other considerations?
Reply
Hi Todd, The ECM16CU would be the correct variable speed replacement motor for your Hayward RS1000 pump. When replacing your motor you will need to replace your RS1000 Shaft Seal. This motor does require that your pump be hooked up to a standard yellow dial timer or an automated control system.
Reply
I have a Hayward pump model SP 3000D and looking to replace the single speed 1 HP motor with a variable speed motor. What do you suggest?
Reply
If that model of Hayward is a Super 2 then that variable speed motor would be a great replacement. It's going to depend on the size of your filter on if it can handle the increased flow rate from the increased horsepower.
Reply
I have a Hayward sp 3000d pump with a 1hp motor, a Pentair cartridge filter that is approx. 20" tall and approx. 12" across and would like to replace motor with a variable speed motor. Would the vs ecm16cu motor be a good match?
Reply
Hi, This motor is a good match for the Hayward Super II Pump. When replacing the motor we also recommend that you get the Hayward Super II Pump Tune Up kit, p/n GOKIT2 or GOKIT2SALT
Reply
I have a raypack 360000 heater. Does the heater require a higher rpm when it's heating.
Reply
Reed, The heater will need higher rpms to operate. You can adjust the rpm setting when you need the heater to operate.
Reply
I have a Hayward Super pump with a Marathon motor model 5KCR39SN2823AX, it's a 1.5hp. Will this VS motor work, additionally, I believe Hayward pump is 12 yrs old, shell of it looks good, should I consider entire unit or do these pumps last?
Reply
Hi, The Hayward Super Pumps can last but with it being 12 years old I will recommend replacing the entire pump. The EasyFit SUP 1.65HP Variable Speed Pump or the PureLine Prime Variable Speed Pool Pump are the top replacement models for the Super Pump.
Reply
Hi, I have a Jucuzzi model 15utmf-s2 Part # 94027215 1.5 HP 1.1SF 2 speed pump. I was thinking of converting to a variable speed motor. Will this motor work without changing impellers. Thanks
Reply
Will this motor replace a Marathon electric model: 5kcr39sn2823ax? It is a 1.5 hp 3,450rpm round flanged motor connected to a Hayward system. Also are there any seals, or other replacement parts that I would need to purchase?
Reply
Hi Brad, This motor (ECM16CU) will replace the Marathon 5KCR39SN2823AX motor. If you can provide the model of the Hayward Pump we can locate the correct seals needed.
Reply
I have an AO Smith motor C48J2N131C1C connected to what appears to be a
Leslie/Hayward pump LE40012. Which motor can connect to this pump and will it be efficient. Thanks
Reply
Here is a link to the Leslie's Hydromax II Parts page. The motor model you provided references an A.O. Smith Round Flange 3/4 HP Up Rate Motor - UST1072. We will always recommend that you replace the SHAFT SEAL 201 anytime you change out the motor.
Reply
Will this motor replace an A.O. Smith O-164303-03; M56J; Serial OKC5? I'm looking for a quieter pump than the one I'm replacing.
Reply
Hi Eric, The ECM16CU will replace the 0-164303-03 motor and will be quieter because it a TEFC motor.
Reply
What is the correct replacement impeller and diffuser when replacing a burned out 3/4 HP PentAir Superflow setup. Preferably the upgrade in flow to a PentAir 1.5h/p diffuser and impeller?
Thanks
Reply
Hi Dan, You will need the ECM16SQU motor, Impeller 35-5074 along with the Shaft Seal (354545S), Diffuser Gasket (355030), Housing O-ring (355619) and the Lid O-ring (355619) are the parts needed to convert your SuperFlo pump to a variable speed.
Reply
Will this motor fit as a replacement for a1.5 challanger pump
Reply
The correct replacement variable speed motor for the Pentair Challenger Pump is the 1.65 HP Variable Speed Pool Pump Motor Square Flange - ECM16SQU. We would also recommend replacing the shaft seal with the Pentair Shaft Seal OEM 5/8" - 354545S.
Reply
hello, I have a Hayward Super Pump II with an A.O. Smith Pump Model # C48L2N134B33 3450 rpm --- 1 1/2 HP
Will this pump motor work, and what else will I need?
Thanks
Reply
I have an approximately 18,000 gallon L shaped pool, with a vGreen 165 Pump. How long does that pump need to run daily to cycle through that water one time?
Reply
I will need the model of the pump that motor goes to and the distance from the pump to the main drain in the pool to figure out the flow rate. From the flow rate I will be able to tell you the turnover rate.
Reply

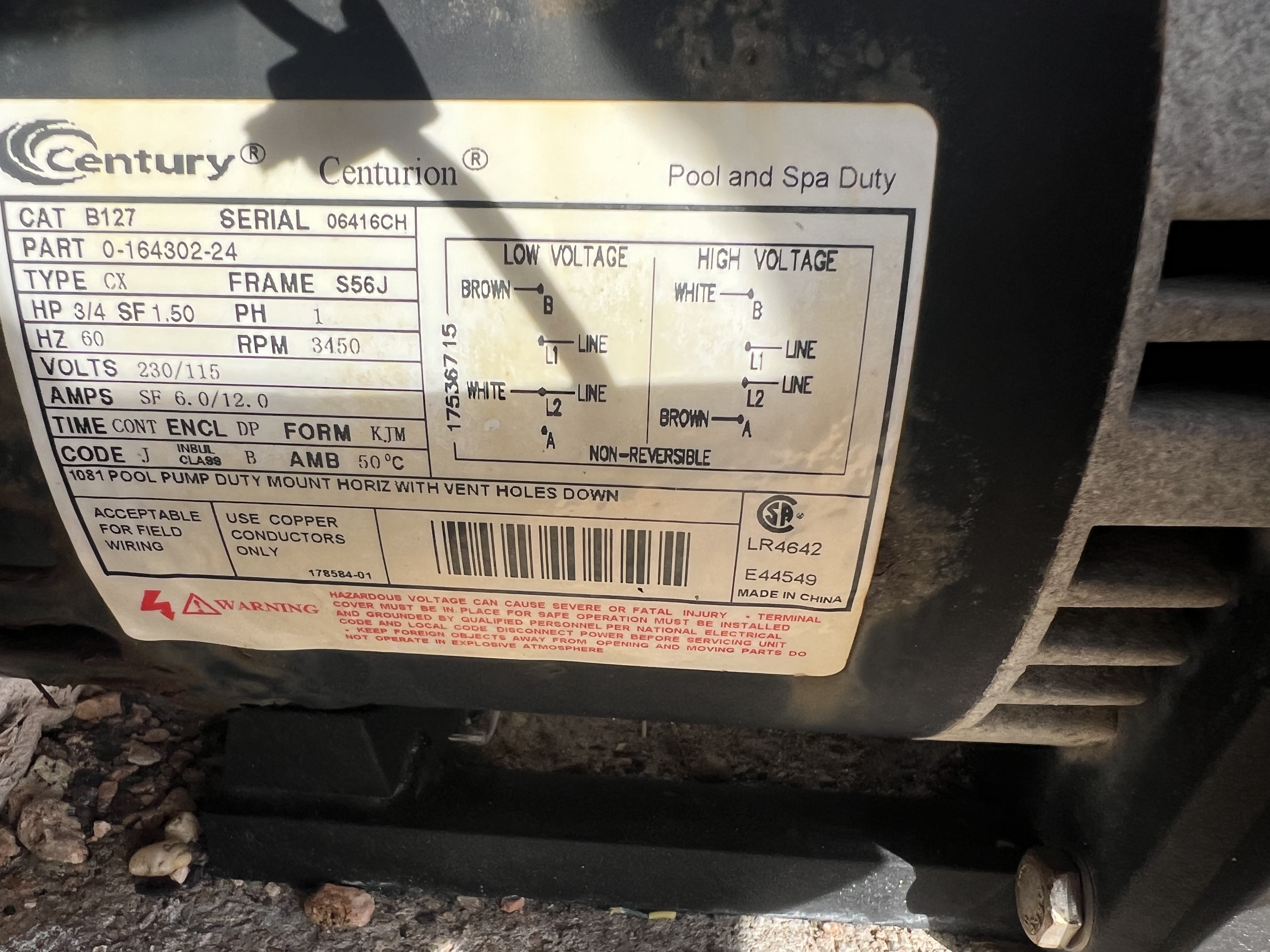

Did not see it in the other questions or missed it but will this work with a:
Centurion for PAC FAB
7-168887-06
Y56Y
CX
KJM
serial BW1-24
Thank you
Reply
I have a Hayward Superpump. Is this the replacement motor? The Square Vs. C flange is confusing me.
Reply
Yes, the 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU is the correct replacement variable speed motor for the Hayward Super Pump. I would also recommend replacing your seals with the Tune Up Kit Hayward Super Pump - GOKIT3.
Reply

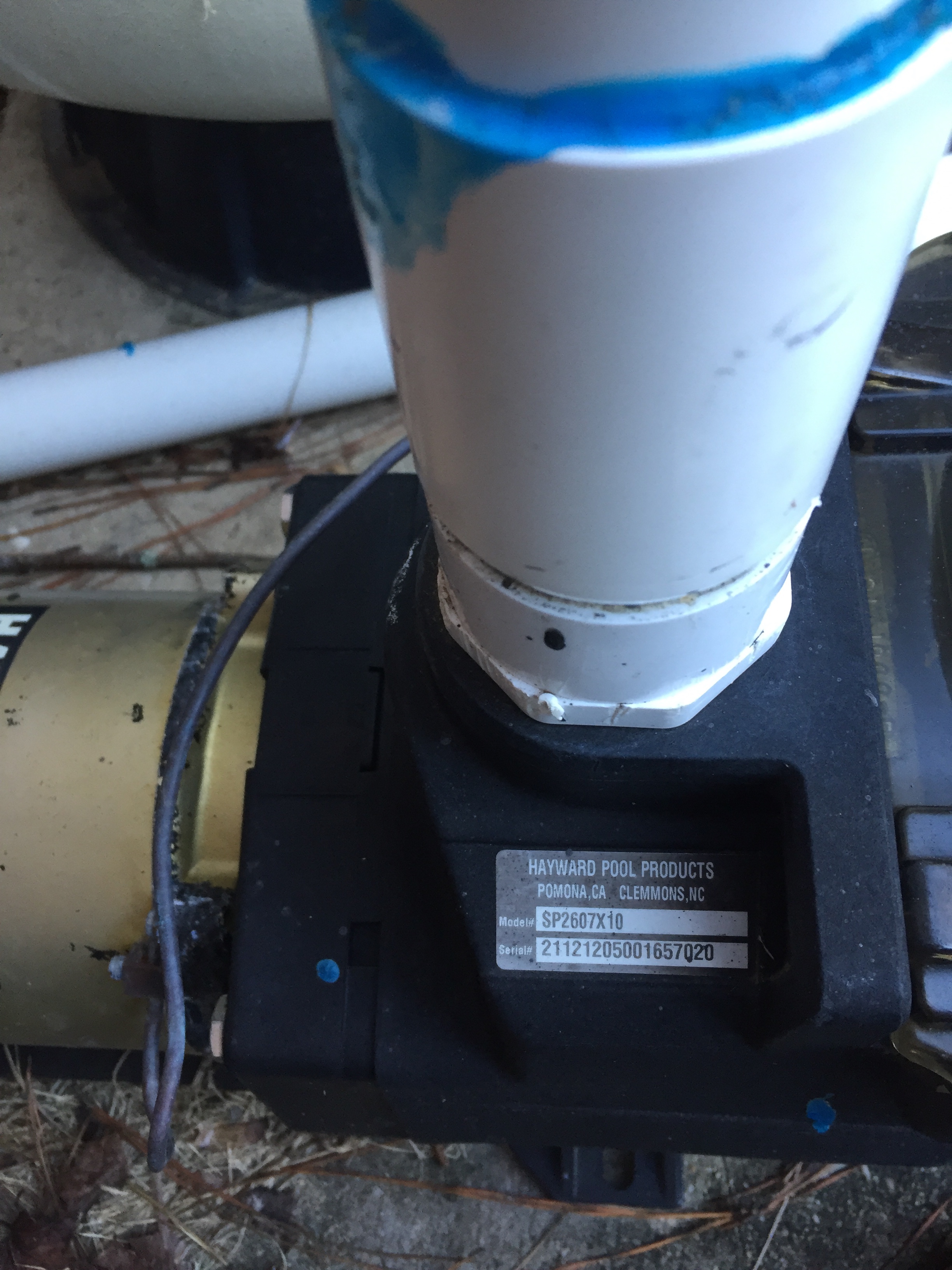

I have a Hayward pump Model #SP270x10. Would this motor work with that pump?
Reply
Although the model number was incomplete, it appears you have a Hayward Max-flo II pump. If that is correct, you would need the 1.65 HP Variable Speed Pool Pump Motor Square Flange - ECM16SQU. I would also recommend the HAYWARD SHAFT SEAL (OEM) - SPX2700SA whenever you change the motor.
Reply
Will it fit a Centurion for Pac Fab 716888706?
Reply
Hello, These go to Hayward Super Pump, Super II Pump & Max-Flo Pumps. The only Pac Fab that we carry is Pentair / Pac Fab Challenger Parts, see if this matches what you have, because there is a dual speed with timer.
Reply

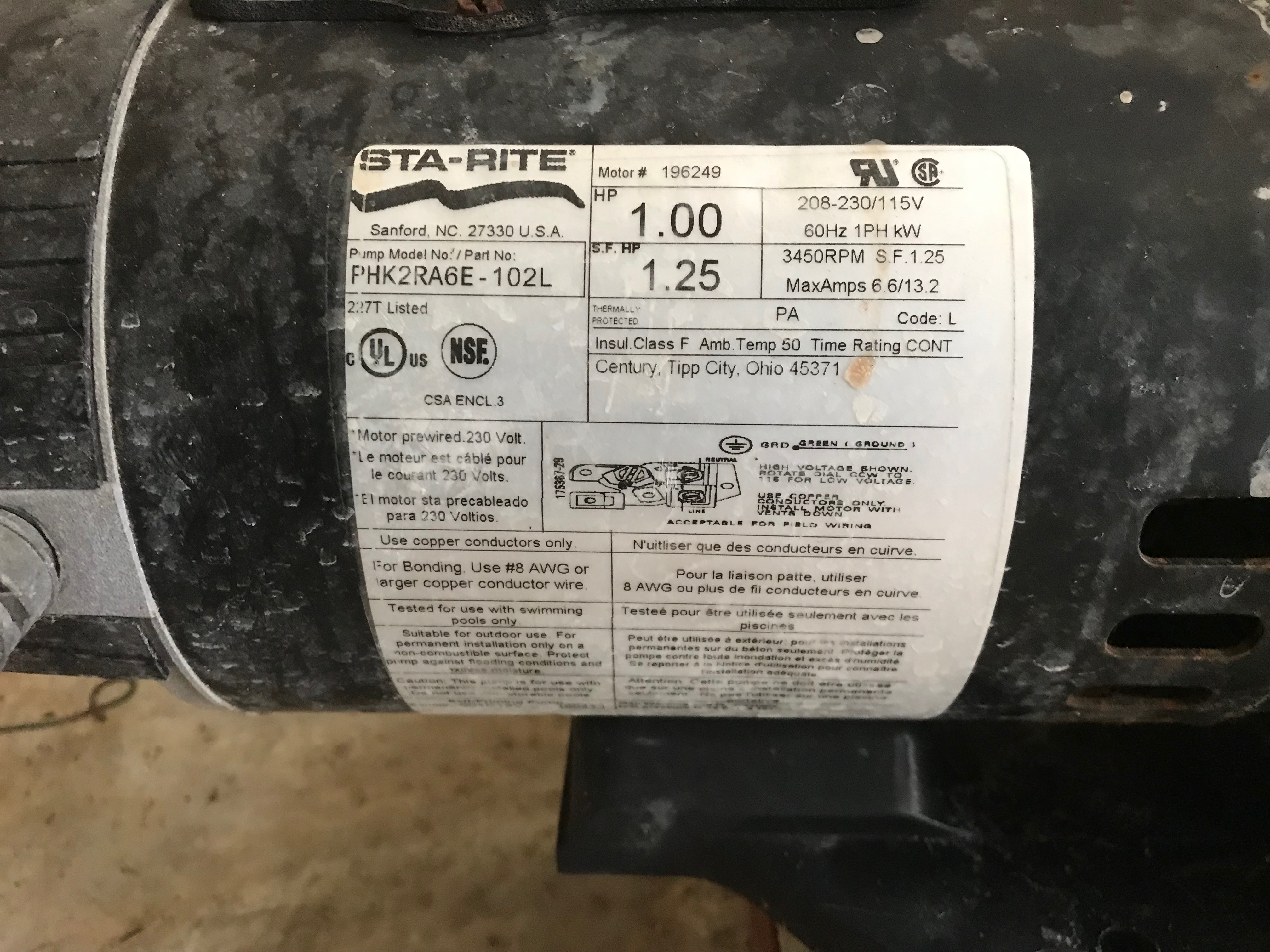

I have an AO Smith Century model B2853 1 hp motor with a Sta- Rite impeller. What variable speed motor would I need to replace it?
Reply
Leo. The ECM16CU would replace your existing motor even though it has a higher total horsepower. Please note that the variable speed motor only runs on 230v. We also suggest replacing the shaft seal when you replace the motor.
Reply
I have a C48L2N134C1 1.5 HP pump will this be compatible variable speed replacement motor?
Reply
Hello Ed- Yes, the 1.65 HP Variable Speed Pool Pump Motor Round Flange is a compatible variable speed replacement.
Reply
Does you set the time of day or just how many hours you want to run at the different speeds? If I have it to start at 9:00 am on low power, what happens if the power goes out? Will it have to be reset it so the start at 9:00 AM?
Thanks,
Reply
The V-Green 165 will always run the PRIMING sequence when starting from the OFF state, except when starting in OVERRIDE. The factory Prime settings are 2600 RPM for three (3) minutes. The START event will be stored in the controller. Should a power outage occur, the V-Green 165 will automatically re-start at STEP 1 when power is restored. Please click here to review the V-Green 165 Motor Owners Manual for further details.
Reply
Hi, I have an AgO Smith century centurion motor to an aquaflow pump for 25,000 gallon in ground pool. The pump just died after 7 years in exposed environment but with little cover on it. Will this pump work for me? I think my flange is square
Thanks
Reply
Hi, We will need the motor's MOD, PART or CAT number to find out if this variable speed motor will work with your pump.
Reply
I have a A O Smith, 1 HP motor Model # C48K2PA104A3 with a round flange. Is this a good replacement?
Reply
Would this be a good replacement for a C48J2N131B1 3/4 HP Hayward/AO Smith motor?
Reply
Yes, This would be a great replacement. You'll have to replace your current impeller with 1 hp to1.5 hp impeller. You can adjust the speed and flow of the pump by lowering the rpms .
Reply
I just received mine in the mail yesterday, have it all hooked up and it is super quiet. My question is, on my Intermatic timer that I'm tied into, should I pull the start and stop tabs? I'm having a hard time understanding step 12 and three for the timing. I've watched your video on YouTube, and I'm still little confused. When starting at step one, is that the time every day that the motor will start?
Reply
Hi, Gary. The ECM16CU motor does not have a true built-in timer so you would have to set the start/stop time at your Intermatic timer. The start time would be STEP 1 and the stop time would conclude at the end of STEP 3. So if your total run time equal 12 hours you would set time Intermatic timer to start at 8 am and turn off at 8 pm.
Reply
Will this vsp motor replace my Hayward single speed super II motor C48L2N134B3 1.5HP 1.0SF 115/230 Volts PH1? Impeller spx3016c for a 18k gallon pool with a small waterfall?
Reply
Hello Jichao- The ECM16CU 1.65 HP Variable Speed Pool Pump Motor Round Flange would be the correct replacement VSP motor for your super II. I would also recommend getting the tune up kit which is gokit2 or gokit2salt.
Reply
I have QC1102 (K48L2PA101A1). Will this fit? Also, what will be right Go-Kit for this?
Reply
Good morning Amit, No, This motor will not fit it is a round flange motor you would need the 1.65 HP Variable Speed Pool Pump Motor Square Flange - ECM16SQU I would need to know what kind of pump this was going on to recommend the correct seal kit.
Reply
I have a 2 hp Hayward super pump model# k48m2n111. Will this pump work for me? Thanks for the help.
Reply
Hello Steve- You can use the 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU to replace your 2 hp motor, I would just keep in mind that even at high speed this will not have the same flow as your previous motor did.
Reply
I have a Pentair Intelliflo VS 1.5 THP that has gone into fault and won't come out. I read the labels and came up with one that says "Century 2515564-001". The pump is out of warranty but worked well for a couple of years. Is there somewhere I could send this to have it repaired or do I just need to buy another one. If so, can you advise which one from the Century number I provided. Also, I am in Pensacola Florida is there a dealer or distributor near me.
Reply
You can give Pentair a call, 800-831-7133, to see if they could repair it if you ship it to them. Also, are you sure that it is 1.5HP because the Intelliflo is a 3HP pump?
Reply
Replacing mod# k48l2n100a1 single speed 1hp motor will this work ?do i need to change empleller to 1 5 ? Filter is ec75
Reply
Hi, BR. The ECM16CU VS Motor can be used to replace the K48L2N100A1 single speed motor. You will not need to change the impeller unless it's damaged.
Reply
How can the 600rpm amp is 0.5 (1/21 of 10.5AMP at 3650rpm) but the HP is 0.5 (1/3.3 of 1.65HP at 3650rpm) given voltage is 220v? Variable speed is efficient due to the fact that HP is roughly proportional to square of RPM, 600RPM at 0.5amp is efficient but 600RPM at 0.5HP is very inefficient! Can you clarify what are the amp and HP at 1875rpm and 600rpm? Thanks.
Reply
At 600 RPM you will use 0.5 amps and at 1875 RPM you will use 5.5-6 amps.
Reply
Is this VS motor the right replacement for my 7-186886-01 A. O. Smith motor?
Reply
Unfortunately, this motor will not work as your replacement because it is designed for inground pumps. Your motor is an above ground design. You would need to replace the entire pumps assembly. Please view the Super Flo VS.
Reply
I have an a.o smith model s48b73A03 3/4 hp motor. Can this be used to replace this motor?
Reply
Hello, Amanda. No, the 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU is not a compatible replacement for the s48b73A03. The 3/4 HP Single Speed Motor - BN24V1 is the direct replacement. The 3/4 HP 2 Speed 115V Thru Bolt Motor - BN36 is also available with the use of the Switch, Toggle-two Spd (motor Add-on) (18313301) or the 40 Amp Control Center W/ 2 120V Timers - T10101R . Don't forget to replace your Pool Pump Shaft Seal when replacing the motor impeller.
Reply
I was looking to replace a US Motors 1081 Cat. No EB841, Model K63CXESD-4791, 1HP, SF 1.65, RPM 3450 motor with this. It has a round flange. If so do I need any other parts?
Reply
If you are replacing an EB841 that is a square flange motor so you would want the ECM16SQU. That is the motor, I can help you with the seals if you have the model of the pump that your motor attaches to. If you do not know you can attach a picture and shoot me an email back so I can identify it for you and find the correct seal kit for you.
Reply
I want to replace the motor on my Hayward North Star pool pump SP4010X15NS. Will a variable speed motor work with that pump assembly? If so which one? This pump currently has a 1.5HP 1.25SF A.O Smith motor.
Reply
Can I use this motor as a replacement motor for my Hayward Northstar pump SP4010X15NS?
Reply
Hello Mike, according to the 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU these match Round Flange Hayward Super Pump, Super II Pump & Max-Flo Pumps, not the Northstar. You can replace with the 2.7 HP Variable Speed Pool Pump Motor Round Flange - ECM27CU, but please make sure you have the clamp on first before you start putting your motor back onto the pump.
Reply
I have a Master Spa 465 Gal unit with a 2 speed pump can this be used for this application? Currlently using a Century AO Smith 7-193777-02 motor
Reply
The ECM16CU would fit to that pump but what you have on there now is 6HP and the total horsepower of that variable speed motor is only 1.65HP.
Reply
Just to clarify, this pump does not have programmable features in the sense that you can program it to run a certain amount of hours at this RPM, then change to another RPM for another certain amount of hours, and then another RPM for a final amount of hours? In other words, you cannot program it to do anything on it's own (the only thing that is programmable is the actual preset speeds)? So it's all manual when you want the RPMs to change...Thanks!
Reply
You are able to program it to run at a certain RPM for a specific time and so on like you said. You are able to control it from your phone with the VLink interface as well.
Reply
Currently have an Emerson K63CXERK-4777 1.5 HP motor. Would this be a good replacement motor to use?
Reply
Yes, that would be a great replacement motor for your current motor. If you have the model of your pump I can help you identify the correct shaft seal to go with that motor.
Reply
I have an a. O. Smith 1.50 hp motor would this variable speed motor work. And would it work with my gold line control panel.
Reply
Hi, Ronda. This vs motor will replace your 1.5 hp motor with the correct frame size. It can also be wired to an automated controller.
Reply
What Impeller is used with this motor/shaft?
Reply
It is going to depend on your pump model not the motor. If you do not know the model you can attach a picture of your pump and I can identify it for you.
Reply
Would this be a good replacement/fit a Max Flo that had an uprated 1 HP single speed AO Smith motor model # C48K2N143B1?
- And I'm betting I'd need a new impeller, right? And Go Kit?
Reply
The ECM16CU would be a great variable speed replacement for your current motor, and no, you will not have to get a new impeller just the seal kit, part number GOKIT1.
Reply
I have a Super Pump with a 1.5HP Motor Mod C48L2N134C1 running 115V. Would like to replace with a VS motor or entire pump assembly if necessary. The electric line also services outlets in the pool shed. What are my options?
Reply
Bob, To install the ECM16CU, you will need 230v. Do you have 230v available?
Reply
I have a hayward SP2600VSP. will this motor bolt right up, also I use an intermatic timer do you see any issues.
Reply
Hi, Marty. Yes, the ECN16CU motor will fit the Hayward SP2600VSP pump using you Intermatic timer.
Reply
Would a ECM16CU be the correct replacement for a A.O. Smith Northstar SP1615Z1BNSC motor?
Also this will eliminate the dial timer I use now?
Reply
Hi, Gary. The ECM27SQU is the vs motor that will replace the SP1615Z1BNSC motor and allow you to eliminate the external timer.
Reply
I currently have a Marathon imPower variable speed motor (3/4 HP i believe) with a P2RA5D180 which is failing (the control board isn't working properly). What variable speed motor can I replace this with? Additionally, i don't see any pump curve charts for these motors, is that only provided for pumps? With my solar panels running, looking for 40 GPM with 55 feet of head, so i want to make sure this is sized correctly.
Reply
Hi, Dave. The ECM16SQU square flange vs motor is the correct motor that will fit on the P2RA5D-180L pump. The pump curve is specific to pumps, not the motor. With the proper settings, this motor will be able to achieve your goal.
Reply
Will the motor fit my MaxFlo VS2302VSP? What other parts do I need?
Geoff
Reply
Hi, Geoff. The correct replacement vs motor is the ECM16SQU. This motor does require an external timer to turn it on/off. Replacing the pump seal and o-rings are recommended, those items are all listed on the Hayward MaxFlo VS (Variable Speed) parts page.
Reply
I have a Jandy JHP 1.5 Stealth Pump with a Century Centurion Part 7-193633-24 1.5 HP Pump. Is the ECM16CU the correct motor if I want to change to a VS motor? If so, adding the GOKIT 77 would be all I need to order to upgrade? (I assume I would reuse the exiting impeller/diffuser
Reply
Yes, this would be the correct motor and seal kit replacement and you should not need a new impeller unless it is damaged.
Reply
I need to replace a Hayward Tristar SP3200VSP 1.85 hp that only lasted 2 years. Could I just replace the motor with this one?
Reply
Carla, Do you have a lot of elbows in the pool plumbing? Also, the ECM16Cu is a round flange motor and will not fit the Tristar housing. Please provide a picture of your motor label and we will provide you with some options.
Reply
Inyo help me picked this pump last fall based on pictures I sent. Now as we try to hook up we find it needs a 220. A friend told me there may be a way to make it a 110. Is it possible? model ECM16CU
Reply
You would not be able to make this motor 110 volts but you can change the electrical line running power to the motor to 220 volts. You would need to get with a licensed electrician but you can change that 110 volts line to 220 volts supplying power to that pump.
Reply
What is the proper replacement motor for my Speck Model 21-80/30G. This is a high volume low head 0.5 HP specialty pump with 56J motor C flange, threaded. The current pool motor is 1725rpm, is there a way to avoid pump priming as this pump is well below pool water level? High speed priming could deliver too much water and could be bad for pump. One more question on a separate pump I'm considering upgrading: Northstar SP4015NS with Y56J motor, 1.5hp, which vsp to use? Thanks!
Reply
Hi, William. The Motor Unit - 2088300005M is what's used with the Speck 21-80/30 G pump. There is no way to avoid the priming mode of this motor. The ECM27CU VS Motor would be the replacement for the Northstar SP4015NS pump.
Reply
Hello
I want to replace my motor with a variable speed one. I have an Old Anthony Bronze trap. I have replaced the motor once in 08, Its a 1.5hp c56 with a keyed shaft. Would the
1.65 HP Variable Speed Round Flange - ECM16CU , work ?
Reply
Unfortunately there is not a keyed shaft variable speed replacement motor. My suggestion would be a complete new PureLine Prime PL2605 1.65 HP Variable Speed Pump.
Reply
I have a Jacuzzi Magnum Force pump that has a two-speed STS1152R motor that needs replaced. Will this 1.65 HP Variable speed motor work (ECMU16CU)?
Reply
Hi, Jack. Yes, the ECM16CU motor can be used as a replacement.
Reply
Hello - I would like to replace my Centurion 7-168452-04 motor with a variable speed motor. The tag on the impeller is partial worn off - this is what I can make off of it. PAC-FAB CFII-N1-1A more numbers 34-3233. Which pump would you recommend and do I need a seal kit. Thanks!
Reply
Hi Dennis, The ECM16SQU 1.65 HP Square Flange Variable Speed Replacement Motor would be the correct motor for the specifications you listed. You will also need this Pac Fab Challenger Seal Kit.
Reply
I have a Pertain Whisper-flow unit. Id like to convert it to a VS, Is this all i need?
Thanks
Reply
Hi, Brandon. The ECM16SQU or ECM27SQU VS motors are compatible with the Pentair Whisperflo pump. You'll also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
Reply
If my skimmer is about 25' away from my pump would this be a correct replacement for my Super Pump on a 30,000 gal pool? If it is, is there a cover to protect this pump too?
Thanks!
Reply
Hi, Dave. This VS motor can work with the Hayward Super Pump. It can be used with all the impellers except the Impeller - SP1621C. There is not an external cover that can be used with this motor.
Reply
Currently have an A. O. Smith model C48L2N134B1. Running a Hayward SP2610X15 pump. Is this a direct replacement? I'm guessing the impeller has to be installed onto the new motor?
Reply
Hello Rob - The ECM16CU would be the correct variable speed replacement for your single speed C48L2N134B1. You would install your existing impeller onto the new motor. We would also recommend replacing the seals when you replace the motor. The correct kit for the Hayward Super Pump is GOKIT3. Use GOKIT3SALT if you have salt water.
Reply
Why is this pump not Energy Star Rated. I bought this Variable speed pump to take advantage of a utility rebate and was turned down.
Reply
Hi, Michael. Motors are not considered pumps. Replacement motors are not eligible for rebates unless specified by the power company.
Reply
Can you get the control system separately? If not WHY? My other question is about the logo on the motor.... the backward RU...who it it that makes Century?
Reply
Hi. The controller is not available as a separate part because it's not fielded serviceable. This motor is manufactured by Century which is a division of Regal-Beloit Corp. The UR label is the logo confirming UL Underwriter Laboratories certification.
Reply
Is this a good replacement for my Hayward super ii pump motor. 1.0 HP, 1.1 SF Model C48K2N143B1
Reply
Hi. Yes, this ECM16CU VS Motor will replace the C48K2N143B1 motor. I will also recommend getting the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
Hi, I have a Hayward Max-Flo pump with a single speed 1HP A.O. Smith motor C48K2N143B5 and I want variable speed (though I don't need more than 1HP). Is this motor the solution? Will it work on 220V/60Hz? (we're in the Philippines). Thank you.
Reply
Hi, Kees. This 1.65 vs motor will work with your 1HP Hayward Max-Flo pump. This motor can also be shipped for use in the Philippines. I would also recommend that you get the Max-Flo Pump Tune Up Kit - GOKIT1 or GOKIT1SALT.
Reply
Hello,
Is this motor and controller compatible with my (new) Raypak pool heater? The heater requires a "fireman's switch" to ensure the heater is turned off some time before the pump.
Reply
Hi, Mitch. This motor is compatible but will require the use of an external On/Off Intermatic Timer that the Fireman Switch will be wired to.
Reply
I currently have a 1hp Hayward super pump 56J frame. My pool is about 24000 gal. salt pool using 120v service. Would this motor work with my pool? For energy saving, what would be a recommend set up for this motor. My home is in Mid-West.
Reply
In order to use a variable speed pump, you must have 230v service.
Reply
The current motor is 1hp .Will this motor fit the super pump housing I currently have without having to change any internal housing parts like the diffuser cone or anything else possibly? Or should be a direct fit?
Reply
Hi, Ryan. This V-Green Motor - ECM16CU will fit the Super Pump housing without making any internal changes. The Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT is recommended when replacing the motor.
Reply
My pump is a 1 hp Pentair model sf-n1-1a, motor #196238 and salt water. Will this motor work with my set up? If so, what energy savings can be expected by replacing a 1hp single speed with a 1.65hp vs? We are coastal SC and wifey likes the pool clean and clear all year long. Thank you.
Reply
Hi, Rod. The ECM16SQU square flange motor is the correct one you will need for Model # SF-N1-1A. Your energy savings will be based on your usage and operating RPMs. On average a customer will reduce by at least 50 percent switching from a single speed to a variable speed.
Reply
I purchased a1.65 variable speed pump . when I install this motor can I operate off my timer it is a GE timer for pool and I also have one for the pool cleaner
Reply
Hi, Bill. Yes, you can as long as it is a 230 volt timer.
Reply
I am considering the ECM16CU to replace my 1 HP motor on an older Jandy Stealth (JHP) pump. Is this motor compatible with my pump? Do I need to replace the pump impeller since it is rated at 1 HP? Is the variable speed motor compatible with my Jandy AquaLink RS Controller? What kit do you recommend to service and replace the pump seals and O-rings? Thank you.
Reply
Hello Bob, the ECM16CU would work on the Jandy Stealth Original (2006 and Prior) JHP & JHPU. You would not need to change the impeller and the seals needed when you change the motor would be GOKIT77. The motor would need to add the V-Green Automation Adapter Kit - 2517501-001. With the addition of Century’s new automation adapter (kit #2517501-001) the VGreen 270 can now be installed where third party pool automation systems already exist.
Reply
My concern here is my current pool pump turns the power on at a set time every day. I would like to keep that simple feature. It looks like I would have to go outside every day and press the start key in order for the pump to turn on. This doesn't seem right to me. Can someone confirm if my intermatic timer will continue to work with this motor and keep the desired running time along with the preset RPM everyday?
Reply
Yes with this model you can still use the timer and within those hours, program how you would like to set your RPM intervals.
Reply
My salt system is wired in line with the pump so they turn on at the same time. I am concerned that my salt system would be on without water flowing and damage the salt system.
Reply
Hallo, I made the mistake by thinking „bigger is better“. Last year I replaced a ¾ hp with a 1.5 hp. Which almost doubled my power bill. Now, I am thinking of replacing the Hayward/Century motor with a variable speed motor.
The pump model is Hayward Model SP2610X15, the motor is a Century HP 1 ½
Model # C48L2N134B1 which motor do you suggest?
Will the ECM 16CU work for me?
Thank you
Reply
Hi, Ingo. Yes, this ECM16CU VS Motor will work with the SP2610X15 pump. You will also need to get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a 1.5 HP ST1152 with a 56J frame Replacement Pool Motor and needs to be replaced. I would like to replace it with the 1.65HP VS motor will it work? and not sure if it is a 115 or 230 v wiring. Need advice and what parts to order.
Reply
I have a Hayward SP 2611 3 Housing with a Hanning 1,5 single speed motor. I would like to replace the motor with a Century Variable Speed and V-Link control. It is a 24.000 Gal. pool and a sand filter with a max flow rate of 3000 gph. Which Motor and extras do you recommend and do you ship to Europe (Belgium)?
Best Regards
Rune
Reply
Hello I have a Hayward super pump SP2610X15 that I run approx. 8 to10 hrs. a day, how much power would I save using your motor? Next I also run a Polaris 360 off this same motor the full time as it cleans the pool bottom while the two skimmers are cleaning the top. Will the decrease rpms effect my Polaris or will it work the same?
Reply
Hi, Douglas. Unfortunately, I'm unable to tell you exactly how much you'll save using this motor. On average 20-80% depending on the motor's operation. The decreased RPM will affect the Polaris performance.
Reply
I have an AO Smith B2983 1.5HP two speed pump that is making a racket and will probably die soon. Would this variable speed pump be the correct replacement?
Reply
Hello, based off of your current motor, you will need to go with the ECM27SQU. Please be advised that this motor has a smaller bore than your current motor and something would have to be placed underneath so that it is not hanging in the air. When you install this motor, you will also need to replace your shaft seal, which is determined by the model of your pump, not the motor.
Reply

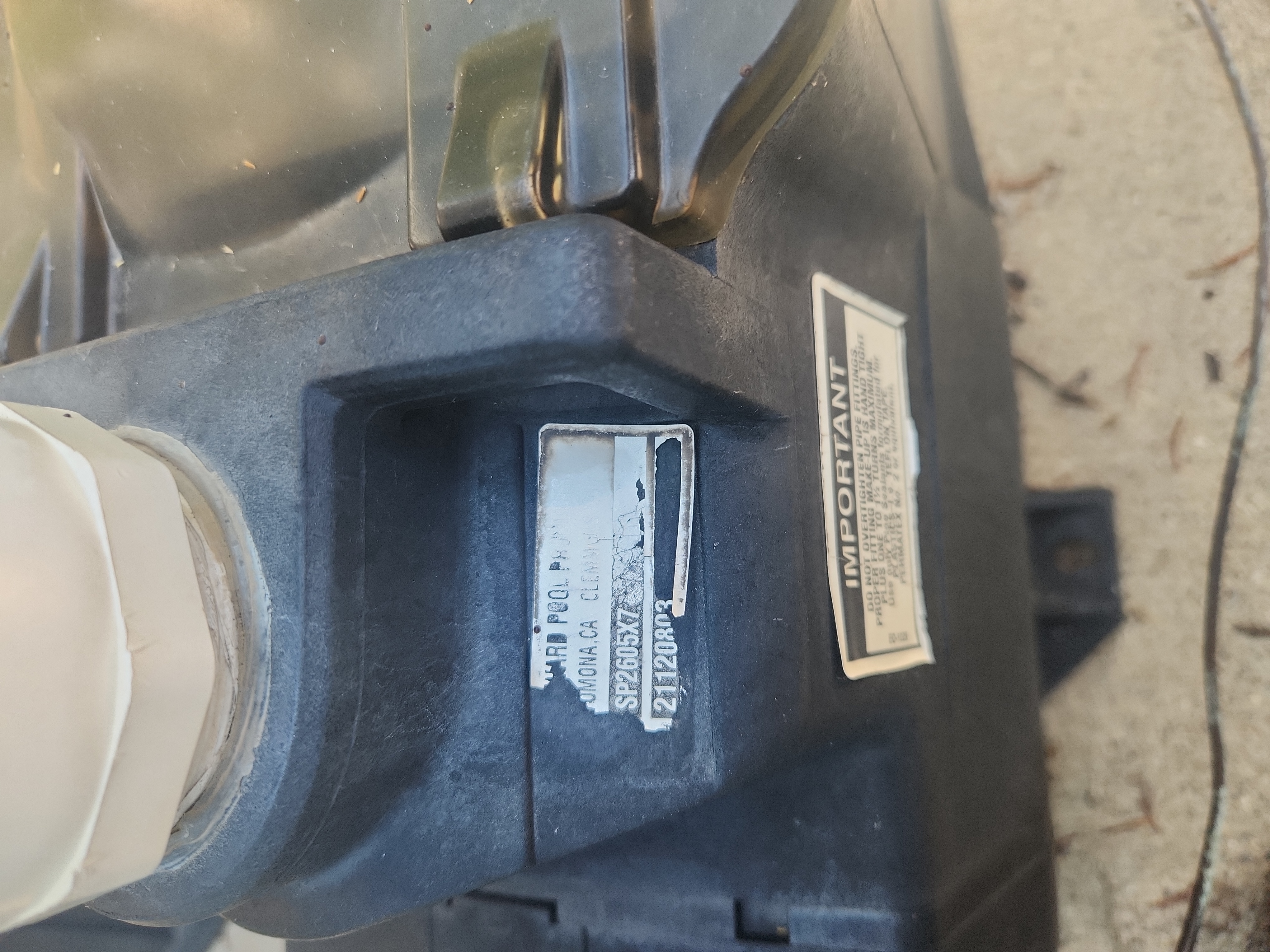

I currently have a C48J2N131B1 3/4 H.P. Single speed on a SP2605X7 housing. I'd like to switch over to a VS. Is this a direct replacement? Do I need to change anything? Seals, impeller, etc.
Reply
Will this replace my current motor, model number: K48M2N110
This is a 1 1/2 HP A.O.Smith motor on my Hayward Pool Pump.
Thank you
Reply
Am I correct to assume this motor does not have a built in timer. So you would install this using a pool timer and when it comes on, it then runs the preset steps 1, 2, 3 ?
Reply
Hi Evan, Yes you are correct. You would use a normal pool timer to power the pump on and off and then whatever settings you program on the controller will take over from there once the pump is powered up.
Reply
My salt system is electrically in line with my pump. To get the pump and salt system times to run concurrent they would need to be timed to match. But, what if the power goes off and they get out of sync and the salt system turns on without the pump running. I think it could ruin the salt system without water flowing. How would that be prevented?
Reply
With this pump having electronic circuit boards, is it recommended to have some type of surge protector to keep the board safe? Hate for something to damage the main board that is not replaceable.
Reply
I see below that you have already answered this basic question. Will this work with a 1hp super pump? SP2607X10
Yes, is your answer but, Does it require a different impeller? Since my old impeller is supposed to work with 1HP and this motor is rated 1.65HP?
Reply
Hi, Evan. You do not need to replace the impeller, you can use your existing impeller.
Reply
I have a 9500 gallon pool with a 1.5 horsepower Hayward Super Pump single speed motor that needs to be replaced. It appears from the other comments that this is the correct variable speed replacement for that pump. Do I need to order a shaft seal for it, as well? Thanks.
Reply
Hi, Dirk. This ECM16CU is the correct vs replacement motor, the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT will have all the seals you'll need.
Reply
Will the 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU fit the pump on my Pentair Challenger pump (CHII-N1-1A, Model #346204). I so want the savings and programmability of this motor and I'm a buyer if it fits my pump. Thanks!
Reply
Hello, for your pump you will need the ECM16SQU and the GOKIT5. For more variable speed motor information, click here.
Reply

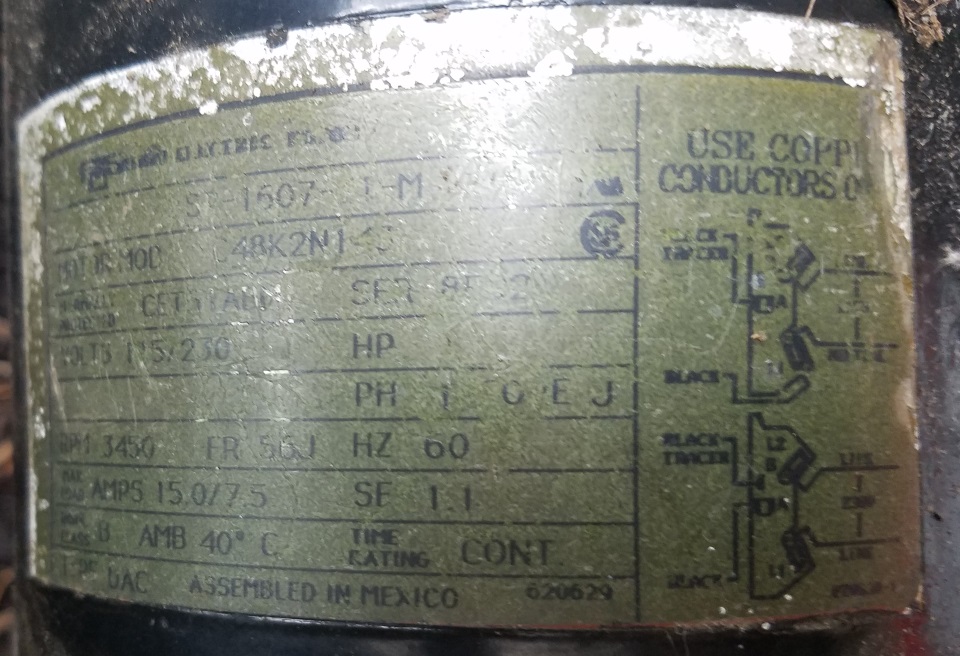

Could I use this to replace an old Hayward SP-1607 Z1-M and save some money?
Reply
If I purchase this to replace my SP-1607-Z1-M, will I need a new impeller as well?
Reply
Hello Ed- You don't need to unless you wanted to gain water flow. The motor can sense the impeller size and adjust accordingly.
Reply
looking for variable speed motor to replace my Hayward (ao smith) SP1610-Z-1-BNS
CAN YOU SUGGEST THE RIGHT MOTOR
Reply
So this motor is a suitable replacement specification wise but sometimes homeowners have trouble installing these motors on a Hayward Northstar due to the controller getting in the way with the large round nut on the pump.
Reply
Is the conduit kit that is used to connect the pool pump motor to the pool timer included?
If not, do you carry a conduit kit ?
Reply
The conduit is not included and we unfortunately do not carry them. You should be able to purchase these from any local hardware store.
Reply
The description is a bit confusing. I have a Hayward Max Flo XL with motor C48D43A04. It has a square flange, however this is the referred VS replacement. What VS replacement motor should I use?
Reply
I would like to replace my 1 speed motor to save money on electricity. Can this model replace a Century B849? The only other codes I see are as follows:
HP 1.5, Volts 230, RPM 3450, Frame Y56Y, Shaft 1/2 threads, THP 2.25.
Pool size is 26,000 gallons.
Reply
Actually, you would need to use a model ECM27SQU. Just keep in mind that this one has a 48 frame so it may not rest on the pump base the same way that your current one does. You may need to customize your base or if the model permits change the base foot/boot.
Reply
Had a lightning strike. Need to replace my SP2600VSP. Compatible?
Reply
Hi. This can be used as an aftermarket replacement for the SP2600VSP model pump. You will need an external timer like the T104 - Intermatic Timer in order to operate this motor.
Reply
Hi there, I need a replacement for my 1.5HP Century USN1152 pump. It looks like a round flange type. Although it says it's efficient and I can get a direct replacement it might make more sense to get the variable speed pump for a bit more money. In that case is this a good direct replacement as far as wiring and fitting to the housing?
thanks
Reply
Hi, Dara. This variable speed motor is not compatible with the Northstar pump. There is not a variable speed motor that will replace the USN1152.
Reply
I have a Ray-Pak VS 1.65 pump, can you suggest the right motor that would replace what I have, the motor is very loud which tells me it is about to fail.
Reply
I va e a certified Tory motor model # C48L2N134C1.
170000 GAL POOL.
Will this motor match my pump?.
cannot read model #
Hi, Declan. Yes, you can use this V-Green 1.65 HP VS Motor - ECM16CU as a replacement. I will also recommend that you get the Max-Flo Pump Tune Up Kit - GOKIT1 or GOKIT1SALT.
Reply
I am looking to replace my 1HP Hayward Super Pump motor (Model #: C8K2N143B1) with a variable speed motor. Is the 1.65 HP Variable Speed Pool Pump Motor Round Flange compatible with my Hayward pump Model: SP2607X10 ?
I believe that you meant the model C48K2N143B1 and if so, yes that model variable speed motor is a suitable replacement.
Reply
I asked earlier about the compatibility of the motor upgrade to my super pump (model# SP2607X10), and you stated that the 1.65 HP VS pool pump motor is compatible with my current pump - great news. Do i need to upgrade my current 1HP impeller as well? If yes, what type should i get? Thanks... Joe
Hi Joe, Great question! Yes we would suggest upgrading your impeller to this 1.5 HP Super Pump Impeller as this will allow you take advantage of the higher HP range of this variable speed motor. We also suggest a Hayward Super Pump Tune Up Kit when you replace your motor. We also have a Video on How to Install a Variable Speed Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have Hayward max flo 1-1/2 hp pump will the variable speed motor with with it and can I use the impeller I all ready have
Yes your current 1.5 hp impeller will work just fine with this variable speed replacement motor
Reply
Will the 1.65 vs motor replace my max flow motor? It is the ust1152 1-1/2 hp and if so do I need to change the impeller.
Hi Charlie, Yes this is the correct replacement motor for your 1.5 HP Hayward Max Flo and you will not need to replace your impeller. We would suggest this Hayward Max Flo Tune Upk Kit when you replace your motor. Here is a Video on How to Install a Variable Speed Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this motor interface with a Jandy Iaqualink IQ900-RS Rev T board or do I need the VGreen Automation Kit?
Reply
Hi, Neil. Using the V-Green Automation Adapter Kit - 2517501-001 will give you more functionality, otherwise, it can be wired using the RS485 connector.
Reply
Can I install the V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU directly to a Hayward Aqua Logic Controller?
Do I need anything else or just the motor?
Reply
Hello, You will need an automation adapter kit, this will be the part you need,http://www.inyopools.com/Products/00201352083353.htm
Reply
I have an AO Smith motor C48J2N131C1C (A.O. Smith, Round Flange 56J, 3/4 HP Up Rate Motor - UST1072) connected to what appears to be a Hayward SP-1600 pump (identified as SP-1600-D thru the marking on the strainer lid). Will this motor fit and if yes what other parts do I need to purchase (e.g. do I also need to replace the impeller)? Thanks.
Reply
Yes, the UST1072 is the correct replacement motor for the C48J2N131C1C. In regards to the seals, the gaskets needed for the Hayward Super Pump are either the GOKIT3 or the GOKIT3SALT.
Reply
Hello,
I have a 2HP Hayward Super Pump and need to replace the motor, the model number is SP2615X20. Would this motor be compatible? What other items do I need to consider to buy other than the motor?
thank you
Hello - the correct motor replacement for your Hayward Super Pump SP2615X20 is the V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU
Reply
I guess I should have clarified, I don’t need a 2 HP motor or higher, I don’t need more than 50 GPM as I have an 18,000 pool. Can you confirm if the 1.65HP motor would work? Thanks!
Reply
Can I put this motor( V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU) on a Hayward max flo pump. Pic attached. Thanks, Gary
I have the AO Smith, model K48L2N104, 1HP, 56J, 115/230 volts motor attached to a Hayward RS1000 pump. Is the V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU the correct replacement motor?
Thanks!
Is there a website to register the motor once installed
Reply
Hello - there is no registry for the motor after it is installed. The warranty is based on the purchase date or the date of manufacture.
Reply
I need something with a service factor of 1.3. Can this do the job, or do you have any variable speed motors with a service factor of at least 1.3?
Reply
Hello, Can you please send a picture of the current motor label you have on the pump?
Reply
I have a us motors EB228 model:K63CXEAU-5225 1 HP attached to a Hayward pump. Can I replace it with this pump? If so do I need a new impeller?
Reply
Yes, the ECM16CU is the correct replacement motor for your B228SE - 1 HP Round Flange 56J Frame. The impeller would not need to be replaced unless it is broken but you would need to replace the shaft seal to complete your motor installation.
Reply
does this replace the ECM16SQU.All other factors appear to match this unit. please advise as we are ready to buy
Reply
I believe the ECM16CU is the correct match judging from all the other inquiries. But it never hurts to ask. I believe my motor is SP-1607-Z1-M, and the Model is C48K2N143. I say believe because the label is so worn out, so I would ask if the model number matches the type listed above. It is a 1HP and has a SF of 1.1 and it is of course a 56J frame. I have replaced the bearings twice in the last 20 years, but think I would like the efficiency of a variable speed. I have included a picture.
If I currently have a 1HP C48K2N143 and I replace with the ECM16CU a 1.65HP motor, should I replace the 1HP Impeller in the pump with a 1.5HP Impeller like the SPX2610C
Reply
Hi, Richard. You do not want to replace the impeller to the 1.5 HP - SP2610C until you're able to confirm that your system is able to handle the increase water flow. This motor will operate fine using your current impeller.
Reply
My motor is a AO smith B231SE. Can I use this motor to replace the 2.5 HP one? Do I also have to change the impeller for 1.65 HP?
My pool is 1.9K gallon I don't need the 2.5HP.
Reply
As long as the total dynamic head matches well with a 1.65 VS motor then yes you could and you would need to change the impeller. However, we usually recommend matching or slightly exceed the total horsepower as the original pool builder likely already calculated the TDH and learned that model motor was needed for your application. You can view this guide to calculate if you would like.
Reply
WIll this fit my Hayward Maxflo II C48D31A04 ihp motor?
Reply
Hello - the Hayward MaxFlo II uses square flange motors; the correct motor replacement would be the ECM27SQU.
Reply
i Have a sta-rite phk2ra6e - 102l 1 horse power pump now can i replace this motor with your product
Is there battery backup in case of power outage? Do you sell a gasket kit to replace the old gaskets?
Reply
does this pump motor come with shaft seal an o-rings ? or are they purchased separtely ??
Reply
John, the Century Motors V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU is a motor only. The seals and gaskets will need to be purchased separately.
Reply
I have a 22 year old Hayward Super Pump II I believe. I want to retrofit to variable speed. See pic of current motor. Which motor would I need to replace it? I only have a simple on/off timer that controls current pump.
Hi, Jeff. The ECM27CU is the correct option to make the conversion to variable speed. I will also recommend getting the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
Will this motor fit on a Hayward SP2807X10 1 HP Max-Flo Standard?
Reply
Yes, the Century Motors V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU would be the correct replacement. We also recommend changing the seals and gaskets which would be Tune Up Kit Hayward MaxFlo - GOKIT1.
Reply
does ECM16CU MOTOR WILL FIT MY JANDY JHP1.5 ? DO I NEED ANYTHING ELSE LIKE SEALS AND O-RINGS?
THANK YOU
JIM
Reply
Hello, I can look into this for you. Can you please send a picture of the side view of the pump and a picture of the motor label?
Reply
Is this motor a compatible replacement for a Sta-Rite P6RA6F-206L?
Reply
Will the ECM16cu fit on sp2610x15 hayward? Replacing my motor c48l2n134c2 for multi speed motor
Reply
Hi, Kyle. Yes, this ECM16CU - Variable Speed Motor is compatible with your model pump. You will also need to get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I have a Speck S90 pump will the V-Green 1.65 Round Flange 56J motor work? And is it enough to power a waterfall Spa as well?
Hi, Marty. In order to assist you, I will need to know the Total Dynamic Head (TDH) of your pool and the desired flow rate required by the spa waterfall.
Reply
Is this motor compatible with Magnetek/Century Part#10-165199-05
Reply
Good afternoon, based on the information #10-165199-05 the Century Motors V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU would be the correct variable speed motor replacement.
Reply
Is your ECM16CU compatible with my existing pump C48K2N143C1C please? Thanks!
Dave C
Is this motor ECM16CU compatible with Hayward motor SP2610X15? Thank you in advance for the info.
Reply
Hi, Gary. Yes, this ECM16CU is compatible with model # SP2610X15. You will also need to get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Will this motor fit on a Sta-Rite Max E Pro pump? It will be replacing a Century Centurion 1HP motor CAT B2853.
Actually, you would need to use the model ECM16SQU and this motor has a 48 frame so please keep in mind that it may not rest on the pump base the same way that your current motor does. You may need to use a thicker motor pad or place something under the motor just for added support.
Reply
I received an email from you about a V- Green 1.65 HP Variable speed round flange 56J, C-Face Pool Motor.
(Your Item) Make/Model Century ECM16CU.
Is this a direct replacement for (my model), Century A. O. Smith B977?
Hi Jerry, Your B977 motor has a total horsepower of 1.95 where this motor on the high end can go up to 1.65 HP so just a little lower than your current pump. If you could supply us with your pump information and pump model information than we could determine if we can make this motor work for your current set up. The pump information should be able to be found on the plastic side of the pump near where you access the pump basket. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. Once we receive this information we can make a recommendation. Thanks so much!
Reply
Will this pump motor work with my existing pool pump?
Yes this is variable speed motor can replace your UST1072 motor, however if you want to take advantage of the higher horsepower range of this variable speed motor then we would suggest replacing your impeller with a 1.5 HP impeller. If you provide us with your pump information then we can suggest the proper replacement impeller and shaft seal, to supply this information simply click on the reply link below.
Reply

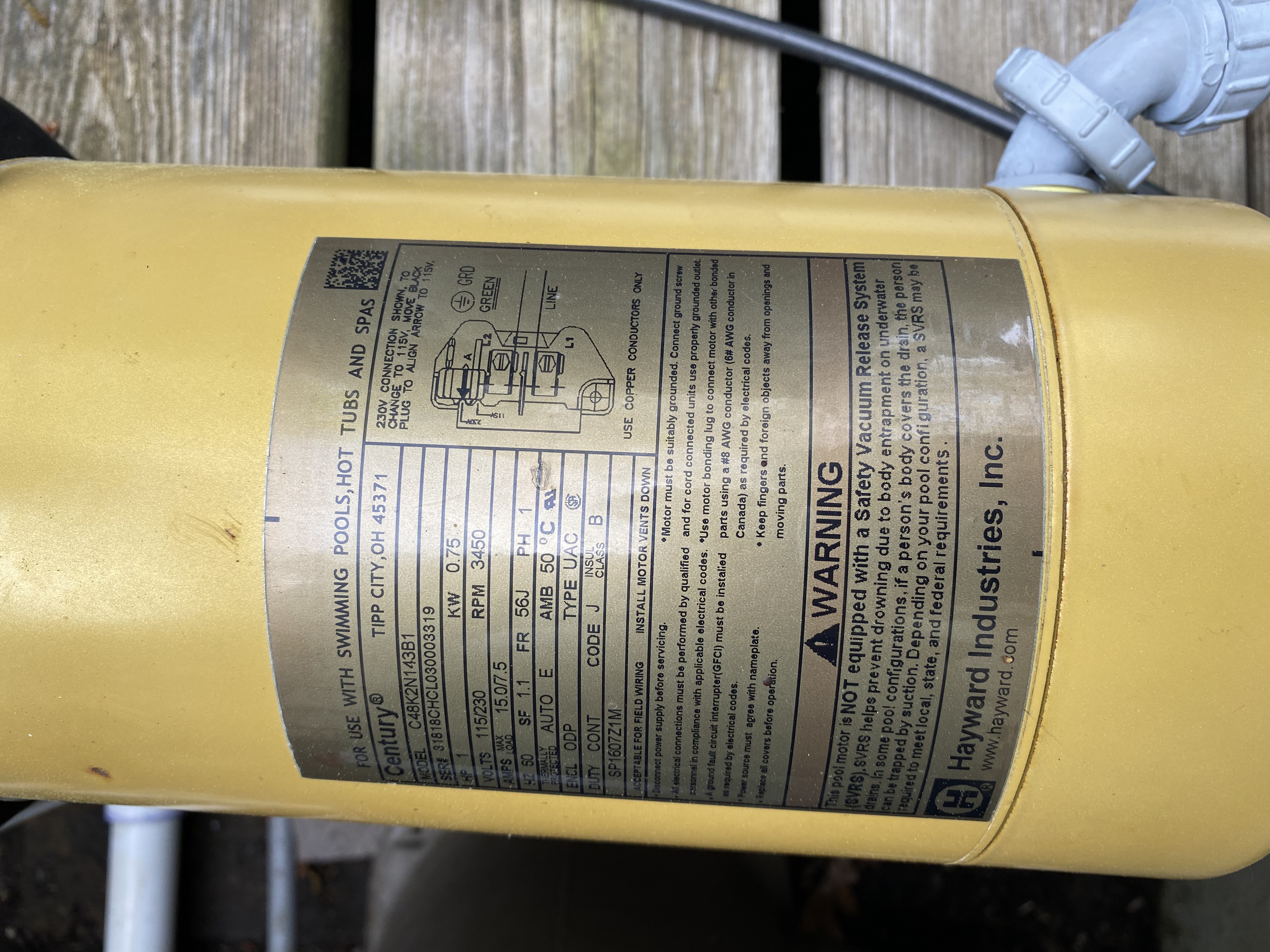

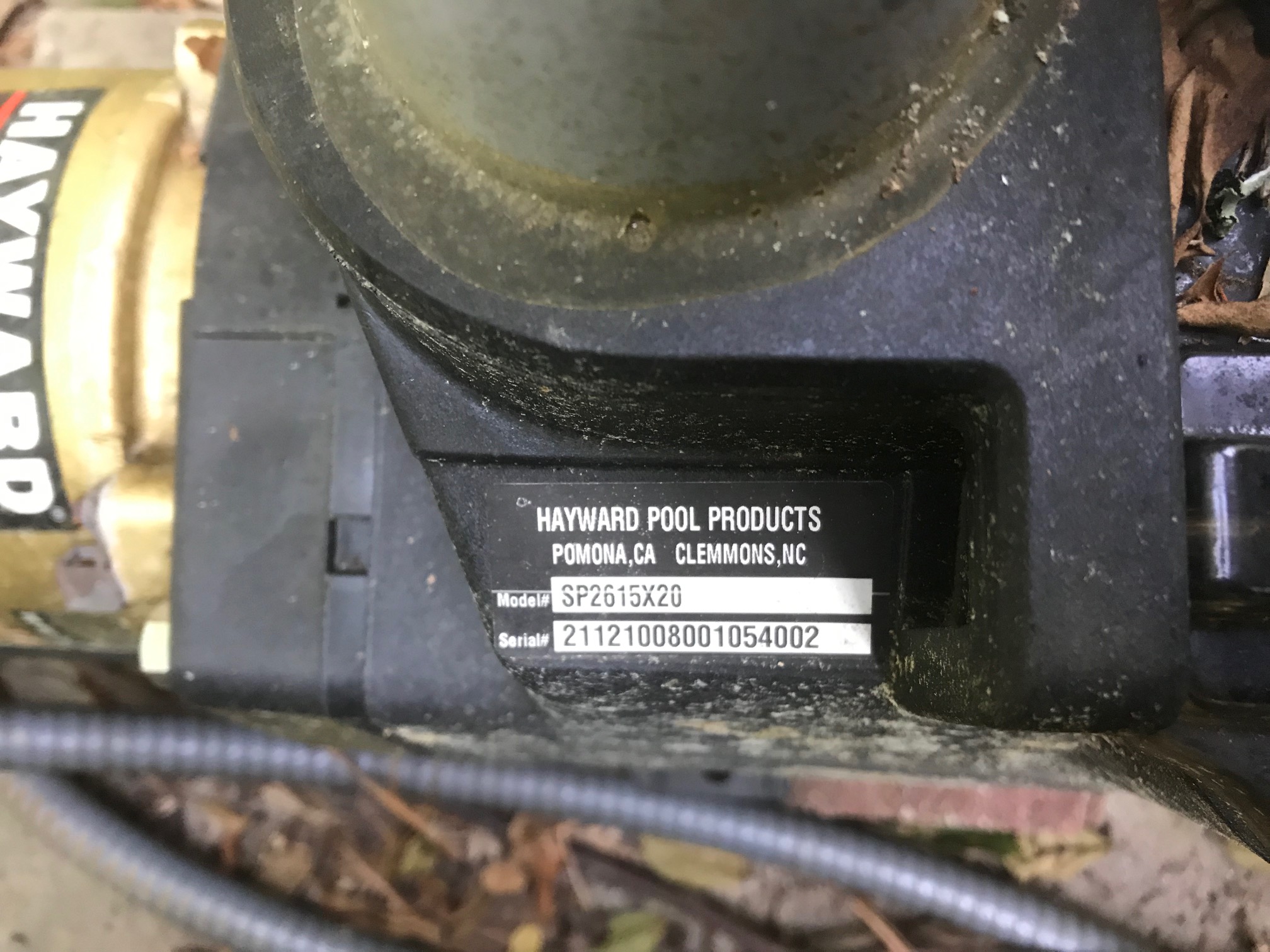

I hope these two more pics. help you .Thanks!
Thanks for the photos those are quite helpful! I would suggest the ECM16CU Variable Speed Motor along with this 1.5 HP Impeller and this 1.5 HP Diffuser and this Shaft Seal. These parts would allow you take advantage of the higher HP range of this variable speed motor. We will also email over a quote for these parts where you can placne order directly through that emailed quote.
Reply
We have a Pentair WhisperFlo pool pump with a US Motor 1081 pool motor - model number K63CXEBH-5237. It is 1 HP, SF 1.65 and 208-230/115 volts.
Can the motor be replaced with the Century Vgreen ecm16cu? Also, I assume I would need to separately buy a new set of gasket rings? Correct?
Thanks for your help.
Bob
Reply
Hi, Bob. The ECM16SQU and the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT are the parts you will need for your Whisperflo Pump.
Reply
Are these pumps energy star rated, there are some rebates in my area if I switch my Hayward Super Pump to an energy star version. Thanks
Reply
Hi, Steven. Motors are not Energy Star rated, only complete pumps. The Super Pump VS Variable Speed Pump 230V - W3SP2603VSP is energy star rated and will qualify for rebates.
Reply
The Hayward Super Pump VS system (that is Energy Star rated and qualifies for a rebate) uses the same pump components as the Super Pump, with the only difference being the VS motor and controller. Why then would adding the VGreen 165 to an existing Super Pump not satisfy any Energy Star requirements for a rebate?
Reply
Fritz, EnergyStar only provides this Certification to whole goods, not parts. Motors are considered replacement parts.
Reply
What else will I need to replace my current B127 with the ECM16CU.
Hi, Tony. You will need to purchase the pump housing shaft seal and o-rings. Check out our How To Find The Correct Pool Pump Shaft Seal For Your Pool, How to find the Correct Pump Tune up Kit guides to assist you.
Reply
I am replacing my 1.5 THP Hayward Super Pump (SP2610x15) with this motor. When taking my old motor out, I noticed everything inside (impeller, diffuser, seal plate, etc) needs replacing too. I’m torn between what impeller size I need. The spx2610 or spx2615 for this new Vgreen 1.65 motor?
Hi, Amanda. You will need the Impeller - SPX2610C. The Super Pump SP1600X- Series Drive Train UpGrade Kit 1.5 HP - SPX2610CKIT includes all the parts you need.
Reply
Hi. I have a Hayward Super Pump II, SP3010X152AZ 1.5 HP with SP1610Z2MC 1.5-.25 HP SF 1.0 dual speed.
Is the ECM16CU suitable? Swimpure SWG.
Control panel has a circular pull tab primary timer; secondary a dip switch for High Speed. Hi & Lo slide switches for Auto/Off/Manual. From the diagram, looks like I just need to disconnect LOAD 4. Should the timer cycle the power to the pump or is continuous best?
Alternatively, would STS1152 be a direct replacement? Thank you.
Hi, Glenn. Yes, this ECM16CU motor is a suitable replacement. You will use the Single Speed Pump Wiring Diagram, have the motor power on/off using the timer and program the speed and duration on the motor's interface. The STS1102RV1 is the correct direct replacement. It has a HP of 1.0/.16 with a S.F of 1.5. I will also recommend getting the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
Thanks Lennox. A couple of other questions: My SWG was wired to the incoming hots so it it powered on all the time except when the breaker to the pump is thrown. Should I rewire it to the same "Single Pump" load terminals or leave as-is? Would this drop the voltage from 220 to 110? I've heard that the flow sensor should not be relied upon as the primary on/off for the chlorine generation. What is the shipping weight? The shipping address I would prefer to use has a limit of 70 lbs.
Reply
Glenn, You can use the same load for the pump to the SWG if it can be wired for 230 volts also.
Reply
I have Hayward EcoStar Model SP3400VSP. Is this motor compatible? Just had local pool store diagnose that the ball bearings are going bad, due to the whirring noise it is making. Do you send instructions on how to remove replace?
Hi, Michael. This ECM16CU motor is NOT compatible with the EcoStar pump without changing the impeller reducing the overall performance of the pump. If the Drive Assembly still works, you can replace just the Motor Assembly - SPX3400Z1ECM or replace it with the ECM27SQU.
Reply
I have a Hayward SP3010X15AZ and I am wanting to switch to a variable speed motor. Will this be a direct replacement for my current motor?
Reply
would this pump work on a 3600 gallon salt water in-ground pool. Our current pump is a hayward single speed, but it went out this past fall. Would like to get a variable speed pump this time.
Reply
Hi Stephanie, Could you give us the information off of the motor for your current pump like HP, Amps, Volts, SF, Frame, Model #, etc.. Also could you give us the pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply
I have a Century HSQ165 pump.
Will the VxGreen replace my pump?
If yes, which flange version?
Reply
The ECM16SQU 1.65 HP Variable Speed Replacement motor is the correct replacement motor for your HSQ165. Please click here to view this motor - 1.65 HP Square Flange Variable Speed Motor
Reply
Hi,
Can this pump be used as a replacement for:
STA-RITE, MAX-E-PRO, P6RA6F-206L? Will it mount on the existing seal plate and tank body assembly and base?
Reply
Hi Mark, Yes this motor will mount directly to your pump housing and is the motor you will require. You will also need this Max E Pro Seal Kit when you replace your motor.
Reply
I have an ECM16CU motor on my Hayward pump for my in ground pool. I am wondering what GPM it will pump at the high and low RPM settings
Reply
Hello- To be able to figure out the GPM we would need to know the Model of the pump and the total dynamic head of your pool system. With that information, we could get you an estimated GPM.
Reply
Hello, I have a Hayward sp4005ns - motor sp1605-z-1-bnsc. My motor is going bad. Could I replace my motor with this motor?
Reply
Hi, John. Unfortunately, this motor is NOT compatible with the NorthStar pump.
Reply
Would this work with my hayward super II pump with this motor that was a replacement for Century B977 (I purchased the B977, but this is what they sent). It only lasted 2 years. I generally run the motor on high just long enough to skim or vacuum, then on low for the vast majority of the time.
Hello,
My pool pump motor died and I would like to replace it with a variable speed pump. My current pump is a Century Serial#13615CH, Part 0-193993-05. Would this be a suitable variable speed replacement for my pump motor? If so can I keep the same impeller?
Thanks!
Reply
Hi Mac, You would actually need the square flange motor which is listed here 1.65 HP Square Flange Variable Speed Motor. If you go with that motor then you will not need to replace your current impeller.
Reply
Hi guys, I just installed the V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU, I can't get it to prime (30+ tries). The pump is draining the basket, which I keep refilling but it will not prime? My old single speed pump would prime right away after I pulled the filter out and replaced it.
Reply
Hi Steve, I'm not sure if you had a chance to watch our Video on How to Prime a Pool Pump but it goes through a lot of different techniques to get the pump primed. I would start off by watching that video and trying the different items suggested there. If that does not work then please post back to this thread.
Reply
Checking to confirm this motor is a suitable replacement for my previous (now dead) motor.

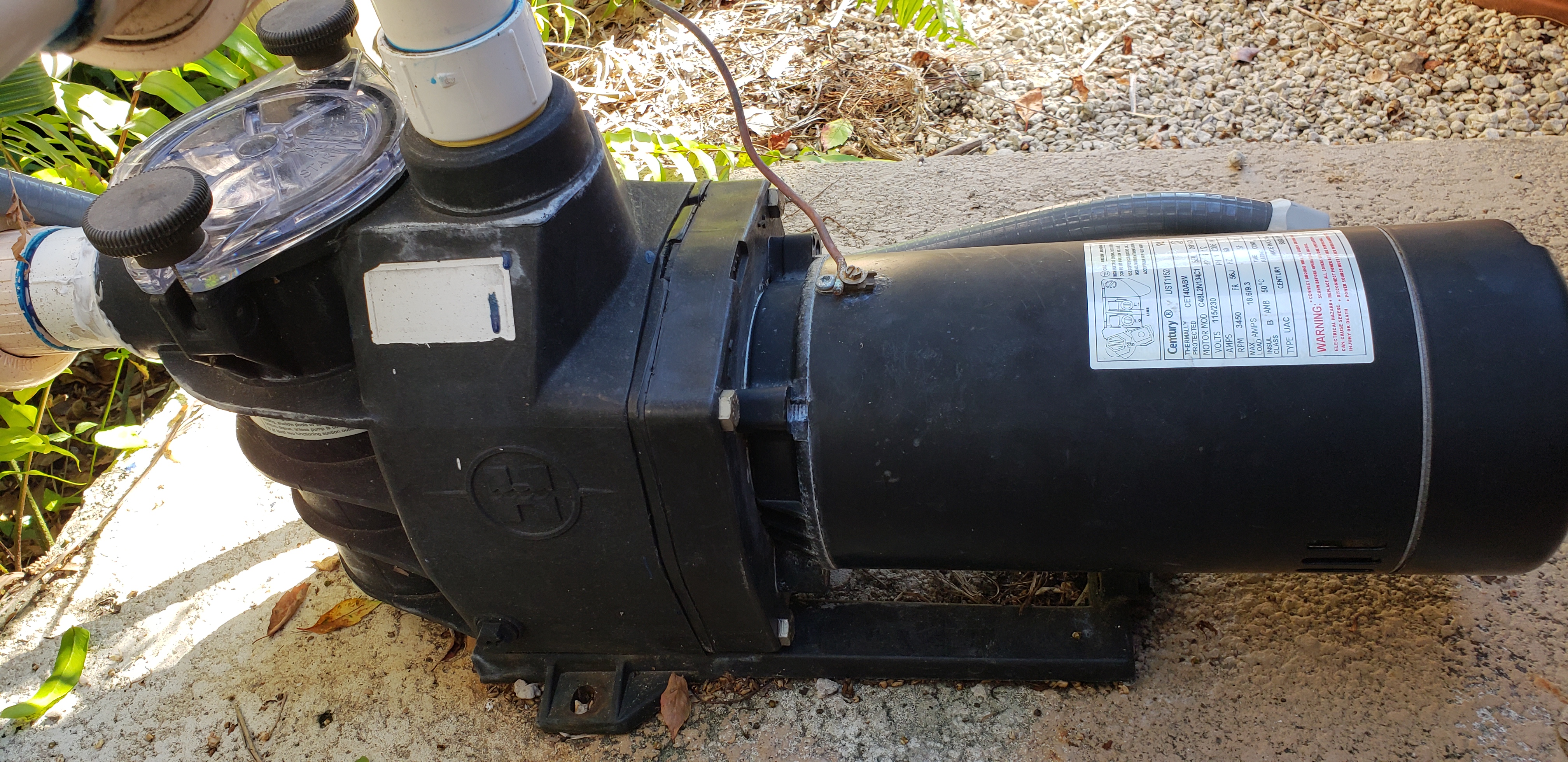

Could you send us a few photos of your pump? Please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

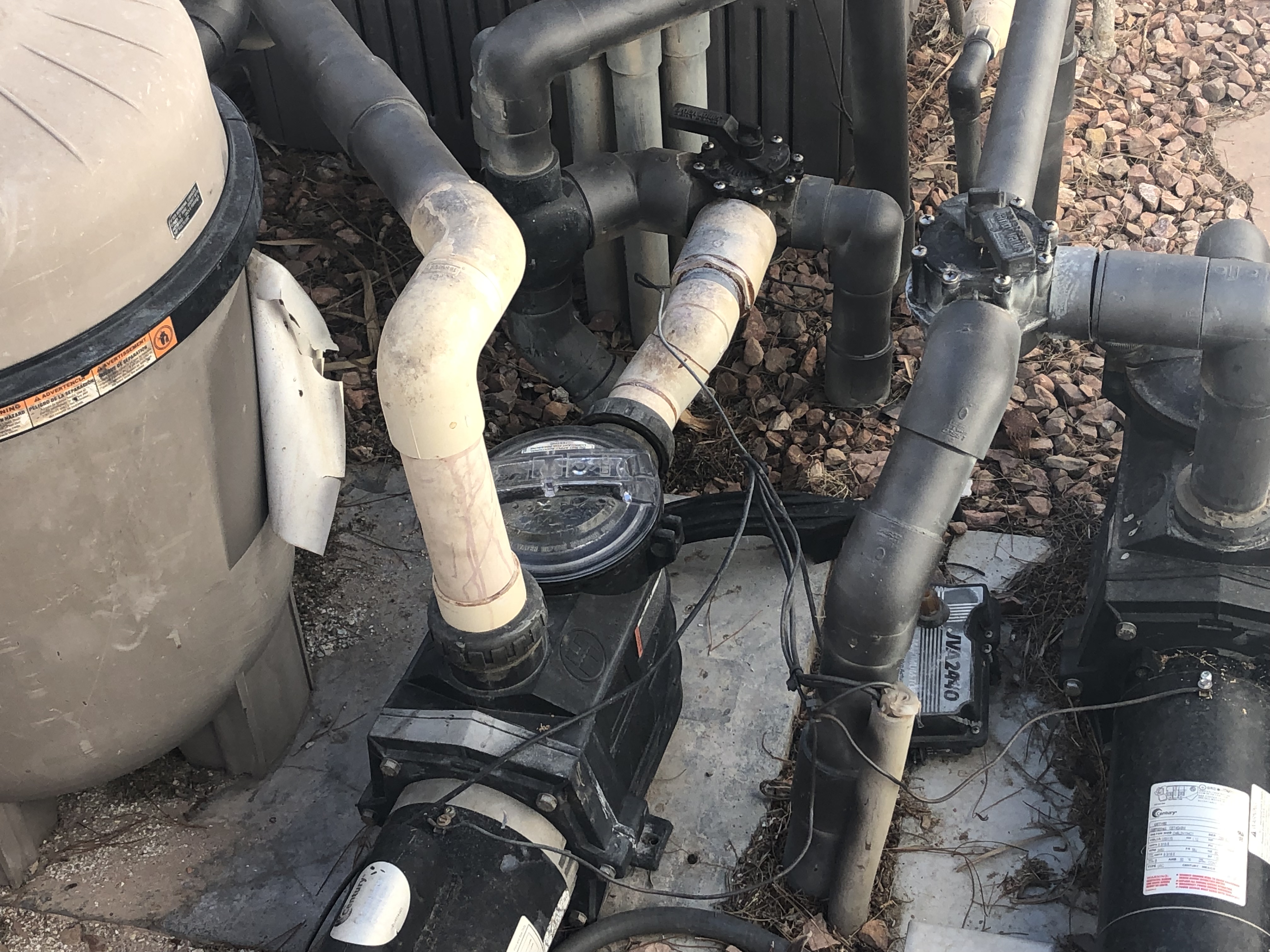

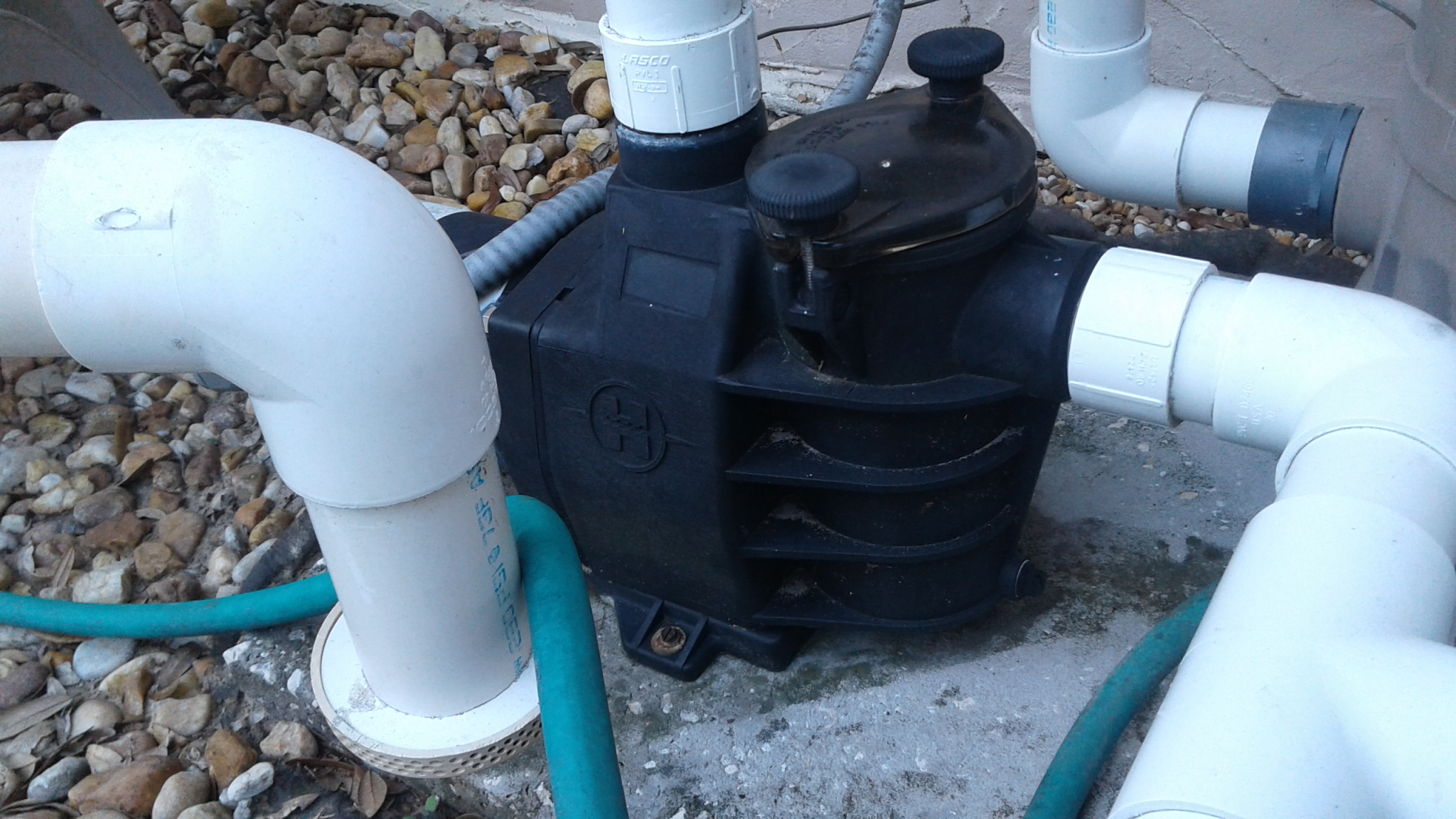

Photos of pump
Hi Mr C. Yes you can use the motor this page for the pump in your photos. You will also need this Hayward Super II Seal Kit to determine if a new impeller will be needed then could you pull the part # off of your current impeller this should be a SP part # embossed in your impeller. And here is a link to what your impeller will look like http://www.inyopools.com/Products/07501352019900.htm
Reply
The part number for the impeller is SP3016-C.
Reply
Hi Mr. C. To use this motor you will need to swap your impeller with this 1.5 HP Super II Impeller along with this 1.5 Hayward Super II Diffuser and this Hayward Super II Seal Kit and this Hayward Super II Impeller Ring
Reply
Out of curiosity, why would the impeller need to be replaced if the HP and rpms are the same as the previous motor?
Reply
My current pump went out and wanted to upgrade to a more energy efficient motor. Could you tell me if the V-Green ECM16CU motor will work with my setup? See pics
Yes, this ECM16CU will be a compatible variable-speed motor replacement for your current motor.
Reply
I currently have a Hayward model SP2607X10 pool pump. Is this motor a drop-in replacement for my current single speed motor (Blue Bluffton model 1103017453)? Pictures attached. Thanks!
Hi. This ECM16CU motor can be used as a replacement. You will also need to get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Hello,
I'm looking to change my pool pump motor to save on my power bill. I'm currently running an Emerson Motor (Model Number: K63CXEPY-4766); HP 1.0; S.F. 1.40 RPM 3450. 1) Will this V-Green 1.65 HP Round Flange 56 J Variable Speed Motor - ECM16CU work as a replacement? 2) If so, what other (kits/adaptors) will I need? 3) Also, the cement pad is cracked, does this motor come with shims for leveling? Please advise.
Thank you,
Ed
Yes, this would be the correct variable-speed motor to replace your current Emerson motor. We recommend replacing the seals and gaskets which you can view by clicking here as they are the first items listed on the parts list for either a chlorine or saltwater swimming pool. And yes these variable-speed motors come with rubber boots that may assist in leveling.
Reply
Thank you Hector.
Reply
I have a six bolt flange. I noticed this housing with 4. Is 6 an option?
Reply
It sounds like you have not removed the motor from the pump housing, some seal plates can make the motor appear to have more than four bolts. It is best to provide the current motor model, part, or CAT number on the motor label. We will also need the pump model information to suggest the correct seal kit needed for a salt or chlorine pool. Please click on the highlighted how-to guides for assistance How To Choose The Right Replacement Pool Pump Motor and How To Find The Correct Pool Pump Shaft Seal
Reply
Have a 18x40, 22k gallon salt water pool. Switching from UST1102 to ECM16CU VS motor. 1) Currently have Intermatic timer controlling pump. If I switch to VS, would I just leave the timer on all the time and use the controls on the ECM16CU to cut on and off the pump? 2) Currently run the pump for 8-12 hours a day. How would I run ECM16CU for 16 hours and off 8 hours a day? Would you program stages 2&3 to 0 rpm? 3) Would running the ECM16CU at 1700 RPM be recommend for the Salt Chrorinator?
Reply
The V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU does no have an integrated timer to power on/off it is designed to operate 24/7 with the selected speeds or to wire it to an existing on/off time clock. I suggest the use of the on/off time clock to allow you to service equipment without having to start the motor from the beginning of the programmed speeds. If it takes 8-12 hours per day to circulate the water using the UST1102 1.0HP I would consider upgrading the impeller and possibly the diffuser for a high flow rate in gallons per minute to a 1.5HP to take advantage of the option with this VS motor. We will need the pump model name or number to assist with the parts and to answer the programming questions.
Reply
Time to change my pool pump motor. Have a Pentair WhisperFlo with a Century motor currently (models for both attached). I have a leak between the two; most likely, it is getting hot and the seals are failing. Not sure until I get it apart; but figured just put a variable speed on while it is apart. Is this the variable speed model I am looking for?
Hi Matt, Thanks for the photos those were helpful. You will actually need the 1.65 HP Square Flange Variable Speed Motor for your Whisperflo. You will also need this Pentair Whisperflo Seal Kit
Reply
Thank you, Patrick! Will order your recommendations today. Your customer service is fantastic! Highly recommend you guys.
Reply
Thanks Matt, we really appreciate it! If we can ever help you out with your pool don't hesitate to reach out to us.
Reply
Will this fit a Jandy Stealth model SHPF 1.5 ? what are the available speeds? and what are the flo rates by speed with the Jandy pump?
Reply
The Jandy Stealth Pump 1.5 HP Full Rate - SHPF15 has a higher total HP of 2.25 you will need the V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU (208-230 Volts Only) it takes a square flange motor, not round. You will also need the shaft seal replaced, the Pump Shaft Seal 3/4" - R0445500 is the old style for pumps with serial numbers Before P08FF0001 or Jandy Pump Shaft Seal 5/8" - R0479400 new style for pumps with serial numbers P08FF0001 and later. The speeds for the motor can be viewed in the owners manual
Reply
You have a video showing how to set the pump etc when it has the add on digital component. Where can I learn how this pump is set up when you have the version that does not come with the fancy digital programer.
Reply
We will need the current motor model number to review for the single speed or dual speed option that does not use an integrated controller and what timer you are wired to.
Reply
I currently have a Pentair Whisperflo WFE-4 (11513). The single speed motor needs replacing. Can I move to a variable speed motor and if so what would you suggest?
Thank you
Reply
Hi Josh, the correct replacement motor for the original WFE-4 pool pump is the ECM16SQU. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
How is the START time set on this motor control sequence? Is there a Time of Day setting?
Reply
Hi, Peter. This motor requires an external time clock like the T104P3 to control the On/Off time for this motor.
Reply
No Time-of-Day clock built in??? This is going back 15 years in technology.
Reply
Hi Peter, for the 1.6 hp series no there is not but in the 2.7 hp model there is. The other option is to utilize the 24 hr time frame on the controller without actually needing a timer.
Reply
will this replace 3/4 UST1072 A.O.Smith motor.What shaft seal should we get. have salt pool
Reply
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I just purchased a v-green 165 round flange motor as replacement motor on a Hayward Superpump 1.5hp. Can you tell what items are included in the box with that motor?
Reply
Hi Mark, the box will include the motor, extra rubber base feet, and the manual.
Reply
i have a hayward SP2603VSP pump- looking at all options which century would i need? i have the 230 outlet. thank you.
Reply
Hi Albert, yes, this is a correct replacement variable motor for the Hayward Super pump model SP2603VSP. You will also need a Hayward Super pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Hayward SP2610X15 pump with a US Motors AST165 motor that was a replacement for the original Hayward OEM motor. On open the pool this Spring, the AST165 motor is now making a fair amount of noise (a low whine sound), so I'm guessing bearings are going out on it as well.
Is this the appropriate VSM to replace the AST165?
Hi Tom, Yes this is the correct replacement motor the motor included in your photo. You will also need a Hayward Super Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a pool pump that needed to be replaced at the end of last season but I never got around to it. Would like to do it with a variable speed one. What do you recommend?
Hi Jack, this is the correct variable speed replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
does this come with square flange
Reply
Hi Alan, Yes this motor does come in a square flange option. Here you may view the 1.65 Variable Speed Pool Motor - Square Flange.
Reply
thanks for getting back to me.As it turns out i have the round one which the square bolts to with 4 short bolts what are the replacement bearing part numbers for the sp2603 vsp model. can i order these
Reply
Yes this would be the correct motor for your pump, you will also need this Hayward Super Pump Seal Kit.
Reply
Bought this motor but impeller nut doesnt fit motor shaft. What should I do?
Reply
Hi William, some motor shafts cannot accept the impeller screws however, they're not needed as the impeller threads tightly to these motor shafts.
Reply
I just purchased a ECM16CU variable speed pool motor and a V-Green 270 User Interface - 2520652-001 2520652-001, I was under the impression the 270 will replace the standard interface, can you supply the instructions on how to do that? No information came in the 270 user interface box?
Thanks,
Reply
Hello, Ronald, the manufacturer, unfortunately, does not provide installation instructions however, the interface only plugs to the mainboard from the top of the motor using a harness. Other than that there are only a few screws and clips that mount it to the top of the motor.
Reply
I need to replace my 1 hp A.O. Smith single speed motor (UST1102 / Motor Mod C48AA35A01). Am I able to replace that motor with this V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU without making any adjustments or changes to the wiring?
Hi Jag, The UST1102 can be wired either 230V or 115V where the ECM16CU variable speed can only be wired 230V. So if you are set up for 230V then you will be fine, if you are set up for 115V then this variable-speed motor would not work.
Reply
Can I replace my Hayward motor model K48L2N104 with this motor? Unfortunately, the label has worn off of the pump so I can't get the model number of the pump, but I do know it's a Hayward -- RS series. I live in California so need something that will meet Title 20 California Appliance Efficiency Regulations for Residential Pool Pump Motors. Attached images of current setup including pump, motor, wall timer
Zach, Based on the images, you can use this motor. Please note that this motor is 230v only. I was unable to tell if you are running 230v or 115v. We also recommend getting a GOKIT2
Reply
Awesome thank you for the quick response! We will order the motor and gokit. What is your return policy if for whatever reason the motor is not compatible with our setup or voltage? The current old Hayward motor says Volts = 115/230, not sure of that helps for a better understanding of the current motor output
Reply
Hi Zach, You can return the motor in new and unused condition within 30 days. Your current motor can be wired either 115v or 230v where the new motor can only be wired 230v. Most pools are set up for 230v however if your pool is set up for 115v then this new VSP motor would not work. You can take a voltmeter on the wires coming into your current pump to get a voltage reading and this will tell you if you have 115v or 230v. We wrote this article called Is My Pool Pump 115v or 230v which you may find helpful.
Reply
Can I install this motor with a ! Hp Super pump drive train (SPX2607Ckit) or do I have to install the motor to a 1.5 Hp drive train (SPX2610Ckit). My concern is the max flow rate for my Hayward S-220t filter when running the motor at full speed for vacuuming.
Reply
Hi Tim, yes you can use this kit with this motor. You will not need to be concerned with too much water flow as with these variable speed motors you can adjust the RPMs to a lower rate decreasing the flow.
Reply
I just bought this motor to replace a burned up single speed Hayward Super Pump SP2607X10. What seal kit do I need? I ordered one but I think the porcelain ring is too large, as I have a leak now. Motor works like a charm and fit perfectly btw.
Reply
We would suggest this Hayward Super Pump Seal Kit
Reply
Can I replace a single AO Smith 1HP K48L2N104 motor with this variable speed motor. It has the round flange. I also need the impellor. Should I get the 1Hp or the 1.5HP impeller? And also what tune up kit? GOKIT2? Thanks
Hi, Yes you can use this Variable Speed Motor to upgrade your RS1000 to variable speed. Your current impeller has a total HP of 1.5 HP so this is the correct impeller for this Variable Speed Motor so a new impeller is not needed. You will require this RS1000 Seal Kit when you replace your motor.
Reply
I am replacing a Hayward SP1610z1mbk 1.5HP SF1.0 motor. I would like to go with a variable speed and was wondering if this would be the correct model?
Reply
Hi Devin, yes this would be the correct variable-speed motor to replace your model SP1610z1mbk motor. Also, if you need the seals as well we will just need the model name or number of the front pump housing wet end that the motor attaches to in order to cross-reference that for you.
Reply
Will this fit Hayward SP2607X10?
Reply
Hello Dan, yes this variable-speed motor is compatible to replace the motor on the Hayward Super Pump model SP2607X10. If you need the seal kit for a chlorine swimming pool that part number is the GOKIT3 and for a saltwater swimming pool, the part number is the GOKIT3SALT.
Reply
Will I be able to program this controller to run two-three times a day & what kit will I need also?
Hi Tracy, yes essentially you can program this motor to run however you would like. And as for the correct seals, we would need to know the model name or number of the front pump wet end housing that the motor attaches to in order to locate those for you.
Reply
I have a Hayward sp2610x15 and motor century c48L2n134b1 that burned up Will this fit
Yes, this variable-speed motor will be a suitable replacement motor for your model. If you have a chlorine pool then you may want to also use the GOKIT3 and for a saltwater pool the GOKIT3SALT.
Reply
I have a baquacil pool ?? and thank you for the quick response
Reply
Hi Rich, for a baquacil pool go with the GOKIT3SALT.
Reply
Will this fit a SP2610X15? What is the benefits of the variable speed motor?
Reply
Yes, this is the correct variable speed replacement motor for the Hayward Super pump model SP2610X15. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project. When utilizing the ow RPM's on a variable speed pump you can both potentially save up to 80 percent on your electrical cost and have a much quieter running pump.
Reply
Hayward SP2602VSP Super Pump VS Variable-Speed 1.5 HP
i am going to have to replace this motor soon. salesman said it's over 1k to replace just the motor unless i just put a single speed 1.5 motor in it which is $300...will this motor fit the housing box for mine? i noticed it's a 1.6 HP, just making sure.
Reply
Hi Mark, yes, this is the correct replacement variable speed motor for the Hayward Super Pump model SP2602VSP. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Can i order just the controls for the Century vgreen 165?
My motor is fine but the keypad does not respond anymore.
Reply
Hi Mark, yes you can replace the controller on your ECM16CU variable speed motor using the user interface part number 2520652-001.
Reply
Is this a direct deposit replacement for Hayward sp2615z1ecm
Reply
Hi Timothy, yes this is the correct replacement motor for your motor model sp2615z1ecm. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this fit a Pentair SuperFlo VS #358020? If yes which seal kit to complete the repair?
Reply
Hi Joe, the correct replacement motor for the Pentair SuperFlo VS pool pump is the ECM27SQU. You will also need a Pentair Super Flo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this a direct replacement for a century motor model ust1072 ?
Reply
Hi David, yes this ECM16CU is a compatible replacement for your motor model USt1072. It is also recommended to place the seals when replacing a motor. In order to locate the correct ones, we will just need the front pump wet end housing pump model name or number to confirm that for you.
Reply
do you offer a replacement motor for a Hayward SP2600VSP? Thanks
Reply
Hi Keith, yes you can use the motor model ECM16CU to replace the variable speed motor on your Hayward Super Pump model SP2600VSP. Also, it is recommended to replace the seals when replacing a motor so for a chorine swimming pool that seal kit is the GOKIT3, and for a saltwater pool, it is the GOKIT3SALT.
Reply
I have a k48n2n104 to replace. Will this motor be a good replacement? You recommend ECM27CU, but that is a 2.7HP motor and I am replacing a 1.5HP motor. Why would I need a 2.7HP motor?
Reply
Hello Brian, the motor model k48n2n104 has a total horsepower of 2.6 which is why a 2.7 hp variable speed motor is recommended. However, maybe the model number you provided here is different than what you have. You may want to double-check that.
Reply
My RS1500 has a single speed Century B129 (1.5 HP). The pump body has a sticker that reads "1.5 HP; 1.33 SF, 2.0 THP" Am I okay to use the V-Green ECM16CU (1.65 HP)? Or, is there a benefit to the ECM27CU (2.7 HP). Our pool is as simple as it comes - no spa or water features, 1 skimmer, 1 main drain, 3 returns, and originally 18K gallons.
Reply
will it fit for Jandy PHPM2.0
even this one is 1.5HP
Reply
Hi, James. Yes, it will fit, but will not be able to operate the pump. You will have to replace the impeller to P/N R0807202 to match the 1.65 THP of the motor. If you want to to keep your existing impeller, you will need to use Model # ECM27SQU.
Reply
my current motor went bad Model PL 1102 1HP RPM 3450 SF 1.0 FR: 56 J I am wanting a variable speed motor this time What do I need
The ECM16CU would be the correct variable speed motor. If you need the seals and gaskets as well we will just need the front pump housing wet end model that the motor attaches to in order to cross-reference that for you.
Reply
Would this work for a replacement of a Century HSQ1152 Part: 7-196337-20 56Y? It's saltwater so if so what else will I need with it?
Reply
Hi Michael, the correct variable speed replacement motor for your motor part number 196337 is the ECM27SQU. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have an AO Smith (Century) Motor SP3210Z1BE (Part. No 7-196336-20) 1 HP SF 1.85 Y56Y frame. Would this or the ECM27CU be compatible for installation?
Reply
Hi Mitch, the correct variable speed replacement motor for your motor model SP3210Z1BE is the ECM27SQU. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
How many GPM for the V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU?
Reply
Hi Alexander. there are a few variables to consider when calculating GPM ratings. Here is a guide that we created called "How To Read A Pump Curve" that should assist.
Reply
Are these pumps energy star certified?
Reply
The ECM16CU motor is not Energy Star certified. In order to be Energy Star certified, it must be a complete pump. A 1.65HP Energy Star pump would be the Waterway Power Defender model PD-VSC165.
Reply
I currently have the following pump,
Pump motor - Hayward model C482N134B3 / 1.5 hp / FR 56J / volts 115/230
Pump model - Hayward SP2810X15
The pump has burned out and looking for a replacement. I live in Calif (sucks here) and require a variable speed pump.
Do you have a direct replacement for bad pump?
Good day,Yes, based on the C482N134B3 & SP2810X15 the Century Motors V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU would be the correct motor. We also suggest changing the seals which would be Tune Up Kit Hayward MaxFlo - GOKIT1.
Reply
I currently have a Hayward 1.5 HP motor (C48L2N134B3) connected to a Hayward pump (SP2810X15). I want to replace the pump motor and totally rebuild the pump. Will the following items accomplish this task?
V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU
MaxFlo SP1800X- Series Drive Train UpGrade Kit 1.5 HP - SPX2810CKIT
Tune Up Kit Hayward MaxFlo - GOKIT1
Hello Paul, yes based on the Max-Flo Pump 1 1/2 HP Single Speed Pump the ECM16CU motor would be correct, the MaxFlo SP1800X- Series Drive Train UpGrade Kit 1.5 HP - SPX2810CKIT and the Tune Up Kit Hayward MaxFlo - GOKIT1 would all be correct for the install. Now if you wanted to install a new pump with a variable speed motor we would suggest the Waterway Power Defender 165 Variable Speed Pool Pump 1.65 HP 230V - PD-VSC165.
Reply
Can I utilize a 2HP impeller on this motor?
Reply
Hello,Thank you for contacting Inyopool products!We would not recommend using a 2hp impeller on this.This can damage the motor in the long run.
Reply
I just installed this motor, and it runs sweetly. Yes, it's loud at high rpms and super quiet at the lower.
I have 2 questions:
1) I have 3 steps programmed with speeds and times. Let's say that after step 2 starts with low rpms I want to manually increase or decrease the rpms this one time until that step's end time. How would I do that?
2) Is it possible to "fast forward" to another step? To jump from step 1 to 3, for example as step 1 is running.
Thanks
Reply
Hello Norman, the best option for you to control the 1.65 HP unit would be the Century Motor VLink - VL100. The VLink wireless motor interface gives the pool operator the ultimate ability to set, adjust, and monitor a pump motor schedule from virtually anywhere in the world with the use of a smart mobile device. In addition, the programming flexibility allows the user to monitor, manage and calculate energy consumption and savings, and easily and conveniently set custom overrides for parties and cleaning.
Reply
Hi I currently have a Hayward 1.5 hp Super Pump. The motor is going bad and needs to be replaced. Could I replace the single speed motor on my Super Pump with this variable speed motor? Thanks
Reply
Hello, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Thanks
I do not recommend replacing the motor with the 1.65HP VS motor with this application, it will not provide enough flow for all of the bends in the plumbing. You would most likely require operating it at the max speeds to provide adequate flow. The Waterway Power Defender 165 Variable Speed Pool Pump 1.65 HP 230V - PD-VSC165 is a better choice of pumps. It has a 1.65VS motor but the pump is a heavier duty high flow pump that will provide much better flow rates than the Super pump. You must have 208-230 Volts for wiring, it will not operate with 110/115-120V.
Reply
I was just wanting to replace the motor not the whole pump. Which variable speed motor do you recommend to replace the Super Pump that has gone bad?
Reply
My best recommendation is to replace the whole pump with the ones I reviewed above. If you are interested in replacing it with a VS motor it would be best to upgrade to the V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU (208-230 Volts) with the Super Pump SP1600X- Series Drive Train Upgrade Kit 2 HP - SPX2615CKIT to provide adequate flow.
Reply
Will this motor replace century B129
Hello Ron, this motor will not as a replacement for that unit. You would need to order either Dual Speed - B2977 or the Variable Speed - ECM27CU
Reply
My impeller is a Hayward SP2607-C which is 1.0 THP. Wouldn’t that protect the motor from being overworked?
Reply
The Impeller 1.0 THP - SPX2607C is used on several Hayward pumps. If you have it installed on the Max-Flo or Super Pump you can install the V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU (208-230 Volts Only), the ECM16CU can be used up to 1.65 total HP. You will need a seal kit, if you have the Max-Flo you will order the Tune Up Kit Hayward MaxFlo - GOKIT1 and Tune Up Kit Hayward Super Pump - GOKIT3 for the Super pump. There are salt shaft seal kits available too.
Reply
Can I use this motor on a Hayward SP3010EEAZ controlled by a Goldline Controls Aqua Logic PL-P-4 with Main Software Revision 3.00? I do not see a Variable pump option in the software, but couldn't I either set the AquaLogic pump runtime to 24/7 and then program the V-Green pump separately?
Reply
Hello Robert, you can contact the 1.65 to the Hayward automation following the Figure 4: Wiring Diagram for Digital Inputs.
Reply
Replacing a single speed US Motors 1081 pool motor, model K63CXEAU-5225, 1HP. Installed on a Hayward SP2607X10 housing/basket. In-ground pool: 26,500 gallons. Two skimmers. Lazy L design
My pool guy is recommending the VGreen 165 variable speed ECM as the replacement (I asked him to quote me variable speed).
Also looking at adding an inline UV/Ozone/Hyroxyl purification (Prozone Eco Master)
Will this VGreen 165 be a suitable replacement motor for my pool?
Hi Victor, Yes, this is the correct replacement variable motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What is the purpose for Variable pump motor /
Reply
Hi Michael, here is a guide that we put together called "5 Reasons To Get A Variable Speed Pool Pump Motor" that will better clarify the pros of upgrading to a variable speed motor.
Reply
Hi, we have a Century Centurion,1 HP, pump, part no. 0-164303-23. We need to replace the motor, and would like to go with a variable speed motor. It looks like we can use this one go from our single speed motor to a variable speed motor, instead of having to replace the whole pump.
Can you please confirm if this pump would be a good match? If not, we’d love some recommendations on the best replacement motor.
Thanks!
Reply
Hello. Yes, the Century Motors V-Green 1.65 HP VS motor would be an excellent replacement for your single-speed motor. Additionally, you will need to replace the motor shaft seal, and the diffuser o-ring and seal plate gasket at the same time. Those parts are specific to the pump model and not the motor. If we can be of assistance in identifying those parts, please provide any pump model information you might discover or send pictures of the entire pump from different angles in response.
Reply
Thanks so much for your help! We have a Hayward SP2607X10 pump. We would appreciate your help identifying the additional parts we will need in order to replace our current pump with this one. Thanks!
Hi Molly we double-checked the HP rating of your 0-164303-23 motor and it matches with the high speed of this variable speed motor, which good news as it means you would not need to replace your diffuser and impeller. You would just need this Hayward Super Pump Tune Up Kit as well as the motor on this page.
Reply
will this replace the motor on my Hayward sp3015eeaz
SPX1615Z1BEE Motor, 1 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/230V)
Reply
Hi Robert, This motor will work as a replacement for your pump however If you wanted to use this motor then you would need to also purchase this 1.5 HP Super II Style Drive Train Up Grade Kit
Reply
Do you recommend a cover to protect this motor from the rain and the elements? I don't get snow here and rarely below zero.
Reply
At this time, we do not have a cover for the VS motors. If you build something yourself, make sure it is well ventilated.
Reply
Hello, I have recently replaced a failed bearing 1HP(1.13 SF) motor with the ECM16CU. The swap went fine and the motor seems to be running fine.
I noticed when I did the swap that I was running an SP-2605-C impeller. Would you recommend upgrading the impeller and would I need the entire
drivetrain upgrade kit or just the impeller?? The parts in front of the motor bracket were just replaced last year when the old impeller sheared away from the
threaded post.
Reply
Hi Andrew, We would suggest that you upgrade your impeller to this 1.5 HP Super Pump Style Impeller this will allow you to take advantage of the upper HP range of your variable speed motor. The entire drive train kit would not be needed.
Reply
is this motor and drive compatible with a jandy control system ??
Reply
Hi, Yes this is compatible with the Jandy Control system. Please note that all of the programming would be done on the onboard controller of the motor and then the Jandy AquaLink would just power the pump on and off and then the onboard programming would take over from there. You cannot dial in the exact RPM settings from the AquaLink controller this would be programmed at the motor.
Reply
so does Jandy motor need to switch from a relay not from the 4 pin connector ???
Reply
Hi Jim, If you went with this motor it would require a Jandy Relay Do you currently have Jandy Variable Speed Motor? If so and you want the same motor that integrates with your Aqua Link, then we carry those Jandy Replacement Variable Speed Motors (Key #1)
Reply
Will this work to replace a hayward super pump 1.5 hp? I see in an earlier answer that it is correct for the 1 hp.
Yes, this is the correct replacement motor for the 1.5 HP Super Pump motor included in your photo. You will also need a Hayward Super Pump Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
can I connect this pump to the Pentair Intelliconnect? does it come with the RS485 wires?
Reply
No this does not connect to the Pentair Intelliconnect. You can get the V-Green Communication Adapter which allows for RS485 Connection but you still get limited functionality. The limitations include only being able to program 4 speeds and taking up 4 relays or 4 low voltage inputs.
Reply
I have an older Jacuzzi Magnum Force 1hp pool pump (same as the Carvin Magnum Force 1 hp pump) and was wondering if I could replace just the motor with this VS model?
Reply
Purchased the V-Green 165 a couple years ago. It worked great. This year, it wouldn't start, turns out the controller casing was full of water. Can a new controller board be purchased, or would I need to replace the whole pump?
Reply
Hello Fred. There are no replacement parts available for the V-Green Motor model ECM16CU. Unfortunately, the entire unit must be replaced.
Reply
I have a clock timer that turns on and off every 12 hrs for my pump and salt chlorinator....if i continue to use the clock(off during the night hours) will i have to reset the pump programming each time the clock timer turns on the system?
Your external timer will ensure your motor starts at the same time every day. For example with a timer set to start a 10:00 am, the motor will act as if its power was interrupted until 10:00 and will start at the beginning of its 24-hour cycle. If the timer is set to go off at 6:00 pm, the motor will stop its current 24-hour cycle and stop running. When the timer comes on at 10:00 the next morning, the motor will start again at the beginning of its schedule.
Reply
I have Hayward Super Pump with a century motor (10004713-001-001) with a control SN DET-0991601084. The Century i(NA48AB21A04) 1.65 THP Variable Speed ( V230, HZ 60). Can you recommend a replacement unit. It has a square flange.
Hi Todd, Our recommendation would be this ECM16CU Replacement Motor. Your motor is actually a round flange as the motor mounting plate makes it looks like a square flange. You can see this by viewing item #14 on this Hayward Super Pump VS Parts Diagram. When replacing your motor you will also need this Hayward Super Pump Tune Up Kit. One item of note if you are using an indoor control system for your pool equipment like the Hayward Pro Logic, Jandy Aqualink or Pentair EasyTouch then you may lose some control features with this new motor.
Reply
Thanks for the help. I just bought a house and I'm refreshing the pool equipment. I live in California so I think I need to switch to a variable speed pump motor (correct?) but also, I think my .75HP motor is underpowered for my 33,000 gal pool. Would this work as a replacement or should I be looking at something else?
Hi Andrew, Yes for California you will require a variable speed motor and this is the correct motor. When going to this Variable Speed Motor you will also rquire this 1.5 HP Drive Train Up Grade Kit for Hayward Super II
Reply
Hi, will this motor fit my Hayward super pump vs
model SP2602VSP
Serial # 21121506006039003
Do I simply take the 4 bolts out and remove old motor and replace with this unit?
Thanks,
John
Reply
The SP2602VSP will actually require this 2.7 HP Vgreen VSP Motor and this Hayward Super Pump Tune Up Kit. Please note that if you have an Automated Control System like the Hayward Pro Logic then you can not control the RPM's of the motor directly from the Pro Logic as all of the programming will done directly on the on board controller of the motor. Here is a Video on How to Install the 2.7 VSP Motor
Reply
I replaced my original pool pump which I believe was a 1.5hp variable speed with an SP2615X20 and now this one has bearings going out. Will this pump work as a replacement? Also what kit would I need to rebuild the SP2615X20 with bearings and seals?
Reply
Hi Mike, We would suggest this motor and you will also need this 1.5 HP Hydraulic Upgrade Kit for Hayward Super Pump
Reply
What about a rebuild kit for the SP2615X20 so that I can replace the bearings and seals? :)
Reply
The hydraulic kit comes with all of the seals. If you want to rebuild your old motor then your motor will take one of these 6203 Pool Motor Bearings and one of these 6204 Pool Motor Bearings We have put together a couple of videos on How to Replace Pool Motor bearings which you may find helpful when you tackle this project. Video on How to Replace Motor Bearings - Part 1 and Video on How to Replace Motor Bearings - Part 2
Reply
Is this the right motor for my Hayward super pump II
Hello. The Century motors V-Green 1.65 HP Variable Speed Motor model ECM16CU is compatible with the Hayward Super II. It is recommended that the motor shaft seal, diffuser O-ring, and seal plate gasket be replaced at the same time. The GOKIT2 contains the necessary parts to complete this project. If you have a saltwater pool the GOKIT2SALT is the correct tune-up kit. Tune Up Kit Hayward Super II - GOKIT2
Reply
I have a 2006 1HP Jacuzzi Magnum Force pump (photos) on which the motor is failing. I’ve about decided to replace the motor with a VS motor rather than replacing the whole pump. I gather from an earlier answer that the V-Green ECM16U motor and GOKIT14 tuneup kit will fit my pump—correct? Could I install a 1.5HP impeller/diffuser for greater flow? Part numbers? Would this save energy by allowing the pump to run at lower RPMs?
Hi Ken, Yes this is the correct variable speed replacement and the GOKIT14 is correct. Yes we would also suggest this 1.5 HP Magnum Upgrade Kit which includes the impeller. We will email you over a quote for these items. Actually, if you go with the upgrade kit then the GOKIT14 is not needed as those parts are included in the upgrade kit.
Reply
What variable speed motor will work for replacing a Hayward Super Pump VS SP2615Z1ECM2 for salt water pool?
Hello Kevin. The Century Motors V-Green Variable Speed Motor model ECM16CU is a compatible variable speed replacement for your Hayward Super Pump model SP2615Z1ECM2 and AquaRite Salt System. It is recommended that the motor shaft seal, seal plate gasket, and diffuser gasket be replaced at the same time. The GOKIT3Salt tune-up kit contains the necessary parts to complete this project. Saltwater Tune Up Kit Hayward Super Pump - GOKIT3SALT
Reply
I would like to replace the motor on my Jandy FloPro 1hp model for a VS or dual speed motor. Which motor would be the best option for me to go with?
Thanks
Hi, if you want to go Energy Efficient then this Variable speed 1.65 HP Square Flange is your best option if you go the variable motor option then we would suggest upgrading your impeller to this Flo Pro 1.5 HP impeller so you can take advantage of the higher HP range of this motor. You will also need this Flo Pro Shaft Seal when you replace your motor. Typically with a variable speed motor you can expect an operational cost savings between 50% - 75% compared to a single speed motor. We put together this article which goes more in depth on the operational cost savings http://www.inyopools.com/Blog/how-much-does-my-pool-pump-cost-to-run/
Reply
I realize the numbers are hard to read on the label but the Jandy model is SHPM 1.5 on a Stealth pump. Would this V Green motor work with the same impeller?
Hello Michael. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is the compatible Variable Speed Motor for the Jandy Stealth model SHPM. V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU It is recommended that the motor shaft seal, backplate o-ring, and diffuse o-ring be replaced at the same time. Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring, Generic - R0446300 9-1/2" ID, 3/16" Cross Section O-521 Diffuser O-ring - R0622000
Reply
I would like to replace my current single speed motor CT1102 on my Hayward Super II for a VS or dual speed motor. Which motor would be the best option for me to go with (the ECM16CU, the PL1116 or STS1102RV1)? And would I need to buy a new impeller? And what kit would I need? I live in Phoenix AZ so it runs year round and is very hot in the summer. It is around 15k gallons. Thanks
Hello Jeff. The best option for energy conservation would be the Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16CU. The variable speed option provides more flexibility in balancing pool water quality with energy conservation. Its totally enclosed motor runs cooler than traditional copper wound motors providing for longer life expectancy. No impeller change is required. It is recommended that the motor shaft seal, seal plate gasket, and diffuser 0-ring be replaced at the same time. The GOKIT2 (GOKIT2SALT for saltwater pools) contains all the necessary parts to complete this project. Tune Up Kit Hayward Super II - GOKIT2
Reply
Hi,
I am thinking to replace my old Hayward Supper II pump single speed motor to a Variable Speed Motor.
My pump is SX1610Z1M and current motor model is A.O. Smith C48L2N134B1. Could you please tell me if this ECM16CU is good to place my current motor?
Thanks
Sam
Hi Jeff, Yes you can upgrade the motor on your Hayward Super II to this 1.65 HP Variable Speed Motor If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to this Hayward Super II 1.5 HP Drive Train Upgrade Kit. You will save a ton on your operational costs by upgrading to a Variable Speed Motor normally 50%-70%. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump.
Reply
I have 21000 Gal inground pool run by Hayward SP 1605x7 Super pump thru C 900 cartridge filter. I would like to replace the motor with VS. I have the V Green 1.65 HP EcM16CU in mind. Would it work? Do I need to wire it with GFCI breaker?
Reply
What is the HP on the super pump and the Service factor or (SF). Could you upload pictures
Reply
I have a Jacuzzi Magnum 1.5 HP pool pump with a bad / failed motor. This is a 220VAC, single phase, single speed motor. Can I replace just the electric motor with this V-Green 1.65 HP Round Flange 56J Variable Speed Motor and basically upgrade my existing pool pump to variable speed control? I've attached photos of the pool pump and motor sticker.
Hello Robert. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16CU is compatible with the Jacuzzi Magnum 1.5 HP Pool Pump and will upgrade it to a variable speed pump. It is recommended that the motor shaft seal, case o-ring, and diffuser o-ring be replaced at the same time. The GOKIT14 contains the necessary parts to complete this project. Tune Up Kit Carvin/Jacuzzi Magnum Series - GOKIT14
Reply
What replacement motor is recommended for the RS1000 pump? Besides the replacement motor, what else will I need to install replacement? Will one of the VGreen motors work?
Thank you for contacting Inyo Pools, The V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU is the correct replacement and the correct seal kit is Tune Up Kit Hayward Super II - GOKIT2
Reply
I have a Max-Flo VS 2300 VSP will this replace the Motor and control unit?
Hello Raymond. The Century Motors V-Green 1.65 Variable Speed Motor ECM16SQU is a compatible replacement motor and drive train assembly for the Hayward MaxFlo VS 2300 VSP pool pump. V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. Pump Shaft Seal 5/8" - - SPX2700SA PSR-200 Valve To Filter O-ring Id 6-3/4", Od 7-1/8" (gmx600f) O-263 Bulkhead O-ring - SX220Z2 Hayward MaxFlo VS Pump SP2300VSP Series
Reply
I want to replace my Hayward RS750 pump running a AO Smith 3/4hp K48K2n104 motor, will this VS motor work? If I install VS motor, do I need to upgrade the impeller?
Thanks
Brian
Reply
Hello Brian. The Century Motors V-Green 1.65 Variable Speed Motor ECM16CU is a compatible motor assembly replacement for the Hayward RS750 pool pump. Technically, replacing the impeller is not necessary. The increase in total horsepower does not require an upgrade in the impeller. Should you wish to upgrade the impeller, the Impeller 5110-10J would be the correct part. Impeller for Hayward Super II 1.5 THP - SPX3010C It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. The GOKIT2 contains the parts necessary to complete this project. Tune Up Kit Hayward Super II - GOKIT2
Reply
Is the ECM16CU a compatible replacement for the power end of a Hayward EcoStar SP3400VSP (it says SP3400VSP on the interface screen but the sticker on the side of the motor says SP3200DR)? My pump just failed with "Pump Stalled" error. I replaced the wet end about 2 years ago and would rather not have to buy a whole new pump. It's currently automated via an AquaPlus panel. If the ECM16CU is compatible with the wet end I already have, are there any automation options available?
Reply
Hello Ron. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is compatible with the Hayward EcoStar wet end. It would be important to identify the horsepower of the existing drive/motor assembly in order to properly size the replacement assembly. The SP3200DR is 1.85HP, the SP3400VSP is 2.7HP. Horsepower identification can be made via the impeller part number which is stamped into the surface of the impeller. The Century Motors V-Green 2.7 HP Variable Speed Motor model ECM27SQU may be the correct replacement. Attached please find an exploded parts diagram for the Hayward EcoStar Pump for parts reference. When replacing the motor/drive assembly, it is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced. Hayward EcoStar Pump SP3400VSP Series
Reply
I have a Hayward SP2607x10 pump w a spx1607z1m motor. Do I need an upgrade kit if I switch to this variable speed pump?
Reply
Hello Dan. The Century Motors V-Green 1.65 HP Variable Speed Motor - ECM16CU is compatible with the Hayward Super Pump model SP2607x10. Technically the SP2607x10's 1.0 HP impeller could be utilized with the V-Green VS motor ECM16CU. If you wished to take advantage of the increase in horsepower to slightly improve water circulation, the Super Pump Impeller 1.5 HP could be installed. Generic Super Pump™ Style Impeller 1.5 THP - PL2672 There is no need to change the Seal Plate or Diffuser in conjunction with this change in Impeller size. The GOKIT3 will provide the seals necessary to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Can you confirm this is the proper replacement for a Hayward VS Super Pump SP2603VSP? Appears to require Round Flange option. Thanks
Reply
Hello Dave. The Century Motors V-Green Variable Speed Motor model ECM16CU is the compatible replacement variable speed motor for the Hayward Super Pump VS model SP2603VSP. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. The Quick Fix Kit Hayward Super Pump, SPXHKIT3, contains the parts necessary to complete this project. Quick Fix Kit Hayward Super Pump - SPXHKIT3
Reply
I have a Hayward SP2600VSP with the Hanning SP2615Z1ECM motor. I am replacing the dead motor and also buying a generic super pump style motor mounting plate because the existing one is bulging so much that I can’t even get a socket over the last two bolts. I’m buying a couple new motor cap screws to substitute for those mounting plate bolts I can’t remove. Everything else from the last setup was acceptable. Is this all that I need? This motor, the motor mount plate and the bolts?
Reply
Good morning Rob, Based on this information all of that would be correct, just be sure to purchase a new Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Hi, I have a pump and single speed Century 3/4 HP motor and would like to replace it with a variable speed motor. Is the "V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU" the correct motor and the GOKIT14 the correct kit?
I am in Canada, can arrangements be made to ship to Canada?
Thank you!
Hello Nate. The Century Motors V-Green 1.65 HP Variable Speed Motor, model ECM16U is a compatible motor replacement for the Magnum 3/4 HP Pool Pump. The 1.5 HP Magnum Overhaul Kit 24010308K contains the parts that are suggested for the increase in horsepower provided by the V-Green ECM16CU motor. 1.5 HP Jacuzzi Magnum Overhaul Kit - 24010308K Technically the current impeller and diffuser will work but will not deliver the same circulation and filtration benefit as the Overhaul Kit. The GOKIT14 would be the correct Tune-Up Kit when not replaceing the impeller or diffuser. Attached please find the INYO Pools Shipping Policy. Shipping Policy
Reply
I would like to replace my current pump with the V-Green variable speed motor-ECM16CU. I currently have an AO Smith SN1152. I added picture or my pump.
Just want to ensure that the V-green compatible replacement.
My current motor was replace a few months ago, but I would like something with variable speed and controls. If the V-green is compatible, is there anything else I would need to purchase with the motor?
Hello JJ. The Century Motors Variable Speed Motor ECM27CU is compatible with your Hayward NorthStar Pool Pump. V-Green 2.7 HP Variable Speed Motor - ECM27CU Your current motor model SN1152 has a total horsepower (THP) of 2.4. The Century Motors V-Green ECM16CU has a THP rating of 1.65 - too small for the current NorthStar impeller/SN1152 motor. Attached please find exploded parts diagrams for the Hayward NorthStar 2008-Current Hayward NorthStar (2008-Current) and NorthStar 1998-2007 Hayward NorthStar (1998-2007). The motor shaft seal, seal plate o-ring, and diffuser o-ring should be replaced concurrent with the new motor. A visual comparison of the wet ends will identify your NorthStar.
Reply
I have an older Hayward RS1000 pump. I did not upgrade/change the diffuser/impeller, it currently has the stock ones that came with it. I don't remember the original motor HP as I installed a VP pump motor that is no longer working. I need to replace the pump motor and am looking at the ECM16CU, due to only a few motors being legal for CA. I want to make sure I am doing everything right. Do I need to replace the diffuser/impeller? What seal kit do I need? And will this motor work.
Reply
Hello Victor. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16CU is a compatible replacement for the Hayward RS1000. No need to change the impeller or diffuser with the ECM16CU. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the necessary parts to complete this project. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
I have a Hayward super pump high performance series pump and want to switch to a variable speed motor. Would this work with my pump? If not, could you recommend a variable speed motor that would? Thanks.
Hello Dylan. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16CU is a compatible variable speed motor for the Hayward Super Pump. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the necessary parts to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Ok thank you. It looks like my pump requires a square flange. Does that matter?
The round flange is correct for the Hayward Super Pump replacement. The motor mounting plate is bolted to the motor and will be removed to install to the new round flange motor. Hayward Super Pump SP1600 & SP2600 Series parts page https://www.inyopools.com/pool_parts_pumps_hayward_super_pump.aspx?Keywords=super+pump+parts
Reply
i have a hayward sp2602vsp pump and the motor is giving out what is the vgreen replacement for the power end, current power end is an xps2600z1vspe with a hanning motor. looks like the ecm16cu would be a good replacement, dont ming giving up the digital display
Reply
Hello Frank. The Century Motors V-Green 1.65 HP Variable Speed Motor ECM16CU is a compatible replacement motor for the Hayward Super Pump VS model SP2602VSP. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the necessary parts to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
so this would be the correct motor to order (V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU)? My current motor say's Frame 71 is it better to use the heavy duty Salt Water Seal kit when I do the rebuild?
Thank you for placing the order. I will answer this question for others who may have the same concerns. Yes, the ECM16CU is correct and the salt kit is the heavier duty seal that can be used with either salt or chlorine pools.
Reply
I have Hayward SP2610X15 Super Pump 1.5 HP (with Century UST1152 single speed motor). I want to replace the motor with variable speed motor, and want to know if this model will work. I am using it on 115v. I originally was going to put an Intermatic PF1103T timer with freeze protection on my existing unit, but saw where some variable speed motors have the freeze protection built-in. If I can get the functionality of both in one unit, that would be better.
Reply
Hello Kurk. The Century Motors V-Green 1.65 HP variable speed motor ECM16CU operates at a voltage range of 208-230 VAC and is NOT designed to operate at a voltage of 115 VAC. The Century Motors V-Green ECM16CU would otherwise be compatible with the Hayward Super Pump model SP2610X15.
Reply
Looking to replace my pump with a variable speed one. Would this be the direct fit replacement?
Thank you for contacting Inyo Pools, The V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU Is the correct replacement. If you send some photos of the pump and motor I can recommend the right seal kit.
Reply
If you use the over ride input for a solar panel will it toggle off and on with the light sensor or will it set once and go back to program?
Reply
Hi David, the digital inputs (and the input for the Override function) have the highest priority so your solar controller should be able to turn the pump on to the override setting (or whatever step you choose) when the light sensor tells the controller to send the correct low voltage to the corresponding digital input on the pump. When the digital input signal voltage is removed the V-Green 165 will automatically start the 24-hour schedule at the beginning.
Reply
How do I get the fan cover off to check propeller? Is it the allen wrench in the end of the fan cover?
Reply
Hi Daniel, the hex (Allen) head at the end of the motor is to hold the motor spindle steady while replacing the impeller. The end shroud for the fan is held on by a few hex head screws on the perimeter of the shroud (look on the side of the motor for them). Be sure to disconnect power to the motor before performing any service on it.
Reply
I have a Hayward SP3015 Super II 2-Horsepower Pool Pump. The pump bearings are shot. Will this VS pump be a suitable replacement? Which Seal kit would be used, GOKIT2?
Reply
Hi Chris, you would need to get the V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU to replace the motor in your 2HP Super II pump or you risk burning it out prematurely. Motors need to be at least the same horsepower as the current one unless you also downsize the impeller and, sometimes, the diffuser. The GOKIT2 will be perfect for your Hayward Super II SP3000 Series pump.
Reply
I have an irrigation booster pump which I want to swap out the existing single speed 1.5 motor to a VS so I get the energy savings and also a constant pressure. I have over 40 valves ranging from drip irrigation, lawn and orchard irrigation so the demand changes quite a bit depending on what is being watered. The existing pump has a working pressure of up to 80PSI. Do you have a "controller" that would increase the motor speed as the demand increases? Any ideas or suggestions?
Thank you
Reply
Hello Steve. The system working parameters described in your communication exceed the capabilities of residential and commercial pool pumps. That level of sophistication is better addressed by Pentair Berkeley. Pentair Berkeley manufactures and markets water supply solutions for crop irrigation, livestock watering, and residential water flow requirements. Communication with Pentair Berkeley can be accomplished through the Pentair.com website. Pentair
Reply
Hello, I am looking at this pump to replace an A.O. Smith Century 2-speed 1.5/.25 HP, 1.47 SF, Y56Y Frame, 3450/1725 RPM, 230 Volts, 11.0/4.0 Amps. It's connected to a Whisperflo Model # WFEDS-6 Serial # 1-20-D02. Is this the best option? What else if anything would I need? I believe I will need some additional seals for the flange and shaft as well. Thanks!
Reply
Hello Jeff. The Whisperflo Pool Pump model WFEDS-6 has a total horsepower (THP) of 2.2. The Century Motors V-Green 2.7 HP Variable Speed Motor model ECM27SQU is the better replacement with a THP of 2.7. ECM27SQU The WFEDS-6 pump impeller is rated for 2.2 THP, dropping the THP to 1.65 as with the ECM16SQU will place unwanted stress on the motor. Depending on the flow requirements of your pool, you may be able to drop THP, dropping the flow rate. The drop in THP would necessitate a change in the impeller. Impeller The GOKIT32 contains the seals and gaskets necessary to complete this project. GOKIT32
Reply
Does this motor/controller have a memory and internal clock? If power is disrupted will it retain current time and programming?
Reply
Hello Matthew. The Century Motors V-Green 1.65 variable Speed Motor ECM16CU does not have a programmable internal time clock to establish the time of day. The run schedule is based on a 24-hour schedule and will repeat each day of the week. If power is lost while the V-green 165 is running a 24-hour schedule, once the power has been restored the V-Green 165 will start the 24-hour schedule from STEP 1. Attached please find a copy of the V-Green 165 User Manual. Please refer to Section 6, User Interface Operation, for additional information. VARIABLE SPEED USER MANUAL
Reply
Hi there,
Could you recommend the proper VS motor and seal kit, if needed, for a Hayward Century 48L2N134B3 1.5hp. Also I would like to know if with this new pump if I should set the max rev speed to a certain limit knowing that I got a sand filter with a 53 GPM all connected with 1.5 inches pipes.
Thank you,
Hello Eric. The Hayward Super Pump VS Motor Upgrade Kit - 1.65HP - MKIT3VS16 provides the most economical means to transition the Hayward Super Pump from single to variable speed. The MKIT3VS16 includes the Century 1.65 VS Motor, 1.5THP Impeller, shaft seal, and necessary gaskets & o-rings to complete the project. The current Hayward Century Motor model 48L2N134B3 has a total horsepower rating of 1.65, identical to the Century VS Motor. The impeller size is not changing, alleviating the maximum RPM concern. The programming flexibility of the VS motor will allow a fine-tuning of run time, flow rate, and water quality equation.
Reply
Replacing century SP1607Z2msc, will this work?
Reply
Hello Chris. The Century Motors VGreen Variable Speed Motor ECM16CU is a compatible replacement for the Century Motors model SP1607Z2MSC. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the necessary seals and gaskets to complete the motor change.
Reply
4 years ago i replaced a single speed motor on my hayward superpump with a vgreen 165. Please see attached pics.The vgreen worked ok for 4 years but has suddenly become very noisy and seems ready to fail. I am willing to try another vgreen `165 , looks like i need round flange. My question is whether i should get the upgrade kit with new impeller, because i did not change the impeller 4 years ago and i don't know if it was wrong size contributing to failure of the 4 year old vgreen.
Hello Robert. The V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU would be the correct variable speed motor replacement for the Hayward Super Pump. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the seals and gaskets necessary to complete the new motor installation. The decision to change the Impeller is dependent upon the part number of the current Impeller. Impeller and motor are matched by total horsepower (THP) rating. The ECM16CU THP rating is 1.65. If your current Impeller is stamped with part number SP-2600-B, SPX1610-C, or SPX1611-C, an Impeller change is not required.
Reply
I'd like to change the single speed 1 Hp Century (SF 1.25, Frame 56Y) motor on my Purex WhisperFlo main pump to a VS series motor. Is there a Century VS motor that will fit?
Reply
Hello Joe. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be a compatible replacement variable speed motor for the Pentair/Purex WhisperFlo Pool Pump. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the parts necessary to complete the new motor installation. The Pentair Whisperflo VS Motor Upgrade Kit - 1.65HP - MKIT32VS16 contains an impeller upgrade to ensure maximum efficiency with the transition to the variable speed motor. Attached please find the Pentair Whisperflo Pump exploded parts diagram for reference.
Reply
I have a Hayward sp2607x10 and replacing the motor with the V-Green 165(part-ECM16CU) what are the correct parts needed for the new motor, example: rebuild kit, gaskets, impeller, etc. ?
Reply
Hello Robert. The Super Pump™ Style Impeller 1.5 THP would be the compatible replacement impeller with the V-Green 1.65 ECM16CU if you wished to incrementally increase the water flow rate (circulation GPM). The existing SP2607X10 impeller is also compatible, the ECM16CU installation would have no effect on the water flow rate under that scenario. The Tune Up Kit Hayward Super Pump - GOKIT3 contains the parts necessary for the new motor installation.
Reply
Will this replace my century b127
Hello Travis, yes this variable speed motor is compatible to replace your motor model B127. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist with that.
Reply
will this motor work with a Jandy pump
Reply
Hello Robert, there are a few different types of motors that Jandy pumps can use. Here is our "How To: Find a Replacement Pool Pump Motor" guide and "Finding the Tune-Up Kit for Your Pool Pump" guides that will assist you in locating your correct motor and seals/ seal kit recommended to be replaced as well when doing this project.
Reply
Hayward pool motor for a sp2602vsp , motor is 1.50 hp HANNING model SP2615Z1ECM2, need a new motor that will fit pump,
Reply
Hello Rick. The Century Motors V-Green Variable Speed Motor model ECM16CU is a compatible variable speed replacement for your Hayward Super Pump model SP2615Z1ECM2. It is recommended that the motor shaft seal, seal plate gasket, and diffuser gasket be replaced at the same time. The GOKIT3SALT contains the necessary parts to complete this project in a salt water pool and the GOKIT3 for a standard chlorine swimming pool.
Reply
Will this pump work on a Hayward Super pump series model SP2607X10? If not what pump motor will work?
Reply
Hello Steve, yes this variable speed motor ECM16CU is a compatible motor replacement for your Hayward Super Pump model SP2607X10 pool pump. Please be advised that the electrical for the motor must be 220/240 volt. We also recommend replacing the seals and gaskets when replacing a pool pump motor. For your Hayward Super Pump on a chlorine swimming pool that will be the GOKIT3 and for a saltwater pool it will be the GOKIT3SALT.
Reply
Will this work as an upgrade for my existing motor (picture attached)? And what parts should I order to upgrade (seals, etc…), and do I need a new impeller?
Hello Mike, yes this variable speed motor would be compatible to replace your motor model c48k2n143b1. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with locating those. It it wisest to keep your current impeller as well.
Reply
is this pump motor compatable with Whisper Flow pump wfds and what is difference in square flange versus round
Reply
Hello Bryon, the Pentair Whisperflo series pool pumps use square flange motors. Here is a guide that we put together called "How To: Find a Replacement Pool Pump Motor" that should assist you in locating the correct replacement motor for your specific model pool pump.
Reply
Which seal kit to I need to install this on my Hayward Super Pump 700? Mod: SP2670010x15? Thanks!
Reply
Hello Peter, the seal kit for the Hayward Super Pump series in a chlorine swimming pool is the GOKIT3 and for a saltwater swimming pool is the GOKIT3SALT.
Reply
