What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
My motor fails to start. I check the motor and the capacitor is damage. The mfd and voltage range don´t see well. Can you help me with the range of the capacitor? Thanks.
Reply
My pool motor is making a grinding sound ... water is being pumped.
It is a Century Centurion Part # 7 - 159988 -06 , 2 HP , SS# 028083M
Type CX , 230 volts, Amp. sf 10.5 About 15yrs old.
Is my motor bad? What do you have and how much?
Reply
Hi Ed, It sounds like the bearings is going bad on the motor. Since the motor is 15 years old I would recommend replacing the entire motor. The A.O. Smith 2 HP Full-Rated 56J Motor (B130) would be the correct replacement motor based on the part # 7-159988-06.
Reply
What motor bearing part number do I need to order for this B855 motor?
When I replace the bearings, what else should I replace?
Reply
Hi Jesse, You would need (1) 304 Bearing (6304) for the Shaft End and (1) 203 Bearing (62032RS) for the Opposite Shaft End. It is also recommended that you replace the shaft seal and the o-rings within the pump housing.
Reply
Is this motor already preset for 230 volts or is there a switch that has to be placed for 230 volts?
Also I have a red, black and green ground coming to the motor. Would the Red and the black wires go to L1 and L2? The reason I ask is because internally there is a white wire on L2. The terminals in the motor are "B", "L1", "L2", and "A". Your help is greatly appreciated.
Reply
Hi Ed, The motor comes set for 230 volts. When wiring the motor for 230 volts both lines are115 volts so it will not matter if the "red" or "black" wire goes to "L1" or "L2". The "green" would go to the ground.
Reply
My old motor has locked up after about 6 years. It appears you have a replacement for $245+ but my frame says Y56Y and your listing only says "56Y". Is this the same thing? Otherwise everything seems the same.
Reply
Hello, The Y56Y and the 56Y are the same frame. As long as the specs match, this motor will work. Be sure to replace the pump seals as well.
Reply
My pool pump motor is running really hot. Do you think a bearing replacement is the fix or a new motor
Reply
Hi, If the motor is suddenly overheating you can follow some of the recommended troubleshooting steps we have in our Why Is My Motor Running Hot? blog. If non of these solve your problem then the motor will have to ve replaced.
Reply
Does the motor comes with pump included or it is something we have to order separately ? We need a 2HP motor/pump to replace current century centurion.
Reply
Part # B855 is the motor only. Not exactly sure what you need for a pump but you'll see a few options under "Parts" at the bottom of the page.
Reply
I have a Centurion Part# 8-177081-40 Pool and Spa Duty motor that I need to replace. It is a Y56Y frame 230/115 Volt. What A.O. Smith motor should I order. Also what gaskets do I need to replace when switching out the motor?
Thank You
Reply
Hi Bob, The A.O. Smith 1.5 HP Standard Motor - Full Rate (B2858) would be the correct replacement motor. We will need to know the manufacture and model of the pump that the motor is attached too to get you the correct gaskets.
Reply
Does this pump has 2 Capacitors? One for Start and One for Run? My pump is not starting but when I turn the shaft once then it works fine. Should I change the run capacitor as I dont see any other one?
Reply
Hi Apps, The B855 motor only have a 30 MFD 370 V Run Capacitor, no start capacitor.
Reply
I have this motor. When I turn it on the motor hums and the shaft spins slowly. Then after about 20 seconds the safety in the motor cuts it off. I replaced the capacitor but still same result. When off the shaft spins freely in either direction. Any ideas? Motor is 5 years old. Was running 10-12 hours a day until it stopped a few days ago. Thanks
Reply
Jason,If a ne capacitor didn't solve your issue, sounds like buying a new motor may be your best option. 5 years is a pretty good life line for a motor operating that consistently.
Reply
Seeking the correct motor replacement for Jandy Stealth 2HP pump. Existing motor is A.O. Smith Century Centurion O-193994-06. Frame Y56Y, Volts 208-230, Amps SF9.6-8.8, RPM 3450. Motor does show the SF rating. I assume I need this up-rated 2HP motor?
Reply
Hi, The A.O. Smith 1.5 HP EE Full Rate Motor (B2842) will be the replacement for p/n 0-193994-06. The B855 motor can also work but it will use more amps which will cost more to operate.
Reply
Hello, I have a Jandy Stealth 2.0 HP pump and motor, AO Smith Century Centurion. I have selected this motor based on the information on the motor label matching all the information on my motor. However, my Jandy pump manual says my SHPM 2.0 motor is model B865SE and your motor is model B855. Also your list of "Commonly used on" does not include Jandy, and the B865SE is not listed in the Alternate Part numbers. Is this motor a suitable replacement? Thanks for any help you can provide. Mark
Reply
Mark- The B865SE is discontinued and no longer available. You can substitute it with the A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor B855.
Reply
I have a pentair WF-28 / 011774 pump and the bearings are shot. Looking to replace the motor. Motor # is 196240, 2 hp., S.F. 2.2 hp, 230v, 3450 rpm.
Please advise the correct motor for replacement and any parts kits needed.
thanks
Reply
Tim- The correct motor for your WF-28/011774 Whisperflo Pump 2 HP will be the B855 A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor. The seal kit you will need for the whisperflo is the Gokit 32.
Reply
Dear Sir,
Can this motor be replaced for
US Motor Emerson 1081
EB843
Frame 56Y
Class B
RPM 3450
HP 2
Volts 208 - 230
Amps 10.6 - 10,0
S.F. 1,30
Thanks
Reply
Hi, The A.O. Smith 2 HP Motor EE - Full Rate (B843) would be the correct replacement motor.
Reply
What motor would be the right one to replace U.S. Motors 1081, CAT # EB859, HP 2.0, RPM 3450, Volts 230/115, HZ60, Amps 10.8/21.6, Frame 56Y, INS Class B, and SF. 1.10? Thank you for your help.
Reply
Hello Jean, The A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor 230/115 (B859, B2859) would be the correct replacement for your EB859 motor.
Reply
can I replace my century centurion AOL Smith motor #B854 with a B855?
Reply
Hi Andres, You can but you would also need to upgrade your impeller. Do you know which pump you have, it should say Pentair Whisperflo, Challenger, Dura Glas, etc..
Reply
I need a pump motor that is used in a SVL56 waterway?? Serial #BZ08-4 Part 7 177897-22 Any suggestions on the correct replacement?? Which tune up kit as well??
Reply
This is the correct replacement motor your SVL56 waterway pump. There is not a tune up kit for your pump but you will need this SVL56 waterway Shaft Seal.
Reply
I have a 14 year old WhisperFlo WF-28, 2HP, 1.1SF pump. The motor on it now is an AO Smith Century Centurion B748, which I believe is a full-rated 2HP, but it looks like the AO Smith Century B855 (uprated) is the motor that is recommended for this pump. Should I purchase a B748 or a B855? Should I be concerned about the impeller?
Reply
Marsha, The B855 would be the correct replacement motor based on the pump model. If they did not replace the impeller, when they upgraded the motor, you would not need to change it.
Reply
I recently purchased the above named motor from your company, while removing the wiring from the old motor I took pictures of the wiring configuration. The pictures came out dark and difficult to use. I have three wires, green black and red, can you assist me with the correct placement of those wires on my pump motor.
Reply
Hi Gene S, The "Black" and "Red" wires will each occupy either L1 and L2 and the "Green" goes to the ground.
Reply
I have a century centurion A.O. Smith. what motor to I need - 2HP, 1.3 SF, Serial CAO/1- 26, Part 7 -177452 -03, Type CX, Fr Y56Y, HZ 60, Form KJM, Volts 208-230, RPM 3450, AMPS 11.0-10.2, Time CONT., ENCL DP
Reply
I have a Challenger PAC-FAB 2HP (35-5460) pool pump. Unfortunately, the label on the motor has faded beyond being readable.
Is this motor a proper one for my pump?
Reply
The A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor - B855 will be the correct replacement motor for the Pac-Fab Challenger 2HP pump. We would also recommend that your replace the seals on your pump when ever you replace the motor with the Tune Up Kit Pentair Challenger Pump - GOKIT5.
Reply
I have a WFDS-8 and the motor windings are burned, bad motor. What is the replacement motor if I don't want to go with 2 speed and a single speed motor is fine to use with my timer. I think the Pentair number is 075236S, is this correct?
Reply
Walter, The WFDS-8 is a 2HP full rated 2 speed pump. If you want to go with a single speed, you would need the B843 motor. I would also recommend a tune up kit.
Reply
I am little bit confused ,I just replaced pump motor century B 855 and wiring is different from old one (pant airCHII)
Please guide me how the wires should be wired?
Reply
I have a 2 hp A.O. Smith motor # 168454 I need to replace. 3450 rpm,10.5 A . 56y frame with a Challenger #346201 High pressure pump mounted on it. Would the B855 the pump I need? Thanks
Reply
I have a Franklin 1081 pool pump motor. The bearings are starting to squeal. I know the motor is at least 25 years old. I'm thinking replacing the bearings might be wasting time and money on a 25-30 year old pump as I might just be chasing more problems. Or it might be a great motor that can last 50 years. What do you think? My pool is 22k gallons 18 X 36 X 7 deep in case you recommend new pump. I have a fairly new Hayward filter model C3025.
Reply
Bearings are inexpensive compared to a new pump or motor. Me personally, I would try to keep that motor going as long as possible. They don't make motors that last 25 years anymore.
Reply
I have an A.O.Smith pump. Model K48N2Pa105C4 Serial Number 08111FM.
It is leaking, What would it cost to repair it, I assume new gaskets, or what does a new one cost, Is it pretty easy to repair or replace. What would be the new motor needed if I go with replacement?
thanks
Reply
Hello Carlos- The model number you provided is for a motor, the A.O. Smith 2 H.P Square Flange Full Rate Motor - SQ1202. You can click on the link to see the current pricing. Unfortunately, the model number of the motor will not identify the pump, at this motor will fit on over 10 different pumps. I would need to know the make and model of your pump in order to identify the replacement parts you will need or the cost of a new pump, if it is currently available.
Reply
I have a 2008 Jandy stealth pump with an A O Smith motor B2843. Can the B855 be used as a replacement ? Should you replace the impeller, defusser and shaft seal ?
Reply
Good morning Jim, The service factor on the B855 is lower giving you a lower total HP. But Yes, You can use it as a replacement as it is not that far off and has the same flange size. It is only a $20.00 difference.
Reply
I got A.O.SMITH POOL PUMP WITH PARTS#159988-06, CATB130 BUT I SAW ONLINE YOU GOT PARTS#B855 THE DIFFERENT IS AROUND THE HEAD B855 JUST GOT 4 SCREWS (BOLD) ONLY MINE IS GOT 6 SCREWS SOO MY QUESTION IS OK TO FIT ON MINE THANKS GIVE ME A CALL 214-4750367
Reply
Will this motor replace the JEP 2.0 R0474403? Is it capable of the variable speed?
Reply
Part number 35-295-1252 would be the direct replacement motor and would need to be special ordered from Jandy which could take 3-4 weeks for delivery. We have a variable speed replacement that is part number ECM27SQU. The shaft seal for that motor install is part number 5020-087.
Reply
HOW WELL DOES THIS MOTOR RETRO FITS TO A FHPM2.0 FLOW PRO
Reply
Yes that is the correct replacement motor for this FloPro as long as you are replacing the original motor. If it has been changed since the original purchase then you will need to try and locate the motor model and or part number to confirm.
Reply

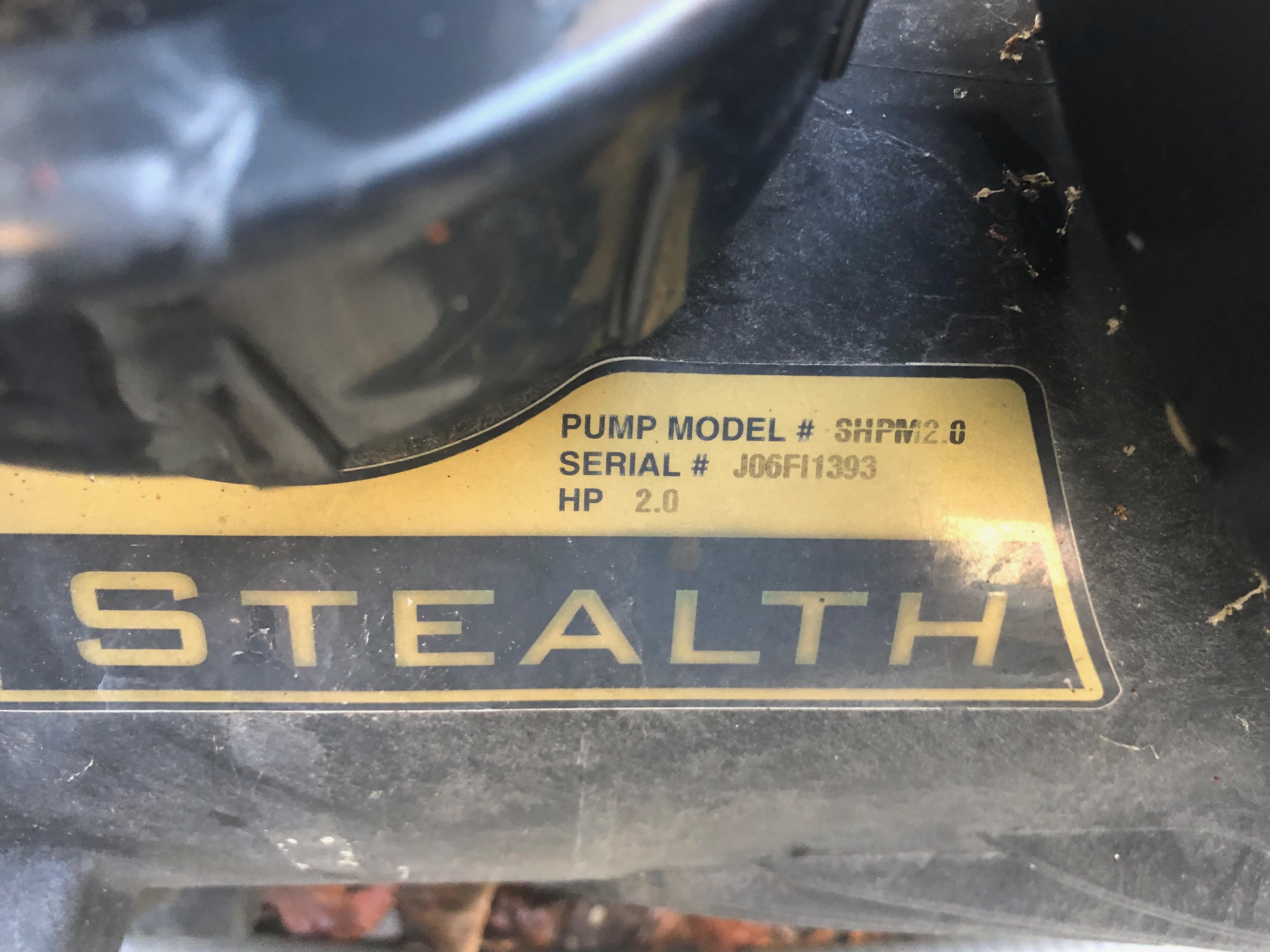

I have a Jandy SHPM2.0 2HP. This looks like the right motor to replace. I think also the correct seal is R0479400 - please confirm? Anything else I'd need to do the job or should replace while doing it?
Reply
Hi, Stephen. The B855 is the correct replacement motor for the SHPM2.0 pump. If the serial number on you pump is P08FF0001 and later then p/n R0479400 would also be correct or you would need p/n R0445500. I would also recommend replacing the Diffuser And Impeller Hardware - R0446500 and the Backplate O-ring - R0446300.
Reply
How, where do I order the correct gaskets kit for the Centurian B855 pool pump?
Reply
Hi, Gary. We will need the pump housing model number in order to locate the correct seals. Centurion B855 is the motor info which can be used on many different pumps.
Reply
My pool motor is US Motor model k63CXESF 4793, 2 HP, S.F1.3,RPM4793,Amps10.6/10; Frame56Y; 1081 Pool Motor, Exireme-1 model. Does your yourA.O.Smith 2Ho,56Y frame works for my pool. Thanks for your reply.
Reply
My B855 pump. Is making a loud noise and running hot ... is it worth it to replace the bearings? Yes the pool still running. so so if I change the pump again which seal should I use for a salt water pool? My pump is only 1 and half years Old.
Reply
Hi Julie, My suggestion would be to replace your B855 motor. The bearing replacement is a pretty involved project and the cost savings is not huge. If you could let us know the make and model of your pump then we could suggest the proper seal kit.
Reply
need replacement pool pump motor; 1st replacement lasted 15mths
Century Centurion A.O.Smith
cat:B855 type:CX FR:Y56Y 230v Amps SF10.0
2HP SF1.10 1ph 60hz 3450rpm
...replacement or something better??
Reply
Hi Les, I would go with the B748 2 HP Full Rate Motor as this motor is going to be a stronger motor and will not be pushed to its limits, thus resulting in longer life.
Reply
I have a Jandy Stealth SFPF2.0CP with broken shaft on Century Centurion Serial CB08-17 Part #7-193995.07. Not sure what my options are for a replacement motor
Reply
Hi Richard, You would require this B2843 2 HP Full Rate Energy Efficient Replacement Motor and this Jandy Stealth Shaft Seal.
Reply
Would this be my replacement motor I have a century two speed AO Smith part # 7-193990-07 type CXPM Y56Y 2HP 230 V RPM 3450/1725 HZ 60. I was looking on the pictures and I only see L1, L2 & B mine shows 1, 2 & 3, 4 number 4 has a yellow wire for low speed would it go to the B connector on the new motor. Can you help me out with this question. Thank you Ruben
Reply
Ruben, Can you please attach a photo of your motor label? There are additional specs we will need to confirm.
Reply
Would the AO Smith B855 be the right replacement for an Emerson 1081, 2HP 56Y (EB843) pool pump? Emerson has SF 1.3 vs. the AO Smith SF1.1 It connects up to a Pentair Whisperflo pump
Reply
Ron, The replacement for the EB843 would be the Century B843. The B855 is not a suitable replacement.
Reply
Do you have an AO Smith pump - PN - 7-177897-22 in stock?
Is there a two speed version of this same pump - in stock? and price?
Thx
Reply
Hi, Tom. This B855 motor is the correct replacement for Part #7-177897-22. You can use the Century B983 dual speed motor which requires P/N 2512558-001 or T106R.
Reply
I have a Centurion 7-165201-07. Can I replace it with this or do I need to stick with a B843 or B2843?
Also, the sticker on my whisperflow has deteriorated away and I can't see the model number. Will the GoKit work on any WhisperFlow?
Reply
Hi, Mark. The Century B843 motor is the correct replacement, you can not use this B855 motor. The Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT is the kit you'll need for your pump.
Reply
My motor is full of rust and has a broken stator. Will this replace my A.O smith 7-193987-24 and what kit do I need, if my pump is Jandy PHPM2.0
Reply
if this is 220 volt motor is that 5 amps on each leg
Reply
Hello Thomas- Yes the A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor - B855 is a 230v motor.
Reply
I need to replace the motor on the Pac Fab Challenger 2 HP, is the Century B855 56y square flange 2 HP the correct motor??
Reply
Hi, David. It's possible. In order to confirm, I will need to know the motor Part, MOD or CAT #. You can use our How to Read Pump Motor Labels guide.
Reply
Hello, is there a variable speed motor that can replace my current motor on a Jandy SHPM2.0? Current motor is a Century Centurion part # 0-193994-06, type CD, frame Y56Y, 230V.7
Reply
I have a Pentair WhisperFlo system but my pool guy replaced my motor with a Century B855. It has shot craps and I'm finding my salt water generator has caused the cover plates to literally disintegrate. What Whisperflo motor replaces a Century B855. Also the seal plate, impeller are brittle as well.
Thanks
Reply
Will the motor on your site replace this? (Your link below) It's still working but no more warranty, we are looking for that go to place when %^&$ hits the fan, thanks in advance
http://www.inyopools.com/Products/03000017039422.htm?gclid=EAIaIQobChMIqsGYroj_3QIVBZ7ACh1xRwysEAQYAyABEgJ8F_D_BwE
Hello Joe- Yes, the A.O. Smith 2 HP, 56Y Frame, Up-Rate Motor - B855 is the correct replacement motor. We also recommend changing the seals which would be a Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
Hello, great website! I need to replace my motor. I have a Jandy SHPM2.5, serial #R10FH1331. The current motor is an A.O. Smith Century Centurion with part number 7-193995-07. Would like to confirm that the B855 is the correct replacement motor and R0479400 is the correct replacement seal. I have a label on my motor that says 'rated hp 2.5 x sf 1.04 = total motor hp 2.6. I don't see that same info on the B855. Thank you very much!
Reply
Is this A.O. Smith B855 a replacement for my old PAC LAB part# 7-168787-07?
Based upon your recommendation, I will buy B2842 since it is direct replacement. What is the correct shaft seal? PS-200? I have PAC_LAB 7-168787-07 PAC LAB P/N 35-5393 MAGNETEK E44549.
Reply
Hi, Sihan. In order to locate the pump shaft seal, you will need to provide us the model of the pump housing which is what the motor mounts to.
Reply

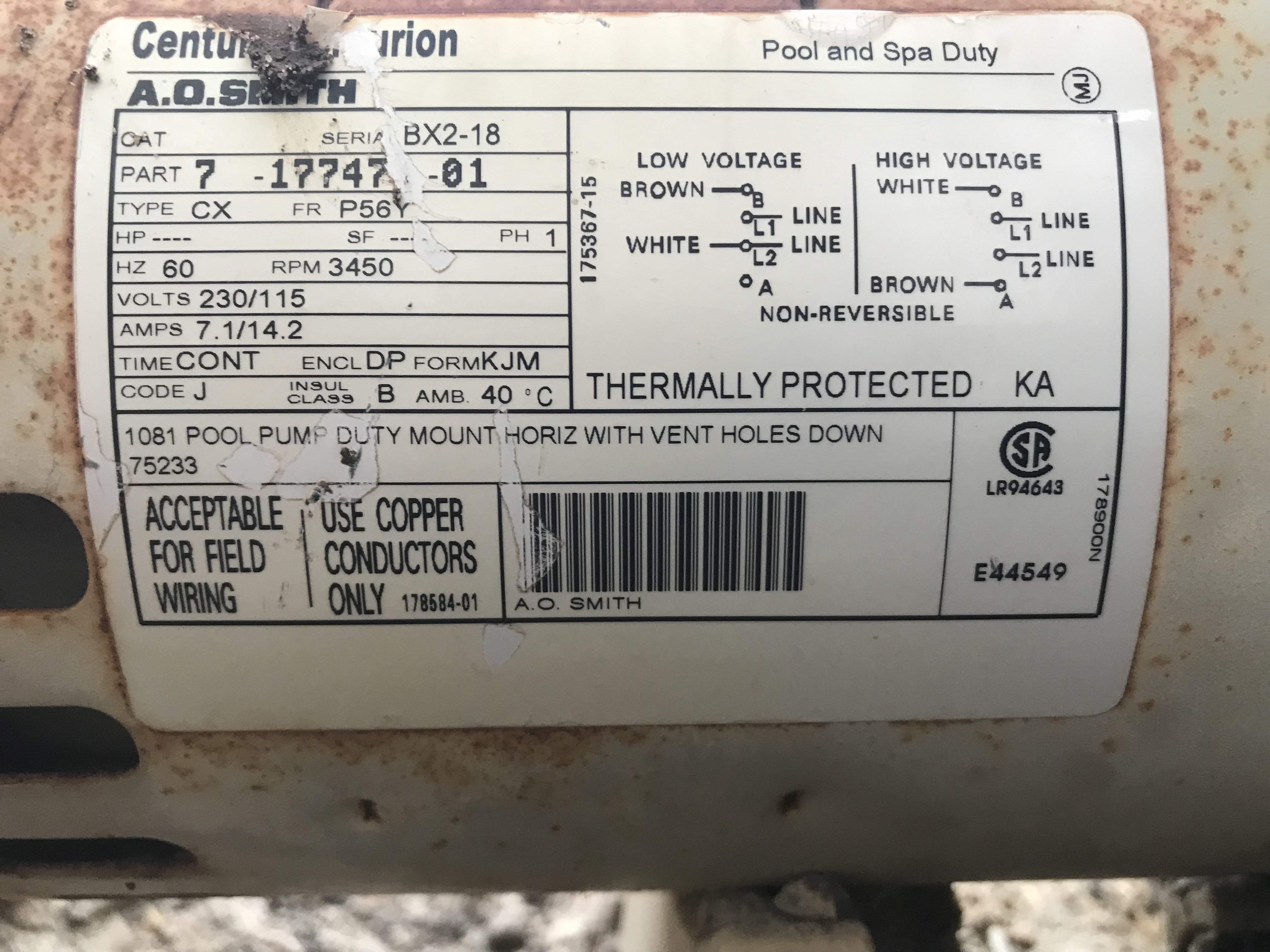

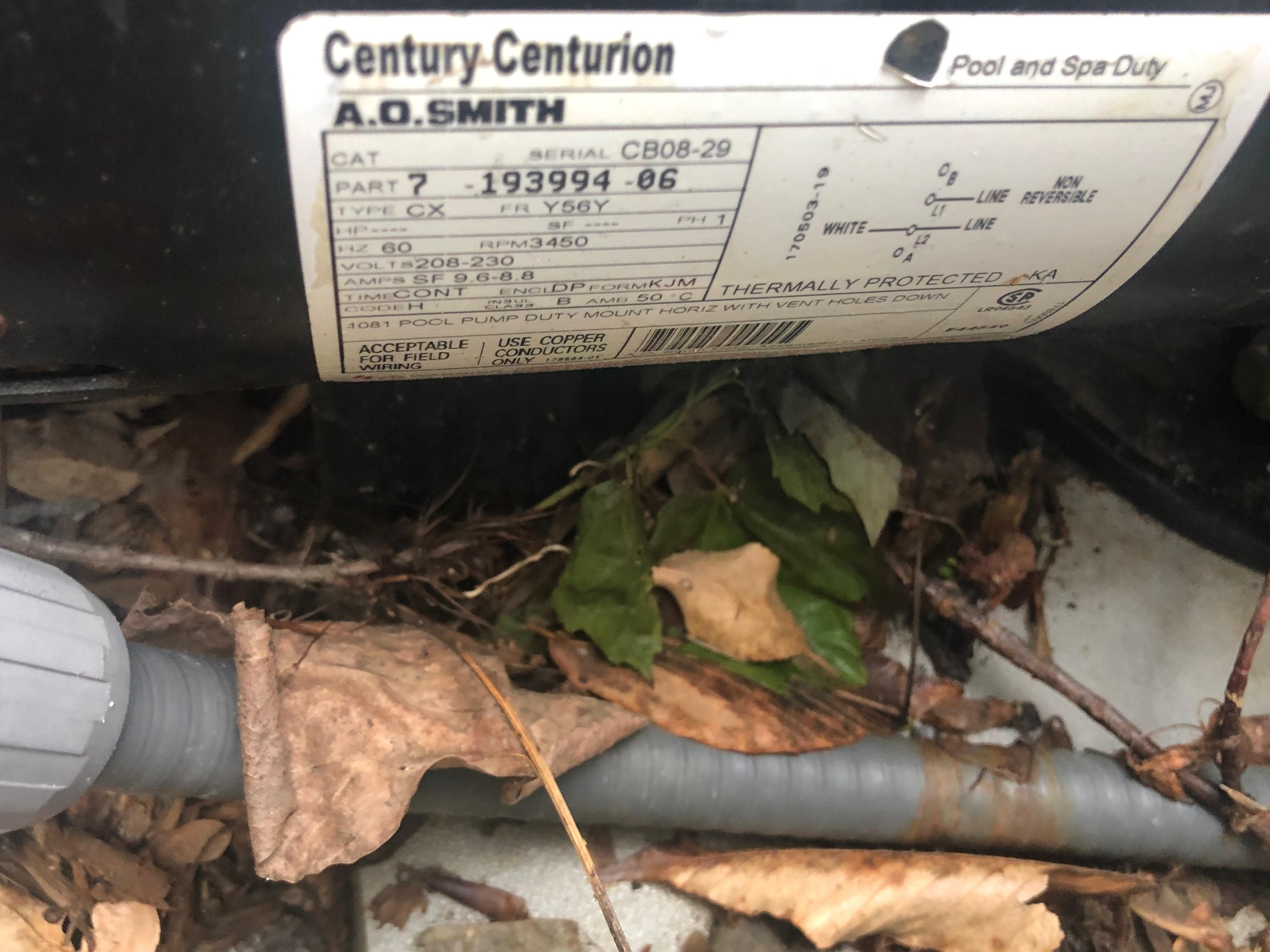

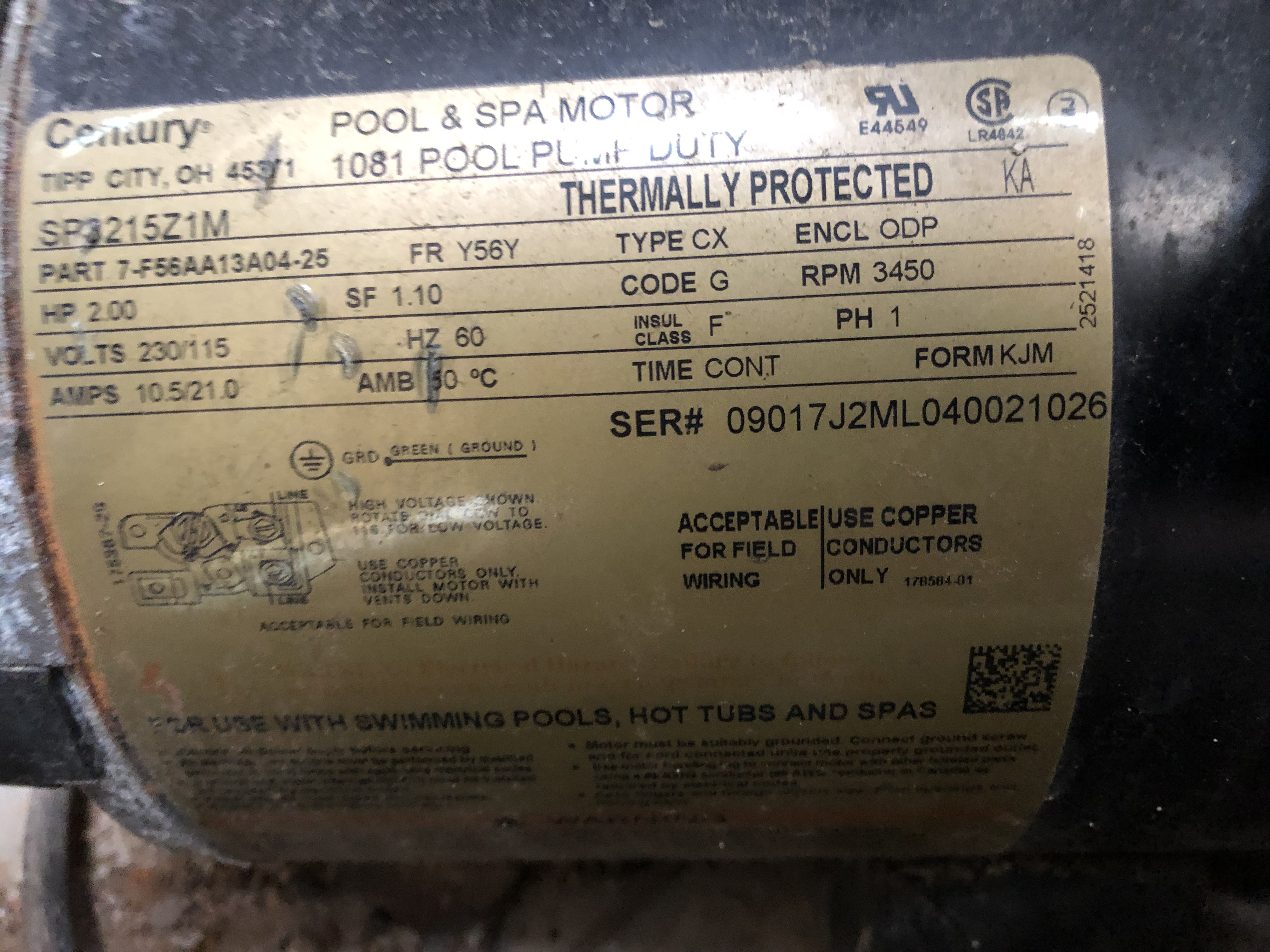

Hello Which motor can replace the one in the attached image? Thank you
Reply
Hi. This B2855 motor can be used as a replacement if you're using 230 volts. If you have 115 volts, you will need the B2859 or the SPX3215Z1MR motor. You will also need the TriStar Tune Up Kit - SPXHKIT100.
Reply

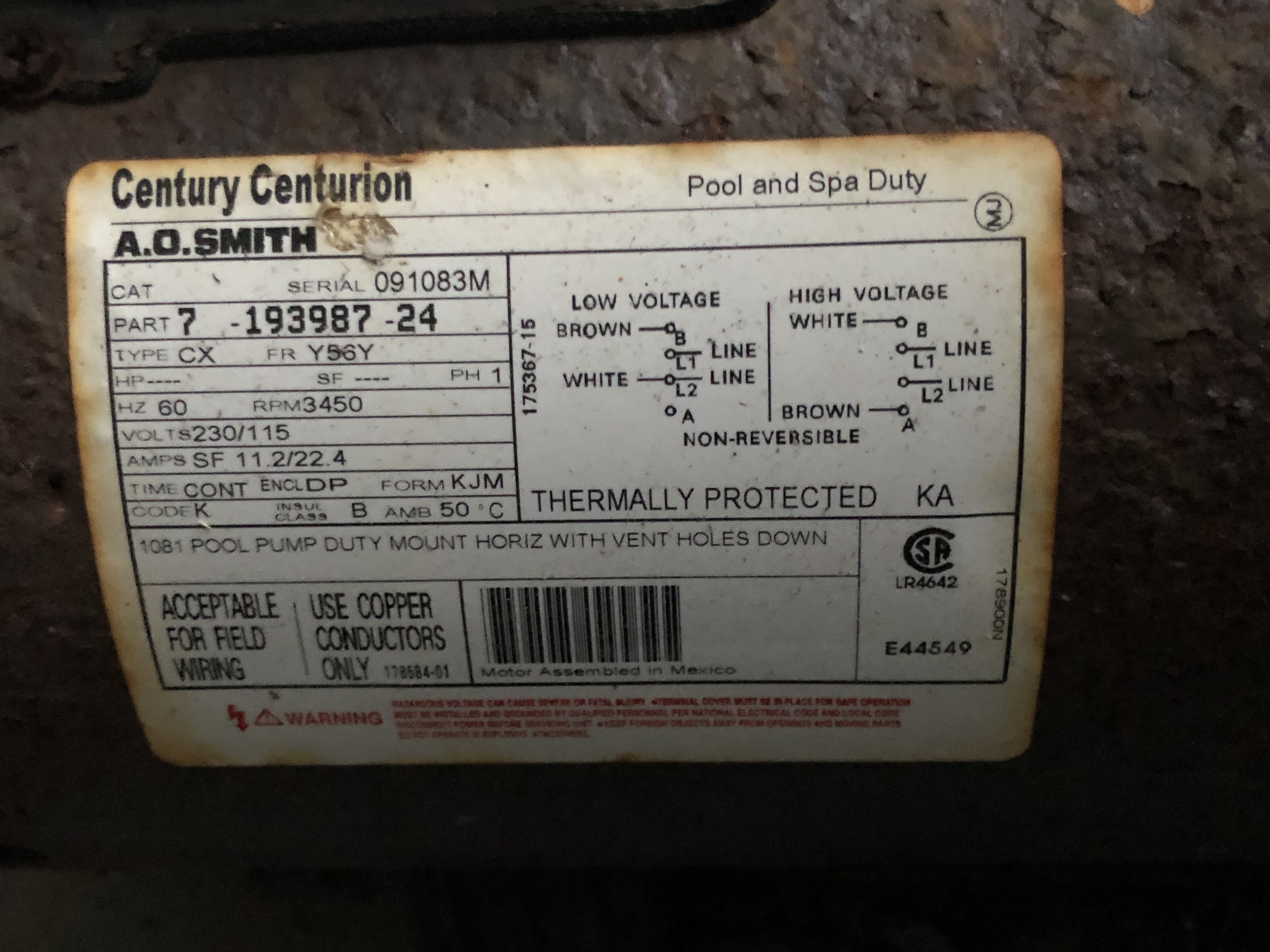

Hello Which motor can replace the one in the attached image? Thank you
Hi. This motor can be used as a replacement if you're using 230 volts. If you have 115 volts, you will need the B2859 or the SPX3215Z1MR motor. You will also need the TriStar Tune Up Kit - SPXHKIT100.
Reply

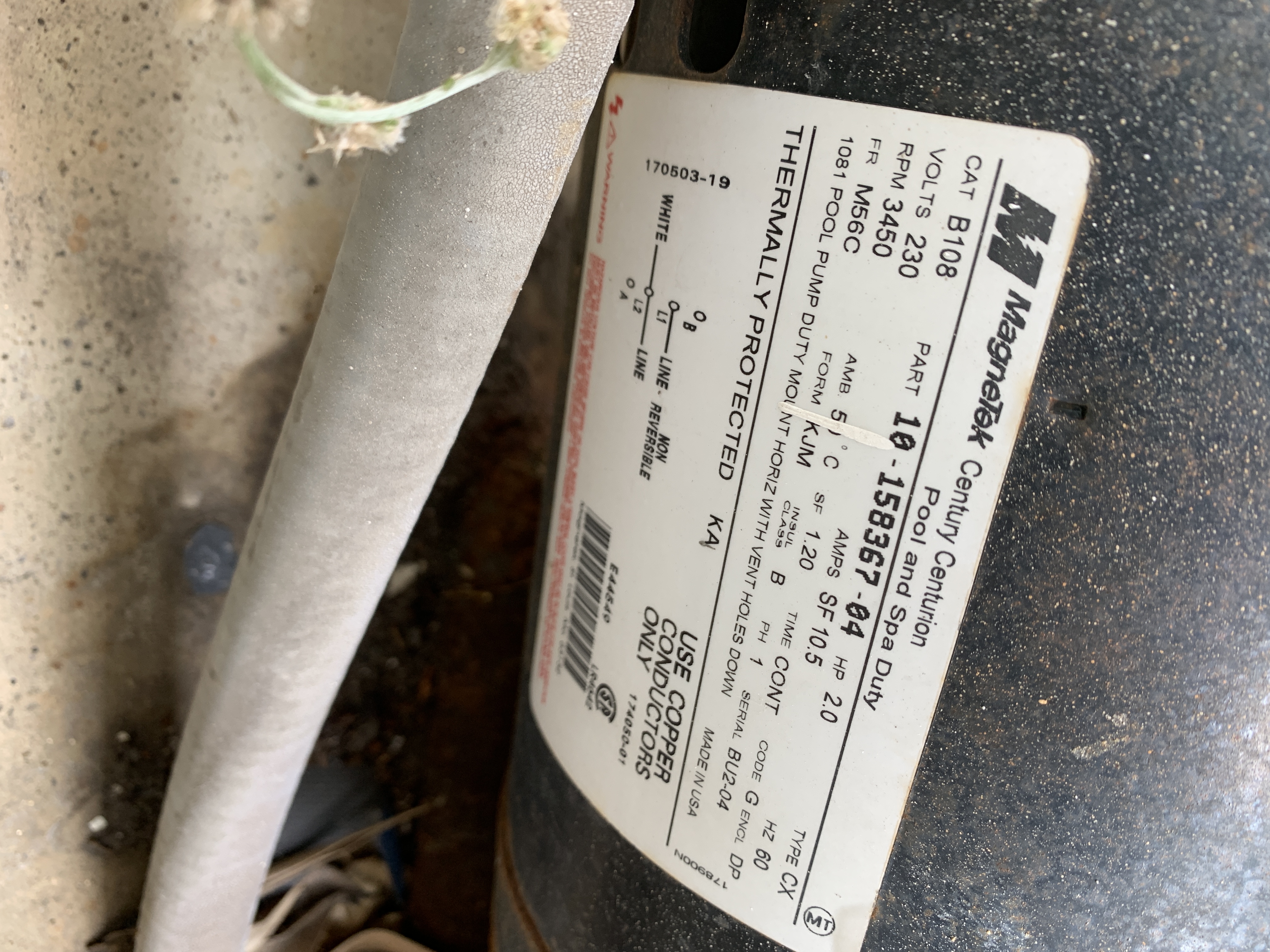

I have an old 2.0HP Century Centurion motor
Part# 10-158367-04
what motor would replace this, and is there a more energy efficient motor to replace with that isn't $$$$$.
Thanks you for your time,
Joshua Cook
Hi Joshua, the appropriate replacement motor for your motor would be the B124 2 HP Full Rate Keyed Shaft Motor this is the only motor offered that would work as a replacement to your motor.
Reply
My Poll Pump Motor is making high pitch wine, it's a Pentair Part 7-177452-03 (Picture Attached), could you please advise what the replacement motor would be and cost in Almond Color?
Also could you please advise what the pump seal kit would be and the cost?
Thank you for your help.
Kind Regards,
Mark O'Brien
Hi, Mark. The replacement OEM motor is Part # 071316S and the seal kit is Part # GOKIT32 or GOKIT32SALT.
Reply

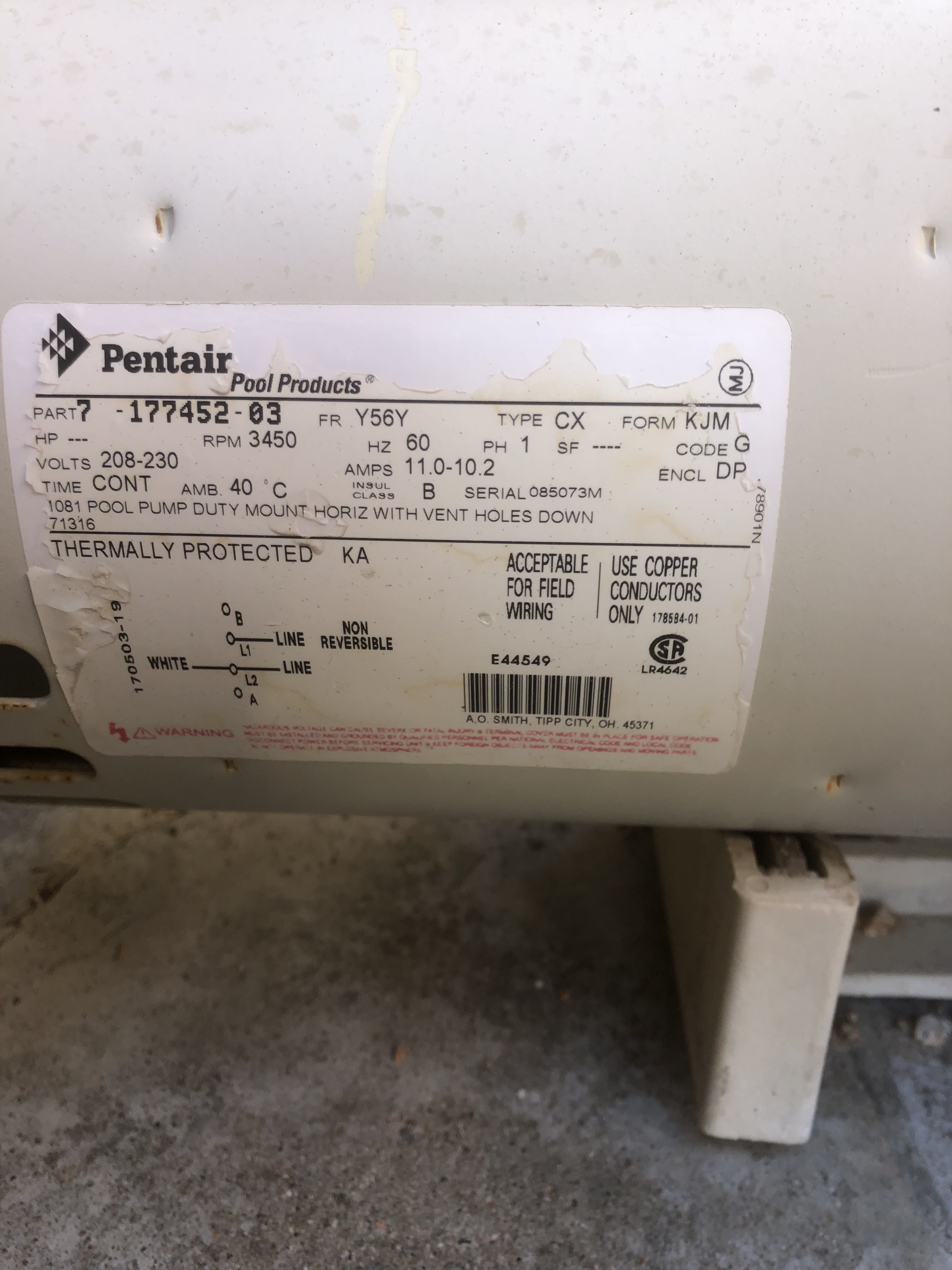

What is the replacement for 8-177452-03
Reply
Hello, This will be the replacement motor you will need,http://www.inyopools.com/Products/00200017039439.htm
Reply
Hi there! Is this the right replacement for Magnetek Century Centurion part no. 7-177451-03? Thanks.
Reply
Hi, Perry. This B2855 motor can be used as an alternate replacement for Part # 7-177451-03. This B2855 motor use more energy. The direct replacement is the B2842 which is an energy efficient. Please see the Note in the product description if you reside in the state of California.
Reply
Thanks Lennox, does it come with warranty? and also can you tell me the seal I need to use with it?
Reply
Perry, The motor has a 1 year warranty. The pump housing model is required in order to locate the seals.
Reply
What is the right capacitor for this motor?
Reply
Hi, Brent. The 30 MFD, 370 VAC Run Capacitor - 628318-308 is the correct replacement capacitor for this B855 motor.
Reply
Thank You
Reply
I need a replacement for this part, I was about to order the following
A.O. Smith 2 HP Square Flange 56Y Up Rate Motor - B855
and I just want to make sure it is the right one.
Please Advice.
Hello, B855 is the wrong motor. You will need part number PL2230http://www.inyopools.com/Products/44400017086159.htm
Reply
What would be the proper replacement motor and shaft seal? Jandy Stealth
Reply
Hi, Ed. We will need to know the model and serial of your Stealth pump in order to locate the proper parts.
Reply

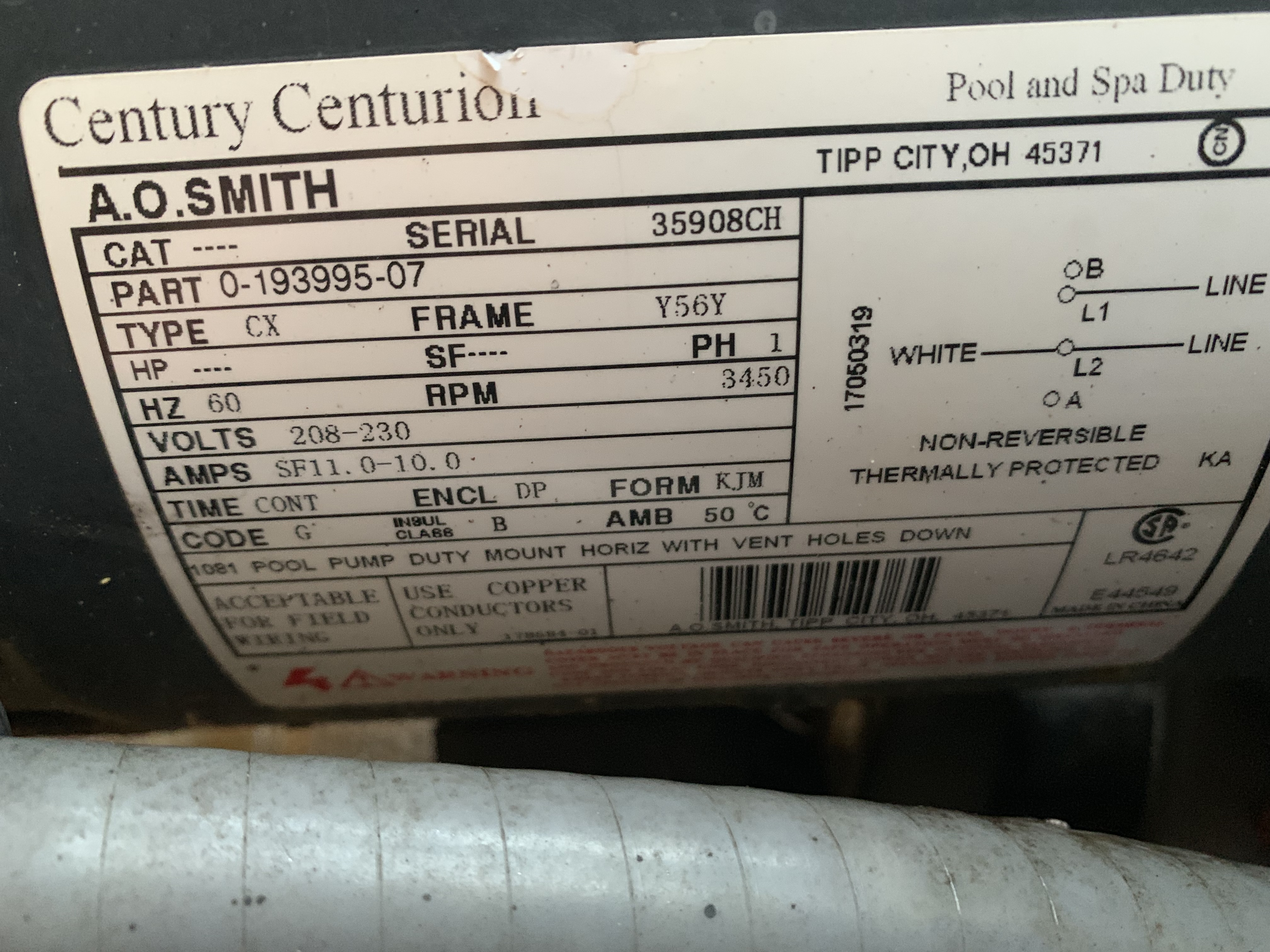

Part 0-193995-07 Frame Y56Y 2 HP SF 1.3 Serial 9712CH RPM 3450
Reply
Ed, The B2843 (EE) or B2748 (STD) are your options for a replacement motor. As for the seals, they are listed on the Jandy Stealth SHPF & SHPM Series Pump (2008 - Current) Parts Diagram page.
Reply
i need to replace a century 177897 which i purchased from you several years ago (bearings are shot). what options do i have for either a energy efficient or variable speed pump in its place? thanks
Reply
Need a pump seal assembly for A.O. Smith 2 HP Square Flange 56Y Up Rate Motor - B855. Can I use anyone or what do you reccomend
Reply
Hi, Dennis. The seal is specific to the pump housing, not the motor. Please provide the make and model of the pump housing so that we can locate those seals.
Reply

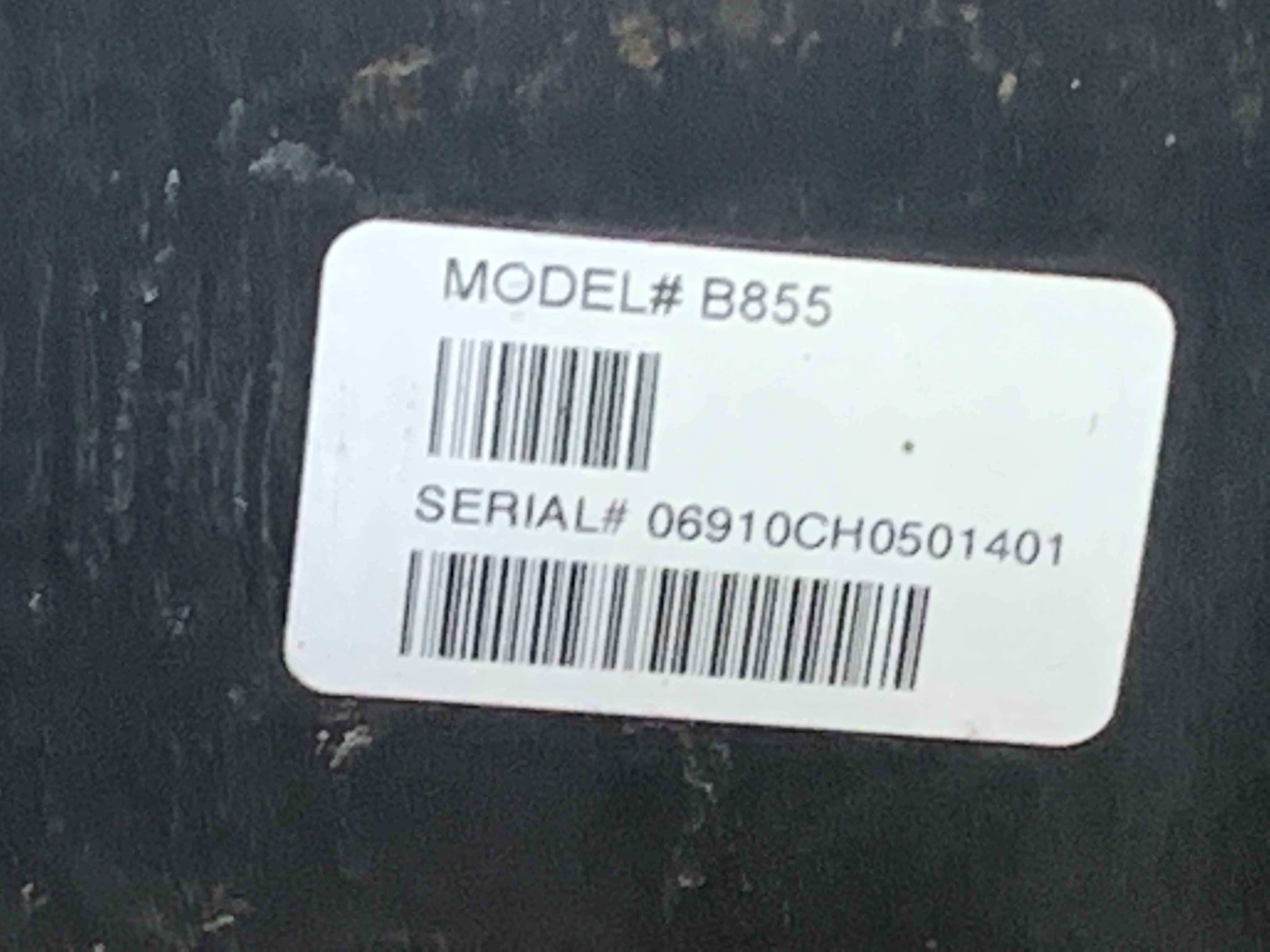

Is the B855 on your site the correct replacement for my old B855? Will I need any additional parts not included in the package in order to install? Thanks.
Yes our B855 will be the same as your B855. We also recommend to replace the seals and gaskets but in order to cross reference those you will need the model name or number of the front pump housing that the motor bolts to. If that information is not legible then you can always email pictures of that to upload@inyopools.com so we can assist in identifying that.
Reply
I am trying to replace my Jandy JHPU2.0-2 pump motor. Will this model work for me?
Reply
Hi, Samantha. Based on the model provided, the B2977 motor which is a dual speed or the PL2230 single speed motor will work with your model pump. Whichever motor you use, you will still need to get the Jandy JHP + JHPU Series Tune Up Kit - GOKIT77.
Reply
Hi, I need to replace 2HP Magnetek Century Centurium 8-186470 -40 serial BR06-F36786, Y56Y motor. Is B855 the correct replacement? Thank you.
Reply
Can you please provide a picture of the motor label with a side view picture of the entire pump?
Reply

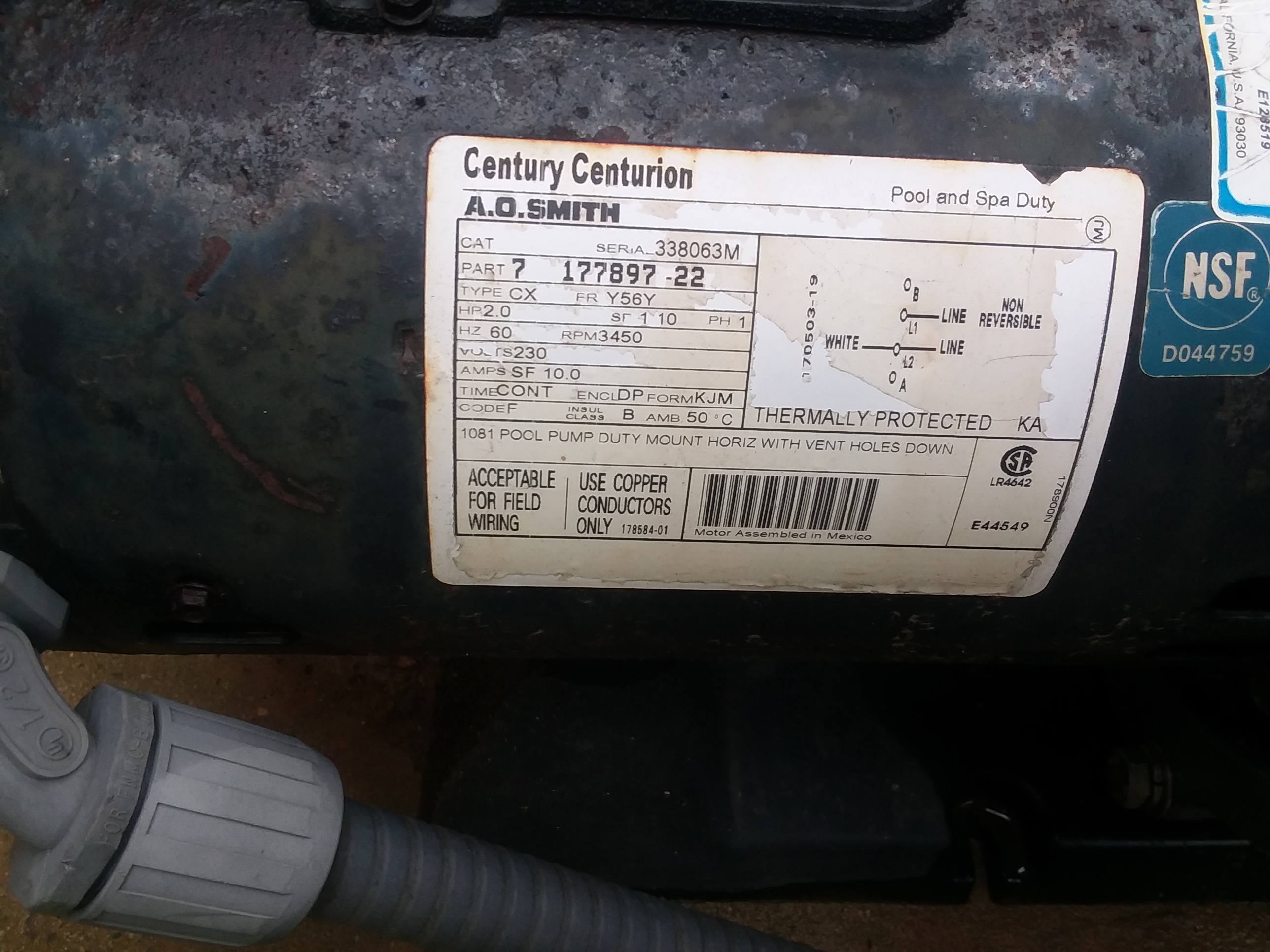

Need a replacement motor for an A O smith 177897-22 unit, also need to know what seals/gaskets are needed to install it, see attached pictures. Also how quickly will it ship.
Hi Patricia, Yes this is the correct replacement motor the motor included in your photo. You will also need a Waterway Mustang Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What is the correct Body, Tank W/cover,basket,and O-ring for this pump?
Reply
We apologize, but the Century Motors A.O. Smith 2 HP Square Flange 56Y Up Rate Motor - B855 can fit hundreds of pump body variations, there is not one body specific to this motor. In order to find the replacement parts you need, please send a photo of your entire pump wet-end to upload@inyopools.com so we can review and identify.
Reply

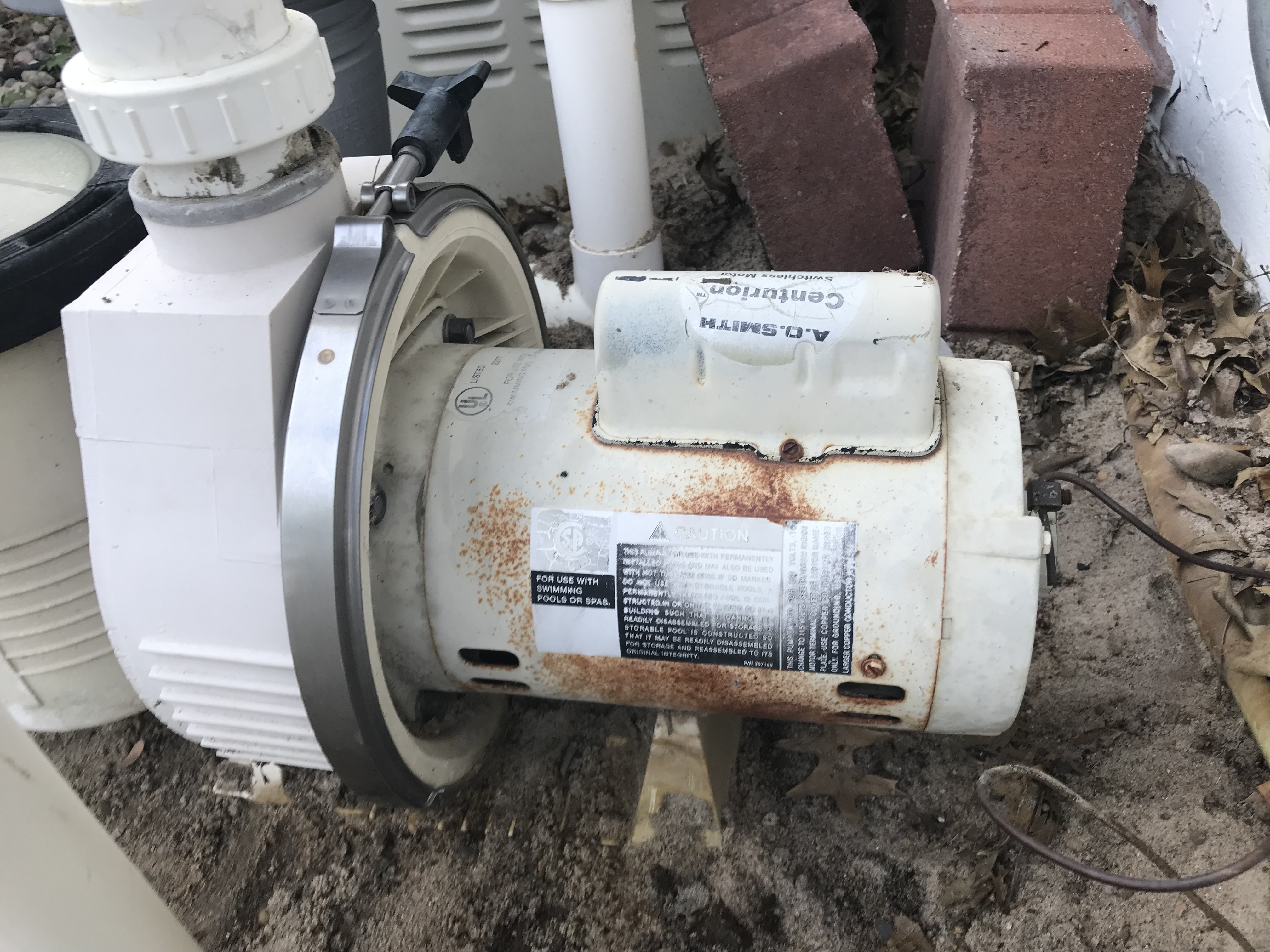

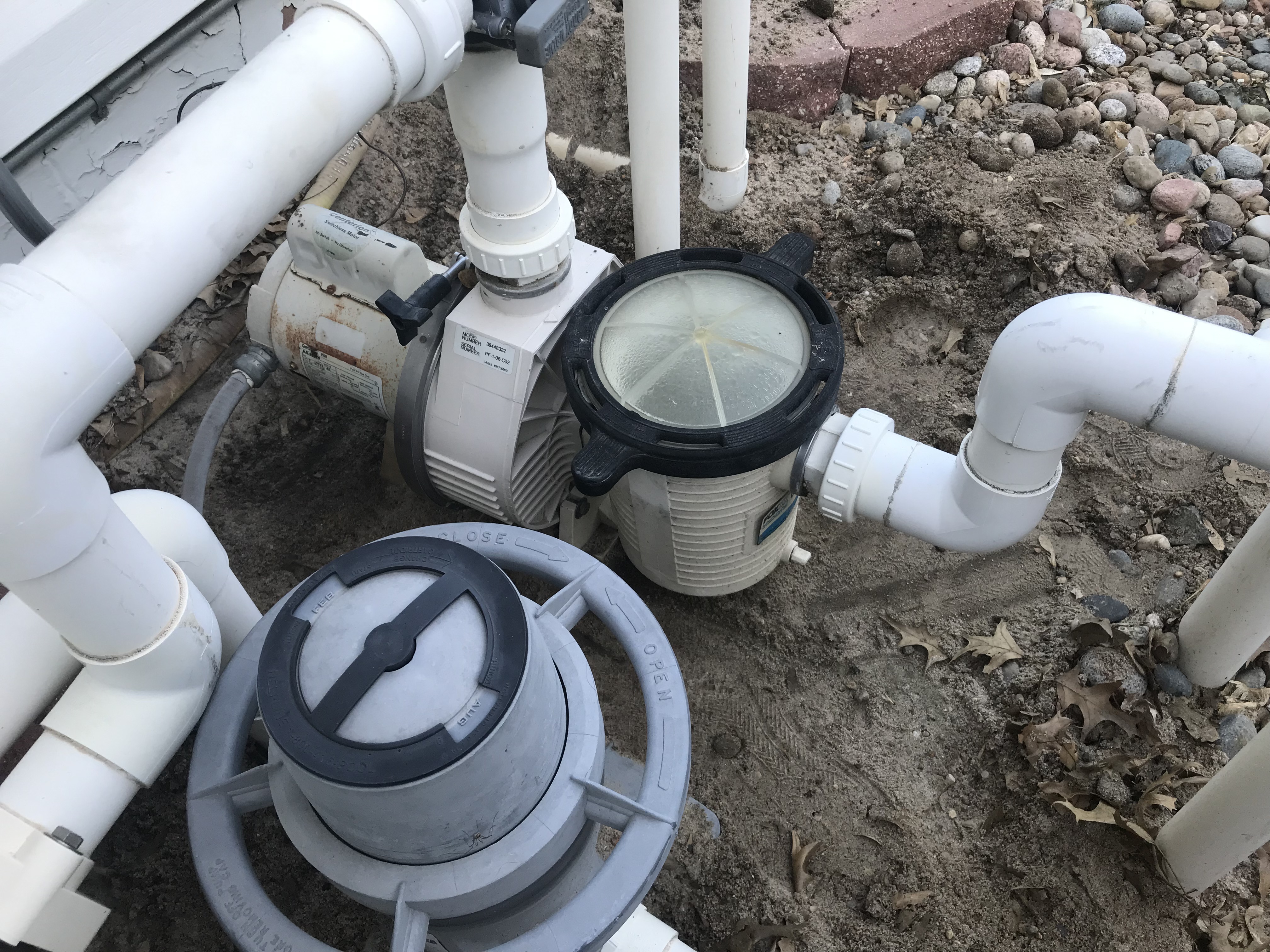

See photo. Looking to replace this motor. Please tell me which motor I should order. Also, what other parts/gaskets do I need to replace motor?
Hi Jimmy, This is NOT the correct replacement motor for the motor included in your photo. You will require this B2843 2 HP Replacement Motor You will also need this Jandy Stealth Shaft Seal We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I am replacing my Century pool pump motor B855 and need to replace the seals and O-rings. The label on the pump is damaged so I can't read the model number. The pump is a Pentair WhisperFlo, can you tell me which seals and O-rings I need and is there a kit I can order?
Reply
You can use the GOKIT32 for a chlorine swimming pool and GOKIT32SALT for a saltwater swimming pool.
Reply
Can you tell me what motor and everything else I need to replace this motor?
Hi Jack, You will require the PL2853 1.5 HP Replacement Motor for your 38448322 Ultra Flo Pump using a 177474 motor. You will also require this American Products Ultra Flo Seal Kit. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Jandy Stealth SHPM 2.0 pump S/N J06FI1393. Motor is A.O Smith S/N CB08-29 Part Number 7-193994-06. The manual says replacement motor should be B865SE which appears to be unavailable and replaced by a different newer model. Can you confirm which motor will fit my pump based on the info provided? Pictures attached.
The B865SE 2-HP Uprated has been discontinued, but the current replacement is the B2842 1.5HP Full rated Energy Efficient. Both of these motors have matching total horsepower ratings of 2.2- HP (Listed HP x Service Factor (SF) = Total HP). This B855 will work, but it would cost more to run because it is a standard efficiency and not an EE.
Reply
I have a Jandy pump model phpf1.5. Will this motor work?
Reply
Yes, this is the correct replacement motor for the Jandy phpf1.5. You will also need a shaft seal when you replace your motor. Please take a look at the serial # on your pump and if your serial # is before Before P08FF0001 then you will need this Before P08FF0001 Shaft Seal and if your serial # is After P08FF0001 then you will need this After P08FF0001 Shaft Seal. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi - Can you tell me if this motor will be a suitable replacement for my Pentair Challenger pool pump motor and what is the best seal kit to purchase with it? I've attached a picture below.
The A.O. Smith 1.5 HP Square Flange 56Y Full Rate Motor - B2858 is the correct motor for replacement. The Pentair Shaft Seal OEM 5/8" - 354545S can be installed on both CHII or CFII model Challengers. Please check the service tag on the pump, not the motor for the model number verification of CHII or CFII. If it confirms CHII you may order the Gokit5 or Gokit5Salt If you have the CFII Series, you will need to itemize all O-Rings.
Reply

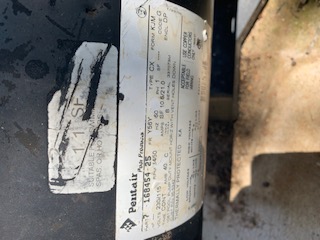

So even though my current Pentair motor (7-168454-25) is 2 HP, I can go with the AO Smith 1.5 HP? The pump is a CHII series.
Reply
Miles, That is correct, check out our How To Understand True Pump Horsepower - Up Rated vs Full Rated guide. You will also need to get the Challenger CH Series Tune Up Kit - GOKIT5 or GOKIT5SALT.
Reply
Will this motor replace a Pentair WF-28 motor
Reply
Hi, Thomas. Yes, this B855 (230V Only) will operate a Pentair Whisperflo WF-28 model pump. You will also need to get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
can we get additional warranty?
Reply
Unfortunately, there is no extended warranty on these motors that we offer. You can view the warranty details on this warranty card.
Reply
Hello,
what is the right run capacitor size for this motor (2HP, B855 model)? My capacitor leaked and the label is smeared.
Thanks!
Reply
Hi. The 30 MFD 370 VAC Run Capacitor - 628318-308 is the correct replacement for the B855 motor.
Reply

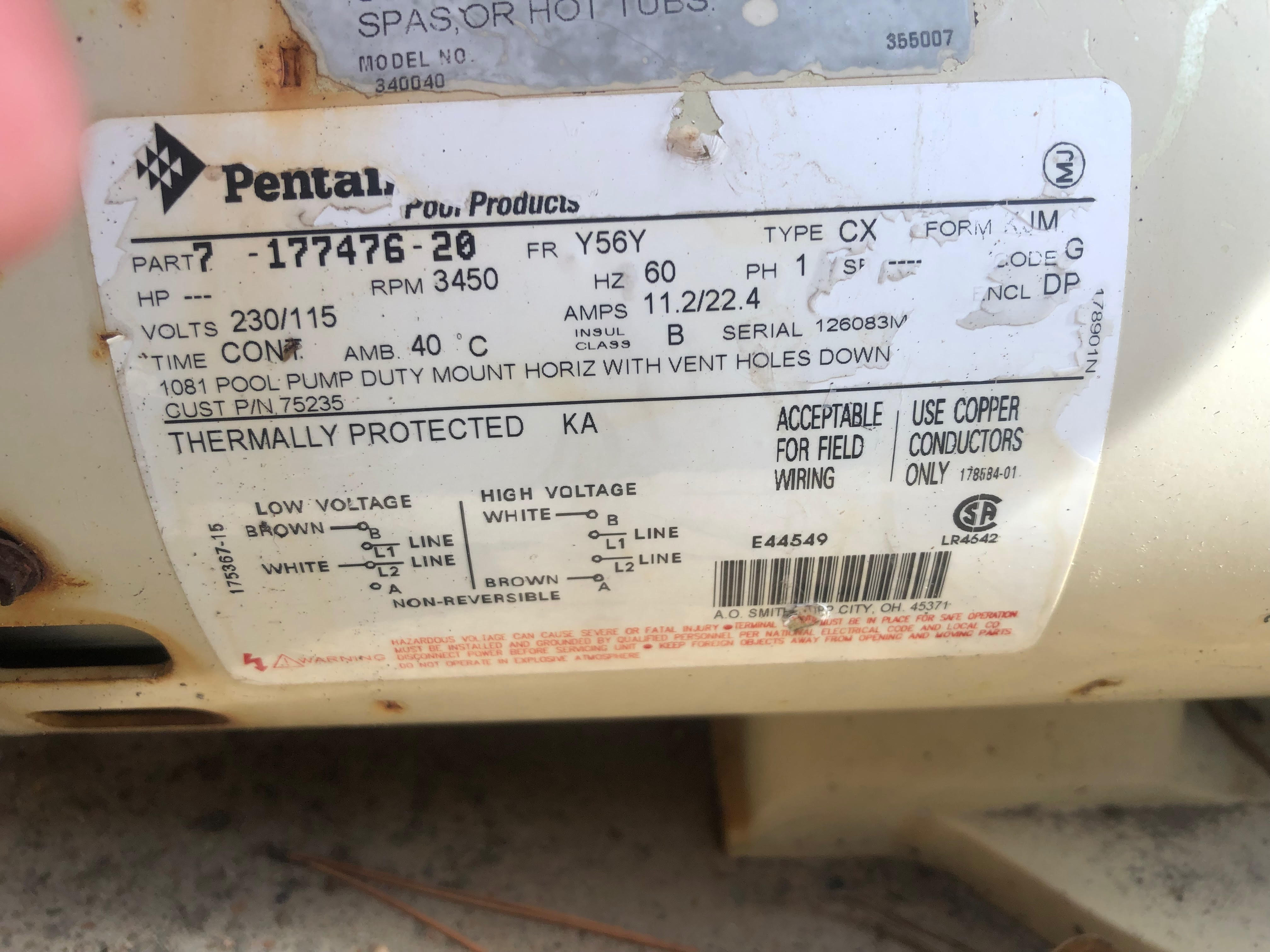

Good Afternoon, looking to replace my Pentair Part No. 7-177476-20. Should probably purchase a seal kit for the pump also. DO you have recommendations. I presume this is the motor I require.
Hi,
I found three electrical wires connected to the old motor, two are yellow colors and one green.
I assume both yellow wires are hot.
Does it matter which yellow wire is connected to Zone 1 or 3 on the motor? Thanks.
Reply
Most likely the two yellows are hot however I would recommend using a multimeter on those leads to test and be sure. If so, then you are correct that at 220/240 voltage each lead would not matter if either is on terminal 1 or 2.
Reply
Hi,
I got a new B855 motor and installed with all new US Seal PS1000 seals and gaskets for a Whisper Flo pump.
However water is leaking through the bottom of the motor enclosure.
I have followed closely the step by step instructions for replacing the seals and installing the motor.
Can you help? Thanks.
Reply
So these seals can easily be compromised if touched, wet or dirtied on the ceramic sides of the seal. You may be able to clean it off with rubbing alcohol and a clean cloth. Also, that seal requires some silicone to be used on the seal plate where that portion of the seal is placed into the seal plate.
Reply
I want to replace my Century Centurion A.O. Smith motor (CAT B129, Serial #CA08-02, PART 7-164304-24 , TYPE CX FR P56J, 1.5HP, SF1.30, PH1, HZ60, RPM3450, volts230/115, AMPS SF9.2/18.4, TIME: CONT. ENCL: DP FORM KJM,CODE H, INSUL CLASS B, AMB 50'C) WITH A.O. SMITH 2HP SQUARE FLANGE 56Y Up Rate Motor-B855. My pump is a Hayward self priming pump. the pump serial number is not legible. My motor makes a hummimg noise but does not push water.Might I have to replace the pump as well?
Reply
Unfortunately the B855 is not a compatible replacement for your B129. Please click here to be directed to your single speed model motor replacement. Also, most commonly the reason for a motor to hum and not move any water is due to either the start capacitor failing or the motor has failed. You can disassemble the motor from the pump housing to inspect the parts and bench test it to be sure, and also test the capacitor.
Reply
Can you recommend a replacement for this motor?
Order motor 1 1/2 hp 2 speed Tristar 208/230v part number SPX3210Z2MER.
Reply
The replacement for this motor would be the SPX3210Z2MER
Reply
Will a b855 motor replace a 71315 motor as long as I change the impeller?
Reply
Hi, John. The B855 can be used to replace P/N 71315. However, the impeller will NOT need to be changed since the THP of both motors match. The B2843 is the next size up to P/N 71315.
Reply
I thought that the 71315 was a 1.5 hp and the B855 is a 2 hp
Reply
John, It is a 1.5 HP Full Rate Motor, check out the How To Understand True Pump Horsepower - Up Rated vs Full Rated guide for more info.
Reply
I am ordering a B2843 motor and have a whisperflo WFE 6 pump. What is the right gasket kit for this combo. Also will a WFE 8 impeller work on this combination?
Thanks!
Reply
Hi, John. The B2843 along with the Impeller - 073130 and the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT are the parts you will need.
Reply
I have a B855 56Y frame motor now. I would like to replace it with a variable speed motor. What motor should I purchase ? I have looked at the ECM27SQU but it is a 48Y frame.
Reply
Will this Pump work on a Pentair Challenger 2 HP CHII-N1-2A 34-6201
Many thanks
Cory
Reply
Hi, Cory. Yes, this B855 motor will work with your model pump. ou will also need to get the Challenger CH Series Tune Up Kit - GOKIT5 or GOKIT5SALT.
Reply
I am trying to replace pump model # 0-177897-22, I see a similar pump listed as compatible but the first two numbers are not the same.
Hi, I am trying to replace my pump motor..... AO smith part# 0-0193994-06, serial# 33610CH ….. is this the correct motor? it will be connecting to a Jandy stealth SHPM2.0 pump
Reply
I'm trying to find out what pump I will need to replace mine. I was told to send pictures. No serial number on my pump that I could fine.
Thank You
Hi. Does the B855 Centurion motor have a start capacitor in addition to the run capacitor? And if so do you stock start capacitors?
As I understand it the run capacitor is mounted on the top, (under the steel hood or cowling).
(My problem is the motor is reluctant to start but if i turn the motor drive shaft at the rear of the motor it spins up and runs fine)
Thanks.
Reply
I need to replace the following pump motor: Century Centurion 56Y 2HP Part #: 7-186016-20. My current motor has feet that elevates the motor ~2” (see pics) or so. I don’t see feet in any of your product photos.
What do you suggest?
Hi, Anthony. The B2748 motor is the correct replacement. The stand is part of the pump housing and not the motor.
Reply
So I received the new motor from you and I’m in the process of taking apart the old motor. I’ve hit a snag and I’m not sure what to do. I think I’ve removed the impeller but there’s shaft seal does not want to come off. Is it supposed to be attached to the impeller? Also, how does the mounting bracket come off? Your installation videos suggest there are (4) bolts holding it in place but don’t see them.
Please see How to Replace a Shaft Seal https://www.youtube.com/watch?v=Moy34mj_7To&feature=em-subs_digest On this pump the bolts are located on the rear of the motor and the seal plate.
Reply
I have a sta rite model S-P6E6G-208L with a motor model # K48N2PA105. The motor is tripping the breaker each time we turn it on. Can you advise what needs to be replaced? Is there a motor which I can buy from you?
Hi Jeff, The correct replacement motor for the motor included in your photo is this SQ1202 Full Rate 2 HP Motor. You will also need a Sta Rite Max E Pro Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Can I replace a century PN B842 with a century B855 pump? I know that the B855 is a 2 horse, is that the only difference? How about noise, the 842 has always been very noisy
Reply
Yes, the B855 can replace the B842, as they have the same total horsepower. Besides the horsepower and service ratings on the labels, they are pretty much the same motor. The noise will be no difference between a brand new B842 or B855
Reply

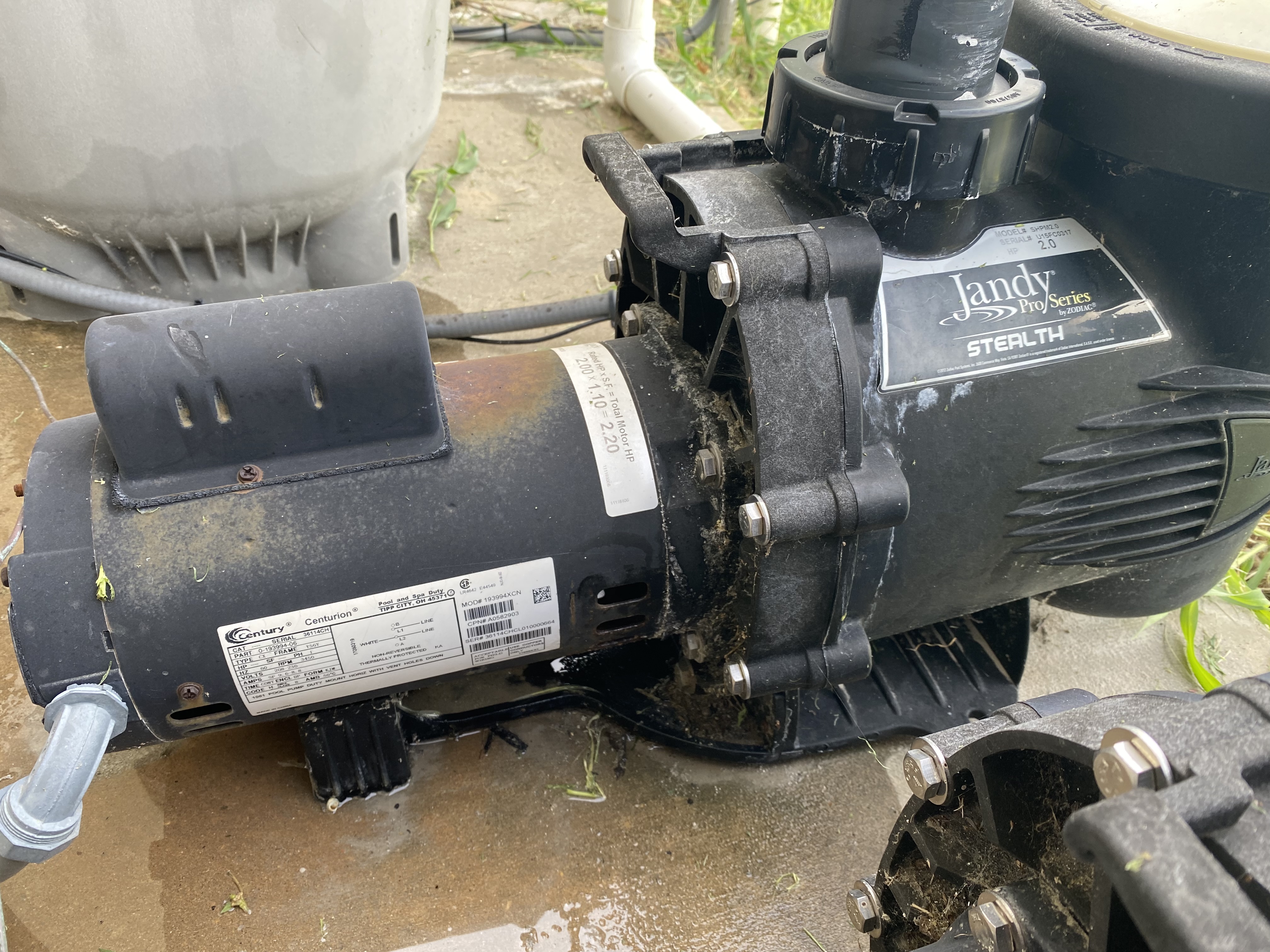

I need to replace my Jandy Stealth SHPM2.0 motor. It is a Century Centurion 7-193994-6. Which one best fits as a replacement and what seal kits and parts should be replaced while I have it apart?
Hi Hi Barry, Thank you for the photos, you will require this 2 HP Stealth Motor as well as this Jandy Stealth Shaft Seal. Both items are in stock ready to ship!
Reply
Will the B855 work just as well? I have already ordered this part number from you (order no 1043801) based on a similar post I saw on your site from a gentleman who had a similar post.
Reply
Hi Barry, Thank you for the order and yes the B855 will work as well.
Reply
Is this part compatible to the my existing pump: CAT B124, Part#715998705, HP 2.0. I saw few differences and no part under the part number. Please advise.
Reply
Looking for a replacement motor for a AO smith 2hp square flange
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
is this compatible with my B748 pump?
Reply
The B855 is not compatible with the B748 Motor, however we do carry the B748. Please click this link for your B748 Replacement Pool Motor
Reply
i need to replace a whisperflo pump waterfall motor. The motor i am replacing is a square flange motor package number 355026S. Will this motor work for me ?
Thanks
Reply
Hi Doug, You will actually need this B2843 Replacement Motor You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this compatible with century centurion serial 22314CH, part #0-193987-24?
Hi Matthew, if you are wiring your motor 230V then yes this B855 motor would be the correct motor. If you are wiring your motor 115V then you will require this B2859 Replacement Pool Motor We do always suggest a Seal Kit when replacing a motor. Could you send a photo of a wide shot of the complete pump to include the pipes going in and out of the pump? To supply photos simply click the reply link below and upload your photos. Once we get this information we can make the proper recommendation for the seal kit.
Reply
Here are a couple more photos.
Hi Matthew, Thank you for the photos those are quite helpful. You will need this Jandy Flo Pro Shaft Seal along with the suggested motor.
Reply
I need to replace a WF-28, part no. 011774 Motor # 196240 2HP 3450 RPM.
Would this motor be a direct replacement?
Thanks
Hi Eric, Yes this is the correct replacement motor for the motor included in your photo. You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
My pump is not turning on. I may need a replacement. A few questions. 1) I sent a photo of my pump & and I want to know if this is a 2 speed pump. 2) This pump is on my spa which has a capacity of 400 gallons & I only run the pump 1 hour daily. 3) I'm not enamored of a 2 speed if I don't need it. Advise please 4) More spa info - it has a blower and turbo function. 5) Which of the pumps that you sell would be the most efficient, cost the least and be a bolt in replacement? Is a seal kit needed?
The Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843 is a single speed replacement motor to yours, you have a single-speed motor. If you are in California you must adhere to Title 20 Compliance; California Title 20 Compliant Options: Dual Speed - B2984 Variable Speed - ECM27SQU The seals must be replaced, please see How To Find The Correct Pool Pump Shaft Seal http://www.inyopools.com/blog/how-to-find-the-correct-pool-pump-shaft-seal/
Reply
I currently have a B855 motor; is there a replacement motor that is less noisy?
Reply
A more quiet option would be a variable speed motor. The replacement variable speed motor for the B855 is part number ECM27SQU.
Reply
I have a B855 that is leaking. What gasket/seal parts do I need to replace?
Hi Tim, You will need this Hayward Tri Star Seal Kit
Reply
Can I replace a whisperflow 2 hp pool pump with a Pentair Superlo VS 1.5 hp pump?
Reply
Yes you can but you may have a little bit of re-plumbing as the plumbing ports are not in the exact same location. You will also lose a little bit of flow by going down from 2 HP to 1.5 HP so if your pump is powering spa jets, water features or solar you may not want to consider the downgrade in HP.
Reply
Can you tell me which motor I need to replace this one as it has burned up?
Hi Michael, the correct single replacement motor is the USQ1202 for your motor model c48m2ec11c2. You will also need the Hayward Super Pump seal kit. If you have a saltwater swimming pool you will want to use the GOKIT3SALT.
Reply
My serial number is 22711CH. Part number is 0-193995-07. It is a century centurion Is it a match with this one ?
Hi Brent, Thanks for the photos! You will actually need the B2843 2 HP Full Rate Motor and this Jandy Stealth Shaft Seal. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello INYO Pools.com!
Could you please confirm that the B855 replacement motor is what I need based on the included photos. The pump itself is a Mustang 56 by Waterway. Also, which GoKit do I need
Thanks for your help!
Kyle
Hi Kyle, yes this is the correct single speed motor replacement for the motor in your photo. Unfortunately, we do not carry a GOKIT for the Mustang series pool pump but you can replace the seals on key numbers 7, 10, and 12 on this part's diagram.
Reply
I have a century centurion pool pump part# 7-177897-22. I am looking for replacement. Attaching photos. Will this motor work for me? If not, what is the right motor for my pump?
thanks
Hi Bill, yes this is the correct replacement motor for your motor part number 177897. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Need to order the pool motor and seal for the below motor
You will require this B855 Motor when replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
The run capacitor on my pool motor blew up so I figure it's a good time to upgrade the motor. Can you help me identify the correct replacement? Also, since I'll have this thing apart are there any other parts you recommend I replace while I'm at it. Attached are photos that should help with identification of the necessary replacement. Thanks
Hi Larry, so as far as a motor upgrade I would suggest a variable speed motor that will provide up to 80 percent energy efficiency. Yours would be the model ECM27SQU and we would suggest replacing the seals as well being part numbers 5020-086, 5020-136, and 5020-116.
Reply
I have a PoolSaver pool cover. Would one of your motors be a suitable replacement for my existing motor?
Reply
Good morning, thank you for choosing inyo pools. We will be happy to help you, In order for us to find or make sure you are getting the correct motor, please reply by using our support request to send in pictures of your existing pump and information.
Reply
My pool has this motor on one of the pumps. it is shot. which is this the correct motor for me to put in? what other parts would i need to make it work?
The replacement single speed motor fir your motor model is B849 that you can view by clicking here. We recommend replacing the seals and gaskets as well however we will need to know the front pump housing model name or number in order to confirm the kit for you.
Reply
I am needing a replacement pump (and seal?) for this motor. Also attached is a picture of the number on the housing.. Thanks
Hi Kenneth, You will require this SPX3210Z1BE Hayward Replacement Motor from the photos we cant confirm 100% on the seal you need. Could you send a few more photos of the pump, we think it is a Hayward TriStar, is there anything on the pump housing which says Tri Star? Is that EF1000 number coming off of the filter or the pump? Simply click the reply link below to supply additional information and photos.
Reply
The motor is a Century motor. I have attached a couple of more pictures. the EF1000 is on the filter housing. I would like to have a 2 HP pump. That is what was originally put on the pool for the accessories, waterfall, slide, etc...
Hi Kenneth, The Energy Flo RS pump was sold exclusively through Leslies. It looks to be the same pump as this Hayward TriStar Pump but we are unable to get 100% confirmation. If you want to take a quick look at the TriStar Parts Diagram and let us know if this looks like your pump. If so then we can supply you needed parts to upgrade to 2 HP. Another option is to remove the impeller from your pump and let us know if there any part #'s stamped into the impeller.
Reply
If I order this pump motor today, how soon can I receive it? can we expedite shipping? My pool is down and I am desperate
Thanks
John
Reply
Hi John, the average motor order is delivered in 3 business days. Once the item is added to your cart you can enter your zip code to get an estimated cost of the expedited shipping methods available for that product.
Reply
I have this pump and need the replacement capacitor for this model Jandy motor. SHPM 2.0-2 It went out a year ago and so it was replaced, but now it has gone out again, so I'm not sure they replaced it with the correct item last year. (so i don't know what the original one looks like.) Thanks!
Unfortunately, we do not have the listing for the capacitor(s) to this motor. Please refer to our How To Select the Right Capacitor For Your Pool Pump Motor http://www.inyopools.com/HowToPage/how-to-select-the-right-capacitor-for-your-pool-pump-motor.aspx
Reply
Does this pump motor come with all the seals?
Reply
Hello, these motors do not come with seals. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Hello,
I need to replace my pump motor and this model is an exact match. However I saw in your tutorial that you suggest replacing the shaft seal as well.
What is the shaft seal that I would need ?
Thanks a lot !
Hi Caroline, yes this is the correct replacement single speed motor for your motor included in the photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Please help, motor needs to be replaced. Which one is compatible and what other parts will I need?
Yes, this is the correct replacement motor for the motor included in your photo as long as you are wiring your motor 230V. If you are wiring your motor 115V then you will need this B859 2 HP 115V/230V replacement motor. You will also need a Pentair WhisperFlo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a Century Motor P/N 0-193995-07 Do you have one or does the 0-177897-22 cross over to that P/N?
Reply
Hi Kevin, the correct single speed replacement motor for your motor part number 193995 is the B748. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have a2hp Century with a X56J Frame, do you care them?
Reply
Hi Randy, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
This is the product that we use in the swimming pool.
Can I replace it with this product?
Product Output (W)?
Reply
Good day, here would be a How To Calculate the Cost of Running A Pool Pump guide that will be able to show you the cost of the motor usage.
Reply
Is this a Pentair motor
Reply
Hi Arturo, this motor is actually manufactured by Century/Regal Beloit. If the Pentair motor number is listed in this or another motor's alternate part numbers then the motor is a compatible direct replacement.
Reply
Hi, Can you please let know which shaft seal goes with a century motor for a WF-28 whisperflo Pentair pump. I would like to place an order for a motor as well as a seal.
I look forward to hearing from you.
Thank You.
Reply
Motor bearings starting to make noise on my Pentair Challenger 2 HP pool pump/motor. Pump model is CHII-N1-2FE. Motor is a Century, A.O.Smith part# 7-177452-03, 208/230, set. # BX7-01, 2 H.P. I need to order a new motor and seal/gasket kit. Please forward the information to order these parts with instructions for the disassemble and reassemble. I really appreciate your help. Thank you
Sorry, can't get the pictures out of my phone to send to you.
Reply
Hi Bob, the correct single speed replacement motor for motor part number 177452 is the B2843. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Need a replacement motor (and recommended gasket kit?) for Century Part 0-193994-06. Photo uploaded. What do you have that is compatible and at what price and shipping time? Thank you.
Hello, yes this is the correct replacement motor for your motor included in your photo. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest provide them using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Do these photos provide enough info?
Yes, however for your particular pump model there is no seal kit. You would actually need key numbers 13, 15 on this parts diagram, and also the shaft seal is part number 5020-087 as the needed seals are sold individually.
Reply
Is this motor a compatible replacement for a Pentair Whisperflo 2hp, WF-28, 011774? Thanks!
Reply
The correct motor replacement is the Century 2.0 HP Square Flange 56Y Up Rate Motor - B855. The necessary gasket kit for the Pentair / Purex Whisperflo is the GOKIT32 or the GOKIT32SALT.
Reply
I am looking at your b855 pump motor (part num 0-177897-22) .
my issue is I think I have read where you should also replace the seal , however the label on the pump is not readable. I need to order the seal kit and the correct motor.
Hello David. Thank you for the pictures. From the pump lid, C3-139P1, I was able to determine that you have a Stay-rite Dura-Glas or Sta-rite Max-E-Glas. If you currently have a 2 horsepower motor, the Century B855 is the appropriate replacement. A new shaft seal should be installed when the motor is replaced. I would suggest a tune-up kit, GOKIT6, which also contains rubber gaskets and o rings that should also be replaced. The GOKIT54 can also be used by simply removing the copper cone insert from the seal plate. At times, working with the copper cone insert can be problematic. I would recommend the GOKIT54. Tune Up Kit Sta-Rite Dura-Glas & Max-E-Glas Pump 1998 To Present - GOKIT54 Century 2.0 HP Square Flange 56Y Up Rate Motor - B855
Reply
Would this motor replace the motor on my Jandy PHPM2.0. Looking at the original sticker it looks like a match, but I wanted to make sure.
The replacement motor for the Jandy PHPM2.0 is part number B2859.
Reply
I want to buy a Century B855 motor to replace my current B855 motor. What tune-up kit should I buy? And do you have any articles or video's showing how to remove and replace the impeller?
Reply
Hi David,The tune-up kit depends on what kind of pump you are putting the motor on. Here is a link to the different gokits (tune up kits) we sell. You can click on the proper manufacturer and model of your pump to help guide you to the correct gokit.We do have a lot of pump and motor how to guides. Here is a link to Replacing your Pool Pump impeller
Reply
Would this motor be an appropriate replacement for my current motor? Thanks in advance
Hi M, No this is not the correct replacement motor. You will need this UST1202 Replacement Motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Is this the new version of my pool motor and compatible?
No, this is not the correct motor. The correct replacement for your 0-193989-05 motor is part number B2982.
Reply
What is the proper replacement motor for mine shown?
The proper replacement motor for your SP3210Z2ME is...Motor, 1.5 HP Maxrate Dual Speed Tristar 208/230v (SPX3210Z2MER, SP3210Z2MER)
Reply
Yes, this is an oldy model it appears. Will the above motor suit as a replacement? Majority of the specs match just want to be sure. Thank you!!
Hello Jason. The Century Motor model B855 is NOT a replacement for the H705 motor. There are significant differences: the H705 is a C-Face motor, the B855 is a square flange motor, the H705 is a 3 phase motor, the B855 is a single-phase motor. The direct replacement is the Century motor model T3202. C Fl 3 Phase Threaded 56j 2 Hp, Small Barrel (T3202)
Reply
Hello. What would a proper replacement for my motor? Thank you.
The proper replacement pool pump motor for the.F56AB34A01 is the B843. Here is the link to that replacement motor...Century 2.0 HP Square Flange 56Y Full Rate EE Motor
Reply
I need to replace my pool pump motor. The pump is fine but the motor is rusted out and making horrible noises. I don't know the frame size (its a rebuilt replacement with no tag) but the pump is a Hayward SP2615X20.
Reply
The single speed replacement motor for the Hayward Super Pump 2 HP is the UST1202. Here is the link to that pool pump motor...Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202
Reply
I need to replace Jandy sham 2.0 pump motor part number R0479304. Is this the correct replacement?
Hello. Yes, the Century Motors 2.0HP motor model B2855 is the correct replacement for Jandy part number R0479304.
Reply
Need to replace motor and need a tune up kit.
Reply
Unfortunately, your photo did not come through. Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I tried to upload pictures again. It said successful.
Reply
Hi Jonathan please email those to service@inyopools.com and reference Q&A 89271 and that email will get routed to me. Hopefully that will work and I will make the appropriate suggestions.
Reply
need to replace motor 2 hp century motor B2748. my question: can I put a 3hp motor on instead of 2hp?
Reply
I do not recommend changing your motor from 2HP up to 3HP. You also need to change out other internal parts like the impeller. You also need to know if you pool filter can handle the new GPM of the 3HP motor. I would suggest buying a 3HP pump and making sure you have a compatible filter if you go this route. If not I would stick with the 2HP.
Reply
I need to replace my Century AO Smith Stealth pump motor 1.50+ 1.47= 2.21 Part 0-193990-07 type cxpm Fram. Y56 Y. Volt 230 amps SF 10.0 /3.5 This is a 2 speed motor mount horizontal with vent holes down
Hello Diana. The Century Motors 2.21THP 56Y Dual Speed Full Rate Motor model B2983 is the direct replacement for your current motor. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. Attached please find information relating to these replacement parts. Century 1.5 HP Square Flange 56Y Dual Speed Full Rate Motor - B2983 Please note: These parts are specific to Jandy Stealth SHPF & SHPM models (2008-current) Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring, Generic - R0446300 9-1/2" ID, 3/16" Cross Section O-521 Diffuser O-ring - R0622000
Reply
What would the proper replacement be for the Pentair model 196251, pump model #CHII N1 2A/346201?
Reply
Hi Reed, the correct replacement motor for the 196251 motor is this B2859 Challenger Replacement Motor. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
My 1st y56y 1.5hp AO Smith lasted 10 years. The 2nd one was used but had the bearings replaced and lasted about 2 years. Recently I bought a new motor from Amazon and it is super quiet but also super underpowered and also it shuts off when the temp outside reachs 90° My questions are: can I goto a 2 horsepower? is it common for these new China motors to be so weak? Also I have the spring and ceramic seal but I'm looking for the gaskets for the impeller and the pump? Thanks
It is possible to go up in HP, but I do not recommend it. Pumps are made for a certain HP. So the internals like the impeller and diffuser are made for that HP. So all of those would need to be replaced. You also would need to make sure your filter can handle the GPM of the new HP pump. So you might have to upgrade your pool filter.As far as motors go from China. Most motors come from China nowadays. The issue is buying off of Amazon and not knowing who is selling that motor. The sellers on Amazon want cheap products. We have found a lot of issues with the swimming pool pumps, filters, and motors being sold on Amazon
Reply
Can you please help me identify a replacement motor and necessary tune-up kit. I saw other posts for a 2.0 but my motor seems to be older. Thank you
Charles Thank you for contacting Inyo Pools, Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848 Jandy Pump Shaft Seal 5/8" - R0479400 should be the parts you need. Parts Diagram if you need anything else or feel free to messages us Back
Reply
Can you tell me if this is the replacement for the one I have? Also, if I want to try replacing the capacitor first, what would the model# for that be? The pump is humming when I turn it on. Thanks.
Dave, Yes you have the right motor, I need more information to answer about the capacitor. Usually, there is a sticker on the capacitor that lets me know the type it is. Also, be careful we handing a capacitor. They can hold a charge and give you a good zap.
Reply
Is that the same motor I need for replacement?
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward Tri Star Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I cannot find the pump name, but the attached pictures show the tag for the pump and the motor connected. Is the motor above compatible with the pump described on the tag?
Hello James. The Century Motors 2.0 HP Up Rate Motor model B855 is a compatible replacement for your Pentair Whisperflo 2.0 HP Pool Pump. Concurrent with the motor replacement it is recommended that the motor shaft seal, seal plate gasket, and diffuser O-ring be replaced. The GOKIT32 contains all the parts necessary to complete this project. The GOKIT32SALT is recommended for salt pools. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT
Reply
I have pool pump Model CHII N1 2A/346201 with a 2 HP PENTAIR MTR196251. The motor needs replacement. When I look up replacements on your site, it tells me I need a B2855 Challenger Motor. But looking at your Q&A I see where you recommended a B2859 for a similar pump. Can you explain the difference? Thanx
Reply
Thank you for contacting Inyo Pools, There is nothing different performance wise. The B2859 can be wired 230/115v and the B2855 can only wired 230v
Reply
Hello,is this the right replacement motor for this old motor?
Hello Jeffery. The Century Motors 2.0 Up Rate Motor model B2855 is the direct replacement for the Century Motors 2.0 Up Rate Motor model B855.
Reply
I have a Pentair WF-28 Model 011774 pump that needs a new motor. The motor is a 2hp 208-230/115v FR y56, model #196240. What would be the correct replacement motor and seal kit? Thank you
Hello. The Century Motors 2.0 HP Up Rate Motor model B2855 is a compatible replacement for the motor model 196240. The GOKIT32 contains the motor shaft seal, Impeller o-ring, diffuser o-ring, and seal plate gasket for the Pentair Whisperflo model WF-28, 011774. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 The GOKIT32SALT is appropriate for saltwater applications. Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855
Reply
I have a century sp3215z1m 2hp 56y motor. What would be the correct replacement
Thank You
Hello Harold. The Century Motors 2.0 HP Up rate Motor model B2859 is a compatible replacement for the Century Motors model SP3215Z1M. Century 2.0 HP Square Flange 56Y Up Rate Motor - B2859 This motor is compatible with a supply voltage of 230 or 115. The Century Motors 2.0 Up Rate Motor model B2855 is also a compatible replacement for the Century motors model SP3215Z1M. Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 This motor is compatible with a supply voltage of 230 only.
Reply
have a STA A100GLL 2.0 HP that that was very noisy and only last 18 months. previously I have a Century that I took to a shop for repair but ended with this noisy unit, Now that is bad I want to come back to Century, Is this Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 compatible to use as a replacement?
If so can you tell me what other options I have that are more efficient and less noisy.
Thanks
Reply
Hello Andres. The Century Motors 2.0 HP Up Rate Motor model B2855 most closely resembles the performance parameters of the STA A100GLL 2.0 HP model motor. The Century Motors V-Green Variable Speed Motor model ECM27SQU is a compatible variable speed option. The Century V-Green is variable speed, energy-efficient, quiet (non-copper wound), 48Y frame pool pump motor. V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU
Reply
What capacitors does this motor have?
Reply
Hello Thomas. The Century motors 2.0 HP Up Rate Motor model B855 utilizes Run Capacitor 5VR0303. RUN CAPACITOR, 30 MFD (5VR0303) (2444)
Reply
is this the right pump to replace HSQ 220
Reply
Hello Rogelio. The Century Motors 2.0 Up Rate 56Y frame Motor B855 is a compatible replacement for the motor model HSQ220. The direct replacement is the Century Motors 2.0 HP Up Rate 48Y frame Motor model USQ1202. The HSQ220 is a 48Y frame motor as is the USQ1202. Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202
Reply
Is this the replacement for EB843? It’s a 2hp volt 208-230, frame 56y with SF 1.30
Thank you for contacting Inyo Pools, The correct motor replacement is Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843 If you send pictures of the pump and motor I can quote the correct seal kit.
Reply
Will this be a replacement for this Pentair Pump
Hello Jeff. The Century Motors 2.0 HP Up Rate Motor model B855 is a compatible replacement for the Pentair Motor model 7-168454-25 (230 VAC only). The Century Motors 1.5 HP Full Rate Motor model B2858 is also a compatible replacement (115/230 VAC). Century 1.5 HP Square Flange 56Y Full Rate Motor - B2858 It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. These parts are specific to the pump model and not the motor. Please provide pump model information and a recommendation can be made.
Reply
Hi, My water pool Pump broken and I think it is from the motor/coil portion as I could see spark coming out of this part.
Pump's brand is Stealth SHPF 2.0 which is 2 HP. I wonder if this motor is compatible with what I have installed on the current broken pump. I have attached the pictures and I appreciate if you could help me with that.
Hi Amir, your SHPF2.0-2 pump left the factory with a 2-speed motor; the motor in the picture is single speed which we are unable to offer you due to the Title 20 compliance laws in California. The good news is that the original replacement motor for the pump (this B2984 motor) is compliant. Your other option would be to get this variable-speed ECM27SQU motor which can really save you on your electric bill when it is set up properly.
Reply
This is the replacement for Hayward Max-Pro? ? Thank you
Reply
Hello Michael. The Century Motors 2.0 HP Up Rate Motor model B855 is a compatible replacement motor for the Hayward MaxFlo XL (2300 series) and Hayward MaxFlo II (2700 series) but not the Hayward MaxFlo (2800 series) Pumps. It is recommended that the motor shaft sea, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. Attached please find exploded parts diagrams for the MaxFlo Series of Pumps. Each diagram will identify the parts required to complete this project. SP2300X Series SP2700X Series SP2800X Series
Reply
Is this pump the right replacement for this pentair
Hello John. The Century Motors 2.0 HP Up Rate Motor model B2855 (B855) is the correct replacement motor for the Pentair Whisperflo 2.0 HP Pump model 011774. The model B2855 motor requires a 230 VAC connection. If your current motor is connected to 115 VAC electrical power, the correct motor would be the Century Motors 1.5 HP Full Rate Motor model B2858. B2858 It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the necessary parts to complete this project. GOKIT32
Reply
Hello. Is the B2855 motor the correct replacement for a Pentair Superflo 340040 pump? if so what Gokit would I also need? thank you
Hello Rob. The Century Motors 2.0 HP Up Rate Motor model B2855 is the correct replacement motor for the Pentair SuperFlo Pool Pump model 340040. B2855 The SuperFlo model 340040 is a 2.0 Hp UP Rate Pump. THP 2.2 HP. The Century Motors B2855 is a 2.0 HP Up Rate motor, THP 2.2. The GOKIT78 contains the gaskets and seals necessary to complete the motor replacement. GOKIT78 Attached please find an exploded parts diagram for the Pentair SuperFlo for reference. Pentair SuperFlo Pump
Reply
Can this motor be a replacement for SP3215Z2ME aka 7-k56aa24a04-05 ?
Reply
Hello Doug. The Century Motors 2.0 HP Up Rate Motor model B2855 is a single-speed motor. The B2855 is a compatible replacement but your pool pump would no longer have dual-speed capability. The Century Motors 2.0 HP Dual Speed Full Rate Motor model B2984 and the Hayward Pool Products 2.0 HP Dual Speed Motor model SPX3215Z2MER more closely meet the specifications of the motor 7-K56AA24A04-05. Century 2.0 HP Square Flange 56Y Dual Speed Full Rate Motor - B2984 Motor, 2hp Maxrate 2-speed Tristar 208/230v (, sp3215z2mer) - SPX3215Z2MER
Reply
Hi,
I’m looking for a replacement motor for my older Jandy SHPM 2.0 Pump (Motor specs attached). The current motor is still running, but I’m looking for more energy efficient alternatives e.g. dual speed, or even variable speed. However, I would also like to reuse the existing pump housing/body, and other parts, if possible. Just recently replaced the impeller, diffuser, and seals.
Which motor do you recommend?
Hello Karim. The Century 1.5 HP Square Flange 56Y Dual Speed Full Rate Motor - B2983 or V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU would be compatible motor replacements for the Jandy SHPM 2.0 HP Pool Pump. The Variable Speed ECM27SQU is the most energy-efficient. It is recommended that the Jandy Pump Shaft Seal 5/8" - R0479400 be replaced concurrent with the new motor, regardless of the current shaft seal's age. The remaining pump parts are re-usable.
Reply
I am needing to replace my Century Centurion 2.0 HP ,230 volt, Type CX Frame Y56Y, Cat B855 Serial 34818J2 motor.
What replacement motor would you recommend?
Reply
Hello Alan. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is the direct motor replacement for the Century Centurion B855.
Reply
Is this a drop in replacement for a Jandy R0445112 2 HP PHPF motor?
Reply
Hello Phil. The Jandy PlusHP PHPF Series Pumps are Full Rate Pumps. The Century 2.0 HP Square Flange 48Y Full Rate Motor - SQ1202 is the compatible motor replacement for the Jandy part number R0445112. Attached please find the Jandy PlusHP PHPM & PHPF Series Pump exploded parts diagram for reference. The motor shaft seal (part #5 - reference the pump serial number) and Backplate O-Ring should be replaced concurrent with the motor replacement.
Reply
Will this motor replace my current motor? Is there an option that is priced lower? We rarely use the pool, no kids or pets. Do you sell a tune up kit? How do I connect it to the Jandy aqua purelink control board?
Hello Brooks. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is a direct motor replacement for the Century Centurion model B855. The Jandy Pump Shaft Seal (compatible with the Jandy Stealth SHPM2.0 serial number U14FK0627) and Backplate O-Ring should be replaced concurrent with the new motor. Attached please find the Jandy Stealth SHPF & SHPM Series Pump (2008-Current) exploded parts diagram for reference.
Reply
Will this motor replace a Jandy R0479313?
(I can't find the Century model number.)
Attached is a photo of the plate from the motor.
Hello James. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is a compatible replacement motor for the Century Centurion part number 0-193987-24, Jandy R0479313. The B2855 is rated for 230V only. If the current motor is wired for 115V, the Century 2.0 HP Square Flange 56Y Up Rate Motor - B2859 would be the compatible replacement.
Reply
You are showing the USQ1202 and the B2855 as the same dimensions wise. That cannot be correct???
Reply
Hello Scott. Attached please find the Technical Specifications for the Century MODEL-PFHP-56FR - B2855 and Century 2 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP - USQ1202 as identified on the Regal Rexnord/Century Motors website.
Reply
is this a direct replacement and fit pentair 011515 whisper flow pump
Reply
Hello Jeff. The Century 2.0 HP Square Flange 56Y Full Rate Motor - B2748 is the correct motor replacement for the Pentair WhisperFlo model 011515 (WFE-8). The WFE-8 is a 2.0 HP Full Rate Pump (2.6 THP), the B2748 is rated 2.6 THP. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the necessary seals and gaskets to complete the motor replacement. The Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843 is a compatible energy-efficient 2.6THP replacement motor. The cost differential between the B2748 and the B2843 would be recouped in approx. 110 days based on an 8-hour/day run cycle.
Reply
Will this replace my old motor?
Hello. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is a compatible replacement motor for the A O Smith Century Centurion motor model 0-193994-06.
Reply
Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855
I have a Century 2.2 hp square flange Mod. K48AA27A01- is the above model the current replacement?
Thank you.
Hello. The Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202 is a direct replacement for the Century Motors model HSQ220, K48AA27A01. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is a compatible motor replacement but is a 56Y frame (larger barrel diameter) than the HSQ220. Alterations to the pump motor bracket may be required with the B2855.
Reply
It’s a direct replacement for this ?
Hello Bruce, the direct single speed pool pump motor to replace your motor part number 193994 is the B842. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
which one of your motors replaces
PENTAIR 7-168786-07 ?
Reply
Hello Edward, the direct replacement single speed motor for your motor part number 168786 is the B784. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
Is this motor compatible with a Jandy PHPM2.0 pool pump?
Reply
Hello Roy, yes this motor is a direct replacement for the orginal Jandy pump model PHPM2.0. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Key numbers 5, 13 and 15 on this Jandy PlusHP PHPM parts diagram.
Reply
Is this the correct replacement for my AO Smith 7-193994-06 motor?
Does it come with the capacitor?
What other parts will I need during replacement?
Hello Jim. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 (capacitor included) is the correct replacement motor for the A. O. Smith motor model 7-193994-06. Based on the attached photo, the pump is a Jandy Stealth SHPM. It is recommended that the Pump Shaft Seal, Backplate O-Ring, and Diffuser O-ring be replaced concurrent with the new motor installation. Attached please find the Jandy Stealth SHPM Series Pump exploded parts diagram for reference. Please note: the shaft seal selection is specific to the pump serial number, reference part key 5.
Reply
Is this model a correct replacement for the SP3215Z1M? If so what ‘kit’ should i also order??
Reply
Hello Ranzau, yes this motor will replace your motor model SP3215Z1M. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide which should assist you with that.
Reply
Is this model a correct replacement for the SP3215Z1M? If so what ‘kit’ should i also order??
Reply
Hello Ranzau, yes this motor will replace your pump motor model SP3215Z1M. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with locating the correct seal kit for your job.
Reply
I need to replace my pentair 2hpmotor. Part number 7-177452 03. Serial number 022073M. Can’t find model number
Hello Donald. The Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843 is a compatible replacement motor for the Pentair Motor part number 7-177452-03, serial number 022073M.
Reply
What is the GPM flow rate for this unit. Thanks
Reply
Hello J, So flow rates will vary depending on the pump housing model that this motor will be mounted to. Here is the Hayward Super pump which uses essentially the same type of motor and and the Pentair Superflo that also does and you can view the flow charts to see the difference. Essentially you will want to confirm your front pump housing model in order to look up its particular flow chart document to confirm its specific flow rate.
Reply
Is this the correct replacement for Jandy Stealth SHPM2.0 motor? Picture attached. Thanks!
Hello. The Century 2.0 HP Square Flange 56Y Up Rate Motor - B2855 is a compatible replacement motor for the Century Motors 0-193994-06 installed on the Jandy Stealth SHPM2.0. It is recommended that the Jandy Pump Shaft Seal 5/8" - R0479400 Backplate O-Ring Diffuser O-ring be replaced concurrently with the new motor. Attached please find the Jandy Stealth SHPM Series Pump exploded parts diagram for reference.
Reply
I am replacing the motor on a Century two speed 2.0 hp with a y56y frame. What gaskets, seals, etc. do I also heed to order
Reply
Hi Stephen, the seal kits are specific to the pump and not the motor, so let us know what the model of the pump is that the motor attaches to (feel free to send pictures of it and any labels on it to us at upload@inyopools.com ) so we can recommend a new motor shaft seal or tune-up kit for a leak-free installation.
Reply
My Pool Pump recently went out and I looking to replace it. What recommendations do you have based on my current images?
Hello, the correct single speed motor for your motor part number 193994 is the B842. We also recommend replacing the seals and gaskets when replacing a pool pump motor. For yours that will be the GOKIT77SHP.
Reply
