What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
My motor number is C48K2PA105 and the pool pump number is:
P2RA5E-181L
Will this motor fit?
Thanks
Reply
The USQ1102 would be the direct replacement for the motor that your currently have and would properly fit on your P2RA5E-181L.
Reply
Where can I get a pump curve for the Sta Rite P4RA6EL model?
Reply
Hello Bill - Click Here to view the pump curve for the P4RA6EL.
Reply
It was leaking where the motor meets the impeller. Could the impeller be a problem also? How can I check?
Reply
Hi Ed,Take the impeller of and check for cracks also while you have everything off i would change your shaft seal, problem should be fixed after that?
Reply
I need replacement motor - my motor model is C48K2PA105, will C48K2PA105-C5 work as a replacement? or do you sell the C48K2PA105?
Reply
Hi Marty, This motor would be the direct replacement for the C48K2PA105.
Reply
I need to replace my pool motor. Currently it is AO Smith brand model # C48L28A103A2 Please let me know the replacement part number. Thanks
Reply
Zee, I was not able to find any result when I input that AO Smith model number into our system. Can you confirm the model number.
Reply
Hello. I would like to double check and verify this model will replace my failed A.O Smith motor model c48k2pa105
Thanks so much
Rod Shelton
Seattle
Reply
Rod, Yes the USQ1102 is the correct replacement. Please be sure to replace the seals when you replace the motor.
Reply
Will this product be a replacement motor for American Products Century Centurion part 8-165199-06 HP 1.0
Reply
We would actually suggest the B841 Motor as the Replacement for the American Products Century Centurion part 8-165199-06 motor.
Reply
Can you let me know the proper replacement motor for the Sta-Rite duraglas ao smith corp . Motor model cn8j2eb23. This is a 3/4 HP, Amps 12.2/6.1, Type C, Volts 115/230 Kilowats 55.
Reply
You would require the SQ1072 Replacement Motor for your Sta Rite Duraglas Pump.
Reply
Can you please recommend a vaiable speed replacement or two for my USQ1102?
48Y frame
Thank you!
Reply
Hi John, Here is the Variable Speed Replacement Motor for the USQ1102.
Reply
I hate to sound dumb!!! My breaker box for the pool has a double breaker.Would that be 220 volts! it looks like this motor is the same one I need to replace....type UAC A.O. Smith corp model c48k2pa105c5 SER 01808FM VOLTS 115/230 HP 1 ROT ccwpe PH 1 code K RPM 3450 FR 48Y HZ 60 Amps15.3/7.6SF 1.25 will the motor you have replace this one? If so how soon can I get it ? FT lauderdale FL please get back to me...
Reply
Hi David, This motor is the correct replacement motor for the c48k2pa105c5 and it can be wired either 115V or 230V it comes out of the box set up for 230V but can be changed to 115V. To determine if you have 115V or 230V I would follow this Guide on How to Test Your Pool Pump's Voltage.
Reply
I wired pump and when motor runs in go hi then low then high then low. Pump is not priming. Nothing seems blocked any thoughts
Reply
Craig, What voltage are you running? It sounds like the motor is wired for high voltage (230v) and you may have 115v.
Reply
how do I remove the impeller from the motor to replace motor? I will be
ordering a C48k2pa104a3, A.O. Smith, 1102, 1 hp,type b, 60, 1.25, Continuous
motor.
Reply
Phil, See our guide on "How To Replace A Pool Pump Impeller". You may also find this guide helpful, "How To Replace the Motor on Your Pool Pump".
Reply
What is the output in gallons/hr?
Reply
The output of a motor is not determined by the motor, but by the pump it is getting attached to. Some pumps offer up more resistance than other, which would affect its performance.
Reply
What is your return policy?
Reply
Dalia- The return policy would be 30 days, as long as it is new and unused and uninstalled and you have the original packaging. Here is a link to the return policy on the website: http://www.inyopools.com/return.aspx
Reply

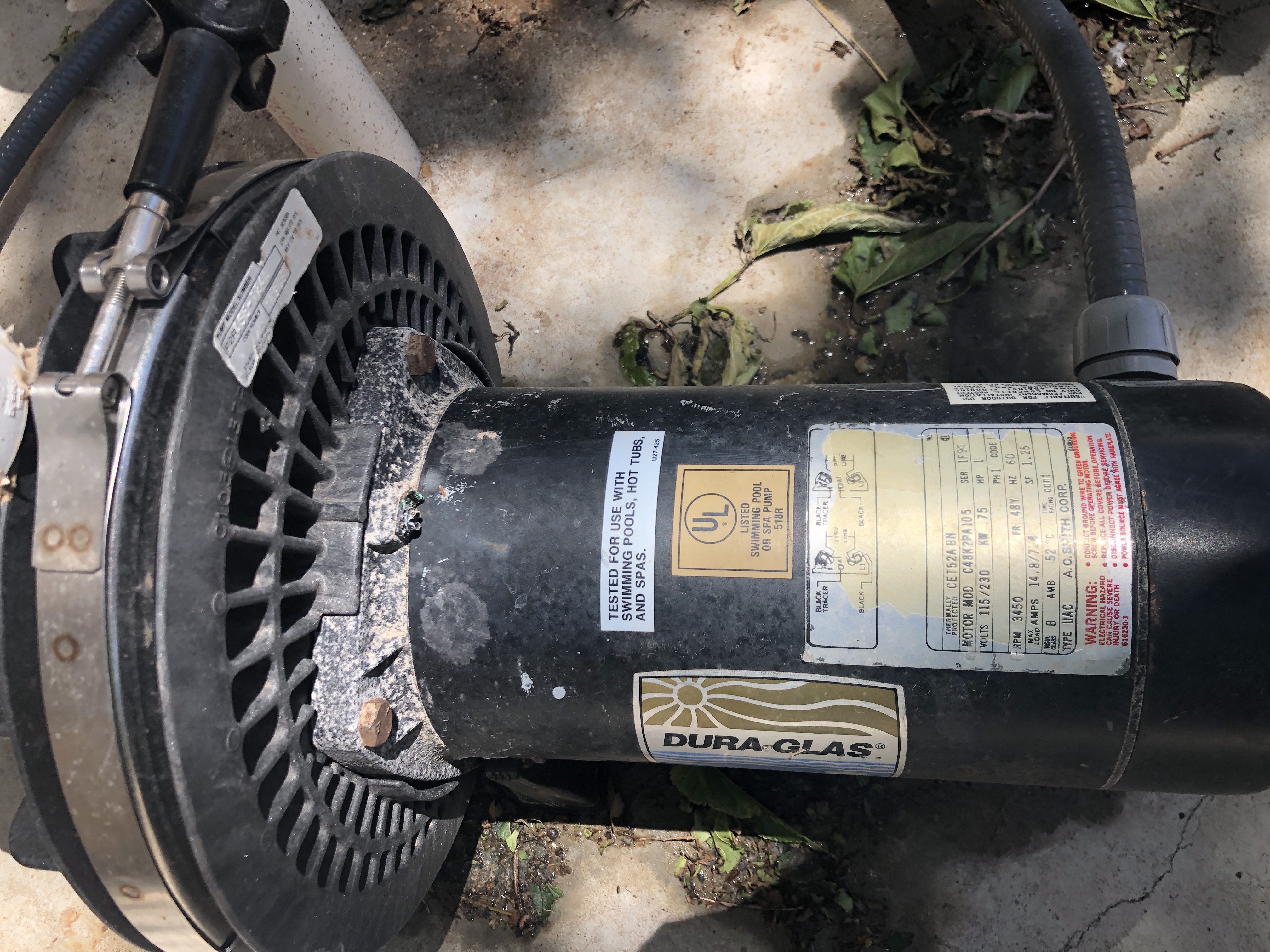

I have a Dura Glas C48k2pa104, Series 1890, HP 1. it is making a lot of noise. what motor would you recommend to replace this motor if you think it needs to be replaced?
Reply
I had a Dura Gras 1 hp. I purchased a USQ1102 AO smith pump. but I can not get the Impeller off of the Dura Gras pump. how do I get it off or can I get it off?
Reply
To get the impeller off you would need to use a wrench to hold the back end of the shaft at the rear of the motor, then unscrew the impeller. Sometimes using a rubber strap wrench helps to remove the impeller.
Reply
what Impeller would I get for the new pump? would it fit in the old housing of the impeller? what would the whole housing cost?
Reply
We would need the model of the front plastic pump housing in order to cross reference the specific impeller. We can also use the specific impeller part number that usually is molded into the part itself if you can locate that.
Reply

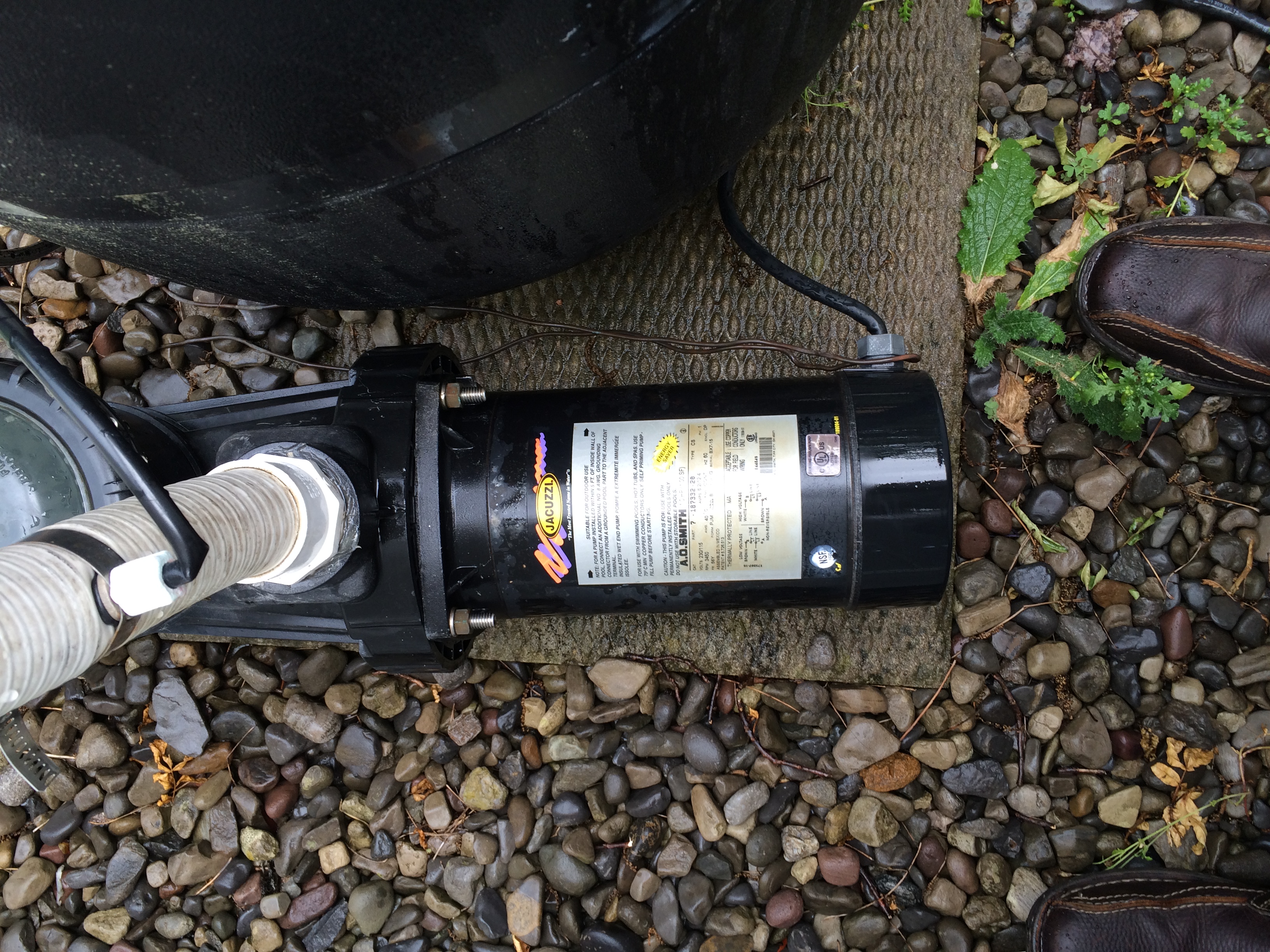

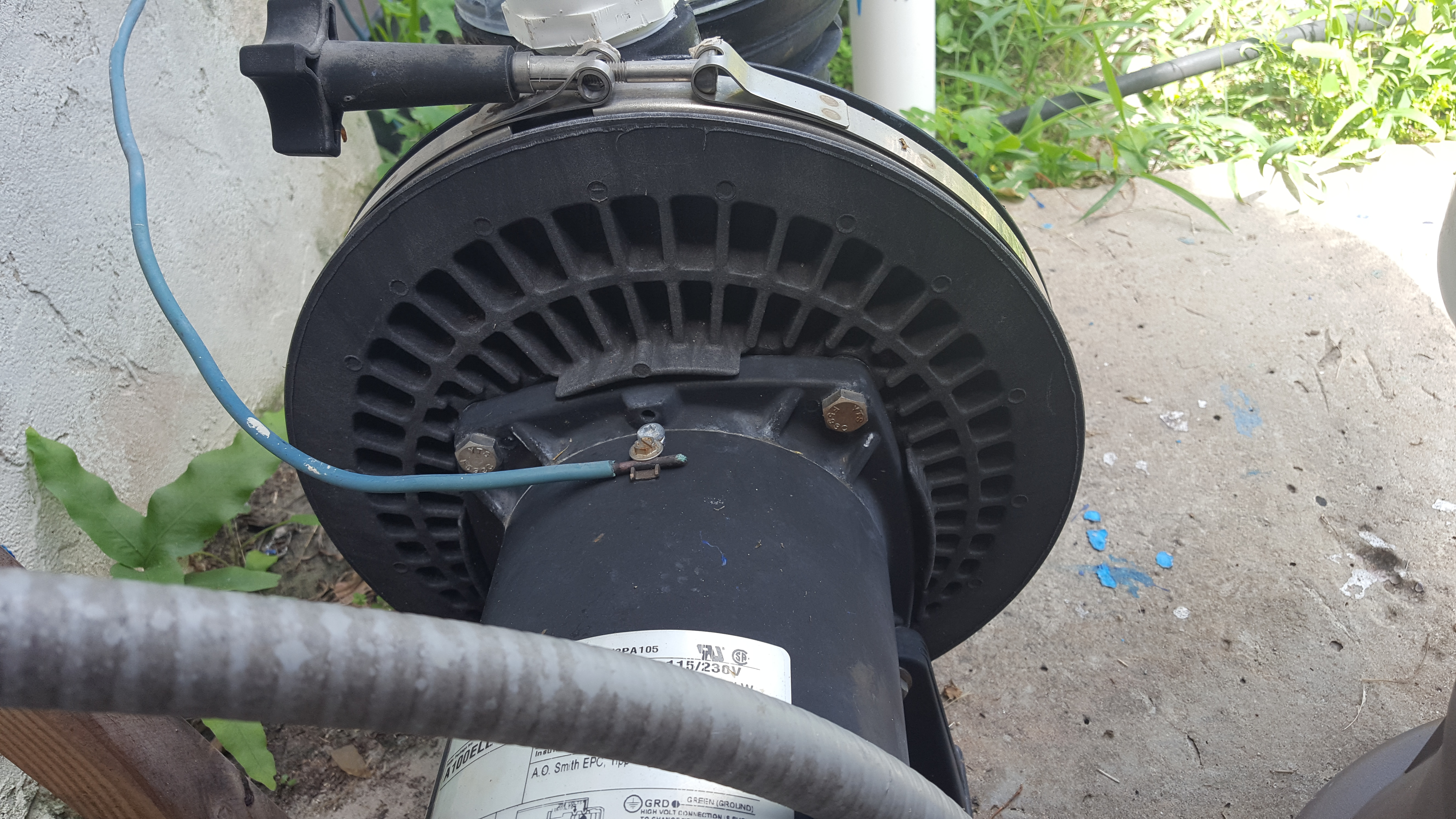

is there a ground wire around the Bonding Lug ? I have a Jacuzzi Pool Filter model number CFR-75-51LR9-8/2. When running the filter, it cuts off. Do I need a new motor or is the ground wire missing
Reply
Hi Pete, You will have to find out why it is cutting off, it could be because the motor is over heating. If that's the case the 1 H.P 115V Thru Bolt Motor (BN25) will be the correct motor and you can find other parts via the Jacuzzi LR and SLR Series Parts Diagram.
Reply
I have a sta rite pump model p6e6e-206L with motor model K48L2pa105 and I need to replace motor. I cross referenced w century/ao smith and model QC1102 comes up. I just want to double check w you guys before purchase? Please advise....
Daniel
Reply
Yes that is the correct motor that you have cross referenced.
Reply
I see this pump can use 115/230 v - is it possible to order it pre-wired for the 230v option?
Reply
Our pool motor that is 8 years old, when starting up, sometimes kicks off the circuit breaker. Other times, and this is almost everyday, the motor hums and then nothing, hums again and then eventually starts. Does this mean we need a new motor? Our Model # is C48K2PA105
Reply
Hi, I need a replacement for an A.O. Smith UST1102, Model #C48K2N143C1C, with a square flange. It is a 1 hp motor, SF of 1.1, with frame 56J. What do you recommend?
Thanks
Reply
if you have the C48K2N143C1C then you will need A.O. Smith 1 HP Round Flange Up Rate Motor (UST1102)
Reply
Hello... I have a USQ1102, Model #C48KPA105CS. I recently bought my home so I don't know exact age but suspect 8 to 10 years. It starting making a high pitched whining noise and pump is hot to the touch. I've turned system off. Any idea what's wrong?
Reply
These are tell tale signs that the motor is on it's last legs. Possibly able to be rebuilt it but at 8-10 years old, I would not advise to do that. Bad bearings usually cause the the high pitch noise and a motor running hot could be caused by a few other factors such as resistance, or even a temperature switch.
Reply
Is this an exact replacement (fit and function) of a Sta-Rite dyna glass pump motor for a Sta-Rite model MPRA6E-147L? Mine has a 1 HP motor, RPM 3450, 15.3Amp, .75kw, Phase 1, 115v motor (Model C48K2PA105?
Thanks. Jim K.
Reply
Hi James, The A.O. Smith 1 H.P Square Flange Up Rate Motor (USQ1102) would be the correct replacement motor for your Sta-Rite model MPRA6E-147L Pump. When replacing the motor we also recommend getting the Sta Rite Dyna Glas & Dyna Max Tune Up Kit (GOKIT47).
Reply
I have a AO Smith pump model #: C48CO4A06. What would be a replacemwnt for a 1hp, instead of the 1/2 hp?
Reply
Hi Latoyia, I was not able to cross reference model # C48CO4A06 to a replacement motor that we carry. You would have to contact the manufacture of the pump that this motor is used on for a replacement.
Reply
Is this motor compatible with K48L2PA105 Max-E-Pro
Reply
Gilbert- The USQ1102 A.O. Smith 1 H.P Square Flange Up Rate Motor is not the correct replacement motor for your pump. The replacement motor should be a QC1102 1.0 HP Motor EE (B864SE).
Reply
Is this AO Smith 1hp motor capable with Pentair PHK2RA6E 102L Pump, Moidel 168432
Reply
Technically yes this motor can be used on this pump model but the 56 frame version is closer to the original model. As long as the impeller is the original model that came with the complete pump then this motor or the B853 would work.
Reply
Needing to replace a K48K2PA105. I see a similar serial number is not a match for your motor. Is mine replaceable with yours?
Reply
What is the replacement pump for motor model C48K2PM100? The data plate has 35-5409 at the top and shows 1hp with 1.25 SF. It also states it is a 3450 rpm motor with a 48Y frame. It is manufactured by A. O. Smith.
Reply
Hi Stephen, The A.O. Smith 1 H.P Square Flange Up Rate Motor (USQ1102) will be the correct replacement motor base off of the information provided.
Reply
I just installed a USQ1102 (AOSUSQ1102) - A.O. Smith 1 H.P Square Flange Up Rate Motor that I purchased a few weeks ago and it seems to be running hot. I can put my hand on it but it's definitely hotter than the last motor.How hot should this motor be?
Reply
Hello Pete - It is normal for the motor to be hot to the touch. If the motor was running too hot, the thermal overload would shut it down. At that point you would want to check the voltage and make sure it is within the correct range.
Reply
WILL USQ1102 REPLACE ST1102
Reply
Mitch- The USQ1102 A.O. Smith 1 H.P Square Flange Up Rate Motor and the ST1102 A.O. Smith 1 HP Full Rate Round Flange Motor are not interchangeable. The USQ1102 is a square flange uprate motor and the ST1102 is a round flange Fullrate motor. They not only have different bolt patterns and different total horse powers.
Reply
Is this a replacement motor for a Dayton 4RJ93?
Thanks
Randy
Reply
Hi Randy, I'm almost certain that this is the correct replacement motor for the Dayton 4RJ93 Pump. However is you can provide a photo of the motor label I can make certain before you place an order.
Reply
Hello Randy, Did this item end up working for your 4RJ93 pump? Where did you find the seals? Thanks! Brian
Reply
Which shaft seal kit do I need for above motor ??
Reply
Hi, We would need to know the manufacture and model of the pump housing. If you can provide us with that info I can find out if a GOKIT is available for that pump.
Reply
I have a Sta-Rite Maxi Pro P6e6e-206L. The motor is A.O. Smith K48L2PA105.
I see from previous questions/answers that the QC1102 is your recommended replacement. But is the QC1102 motor diameter the same as the K48L2PA105?
Also, the Kw8L2PA105 has a external mounted on top of the motor) capacitor/cover-the QC1102 does not--does that matter?? .
Reply
Is this motor the replacement for my Marathon 5KC38SN6084AX?
Reply
Hi, This motor can be used as a replacement for the Marathon 5KC38SN6084AX however the frame size will be smaller. The A.O. Smith 1 HP, 56Y Frame, Up-Rate Motor (B2853) will be the exact replacement with the same frame size.
Reply
I have the A.O. Smith C48K2PA105C5 pump that has gone out completely and am ordering this as a replacement. Are there any other parts I need to order or is this pump ready to go as a replacement once I install it? Thanks
Reply
Hi Danny, This would be the correct replacement motor for MOD C48K2PA105C5. We would recommend replacing the pump shaft seal and o-rings. However we would need to know the manufacture and model of the pump housing in order to locate the other parts that you will need to replace along with the motor.
Reply
I have a Sta-Rite Pump/motor , 1-h.p. 230volt, 15 amp which I am replacing and need the proper seal kit for a sta-Rite pump Dura Glas PRA 181L.
What is the kt number needed to replace the seals when this motor is changed out?
Reply
Hi Van, That pump has two different kits, A Pre-1998 (GOKIT6) which has a Seal Insert inside the seal plate and After-1998 (GOKIT54) which does not have a Seal Insert. You would have to inspect your pump to find out which kit you need.
Reply
Is this a replacement for a tri star A/O Smith 1 hp model SP 3210Z1BE, Part # 7-196336-20
Reply
Hello, Chris. The Hayward part number SPX3210Z1BE cross-references to the Hayward TriStar 1 HP, Energy Efficient, Full Rated Pump. The replacement motor for that model is the PART# 5112-254 MANUFACTURED BY HAYWARD POOL PRODUCTS. The comparable replacement motor is the A.O. Smith 1 HP Square Flange Full Rate Motor PART# SQ1102. It is advised to replace the Shaft Seal PART# 5112-216 at the time of replacing the motor. To view other parts available for the Hayward Tri Star Pump, please click here.
Reply
Hi
I have a 1 HP 2 speed motor I need to replace for 115/120v power source. the current motor is sta rite model C48K2PA105. I can't seem to find a 2 speed replacement for 120v
Reply
Hi Joe, Most dual speed motor are 230 volt. Can you send us a photo of the motor label?
Reply
does the new motor come with the shaft seal installed ???
Reply
No, shaft seals do not come with any motors for these motors mount to multiple model pump housings. The seals are based off of the model of those front pump housings that the motors are bolted to.
Reply
Where can I send a picture of my current motor label so I know what to order for replacement? Thanks.
Reply
have this info usq1102 type3 14.8/7.4 amps ao6m17hc model c4sk2pa104a3
which motor is my replacement
Reply
Hello, based of the specs you provided the and the number USQ1102 then this will be the motor you need.
Reply
I have a 48 Y frame motor, will a 56Y frame motor work in it's place?
Reply
Hi Troy, A 56Y Frame motor can replace a 48Y Frame motor, you will have to remove the motor pad if your pump uses one in order for the 56Y frame motor to sit leveled.
Reply
We are going to order this motor but we are not 100% sure of what seal kit to get.
Reply
Hi Donna, can you supply us with the make and model of your pump this should be something like Sta-Rite DuraGlas, MaxEGlas, Pentair WhisperFlo, etc.. Once you provide this to us we can suggest the proper tune up kit.
Reply
Is this a replacement motor for water ace model R10L?
Reply
I'm sorry this is not a replacement for the Water Ace model R10L. I'm showing the R10L is a sprinkler pump and we do not carry replacement motors for sprinkler pumps.
Reply
Will this replace a sta-rite P2RA5E - 181L motor. Also, can I replace it with a 1.5 HP motor?
Reply
Hi Bryan, yes this is the proper replacement motor for the Sta-Rite P2RA5E-181L Dura-Glas pump. You could go up to the 1.5 HP Dura-Glas Replacement Motor but you will need to replace your 1 HP impeller with a 1.5 HP Dura-Glas impeller. Regardless if you go 1 HP or 1.5 HP you will also need a Sta-Rite Dura-Glas Tune Up Kit (first item listed on the Dura-Glas Parts Page).
Reply
i ordered the motor forgot to order the shaft seal
please add to my order
george feltin gfeltin@yahoo.com
6176100895
Reply
To find the correct shaft seal, we need to know the model number or make and model of your pump's housing. This motor can be mounted on several pump housing, and each one can use a different shaft seal.
Reply
What motor do I need to replace a c48a95a06
Reply
Unfortunately the information you provided did not return a result for the motor. If you have a make and model of the pump as well as additional information on the motor, that may help in my efforts to assist you.
Reply
I have a marathon motor 1 hp c1245 5kc38sn608ax that I need to replace I think the previous owners put this motor in. The system is a sta rite I want to put the sta rite motor and pump in can you tell me which motor and pump. The filter system is a pld 70.
Reply
Hi Don, Could you send us a few photos of your pump? Or do you see any model #'s that start with P2RA, P4RA, etc.?
Reply
Is shipping free for AO Smith USQ 1102 pool motor and how soon will motor be shipped and delivery expected?
Reply
All motor orders placed before 12 noon EST will ship out that day, after 12 nood will ship out the next business day. Free ground shipping on motors has an estimated delivery of 3 business days.
Reply
Hi, i have a Hayward Max Flo II and the motor is getting very loud.
The motor currently fitted is AO Smith 1HP 48Y Square flange 1.25SR. Model C48D31A04.
From the details, this motor is the one i have, but the listing says for my pump i should have the different flange.
Can you confirm whether this motor will fit (it seems to be fitted now), if so which shaft and pump seal kits i will need for a full overhaul.
Thanks in advance.
Reply
Hi Chris, The USQ1102 motor can be used as a replacement for the Hayward Max Flo II pump. There is not a tune up kit available for this pump the seals will have to purchase the parts separately. The parts can be found via the Hayward Max-Flo II Pump Parts page.
Reply
We just ordered and received a pool pump (an AO Smith model number USQ1102) and have found out the venturi assembly needs also to be replaced. Do you carry this part?
Reply
Hi Kathryn, We will have to know the model of the pump housing in order to find out what parts are available. If you do not have the pump model you can send us photos.
Reply
What motor do I need to replace A.O.Smith i HP motor Mod. C48K2EC11, Ser 1C89 9U E46412 MPS 1188A 115/230 KV .75 RPM 3450, FR 48Y SF 125
Amps 14.8/7.4 Thermally Protected SRCET54ABN PH 1, Code J Hz 60 .... Will your motor part # USQ1102 replace it or ? Thank you, Lee Thibadeau
Reply
Hi Lee, This USQ1102 motor is the correct replacement for the C48K2EC11 motor.
Reply
Can you buy the USQ 1 HP motor with the flange 'pump' already attached?
Reply
Hi Lee, Unfortunately, you can not; it's sold separately because the motors can be used on several different pumps.
Reply
What motor replaces a C48L2PA103A2 A.O. Smith?
Reply
The correct replacement motor for model #C48L2PA103A2 is the A.O. Smith 1 HP Square Flange Full Rate Motor - SQ1102.
Reply
C48K2PA104A3 THUS IS THE MOTOR I HAVE WILL THIS WORK ON THIS AND WHAT IS IT RATED IS IT FULL RATE????
Reply
The motor that matches your model number C48K2PA104A3 is the A.O. Smith 1 H.P Square Flange Up Rate Motor - USQ1102.
Reply
My motor is C48K2PA105C5 and I know this is a replacement motor. If I wanted to jump to an energy efficient model, which motor would I need?
Reply
Will this fit a max-e-glas II or dura-glas II series p4e, p4ea ,p4r or p4ra? I have an owners manual for these pumps, but the actual motor on the pump has been replaced by a previous owner. I can not tell what the specific model is.
Reply
Does this motor fit a Hayward Pump?
John
Reply
Hi John, This motor can be used on a couple of Hayward pumps. If you can provide the pump model or the part, mod and or cat number we can confirm if this motor is the correct replacement.
Reply
What would be the EE variant for this motor? I currently have this motor attached to my pump, but it's nearing the point I need to replace it.
Reply
Hello Dave you can check your frame and SF for the EE version Energy Efficient A.O. Smith 1 H.P Square Flange Up Rate Motor - UQC1102
Reply
Will this motor work for a St A Rite motor P6RA6E
Reply
Looks like your pump is a Max-E-Pro, if you could supply me with the motor model and/or part number I'll be able to help you with the direct replacement motor.
Reply
Will this motor fit my motor stand seeing my old motor has a 56 frame Old motor is a Franklin 1081 model 11303016411
Reply
Tom, Are you replacing a 56J or a 56Y frame? Do you know the model of the pump housing?
Reply
My pool pump motor is making a loud shrill type sound... the replacement motor is a AO Smith 1hp square flange... my question is how do I know if the problem is the impeller or the motor? I am thinking the motor needs replacement because it is 20 years old this summer. Thank yo
Reply
Hello Leon, Normally when it's the impeller its a grinding sound rather than a high pitch sound that is the motor bearings.
Reply
Will this work on a In Ground Pool?
Reply
Hi Michael, This motor can be used on pumps that are specifically for in-ground pools. If you can provide us with the model of the pump we can confirm if this is the correct motor.
Reply
Confirm the motor needed for a Sta-Rite Model P6E6E-206L, 1 HP motor
Thanks!
Reply
Hello Brian, please check usq1102 and sq1102 to see if this matches with frame, volts, and RPM. Check the specs of each motor.
Reply
my motor just quit yesterday and from all info i see on it the USQ 1102 is the correct replacement. I have a HP of 1. Would it help my old pool if I upgraded to a 1.5 or 2 hp motor? Before it quit it wasn't pulling the water all the way to the top of the basket. If a 1.5 or 2 might be better, could you send me the model numbers and prices. thank you very much.
Reply
Hello Glenna, First let us address the fact that your pump basket would not fill to the top (prime). This is an indicator that you have an air leak either around the pump lid basket or possibly where the valves are before the pump. Changing to a stronger motor would not correct this problem. Second, I would not recommend upgrading your motor unless you have added features to your pool (ie. solar panels, hot tub, fountains) or if you have been experiencing issues with your pool not receiving proper filtration. An increase in the horsepower will improve the circulation, but keep in mind that you may need to change parts on your pump as well to accommodate the higher speeds.
Reply
Is the usq 1102 compatible with the B 2853
Reply
Hello, Although these two motor look similar, they are different. The USQ1105 has a frame that is 48Y. The B2853 motor has a 56Y frame. That means the diameter of the motors are different. Beyond that, they each have a different amperage rating.
Reply
I purchased the AO Smith 1 Hp replacement motor over the summer for my P2RA5E-124L FILTER and runs good however the pump is now leaking between the motor and seal plate.
I'm ordering a new shaft seal and need to know if I need to order a new water slinger washer that was shipped with the replacement motor?
Reply

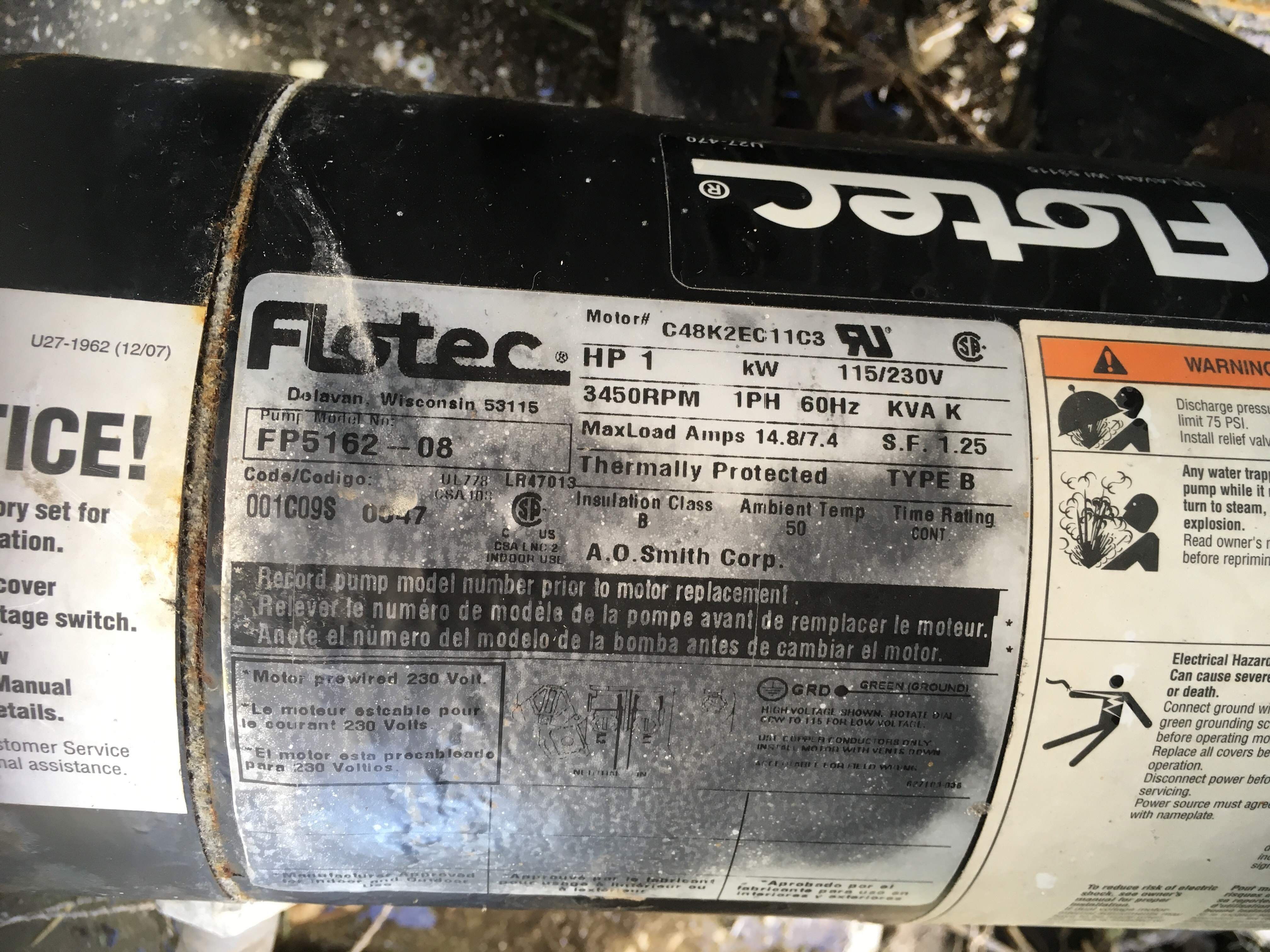

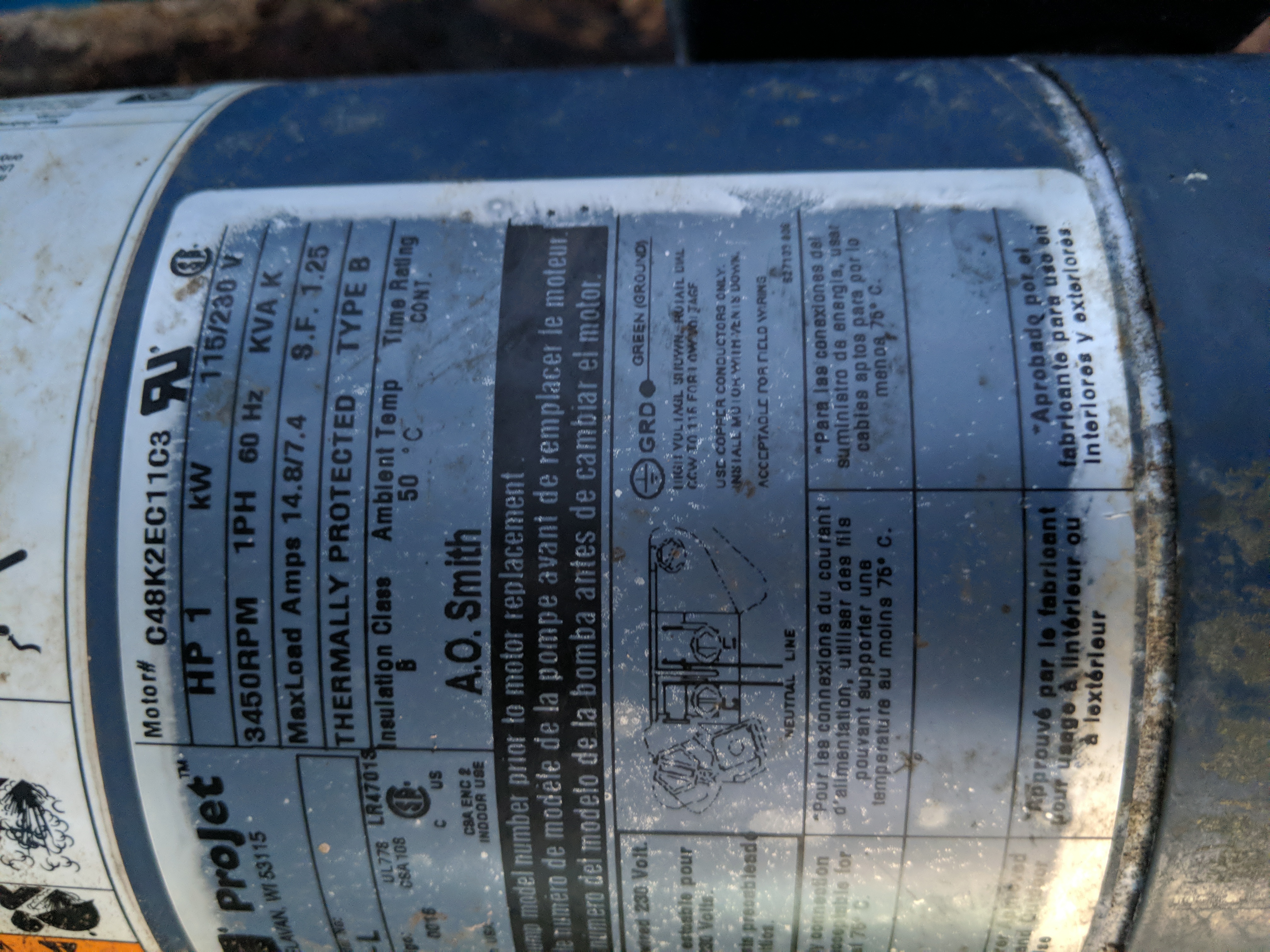

I have a AO smith motor and need to replace. # on motor is c48k2ec11c3.
What would be the replacement # for that motor ? And I need a new seal also.
Seal name is John Craine int 5/8. What would be the replacement #.
Thank You
Reply
Yes, that is the correct replacement motor. I will need the model of your pump, not your motor, to identify the correct shaft seal for you. If you do not have that information, please a attach a picture of the entire pump so I can identify your pump to determine the correct shaft seal for you.
Reply
I need a replacement motor for a water ace pump. Motor model number
5KC38PN2534CX GE motor by regal beloit Frame 56Z
do you have one available and how much ?
Reply
Hello, Danny. I could not find a good cross reference to the part number provided. I best recommend viewing our Water Ace Pump Parts diagram for the replacement motor, by identifying using the horsepower. Please don't forget to replace the Shaft Seal Assembly and Seal Cup when your replace the motor. You may find How To Replace the Motor on Your Pool Pump helpful.
Reply
This motor is rated at 15.3 amps. The motor that I'm replacing is rated at 13 amps. I think that my breaker is a 10 amp breaker. Do I have to change my breaker switch To a 15 or 20 amp breaker to power this motor?
Reply
Rafael, You can use either. 15amp will be fine. If your wiring anything else off that breaker you will have to go up in size
Reply
how to install
Reply
Hello Margarita, there is a tutorial on how to replace a pool pump. If you need help with wiring there is also a tutorial on that as well. If you need any other "how to" videos or tutorials you can click here for all of them.
Reply
C4aa35AO i think is model number do you have one?
Reply
Hello Rich, If you could send a picture to upload@inyopools.com we could better assist you with this, just send one picture of the motor label and one of the whole pump to get you a pump seal kit with the motor.
Reply
what is the difference between a pool pump motor and a irrigation pump motor (used on a sprinkler system)
Reply
Hi. Pool pump motors and irrigation pump motors can differ by the shaft size, RPM, and is some instance the flange style. If you can provide the MOD number of the motor we can find out if we have that replacement available.
Reply
Our sta-rite 3/4 hr pool pump croaked. Do you have a replacement motor.
Reply
Good morning Lori, I would recommend the A.O. Smith 3/4 HP Square Flange Up Rate Motor - USQ1072. I would also suggest you get a gokit depending on what Sta-rite you have. If you have a Duraglass. You will need a Tune Up Kit Sta Rite Dura Glas & Max E Glas Pump Pre 1998 - GOKIT6 The gokit is all the o-rings and the shaftseal.
Reply
im looking for century AC motor for tirer changer machine. cat: serial BX5-28, part 7 - 164901-20, type CS, FR K56, HP 1.0 SPL, SF 1.00, PH 1, HZ 60, RPM 1725, VOLTS 115, AMPS 12.5, TIME CONT ENCP DP, FORM KKC, CODE H, insul class B, AMB 40 C.
Thank you
Reply
Good morning John, The motor that is coming up as compatible. The rpms are double and it has a greater service factor. I would check with the manufacturer and see where you can find a replacement. You can try contacting A.O smith but your best bet is the manufacturer of your machine.
Reply
What is the best seal kit for this motor?
Reply
The shaft seal is going to depend on the model of your pump, not the motor. If you know what the model of your pump is that's great, if not, attach a side view picture of the complete pump and I can identify the pump for you so I can find the correct shaft seal for you.
Reply
Hi, my pump bearings are starting to whine but I cannot find a part number for the pump anywhere. The pump is a Century HSQ125 and the model number is C48AB45A01. It ran dry somehow and got hot so I am assuming that the shaft seal got damaged. The pump is not even 2 years old so what I'd like to do is replace the bearings and seal. Do you carry these particular parts? I'd also like to know the part number of this thing since everyone seems to be asking me this same question.
Reply
Good morning Tim, The bearings you are looking for are # 6203. If you type that in on our search bar it will give you a few different options. I would need to know what type of pump you have to recommend the seal. You can also type the model pump in with parts at the end and determine what type of seal you need. If you any help with this you can call us at 877-372-6038.
Reply
will this motor replace a A O Smith pool motor C48K2N143C1C?
Reply
Good afternoon rangi31@cox.net, You are looking for A.O. Smith 1 HP Round Flange Up Rate Motor - UST1102
Reply
I have a 1 HP pool pump with an A O Smith mod# C48K2PA104A3 Will this motor replace it?
Reply
Good afternoon Ed, Yes, This is a replacement for the C48K2PA104A3. If you let me know what type of pump this was on I can give you the right seal kit.
Reply
I have a hayward EZ Flow pump. Will this be compatible with that?
Reply
Good morning Ray, Most to Hayward pump have circle flange motors . Fo the ez flo I'm pulling up a Hayward super 2 pump. Which would be ust1102 if you have a 1hp with an S.F. of 1.1 . Let me know what the model number is to be sure. You will also need to get a new shaft seal and o-rings. If it is the Hayward super 2. You will need a gokit2 or a gokit2salt if you have a salt pool.
Reply
I am replacing just the motor and I noticed on the old one there is a rubber thing around the spindle but the new one doesn't have that. So I am wondering do I have to order that part? Or is that not necessary anymore?
Thanks,
Reply
The rubber grommet around the shaft of the motor is called a water slinger. Its purpose is to help deflect water away from the bearings behind the faceplate of the motor. You can use the one from the previous motor or here is a link to the available water slinger parts.
Reply
I have a Hayward in-ground pool pump motor with noisy bearings. Mod.# C48D31A04.
Will this motor be compatible? If so, What seal kit do I need?
Reply
Yes, the USQ1102 would be the correct motor replacement. I need to know the model of your pump to figure out the correct seal kit for you though. If you do not know please attach a side view picture of your complete pump so I can identify it for you.
Reply
I have a P2RA5E-181L Sta-Rite pump that needs a replacement motor. Is the AO Smith USQ1102 motor the correct motor? You have it listed for $139.99 with free shipping. IF it is correct, what seals do I need to install it? IS there a kit available?
Thank you.
Reply
Will this fit on a sta-rite pump p6ra62-205l
Reply
Will this motor marry up with the Sta-rite pump model # P2RA5E-1811 ?
Reply
Hello Eric, Yes the USQ1102 is the correct frame size that will fit with your P2RA5E-1811 StaRite model pump. Please make sure when replacing the motor that you also get a GOKIT which will replace your pump seal and orings. Depending on which model you have Pre 1998 GOKIT6 and 1998 to present GOKIT54, the difference is the GOKIT6 is the pump seal kit if you have a copper cone and you can use GOKIT54 if your not sure whether you have a copper cone or not. You can remove the copper cone and use GOKIT54.
Reply
Would this pump be compatible with Stai Rite Max E Pro Hp-1 Model K48l29a105
Reply
Thank you for your prompt answer regarding pump model C48AB45A01.
The replacement motor model USQ1102 has a square flange (or bottom).
The motor being replaced has a round flange (or bottom).
Will this affect the installation of said replacement motor?
Thank you again for your assistance.
Reply
Hi, Nancy. This will not affect the installation process.
Reply
need 1 hp motor for a water ace sprinkler pump
old motor 5kc38pn3011bt 115/230 rpm 3450 codel sf 1.4 sfa 17.0/8.5 fr 55j
the shaft is 7/61 by 20 threads to inch impeller threads on to shaft
thanks
rbc
Reply
Hi, The info provided does not cross reference to a direct replacement motor. If you can send us photos of the pump and motor we can try to locate the correct motor and parts. Photos can be sent to upload@inyopools.com.
Reply
I was told this motor could replace my current one (Model# K48L2PA101A1). I noticed the total HP on my current motor is 1.65 and the SF on mine is 1.65, these are slightly different from your motor. Is this motor compatible for me?
Reply
Hello David, This K48L2PA101A1 matches 1.0 HP Full Rate EE Motor (B864SE) - QC1102. I would highly recommend a pump seal or GOKIT when replacing your motor. We would need a pump model number to find the pump seal or GOKIT you would need.
Reply
I have a pool pump motor that was running, I turned it off to clean the filter and now it will not start. It is hot to the touch. The motor is a 1 hp Emerson 1081 with a 4 bolt flange. Would it be cheaper to rebuild it or purchase a replacement?
Reply
In some cases it is cheaper to rebuild the motor by replacing the bearings but that is not always worth it if the body of the motor is corroded or there are other internal parts that have burned up. Motors are designed to run hot at around 140 degrees. Most pool owners replace the motor in these instances though. You would need to know the model or part number of the motor and front pump housing that the motor bolts when calling in to place an order.
Reply
I have a pool pump motor #C48L2PA105C4. Looking at your USQ1102, is it the same?
Reply
Hello Ward- No the A.O. Smith 1 H.P Square Flange Up Rate Motor USQ1102 is not the correct replacement for your pump motor. You will need the A.O. Smith 1 HP Square Flange Full Rate Motor - SQ1102.
Reply
My motor is C48J2PA105C1. I see on your site C48J2PA105C5 but not C1. Will the C5 work? Thanks in advance.
Reply
Hi, Larry. The Century 3/4 HP Square Flange Up Rate Motor - USQ1072 is the correct replacement motor for the C48J2PA105C1 motor.
Reply
I have the C48K2PA105C5 pump that has gone out completely and am ordering this as a replacement. Are there any other parts I need to order or is this pump ready to go as a replacement once I install it? The pump housing is a Pentair SuperFlo high performance pump P/N 340038.
Thanks!
Reply
Hello Luis- We would recommend also purchasing the Tune Up Kit Pentair SuperFlo - GOKIT78 to go with your USQ1102 and superflo pump.
Reply
We have a 1 hp, single phase, 3450 RPM, L56J FR - Serial # BP8-20. Please tell me which of your motor we should order?
Reply
Hi, Dina. If you can also provide us with the SF (Service Factor) we can confirm which 1HP motor you will need since they are different types.
Reply
I have an emerson 1hp motor frame 56J, what do you have that will replace this with a quality pump
Reply
I have the Hayward Model C48D31A04. Not sure if it can be replaced by this A.O. Smith 1 H.P Square Flange Up Rate Motor.
Thanks
Reply
Hi Timothy, Yes the USQ1102 will be the proper replacement for your C48D31A04 motor.
Reply
I have a Sta-Rite motor K48L2PA105 with pump P6E6E-206L on a outdoor fountain. The motor has locked up and I am interested in replacing it and the pump as an assembly. Can you provide an assembly PN? Thank you
Reply
Personally if the pump housing is good on your pump I would not recommend replacing it, I would just replace the motor and seals which are part number QC1102 and the GOKIT79. But if you are wanting to replace the complete pump I would stick with the Max-E-Pro that you currently have, that is a great pump.
Reply
We purchased the AO Smith 1hp square flange up motor (aosusq1102) and need to get a new pump seal, what is the correct seal to order?
Reply
Your shaft seal will depend on your pump model, not the motor. If you know your pump model I can help you find the correct shaft seal for your motor install.
Reply
I have the 1HP (motor) STA-RITE MAX-E-PRO pump assembly. Motor is burned up. Lasted a long time. Do I replace it with QC1102 motor and GOKIT79 Tune up kit? Also, probably need new impeller. Which one would I order?
Thanks, Jay
Reply
Hi, Jay. In order to locate the correct motor and impeller, you will need to provide us with the motor's MOD, PART or CAT #. We need to confirm if you have an up rate or full rate 1 hp pump.
Reply
Have Sta-Rite Self-Priming Sprinkler Pump Cast Iron DS2HE-191PL w/A.O. Smith Motor C48K2EC15. Need new motor. Will USQ1102 fit? See replace meant list includes C48K2EM15 but not C48K2EC15. Thanks.
Reply
Yes, this motor will work for your replacement.
Reply
I have a Red Lion pump RLSP-100 with AO Smith motor C48C45B67. Will this motor work as a replacement?
Reply
Hi, Joe. Based on the info provided the USQ1102 is not compatible with the Red Lion pump RLSP-100, we do not have a replacement motor.
Reply
will USQ1102 motor work to replace a C48K2PA105 motor on pump Sta Rite model P2RA5E-181L?
Thank you
Renny
Reply
Does the motor come with a new seal?
Reply
Hi Jim, no the seal is purchased seperately and you will need to know the make and model of your pump to determine the seal you need. The pump information should be on the side near where the plumbing enters and exits. Common pump names are Sta-rite, Pentair, Pac-Fab and Jandy.
Reply
I have a 1 HP Max Flow Pump with a Motor AO Smith Motor Model C48D31A04. Is the I HP USQ1102 a like-for-like replacement?
Reply
Hi Steve, Yes the USQ1102 will be the proper replacement for your C48D31A04 motor.
Reply
What types of pump does this motor work on. (i.e.) Hayward super pump or above ground pumps
Reply
Hi. I have a pump model c48k2pa104a3. I've been able to remove shaft screw and impeller but motor plate won't budge. The four bolt heads are behind this plate. According to video, it looks like bolts usually go other direction. How does this plate come off?
Thanks.
Reply
Hi, Jon. In order to get the motor free from the seal plate once the impeller has been removed is by removing the 4 bolts holding motor onto the seal plate.
Reply
what seal kit do i need for this pump
Reply
Hi Corey, Could you reply back with the make and model of your pump or send us a few photos. Common pumps this motor fits onto are Sta-Rite Dura Glas, Dura Glas II, Max-E-Glas II, Pentair Whisperflo, etc..
Reply
My pump has a model # P2RSD-18DL will this motor fit?
Reply
Hi, David. The P2RA5D-180L pump originally came with a 3/4 HP Square Flange Up Rate Motor - USQ1072 but this 1HP motor can be used as a replacement.
Reply
Hello, I have a hayward super pump model C48L2N134B1 which is a 1-1/2 HP motor and it sounds like the bearings are bad, its whining pretty loud. Can I replace this motor with a 2 speed motor? Pool is 16x32 average depth of 4 feet. I see that the bearings can be replaced, but the pump is 10 years old and there is corrosion on the bottom of the pump from a bad seal a few years ago. Would you recommend bearings or whole pump replacement?
Thanks for your time,
-Lance
Reply
Hi, Lance. You can replace your current motor with the STS1152R or B977T 2-speed motor which requires 230 volts. The Hayward Super Pump - SP2610X152S or SP2610X15 would be the complete pump replacements. The bearing size are going to vary depending on if you have a OEM or aftermarket motor.
Reply
How can a remove stripped screw on cover in order to disconnect the electrical connections?
Reply
Hello, You could try different size screwdrivers if any catch enough to screw out enough you can use pliers to extract the rest of the screw.
Reply
I need to replace the motor on my pool pump and the model is C48AB46A01, 1 hp 3450 rpm, HSQ165, also need the seal kit, Thanks
Reply
This USQ1102 is the proper replacement for the HSQ165, we would need for you to reply back to us with the make and model of your pump so we can suggest a seal kit. Also if you can supply and photos of your pump that would be helpful.
Reply
Please provide a direct replacement motor for model no. C48J2PA105C1.
How quickly
Reply
You will require the SQ1052 Replacement Motor delivery is 3-4 biz days.
Reply
Can I get an A.O Smith 1 hp square flange pump with different size shafts?
Reply
Hi, Randy. The Century 1081 Pool & Spa Motors have a standard size shaft. If you're looking to replace an existing motor, you can use the MOD, CAT, or PART to locate the replacement.
Reply
AO Smith Motor # K48K2PA105C1
Impeller Pump Assembly XD-124UL (G86P)
Motor failed and need to replace.
Can you recommend replacement motor and shaft seal?
Reply
Hi, Paul. The Century USQ1102 Motor can be used as a replacement for the A.O. Smith Motor # K48K2PA105C1. I was not able to cross reference the pump assembly # XD-124UL (G86P) to a specific model so I'm unable to locate the correct pump seal.
Reply
We have a Sta-Rite P2R-A5E-124L Pool pump and need a new motor. The motor we have now is a Century Centurion B2853 Model (1 HP, P56Y, 60hz, 230/115 volts, 3450 rpm). Will this motor work? What seal kit do we need to order?
Reply
Hi Cheryl, you can use this USQ1102 motor or the B2853 Replacement Motor the B2853 will be a direct replacement to your motor where the USQ1102 has a little narrower barrel, the mounting flange is the same but the orverall diameter of the barrel is narrower on the USQ1102.
Reply
I have a dayton 6k421b motor would this be a proper replacement motor
Reply
I have a in ground pool pump DURA-GLAS, 1hp, RPM 3450. Motor model C48K2EB102, with A.O. Smith Corporation on it. When turning it on it hums for a few seconds then starts. It is taking a little longer to start now. I think it is the starting capacitor going bad. Do you agree, and if so can I get a replacement capacitor through you. Can you tell me what capacitor I need without removing it from the motor and the cost to receive it. Thanks for your help.
Marv..
Reply
Hi Marv, Yes that does sound like a bad start capacitor and you would require this USQ1102 Replacement Capacitor
Reply
USQ1102 can substitute motor Paintair SF-N1-1A/340038 ????... Does this motor use capacitors running, starting ??
Reply
I have a Waterco SupaTuf Model 241100 1Hp motor. Which hotor and seal kit do I need as a replacement?
Reply
You will require this 1 HP USQ1102 replacement motor and this SupaTuff Shaft Seal.
Reply
Is this motor a replacement to the us motors eusq1102 model c55cxkls-5006? Also if so what pump seal part number would I need? Thank you
Reply
Hi. Yes, this Century USQ1102 motor will replace the US Motor EUSQ1102. In order to determine which pump seal you'll need, the housing model and or pictures will be needed.
Reply
Is this motor a replacement for the Pentair Challenger 34-6206
Reply
Jim, Based on the pump model, you will need the B854 motor. Be sure to replace the seals when you replace the motor.
Reply
I have a UST1102 square flange pool motor. I need to replace it. Is USQ1102 a replacement for the UST1102. I can't seem to find a UST1102 square flange motor. The UST1102 has a FR of 56J. The USQ 1102 has an FR of 48. I don't really think this matters. Think it has something to do with diameter of motor size> Any help would be appreciated.
Thank you
Reply
Randy, The UST1102 is a round flange motor. The square flange you are referring to is the motor mounting flange. You will have to remove it from the old motor and install it on the new motor.
Reply
Hello, I need to replace my USQ1102, can I use the USQ1152 as this is the second motor in 5 years that will need replacing.
THX
Reply
Scott, If you are going to upgrade the motor, you will also have to upgrade the impeller and possibly diffuser.
Reply

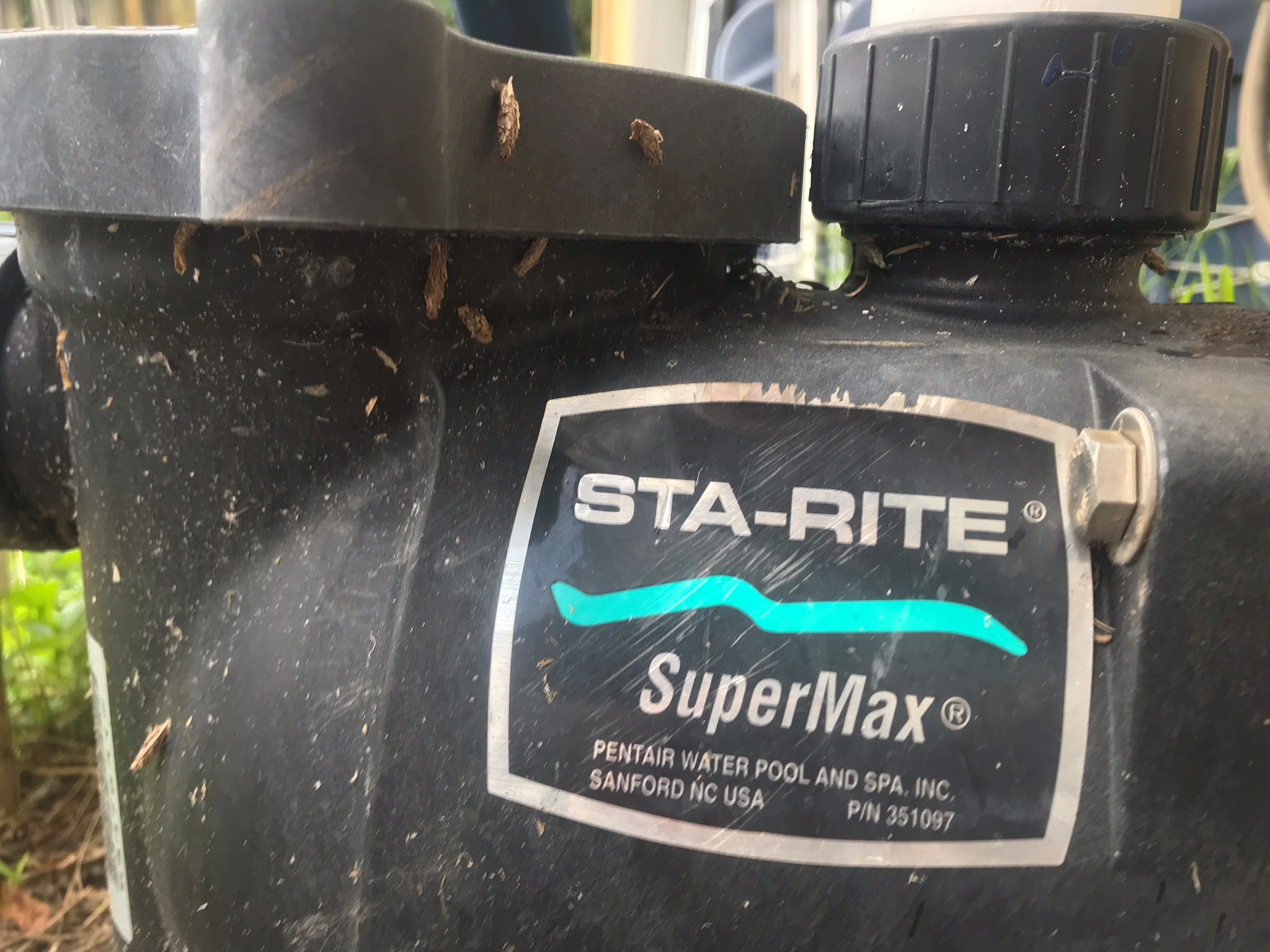

Hi, I am replacing a sta-rite 1 hp 220 hp, 3450 rpm, 7.1/ 14.2, square flange, service factor 1.25. I believe the model # is 168452. Also I would like all the gaskets and seals to go with it. It is a A O Smith motor. I believe I found the correct motor and it's in my cart, but I can't find the seals and gasket set. Pump is a phk 2 rage-102 sta-rit3 1 hp, 220 amp sup max pump.
Reply
Hello Lorin, from what the PHK2RA6E102L matches with is a Super Max 1HP Pump - PHK2RA6E102L and the seals/gaskets are all separate. The main one to change would be a Pump Seal 200, Heavy Duty PS3867 (Saltwater Pools) - PS-3867.
Reply

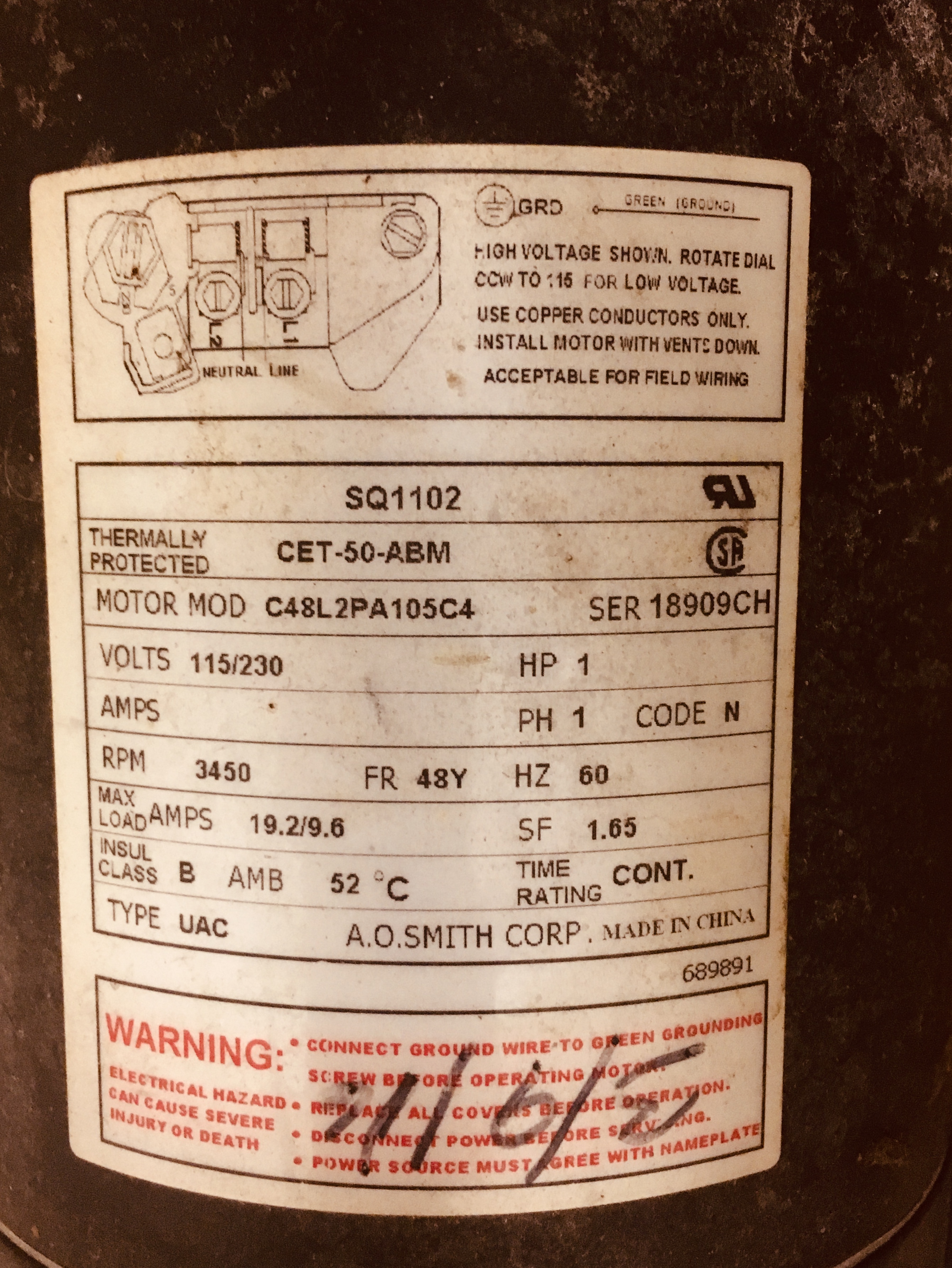

i have a pool pump motor that as stopped working the model # isC48L2PA105C4
is there a replacement motor.
Reply
Is this motor a replacement for GE 5KC38PN2534CX - 1 HP, 115/230, SF 1.25, RPM 3450, sq. flange?
Pump assembly is Shur-Dri SD-ASP10. Current shaft seal says "High Seal F22" on it. Can you recommend replacement seal? Thanks!
Reply
Need to replace failed pump. I have a P2RA5E-124L. do you have same model, or what is exact replacement. And what seals do I need, it is a salt-water system.
Thanks
Reply
Hi, Bill K. This USQ1102 motor along with the Heavy Duty Pump Seal - PS3867 will get your pump running again. If you would like to replace the entire pump you can use the Speck EasyFit MXG Pump 1HP - IG281-1100M-0DG as a replacement.
Reply
I have an A.O. Smith motor model SP3210Z1BE that is making a lot of noise. I can’t find the same P/N. Can you point me in the right direction? Thanks!
Reply
Hi, Paul. The Tristar SPX3210Z1BER motor is the correct replacement for your model.
Reply
I need a replacement for Pool Pump Model C48J2N131C1C, SD05, CET69ABM, UST 1072. What will work?
Reply
DAnny- The correct replacement motor is the A.O. Smith Round Flange 3/4 HP Up Rate Motor - UST1072.
Reply
does this replace the star-rite P2RA5E-181L
Reply
Hi, Jason. This USQ1102 motor is the correct replacement for the Sta-Rite P2RA5E-181L pump.You will also need the Dura-Glas Tune Up Kit - GOKIT54
Reply
Hi,
Please, I need a replacement for the A.O. motor mod. C48J2PA105C1.
This motor is part of a pool filter / pump system Star Rite ( MP FAGE-146 L)
Thanks
Reply
What does up rate mean?
Reply
Hi, Mark. The term up rate is used to define the true horsepower of a pool pump motor. You can read our How To Understand True Pump Horsepower - Up Rated vs Full Rated guide for more info.
Reply
Will this motor replace the sta rite P6RA6G-207 model?
Reply
Hi, Ralph. This USQ1102 Motor is not the correct replacement motor. You can use either the USQ1202 (48Y) of B859 (56Y) motors with that pump model. I will also recommend that you get the Max-E-Pro Tune Up Kit - GOKIT79.
Reply
Will this replace sta rite model C48MZP100?
Reply
I want to make sure I'm ordering the right motor, not sure on frame. Here is the info I have from the one. Motor #C48K2PA105, SF 1.25, HP 1, Pump Model #P6RA6E-205L: the frame is not listed on it. The Pump label has Model #6RA6E-205L Code 035J07M. Also what do you recommend I buy along with the new motor.
Reply
I'm looking to replace an A O Smith 1 HP electric motor on our well. It was sold by Sears as a "Convertible Hydroglass" deep well pump motor and says it is Model No. C48K2EC15, Volts 115/230, RPM 3450, Amps 14,8/7.4, FR 48y, HZ 60. Is this motor I'm looking at the appropriate replacement?
Reply

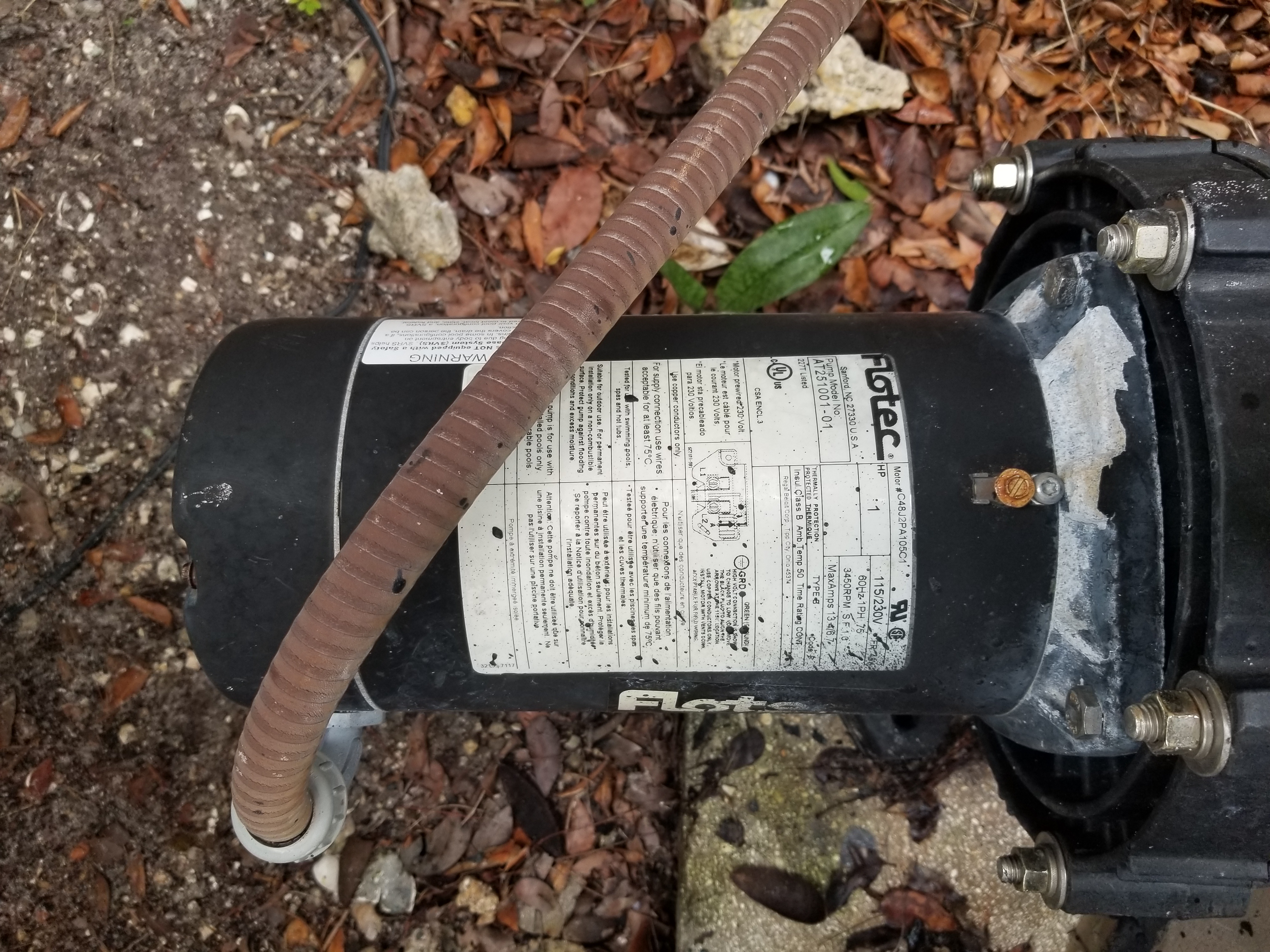

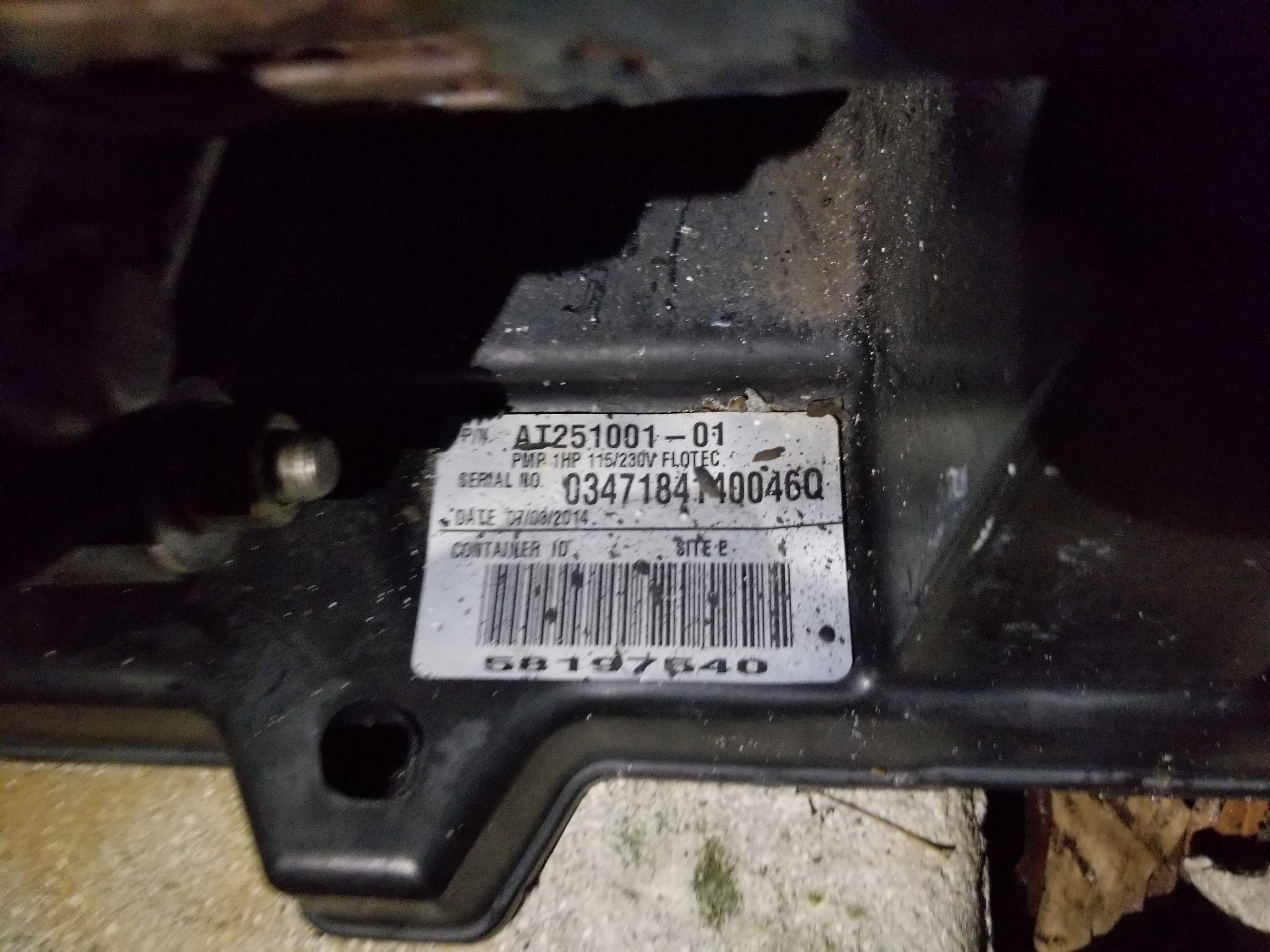

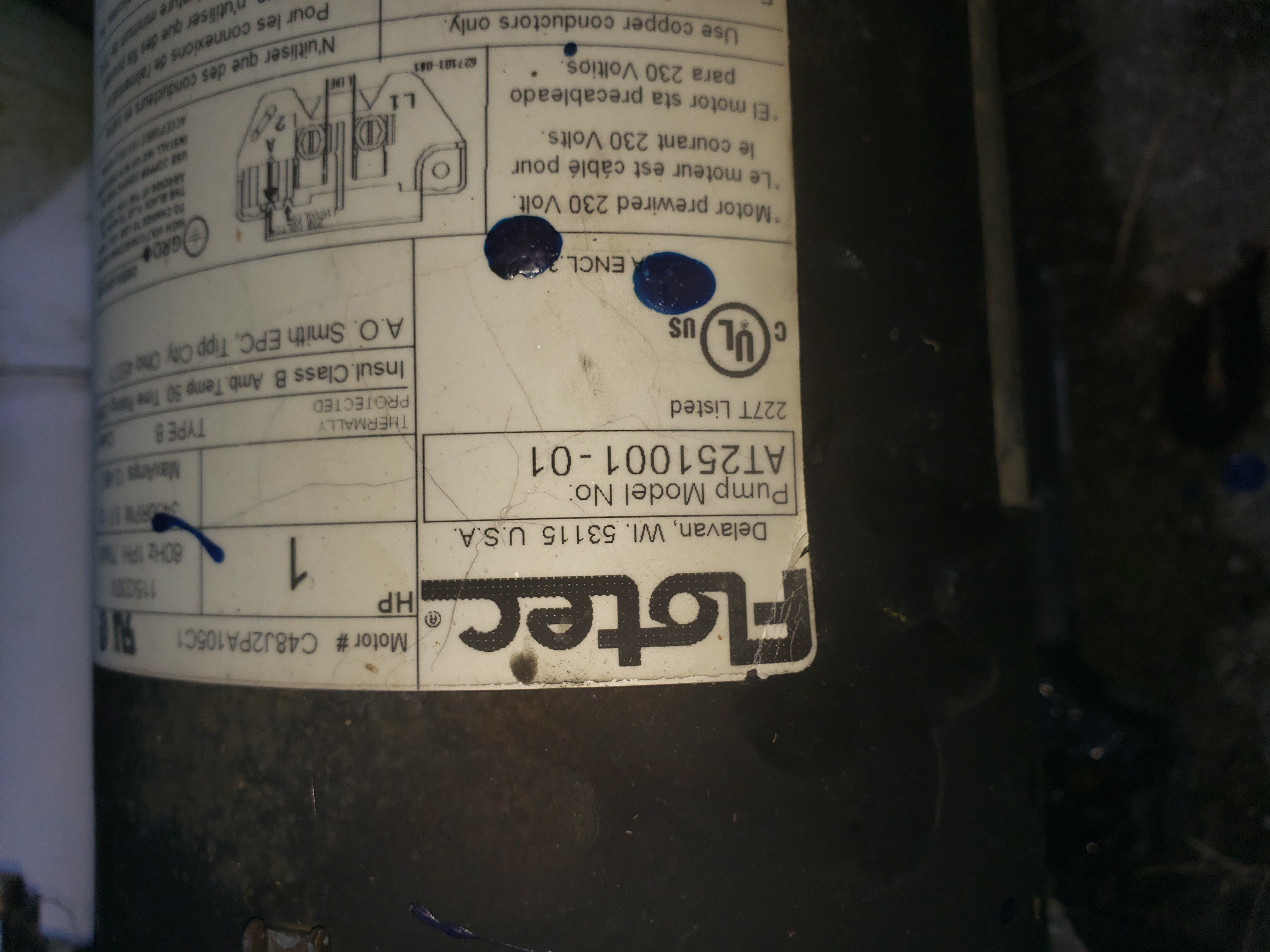

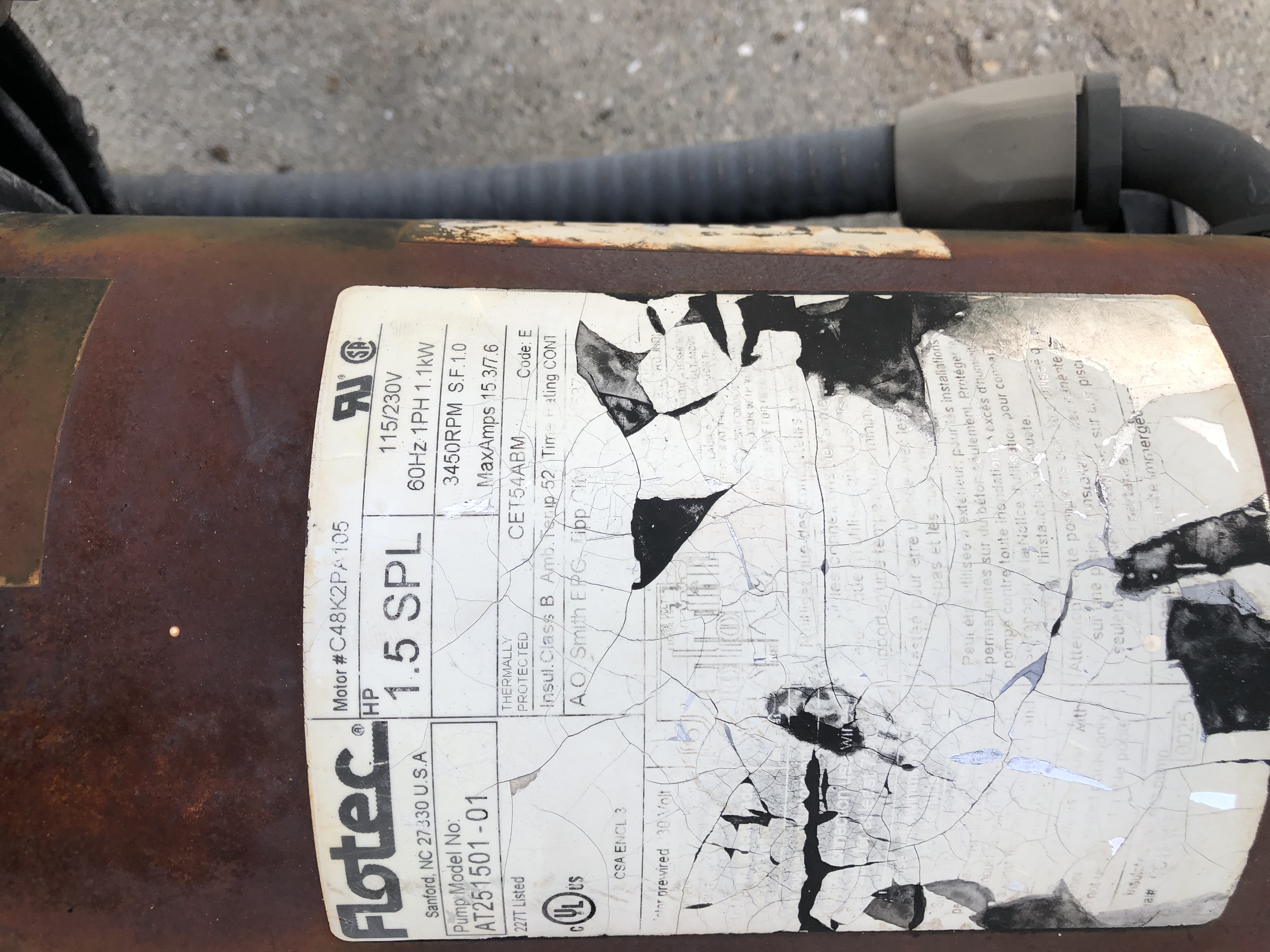

Hello I have a sta rite pump with model number AT251501-01 code:1A06w
will this motor work for that pump body?
tHanks
Reply
replacement for Marathon, MOD 5KC38SN6084AX, CAT NO C1245, RPM 3450, V 115/230. I can find replacements for 5KC38SN6084X but not the AX
Reply
If I purchase the USQ1102 and install it myself, do I need any other parts to have a successful installation?
Reply
Hello, you will also need to purchase the corresponding shaft seal that is based on what model pump you have.
Reply

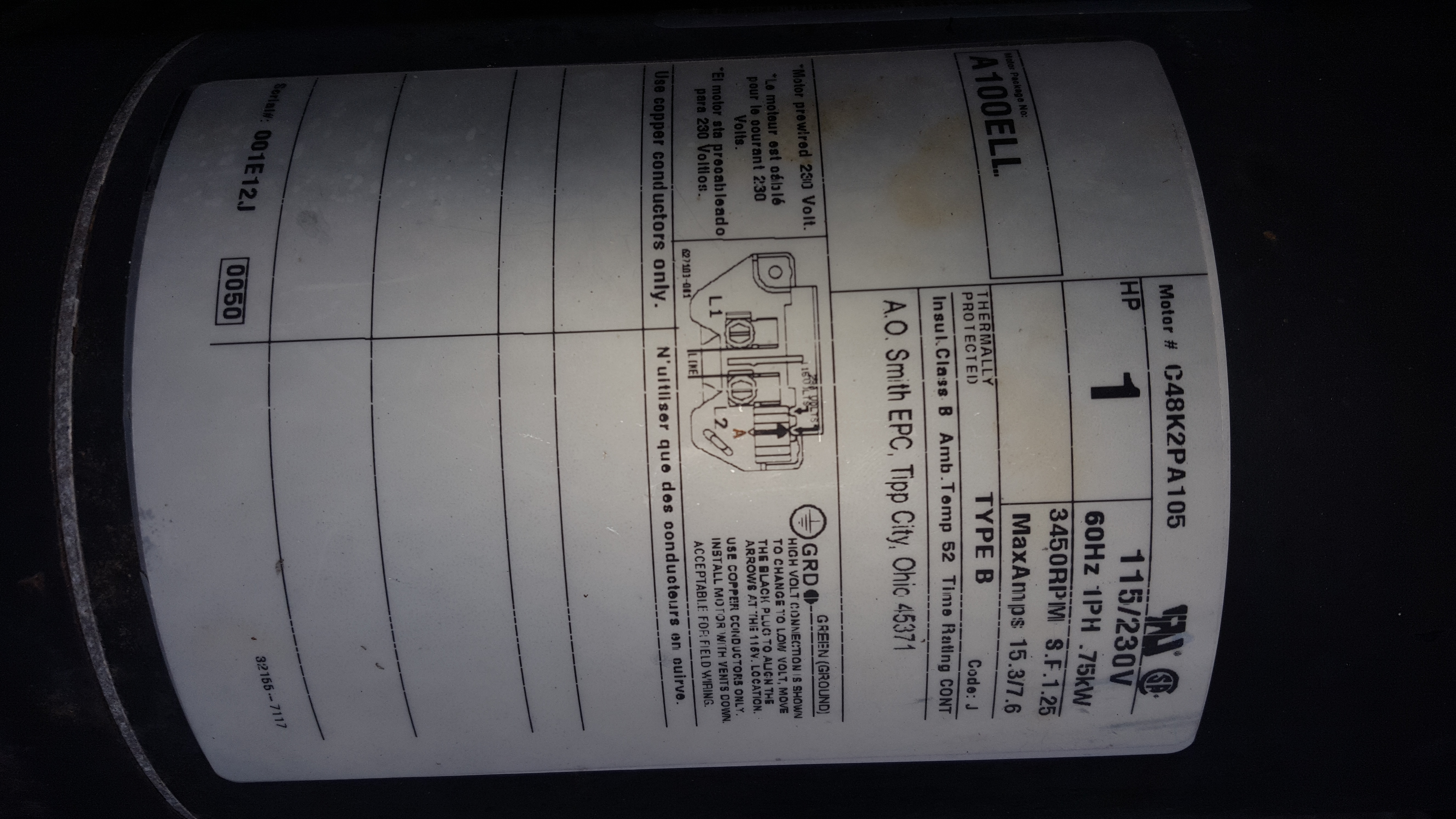

will this motor replace model A100ELL motor and can you tell me shaft thread size thanks
Reply
Hi, Walter. Yes, this USQ1102 will replace Model # A100ELL. You can view the USQ1102 DRAWING to get the thread and shaft size.
Reply
Does this replace the motor for sta rite model PHK2RA6E-102L. Also what would be the correct shaft seal.
Thank You
Reply
is the USQ1102 a replacement for the SQ1102 motor? My pool has an SQ1102, but I see the USQ1102 is $50 cheaper.
Reply
The SQ1102 is a full rated motor so has a higher horsepower. It is not the same as the USQ1102.
Reply
Will this motor work on an irrigation pump
Reply
We actually do not with irrigation pumps but if the motor model, part or catalog number on that motor matches with one of our pool/spa motrs then it should work.
Reply
I have the USQ1102 model C48K2PA105C5. 46Y frame. Will this motor correspond? And what all do I need to go with it. Thanks
Reply
Hi, Tim. This USQ1102 is the direct replacement. You will also need to replace the pump seal, however, in order to locate the correct seals we'll need to know the model of your pump housing. You can also reference our How To Find The Correct Pool Pump Shaft Seal Blog.
Reply
I have the USQ1102 model C48K2PA105C5. 46Y frame. Will this motor correspond? And what all do I need to go with it. Thanks
Reply
Yes, this is the correct motor. We recommend replacing the seals and gaskets so you will need to know the model name or number of the front pump housing that the motor bolts to in order to cross reference that. If you are not sure of that info you can always send an image of the pump to upload@inyopools.com so we can look at it.
Reply
My question is - I have a SQ1102 Model No. C48L2PA103A2 (amp 19.2/9.6). Will the USQ1102 work as a replacement even though the amps are different?
Reply
No, the correct motor for you is the model SQ1102.
Reply
I need to replace a US Motor 1081 Pool Motor. Catalog NO. EUST 1102. Model C55CXKMB-5012.
HP. 1.0 RPM 3450
Volts 230/115
SF AMPS 6.8/13.6
Frame 56J
What is a comparable replacement?
757.573.7477
Reply
Is this a direct replacement for a Century SP 1607-Z-1?
Reply
I am going to purchase the AOSmith 1hp square flange single speed pump motor USQ1102 from your company. I removed the old motor but it came apart with some of the wet end parts attached to the shaft. I am trying to re-use these parts. How do I remove these parts (large round disk) from the old motor shaft ? Thanks
Reply
can I use this as a replacement for a motor# C48K2PA105 on a sta-rite pump model# MPRA6E-205L?
Please advise.
Reply
i have a hayward replacement motor 1180 square flange 12-15 years old What would be the new replacement motor can't find on web
Reply
Hi, Tom. You will need to locate the pump housing model and or the motor's complete Part, MOD or CAT number in order to locate the replacement.
Reply
Will this motor work to replace the motor on a Hayward 6060 booster pump?
I viewed the suggested haward motor but this was pictured in item customers also viewed.
Please let me know what options you have that will work.
Thank you.
Reply
Hi, is this motor a direct replacement to suit the waterco supatuf 100 1hp? Is there a difference between this model and the cast aluminium fin type motor? Brushed or brushless? Pool wet area application? Is it pick up from store or can you arrange delivery to dover heights 2030
Thank you for your time
Scott
Reply
Hi, Scott. This motor can be used as a replacement for the Supatuf 100 model pump. The fin type motors are Totally Enclosed Fan Cooled (TEFC) motor and this motor is an Open Drip Proof (ODP). The TEFC is completely sealed motors and the ODP motor are not it draws air from surrounding to cool the motor using the open vents on the bottom. This motor can be shipped to you, delivery is usually 3 business day after the ship date.
Reply
wiring hook for the capacitor. motor id ust 1102
Reply
Hi. You can use our How To Replace a Pool Pump Capacitor guide for replacement and wiring instructions.
Reply
I have a century 3/4 horse 3450 rpm. I am bolting it to a whisper flow housing. the impeller input shaft has a different screw size than what my a.o.smith motor that came with the pump. the hole is a lot smaller. can you help.
Reply
Hi, Alan. You do not have to use the Impeller Screw with these motors, only if you're using an OEM motor. Check out Inyo's Do I Need an Impeller Lock Screw? or Poolside Chat Episode #22: Do I Need My Impeller Lock Screw? resources.
Reply
I have an AO Smith model c48k2n143b1 3450 rpm, FR56J 1HP enclosed ODP ser. 33609,code J motor which motor do I need.
Reply
NEED MOTOR 1 HP 3450 RPM FR56J
Reply
Hello, please view our How to Guide for motor selection. https://www.youtube.com/watch?v=aN6CS3HBLmw Please replace the shaft seal too.
Reply
Emerson ESQ1102 Square Flange Pool and Spa Motor 1 HP
is the wiring correct on this? years ago I bought a motor and had to change because it was going the wrong way .
Reply
if I have 1.5 inch pvc for my inground pool already. If I get a replacement motor that says it has a 2" suction and discharge port, will that fit the pvc that I already have?
Reply
If you are replacing the motor, you will not change the plumbing, you are using the same housing. Please view our How To Replace the Motor on Your Pool Pump Guide. If you are replacing a complete pump then the intake and the discharge will vary in size. If the ports are 2" and the plumbing is 1.5" you may use reducers to resolve. Please view our How To Replace a Pool Pump With An Energy Efficient Pool Pump Guide, to use a general overview.
Reply
I have a Dura Glas P2RA5E-181L HP 1. The motor only needs to be replaced. Please tell me which motor to buy.
Thank you.
Reply
Is this a compatible motor replacement with a Max E Glas PE5C pump? I can't read the nameplate on
my present unit.
Reply
I need to replace my A.O. Smith inground pool filter pump - model #C48K2PA104. Can I replace it with the 105?
Reply
Yes, this is the correct motor and if you use the 105 it is still this model motor USQ1102.
Reply
Does this motor replace Sta-Rite Pump Model: / Part No: PHK2RA6E - 102L,1 HP, SF 1.25, 3450 RPM, Max Amp 7.1/14.2?
Reply
I am looking for a replacement motor for a Flotech pump AT251001-01...the motor has a p# of C48J2PA105C1...Pentair advises the replacement motor is a 62001-1049...is this the correct replacement or can you recommend another motor?
Reply

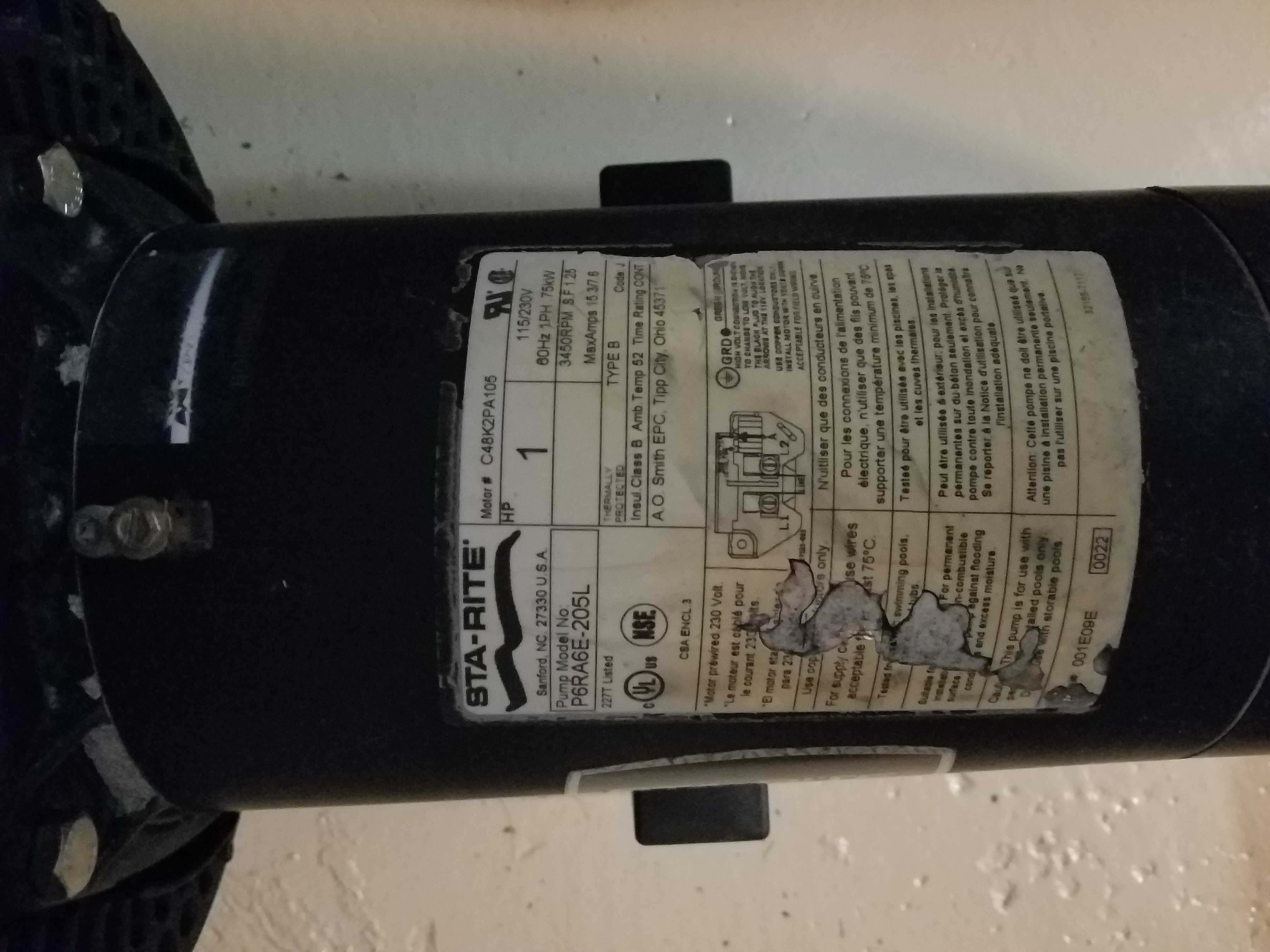

Hello! I need a motor replacement for Sta-Rite Max E-Pro #P6EA6E-205L. Is this correct? I’ve ordered the wrong one already so want to make sure.
Thank you!
Reply
I currently have a 3/4 hp motor which I bought 2 yrs ago. It is now overheating and shutting off. I have checked all the wiring and replaced it. We use our pump 6 months out of the year. I am considering adding a programmable 7 day timer and go up to a 1 hp. motor programing it to run 4 hours on and 4 hours off.... Any thoughts on if this will help life of pump?
thank you
Reply
Hi, Louis. Unfortunately, operating the motor that way will not extend the motor's life. Motors are designed to run, to make sure you get the most out of the motor, make sure that the pump parts and the operating environment are maintained.
Reply
Replacing a STA-RITE DURA-GLAS pump (P2RA5E-181L) pump. Will this one do the trick? Should I replace seals etc.?
Reply
I am sure this is the right pump motor for my pool, my old pump says USQ1102... but I am curious which Go Kit I should order for my Pentair UltraFlow
Reply
Will this replace a 1081 Aqua shield motor?
Reply
Hi, Amy. This motor can be used to replace an Aqua Shield motor if the specs match. You can use our How To Choose The Right Replacement Pool Pump Motor guide.
Reply
I am replacing my marathon 1081 pool pump. The specs match. Will it work n this pump?
Reply
Hi, Cathy. This motor can be used to replace a Marathon 1081 pool motor if the specs match. I unable to confirm without knowing the model or specs of your Marathon motor.
Reply
Looking for a replacement motor for Flotec pump FP5162-08. The current motor is A.O. Smith C48K2EC11C3, 1 hp, 3450 rpm, 115/230. Please advise which motor I would need. Thanks.
Hi Walt, This USQ1102 replacement motor is the suitable replacement motor for your Flotec pump FP5162-08 us an A.O. Smith C48K2EC11C3 motor.
Reply
Hi, I just want to make sure that this motor (A.O. Smith 1 H.P Square Flange Up Rate Motor - USQ1102) can be used for C48K2PA105 or motor used for pump P6RA6E- 205L? The picture does not have capacitor on top so it is confusing me. Thank you
Reply
Yes, this is the correct replacement motor and they do not have capacitors on the top of them.
Reply
does this come with a seal
Reply
Hi. A shaft seal is not included with the motor. You will need to locate the model or name of your pump housing in order to locate the correct pump shaft seal.
Reply
Will this fit as a replacement motor for: US Motors/1081 Pool Motor/ Cat# EUSQ1102/HP 1.0 -SF 1.25-Hz60/Amps 7.5/15.0/Volts 230/115/RPM3450...I would also need 1) dura-glass impeller 2) shaft seal 3) diffuser o-ring 4)Housing Gasket
Reply
Hi, Tom. This USQ1102 is the correct replacement motor. As for the other parts requested, (1) Impeller - C105-138PEB, Diffuser - C1-200PA, (2-4) GOKIT54.
Reply
What would be a comparable replacement for a Flotec 1.5 spl. model AT251501-01
What would be a comparable replacement for a Flotec 1.5 spl. model AT251501-01
Hi, Darren. Yes, this USQ1102 motor is the correct replacement. You will also need to get the FloTech Tune Up Kit - GOKIT44.
Reply
My concern with this replacement is this,My pump is a 1.5
Reply
Hi, Darren. When the HP rating has the suffix SPL that means that the pump has a specialty HP rating. That is tied to the motors HP rating. The USQ1102 is the correct replacement motor. I'll also recommend that you get the Tune Up Kit - GOKIT44.
Reply
Currently we have the USQ1102 on a Hayward Tristar pump with the stainless steel band. What 2 speed 230 volt motor could be used to replace it for an in the ground pool?
The current motor has started to make noise like the bearings are going, can they be replaced?
Reply
Hello, This will be a dual speed 230v motor replacement for you. http://www.inyopools.com/Products/07501352062872.htm
Reply
Which one do I need to order to replace Hayward c48d31a04 please. Also replacement shaft seal
Hi, Frank. Your replacement options will be this USQ1102, PL2102 or the SPX2707Z1M motor along with the Pump Shaft Seal 5/8" - OEM - SPX2700SA are the correct parts you will need.
Reply
My pool motor USQ1102 - model C48K2PA105CS IHP needs replacing together with the shaft seal O -ring etc . Do you recommend that I get the same motor or is there a better product on the market. I want something reliable, and just as quiet or quieter. Please also provide me with the reference for the tool kit that I require. Many thanks.
Reply
The variable speed motor replacement model ECM16SQU is the newest technology that is far more quiet in lower RPM settings. In order to look up the correct seal kit, we will need to know the model name or number of the front pump housing that the motor bolts to. If you are not sure of that model then you can always email us images of that housing to upload@inyopools.com so we can help to confirm.
Reply
I have a flotec pump model AT251001-01 that needs a new motor, is there a newer more efficient replacement for this motor? I would also need to seal kit for this as well.
Reply
I purchased a AO Smith USQ1102 pump motor and an 355389 impeller screw, but the screw is way to large for the hole. I have a Pentair Challenger 346205 pump. What is the correct impeller lock screw for this motor. Thanks Chris
Reply
Hello, This is the correct impeller screw you will need if you have a challenger pump. http://www.inyopools.com/Products/07501352025307.htm
Reply

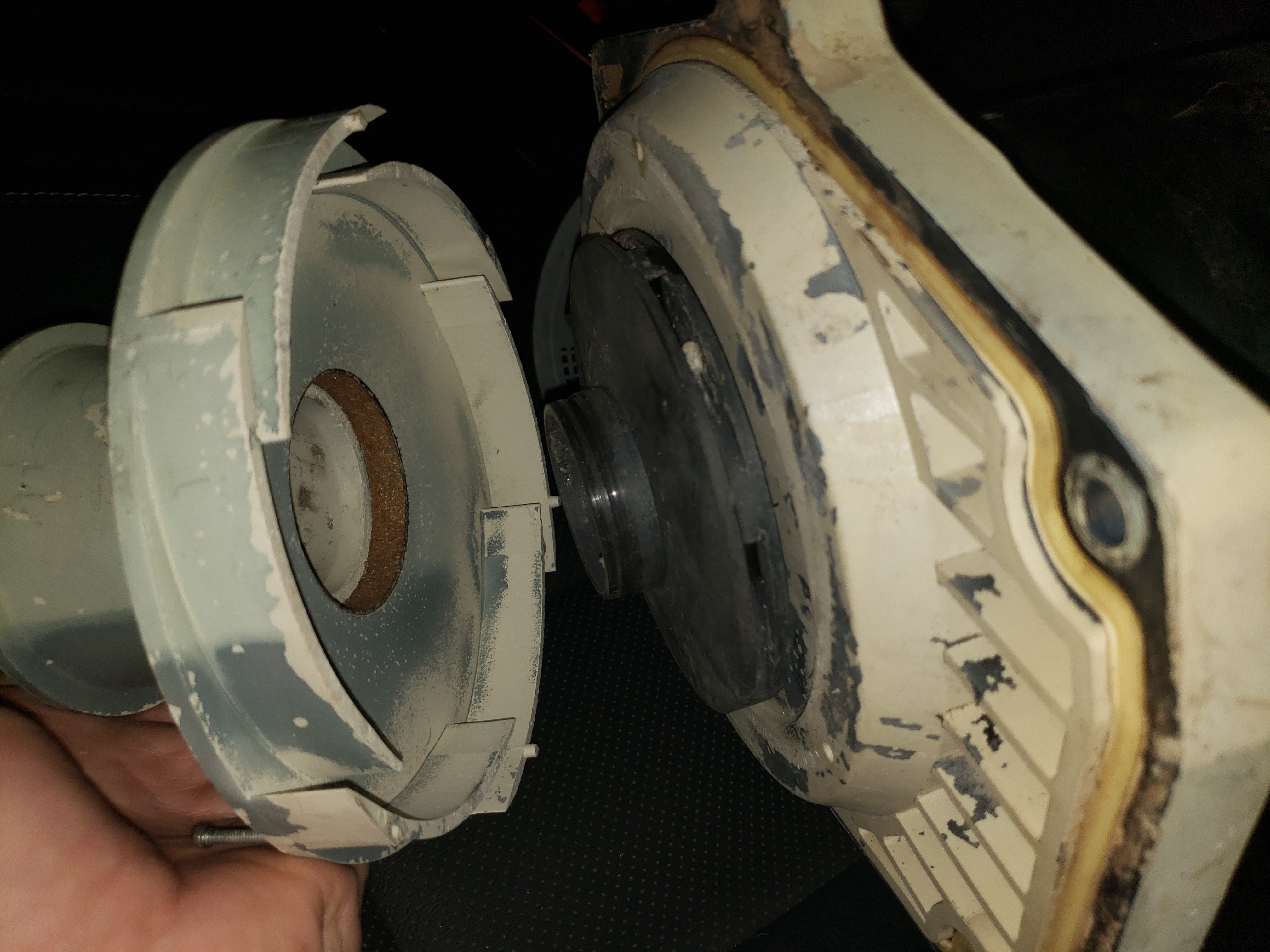

Motor "clattering" from the area of the impeller. separated motor from housing and under the impeller I find a white plastic collar that is unsecured and looks to be the source of the noise. At the motor end of the plastic collar there might have been a thick O-ring, but there is nothing there but the motor housing (plastic).. I would like to see an exploded view of my USQ1102 to determine if something is missing there.
Hello, I will be able to get you an exploded view of your entire pump. I will need to know the brand and the model of the entire pump. If you are unsure of the model, you can send us a picture and we can identify it for you.
Reply

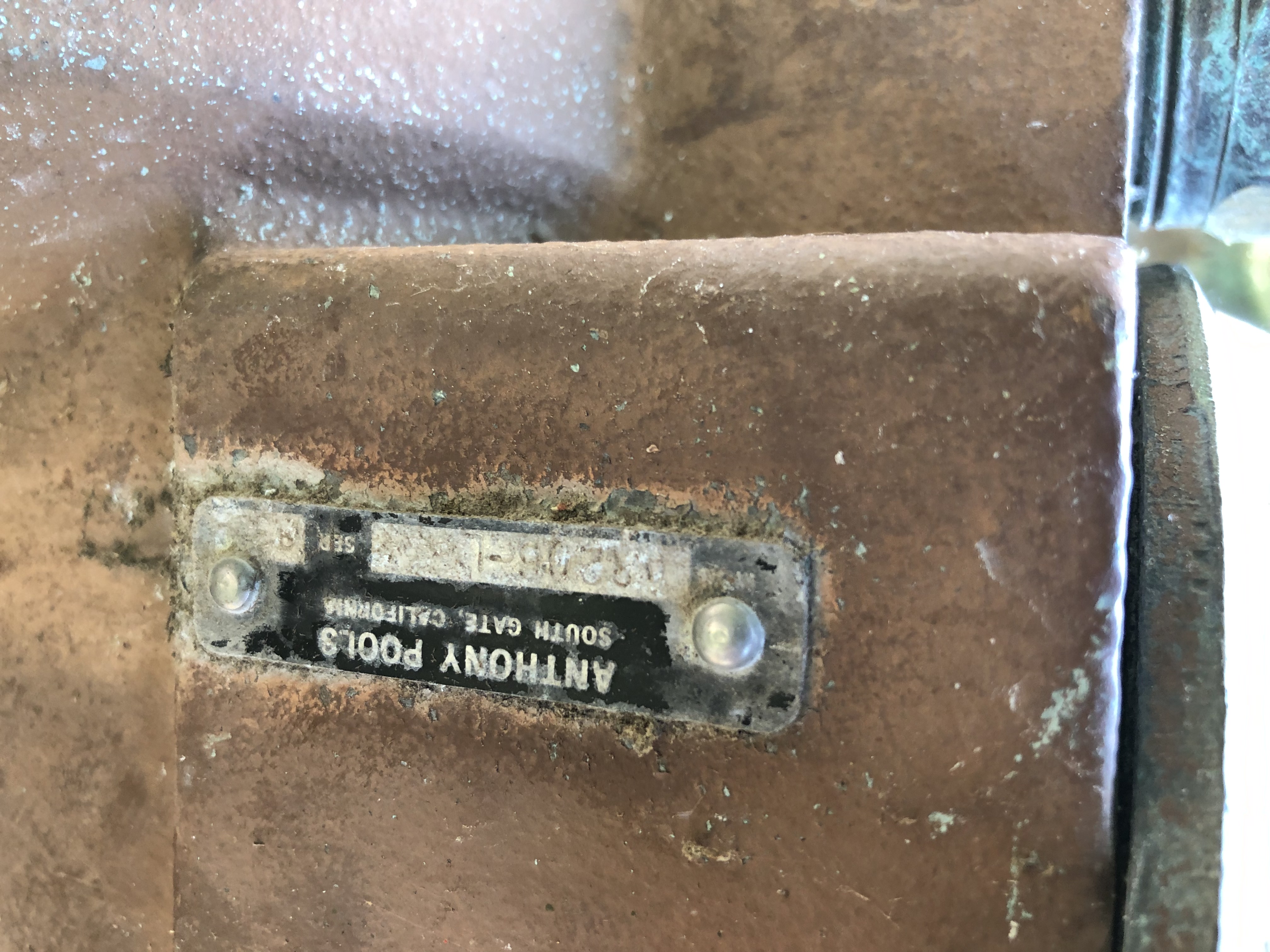

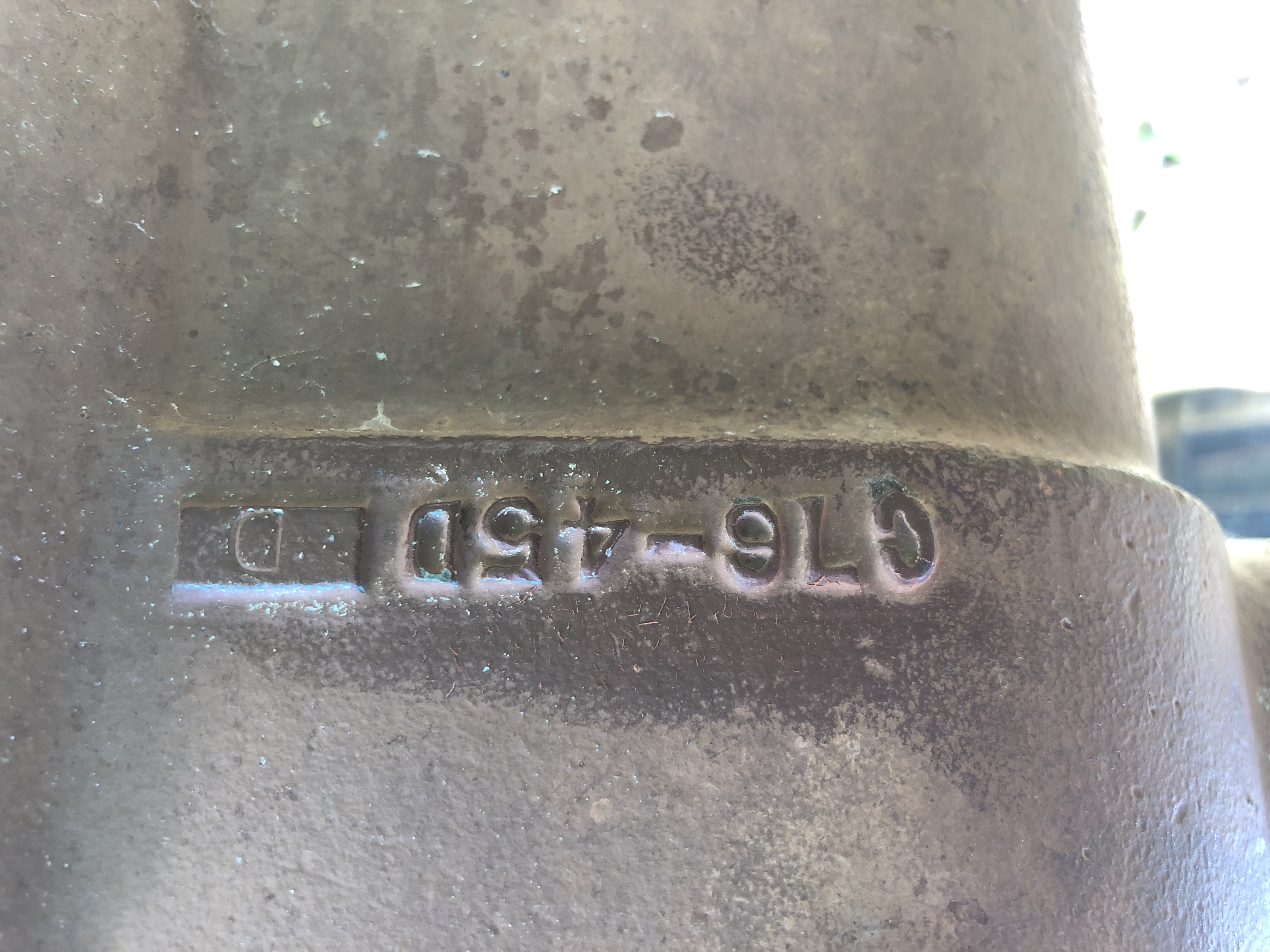

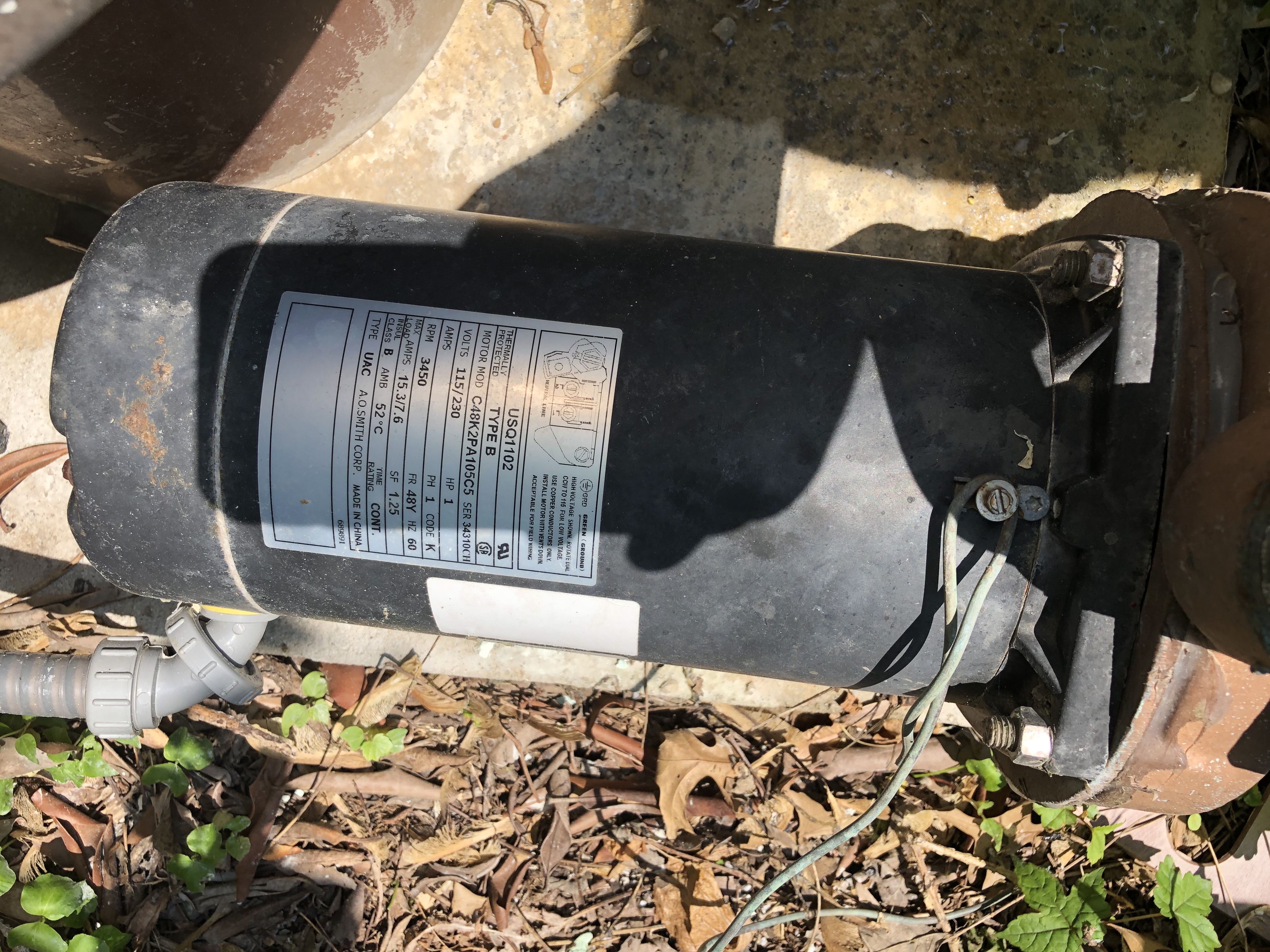

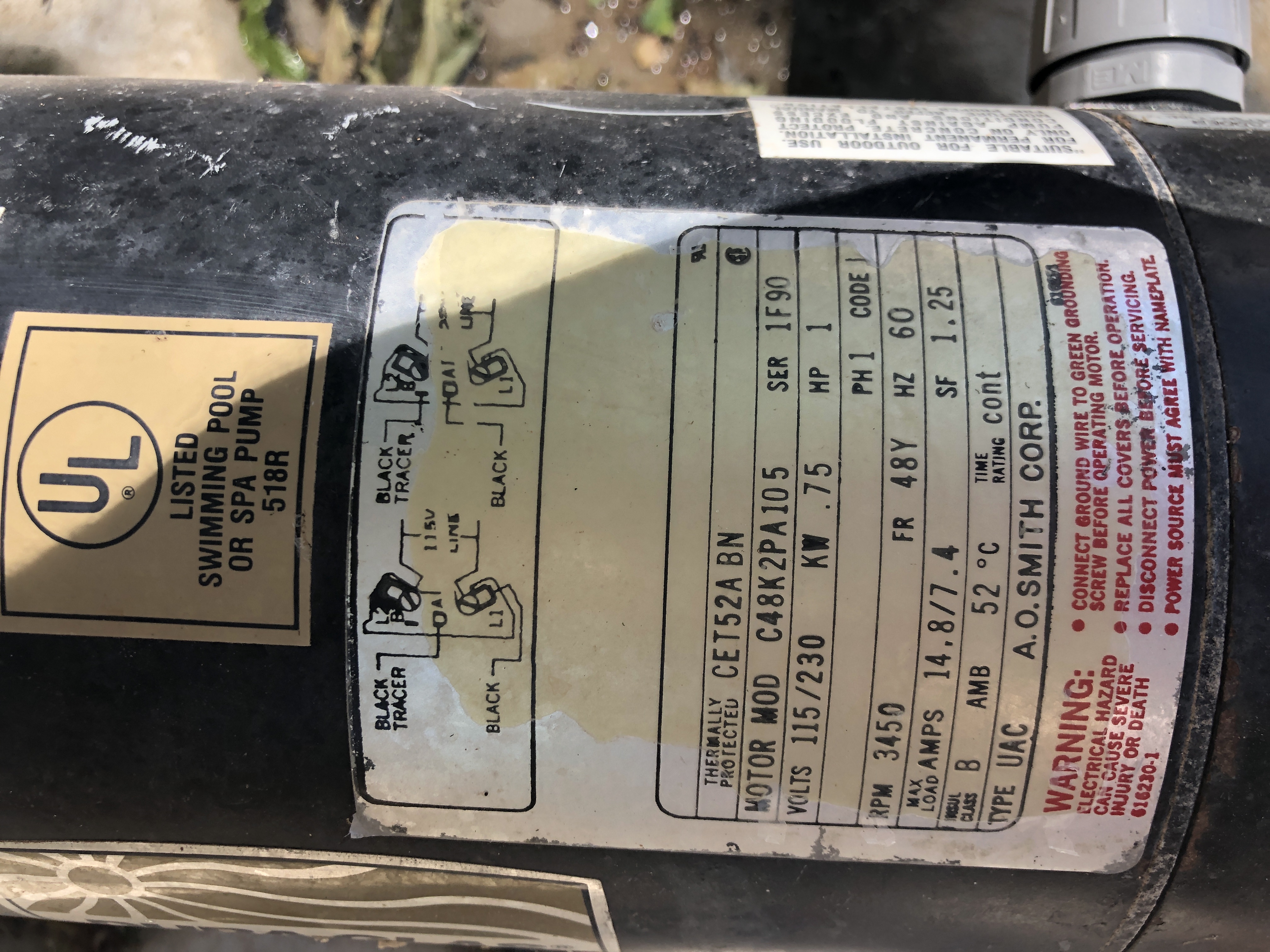

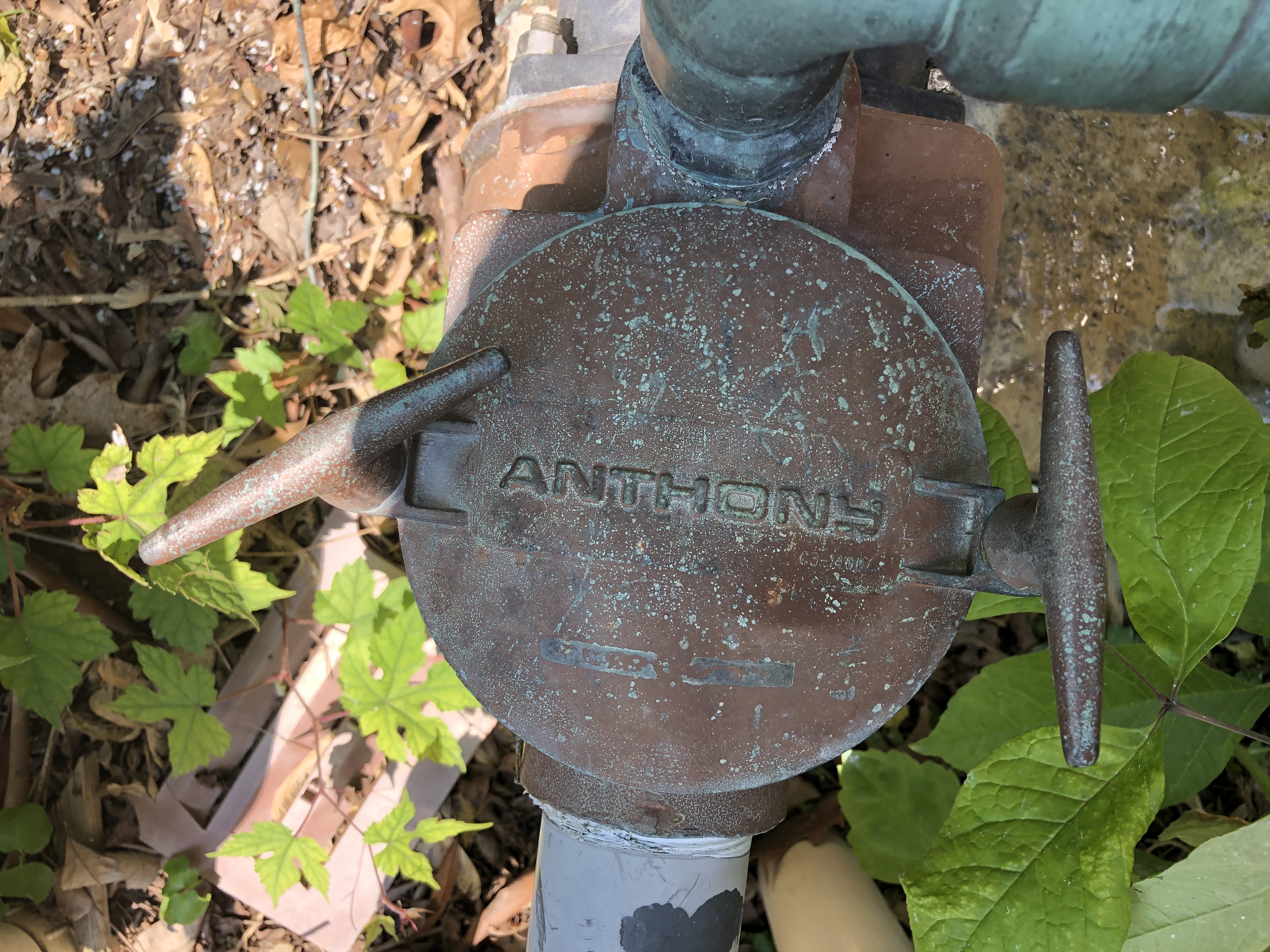

I'm looking for help. The motor for my pump has increased in volume and has become more high pitched. I think it needs to be replaced, but not sure exactly what I need.
Hi Matt, You can just replace the motor and this USQ1102 replacement motor is the correct motor for your Anthony pump. You will also need an Anthony Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Thank you, that is very helpful. Do I need a GO kit instead of the shaft seal? If so can you tell which one from the pictures provided?
Reply
Hi Matt, They do not make a Go Kit for the Anthony Pump. But you might want to consider Key #7 and #12 from the Anthony Pool Pump Parts Breakdown Page
Reply
Replacing old Sta-Rite motor, this one is same model# and specs as my current one. Do I need any additional parts/kits/fittings to replace?
Reply
Hi Beth, For the shaft seal kit we will need your Sta Rite model name. Could you give us the pump make and model information, common pump names would be Sta Rite Dura Glas, Dura Glas II, Max E Glas, Max E Glas II, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply

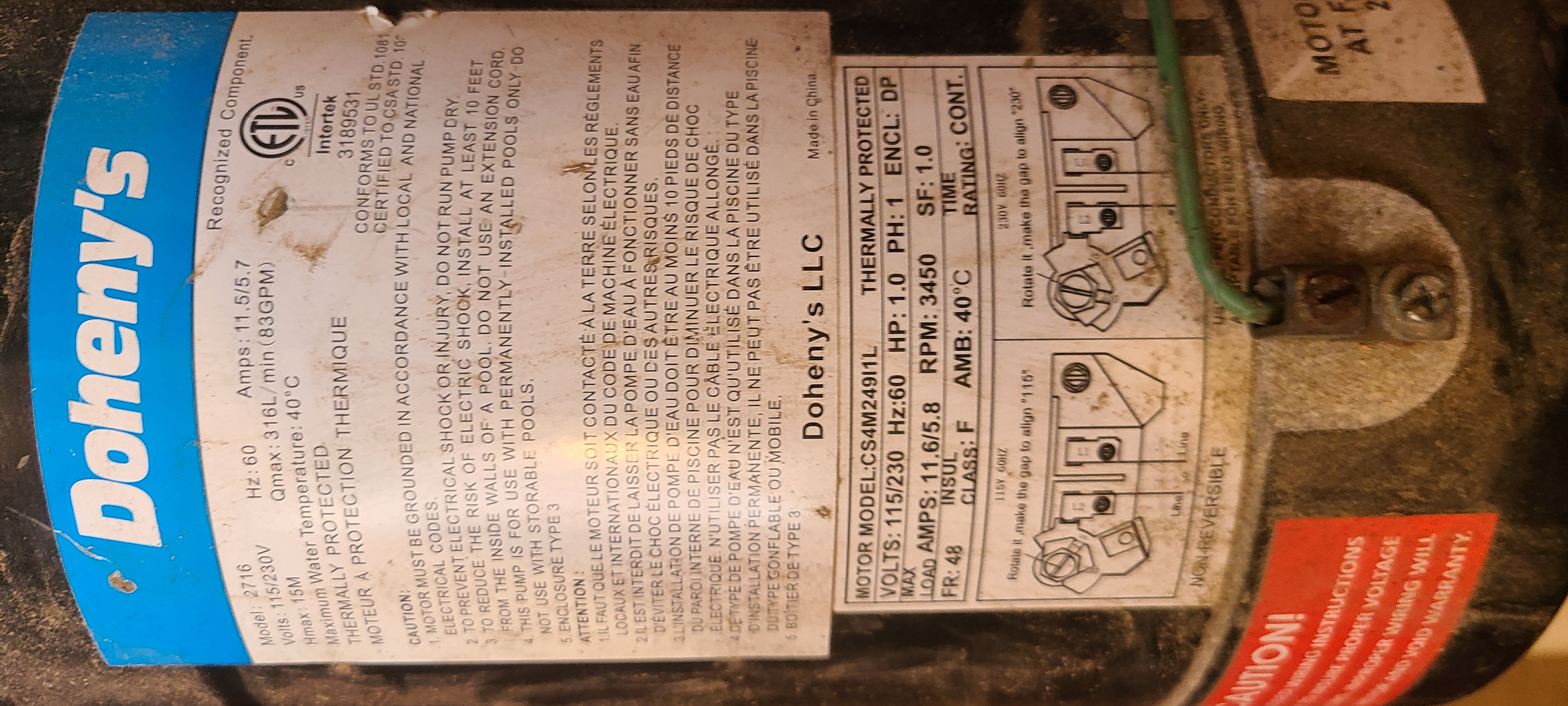

In search of a replacement motor for my hot tub picture is attached. What motor would you suggest
Hi, The USQ1102 is NOT the proper replacement for your motor in the photo, you will need this SQ1102 1 HP Full Rate Replacement Motor
Reply
Is this the correct motor replacement for my pool motor? What go-kit do I need? I have a Sta-Rite P6RA6E- 205L.
Yesterday our spa pump got really hot and quit working. Nothing happens when I turn the power on. Is this the right part for it?
Hi Charle, Yes this is the proper replacement motor for your c48k2pa105 motor shown in your photos. Based on the year your pump was manufactured You will also need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply

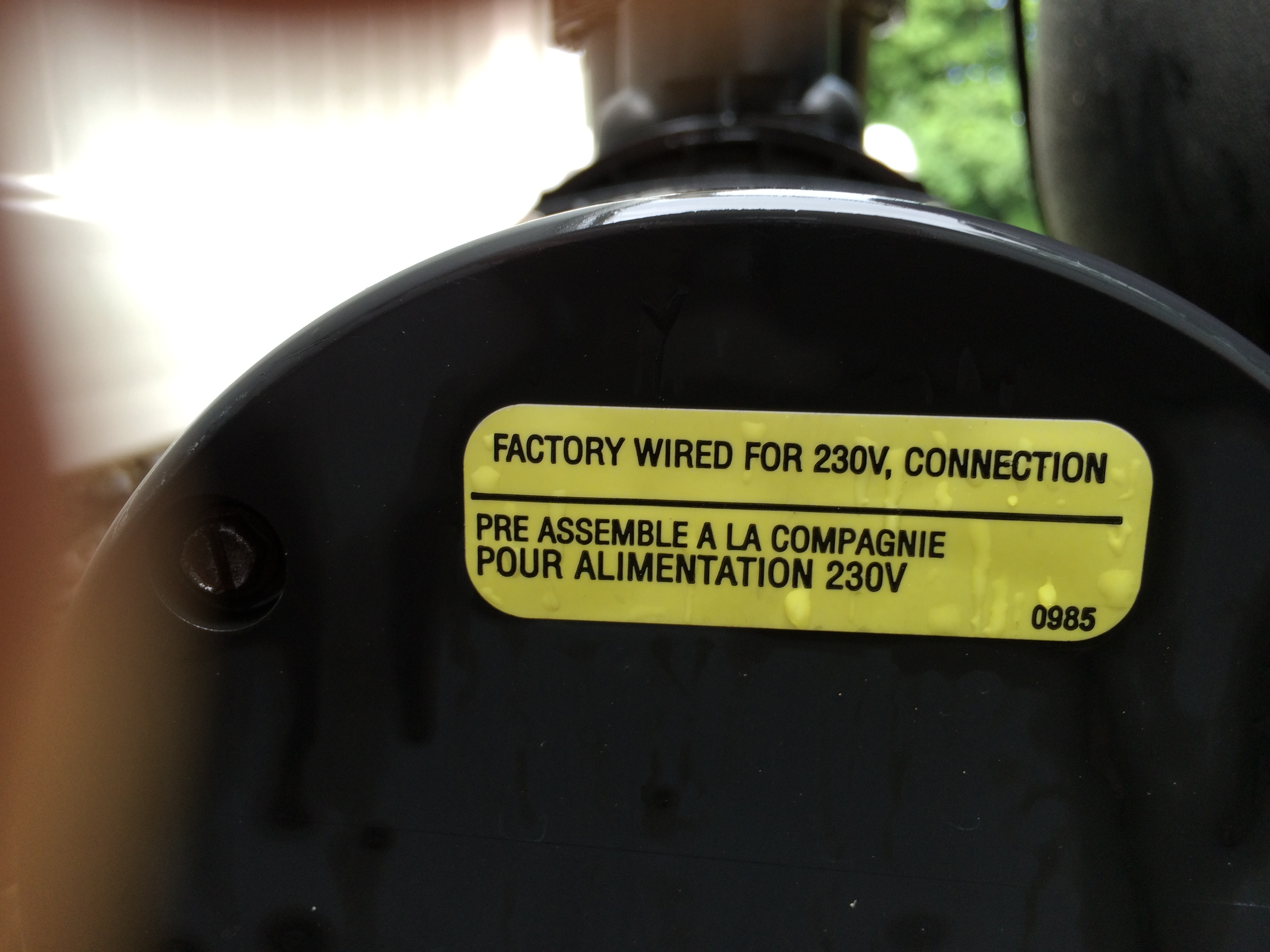

How do I change a USQ 1102 from 230 volts to 115 volts? The specs mentions rotating dial CCW to 115. Is the CCW dial located in the upper left hand corner? I see a 230 designation but I do not see a 115. Should I just turn the dial 90 degrees?
Reply
Hi, Jack. The dial that is currently set at 230 volts, you will have to turn that dial CCW to 115.
Reply
Is this the same motor that i currently have? Which gaskets do i need to replace?
Yes, the correct replacement motor for your A100ELL, 1-HP Uprated Motor is this USQ1102. Your Sta-Rite Dura-Glas uses the GOKIT54 gasket kit.
Reply

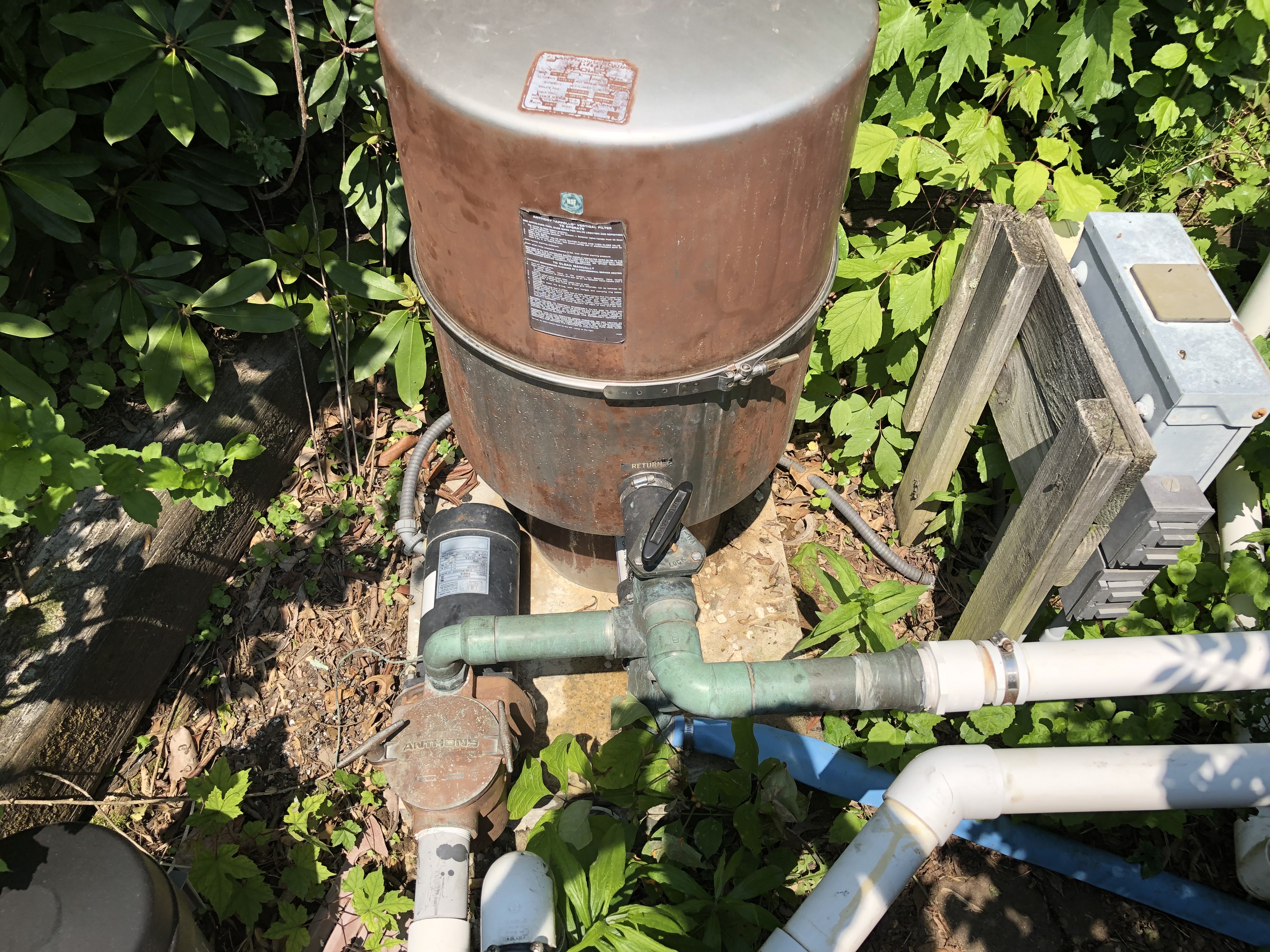

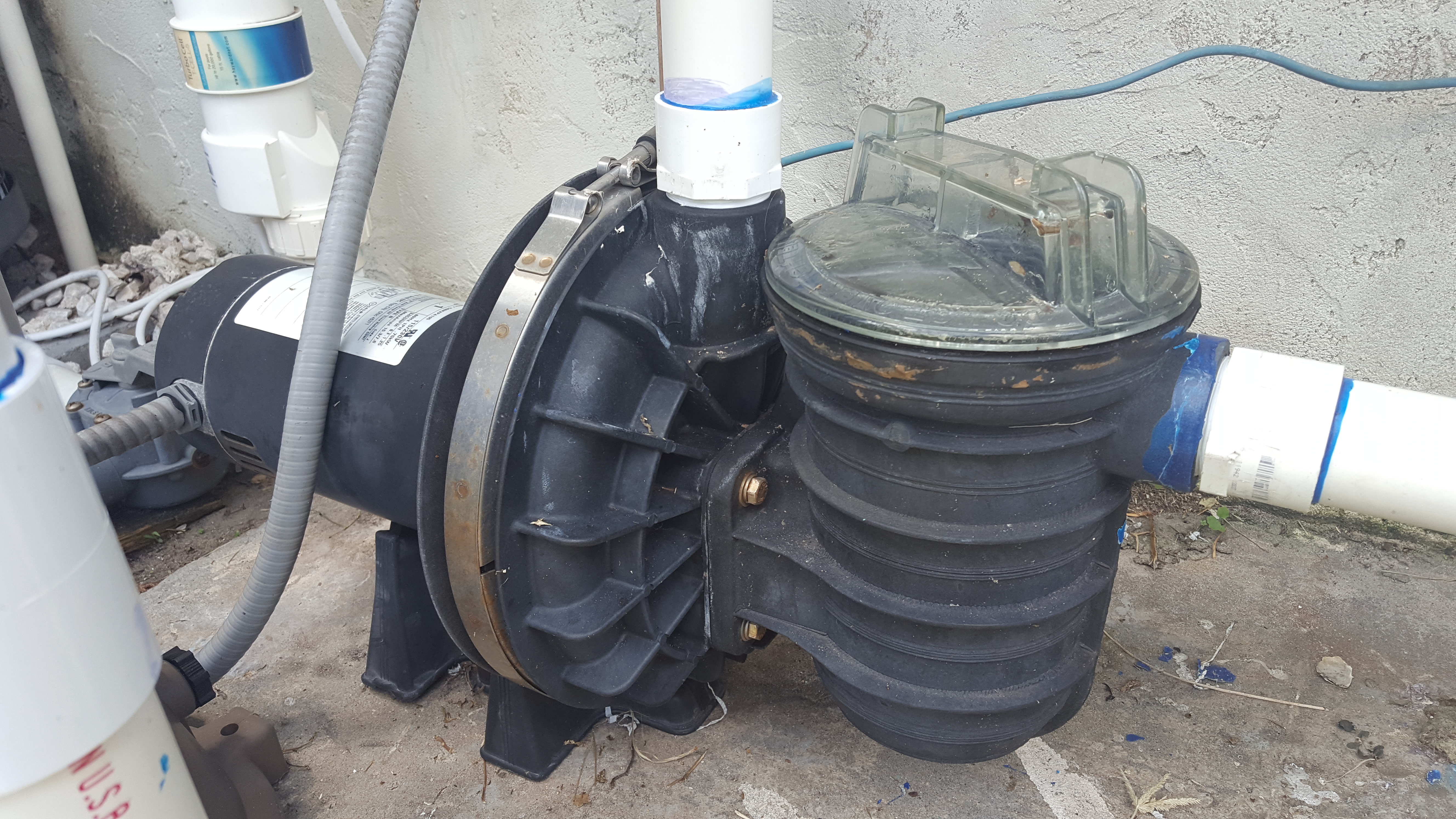

The pictured pump circulates water through a sand filter, over a 10' waterfall and into a fountain that is roughly 600 cubic ft H2O. Works, but noisey and inefficient.
1. Is this the right replacement pump for the Regal Beloit in picture?
2. Do you sell any kits I will need, in addition to a new impeller, (5 inch diameter, 2 inch intake) and or diffuser?
3. Is there another pump/impeller/kit you would reccomend.
Hello, Can you please send a side view picture of the entire pump and a picture of the motor label?
Reply
Have you looked into variable speed pumps? Pentairs Super Flo 342001 Haywards W3SP2603VSP
Reply

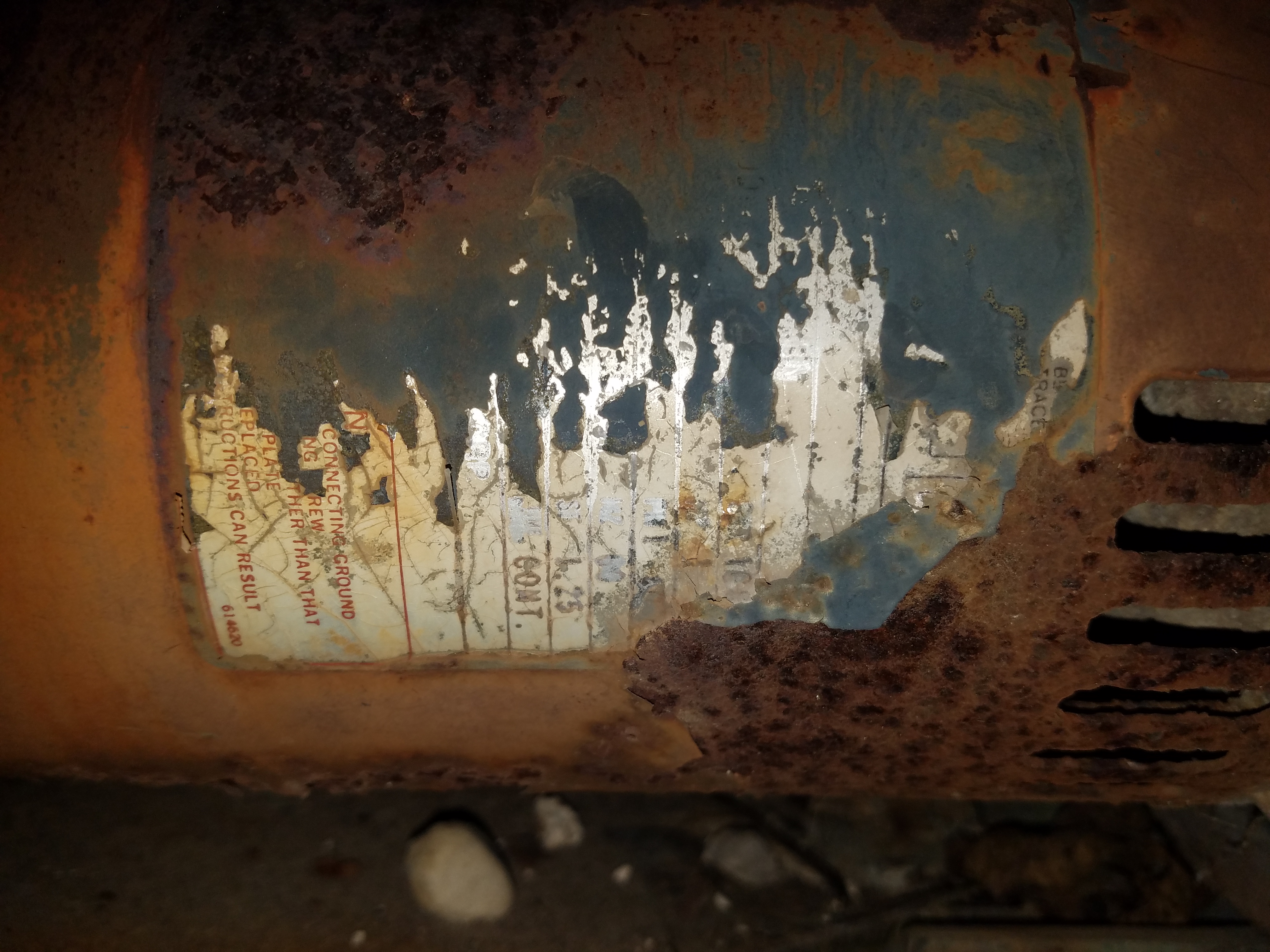

Hi. We need a motor replacement, but I can't figure out which one I need because the labels have worn off. I'm thinking it's a 1 HP motor?
Since the motor label is not readable, I would suggest to look for a part number molded on the impeller itself and to also try and locate the model number on the front pump housing that the motor bolts to as well. This way we can confirm the motor model for you.
Reply
Do you have a replacement pump motor for a A.O.Smith motor (7-187332-28) that is mounted to a Jacuzzi brand in ground pool pump, 1 HP, RPM 3450, FR 56Y, AMPS 6.2/12.4, Type CS, Insul Class B, Code G, Volts 230/115?
Hi, Thanks for your help! Just a few more questions. Do I need to buy anything else besides the replacement motor to go ahead and replace the bad motor? Is this a pretty straight forward DIY type job, meaning remove the old motor by removing the 4 mounting nut and washer hardware, and then remove the electrical cord from the old motor and install it on the new motor. Then install the new motor.
Reply
Yes, you can use the cord that you currently have and it is recommended to replace the seals and gaskets however in order to confirm if we carry those we will need the model name or number of the front plastic housing that the motor attaches to.
Reply
What is your suggested motor replacement for a Marathon Electric 1.0HP 230V 3450 RPM Frame 56Z Model #5KC38SN2510CX. This motor is original to Water Ace pump RSP10. Are the USQ1102 and USQ1152 interchangeable?
Thanks.
I have the Motor # C48J2PA105C1 1 HP 230V which motor replacement do I need
Hello, According to the model number provided. This will be the correct motor you will need. http://www.inyopools.com/Products/00200017003517.htm?Keywords=C48J2PA105C1
Reply
Just verifying if this is the correct replacement for my C48K2PA105 motor. If so which seal kit do i need?
Reply
Hi, Mark. The correct motor replacement you will need for your motor- C48K2PA105 is the A.O. Smith 1 HP Square Flange 48Y Up Rate Motor - USQ1102. To determine the proper seal kit you will need, we would need your pump model number.
Reply
The 1 hp motor you have has a different motor mod number than mine. Is mod number c48k2n143c1c compatible with yours?
Reply
I have a century use 1102, the code on it has the letter K, I see another motor use 1102 with a code H, what is the difference, all other spec seem similar, also what is the bearings needed for the 1st one I listed and seal outnumbered also? Thanks for any help
Reply
Hi, Al. The Code Letter is the NEMA code letter that specifies locked rotor kVA per HP (volts multiplied by locked rotor amps, divided by 1000 times rated HP). It is used to determine the correct size breaker needed in the electric box. Most motors use the 62032RS bearings.
Reply
I have a very hot AO Smith well water pump Mod#C48A94A06. 3/4 HP. I believe it is about to break. Do you have a replacement that would work?
Reply
I can't fully read the motor tag, this is what I think it reads. C48BY2 10505, 3450 rpm, 115/230, 15.3775 amps, Class B..... The pump label info is P2RA5E-I81L, IH04A or I804A, Please help identifying the correct replacement model. Thank You.
Reply
I have the same motor you list at the top of your page, the A.O. Smith 1 HP Square Flange 48Y Up Rate Motor - USQ1102, Please tell me the bearing numbers for it, and also the Seal number kit for it, need to replace these, have to rebuild it.... Thank Al
Reply
correct replacement for P2R A5E124 sta-rite1 hp pump
Reply
Is this the correct replacement motor for: C48K2PA105C5, SER 10514CH, USQ1102?
What else would I need to replace the motor (not the whole pump)?
Reply
Hi, John. This USQ1102 is the correct replacement. You will need to replace the pump seals. We will need to know the make and model of the pump housing.
Reply
I have a Dayton 4RJ93 Pump. Will this motor replace the current one? Current one was a C48K2PA105. Also, what seals will I need to complete the motor replacement? Thanks.
Reply
Good day, based on the information A.O. Smith 1 HP Square Flange 48Y Up Rate Motor - USQ1102 would be the correct unit. At this time we do not carry the seals for the Dayton 4RJ93 Pump.
Reply
Hello Jeremy, Realize this is an old post, but wanted to know if you ended up getting this motor and if it worked for your 4RJ93 ? Also, if so where did you find the seals? Thanks! Brian
Reply
The motor replacement is the Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 The Dayton 4RJ93 it is an aftermarket design to one of Pentair's pumps, you can use the Tune Up Kit Sta-Rite Flo Tech/AquaTools/Dyna-Glas - GOKIT44 for the seals if you have a salt pool add the Shaft Seal PS-201V, 3/4" Shaft Size (PS-201V-CMS) to sub. out the standard shaft seal in the Gokit44.
Reply
You may find How To Replace the Motor on Your Pool Pump and How To Wire A Pool Pump motor helpful.
Reply
Is this the correct replacement motor for Sta-Rite motor # C48K2PA105 and Sta-Rite Pump Model No. P6RA6E-205L? Are any other accessories recommended?
Is this the correct replacement motor for: C48K2PA104A3, SER 8F05, USQ1102? What else would I need to replace the motor? Do I replace the whole pump or do I take the impeller off?
Reply
Yes, this would be a correct single speed replacement motor, and most homeowners usually just replace the motors. You can remove the impeller.
Reply
Do I need to buy a o ring?
Reply
Hi, Jeff. We recommend replacing the pump seals when you replace the motor. To determine the correct replacement seal you will need we will need to know the pump model number located on the pump housing.
Reply
My pump model is a C48K2PA104. What is the correct o ring part number? Any other replacement parts needed?
Reply
Based on C48K2PA104 yes the Century Motors A.O. Smith 1 HP Square Flange 48Y Up Rate Motor - USQ1102 would be the correct motor. Here is a guide to help find a seal kit.
Reply
I need the cost for a switch for a c48j2db11c3 motor
Reply
Unfortunately, we do not offer the T1052 Motor or parts to the motor, please use the link https://www.regalbeloit.com/Products/Catalog?model=T1052 to contact the manufacturer.
Reply
Is this the correct motor to replace a flotec motor model #c48j2pa105c1 from a pump model # 251001-01. Also do you recommend any additional parts for installation? Seal, etc
Is this a replacement for Magnetek Century Centurion 8-164303-24
Frame M56J
1081 Pool Pump Duty Mount Horiz
I have Pentair SNE-L model 001J14E pump. Is this motor proper replacement for my pump?
Reply
Hi, Andrew. It is NOT, the SQ1102 is the correct replacement.
Reply
Thank you for your response. The SQ1102 is a replacement for C48K2P104A1 but my old motor is C48K2EG41C3. Is the SQ1102 really the replacement for my old motor?
Reply
what motor would u recommend to replace gsq1102 shaft is 7/16-20unf-2a threads
Reply
I got a USQ1102 going out.
If i was to replace it is there a more efficient motor or dual speed as a replacement for this?
Reply
I currently have this 1hp
Do you sell a compatible
1.5 HP ?
813 967 7072
Ty
Reply
In order to make sure that we can make an accurate suggestion we would need more information off of the pump housing. What is the brand and model number of the pump side?
Reply
What is the correct replacement for my Century HSQ125 C48AB45A01 motor?
Reply
Does the Serial number have to be the same ?
Is Century an A O Smith replacement ?
Reply
Hi, Mike. The serial numbers do not have to be the same. Century and A.O. Smith is the same.
Reply
Thanks. Does the motor include bearings and seals? What type of warranty? Return policy? If ordered, how soon will I receive it?
Reply
Mike, The motor is complete with bearing and seals, however, the seals and gaskets that are specific to your pump are not included. This motor has a 1 year manufacturer warranty and a 30 day return policy if in new or unused condition. You can receive the motor is 3 business days.
Reply
What’s the difference between the USQ 1102 and a QC 1102? They both will fit my pump with the square flange style. The USQ is $75 less- what am I giving up?
Reply
Good day, attached is a How-To Understand True Pump Horsepower - Up Rated vs Full Rated.
Reply
I currently have a WEG PCQ110 1 hp 48Y frame 3470 rpm 115/230. Google took me to this century pump. Is it the correct one to replace the WEG?
Reply
Hi Dennis, would it possible for you to post a few photos of your motor label and a wide shot showing your complete pump? To supply those photos simply click the reply link below.
Reply
here are photos you asked for. Motor and pump and label thanks
Hi Dennis, Thank you for the photo's those were quite helpful. Yes this USQ1102 motor is the proper replacement for the motor in the photos you supplied. We do have the USQ1102 in stock ready to ship!
Reply
Picture attached. Will this be a suitable replacement and what seal would be needed
I have a 1 HP Craftsman shallow well jet pump with a bad motor. The motor is - A. O. Smith C48K2EC11C3 - What motor do I need to buy for replacement.
Good Morning, I have a STA-RITE pool pump model # MPRA6E-205L. Is the USQ1102 the correct replacement motor? Also, where is this pump manufactured? Thank you
Reply
Hi Dino, Yes this is the proper replacement motor for your MPRA6E-205L Dyna Pro Pump. You will also need this Dyna-Pro Shaft Seal when you replace your motor. This motor is manufactured by Century (formerly A.O Smith), this is a US-based company however the motor is manufactured between there factories in China and Mexico. From my understanding, this is the case for all pool pump motor manufacturers.
Reply
I need to replace a motor for a Hayward Model K48L2N104, 1HP, 115/230 Volts, 14.6/7.3 Amps, 60 Hz. 3450 RPM. Can you suggest a compatible motor replacement?
Hi Huong, the direct single speed replacement motor for your motor model K48L2N104 is the CT1102. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
will this motor replace a hayword max flo xl sp2307x10
spx 2707z1m motor? If not do you sell a less2
expensive motor?
Reply
Hi Tom, Yes the USQ1102 will work as a replacement for the SPX2707Z1M motor, you will also need this Hayward Max Flo XL Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
We have a one horse power pump motor and we have been told that the pump must be bonded, can you tell me where the bonding lug is located on the Century 1 hp motor?
Thank you for your speedy response.
Gail Cusick
Reply
Hi, please take a look at this Video on How to Wire a Pool Pump Motor and it will show you the bonding location on the motor.
Reply
Will this work for replacement of my motor
Hi Sonya yes this is the correct replacement motor for the motor in your photo. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
These are the photos
Hi Sonya thanks for the photos. The seal kit for your pump is based on the year of the pump, you will need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Good afternoon,
Will this motor work on a well pump for lawn sprinklers operated on a timer? It's a DS2HE-191PL - Sta-Rite Self Priming Pump 1hp 1ph 115/230 Volt. Fast priming DS2 Series pump .Length 10"7/8 x Height 5"5/8 bolt pastern 5" x 5". If so what seal kit and gaskets do I need to go with this? Please email me with all the information you have.
Thank you,
Chris Clay
Hi Chris, could you send us a photo of your motor? Please take a close up shot of the motor label. Some of our pool motors can be used on irrigation pumps however that is not technically our genre. To supply photos simply click the reply link below and upload your photos or quickest provide those using our online live chat feature. Once we get those photos we can make the proper recommendation.
Reply
Will this motor replace my Hayward Model C48D31A04, 1 HP, underground pool pump motor??
Hi Charles, yes, this is the correct single speed replacement motor for the motor model C48D31A04 included in your photo. You will also need a Hayward Max Flo XL shaft seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
will this fit a goulds jrd10 1hp Pump
Reply
Hi Michael, could you send us a photo of the motor? Please take a close up shot of the motor label. To supply photos simply click the reply link below and upload your photos or quickest, use our online live chat feature. Once we get those photos we can make the proper recommendation.
Reply
I am purchasing Pool pump motor replacement for Century Motor. Model # USQ1102C48K2PA105C5. I would like to purchase a seal kit for the motor. How to do this?
Could you post a photo of the other half of the pump not shown in the photo? Simply click the reply link below to upload your photos.
Reply
See additional photos: Side view of entire pump & Square union pump to strainer. This is a pre1998 pump. Which seal kit should I order? Thank you
Thank You for the photo that was the exact photo I needed. You will need this Ultra Flo Seal Kit
Reply
i have a century 1.25 motor 1 year old. Replaced all the parts last year. Work all of last season. Work on initial startup; next day wont draw water. Nothing in lines or skimmer. No suction at impeller. Any ideas. Took apart nothing broken on inside, impeller spins; Nothing leaking on lines
Thanks For Help
Reply
Hi Thomas, there can be a few reasons why a pool pump will not prime. Here is a guide that we put together called "How To Determine Why a Pool Pump Won't Prime" that should assist.
Reply
Hello,
I'm looking for a replacement motor for my pool pump.
Will this one work?
Hi Vincent, No this is NOT the correct motor. You will need this B228SE 1 HP Motor
Reply
Thanks Patrick! I'm ordering now. I suppose I will use the extra parts from the old unit to hook it up to the basket with?
Reply
Hi, can you check to see if there is any pump model information on the black pump housing which says Hayward, Waterway, Pentair, etc..? Please supply any of this information so I can make the proper suggestions.
Reply
I'm afraid there isn't. It's just a solid black pump housing with 4 screw downs for the basket. I guess I'll just have to see how it all comes apart, and back together.
Reply
When you have it pulled a part look for any part #'s embossed in any of the parts like the impeller, lid, basket, diffuser, etc. if you find any then please post back to this thread. You might want to start off by purchasing the motor.
Reply
Patrick, I am gonna need the motor mount for my pump. The bolts that hold it on have rusted, so I'll need those as well. All I can find that have part #'s is the pump basket (SP-1600-M) or the impeller.. (SP2607-C) I attached more pictures to hopefully help..
Hi, You have a Hayward Super Pump and any of the parts you referenced can purchased this Hayward Super Pump Parts Page
Reply
I am interested in purchasing seals/gaskets for this pump. What are item numbers for all “O” rings?
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
what is the correct replacement pump for Smith Corp model #C48K2PA105C4
Reply
Hello Phil, yes your motor model C48K2PA105C4 can be replaced with this single speed motor part number USQ1102. If you need the seals and gaskets as well, just provide us with the front pump housing wet end model name or number that the motor attaches to and we can locate those seals for you as well.
Reply
Hello, is this the correct replacement for the Sta-Rite Max E Pro, the model number is K48L2PA105C3. I was told the bearings are going bad and would need to be replaced.
I need to replace my Century Model A100ELL, Motor # C4BK2PA105 do you stock that and what is your price and shipping schedule?
Reply
This is the correct single speed replacement motor for your model, it is in stock, the price is $171.99 before tax and the average delivery time is currently approximately 3-10 business days.
Reply
Need to replace a Century Centurion BB52 Pump. Can you please advise right model to go for.
Steve
See photos attached.
Hello Steve, the direct single-speed replacement motor for your B852 is actually the B2852 also known as in fact the B852. We also do recommend replacing the seals and gaskets as well however in order to locate those correct seals or seal kit for you we will need to know the front pump housing wet end model name or number that the motor attaches to.
Reply
Does the shaft have a left hand female thread on the end?
Reply
Hi Neil, shaft seals do not actually have threads on them. Here is a general guide that we put together called "How To Replace a Pool Motor Shaft Seal" that may also assist.
Reply
Does this motor come with everything needed to replace it, like sealent etc.. model # c48k2pa105?
Reply
These motors do not come with the seals and gaskets. In order to cross-reference those, you will need to know the model name or number of the front pump housing wet end that the motor attaches to.
Reply
I have a Century USQ 1102 square flange 1 hp inground pool pump that is making a high pitch noise, do you sell a motor bearing and o ring kit for my pool pump?
Thank you and stay safe
Reply
Hi Rafael, this motor takes two bearings part number 570-31. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
My pump died and need a replacement what one do I need?
Hi Melody, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Sta-Rite Duraglas / Max E Glas seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
i have USQ1102 what seal do i use? s
stra right pump
Reply
Hi Ron, For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I believe that this motor will replace the existing motor on my hayward booster pump 6060. Can you confirm? The current motor is an AO Smith #C48D62A04.
Reply
I just bought this pump from you and received it yesterday. Is this the correct pump I should be purchasing to replace my current pump which is Pump Model No: MPRA6E-147L the Motor Model is C48K2PA105 it is a 1HP
Reply
Hi Timothy, yes, this is the correct single speed replacement motor for the motor model C48K2PA105. You will also need a Sta-Rite Dyna-Glas & Dyna-Max seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
How long does shipping take
Reply
Hi Randy, in-stock motor orders on average are delivered by the third business day, not including holidays or weekends. Please see our shipping policy for further details.
Reply
can I replace my century ust1102 with a usq1102?
Reply
Like another recent inquiry, I am about to purchase a USQ1102 motor and need to know what seal to use. I have a Sta-Rite pump and the attached picture should give you what you need. Thanks in advance for your help, Brad
Oh, I also need your help to select the proper replacement seal for the pump (where the clear, screw-top cover sits).
Hi Brad, you will need the Sta-Rite Dyna Glas seal kit which has all the seals and gaskets needed.
Reply
Can you tell me the seal on this pool motor? The motor might need to be replaced, too.
Hi Danielle, the pump image is not completely clear so can you send us another few images showing the complete pool pump profile?
Reply
I put in HSQ125 and it directed me to USQ1102 I assume this is replacement motor
Reply
Hi Donald, yes the USQ1102 is a compatible single speed replacement motor for your motor model HSQ125 . It is also recommended to replace the seals when replacing a motor. In order to locate those, we will need the front pump housing wet end model name or number that the motor attaches to. You can also upload a few images of that housing in a reply here if you need.
Reply
Will this fit a standard rite pump?
Reply
Hi Jon, Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
will this fit a sta rite pump
Reply
Hi Jon, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have a USQ1102 Century 1.0HP Pool Pump Motor, it's not working right. I wish to replace it with a bigger motor and better one that lasts longer than a few years, like the Century. It must fit on my pump though. What can I use?
Reply
I need replacement motor for my 1HP whisper-flo WF-4 pump using SQ1102 motor. Can I use this instead?
Also, what kind of o-rings would I need? Attached pics.
Hi, Sam. Unfortunately, you can use the USQ1102 motor is you replace the Impeller with P/N 073127 which will reduce your water flow since it is a smaller motor. Otherwise, you will need to use the SQ1102 motor. Whichever option you choose, you will also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
Hello,
I believe this motor is the replacement for my Emerson C55CXKLS-5006, FR 48Y, 1HP, wired at 230 Volts (please see attached picture). Is there a variable speed motor that can potentially be used besides the motor listed. Also, the housing of my impeller is a P2R A5E-124L, code number ID92H (I think, please see the attached picture), so what seal kit will I need for either the motor listed or a potential variable speed motor if available). I hope this makes sense. Please advise. Thank you!
Will this motor fit Pacfab challenger med head 1 hp
Reply
The Pentair Challenger does accept a square, or 'Y,' frame motor. But the Challenger uses fullrate and uprate motors, so we would need to know the model, part, or catalog number of your motor to determine the correct match.
Reply
Motor label is faded out bar code label is J153678976 US motor, internal condenser is RD 35 -370 35.0uf
Reply
Hi George, unfortunately, that is not the motor information that we need to cross-reference. If you can either provide the motor model, part, or catalog number or you can provide the motor label image here then we can recommend the proper motor.
Reply
Is this the right motor to replace mine? 1hp square flange? Also which seal kit will I need? Thank you.
The USQ1102 is compatible with your motor but the exact replacement for your 7-F56AA37A01-04 is the Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853
Reply
what seal kit and/or O-rings will i need to buy with it? I was also told I need to purchase a copper cone. Thank you!
Reply
Good afternoon Sarah. In order to cross-reference the correct seals for your pump, we will need to know whether you have a Pac Fab Challenger CH or CF series. Since the label on that front pump housing is worn then another clue to confirm which series you have is by getting the impeller and or diffuser part numbers.
Reply
I need to order this USQ1102 pump. What seal kit will I need to go along with it for my pump system? Pics to follow. Thank you.
Hi there is this a replacement for this pump?
Hi, this is the correct replacement motor for the motor included in your photo. Based on the year your pump was manufactured You will also need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Here is the rest of the pump
Hey, was wondering if this motor is a suitable replacement for the one in my photo. Everything looks on the up and up but i see "Total HP:1.25 HP" and that has me a little cautious to buy this.
Hello Sean, based on the model number c48k2pa105 the Century Motors Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 would be the correct replacement.
Reply
We are needing a pump but can't read the numbers. It is a sta-rite dura glas found this on it 15.3/7 amps and also type B. we have a sta-rite sand filter t-240bp1 want to make sure we order the right one. thanks
Reply
Hi Mike, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
LOOKING FOR REPLACEMENT FOR PUMP STAR-RITE MOTOR 196249 1 HP 206-230/115SF HP1.25 3450 RPM S.F.1.25 MAX AMPS 6.6/13.2
THERMALLY PROCTCETED PA COCE L
INSUL.CLASS F AMB.TEMP 50 TIME
RATING CONT.
Reply
Hi George, yes this is a correct single replacement motor for your motor part number 196249 however the direct replacement is the B853. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this replace a Century QC1102 square flange 1hp motor?
Reply
No, the USQ1102 cannot replace the QC1102. The USQ is an uprated 1 HP, with a total horsepower of 1.25. The QC is a full-rated motor with a total HP of 1.65. The USQ would not be able to spin the larger impeller meant for the full-rated model. The correct replacement motor options are the QC1102 or the SQ1102; the latter is a standard efficiency motor that costs more to operate.
Reply
Hello, I'm considering purchasing a house with a pool, and have a question about the pump that's currently installed. It's a Century USQ1102. Everything appears to be operating correctly, but if I wanted to swap it out with something more energy efficient what would my options be? From looking around the site it seems like the UQC1102 and ECM16SQU might be replacements. Is that correct? Trying to find something as direct-fit as possible. Thank you!
Reply
Brian, Yes, the UQC1102 and ECM16SQU are both drop-in and more efficient replacements for your current motor. If you live in an area with certain energy restrictions, the ECM16SQU might be the way to go.
Reply
Is this motor the proper replacement for "PHK2RA6E-102L"
Thanks
Reply
The USQ1102 would work with the Sta-Rite PHK2RA6E-102L. However, the direct replacement motor is part number B2853. The B2853 would fit in the motor base without having to use a bumper to level out the motor.
Reply
Will this motor replace "PHK2RA6E-102L"
Thanks
Reply
Hi Greg, We would actually suggest this B2853 1 HP Replacement Motor. You will also need a Sta-Rite Super Max Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I intend to replace my 1 HP USQ1102 pool pump motor, as it's quite apparent the bearings on the old motor are near kaput. Calling out specific part numbers, what do you recommend I change out at the same time? Thanks.
Reply
Hello Chris. When replacing a motor it is always recommended that the shaft seal, gaskets, and o-rings be replaced at the same time. These parts are specific to the manufacturer, make/model of the pump, not the motor. Please provide this information and a recommendation can be made as to specific items. If unable to locate pump identification information, please send several pictures of the pump inclusive of the plumbing connections on the suction and pressure sides of the pump.
Reply
I have an A.O. Smith motor on a Sta-Rite Pump the motor model is c48k2pa105 do you have a replacement motor for this model, and also a matching seal kit? I just need to know what to order. Thanks!
Reply
Hi, yes this is the correct replacement motor for your motor. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I need a seal kit to use with the replacement motor. I also need the large pump seal located at the pump housing as well as well. Thank you!
Mike, Thanks for the photos! You have this Sta-Rite Dyna Glas Pump and you will need this Sta-Rite Dyna Glas Tune Up Kit which includes the large seal plate o-ring.
Reply
I intend to replace my 1 HP USQ1102 pool pump motor, as it's quite apparent the bearings on the old motor are almost shot.
Calling out specific part numbers, what do you recommend I change out at the same time? I've included photos of the Sta-Right pump..
Hello Chris. When replacing the motor it is recommended that the motor shaft seal, seal plate gasket, and O-rings be replaced. The GOKIT47 contains the necessary parts to complete this repair. Tune Up Kit Sta-Rite Dyna-Glas & Dyna-Max - GOKIT47
Reply
I have a pump motor with model # C48K2PA105 that I need to replace. I see under the additional details that the USQ1102 is an acceptable replacement, but I am also needing to purchase a seal kit for this pump. Which one do I need?
We sell our tune-up kits with the pool pump manufacturer and model. Looking at your picture it looks like you have a Hayward Super II Pump. If that is the case here is the link to the tune up kit for that pool pump...Tune Up Kit Hayward Super II - GOKIT2
Reply
I just want to make sure this is the right replacement for my WhisperFlo Model WF-24. CAT B853
The proper replacement motor for the motor that is pictured is the B853. Here is the link to that motor...Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853
Reply
Can this motor replace the sta rite p2ra5e 181
Reply
Hi Thomas, yes this is the proper replacement motor for the Sta-Rite P2RA5E-181L Dura-Glas pump. Based on the year your pump was manufactured You will also need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
need to replace my pool motor current motor mod 5KC38SN6084AX
Can I use this motor?
thank you
Reply
Hello Andre. The Century Motors Century 1.0HP Motor USQ1102 can replace motor model 5KC38SN6084AX. The USQ1102 is a 48Y frame - smaller diameter and longer length than your current motor. The Century motor B2853 has identical specifications to your current motor. It is a 56Y frame - the exact diameter and length of your current motor. Century 1.0 HP Square Flange 56Y Up Rate Motor - B2853 It is recommended that the motor shaft seal, o-rings, and gaskets be replaced at the same time. Please provide the manufacturer and model of your pool pump so that the correct parts can be identified.
Reply
I AM REPLACING A C48K2PA105 MOTOR - PURCHASING FROM YOU - AND NEED TO HAVE THE PROPER SEAL KIT INCLUDED IN THE ORDER. ALSO SHIPPING ESTIMATE.
Hi Tom, You have a Sta-Rite Dura Glas pump click this link to see the Sta-Rite Dura Glas Parts Break Down The motor on this page is the proper replacement motor for your pump. If you decide to just replace the motor then you will need this Sta-Rite Dura Glas Seal Kit Pre 1998 or this Sta-Rite Dura Glas Seal Kit 1998 and after. If you don't know if your pump is from before or after 1998 then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. For orders over $100 we have Free Shipping and delivery is 1-5 business days.
Reply
Can this motor be used to replace the motor on a pentair boost-rite LA-MS05 (1.1 HP, speed is 3450.. Pool vacuum booster pump)? Thank you!
Reply
Hello David. According to the manufacturer, the Complete Motor Assembly part number ZBR39360 is the only compatible replacement motor for the Pentair Booster Pump model LA-MS05. Complete Motor Assembly - ZBR39360
Reply
can this motor replace a Century C48K2N143C1C ?
Reply
Hello Christopher. The Century Motors 1.0 HP Up Rate Motor model UST1102 is the direct replacement for the Century Motor model C48K2N143C1C. Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 The Century Motor model USQ1102 is NOT compatible.
Reply
Replacing C48J2PA105C1 motor. Is this a correct replacement?
Thanks!
I am showing the correct replacement motor for the C48J2PA105C1 to be the SQ1052. Here is the link to that pool pump motor...Century 1/2 HP Square Flange 48Y Full Rate Motor - SQ1052
Reply
whats the replacement motor for a sta rite dura glas motor no K48L2PA105
Reply
Hi Al, You will require this QC1102 Replacement Motor.
Reply
This looks like the exact same motor I've had for 20 plus years (picture attached). It finally conked out on me and I need a new one. Does this come with a new seal that's mentioned in the video? and my pool guy recommended a 1.5 HP, what motor would be equivalent to this that is 1.5 HP instead of the 1 HP? thank you in advance
Hello Caleb. The Century Motors 1.0 HP Up Rate Motor model USQ1102 is the identical motor to your old USQ1102. The Century Motors 1.5 HP Up Rate Motor USQ1152 is the 1.5 Horsepower version. Please note: Upgrading the motor from 1.0 HP to 1.5 HP does not increase water flow unless the pump impeller is upgraded as well. Century 1.5 HP Square Flange 48Y Up Rate Motor - USQ1152 The motor shaft seal is specific to the pump manufacturer/model and not the motor. Please provide the manufacturer/model information and a recommendation can be made for the correct shaft seal.
Reply
replacing HAYWARD MY M# SP2607X10 SQUARE FRM WILL THIS FIT
Reply
Hello Phyllis. The Hayward Model number provided, SP2607x10, identifies your pool pump as a Hayward Super Pump 1.0 HP. The Hayward Super Pump SP2607x10 is manufactured with a C-face (round flange) motor. The Century Motors 1.0 HP model UST1102 is the compatible replacement. Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 It is recommended that the motor shaft seal, seal plate gasket and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the parts necessary to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3 Attached please find an exploded parts diagram for the Hayward Super Pump. Hayward Super Pump SP1600 & SP2600 Series
Reply
Looking for pool pump USQ1102 model 5006 with 1HP and 3450 RPM. Do you have a replacement?
Hello Bienvenido. The Century Motors 1.0 HP Up Rate Motor model USQ1102 is the direct replacement for your current motor. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT24 contains the parts necessary to complete this project. Tune Up Kit Pentair/Pacfab Pinnacle - GOKIT24
Reply
i am using this brand pool pump motor now. the seals are shot so i will purchase a new motor, however the id, model, hp, etc.labels are no longer visible, the only id i have is attatched to a challenger pac fab 1 hp, does that mean i need a 1 hp for my motor? thanks
Reply
Hello. The Pentair Pac Fab Challenger Pool Pump was manufactured in 2 models, CHII (High Head) and CFII (Medium Head). The difference in Challenger models is key to identifying the correct motor replacement. In the absence of this information, it is recommended to default to the Full Rate Motor 1.0 HP Motor model B2848. Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848 Attached is an exploded parts diagram for the Challenger series Pool Pump. Replacement seals and gaskets contained in the Tune Up Kits are specific to the Challenger model. The model can be identified by the cross-section view of the housing gasket: round = CHII, square = CFII. Pentair / Pac Fab Challenger CHII / CFII Series
Reply
What is fr in motor means,
Reply
Hi Leonardo, FR refers to the frame of the motor, or, more specifically, the distance from the center of the driveshaft to the center bottom of the mount, expressed in sixteenths of an inch. A 48 frame motor is 3" from the center of the driveshaft to the center bottom of the mount (48 divided by 16 = 3) and a 56 frame motor is 3-1/2" from the center of the driveshaft to the center bottom of the mount (56 divided by 16 = 3-1/2).
Reply
I need to replace my motor. I found the part number on my motor EUSQ1102 is the motor I found on site USQ1102 - 1 h.p. 48 Y the same motoer replacement. it looks like it in the info
Reply
Hi Patrick, you are correct. Those 2 motors are identical and perfectly interchangeable. Let us know what the model of the pump is that the motor attaches to so we can help you choose a new motor shaft seal or Tune-Up Kit to ensure a leak-free installation.
Reply
I am looking for a replacement pump motor for a MaxFlo XL - part number on the motor is Century C48D31A04 and manual is SPX2707Z1M / Does this model replace those parts? Thank you
Reply
Hello Jim. The Century Motors 1.0 HP Up Rate Motor model USQ1102 is the compatible replacement motor for the Century Motors motor model C48D31A04. Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. Pump Shaft Seal 5/8" O-ring O-ring Attached please find an exploded parts diagram for the Hayward MaxFlo XL Pool Pump. Hayward MaxFlo XL
Reply
I am looking for a replacement of a 01 HP motor for STA RITE MAX-E GLAS pool pump model P2RA5E-181L.
Please et me know the correct motor model that I should buy
Hi Flavio, the USQ1102 will be a perfect replacement motor. We also suggest a GOKIT54 which has all new o-rings, lubricant, and a new shaft seal for a leak-free installation.
Reply
I’m needing to replace my booster pump. It’s a century UST1102
Model # - C48K2N143C1C
Series # - 27118J2
Would this work?
Reply
Will this replace the motor in the picture? Which seal do I need for this pump?
Hello Ben. The Century Motors model USQ1102 is NOT a compatible replacement for the A. O. Smith/Sta-Rite Motor model P48L2EB7. The motor specifications do not match each other. The Century Motors 1.0 HP 3 Phase Motor model Q3102 is a direct replacement for the P48L2EB7. Q3102 Motor, 1 Hp, 3 Phase The Pump Model P4R6E3-187 is cross-referenced to the Sta-Rite Dura-Glas II 1.0 HP 3 Phase model. The GOKIT38 contains the necessary seals and gaskets to complete this project. GOKIT38 Exploded parts diagram. Sta-Rite Dura-Glas II Be sure to check motor rotation after installation. If rotation is backward, swap any 2 power connections.
Reply
I have a AO Smith motor QC1102, what motor should I order to replace it?
Hello. The Century Motors 1.0 HP Full Rate Energy Efficient (EE) Motor model QC1102 is the direct replacement for your current A. O. Smith motor model QC1102. Century 1.0 HP Square Flange 48Y Full Rate EE Motor - QC1102
Reply
Is this motor an equivalent for Sta-Rite pool pump motor. Motor mod # C48M2PA100. 230 volts, max load 12.0 amps. A. ) smith company
Reply
Hello Jack. The Century 2.0 HP Square Flange 48Y Up Rate Motor - USQ1202 is an equivalent replacement motor for the A. O. Smith Motor model C48M2PA100.
Reply
Hi, Is this compatible with C48K2PA105C5
Reply
Hello Joe. The Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 is a compatible replacement for the motor model C48K2PA105C5.
Reply
Will this century pump with square flange replace my Hayward 1hp maxflo 2 pump
Hello Richard. The Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 is a compatible motor replacement for the Hayward/Century Motor C48D31A04 on the MaxFlo II Series Pool Pump. The Bulkhead O-ring - SX220Z2 Pump Shaft Seal 5/8" - - SPX2700SA PSR-200 Valve To Filter O-ring Id 6-3/4", Od 7-1/8" (gmx600f) O-263 should be replaced concurrent with the new motor. Attached please find the Hayward MaxFlo II exploded parts diagram for reference.
Reply
Is this motor compatible to my UST 1102 Mod C48K2N143C1C !hp?
Reply
Hello Robert, the direct single speed replacement motor for your model C48K2N143C1C is the UST1102. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
Picture attached is my current pump motor, it has very loud noise, can I replace by this one? Thank you.
Hello Jin. The Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 is the direct replacement motor for the Century Motors USQ1102, C48K2PA105C5.
Reply
I need a new pool pump motor. I have a StaRite pump - not sure what model. But currently have a Century 1 hp motor, model K48L2PA101A1. Is this motor model still available?
Reply
Hello, the correct direct replacement motor for your motor model K48L2PA101A1 is the QC1102. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should help you with that.
Reply
This looks to be the direct replacement for my current pump That is working fine (QC1102), no leaks, but pretty loud, would this pump be quieter?
Reply
Hello, so your direct replacement would actually be the QC1102 and a new motor should not be loud as it seems your bearings are failing causing the noise. We also recommend replacing the seals and gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you in locating the correct kit.
Reply
I need to replace a pump motor. see attached photo. What do you suggest
Hello John. The Century 1.0 HP Square Flange 48Y Up Rate Motor - USQ1102 is a compatible replacement motor for the Pentair/Sta-Rite Max-E-Pro model P6RA6E-205L. The Tune Up Kit Sta-Rite Max-E-Pro - GOKIT79 contains the seals and gaskets required to complete the new motor installation. Attached please find the Sta-Rite Max-E-Pro Pump exploded parts diagram for reference.
Reply
Is this the correct replacement for the Hayward max-flo xl pump motor, model C48D31A04. Hp.1.0 kw .93
Reply
Hello Thomas, yes this is the correct single speed motor replacement for your motor model C48D31A04. We also recommend replacing the seals and gaskets when replacing a pool pump motor. For your Hayward Max Flo XL series pool pump those would be key numbers 7, 11, and 12 on this parts diagram.
Reply
Is USQ1102 same as esq1102
Reply
Hello, If you have the ESQ1102, you will need to replace it with the full rated SQ1102. The uprated USQ1102 is NOT the correct motor. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that we put together that should assist you with that.
Reply
what seal kit is used for a Sta Rite p6ea6f 206L pump code 035d07L. I do not know the year of manufacture.
Reply
I have a Doheny's model 2716 motor I want to replace. What motor and seal kit do I need?
Hello, the replacement motor you would want for your pump would be the Century (A.O. Smith) 1.0 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1102. We do not have a pre-assembled seal kit for your pump, but you would be able to use Pump Shaft Seal, Heavy Duty PS-1000-style for Saltwater Pools - PS-3865 as the shaft seal replacement for your pump.
Reply
I have a waterway smf-110 square flange, what pump and seal is recommended for replacement?
Reply
Hello, if you have the Waterway SMF-110 and it is a 1 HP model, you would want to replace your original motor with the Century (A.O. Smith) 1.0 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2853, and the shaft seal you would need would be the Pump Shaft Seal, Heavy Duty PS-1000-style for Saltwater Pools - PS-3865.
Reply
I have a pump whose model number starts P2RA5E and the rest of the label is damaged. Looking online -181 comes up as a valid suffix and I can see that as a possibility on the damaged part of the label. The picture looks the same too so I assuming that would be the seal kit I need to go along with the USQ1102 motor. Can you please let me know what the tune-up seal kit would be for this? Or if you need more into to track done the correct pump. Thanks.
Hello, the seal kit for your pump would be the SALTWATER Tune Up Kit Sta-Rite Dura-Glas & Max-E-Glas Pump 1998 To Present - GOKIT54SALT - GOKIT54V.
Reply
