I just bought a variable speed motor from you guys and I'm installing it on a Dura Glas pump. It's a 1.65 v-green, variable from 600 to 3450 rpm. What impeller should I be using?
Reply
Would recommend using impeller part # C105-137 PEB.
Reply
What is the flange size for the 4 mounting bolts center to center for the bolts?
Reply
Hello Ed - All 48Y and 56Y square flange inground pump motors have the same bolt pattern. The distance center to center on the bolt holes is 5".
Reply
Can this motor be installed on a 2 HP Pentair Whisperflo pump?
Reply
Yes, it can be used on a 2HP Whisperflo but you would have to change the pump impeller. The 2HP impeller is too heavy for the ECM16SQU. The impeller that you would need is Pentair part number 073128 (5074-27B).
Reply
I would like to install this motor on my square flange Pentair 3/4 HP pump. From what I can see, it will fit and I have the right impeller. Is this correct? Along with the shaft seal, is there anything else I should look at or change while I am in there?
Reply
Hello Rod - The ECM16SQU will work with your pump and impeller. Besides the shaft seal, we would recommend replacing the diffuser o-ring and housing gasket.
Reply

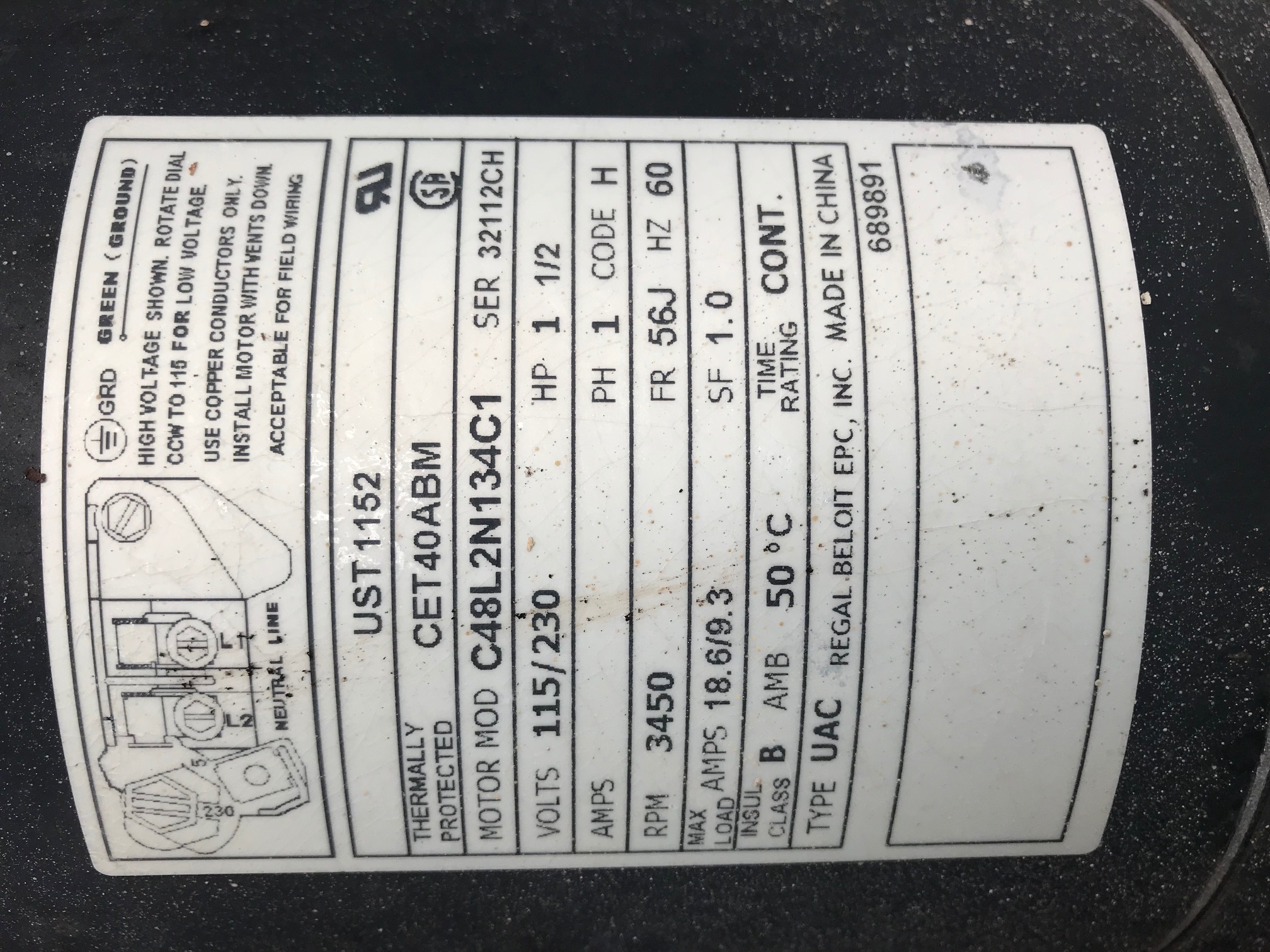

I have a Hayward Northstar with 56J Emerson motor. Pump is rated 1.5 HP, and 1.85THP. Will this motor work? If not is there another variable speed replacement motor that does work? Thanks
Reply
Will it work with Hayward equipment?
Reply
The majority of Hayward pumps (i.e. Super Pump & Super II) use a round flange motor, this would be the round flange variable speed pool motor here. If you could email us your exact specs. on your pump this would allow us to cofirm the proper motor replacement.
Reply
I have a SP2607X10 pump and a C48KN143B1 motor can I use a ECM16SQU to replace the motor and what else might ii need
Reply

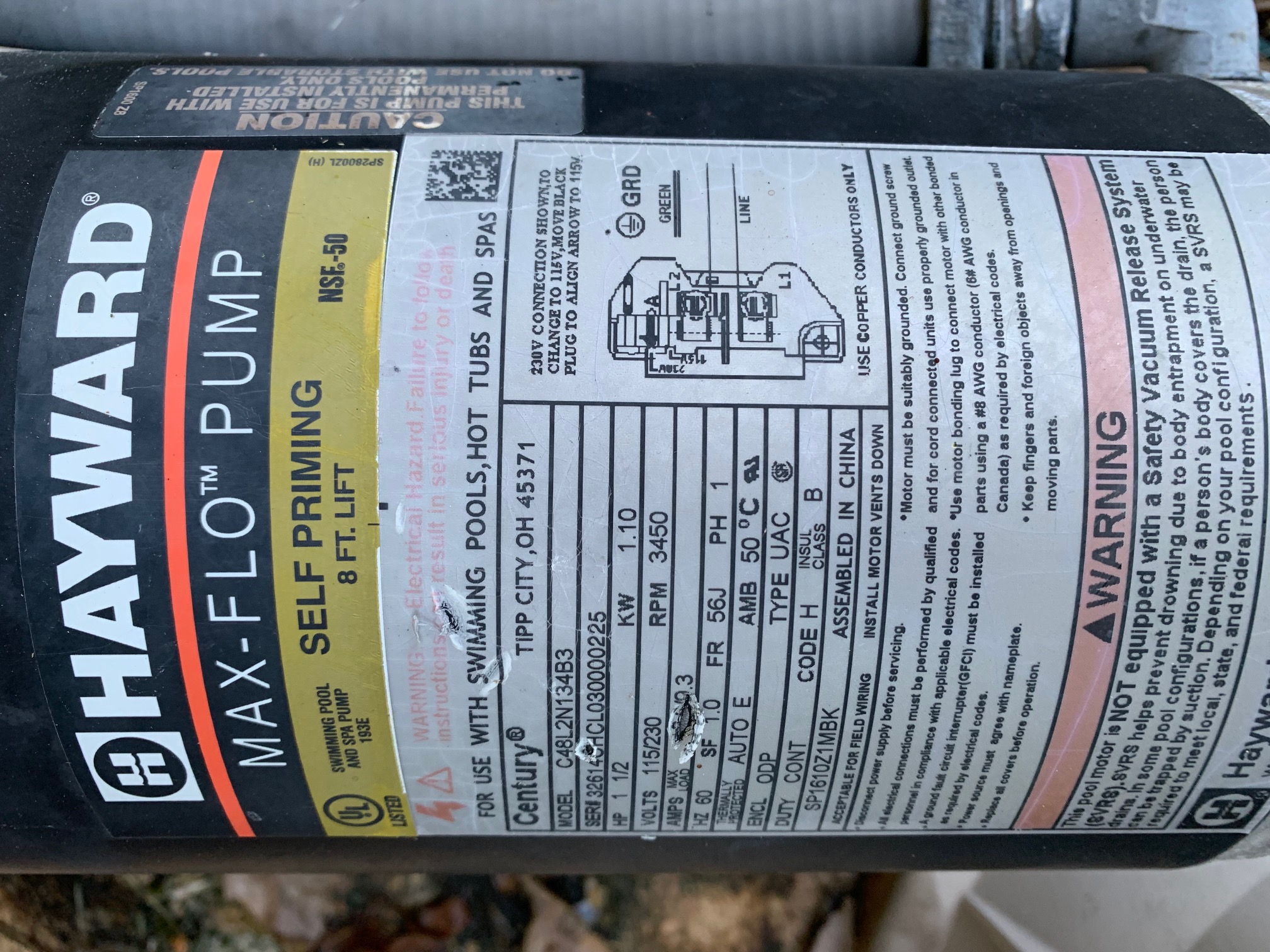

Will this motor work as a direct replacement for a Hayward Max-Flo XL 1 HP, Model C48D31A04? Thank you!
Reply
Yes this would be the correct variable speed replacement motor for the Max-Flo XL 1 HP. You may want to upgrade your impeller to the Max-Flo XL 2 HP Impeller to take advantage of the full HP of this motor. We would also suggest replacing your Max-Flo XL Shaft Seal.
Reply
I currently have a Dyna Glas single speed pump with this diffuser (c1-270pc) and this impeller (c105-236pb). Will this pump work for me?
Reply
Yes this variable speed motor would work on your 1 HP Sta-Rite Dynaglas. If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to a 1-1/2 HP Dynaglas Impeller and a 1-1/2 HP Dynaglas Diffuser. Also when replacing your motor we would suggest a Dynaglas Shaft Seal.
Reply
Would this motor fit a 1 HP WhisperFlo pump? Are there any other parts needed?
Reply
I have a Starite MPRA 6E-205L pump, and wonder if this motor would work well on this pump and would I need a different impeller? What about seals also?
Reply
Hi Kevin, Yes this would be the correct variable speed motor replacement for the Starite MPRA6E-205L Dyna Pro Pump. You would not need to replace your impeller, however you would need a Starite Dyna Pro Shaft Seal.
Reply
I am looking to upgrade to a variable speed pump for energy savings. I currently have a Pentair Whisperflo with 1 1/2 hp motor. Part # 7-177451-03. Will this pump work as an upgrade? And are there instructions to calibrate it once installed? Your help is greatly appreciated.
Jay
Reply
Yes this will fit your Whisperflo. it does some with a instruction manual on how to set timer and rpms of the motor
Reply
I have a DynaGlas 1 HP pump... Diffuser #C1-200pa and would like to get the Century vgreen 165 variable speed with square flange. Will this motor be compatible and are any upgrades needed on the impeller and diffuser?
Reply
Hi Tm, Yes you will need to upgrade your diffuser to part number 5057-09b and impeller 5057-08b do also remember it will be best to use a tune up kit GOKIT47 to rebuild this pump.
Reply
I have a pentair 1hp SuperFlo pump. Will this work as a direct motor replacement for the pump or do I need additional parts?
Reply
Hi Sean, You will need to replace your 1 HP Impeller to the 1-1/5 Hp Impeller (35-5074), Pentair Shaft Seal OEM 5/8" and the o-rings for your Superflo Pump depending on if their in good condition. You can find the replacement parts vis the Pentair Superflo Parts List.
Reply
Hello, will this motor fit the sta-rite Max-e-pro P6E6C-204L?
Reply
Yes this motor will fit your Max-e-pro P6E6C-204L pump. One thing to consider is that your pump is 1/2 HP and this motor can go up to 1.65 HP so to get the ability to use the HP above 1/2 HP you would need to upgrade your impeller and we would also suggest a tune up kit. Both of these items can be found on the Sta Rite Max E Pro Exploded Parts Diagram.
Reply
Will this fit a Sta-rite P6E6D-205L pump? Do I need to upgrade from the 3/4 hp impeller to the 1-1/2 impeller and the tune up kit?
Reply
Hi Bruce, The 1.65 HP Variable Speed Pool Pump Motor Square Flange (ECM16SQU) will fit your Sta-Rite P6E6D-205L Pump. You will also need to upgrade to the Sta-Rite Impeller (C105-238PB) and get a Sta-Rite Max-E-Pro Tune Up Kit (GOKIT79).
Reply
I have a Whisperflo pump with a Pentair @ HP motor ( square flange). Will the 1.65 variable speed motor (A.O. Smith #EMC16SQU) fit this pump without any problems?
Reply
Yes, the Whisperflo takes a square flange motor as this model ECM16SQU is as well. Please make sure that the model impeller and diffuser on your current pump model are compatible with this extra pump capacity.
Reply
What is the warranty on this motor?
Reply
The warranty for the ECM16SQU 1.65 HP Variable Speed Pool Pump Motor Square Flange is 18 months from install or 24 month from manufacture date (which ever comes 1st).
Reply
Will this work on a whiperflo with 1 horsepower motor? Also I have an in floor system. Will the variable speeds effect the return of water to the pool through the in floor jets? thanks!
Reply
Hello Bill, Yes this unit will work with the whispreflo. I do recommend if you are going to go with this motor to up grade the impeller to 5074-27C so you can get total use out of this motor. As far as the infloor and returns, these motors you can control the rpms to what works best for you. Also do not forget the GOKIT32 to replace the shaft seals and gaskets
Reply
Existing motor (Pentair 2HP) to be replaced with a AO Smith 1.65 HP variable speed motor. This will be placed on a WfE-8 Whisperflo pump. Are the exiting impeller and diffuser compatible with the new motor?? If not can you tell me the compatible parts that are needed.
Reply
Hello David, the diffuser will be fine and your impeller also will be good with out changing anything. IF you have Impeller, 2 Hp Full 2 1/2 Hp Up (073130) also remember to purchase a tune up kit. GOKIT32
Reply
Hello, is this still correct. I have WhisperFlo WFE-8 (2hp , Service Factor 1.30) and want to replace motor to V Green 165. Will this work? or what do I need to change to make it work? Thank you
Reply
Hi Duane, This is not accurate, you will need this 2.7 HP Variable Speed Motor and this Go Kit 32 Tune Up Kit.
Reply
Hello, I have a sta-rite P2RA5E-181L pump with a motor on 110 vac. will this motor fit the pump and do I need to upgrade the electric to 208 vac ?
Thanks!
Reply
Terry, The ECM16SQU will fit even though it is a 56Y frame. You will need to upgrade to 230V in order to install the motor.
Reply
the ecm16squ will function correctly without the motor interface yes or no please regards bill
Reply
Hi Bill, The ECM16SQU will work without the V-Green 270 User Interface.
Reply
please supply cheapest international freight cost to brisbane qld australia if freight is acceptable will purchase kind regards william mack
Reply
Hi Will. The shipping cost for this motor to Brisbane (let's assume it's Zip Code 4000) would be approximately $250. Please be advised that the charges do not include duties, fees or taxes. You would be obligated to pay these fees at the time of delivery. Thank you.
Reply
I had to turn the motor off to clean my filter and I'm not sure how to reprogram my ECM 16 SQ you flange pool motor. Could you please assist me?
Reply
Hi Angela, You can find the programming instructions in the V-Green 165 Motor Owners Manual.
Reply
Will this motor replace a Marathon 5SME29DFT001 1 hp pool/spa pump motor?
Reply
Hi Tim, The A.O. Smith 1.65 HP Variable Speed Square Flange Pool Pump Motor (ECM16SQU) can replace the Marathon 5SME29DFT001 motor.
Reply
After installation, did you notice a decrease in your electric bill?
Reply
Hello Jeff - This motor has the ability to decrease your electric consumption by up to 80%. Running it on the lower speeds dramatically decreases the amp draw and that's where you will see the savings.
Reply
What is the diameter of the square face V-165 motor? (The 5-5/8" skinny motor or the 6-1/2" fat motor)? My Sta rite pump uses the 5-5/8" diameter motor so I want to be sure it will fit the base. Thanks
Reply
Hi, Bill. Swimming Pool Motors are usually classified under 56-frame (wider diameter) or 48-frame (slimmer diameter). The 1.65 HP Variable Speed Pool Pump Motor Square Flange ECM16SQU is a 48-frame motor. Please refer to your motor label to check your frame size. If you would like to email us a photo of your motor label to assist in verification. Please click here to contact us or use link https://secure.inyopools.com/Support/SupportRequest.aspx
Reply
I have a Whisperflo 3/4 hp and I want to change to your 1.65 hp Variable speed pump. I keep seeing that I need to change the impeller which makes sense to move water, but I also need to change the diffusor? Please provide part numbers.
I clean pools for a living and many of my customers have Variable speed pumps and tell me they save a lot of money with them. This makes sense to just keep my wet end and replace motor which I can do. Much more cost effective to do it this way. Thanks
Reply
Dan, How are you? Thank you for emailing Inyo Pools. Can you send over some pictures of your wet end? If you would like to email us a photo of your pump to assist in verification. Please click here to contact us or use link https://secure.inyopools.com/Support/SupportRequest.aspx
Reply
As a follow up to my earlier question, if we install a solar system on a second story roof (9, 4x8 panels - total 288sf), would this pump (or any other vsp) be a waste of money? Specifically, if it ran at slower speeds to save energy, are those slower speeds (lower HP) enough to transport the pool water through all those collectors way up on the second story roof? Or is better to stick with a standard single speed pump motor?
Reply
Hi, John. It is best recommended to use at least a 2.0HP pump to supply sufficient amount of flow to the panels. When sizing a pump that is 2.0HP or greater it is required to have 2" or larger PVC. If you are thinking of converting to Variable Speed Pump I would suggest reviewing other options. When operating Solar Panels, you would set the equipment to operate at the higher speed. When the Solar Panels are not in use you can program the pump to operate at lower speeds. Operating Solar Panel with Variable Speed equipment is best used with an Automation System. Click here to view the Hayward EcoStar Variable Speed Pump. Click here to view the IntelliFlo Variable Speed Pump.
Reply
I have a Sta-Rite Max-E-Glass II -P4E6E, with A.O.Smith 1 hp (SF: 1.65) 230V-single speed 3450 motor model K48L2PA105; FR: 48Y
Would this be the right replacement for my P4E6E /pump motor setup?
What else do I need to integrate it with my old Aqualink RS6 (to old to flash memory) ... Thanks for your help.
Reply
Hi, The ECM16SQU Variable Speed motor will be the correct replacement. I would also recommend getting the Max-E-Glas II / DuraGlas II Tune Up Kit (GOKIT38). You would net need anything else. This motor will not be able to be fully controlled by the Aqualink controller. You would have to wire it to your controller, set the On/OFF time and then set the duration and RPM that you would want the motor to operate.
Reply
Will this motor fit my Dura Glass ll P4RA6F pump which is 48Y Square Flange ?
By my understanding the difference between the 48Y and 56Y is just 1" in diameter of the motor.
Can you give me your thoughts on this ?
Thank you
Reply

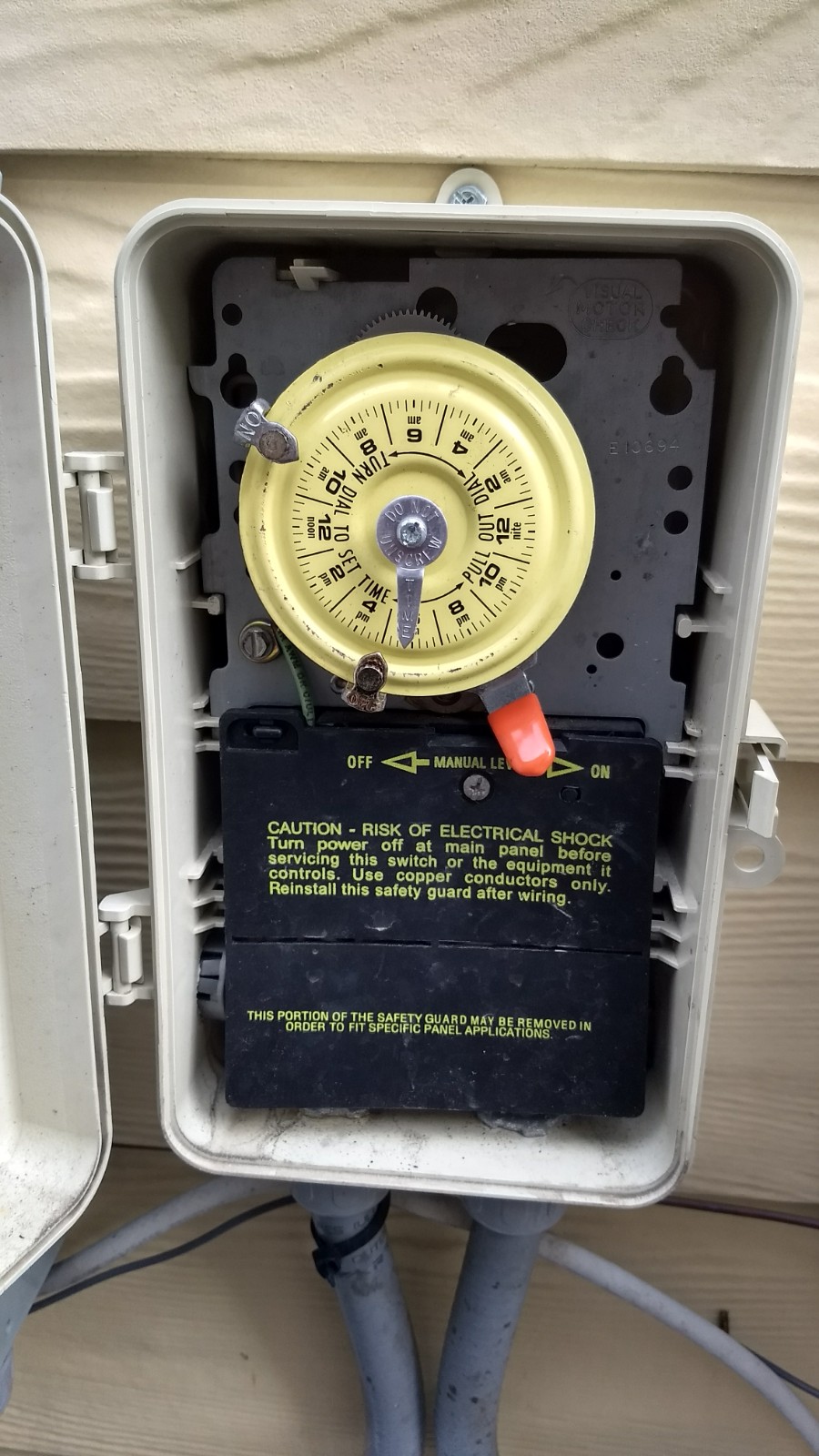

How do you set the clock in the timer, say start the first step at 0900?
Reply
Hello Larry, The V-Green 165 Motor Owners Manual has detailed information on how to program your motor timer with step by step instruction.
Reply

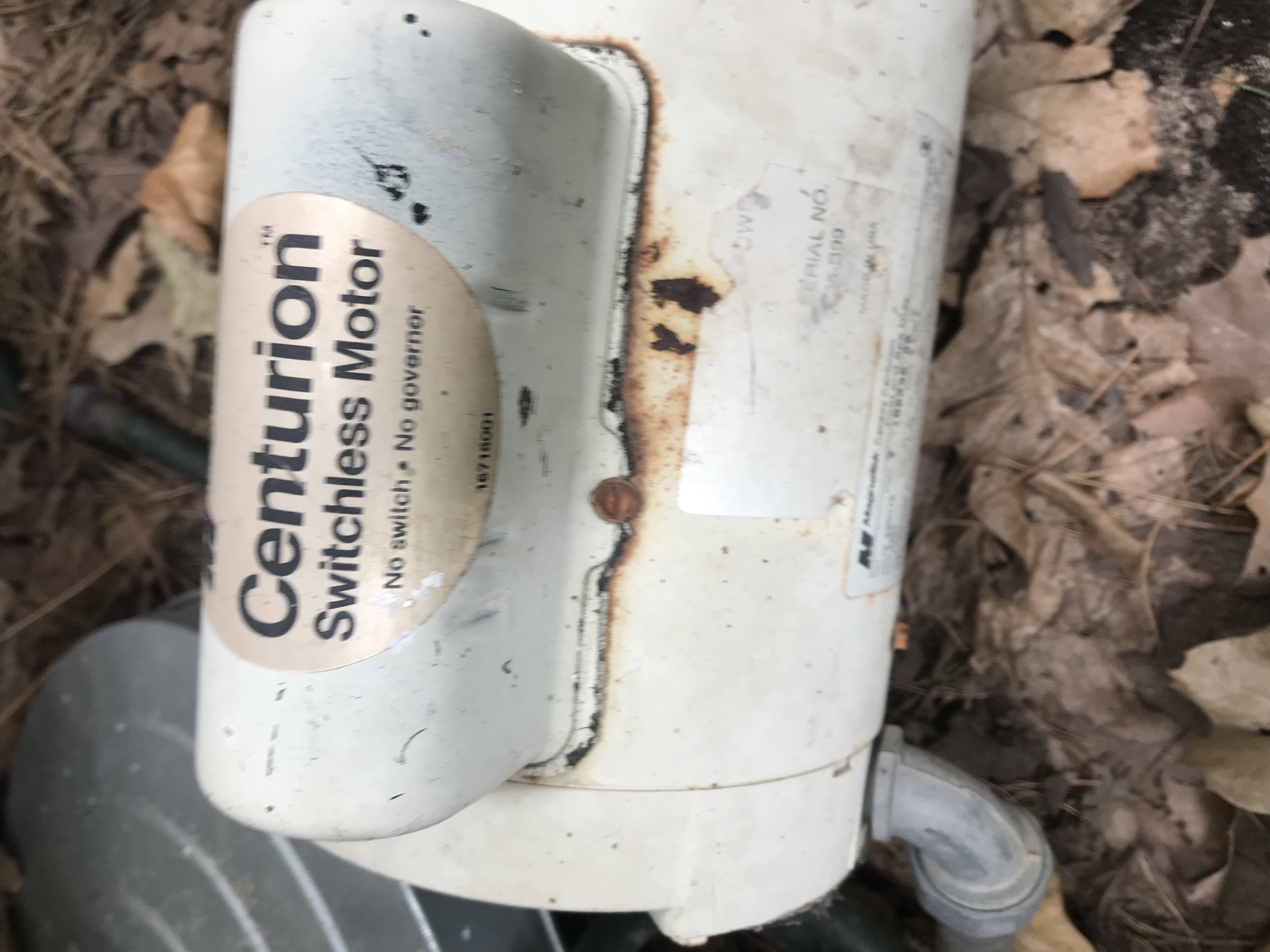

I have an AO Smith/Century B852 single speed motor (MHPM 0.75). I plan to upgrade to the V-Green 165. Would I need to upgrade the impeller and, if so, what is the part number? Are there any other parts I should include in my order? Thanks.
Reply
Hi Ray, You will need to change the impeller to the R0449503, I would recommend getting the Backplate O-ring (R0446300), and or Lid O-ring (R0449100).
Reply
Is this motor ENERGY STAR® certified variable-speed for pool pump applications? I'm trying to see if it qualifies for my Duke Energy $300 rebate.
Reply
Hi Paul, Unfortunately, replacement motors are not eligible for the Duke Energy rebate, only Variable Speed Pool Pumps.
Reply
Hello,
I have a Magnetek single speed 1HP motor that I want to replace with an energy efficient variable or dual speed motor. What would be recommended based on the motor I am removing. (Magnetek Cat B841 / Part 8 - 165199 -06 type -cx Volts 208-230/115 amps SF 7.8 -7.4/14.8 - 1081 Pool pump duty mount horiz with vent holes down).
Thank you,
Reply
Can I use this motor to replace the single speed motor I have. It is a StaRite Pump P6EA6F-206L which has a 1.5 HP Motor Model number K48L2PA105?
Thanks,
dick
Reply
Hi Richard yes this variable speed motor is the proper motor to replace a K48L2PA105 motor being used on a Sta Rite P6EA6F-206L pump.
Reply

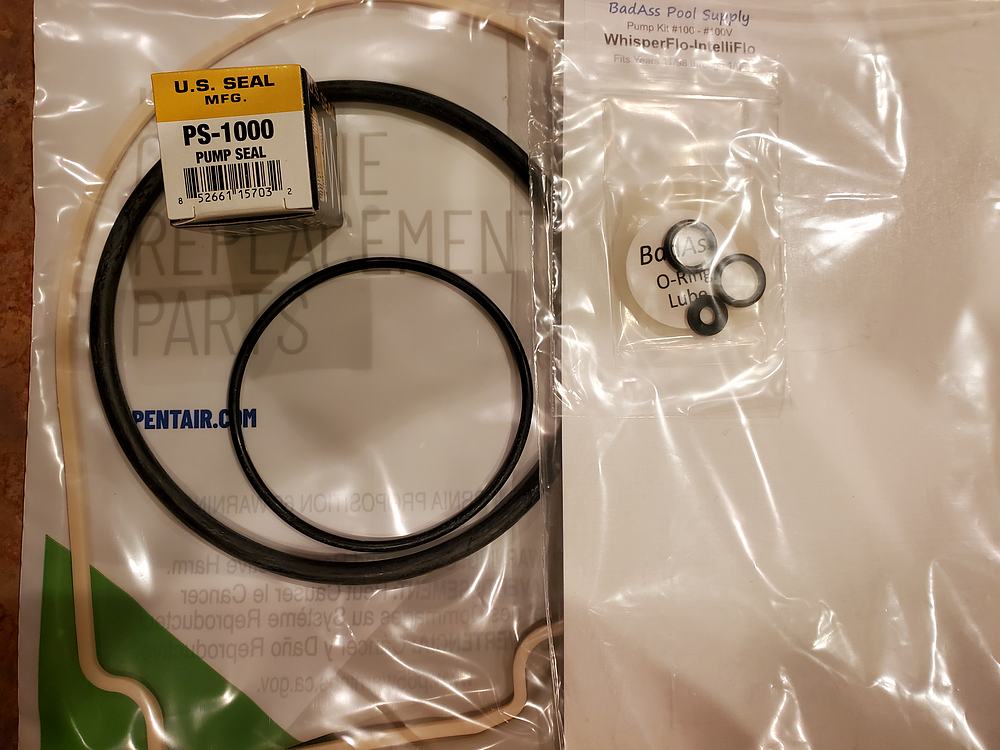

Just called to ask about getting a seal kit for this motor and my P6EA6F-206L pump. Perhaps I didn't hear right but I thought I was told I need a GoKit 709. Is it the GoKit 79? Want to be sure I order the right thing.
Reply
You will need the GOKIT79.
Reply
Would this motor be a sufficient replacement for the A O Smith USQ1102, HP-1, Hz-60, FR-48Y, Amps-15.3/7.6, Volts- 115/230, Type - UAC, Class-B,AMB-52 C, Thermal Protected Type B, Serial- 15009FM, Model - C48K2PA105C5?
If so, what can you tell me what else I will need to replace while purchasing and installing a new motor?
Reply
Hi Traci, Yes this motor would be sufficient as a replacement for your USQ1102 motor. You would also need a Seal Kit but would need to know the make and model of your pump to select the proper kit. Common model names would be Sta-Rite Dura-Glas, Max-E-Glas, Dura-Glas II, Max-E-Glas II, Whisperflow, etc.. Feel free to email us back with your pump information this should be located on the side of the pump housing near the strainer basket.
Reply
I have several questions regarding this motor.
1. I have a Pentair WhisperFlow 7-177475-20 56Y 1.5HP, 1.1SF single speed motor. I would like to buy a multi speed motor. Can V-green 165 fit it? Do I need to change impeller or diffuser? If I do, please let me know the part numbers.
2. I would like to see a Amps vs RMP chart of this motor. But I checked online and could not find this type of chart.
3. Is this motor a magnet-driven motor like Pentair Itelliflo or just a direct driven motor?
Reply
Hi Bin, The ECM16SQU VS Motor will replace the 7-177475-20 motor. If your impeller and diffuser are in good condition you can reuse them. If not then you will need the following parts: Impeller - 073128, Diffuser - 072927, GOKIT32 and or GOKIT32SALT. We do not have the RPM vs RMP data on this motor. This motor does have the same permanent magnet design like the Pentair Intelliflo pump.
Reply
I have a Pentair Wisper Flow #011514 with a 1-1/2 h.p motor and 1.47 will this motor bolt up and be ready to go
Reply
Hi Bill, You will need the ECM27SQU motor instead if the ECM16SQU. I would also recommend that you get the Pentair/Purex Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
Reply
I am interested in purchasing this motor and I need the pump and impeller (full housing) that would work with this motor. Can you give me a couple of different part #s that will work? Why is the motor only rated 208-230 v? Most households have 240V via two 120V lines that feed the house.
Reply
Hi John, It would less costly if you purchase an entire VS pump versus buying the motor and pump parts. If you do nit have 220 volt power you will have to upgrade your electrical to 220 volts. The EasyFit PNT 1.65HP Variable Speed Pump, or Raypak Variable Speed Pool Pump are good options.
Reply
Will this unit fit a Hayward model # C48k2N143B3 pool pump?
Reply
Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.
Reply

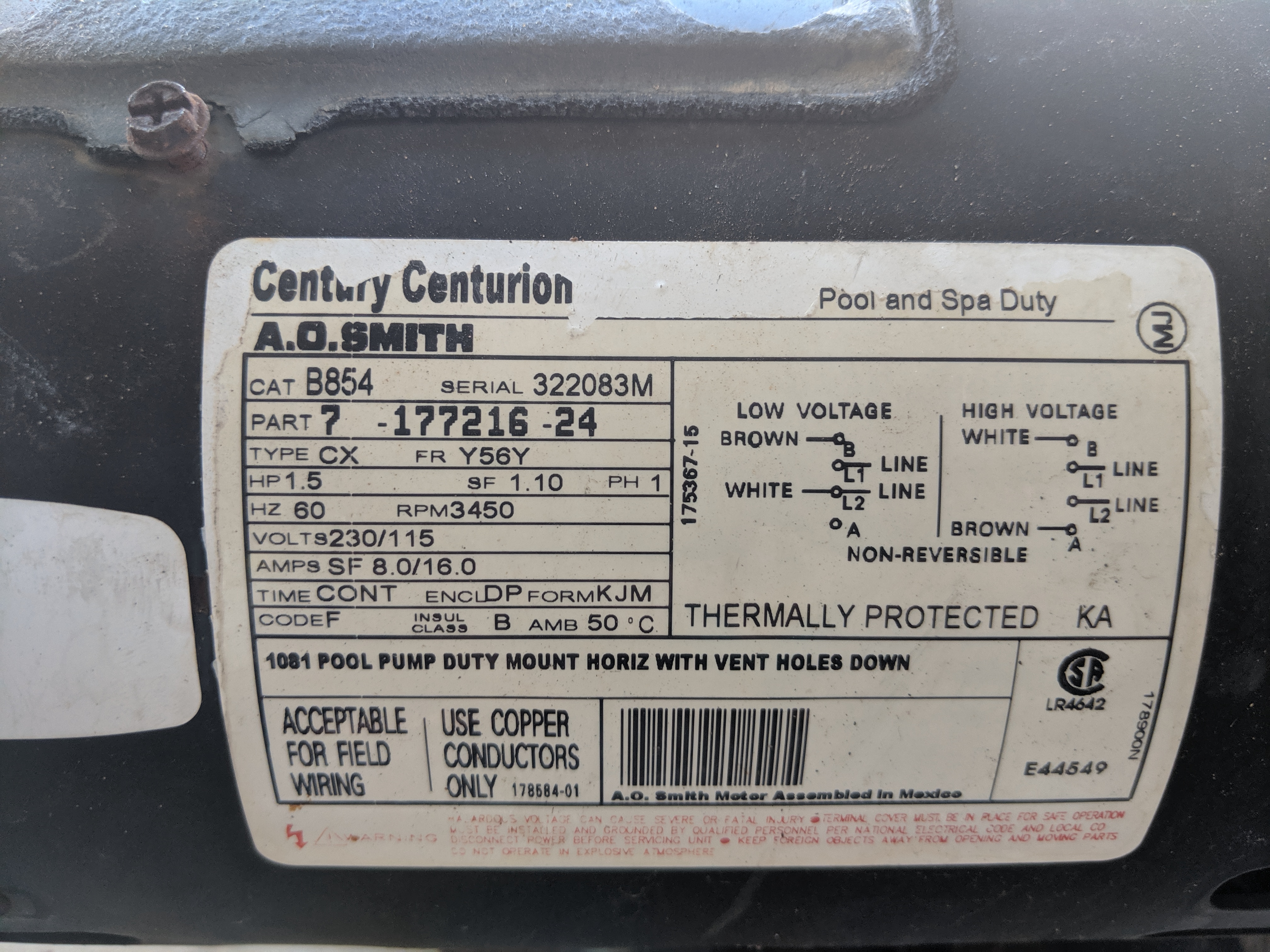

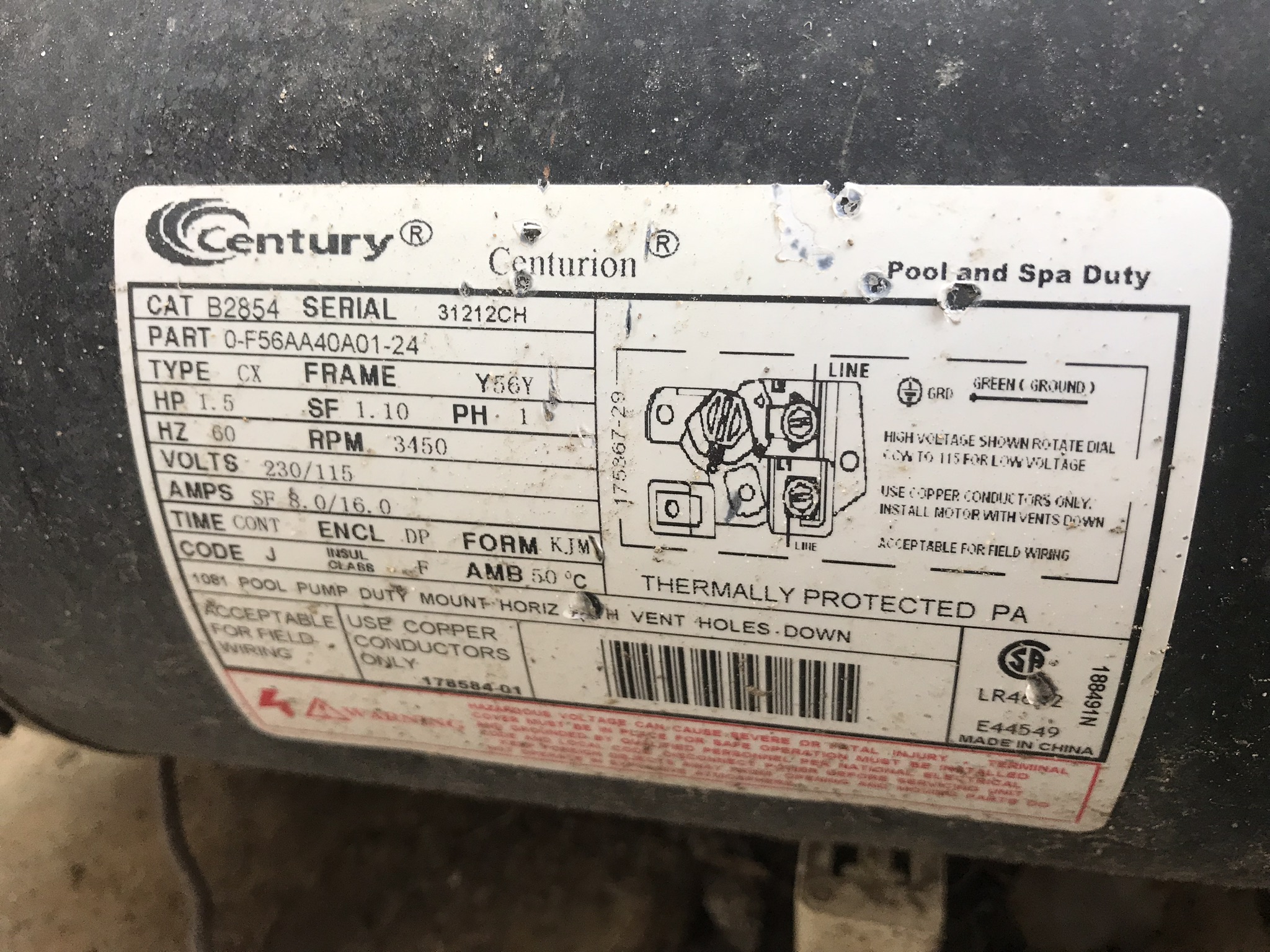

My parents need a pump motor replacement. They currently have a Centurion 7177216-24 connected to a Waterway Mustang 56 frame. I know the replacement motor is a B2854. They are interested in going with a variable speed motor. Could the ECM16SQU be bolted directly to the Waterway frame?
Reply
Hi Paul, This ECM16SQU motor will replace the B854 motor and connect to the Waterway Mustang 56. You will need to replace the Pump Shaft Seal-PSR1000.
Reply
I need to replace my motor and pump parts. Here is what I have Max-E-Glass II Series P4EA6F-187L with a Century USQ1152 motor running in 230 mode. I need to replace both and would like to switch to a variable pump for the obvious savings. The is an inground pool with salt water and 1 1/5" lines. Can you please give me the right pump/motor combination to replace? Thanks.
Reply
Hi Thomas, The Speck EasyFit MXG 1.65HP Variable Speed Pump is the closet replacement available, you will have minor plumbing to redo.
Reply

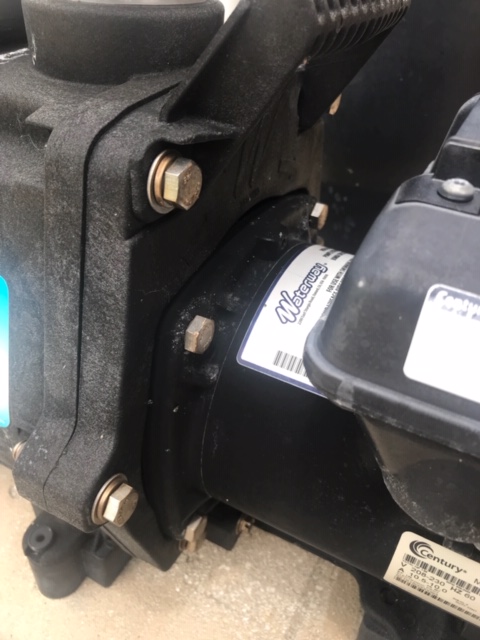

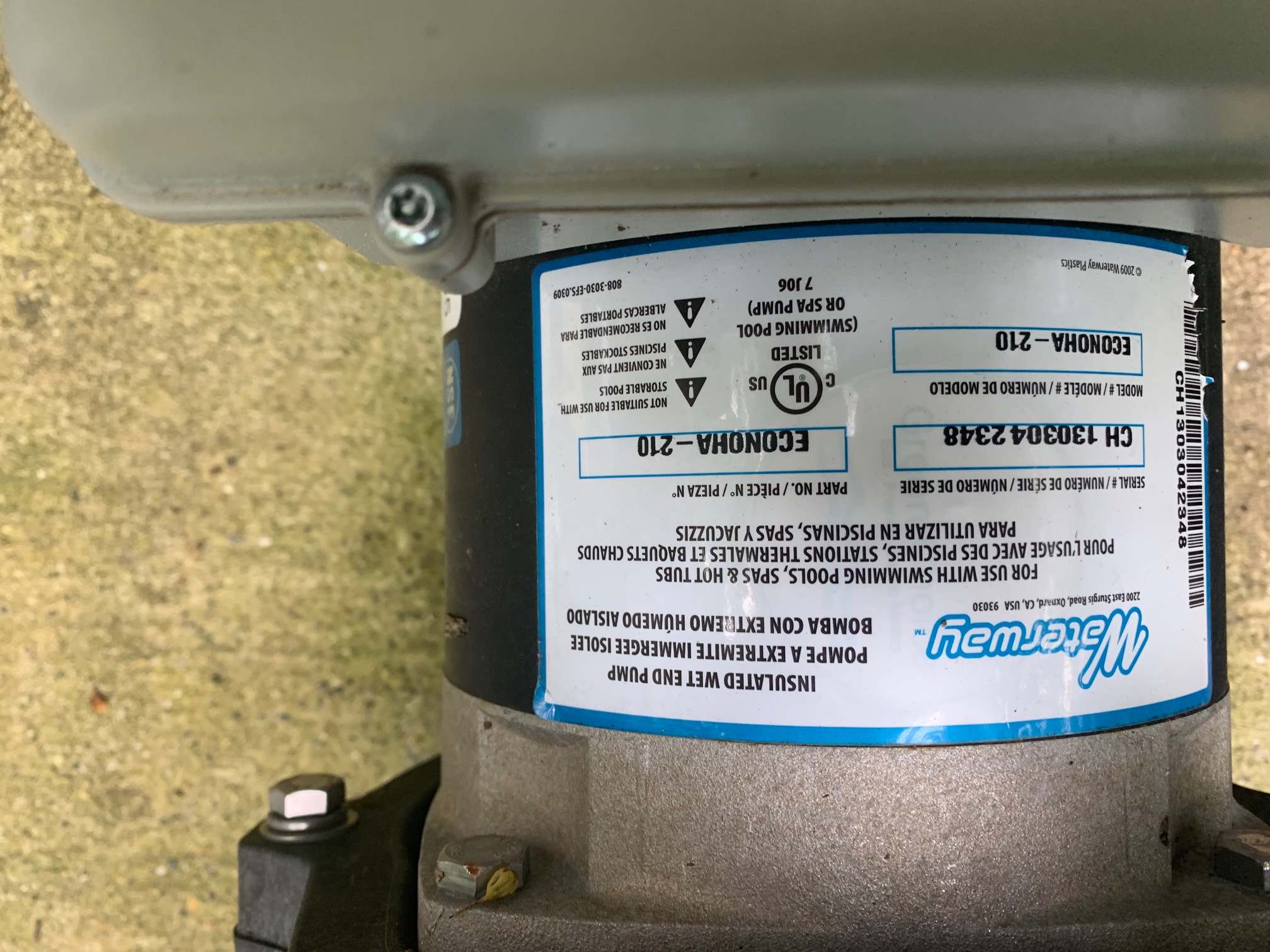

Will this fit a Waterway Mustang SVL56 pump? This is for a salt pool so if you could point me in the right direction along with any seal kits, impeller, diffuser, etc.
Reply
Hi Paul, this would be the correct Variable Speed Motor for the Waterway Mustang SVL56 pump. The only other part I would suggest would be the PS3865 Waterway Mustang Saltwater Shaft Seal.
Reply
I have this motor and am using digital inputs. For my application I need the motor to start at max speed, but it runs a priming sequence at 2600 rpm for 3 minutes when you start it using the digital inputs even if you start it in override mode. Is there a way to skip the priming sequence or modify the priming sequence speed without purchasing the 270 user interface?
Reply
Hi Terry, Only with the 270 User Interface you will be able to adjust the priming mode rpm's.
Reply
I have an old Sunrunner pump with a variable 3 speed impower marathon 1hp motor, will this motor fit this sunrunner pump?
Reply
Jiffy, I do not show any parts listing for a Sunrunner pump. Please provide an an image of the motor labels showing the specs on the motor.
Reply
I'm pretty confused (born that way). Referring to the WhisperFlo 1HP (WFE-4), it has a 1 HP motor with 1.65 SF; my understanding is that's equivalent to a 1.65 HP total rating, so this VS motor should be an exact replacement. However, several questioners were advised to change the impeller. Shouldn't the impeller be exactly compatible?
Reply
Hi Don, This motor can be used as a replacement for the WFE-4 pump with the existing impeller if in good condition. If the impeller is worn or in need of being replaced then you can. Replacing the seals and gasket are recommended, which is all included in the Pentair/Purex Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply

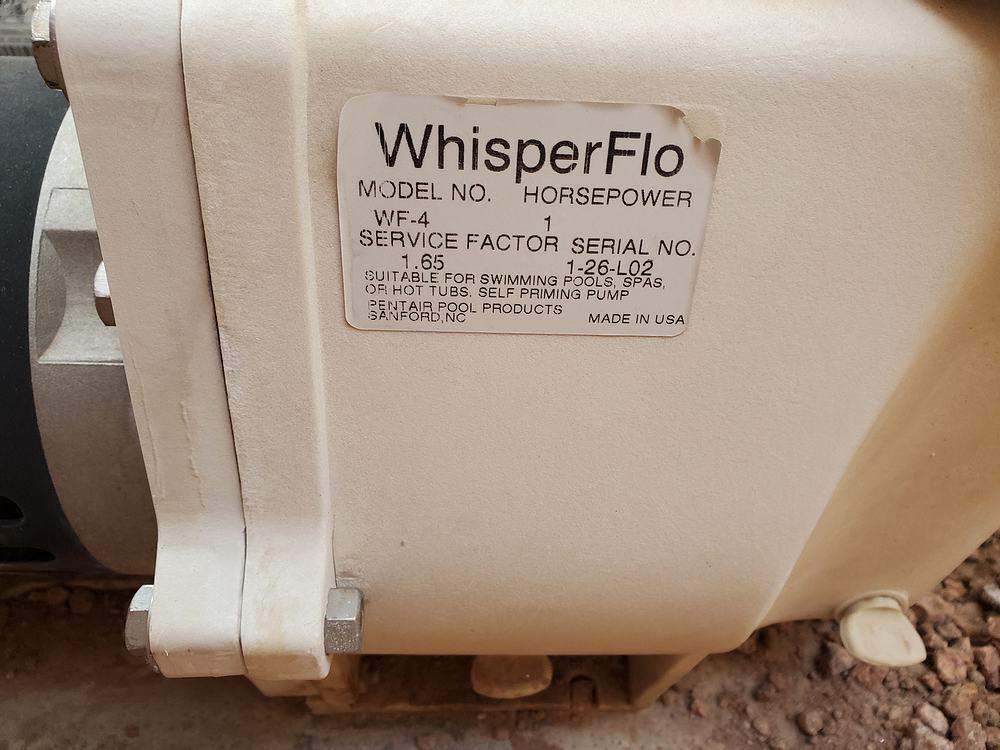

Looking to upgrade my Pentair
Whisper Flo WFE-4serial 11/21/06 Horse Power 1
Service factor 1.65 Pump will this pump work.
Reply
Hi Keith, Yes, this ECM16SQU motor can be used with the WGE-4 pump. I will also recommend getting the Pentair/Purex Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
Hi there, could I use this to replace a Pentair whisperflo motor? not sure about HP, part is 7-177476-20, type CX, fr Y56Y, hz 60, rpm 3450, volts 230/115, amps 11.2/22.4, time CONT, encl DP, form KJM, code G, insul class B, amb 40ºC.
Reply
Hi Josh, Based on the part number 7-177476-20 you will need the ECM27SQU motor along with the Pentair/Purex Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
will this work for a Pentair
Whisper Flo WFE-4serial 11/21/06 Horse Power 1
Service factor 1.65
Reply
Hi Keith, Yes, the ECM16SQU VS motor will work with the Pentair WFE-4 pump. I will also recommend the getting the Pentair/Purex Whisperflo Tune Up Kit p/n GOKIT32 or GOKIT32SALT.
Reply
I have an AO Smith rated hp 1.5 x 1.10 = 1.65 total hp. Frame Y56Y RPM 3450, volts 208-230 / 115. Can you recommend a high energy efficient motor to replace this?
Reply
I have a StaRite/A.O. Smith pool pump motor that needs replacing; Model # C48L2PA105; 1.5hp; SF 1.1; FR48Y; Volts 115/230. Will an ECM16SQU be a suitable replacement?
Reply
Hi John, Yes, this ECM16SQU is a suitable replacement as long as you're able to operate the motor on 230 volts.
Reply
Need meaning of LED lite sequencing on V Green 165 interface. Jumps up and do with bright LED and small lite LED. What is it telling me?
Reply
Here is a link to the V-Green 165 owners manual. If you are unable to resolve your issue in the trouble shooting protion of the manual, you may want to contact the manufacturer, Century Electric Motor, at 1-800-262-6484.
Reply

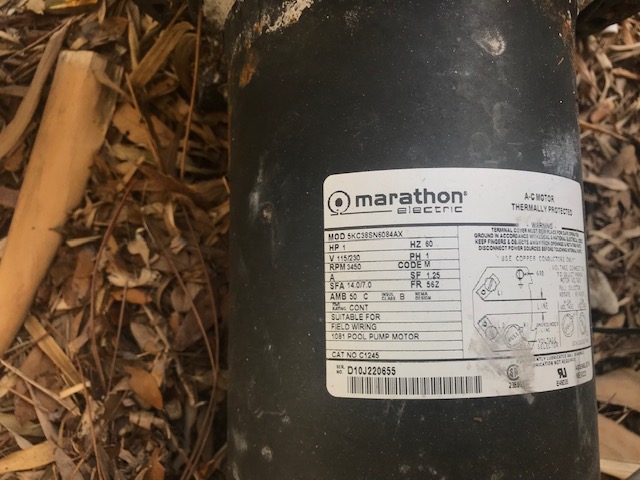

I currently have a failing Marathon (HP 1, SF 1.25) Model is faded too much to read. Pump is STA-RITE P2R-A5E-124L. Would this work and what seal kit would I need. Thanks
Reply

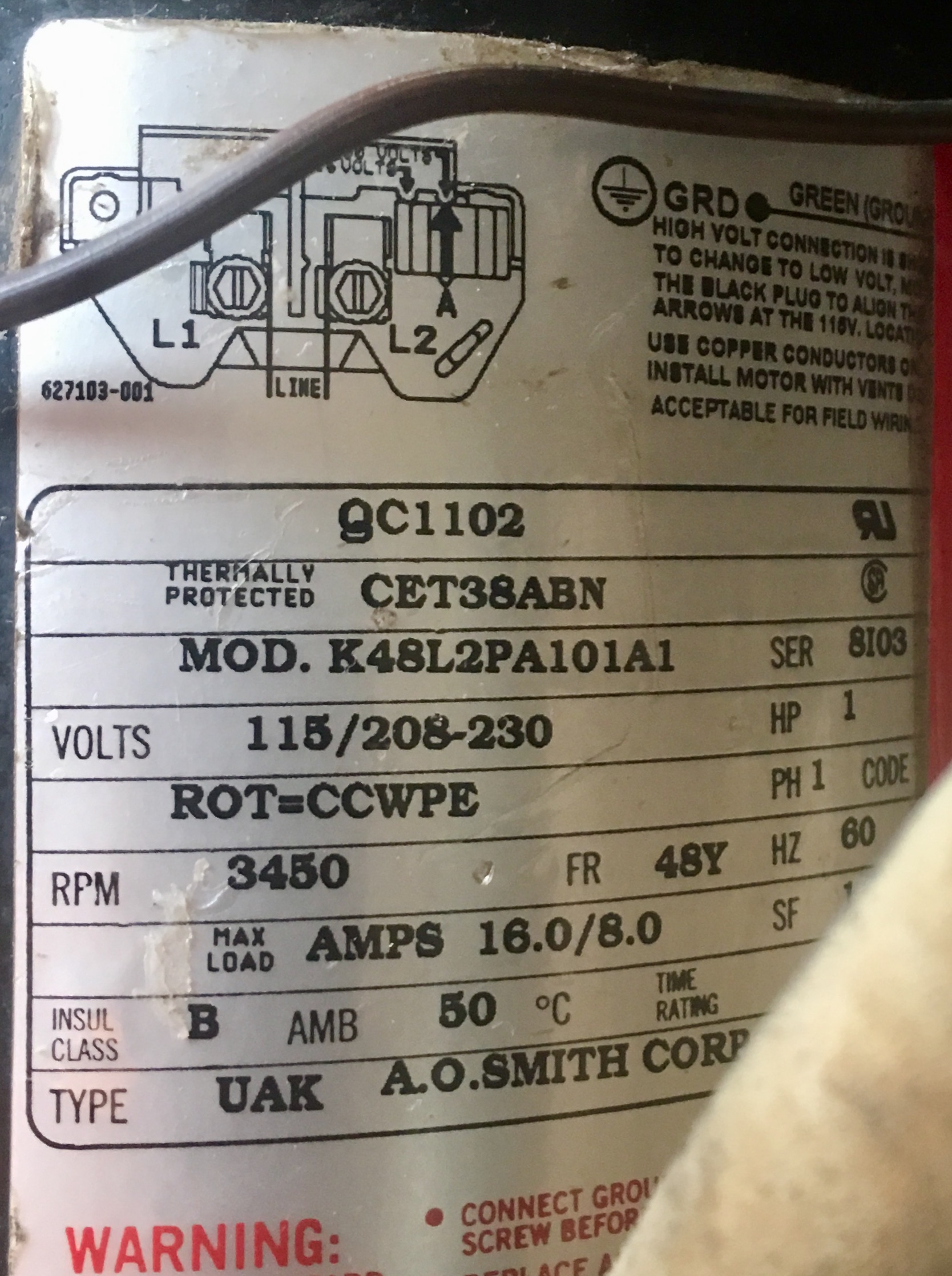

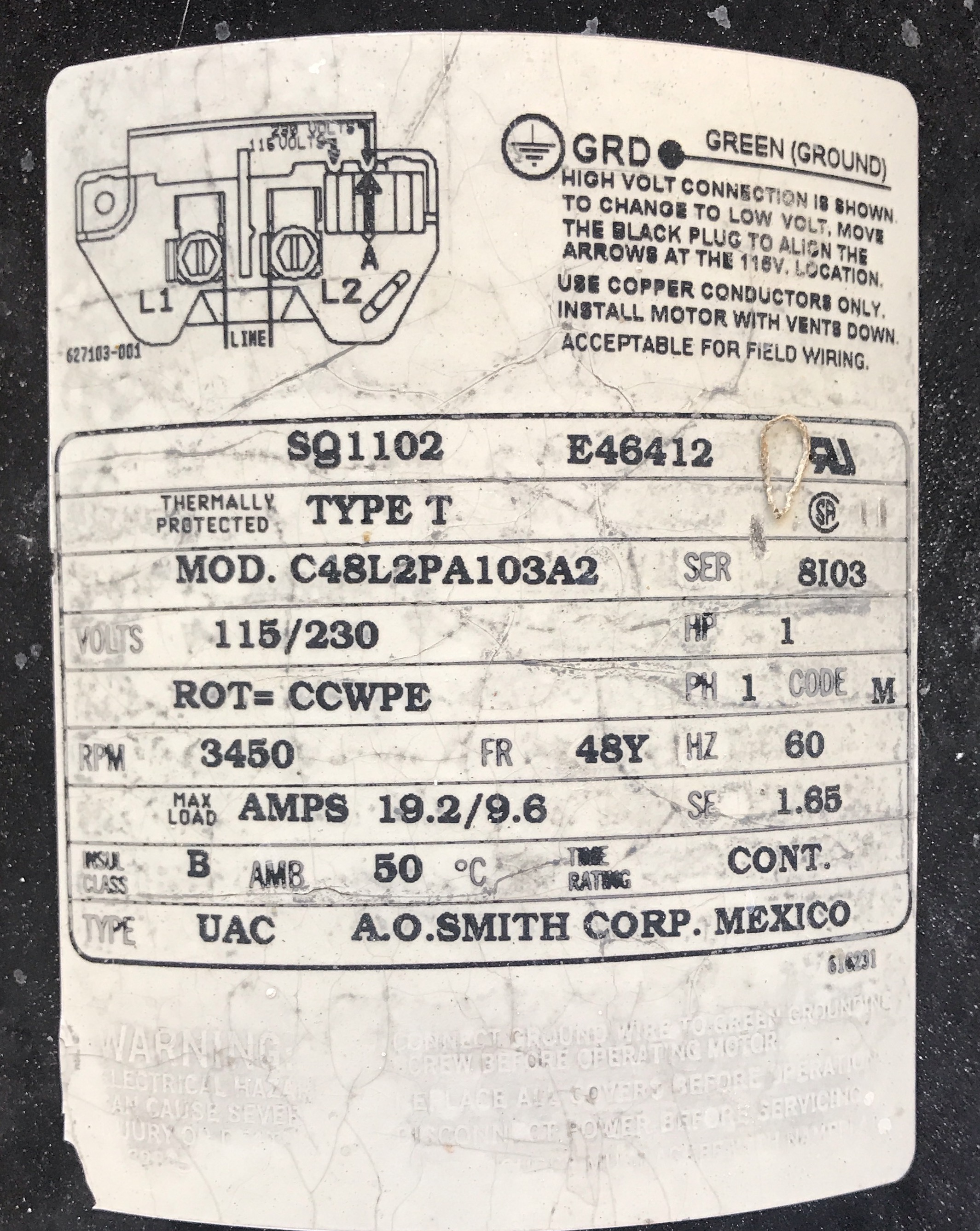

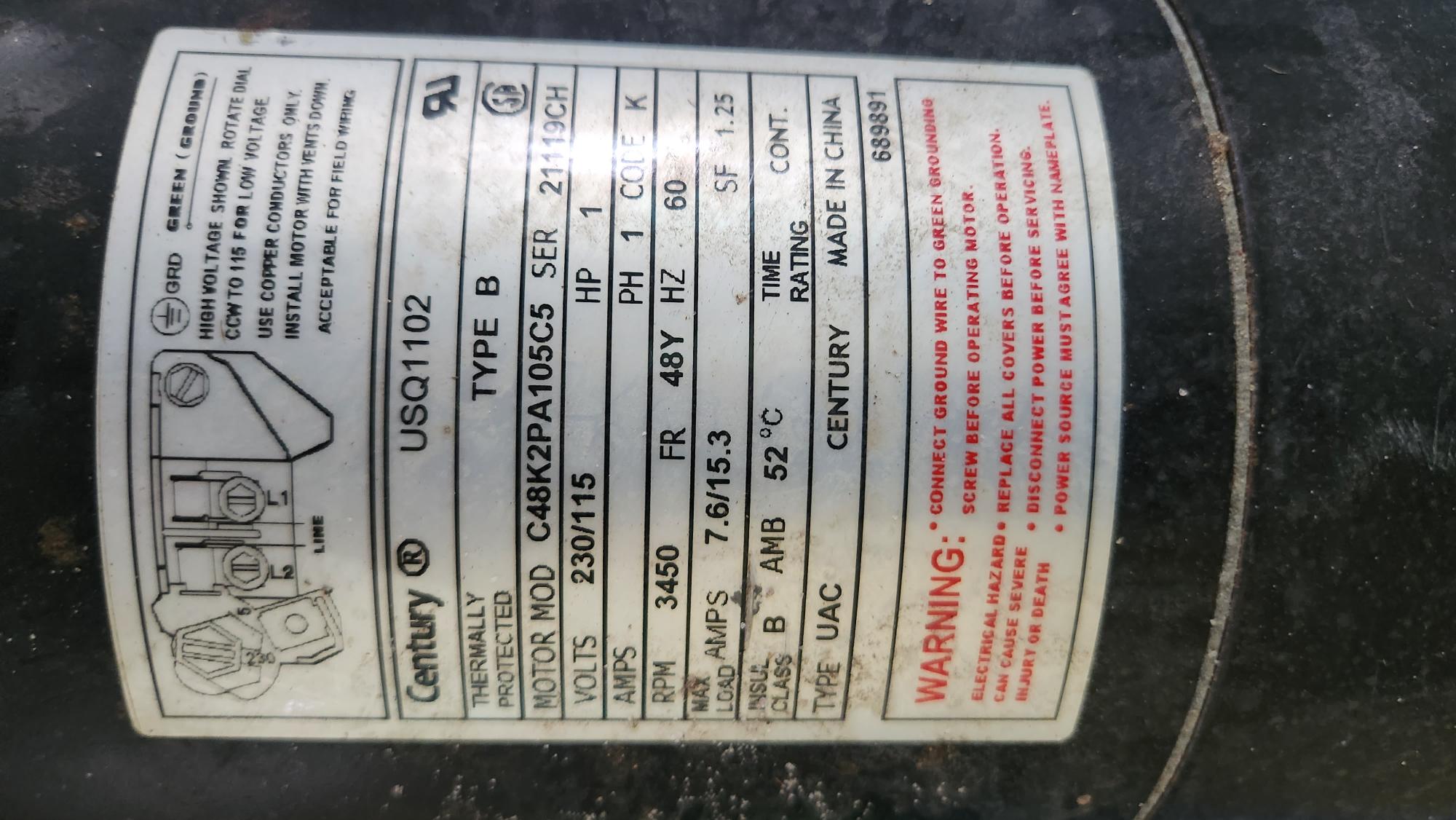

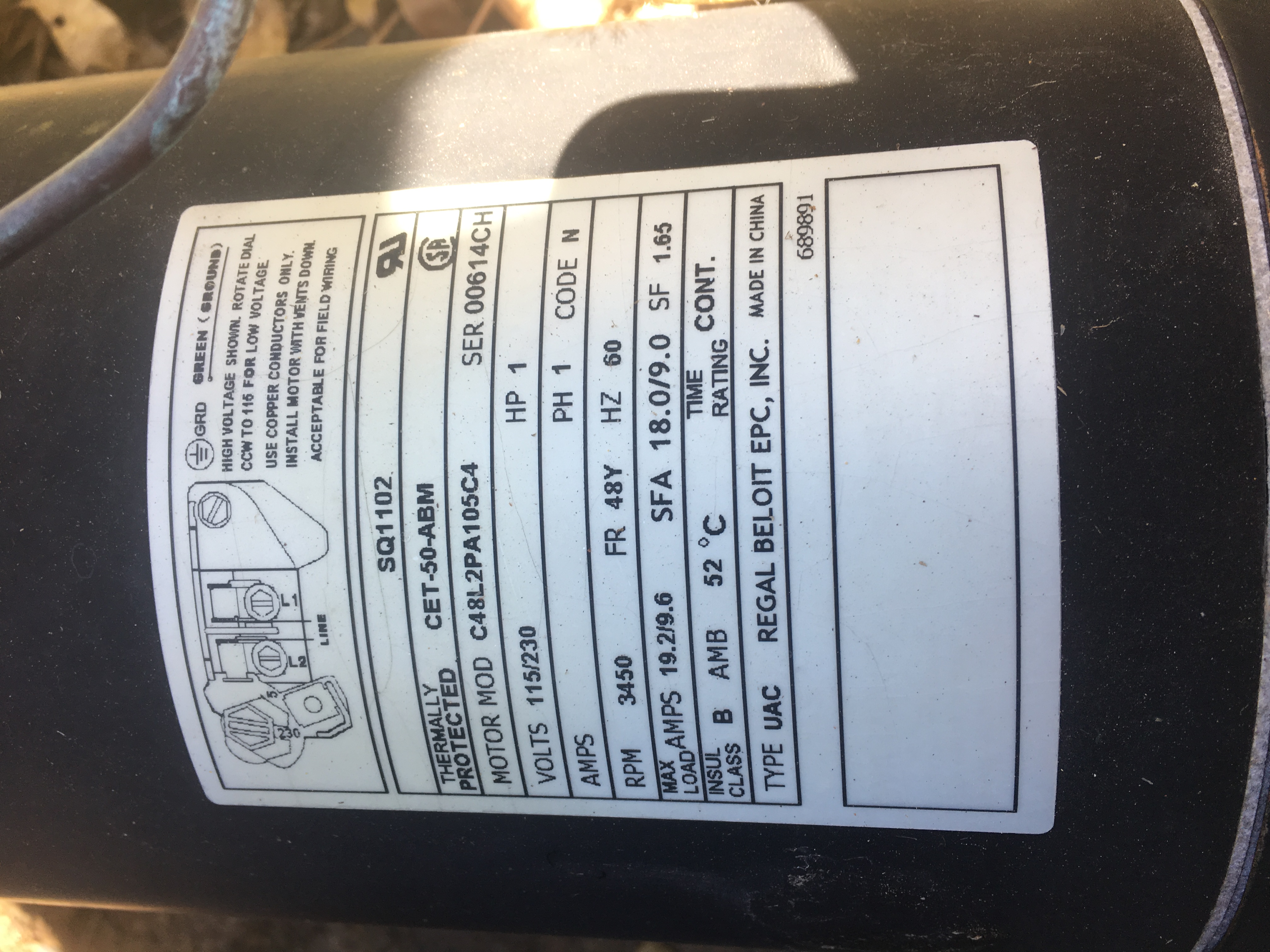

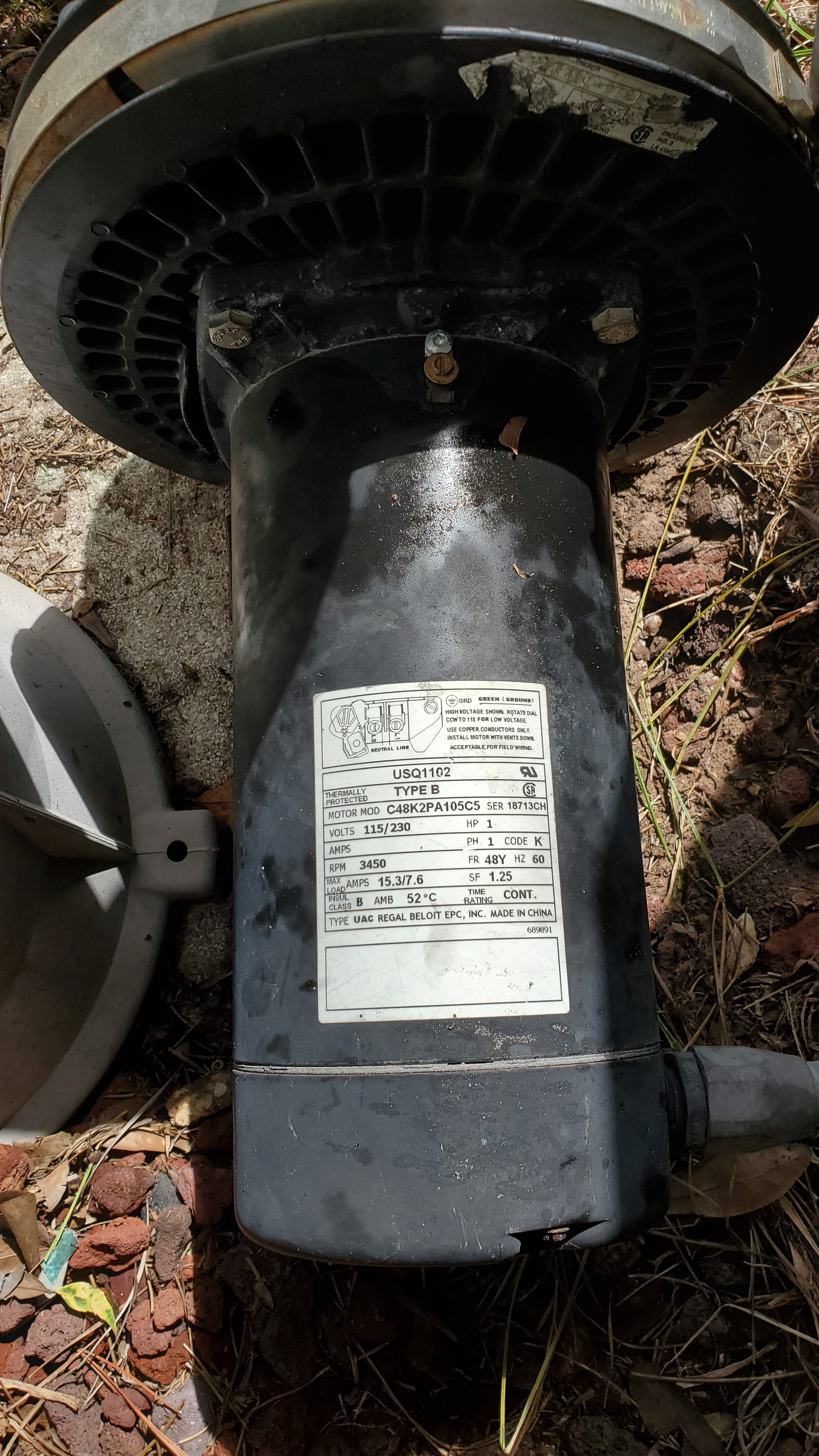

I have the Sta-Rite Dura-Glas model #P2RA5E-181L pool pump with
motor model #USQ1102
I want to upgrade to a variable speed motor and was told I could get this
model #ECM16SQU
But I would need to change the impeller because I was going to a bigger HP
Could you please tell me which impeller I need as well as which sealing kit I would need to switch to this model motor?
Thank you
Reply
Hi, Tami. You will need the Sta-Rite C105-238PB Impeller and the Sta-Rite Dura-Glas & Max E Glas Pump Tune Up Kit (GOKIT54) based on the info provided.
Reply
I have the Sta-Rite Dura-Glas model #P2RA5E-181L pool pump with
motor model #USQ1102
I want to upgrade to a variable speed motor and was told I could get this
model #ECM16SQU
But I would need to change the impeller because I was going to a bigger HP
Could you please tell me which impeller I need as well as which sealing kit I would need to switch to this model motor?
Thank you
Reply
I have the Sta-Rite Dura-Glas model #P2RA5E-181L pool pump with
motor model #USQ1102
I want to upgrade to a variable speed motor and was told I could get this
model #ECM16SQU
But I would need to change the impeller because I was going to a bigger HP
Could you please tell me which impeller I need as well as which sealing kit I would need to switch to this model motor?
Thank you
Reply
Hello, Tami. You are not required to change out the impeller. You can replace the 1.65 HP Variable Speed Pool Pump Motor Square Flange - ECM16SQU and Tune-up kit and have normal operations. The Sta-Rite Dura-Glas and Max-E-Glas have two different tune-up kits to choose from, the Tune Up Kit Sta Rite Dura Glas & Max E Glas Pump Pre 1998 - GOKIT6 or the Tune Up Kit Sta Rite Dura Glas & Max E Glas Pump 1998 To Present - GOKIT54
Reply

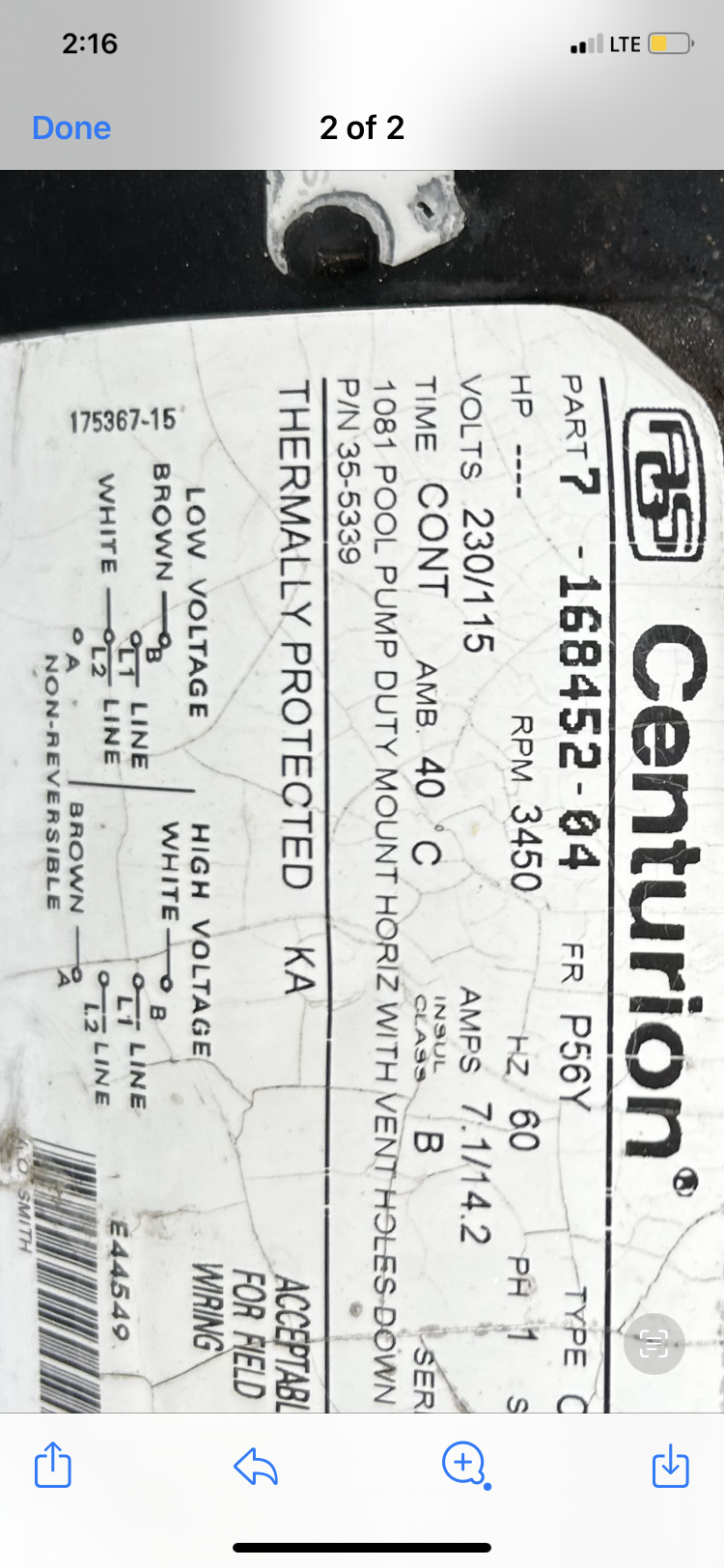

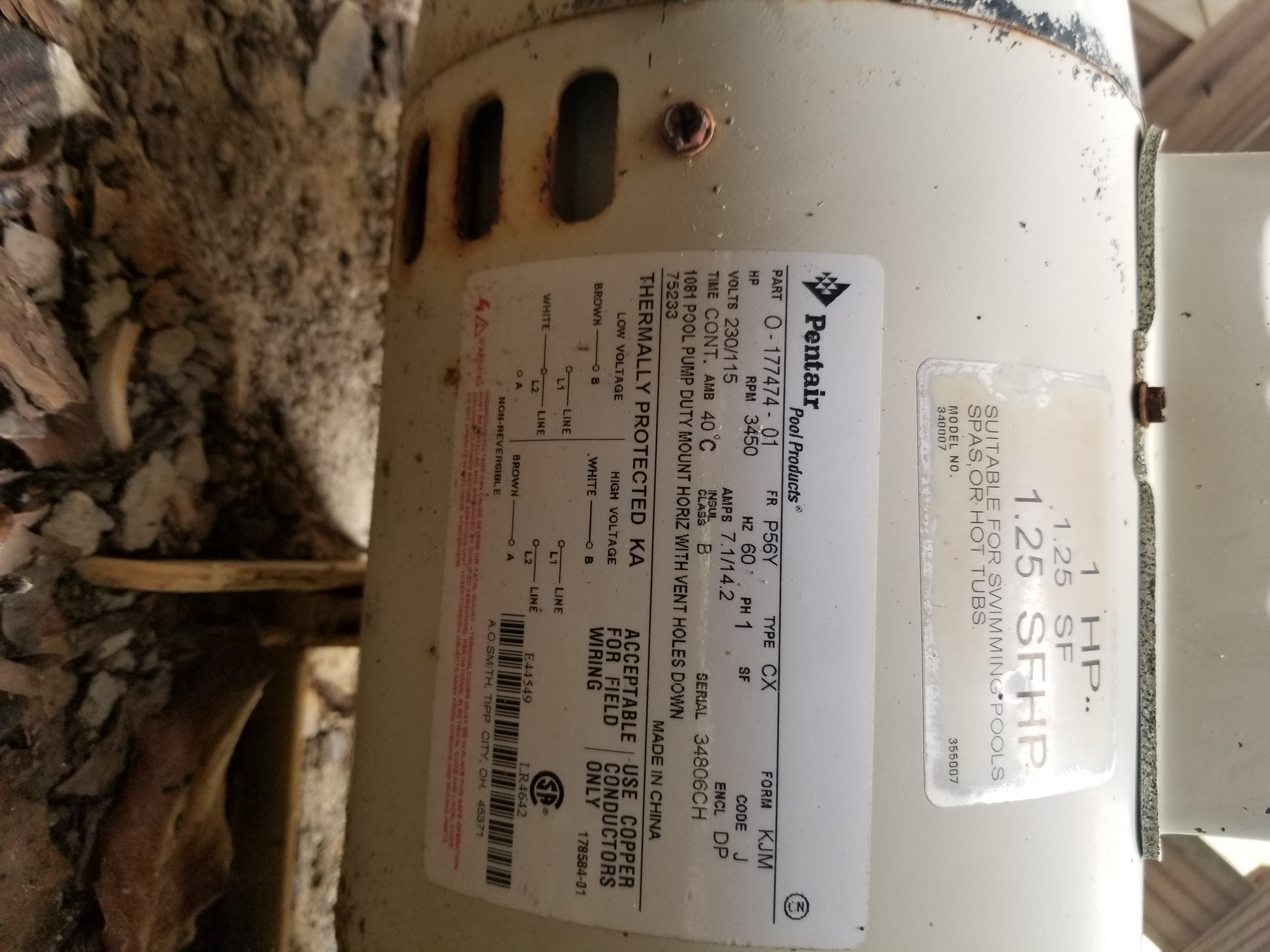

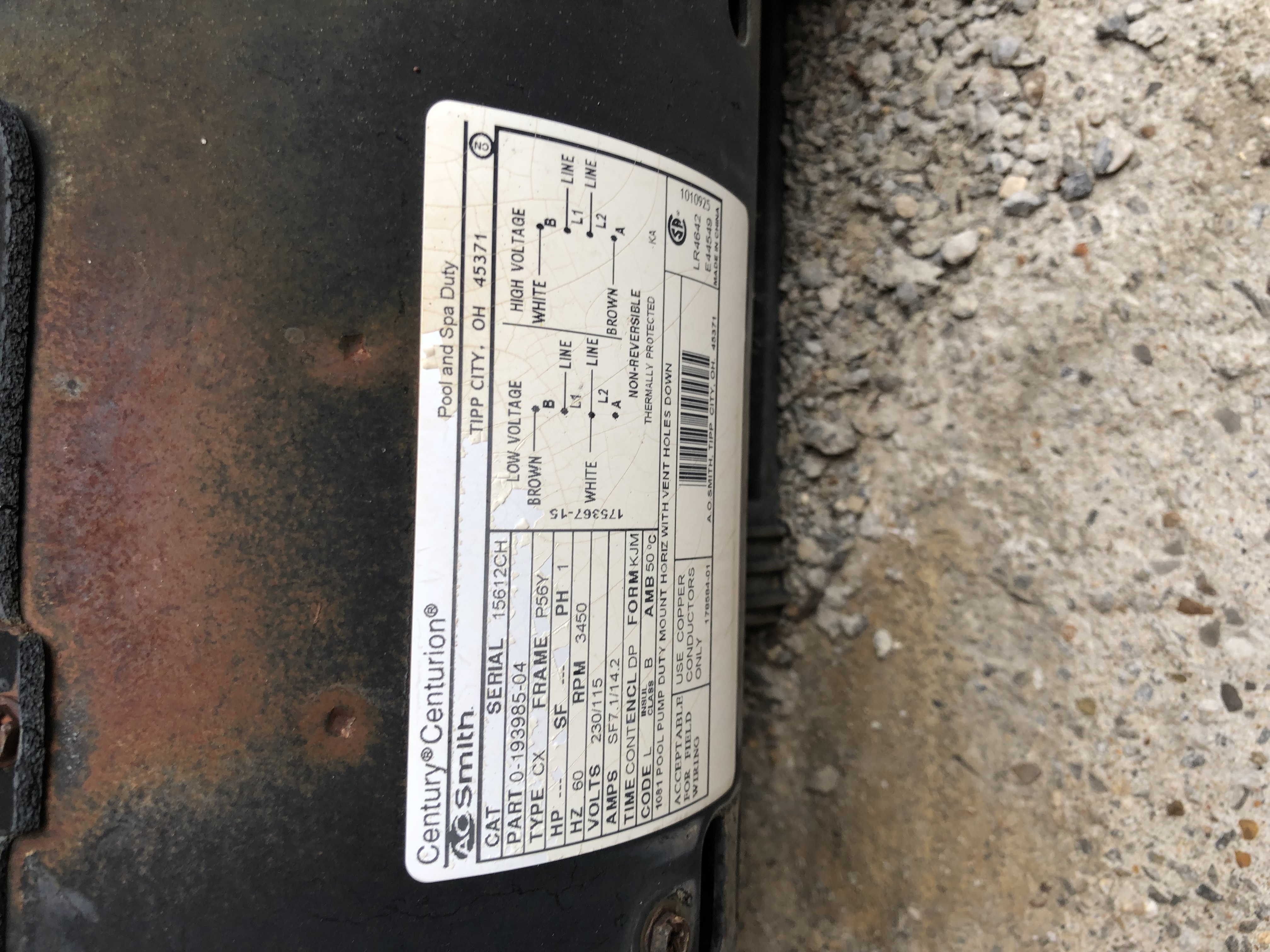

Hello, I have a Pentair 35-5371 frame P56Y will this motor work to replace it?
Thanks,
Reply
Will this variable speed motor replace a Century Centurion/AO Smith B849, HP 1.5, SF 1.5, Volts 230, RPM 3460, Frame Y56Y?
Reply
Hi, Unfortunately, you will need the ECM27SQU motor because the motor you have now has a total horsepower of 2.25. To get a better understanding why, you can read our How To: Understand True Pump Horsepower guide.
Reply
I have browsed through this extensive thread and maybe this has been asked and answered but from looking to purchase an entire VS Pump to replace my current single speed pump, to now realize that it is possible and practical to simply upgrade the motor alone. I have a Sta Rite Max E Pro P6E6E-206L that I would like to upgrade with this motor. Is this a compatible swap?
BTW, this is the best pool related Q&A/how to site I have come across in 5+ years of needing pool related info. Keep it up!
Reply

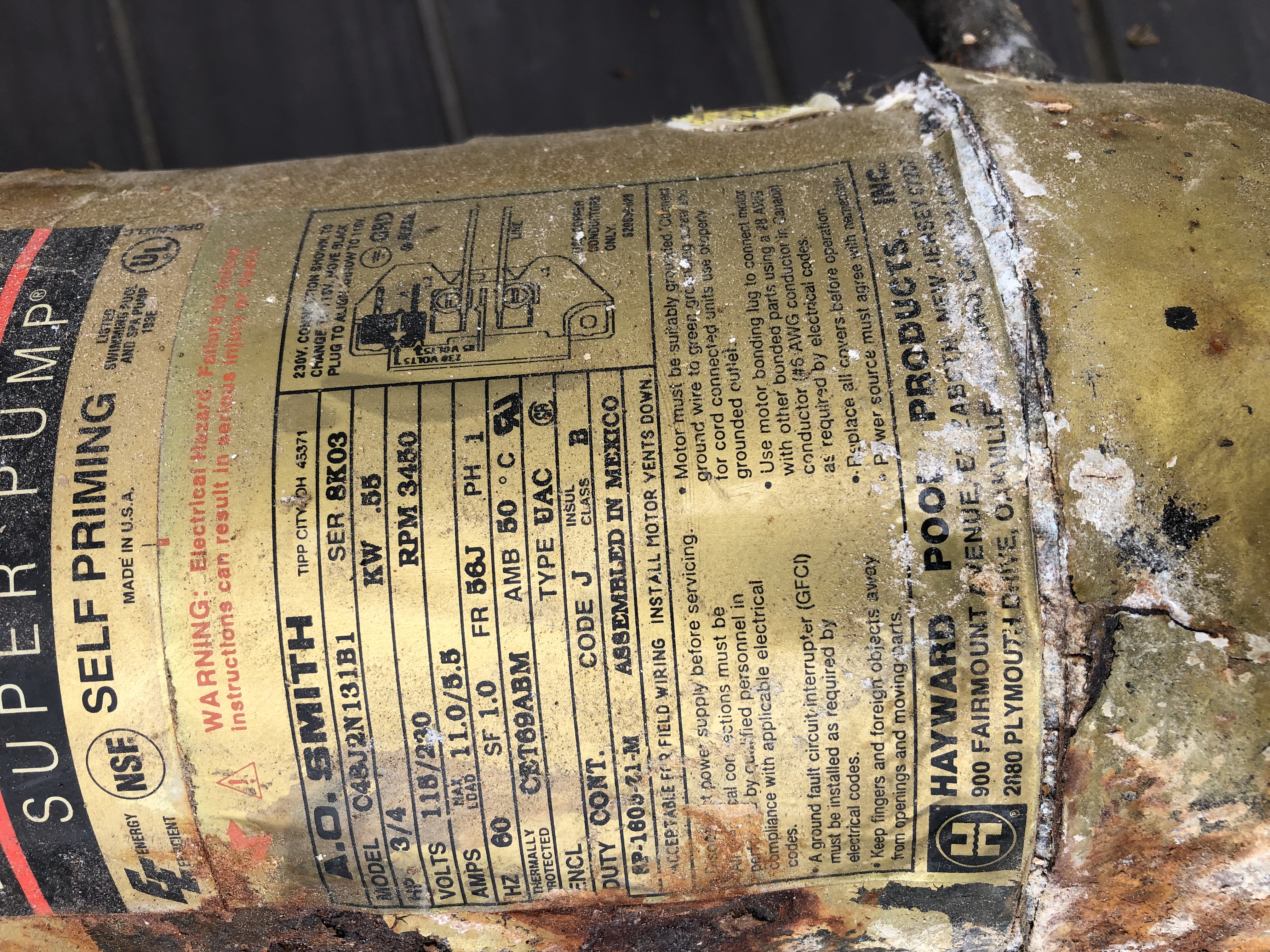

Hello, I have the Hayward C48K2N143B1 Super Pump 1 HP, I need to replace the motor and I am looking at the ECM16SQU. I know it will fit the pump and I will need to get a new impeller, my question is do i also need to get a new diffuser? Also will my Hayward S-244T that has a 50 psi max be able to handle the new pump motor?
Reply
Hi, Craig. You can get a new impeller if the one you have is worn or damaged or if you would like to increase the water flow to utilize the total horsepower of the motor. You do not have to change the diffuser if you get the bigger impeller of keep yours.
Reply
I have a pentair intelliflow vs and the board died after 13 months. Can use this pump as a replacement and what impeller will I need to use? Can I use my original 3.0 hp impeller from the old pump?
Reply
Good morning Paul, No you wouldn't be able to use your old impeller with this pump and if you have a 3hp impeller this pump would not be a good replacement. The max flow on this pump would only be half of your old pump and probably wouldn't even have enough operating pressure to create proper flow. How old is your current pump it may still be under warranty. What is the total hp on your current pump and I will find you a suitable replacement.
Reply

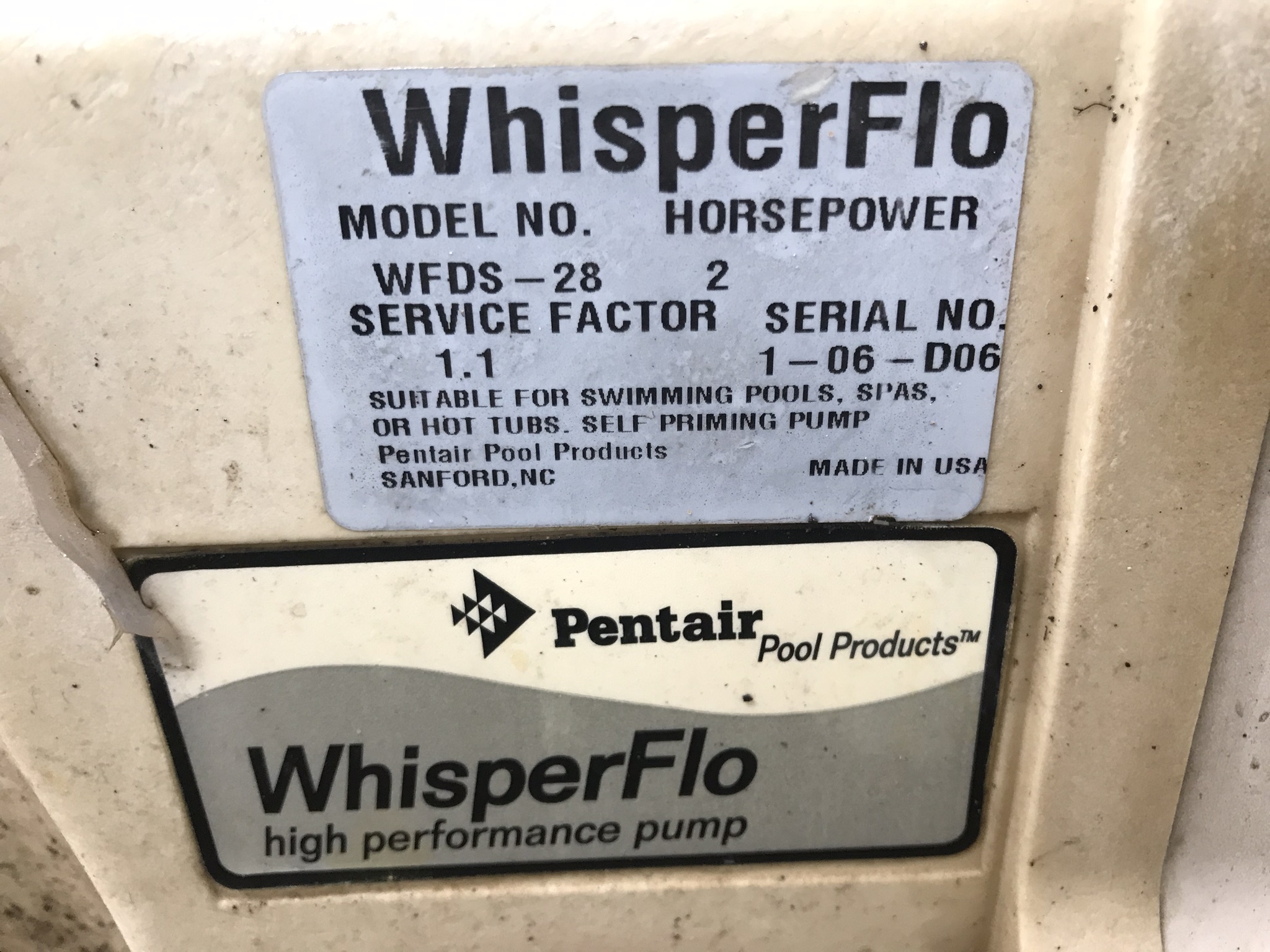

I have a model WFE-28 service factor 1.10 H.P.2.0 Pac Fab 11519 . The pump was replaced once with a century centurion a.o.smith1.5 hp part 7-196256-06 I want to switch to a variable speed pump for pool and spa application.what is your recommendation.
Reply

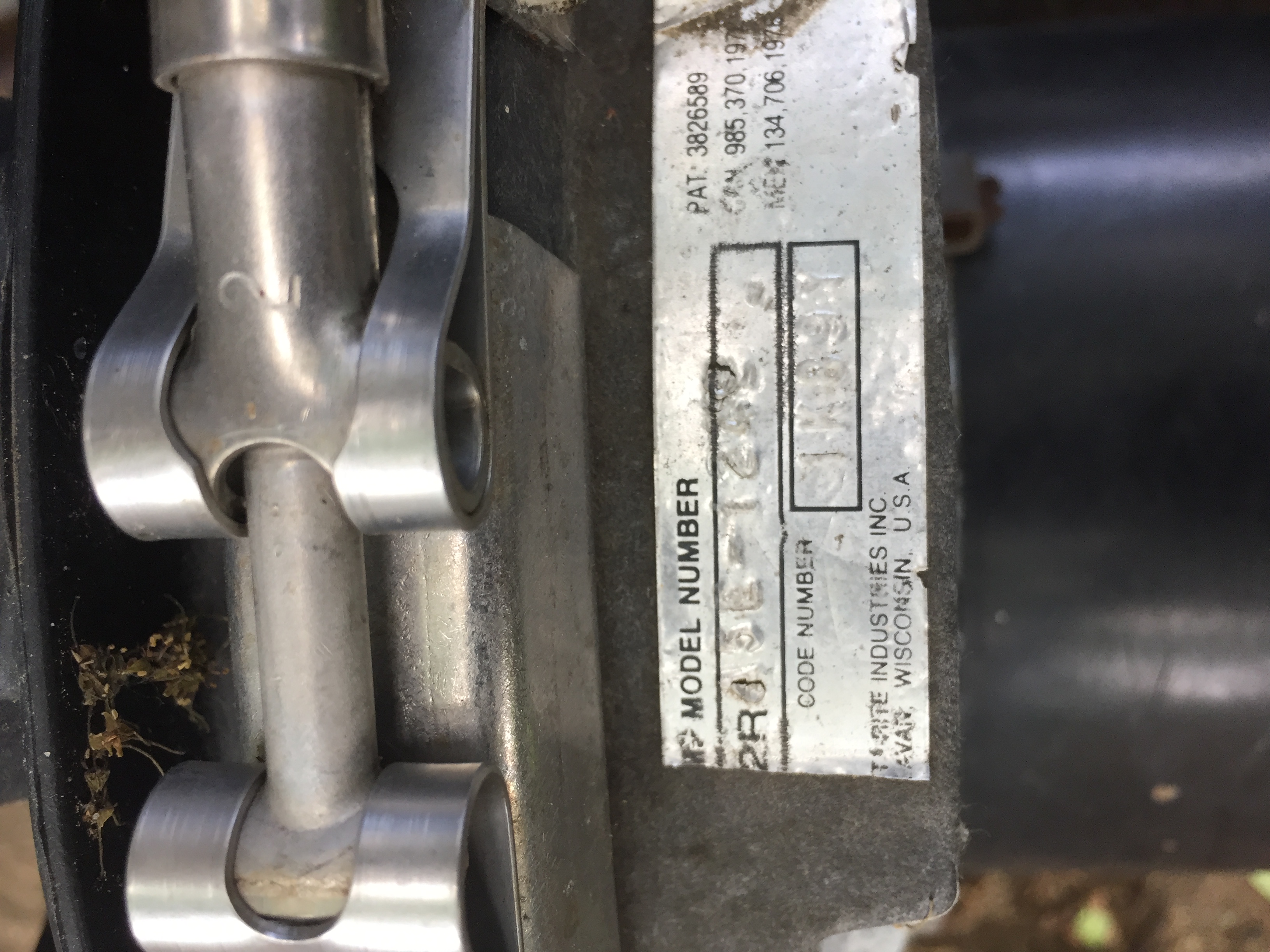

I have a Sta-rite pump P2 RA5E - 124L I need to replace the IM Power motor ( which works good, but I am on my second controller. They fail every 2 years. Cannot find another as Speck won't sell me a replacement. It is the same controller that is now on the Badu EcoM3 1 HP 3 Speed Pool Pump).
What parts will I need to use this replacement motor?
Reply
Good afternoon David, Unfortunately, they do not offer just the controller anymore. If you were to go with the ECM16SQU you would need just a seal kit which you find here.Sta-Rite Dura-Glas and Max-E-Glas Parts
Reply
Can this motor be controlled through the serial connector RS485 by a Hayward ProLogic PS-8?
Reply
Good morning Omar, This Item is compatible. It will come with wiring and setup instructions. It has a rs485 port.
Reply
I currently have a Pentair Sta-Rite Dyna-Glas or Dyna-Max pump (haven't located exact model yet) with a FAILED 2nd replacment Century USQ1102 1HP FR48Y square flange motor. I believe it is running on 230 volts as I see two separate breakers although I haven't yet opened the motor to validate the voltage.
Can the ECM16SQU be used as a suitable retrofit for a variable speed motor? Will I need any adapters or gasket kits?
Reply
Yes, the ECM16SQU would be a great replacement variable speed motor for your pump. You do not need the tune up kit if you have replaced them in the past few years, but it is required to replace the shaft seal when you do a motor installation. That would be part number 5057-07.
Reply

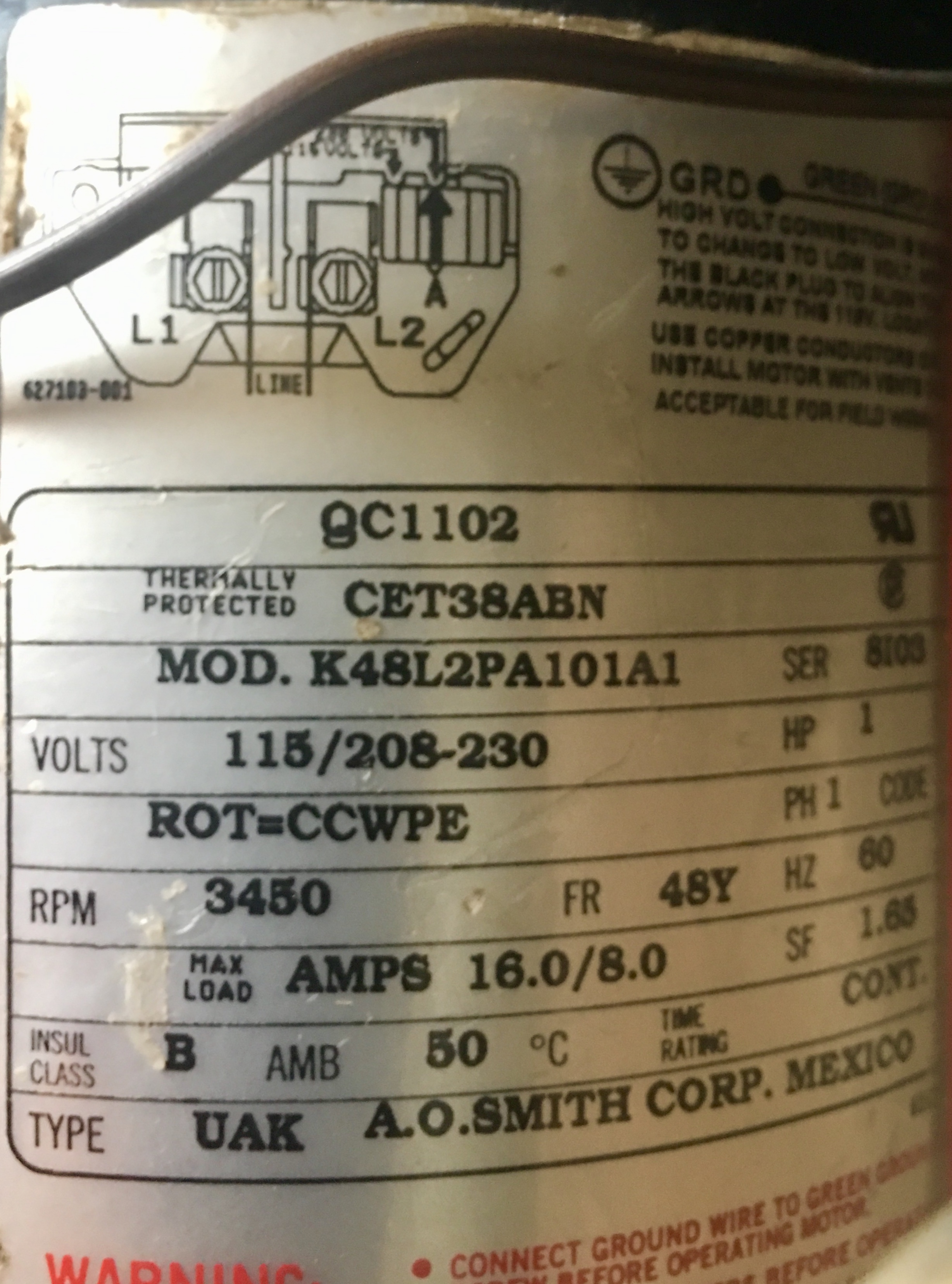

I currently have QC1102 (K48L2PA101A1). Will this fit? Also, which Go-Kit will I need for this?
Reply
Good morning Amit, Yes, This is a good replacement. I would need to know what type of pump this is going on to recommend the correct seal kit.
Reply

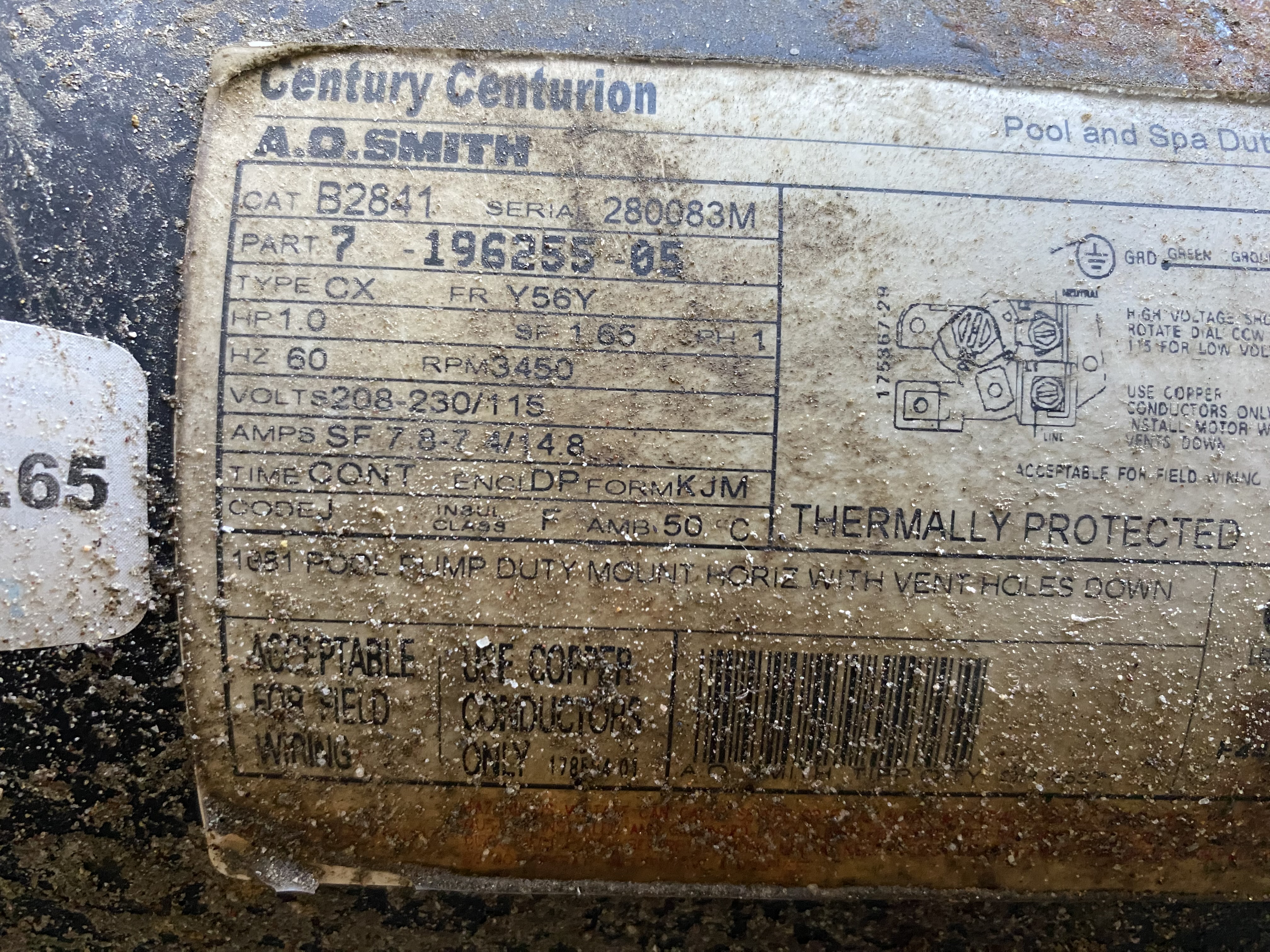

Hello I have an AO Smith Century B2854, type CX, Frame Y56Y, HP 1.5, SF 1.1, RPM 3450 motor connected to a Sta-Rite P2B A5F-125L pump. Will this motor work and if so what seals and other bits might I need? Thanks, Jason.
Reply
Hello Jason, yes this motor would work for you, but to find your seal kit we would need to know what kind of model pump you have Sta-Rite: Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max. Pentair: Whisperflo, Challenger, Pinnacle?
Reply
I have a Haywood SP2607X10 pool pump. can I convert this to a VS system with this motor and drive?
Reply
Yes you can use a VS motor on this pump housing. You can use either the ECM16CU or ECM27CU but just keep in mind that these have extra horse power to what was originally on that pump so you would need to dial them down as to not cause too much high pressure spikes.
Reply
I have an EOS pool controller. I called Inyo Pools today and the guy I spoke with said I could use this VS pump with my controller by using a CAT 5 cable. I took a look at the EOS controller and do not see an input for a CAT 5 cable at all.

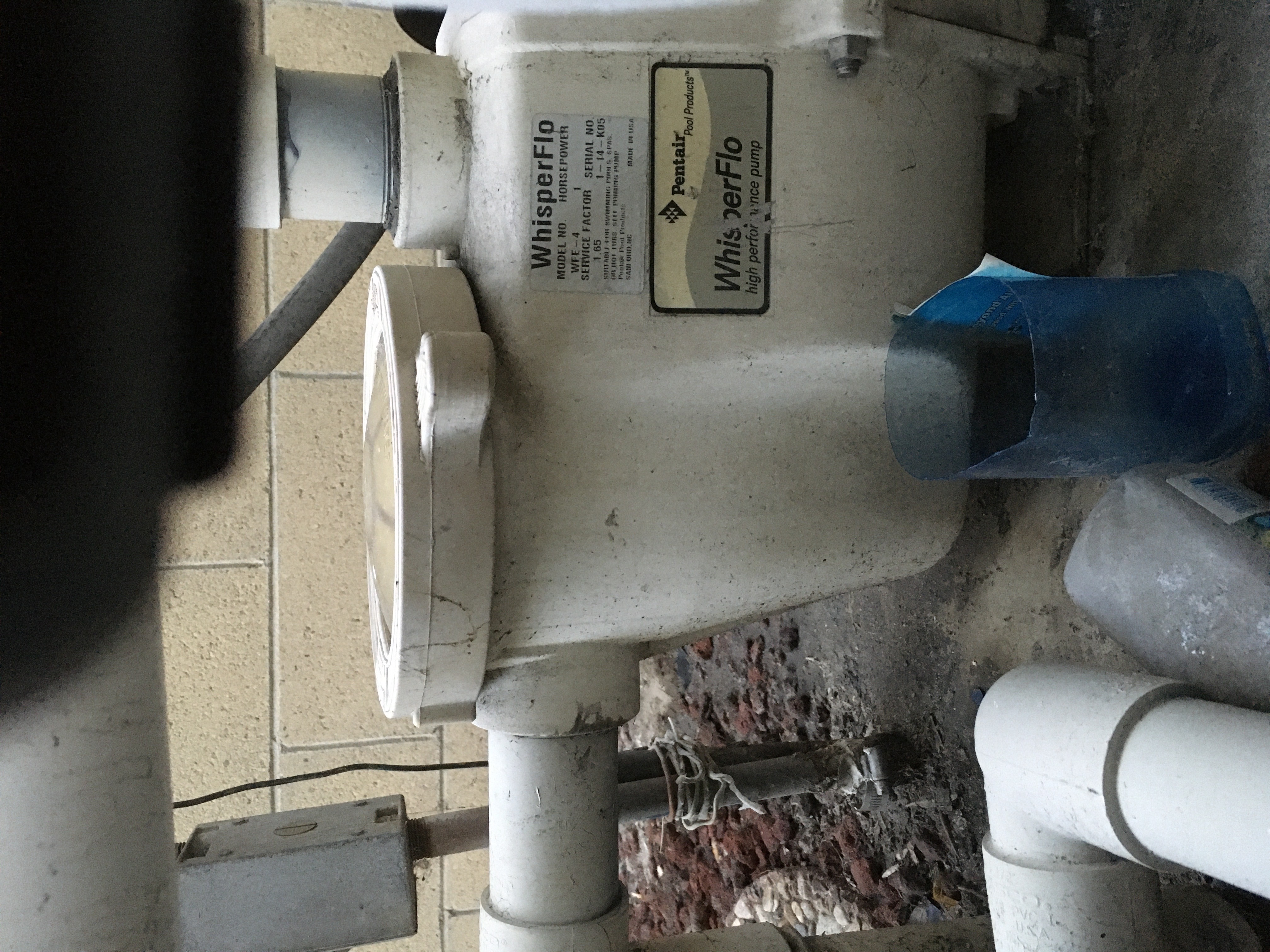

Can I still use this VS pump with my whisperflow WFE4 and benefit from the VS without connecting it to my EOS system?
Reply
Yes, that variable speed motor will still work with your WhisperFlo without hooking it up to your automation system. You are able to control it manually from the control on the top of the motor.
Reply
could i use this to replace my single speed motor? (k63cxepz-4767 from hayward i think) and not need to replace the whole unit motor, flange, impeller...?
Reply
Hi,
I have a STA-RITE P2RA5E-181L pump connected to a variable speed ImPower R003 motor. I believe the motor has died and I'm looking for a replacement. Will this motor work? What else do I need for a DIY replacement? A seal kit? Thank you!
Reply
Hi, can I use this as a replacement on a Pentair IntelliFlow VF?
Reply
I have an AO Smith motor k48l2pa105. the replacement motor qc1102 will work, but I was curious about a varable speed ECM16SQU. would that work?
Reply
Hello Bryan- The ECM16SQU 1.65 HP Variable Speed Pool Pump Motor Square Flange would be the correct replacement variable speed motor to the QC1102. Please note that whenever you change out a motor on your pump, that we highly recommend that you replace the seals. We would need to know the make and model of your pump to determine the correct replacement seals.
Reply
I have a Century Centurion A.O. Smith Switchless 2 HP motor that is 9 years old and leaking. I cannot read the label very well. I can read it is 60 Hz, 3450 rpm, Type CX. I would like to replace the motor with a variable speed motor. Is there a way to say if this 1.65 HP VS motor would fit the existing pump? The pool size is 17500 gallons. Thanks
Reply
Yes, I just need the model of either your motor or your complete pump. If you do not know, please attach a picture of your complete pump so I can identify what you have and find a suitable variable speed motor.
Reply
I would like to convert my Sta-Rite Pump PHK2RA6E-102L with a Century Motor USQ1102 1hp 115/230 with this VS model. If this would work, what Go Kit would I need and is the new motor a permanent magnet motor???
Reply
Will this motor work as replacement to my existing motor A.O Smith Model C48M2N111A3 SER 8L06 2 hP
Reply
Hello, since you have a 2 HP p/n C48M2N111A3 that matches more along the lines of a 2.7 HP Variable Speed Pool Pump Motor Square Flange - ECM27SQU so your not capping your motor at 1.65HP, please make sure to replace your pump seal when replacing your motor.
Reply
Will this fit on a Hayward Ecostar? The motor died and my pool is only 13,500 gallons and 3hp (2.7 century) seems a bit much. Would I need to change the impeller as well for the lower HP?
Reply
Hi, Jim. This motor will fit the Hayward EcoStar pump. Yes, you would also need to replace the impeller with p/n SPX3210C along with the Impeller Ring - SPX3021R and the seals.
Reply
Hi,
I have a Century Centurion motor that is not working because the valves were inadvertently adjusted and the pump ran dry (or so the pool man tells me). I would like to consider switching to a variable speed motor. Can you please tell me what would work in this situation. Current motor -serial: 24814J2 part: -F56AB33A01-
HP: 2.2, SF: 1.00, HZ:60 RPM: 3450 Volts: 208-230, AMPS: SF 9.6-8.8 The other part of the pump has this
info Model # BPA451V1 SER# 24814J2ML050341292. Thank you! Linda
Reply
Your WhisperFlo has a total horsepower of 2.2 so I would recommend the ECM27SQU because the 1.65HP variable speed motor has less total horsepower. With the ECM27SQU you can adjust the RPM's to a lower setting if needed but you do not want to decrease horsepower unless you know your system will be able to run efficiently at a decreased flow rate. Whatever motor you chose you will want a seal kit to go along with it, that is GOKIT32.
Reply
Is this the right upgrade for an AO Smith SQ1152 motor?
Reply
The total horsepower on your current motor is 2.2 so you would need to figure out if you want to decrease or increase your total horsepower. The ECM16SQU has a total horsepower of 1.65 and the ECM27SQU has a total horsepower of 2.7.
Reply
Is the ECM 16 SQU variable speed motor Energy Star Certified and if so what is the Energy Factor Rating? ( 3.8 or above) . Also does a service factor of 1 indicate?
Reply
Hi, Gregory. The V-Green motors are not Energy Star certified because it's considered a replacement part. However, all of the pumps that use the V-Green motors are Energy Star certified.
Reply
I am looking to replace my old STA-RITE MAX E PRO pump motor. The motor number is C48L2P104. Would the VS 1.65 be the correct replacement? Also, what would be the GO KIT for this. Thanks!
Reply
Hi, does this work with Jandy pool automation? How do you connect it to do so?
Reply
Hi, HK. This motor can be used with a Jandy Automation Controller. The wiring instructions can be found on page 11 of the V-Green 165 Motor Owner's Manual.
Reply
My pool pump motor is a 56J, will this motor fit my application
Reply
It would be the ECM16CU, make sure to get a shaft seal for your motor install as well. If you do not know your pump model you can attach a picture and I can find the correct shaft seal for you.
Reply
I have a STA-RITE pump, Max e glas or Dura Glas Series (I didn't buy it) with an Emerson 1081 motor HP 1.0. RPM 3450. I would like a quiet energy efficient motor. Would this one be a good replacement?d
Reply
That would be a great replacement just make sure you get the seal kit as well if they have not been change in awhile, that is part number GOKIT54.
Reply
Thanks for the response. I see that there are post and pre 1998 pumps. How can you be sure that GOKIT54 is the right kit? Where do I find the serial number on the pump, I can't find one? Thanks!
Q:I have a STA-RITE pump, Max e glas or Dura Glas Series with an Emerson 1081 motor HP 1.0. RPM 3450. Would this one be a good replacement?
A: That would be a great replacement just make sure you get the seal kit as well if they have not been change in awhile, that is part number GOKIT54.
Reply
If you have the copper cone in between the seal plate and the impeller then you would go with the GOKIT6, if you do not have the cone then you would go with the GOKIT54. Either way the GOKIT54 will work if you remove the cone if you still have the cone in your pump.
Reply
I have a A.O Smith 1HP motor do I need any additional parts if replacing with the ecm16squ
Reply
Hello, I would highly recommend replacing the pump seal. If you are replacing with a ECM16SQU then your impeller and diffuser does not need to be changed.
Reply
Do you offer the VGreen units with the full timer control panel like in the video or do you only this downgraded, simple, controller without a clock or calendar?
Reply
Hi, Stephen. We do have the V-Green VS Motors with a fully integrated true timer. Only the ECM27 has that capability.
Reply
I have never replaced a pump motor before but i am pretty handy. So is it supper difficult to do?? I curently have a Pentair WhisperFlo 3/4hp 230v.
Reply
Hi, Andy. Replacing a pump motor is not difficult and has been done by customers that have no mechanical experience. You can review our How To: Replace a Pool Pump Motor guide to see the required steps.
Reply
I have a Hayward EcoStar that the driver controller went bad. Can this motor compatible with the wet side?
Reply
Pool Company , just installed the _Green 165 motor on our pool.
We had the old single speed motor set to run for 12 hrs...
The installers hooked new V-165 motor & timer to run again on the
timer , 12 hrs..
Should I do away with the timer and let pool adust speeds on
24 hr. cycle ?to run
Reply
Hi, Stan. You can remove the trippers on the timer and change the settings on the motor so that it runs 24 hours.
Reply
I need to purchase a motor and obviously the variable speed is the way to. I have a STA--RITE, model AT 251001-01 pump and want to know if it is compatible, all my pool lines are 1.5 inches. I also need the seal and O-rings and if can provide the part numbers for them I will order them as well...Thanks
Reply
This motor was purchased for me, to replace my model 5kc38sn6084ax with a 56Z frame. I see that this is a 48Y frame. Will it work?
Reply
Hi, Jody. A 48Y frame motor is compatible with a 56Z motor. The ECM16SQU motor comes with a motor pad what you'll need to place in the motor base so that the 48Y frame motor sit in the base.
Reply
I am thinking about converting to a vs pump for the energy savings. I now have a ST1102 century motor. Will this model fit?
Reply
Hi Danny, If you have a ST1102 motor then you would require the ECM16CU Round Variable Speed Motor
Reply
I see that this will work on a Hayward Tri-Star pump. I am using an SP3207EE with the original single-speed motor. Beyond purchasing this one, can you tell me what other parts I would need / should buy to ensure this works well? Thanks!
Reply
I would like to replace my old A.0. Smith 1.0HP 230V pump in a Hayward Super Pump housing that has a bent shaft and a broken impeller with a Variable Speed pump model. I guess the potential full pump replacements might be the Hayward Super Pump VS or the cheaper Pureline Prime 1.65 VS pump. I'd like to avoid dealing with plumbing by "dropping in" a VGreen 165.. What are all of the gaskets, seals and impeller parts that would be required? Is it better to just by the full pump?
Reply
Hi Zman, Going the Vgreen route you would need this Vgreen Motor at $399, Super Pump Seal Kit $37.95 and 1.5 HP Impeller $48.99 for a total of $485.94. The other option is going with a complete new PL2605 Pureline Prime 1.65 HP Variable Speed Pump $599 I would go with the complete new pump.
Reply
will this fit on hayward single speed pump 1.5 HP
Reply
We would need to know what specific Hayward pump model that you have for there are different designs. Please advise us as to which current motor and front pump housing model you have and if you are not sure you can send us images of the two through our support request page so we can assist in identifying.
Reply
I have a Century Centurion (A.O. Smith) motor, part #7-177474-01. It is a 1 HP motor, 1.25 SF. Will this motor work as a replacement? Do I need to purchase any other fittings or gaskets to replace the motor? Thanks!
Reply
Yes, this would be a suitable replacement variable speed motor and we would recommend replacing the seals and gaskets. In order to cross-reference those seals or seal kit, we would need the model name or number off of the front pump housing that the motor bolts to. If you are not sure then you can email us some images through our support request page.
Reply
I have an AO Smith SQ1152 Motor Model K48M2PA105C4 1.5HP, 230V, 3450RPM, 48Y, 10.4AMP single speed pump. Would this pump be able to replace it? My pump is from Anthony Pools Model AR206-L. Which tune up kit would I need? Thanks!
Reply
Hi Alan, The SQ1152 is a Full Rated Motor meaning your True HP is 2.21 HP, this means you would require the 2.7 Square Flange Variable Speed Replacement Motor and you would need this Anthony AR206-L Shaft Seal
Reply
Could you please recommend a heavy duty salt water mechanical shaft seal for this new motor which will be installed on a Jandy Stealth (1hp SHPF) pump. The old motor was a B848. The original impeller being used is rated at 1.0 hp, p/n R0445303. Isn't both the shaft size and impeller housing size that determines seal size? Pool size 12,500, 2" pipe, TDH 29 ft h2o. By the way, you guys have a great web site, Q&A section, prices and so on. Thanks!
Reply
Hi Jay, Thanks for the great question. For your pump you will require this Jandy Shaft Seal
Reply
What is the impeler part that goes with this motor and pentara pump?
Reply
Hi, Mark. Pentair Pump has several different model pump that can use this motor and some models have a specific impeller. n order to locate the impeller I will need to know which Pentair Pump you have. If you're unable to locate the pump housing model you can send pictures.
Reply
Will this pump replace my HSQ-125. I'm looking to get a variable pump motor.
Reply
Yes this is the variable speed replacement for the HSQ125 motor, please not this variable speed motor can only be wired 230V where the HSQ125 can be wired 115V or 230V.
Reply
Hi. I have the Century Centurion motor part # 7-177450-03. I was told that the 1.65 HP variable speed Pool Pump Motor Square Flange-ECM16SQU is the variable speed motor that is the best replacement choice. I wanted to make sure that it is compatible with the WhisperFlo model # WFE-4. If so, do I need to purchase anything else to replace the motor properly and does this come in an almond color, as my system is not currently black and I'd like to only replace the motor if possible. Thank You
Reply
Yes, this would be a good compatible variable speed motor replacement and would be black. We recommend also picking up either a standard seal kit GOKIT32 or a salt water seal kit GOKIT32SALT. These contain the seals and gaskets for when replacing motors.
Reply
I have a Hayward RS1000 pool pump. I saw this and I got excited that I may have a chance to swap my old system. What part number do I need to replace my old Strainer Case with this type of pump?
Reply
Hello Bernel, for the Hayward RS 1000 pump you will need 1.65 HP Variable Speed Pool Pump Motor Round Flange - ECM16CU not the SQU model. You will also need a GOKIT2 for chlorine pools or a GOKIT2Salt for salt water pools. Tune Up Kit Includes:Motor Shaft SealDiffuser Gasket, Pump Lid O-Ring, Housing, Gasket Lubricant
Reply

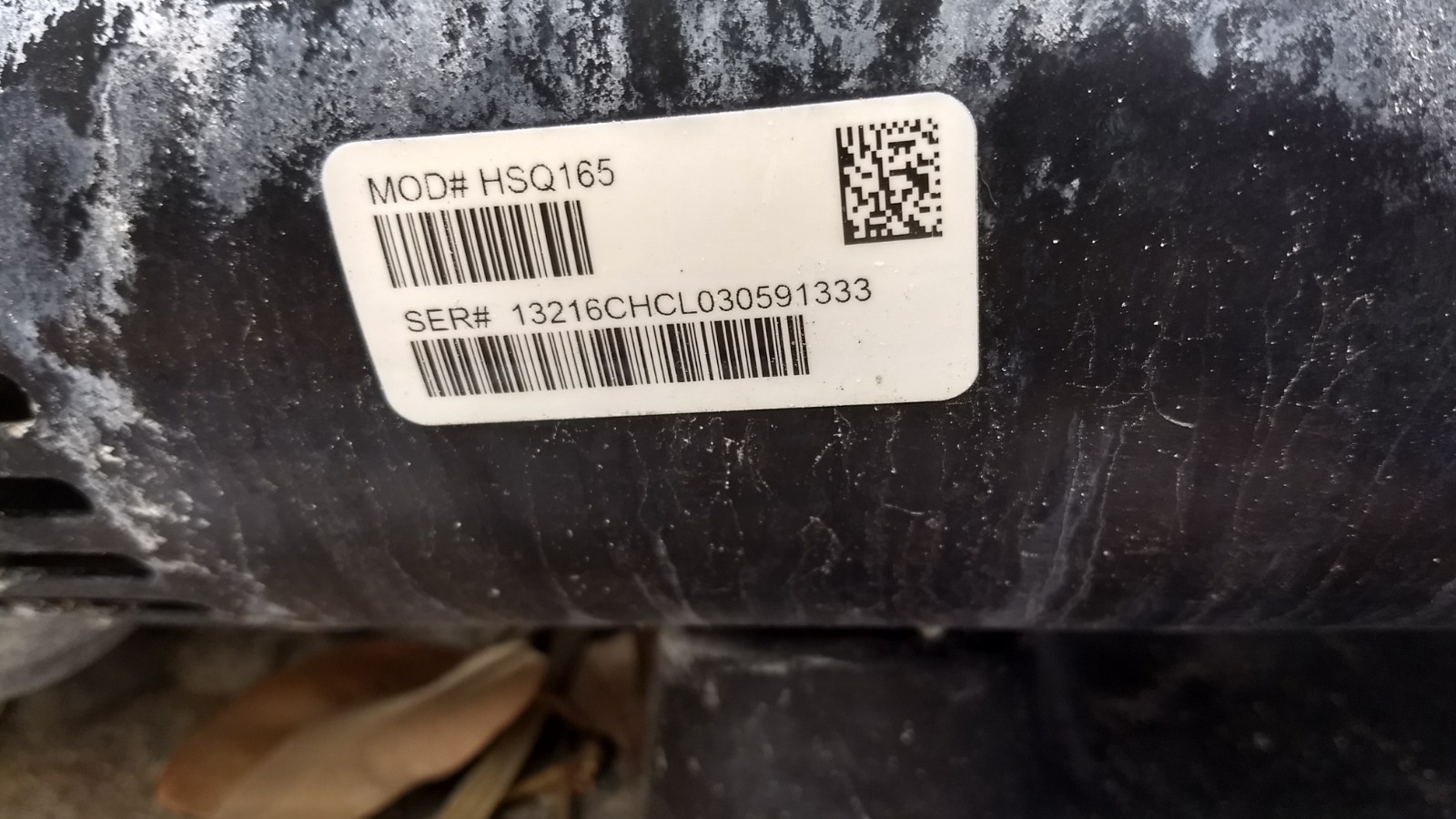

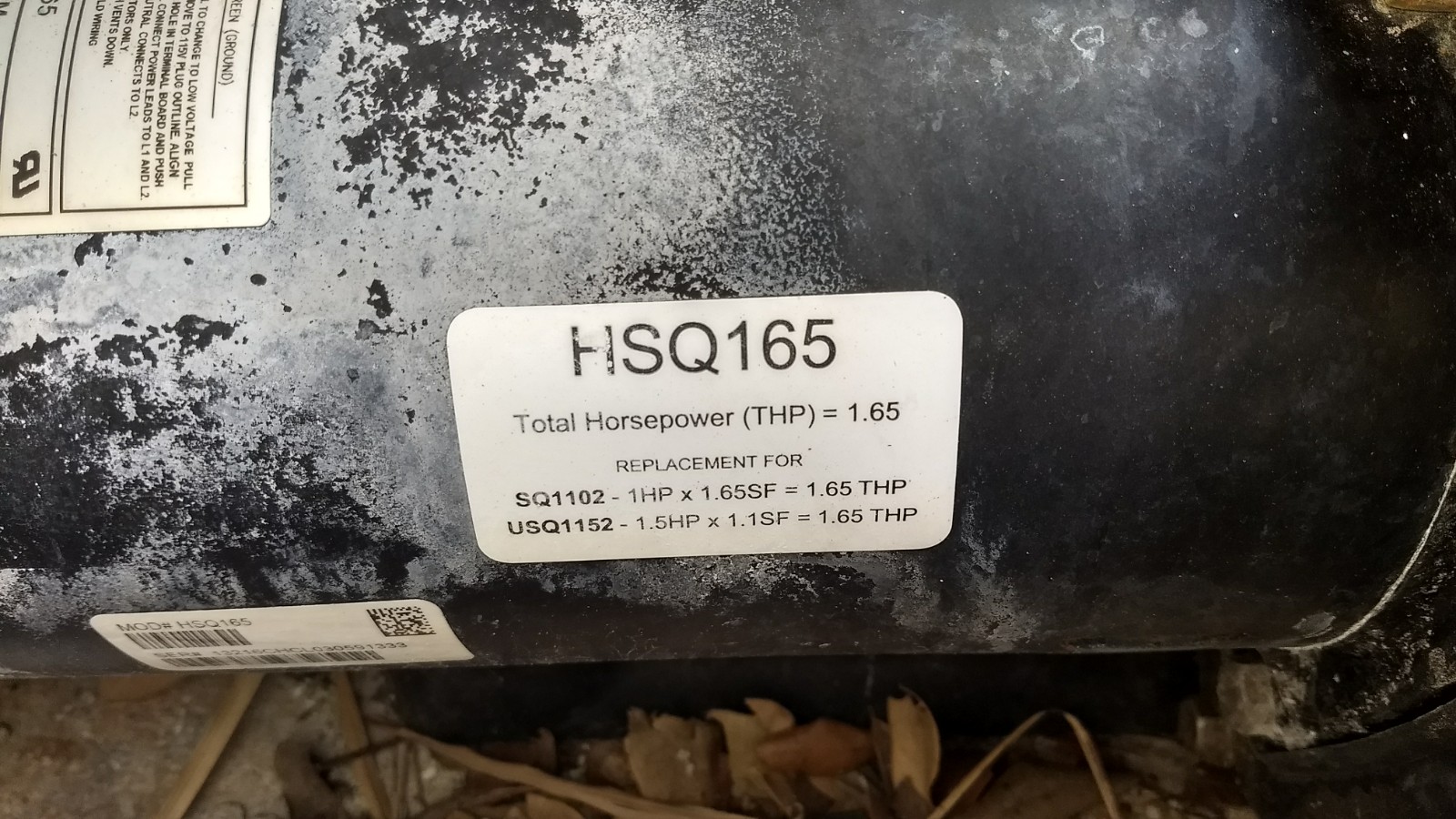

I have a P4RA6F-1871 pump housing with a HSQ165 motor. More motor details: model C48AB46A01, volts 115/230 me, 3450 rpm, 1.65 hp, 18.8/9.4 amps, sf 1.0, 48y frame. I can submit pictures if needed.
I am looking to upgrade to a variable speed motor. Will the ECM165SQU work as a direct replacement? Do I need to change the impeller or diffuser? Are there any wiring changes I will need to make? What is the shaft seal part number I would need?
Reply
Hi, Ross. The ECM16SQU VS Motor can be used as a replacement for the HSQ165 Motor. You will not have to replace the impeller or diffuser if they're in good condition. The vs motor requires 230 volts so the wire would be the same if your current motor is wired for 230 volts. You would need the Max-E-Glas II / DuraGlas II Tune Up Kit - GOKIT38.
Reply
Will this motor work for my pump? model #WF24C Also, which seal kit do I need? Thanks in advance
Reply
Hi, Jay. This ECM16SQU VS motor along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT will work the WF-24C pump.
Reply
I replaced the motor on my Pentair Superflo 2 years ago with the A.O. Smith 1.5 HP, 56Y Frame, Up-Rate Motor (b2854, 717721624). Can I upgrade to this variable speed pump motor? Is it a direct fit?
Reply
Hi Michael, Yes this is a direct replacement for your single speed 1.5 HP Pentair Super Flo Motor. You will also need a Pentair Super Flo Seal Kit when you do the motor swap out.
Reply
I have a Sta-Rite P4E62E-187L pump with a QC1102 A.O. Smith motor(true HP 1.65). Would I need to buy anything else if I was to get this variable speed one? Also, I have innovative ET-3 timers (one for the main pump and one for the booster). Would this motor work with those timers? The current motor uses 3 wires (2 black and a green).
Reply
This motor will work as a replacement for your Sta-Rite pump and will work with your timers. You will also need the Sta-Rite Max E Glass II Seal Kit when you replace your motor.
Reply
Must the communication connection(serial connector) or/and Digitial Input Connector be used for the pump to work or are those optional?
In other words, is hooking up the "mains" connector all that is required to have the pump work? Manual isn't very clear about.
Reply
Hello, Supplying 230v to the motor will allow you to use the controller on the motor to program it. The communication connection is optional.
Reply
Hello, Would the ECM16SQU be a drop-in replacement for a Pentair 7-177449-03 R56Y FR? If so, is there anything else needed since the Pentair is a R56Y FR? I also plan on the seal kit. Thanks.
Reply
This would be a drop in replacement for your Pentair 7-177449-03, however, we would suggest upgrading your impeller to a 1.5 HP uprated impeller to take advantage of the higher HP range of this motor. If you could reply back to this email with the model of your Pentair Pump then we could suggest the proper impeller and seal kit. The most popular Pentair Pumps are the Whisperflo, Challenger and Super Flo.
Reply
What would the impeller be for a Whisperflo pump, Model: WFE-3. Also, Does the 177449 being an R56Y frame and the ECM16SQU being a 48Y frame cause any mounting issues?
Reply
I am replacing a 1 HP single speed motor (USQ1102). Will this be a suitable replacement?
Reply
Yes you could use this motor as a replacement for your USQ1102 motor but to utilize the upper HP range from 1.0 - 1.65 HP you would need to replace your 1 HP impeller with a 1.5 HP impeller.
Reply
I have a Hayward 3010X15 EE pump, driven by a Magnetek SP1610-Z-1-M 1.5 hp 230 v motor.
What do I need to make it variable speed?
Reply
Hi, Bob. The Century V-Green ECM16CU Motor and the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT are the items that you'll need to convert your pump to a variable speed pump.
Reply
I am currently running an Aqua pro systems pump (59923-XXX1) rated at 1 HP and 1.25 SF with a marathon electric (impower) variable speed controller (mod.5sME29DFT001) with RPM 3450/2600/1725. Control panel recently dies and is only running on the lowest speed at all times so I am looking to replace. pool is 10k gallons with roof solar heating. Is this a good replacement motor for my set up?
Reply
Hi, Steve. Yes, this Century VS Motor - ECM16SQU can be used to replace the Marathon ImPower Motor - 5SME29DFT001.
Reply
New in-ground fiberglass pool is 3700 gal. Pump is Jandy Pro Series stealth, 220 volt, total HP is 1.65. I am certain this is more pump than I need for this size pool. Also have a LOT of pressure in the 2 return jets. I currently run the pump for 4 hrs a day via the timer and the water chemistry is good. I want to replace the existing SS motor with a VS motor. Which VS motor would be appropriate for this pump? Since the pump is new, will I need any additional parts such as seals etc.
Reply
Hi, Loren. This Century VS Motor ECM16SQU is compatible with the Jandy Pro Series Stealth Pump with a THP of 1.65. You will need to replace the pump seal and the pump o-rings which are listed on the Jandy Stealth SHPF & SHPM Parts Diagram.
Reply
My pump motor just went out. Can I use this motor? I have a pentair whisperflo wf-23 011771. Also, I have a goldline salt 20 salt water generator. How do I hook it up to this as I do not have automation. I did not see this in the owners manual.
Reply
Greg, While you can use this motor, the HP will be limited due to the impeller size unless you change it as well. Please note that the ECM16SQU will only run on 230v. If you have 115/120v, you will have to stay with a single speed motor. Since you have a salt system, I would recommend the GOKIT32SALT tune up kit,
Reply
I have a Sta-Rite model P6e6e-206L with an A.O. smith QC1102 motor on it. I'd like to upgrade the motor to a variable speed motor. I'm running a hayward sand filter with a max of 62 gpm, I've got about 38 average ft of pump head, running 1.5' pvc. my pool is 18x36 with a 9' deep end ( i think about 20,000 gallons). Would this motor work? also looking for part number for cover that goes over impeller, it is worn.
thanks!
Reply
Hi, Steve. This ECM16SQU VS Motor will work with the P6E6E-206L pump. You will need the Max-E-Pro Tune Up Kit - GOKIT79 and Diffuser - C1-271P1 to replace the seals and worn impeller cover.
Reply
Is this miter compatible with Hayward sp3010x15az? Do I need a new timer?
Reply
Hi, Robert. No, this motor is not compatible with the SP3010X15AZ pump. You will need the ECM16CU VS motor along with the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT. You will need an external timer to tell the motor when to turn on/off or else it will run continuously.
Reply
If I use this motor to replace my old A100FLL C48L2PA105, what turn up kit do I need to buy?
Reply
HI, George. In order to identify which kit you will need, I will need to know the pump housing model info.
Reply
I want to replace my single speed motor on my sta-rite supermax phk2ra6e-102l with this motor....will it work and also what gasket kit would I need?
Reply
Hi, Harvey. This ECM16SQU VS motor along with GOKIT78 will work with the Super Max PHK2RA6E-102L pump.
Reply
I have a 24K salt water pool with a built-in spa, currently powered by a Whisperflo WFE 8 @ 2 HP. I hardly ever use the spa. Will the lower HP motor suffice, or do I need the 2.6 HP model?
Reply
Hi, Jeff. You can down size the pump by changing the Impeller - 073128, getting the Whisperflo Pump Tune Up Kit - GOKIT32 or GOKIT32SALT and this ECM06SQU motor if you'd like. If not you'll need the ECM27SQU motor and the tune up kit to match your impeller.
Reply
I current have a Jandy 1.5HP single speed pump running 12 hours a day on a timer. I have solar heating on the roof of a 2-storey house so the pump has to get it up there. The pump is 15 feet away from the pool's edge. Will the 1.65HP Variable speed pump motor be sufficient? Or do I need the bigger variable speed motor? And which one will be more efficient. i.e. Will the 1.65HP VS motor have to run higher RPM than the 2+HP VS motor and therefore less efficient?
Reply
Hi, Dale. The variable speed 1.65hp motor can replace a 2hp max rate motor. The 2.7 VS Motor - ECM27SQU will be more efficient than the 1.65.
Reply
HI,
Will this work as a replacement for a Pentair 340038 pump motor? What additional parts would be required?
Thanks!
Reply
Hi, Wes. Yes, this ECM16SQU VS motor will work with the Pentair Superflo Pump - 340038. You will also need the Superflo Tune Up Kit - GOKIT78.
Reply
I have a Jandy SHPF 1.0 with AO Smith 7-193993-05 (1.65HP) motor. (1) Can I replace with this variable speed? (2) size wise does it fit snug on the Jandy pump or do any adjustments need to be made? (3) Do they run off the same voltage? Thanks, very helpful forum!
Reply
I have a Pentair wisperflow with a wfe-6 single speed pump motor. Will this motor replace mine ? Thanks
Reply
Hi, Kevin. According to Century, this ECM16SQU can be used depending on how your pool is plumbed and if you do not have any additional features like a waterfall, solar panels etc. If you do then the ECM27SQU would be the proper replacement. You will also need to get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I would like to retrofit a Hayward EnergyFlo RS (model EF500) with this variable speed pump. The current motor is a Century SP3205Z1BE (.5HP). Which model would I need?
Reply
Hello,
The user manual for the V-green 165 controller says that once "Start" mode is active, if motor mains power is interrupted then when power is restored the motor will begin running the stored program starting with Step 1. So, if I used an outboard time clock to turn the mains on and off, would the V-green 165 reliably start running its program every time power was applied? Is there any time limit to how long the "Start" state is retained when mains power is absent?
Reply
Hi, Ken. The V-Green 165 will start at Step 1 everytime power the reset. There is no specific time frame stated in the owners manual.
Reply
My pump is a Hayward Superpump SP2610X15 and the motor is a UST 1152. Does this motor work as a replacement while keeping the same pump housing?
Reply
Hi, Jay. You will need to use the ECM16CU Motor which is compatible with the Hayward Super Pump SP2610X15 Housing. I will also recommend that you get the Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Will this motor fit a Sta-Rite P2RA5YF-182L pump? Does it require the 270 controller or can it operate with an Intermec timer?
Reply
Hi Aaron! Yes the motor will fit your Sta-Rite. As for the controller timer that all depends on how much you want to control it, but it is not necessary. It can also operate with an Intermec timer for turning it on and off.
Reply
Will this motor fit a jandy 1.5hp stelth pump
Reply
It depends on what model Jandy Stealth you are referencing. Please contact our office either by phone or email, with the model number and serial number off of the Jandy Stealth pump housing to confirm. You may send pictures of the service tag off of the pump housing to upload@inyopools.com
Reply
I have a salt -> chlorine control panel that is recommended to be wired into 220v controlled by the timer. But with this pump the timer is eliminated. So is there a way I can connect the control panel to the pump on a connection that is 220v when the pump is on, and 0v when off?
Reply
Hi, Spydox. You can eliminate the timer for a continuous operation of this motor or wire this motor and the chlorine generator to the same timer so that it runs simultaneously.
Reply
Can this vs motor replace the Jandy single speed motor I have; it's a 1.5 hp Jandy Pro Series model SHPM1.5, serial #U12F12278 and the motor is Century A.O. Smith part 0-193993-05. Also, what seal kits or parts will i need.Thanks for the info.
Reply
Hi, Jerry. Yes, this ECM16SQU VS Motor can be used to replace your existing motor on your Jandy Pro Series model SHPM1.5 pump. You will also need the following parts; Shaft Seal - R0479400, Diffuser And Impeller Hardware - R0446500, Backplate O-ring - R0446300, and or the Lid Seal & Lid O-ring - R0446200.
Reply

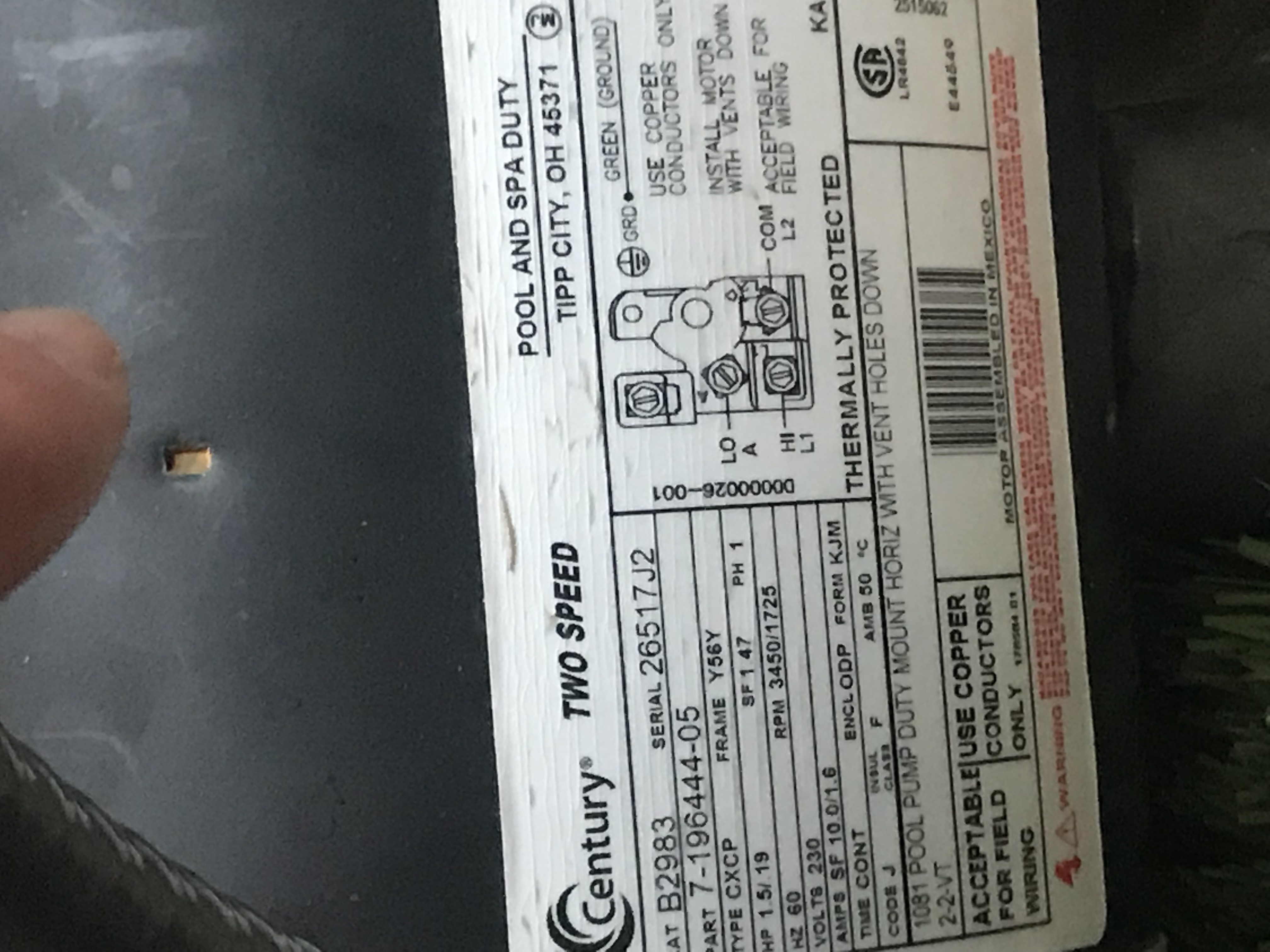

I was looking to buy a replacement AO Smith B2983T motor/timer for my Challenger pump, but that doesn't seem to be available any more. Is this a good substitute? Would you recommend something different? Thank you.
Reply
How many gallon per minute does this pump push out? Im trying to calculate the amount of water flow depending on rpm's
Reply
The gpm rating varies between complete pump models and are not just based on the motors. For example, if you click here you can view the Hayward Super Pump gpm rating in the details. Once you confirm the front pump housing model that you have then look up its pump curve with the hp rating that the VS motor has.
Reply
I need to replace my K48L2PA105 that is connected to a StaRite PE AXE-124UL. my pool is 33k gallons and has a DE filter. I run a Polaris 280 with booster. Is this the correct Vari Speed motor for replacement? Also I am planning a Electric Solar system install later this year, do i really need to go to a variable speed pump? Looking for recommendations? I live in Sunny California
Thanks
Reply
Currently need a motor for my StaRite pump #P2RA5F-182L, w/ motor #5KC39UN6086X 1.5HP, 115/230, 56Y FR. Will this ECM16SQU motor work as replacement, and what other items should be also be replaced?
Reply
Hello, you can go with the ECM16SQU. Along with this, I would recommend getting the gokit54 to replace all of your seals. Please be advised that this seal kit is designed for pumps manufactured in or after 1998, so if yours is older you will need the gokit6.
Reply
Can I replace a Sta-Rite P6E6D-205L with this motor?
Thank you for your time & advise.
Ed H.
Reply
Im replacing a Marathon c1245 square flange. Will this work as a replacement? What other parts are necessary?
Reply
Hello Tom, yes the 1.65 HP Variable Speed Pool Pump Motor Square Flange would be the replacement for your motor. For the seals and gaskets, Do you have information on the front half of your pump? I would need the manufacturer and model which is usually located on a sticker or plate on the plastic housing of the pump. https://www.inyopools.com/Blog/pool-parts-101-the-difference-between-a-pump-and-a-motor
Reply
I have a Centurion B2854 sn 01516ch part # 0-f56aa40a01-24 pool motor, single speed 1.5 hp. Will this variable speed replacement fit my pump?
Reply
Yes, this variable speed motor is a replacement for yours. Just keep in mind that it isn't as wide as your current one so may not rest on your pump base and also it has the control panel on the motor itself so be aware in case your pump housing extends over the motor.
Reply
I have a Pentair WFE-8, 2HP. Can I use this motor to replace it? I have a 26500-gallon pool/spa. Thanks.
Reply
Hello, you could not use this motor on your WFE-8. However, you could use the ECM27SQU. Please be advised that this motor has a smaller bore than what your current motor is, so to account for this you must place something underneath the motor so that it is not dangling in the air. Along with this I would recommend getting the GOKIT32 or the GOKIT32SALT if you have a salt system.
Reply
I have a 2 h.p STA.RITE motor on my 16000 gal salt water pool Mod.P6RA6G -207L. What would i need to do to change over to a ECM16SQU
Reply
For the pump you have we would recommend when converting to a variable speed to go with the 2.7 HP Variable Speed Pool Pump Motor Square Flange - ECM27SQU.
Reply
i have a pentair VS3050 itelliflow with a 1hp motor. the controller has gone out and i refust to pay 700 for a new one since its a design flaw in their controllers already. which of these will swap to their pump housing?
Reply
I have a Jandy epump that the drive has gone bad. Will this work with my pump and Jandy control system?
Reply
Hi, Timothy. This motor will not work with your Jandy Pool Controller like the Jandy ePump. You will need to get the V-Green Automation Adapter Kit - 2517501-001.
Reply
How long does the ECM16SQU retain its settings (both the clock and programming) after a power failure, and when power returns what state is the motor in - for example, will it automatically resume its programming?
Reply
The motor should retain it's settings for at least 24 hours after power is lost. Once power is restored, it should run at the Step 1 program.
Reply
I have a PENTAIR WHISPERFLOW 1.5 HP pump and the motor is making noise (maybe bearings?). Wondering if I can upgrade the unit to a variable speed motor complete with the SCR programming feature. Can this be done, what is all I need to get to replace the motor unit?
Thanks,
Carlos
Reply
Hi Carlos, You could upgrade your motor to variable speed and this is the correct replacement motor for your 1.5 HP Whisperflo Pump as long as the SF rating on your motor label is not higher than 1.1. If you do have an SF rating like 1.5 then you would need the 2.7 HP Variable Speed Replacement Motor. In either case, you will also need a Whisperflo Tune Up Kit. I'm not sure what the SCR feature is that you mentioned? Is it possible you mean SVRS?
Reply
Hello, I have a Pentair Challenger pump with a Centurion 1.5hp (SF 1.1) motor. The pump seems fine but the bearings are shot on the motor and I'm looking to replace it with a variable speed setup for energy efficiency and quiet operation. My question is, am I better off getting just the motor (looking at this one) or the combo with the pump for a couple hundred more? Local “experts” have advised against doing the motor only, but it seems that the reviews and track record are good...
Reply
Can the digital instruction & programing module be turned around in a different position as the one shown indicates in the way I have to mount it to my impeller I would have to read it upside down which obviously would not be the easiest way to program or operate the variable pump.
Reply
Hi, Ron. Unfortunately, the controller cannot be rotated. You can upgrade the interface using the V-Green 270 User Interface - 2520652-001 and the User Interface Offboard Mounting Kit - 2512723-001.
Reply
Hello,
My current pool pump is StaRite Dura Glas model P2RA5D-180L. Its motor is C48J2PA105C1 with HP 3/4. Please let me know what variable pump motor is the right fit. Thanks. James
Reply
James, As long as you have 230v, you can use the ECM16SQU variable speed.
Reply
I currently have a single speed Pentair Whisperflo 1hp, 1.25 Service Factor, 3450 RPM, Frame: P56. 40' +/- of head. No extra features such as waterfall or hot tub. FNS 48 DE Filter. Pool is roughly 21,000 gallons with 1.5" PVC plumbing. Is the ECM16SQU large enough to get the desired 1~1.5 turnovers a day with enough flow at the lowest speeds? I am on a time of use plan and this pump would need to run at the lowest speed for approximately 10 hours from 2pm to 8pm andother times at higher RPM's.
Reply
Hi, Brian K. Based on the info provided, this ECM16SQU motor will work. The lowest RPM that you will be able to operate the motor at will be 2450 RPM with approximately 20-25 GPM. Operating the pump from 2 pm to 8 pm is only 6 hours. To turnover your pool in 10 hours you will need a flow rate of 35 GPM, which will be about 3000 RPM's.
Reply
I am replacing a Hayward Super 11 pool pump motor 110 V. Was sold a replacement "Century V -Green 165 variable speed motor. Vendor said that it would run on either 110 or 220 volt. when Received the motor, the manual indicate 220V. Is there a way to convert to110Volt?
Reply
Hi, Robert. The V-Green 165 VS Motor cannot operate using 110 volts, only 230 volts.
Reply
I have an AO Smith HSQ165 C48AB46A01 that needs to be replaced. Will this motor work?
Reply
As long as the motor housing does not have any parts that would collide with that control box mounted to the motor then yes this motor would be a compatible replacement.
Reply
Is this motor Energy Star rated?
Reply
While the VGreen 165 variable speed motor by Century is a durable TEFC replacement motor designed to deliver premium energy savings from 40 percent to 80 percent versus a standard single speed motor. It by itself is not energy star certified. We offer the PureLine Prime Variable Speed Pump PART # PL2605 IS.
Reply
Hello, I have an 18,300 gallon pool with 1.5" plumbing. I have a Pentair whisperflo pump with a Century 1 hp motor. Using guages I calculate my TDH at 52. I have a flow guage installed reading 64 pm with a clean filter. Will this motor work well for me or will I need the larger one? I also use a Barracuda 3 vacuum. Thank you!
Reply
Hi, Joe N. Yes, this motor will work with your existing pump. You will also need the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
Reply
I have a "1.65 HP Variable Speed Pool Pump Motor" and it is starting to make a HIGH-PITCH noise.
The noise sounds like it is coming from the impeller area or
possible the bearing on the impeller shaft coming out of the motor.
I am having trouble getting a pool service person out to check the problem out.
My question is: "Has anyone else had this type of problem and if so then what is the actual problem?".
Reply
Mosty commonly the screeching sound coming from this area is either the motor bearings failing or for some reason or another, the impeller has begun grinding against the diffuser. It is common enough but not terribly.
Reply
I currently own an AO Smith Motor CET38ABM attached to an impeller frame V38-130. Will this motor fit on my impeller frame and will I need any additional mounting supplies such as O rings for installation
Reply
My single speed motor just blew up so am looking at replacing it with this. Multi-meter shows my line voltage at 250 volts. I'm no electrician but I was expecting to see 110 + 110 (or at the most 115 +115). Since its only rated to 230 volts i'm worried I might fry it. Is it normal to see standard mains voltage so high?
Reply
Hi, Glyn. The voltage that you're registering is on the high side. Motors are able to handle +/- 10% of the rated voltage. If the voltage is too high, you will get a Fault error. I would recommend that you get an electrician to see if the voltage can be reduced.
Reply
The pictures of the timer pad show the display oriented for viewing from the back of the motor. In my case the motor is up against a wall, can the timer pad be rotated 180 degrees so it faces the pump end of the motor?
Reply
Hi, Chuck. Unfortunately, the interface cannot be rotated. Alternate options are purchasing the V-Green 270 Interface - 2520652-001.
Reply
I have an approx 7 yr old Hayward Ecostar SP3400VSP pump with either a bad motor or controller. My pool is 12500 gallons with a salt water generator. Will the V Green 1.65HP with a smaller impeller work with the EcoStar pump? The original motor is a Century M48A40A04.
I typically only run the pump at 1400 rpm for about 12 hours with about 1 hour at 2600 rpm to run the pool cleaner. I have 2" suction lines and 2" supply lines and a 120 sq ft hayward cartridge filter.
Reply
Hi, currently have a pentair superflo part# 340040 on a small (8k) gallons pool. will the ecm16squ work? i know the 27 would probably work but trying to keep the cost down as i'm selling my house. would it require an impeller change?
Reply
You would need to change the impeller and we would recommend keeping a minimum of 2 hp hence the 2.7 variable speed motor because that was likely what the builder had calculated as what your pool system needed.
Reply
Thanks. Do I need any other parts to install motor?
Reply
It is highly recommended to replace the seals and gaskets as well but you will need to know the model name or number of the front pump housing that the motor bolts to in order to cross-reference that kit. If you are not sure of that information you can always email us images of that housing to upload@inyopools.com so we can try and assist you with that.
Reply

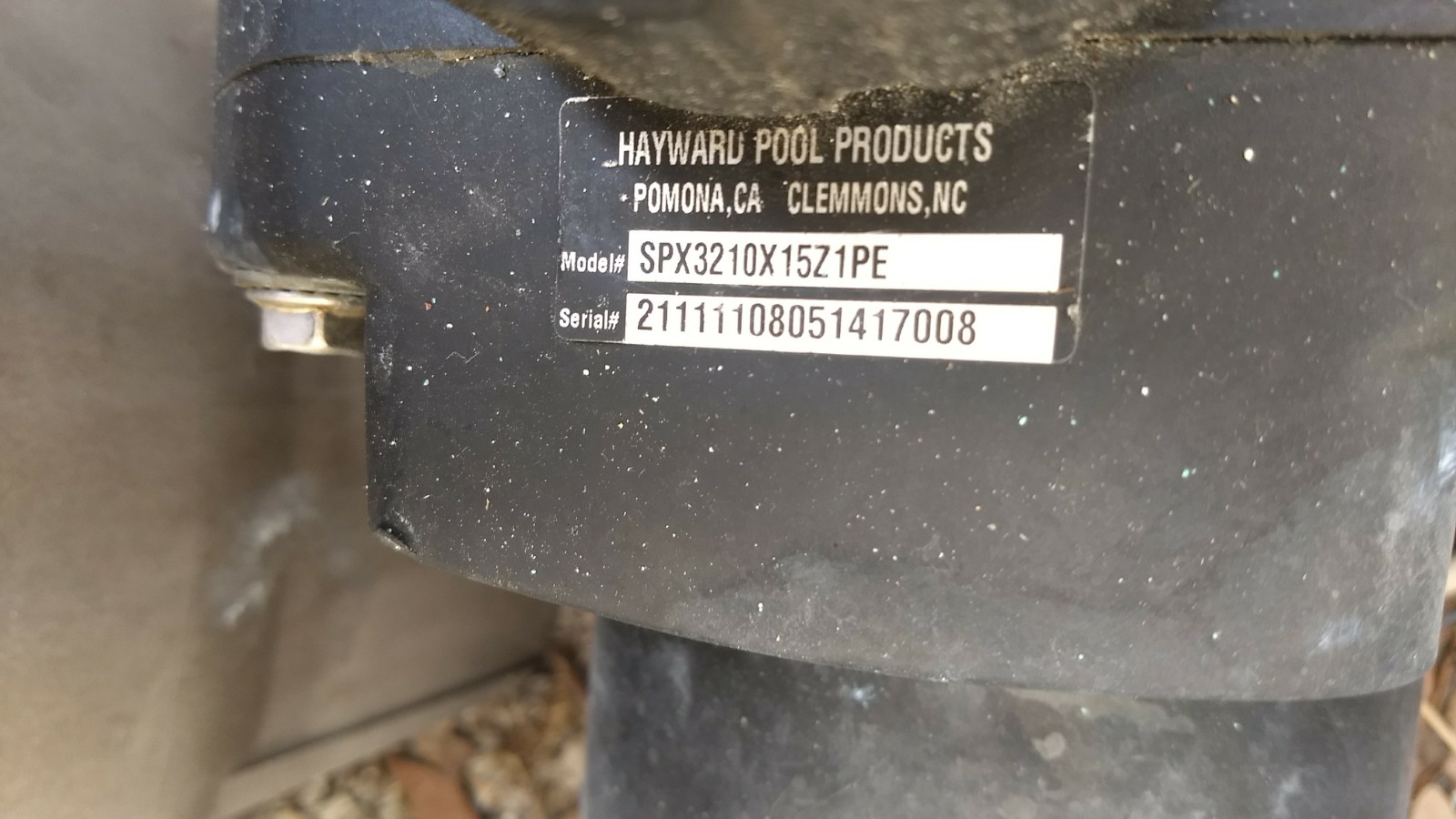

I have a single speed HSQ165 motor attached to a Hayward SPX32 pump/filter basket (pictures attached). Is this variable speed motor a direct replacement for this 10,000 gallon, salt water, DE filtered pool? I also run the pool with a T104 intermatic timer in Florida with 2 inch plumbed piping.
Thanks so much for the help and advice!
I am trying to decide between the ecotech ez avss3 and the a.o. smith ecm16squ. I have a Pentair whisper flo pump wfe6 1/2 horse power, what do you think between the two. thank you very much.
Reply
Hi, Bruce. The Ecotech EZ AVSS3 is a 3 THP VS motor versus the V-Green ECM16SQU is a 1.65 THP VS motor. The motor you will need for your WFE-6 pump will be the ECM27SQU - VS motor along with the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
I have a new Hayward 1.5 hp single speed Max FLO II pump my pool contractor installed, when we build the pool back in July. I wish to replace the Hayward motor with a Dual Speed or Variable speed. We live in South Florida, so we run the pool at least 6 hours per day, with a suction side pool cleaner, and a heater. Thinking this pump would be a great fit. Any suggestions?
Thanks, James
Reply
Hello, I have a 20,000 gal pool in southern Florida with a 1HP, 1.25S.F. Sta-Rite Max-E Pro pool pump model P6RA6E-205L. The pump is only about 2 years old but is a single speed. I am looking for a more efficient, replacement, variable speed motor that will work with the pump. Will this motor work in my situation?
Reply
Good Afternoon- Yes, this 1.65 HP Variable Speed Pool Pump Motor Square Flange would be a good motor to replace the motor of your P6RA6E-205L pump.
Reply
I am finally ready to order my replacement variable speed pump. Will I need any type of seal kit for my 1HP, 1.25S.F. Sta-Rite Max-E Pro pool pump model P6RA6E-205L, dated Feb 2016? If so which kit do you recommend?
Reply
Hi Gary, Unfortunately, there is not a tune-up kit for the Max E Pro for Max E Pro pumps after 2015. We would suggest just replacing your shaft seal with this 201 Shaft Seal and you should be all set.
Reply
I have motor MOD C48AB4601 SER 01014CH SF 1.00 HP 1.65
Which of your motors would be good as a replacement?
Good Morning- A good variable speed option to replace the C48AB4601 would be the A.O. Smith 1 1/2 H.P Square Flange Dual Speed Up Rate Motor - UQS1152R.
Reply
What would be a good replacement for the Pentair C48AB46A01 motor?
You would require the UQS1152R 1.65 HP Dual Speed Hayward Tri Star Replacement Motor . The two-speed pump requires one relay to turn the pump on and off and the second relay is used to switch between high and low speeds. When replacing your UQS1152R 1.65 HP Dual Speed Hayward Tri Star Replacement Motor you will also want to replace your Hayward Tri Star Shaft Seal.
Reply

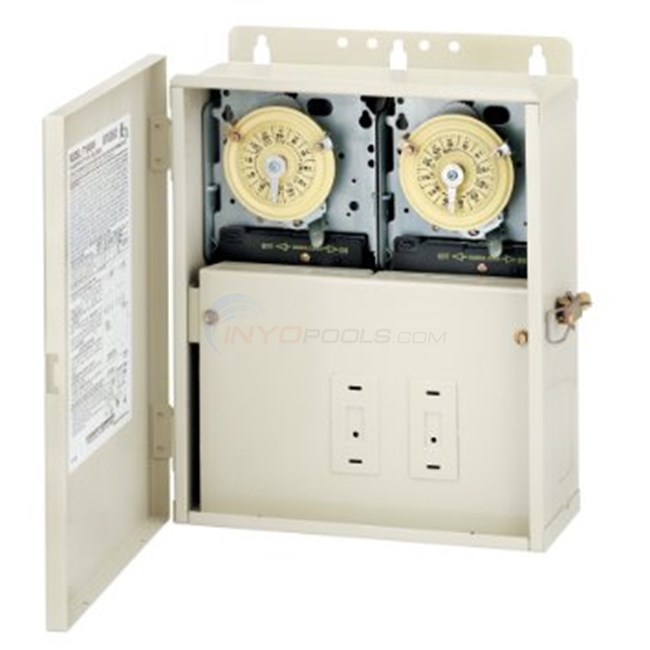

I have a booster pump with separate dual water heater type timers and switches that ensure the booster pump is off if the main pump is off. This motor seems to have an output to a load that is configurable. Can this out be programmed to only supply voltage to the booster pump when the pump is running?
Reply
I have Wisperflow Model 26s Pump 1 ½ HP Service Factor 1.1 with a Pentair 073128 replacement Impeller. Will this motor fit the pump and what accessories will be needed to install it.
Thanks, Ralph
Reply
I have 1.5 hp whisperflo pump connected to an EasyTouch PSL4. If I install this motor would I still connect the 230V power thru the filter pump relay of the easytouch or would it be connected directly to a breaker. Also where would I get the 24v digital input signals for the v-green?
Reply
Hi, Mike. This motor will be will have to be wired to the pump relay. Your controller will not be able to digitally connect to this motor.
Reply
Near the end of the description it says that with digital inputs this motor will work with third party automation systems. Why can't I control this motor with my easytouch?
Reply
Hi, Mike. You can connect the pump to your EasyTouch controller using the RS485 Digital Input; however, will still have limited functionality.
Reply
I have a Pentair Whisperflo WFE-6 does this replace the motor and how much efficiency should I gain on energy over the standard 1.5 HP WFE-6 motor?
I have a 24,000 gallon pool.
Reply
Hi, Gary. The ECM27SQU is the correct replacement variable speed motor for your WFE-6 pump. You will also need the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
I have a Jandy Stealth SHPM1.5 and I am wanting to move to a variable speed. Is this a direct replacement and does it have a clock?
Reply
Our Pool is controlled by a Zodiak Aqualink 2.0, will this V- Green 165 variable speed pump motor be compatible with this wireless controller.
Reply
Hi, Jerry. You will be able to turn the pump On/Off; however, will not have full control over the V-Green motor.
Reply
Will this work with a Jandy FloPro pump. Current have a AO Century Centurion Motor
Yes, this is the correct replacement variable speed motor. Just keep in mind it is a bit thinner and may not rest on the base of the pump the same way.
Reply
Hello
Is there any way to change the speed of the prime mode for v-green-vsa-165?
Thank you
Edwin
Reply
Hi, Edwin. Only if you're using the V-Green 270 User Interface - 2520652-001, you can edit the Prime Mode fon the V-Green 165 motor.
Reply

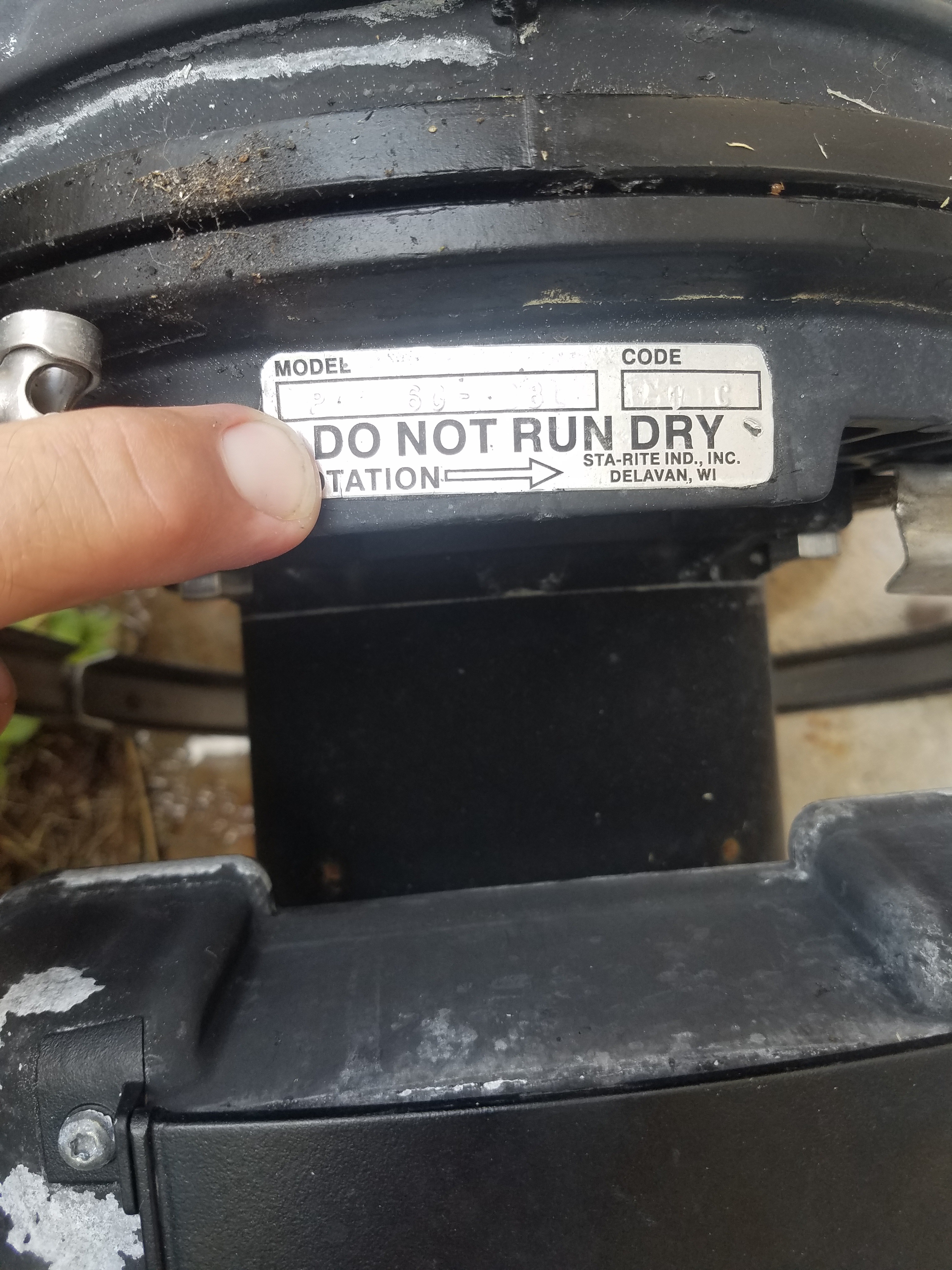

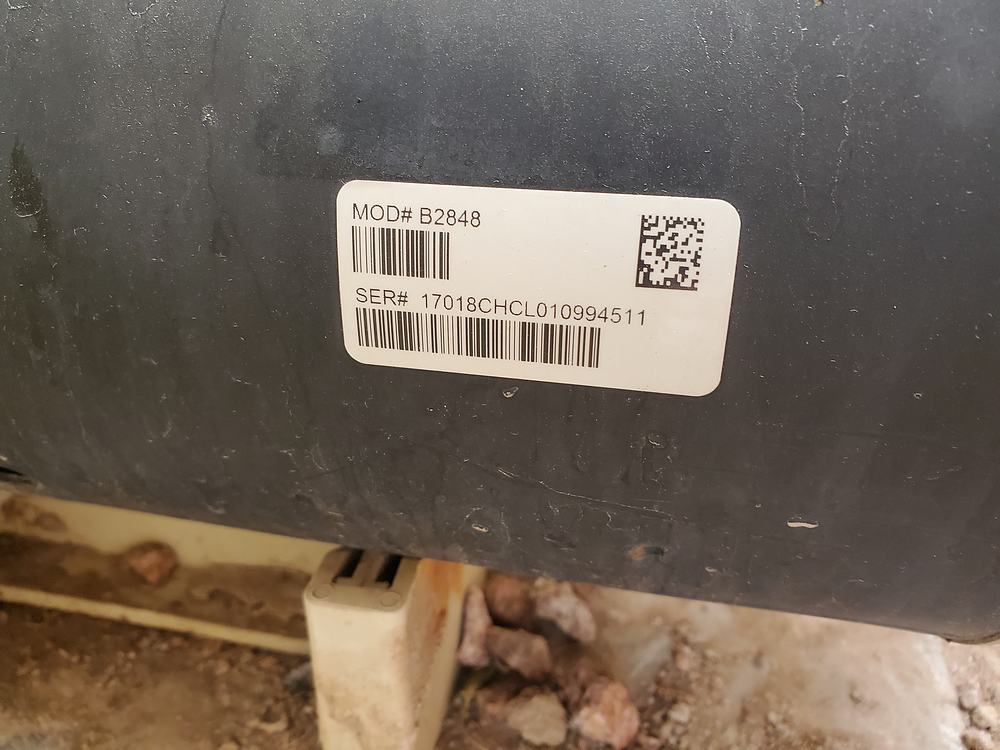

I have a P2R pump and a B2854 motor. Is this a suitable variable speed motor for replacement? What options do I have for higher efficiency pool pump motor replacements? I also need an o-ring/shaft seal set - which would you recommend?
I am thinking of replacing the motor with your ECM16SQU. Will this work (see pics)
I have a 26,000 gal gunite pool and 2” pvc. How long would you recommend running at a low speed in the Dallas, TX summer 90+ temps
Years ago I had a 2 speed motor for the whispflo pump. It went bad and just replaced the the standard single speed. The cost of electricity is going up and I remember the dual speed make a heck of a difference
Hi, Hyatt. You will need to provide us with the Total Dynamic Head of your pool in order to recommend operation speeds and duration.
Reply
How about using this for a replacement to a hayward 2 speed motor 56y ?
Hi, Charles. Using this ECM16SQU variable speed motor will require using a smaller impeller. To prevent replacing the impeller with a smaller option, you will need to use the V-Green 2.7 HP Variable Speed Pool Pump Motor Square Flange - ECM27SQU.
Reply
I have an old Premier 455 Bonze Pump with a single speed motor on its way out. Would this motor be direct replacement for my pump? If so would there be any other parts or seals I would need to purchase to complete this job?
Reply
Can you please send a photo of the motor label ?
Reply
I currently have a Hayward tri star vsp 1.85thp. Can this motor replace it and can I use the Hayward interface with this motor

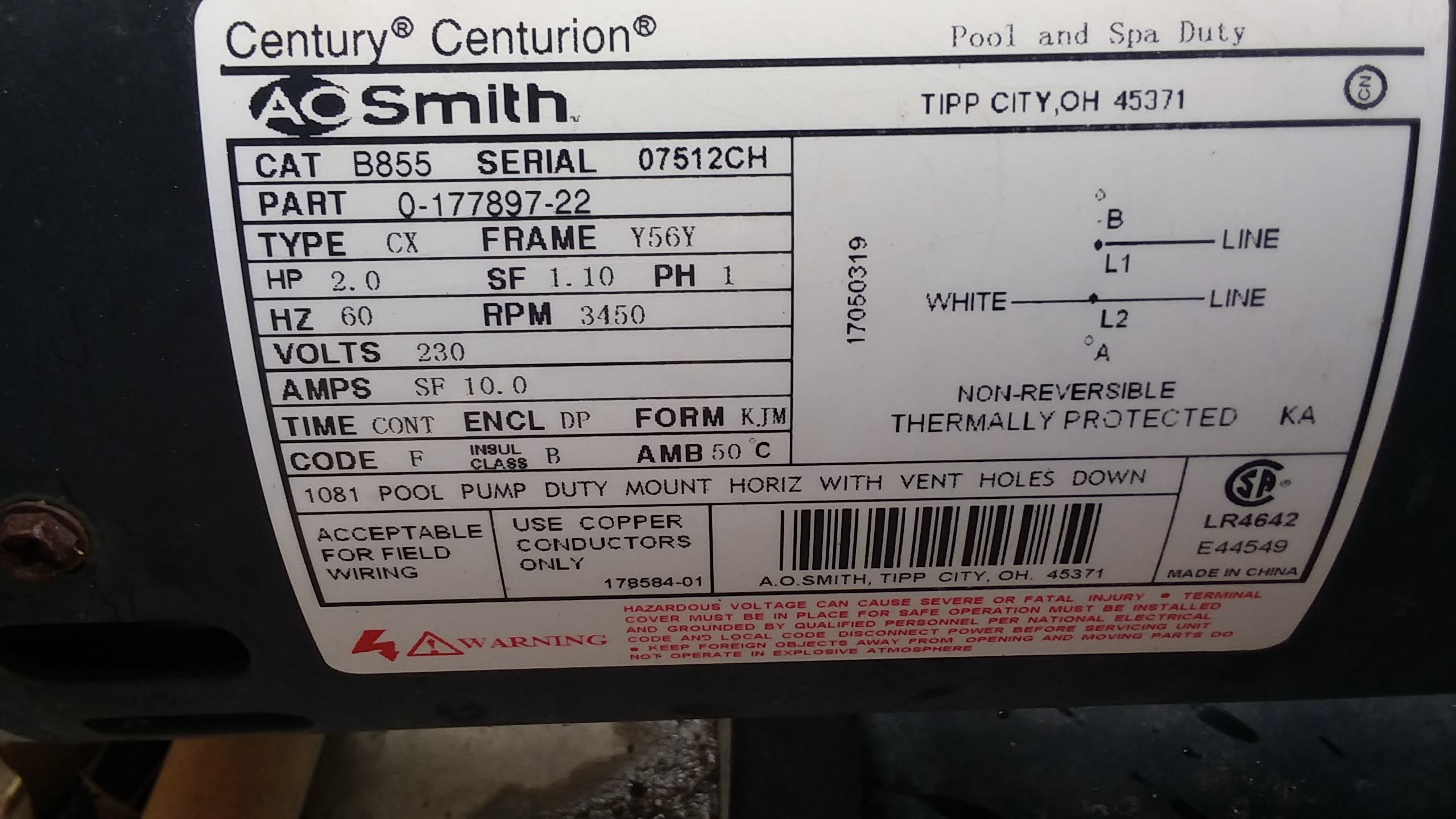

I have a Whisperflo WF-28 with a single speed 2 hp motor. Is this motor compatible with the WF-28? Also, is the 1.6 hp enough motor to replace my 2 hp unit or should be looking at the 2.7 hp motor? I have a 17,000 gal saltwater pool with 3 fountains and 2.5 in. piping.
Reply
I would recommend to at least match what you have with an ECM27SQU.
Reply
But no issues with the flange bolting up to the WF-28 plate, and the shaft size and length is compatible also? Should I also change out my impeller?
Reply
Hi. Yes, the ECM27SQU will mount to your existing pump without any issues. You can keep your existing impeller if it's in good condition. ou will also need the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT
Reply
Hi. Yes, the ECM27SQU will mount to your existing pump without any issues. You can keep your existing impeller if it's in good condition. ou will also need the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT
Reply

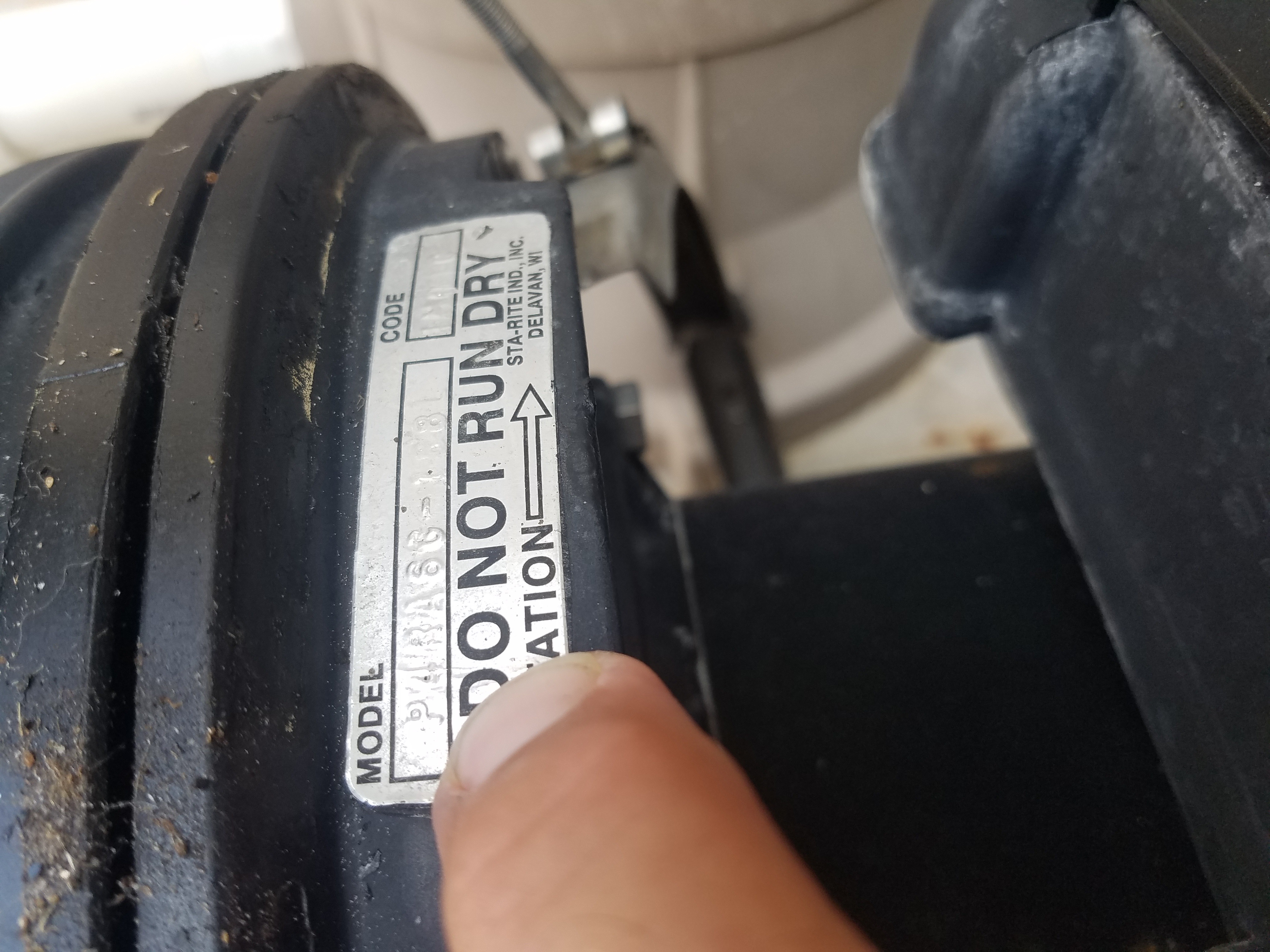

I have a Starite P2R pump and a 1 hp single speed motor. Would this be a suitable variable speed motor for replacement? If not, which variable speed motor would be suitable for replacement? Which kit would you also recommend? Thanks!
Hi. This ECM16SQU - V-Green 1.65 HP Square Flange 48Y Variable Speed Motor is a suitable replacement. Based on the pump model # you'll need GOKIT6 - Pre 1998 Sta-Rite Dura-Glas & Max-E-Glas Pump Tune Up Kit that's only if you still use the Seal Insert - J3-2. If not, get GOKIT54.
Reply
Is this ECM 16SQU compatible with my Jacuzzi Magnum Plus pump to replace my 1.0 hp single speed Century motor?
Reply
I am considering getting this motor to replace my 1HP A.O. Smith F56AA37A01. I would like to include a new seal kit- recommendation? (Also how would I know the year of my pump i.e. pre 1998 ?) Thanks!
Reply
Hi, Mike. The Pre-1998 models have a Seal Insert ad the Post 1998 models do not.
Reply
we have a sta-rite dynaglas with a usq1072 3/4hp motor.
what would be the correct repalcement for a new motor and seals?
we are in granite bay california. i do not fully understand the CA title 20 over 1hp regulations
I recently purchased this VS motor for my WF-28 pump, as per INYO recommendation, to replace my old SS motor. I am having a problem with the impeller binding up on the motor shaft when the unit tries to run. The motor runs for about 5 secs then stops. The impeller is torqued so tightly it takes me holding the impeller while someone else uses the 5/16th allen with a torque bar on the motor to break it free. Once the impeller is loose, the motor spins freely. What am I missing? Images to come.
Reply
Hi, Todd. This V-Green 1.65 is too small to use with the impeller of the WF-28. The impeller will need to be replaced with P/N 073128.
Reply
This motor was recommended by an INYO rep. for my specific pool configuration. No mention about replacing the impeller. Will I loose flow rate by going to the other impeller? It seems to be working fine now. I had installed the spring loaded shaft seal backwards.
Reply
Todd, Installing the shaft seal incorrectly can cause issues. Replacing the impeller will reduce the pumps flow rate slightly, you will not even realize it.
Reply
I have an Aqua pro/Sunrunner pump (59923-XXX1) rated at 1 HP and 1.25 SF with a marathon electric (impower) variable speed controller that I am going to replace with the Variable Speed V-Green 165. Could you please point me toward to the correct part numbers on your site for the seals I will need? Thank you.
Reply
Will this pump work as a drop in replacement for my Marathon motor 5KC38SN5084AX? I know I have a STA-RITE pump but not sure which model since the tag is worn off but the impeller part number stamped on it is C105-138PEB. If you can recommend the proper seal replacement kit and also which single speed pumps would also work as a replacement in case I go that route it would be very helpful.. Thank you!
Would this be the correct replacement for a sta rite pump model P4E6D-186L / motor model K48K2PA105C1?
Also what would be the appropriate gokit? Thank you
Reply

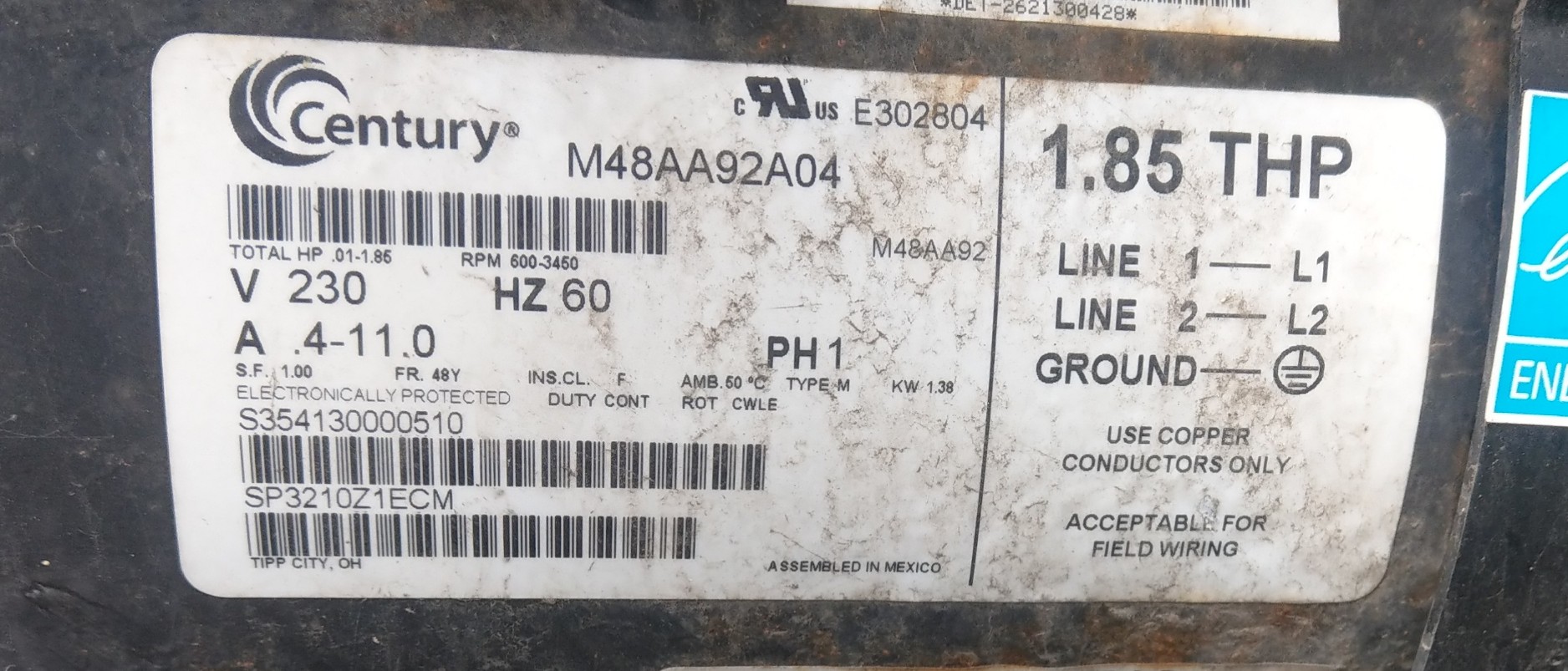

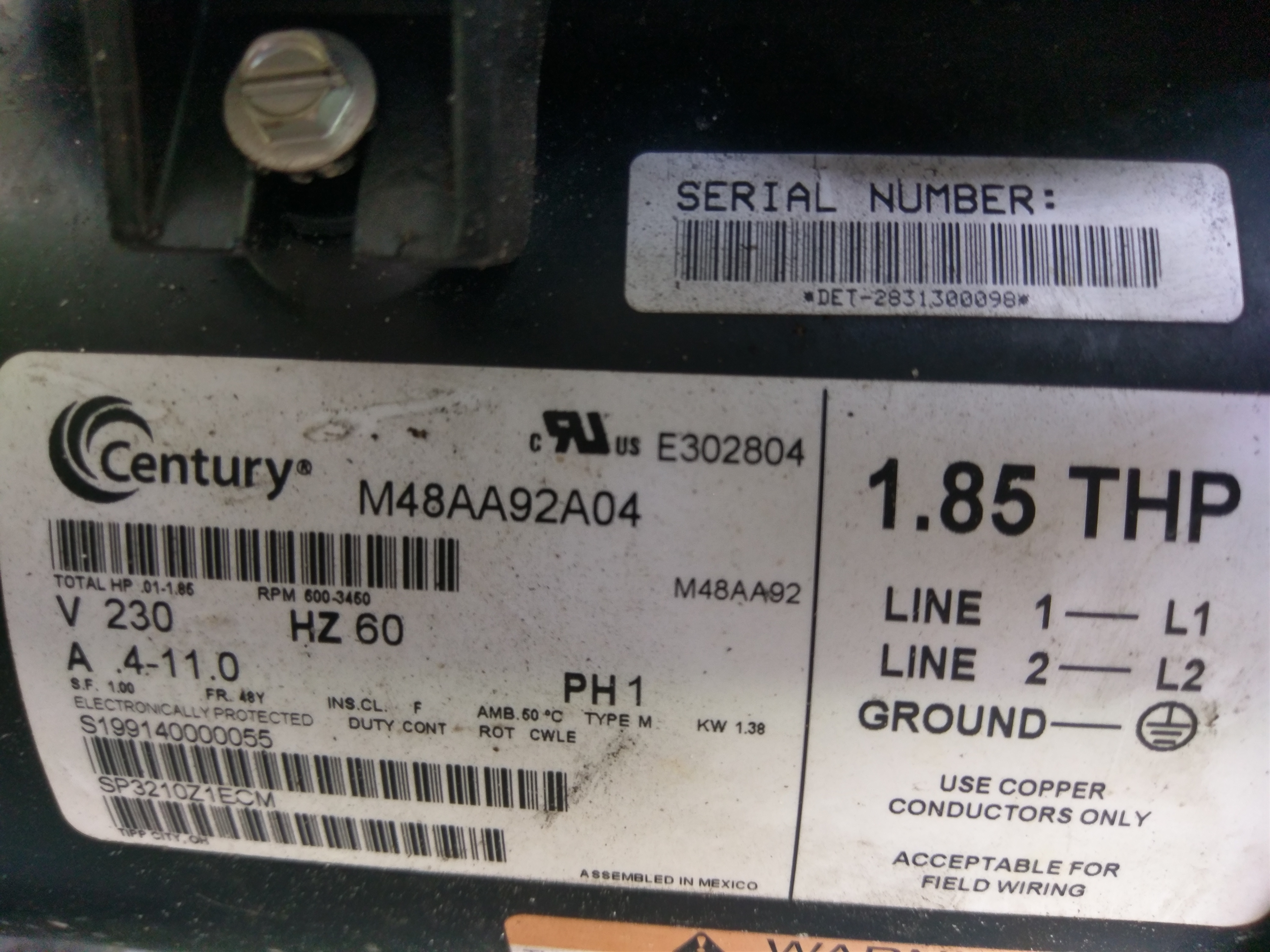

Will the ECM16SQU motor replace the Century M48AA92A04, total HP 0.1-1.85 for a Hayward Tristar VS Pump SP3210Z1ECM?
Hi, Charles. This ECM16SQU can be used as a replacement to operate the Hayward TriStar VS Pump. However, it will require an external timer like the T104 Series Intermatic Timers. If the Drive Assembly still works, you can just replace it with the Motor Assembly - SPX3400Z1ECM.
Reply
Hi Lennox. Thanks for your help. Question: why would I need a timer. Does the motor not come with an interface timer? My old pump has the Hayward interface. I was going to replace it with the new Century pump, providing it comes with its own interface. Thanks.
Reply
Currently have a Hayward SP3010X152AZ pump with a Century ST1152 motor. Is this a direct fit replacement? Just bought this house and as proud as the previous owner was of their pool im finding it wasn't taken care of well. Looking to upgrade with better control and filtration options with the likelihood of automation down the road.
Reply
Hi, Wayne. If I was to use the pump model SP3010X152AZ, this ECM16SQU motor will work using the original impeller. The ST1152 has a higher total hp which will use the ECM27CU vs motor. Please provide us with the impeller p/n so that we can recommend the correct option.
Reply
I have this motor ECM16SQU. Its cooling fan is broken. Do you know if there are replacement parts available? A quick look on the web isn't showing any
Reply
Hi, Darryl. Unfortunately, the replacement Cooling Fan is not currently available as a separate part.
Reply
Hi. I need to replace a Sta-Rite Dyna-glas (1.5 HP; service factor 1.1; 47Y flange). This motor would be suitable right? If so, do I need to do additional wiring as is? I do not also get the V-Green 270 User Interface (What would I need that for?)?
THX
J
Reply
Hi, JM. This ECM16SQU motor will operate your Dyna-Glas pump. No additional wiring is required if you already have 230 volts. Adding the V-Green 270 User Interface - 2520652-001 will enhance the 165 abilities and features.
Reply
Thank you!
Reply
hello I have a pentair superflo 340038 1HP pump for my inground pool and the piping is 1.5" Is this a direct replacement?
Thanks
Reply
This would be a drop in replacement for your 1 HP Pentair Super Flo Pump. You will also need this Pentair Super Flo Tune Up Kit when replacing your motor.
Reply
Hi. I have a Pentair Challenger Pump with a 1 HP / 1.65 SF motor and 2" piping. I'd like to replace the motor with a variable speed. I assume the the ECM16SQU 1.65 HP is the correct replacement but wanted to make sure it's not the ECM27SQU 2.7 HP. Thank you for your help.
Reply
I have a Jandy 1.5 ePump which is controlled by a Jandy Aqualink Power Center and Jandy PDA-P8 wireless control system. I see that the pump has a 4-wire RS485 interface. Is this compatible with my control system? Will I be able to vary the pump speed like I do now?
Reply
Hi. Unfortunately, with the software that this V-Green motor use, it will not interface directly with the Jandy PDA system. You will also need to get the V-Green Automation Kit - 2517501-001.
Reply

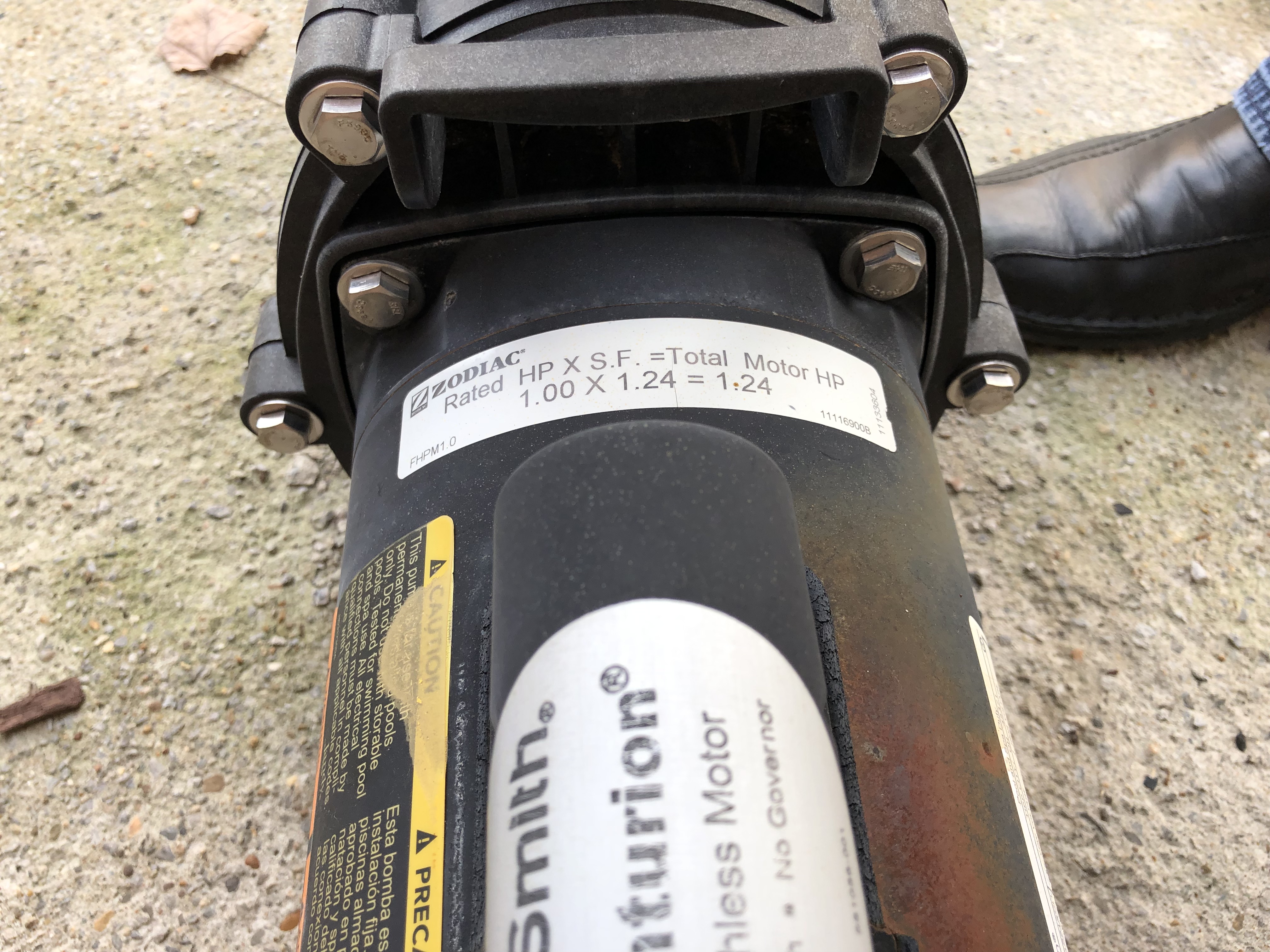

Will this pump be a direct repolacement /upgrade for the one in the pictures?
Hi, Tim. You can use the following variable speed motors as a replacement, the PureLine PL1116 or V-Green ECM16CU. You will also need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I currently have an AO Smith 1HP/SF1.65 QC1102 motor connected to my STA-RITE PE5-122L pump.
I believe the Century/AO Smith ECM16SQM is a perfect drop in replacement for my old single speed motor...Am I correct?
Ron, yes the ECM16SQU would work as a drop in variable speed replacement for your QC1102 on your PE5-122L
Reply
Does a new shaft seal come with the motor? Will I need a kit?
Reply
Hi Ron, No the shaft seal does not come with the motor. We are showing that the PE5-122L is a StaRite Max E Glas Pump If your pump is from before 1998 then you require this Pre 1998 Sta Rite Max E Glas Tune-Up Kit and If your pump is from after 1998 then you require this 1998 and After Sta Rite Max E Glass Tune-Up Kit. If you are unsure if your pump is from before or after 1998 then we put together this Video on How to Determine if Your Sta Rite Max E Glas is Before or After 1998 which you should find helpful.
Reply
Hi, I've had this exact motor for 3 seasons, starting the 4th season now. Just today, the pump started over 2 hours early. The internal 24 hour timer has always worked perfectly, but for some reason it didn't today. This is a concern as I have a booster pump in series on a mechanical timer for my Polaris which requires the main pump to be on. Any idea on why this might have occurred and how I can make sure that it doesn't happen again? There were no power outages either. Thank you
Reply
Hi, Tony. This motor will only run when power from the external timer is applied. So if it starts pre-maturely, then the issue will be the timer, not the motor.
Reply
I determined the motor started prematurely due to the outside temperature falling below 39 degrees.. The motor has an anti-freeze setting that turns the motor on when the temp falls below a preset to prevent freeze ups. And my motor timer is disabled since this motor has its own internal timer.
Reply
I posed a question earlier today regarding the pump starting prior to the normal 24 hour timer. In reviewing the manual, I noticed that the motor has a 'freeze protection' mode. Our temps dropped to below 39 degrees last night and assuming that's why the motor started. Thanks -
Reply
In the event that the outside air temperature drops below a set threshold, the V-Green 165 will automatically turn on (assuming the START button has been pressed) and circulate the pool water. The Freeze Protection will run according to the following conditions (utilizing the factory default settings): Freeze Protection turn ON temperature = 39°F Freeze Protection Duration = 8 Hours
Reply
Hello, I have a WhisperFlo WFE-8, 2hp SF 1.30. I'd like to change the motor V-Green 1.65 HP. Will this motor work in this pump? or what do I need to change to make it work?
Thanks
Reply
Hi Duane, For your WFE-8 Whisperflo pump you will need the larger 2.7 HP Variable Speed Replacement Motor along with a Whisperflo Tune Up Kit
Reply
It would be difficult for me to access the keypad if this were installed on my current pump. Can the electronics box that contains the keypad be turned around, or better yet mounted away from motor?
Reply
Hi. The interface cannot be rotated. You will need to purchase the V-Green V-Link - VL100 or the V-Green 270 User Interface - 2520652-001.
Reply
I would like to replace my AO smith B2982T pump and timer with the V-green 1.65 and add the V-green 270 interface. Is this a compatible replacement? Is there a seal kit for this type of replacement? Thanks.
Tim
Reply
Absolutely! No issues replacing a B2982T with ECM16SQU and adding the VGreen AFUI Kit (VGreen270 UI) To determine the seal kit you need the pump make and model information, common pump names would be Pentair Whisperflo, Pentair Challenger, Jandy Stealth, etc.. To supply this information click the reply link below, also if you could send a few photos those are always helpful as well. If you send photos then take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendation.
Reply

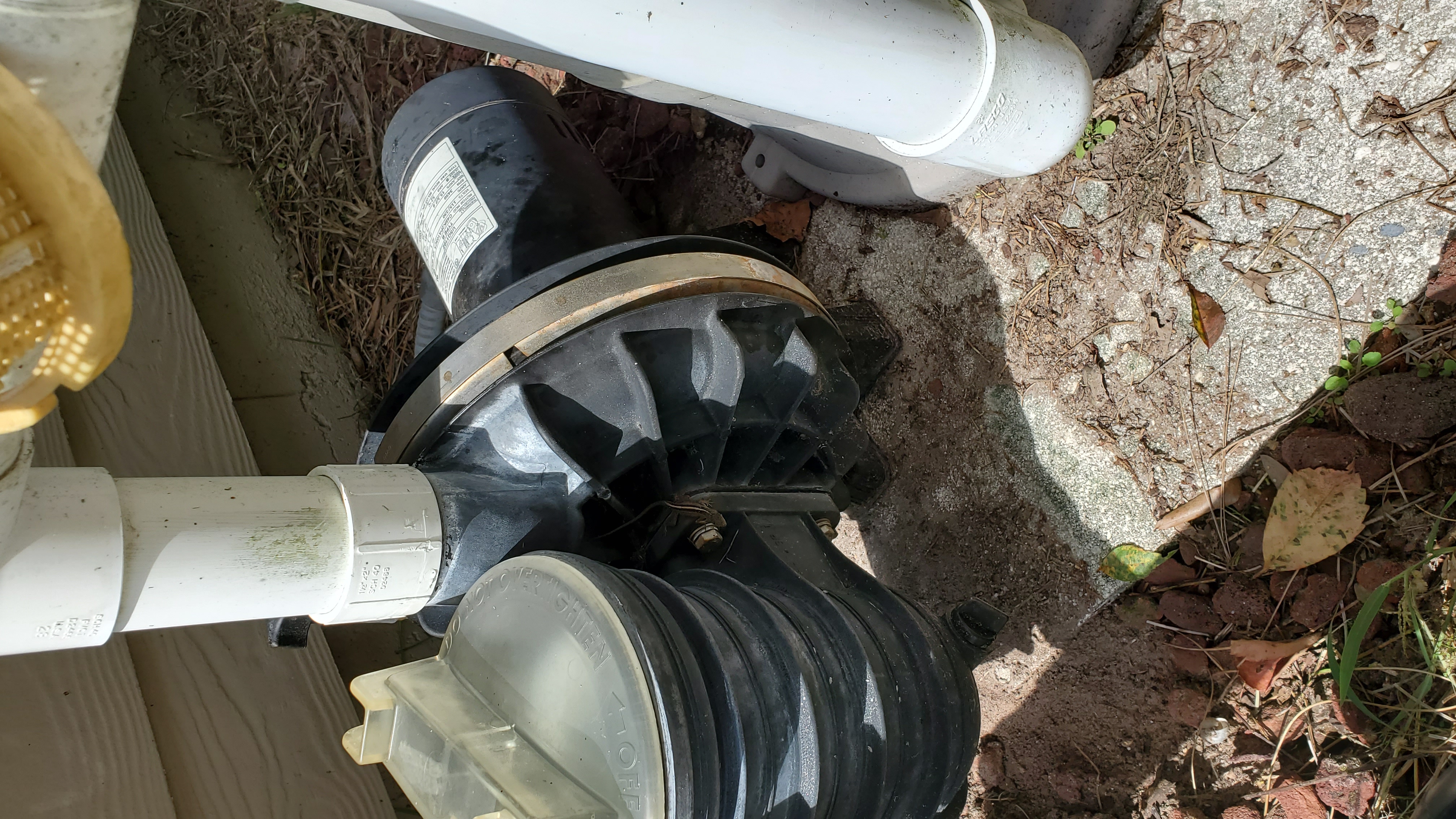

See attached. Waterway Econo flo 2-speed hybrid ECONOHA-210. My LCD went bad and I want to replace with variable speed for a little more low speed power and better interface with the V Green 270 UI. Generally my pipe & housing seals are fine and replace regularly. I just read you should replace seals between the new motor and old housing when you add a new motor, shaft seal, etc. Is this correct? Pointing me in the direction of those types of seals would be helpful. Thank you.
Hi Tim, Thanks for the photos those are helpful! Yes we would suggest replacing the shaft seal and gaskets. Here is a link to the Parts Diagram for the Waterway Econo FLO ECONOHA-210 When replacing your motor we would suggest replacing the following parts Key #6 Shaft Seal, Key #5 Face Plate Gasket and Key #9 Diffuser Gasket. I hope this helps.
Reply
I just purchased a V-green 165 variable speed motor from you. My question is, for how many hours should I run the pump? (I have a 15,000 gallon pool). What would be a good timer program for my application? BTW, I live in a mild climate, in N/W California.
Reply
Ronald, the programming of the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU will vary based on an individual's situation and is kind of a trial and error process most of the time. I suggest reading our article "Best Setup For Variable Speed Pool Pumps" which will give you tips on how to set up your variable speed pool pump to achieve the greatest performance and energy savings. That will give you a good foundation for the trial and error process I referred to previously.
Reply

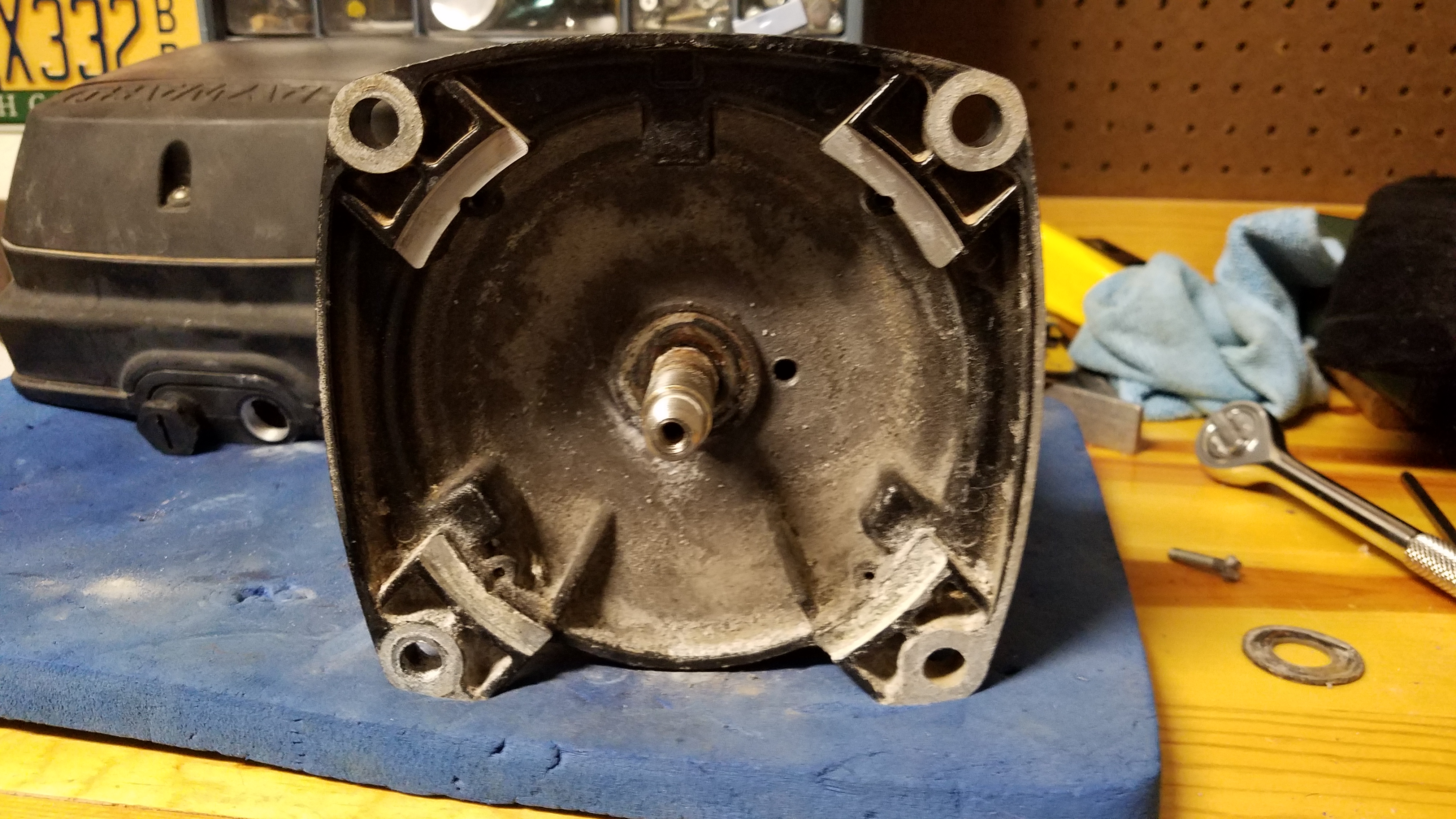

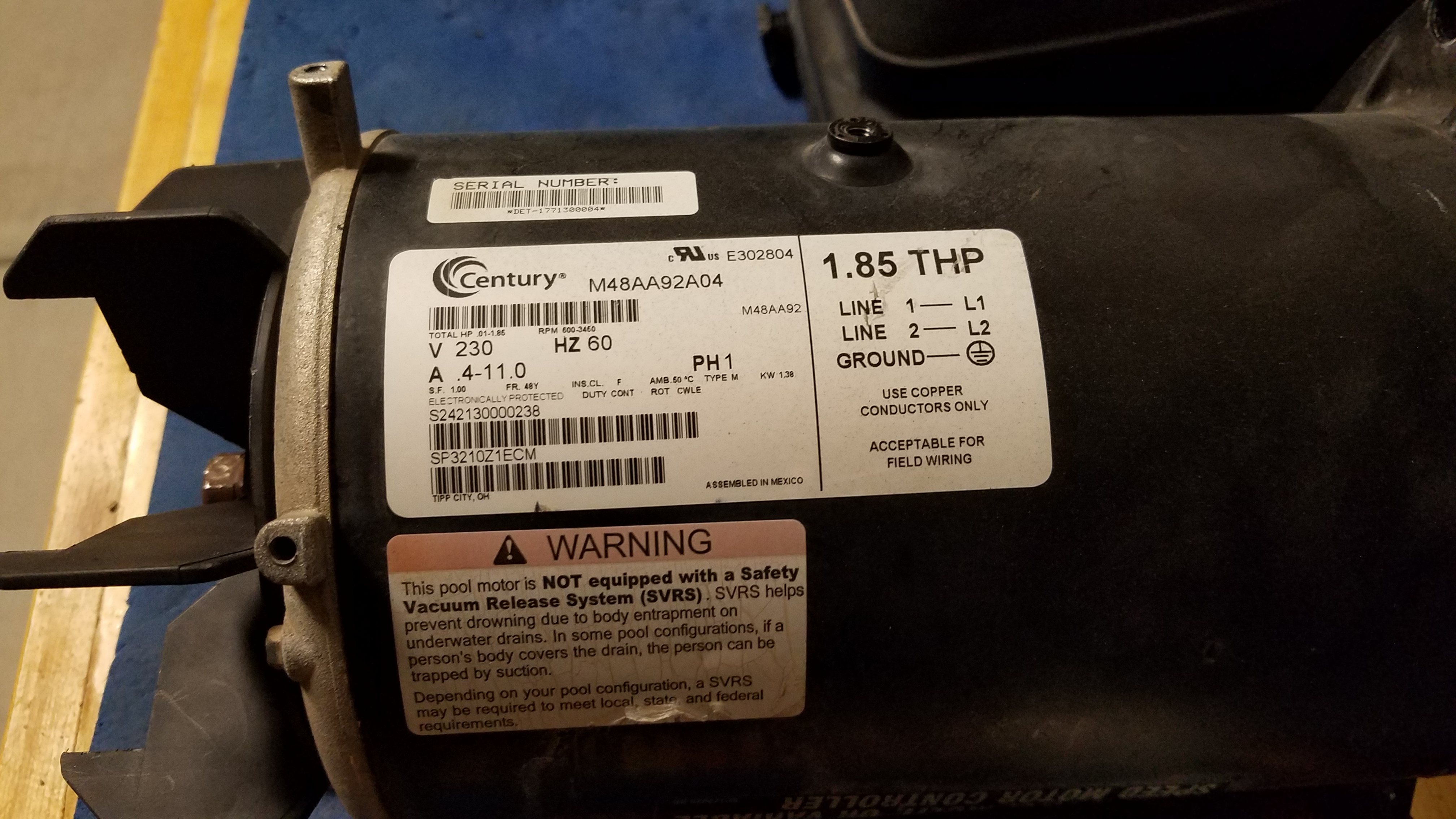

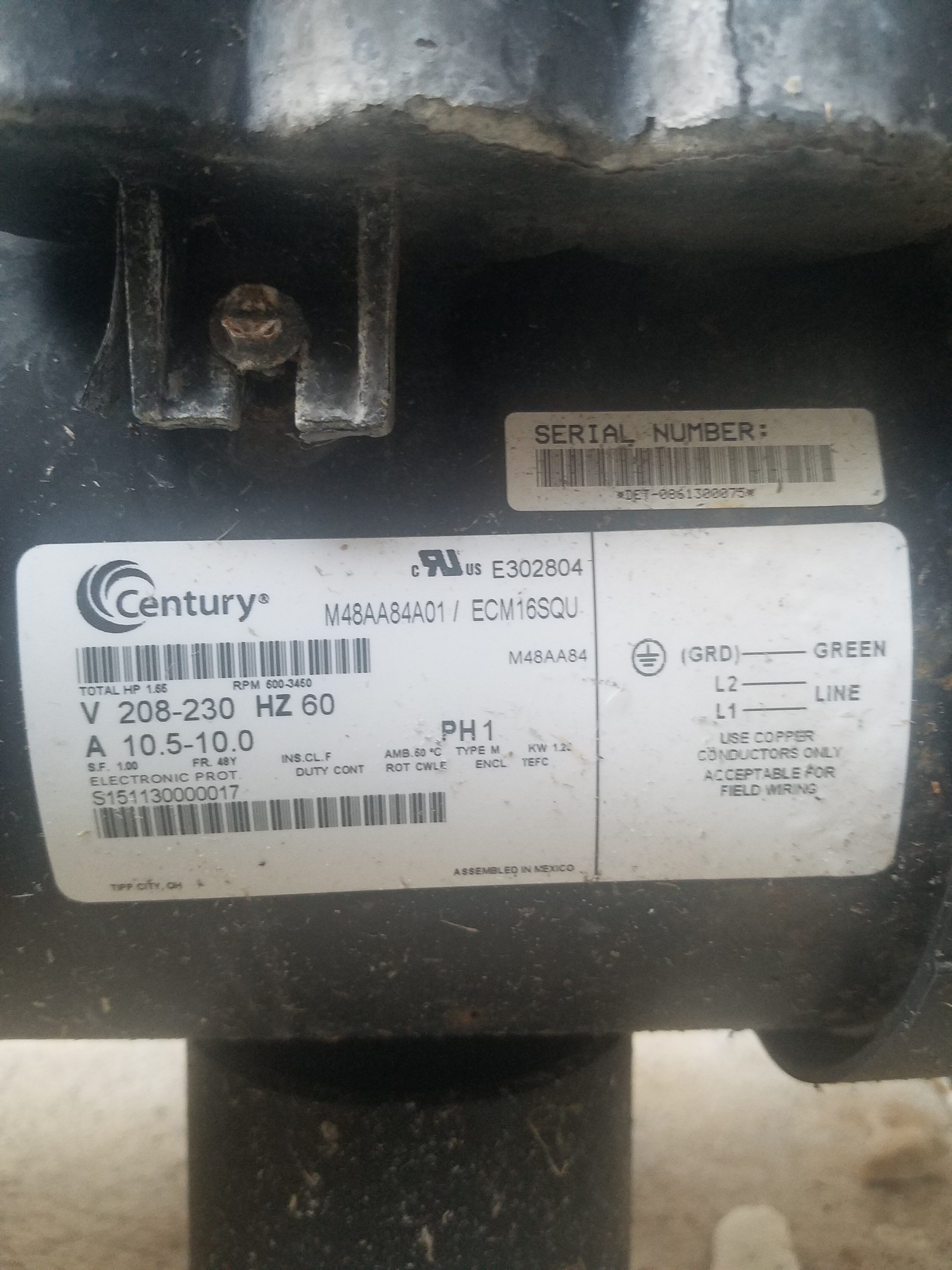

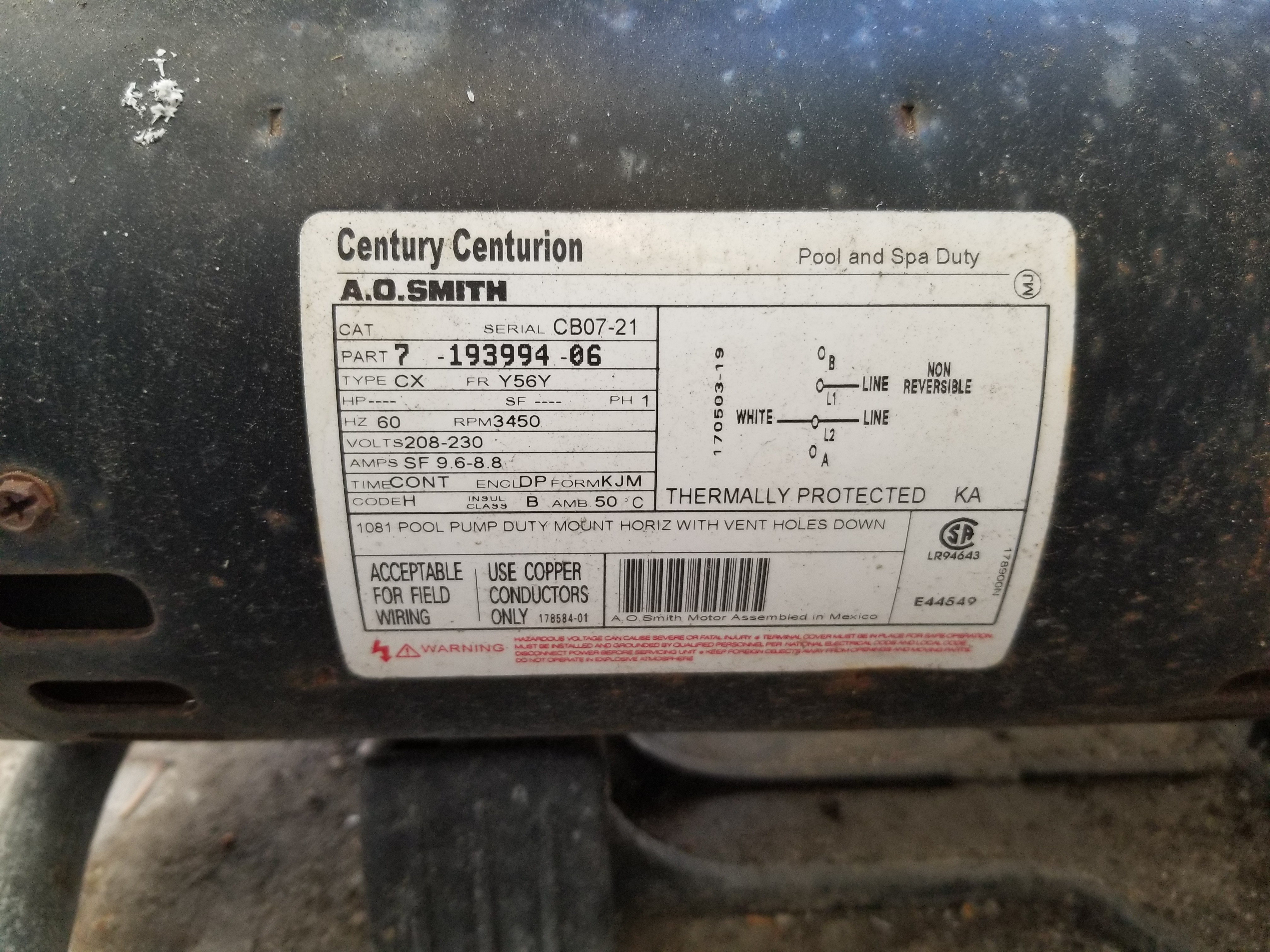

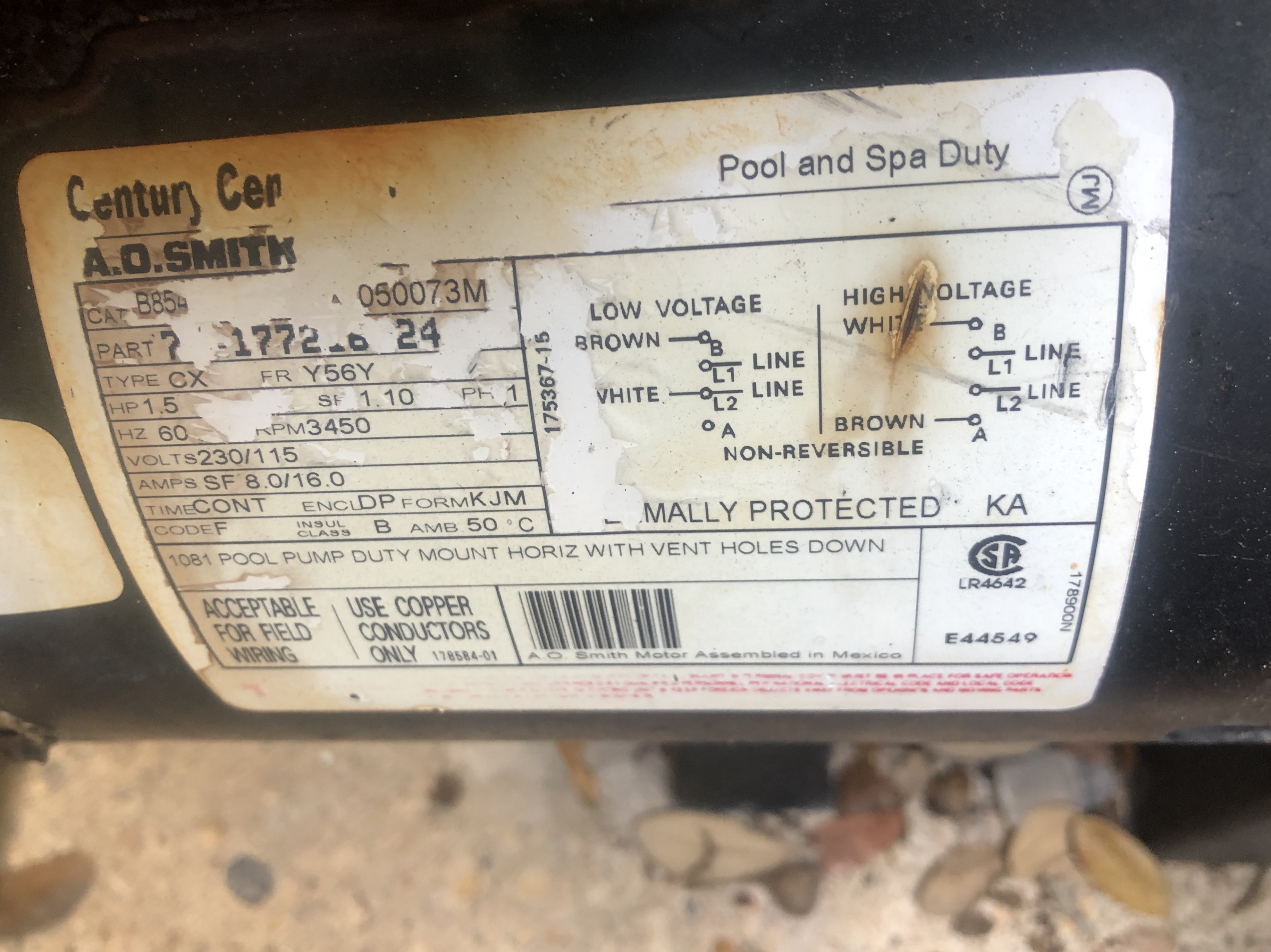

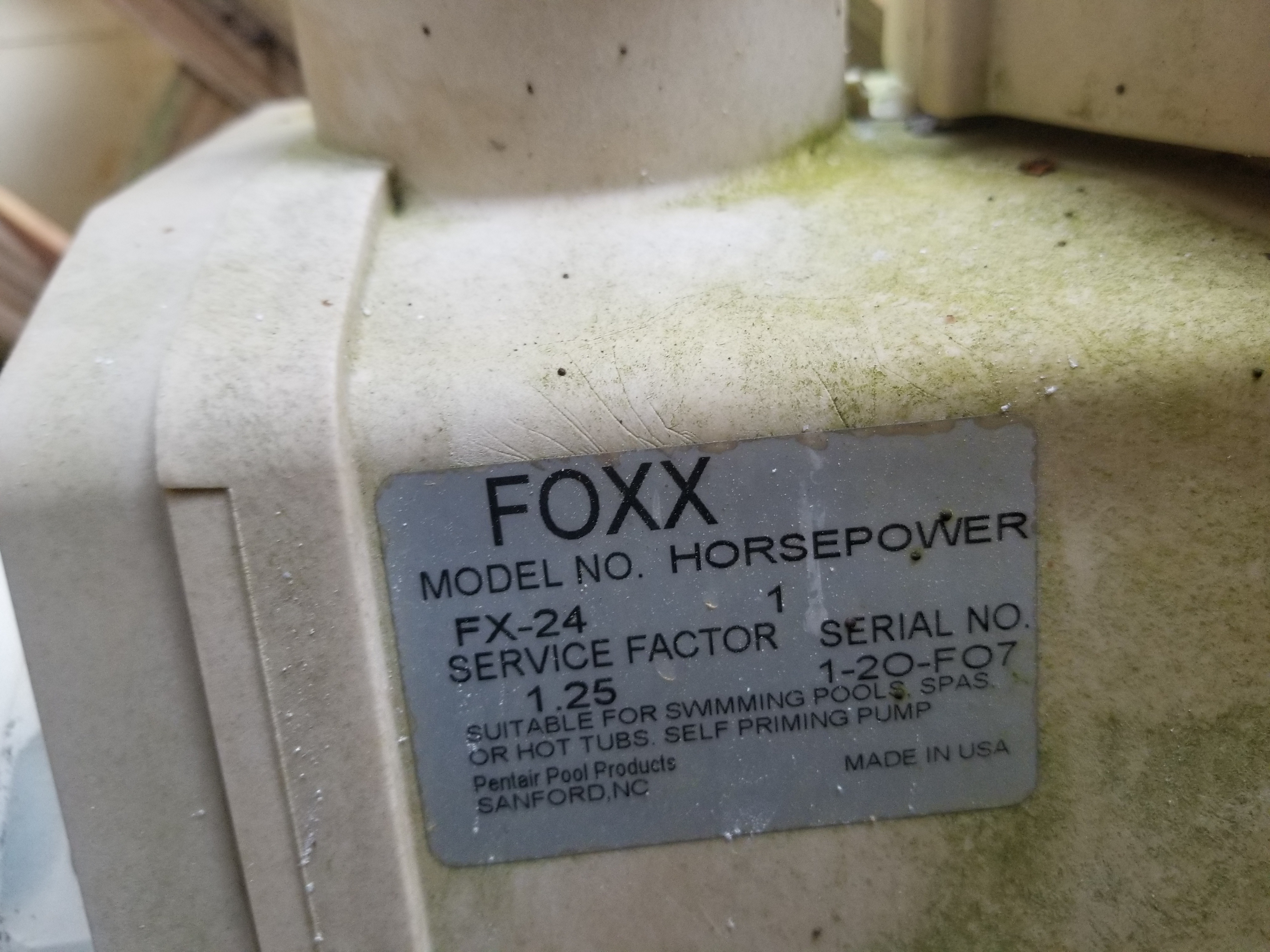

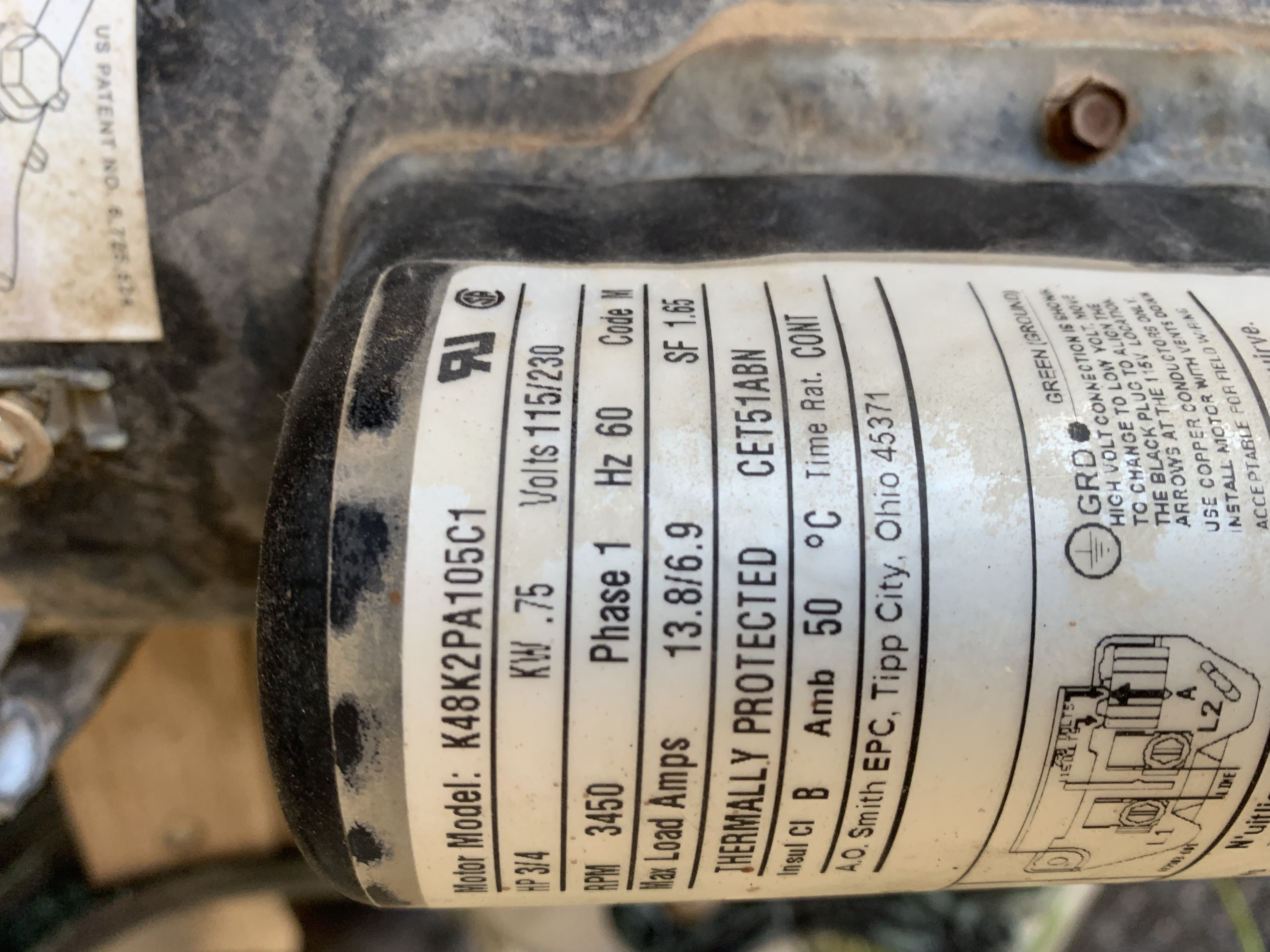

Have 1.5 hp century see photo will the vgreen 1.65hp work ecm16squ I have a 30000gal pool
So due to the total horsepower of your pump you will actually need motor model ECM27SQU.
Reply

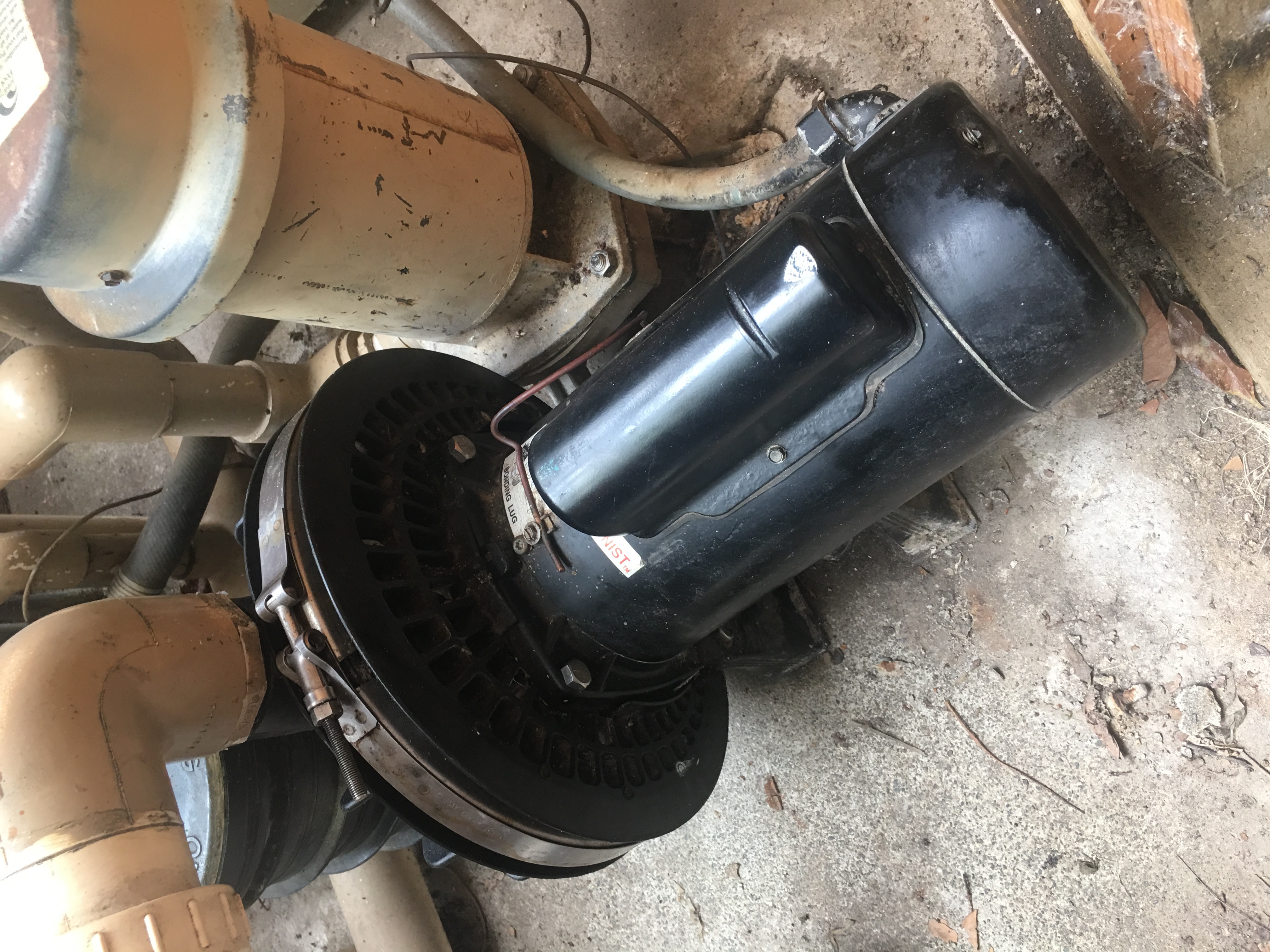

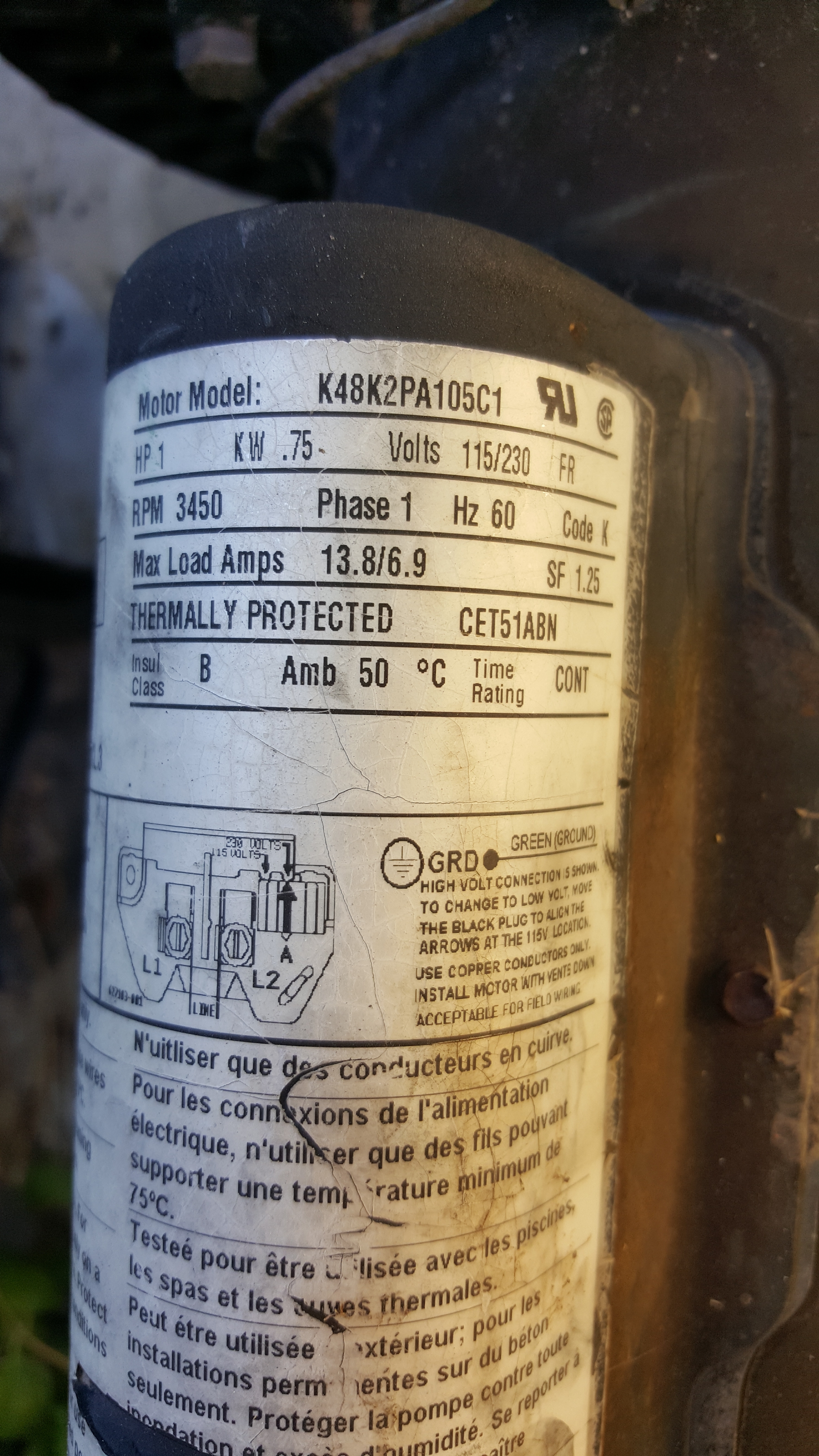

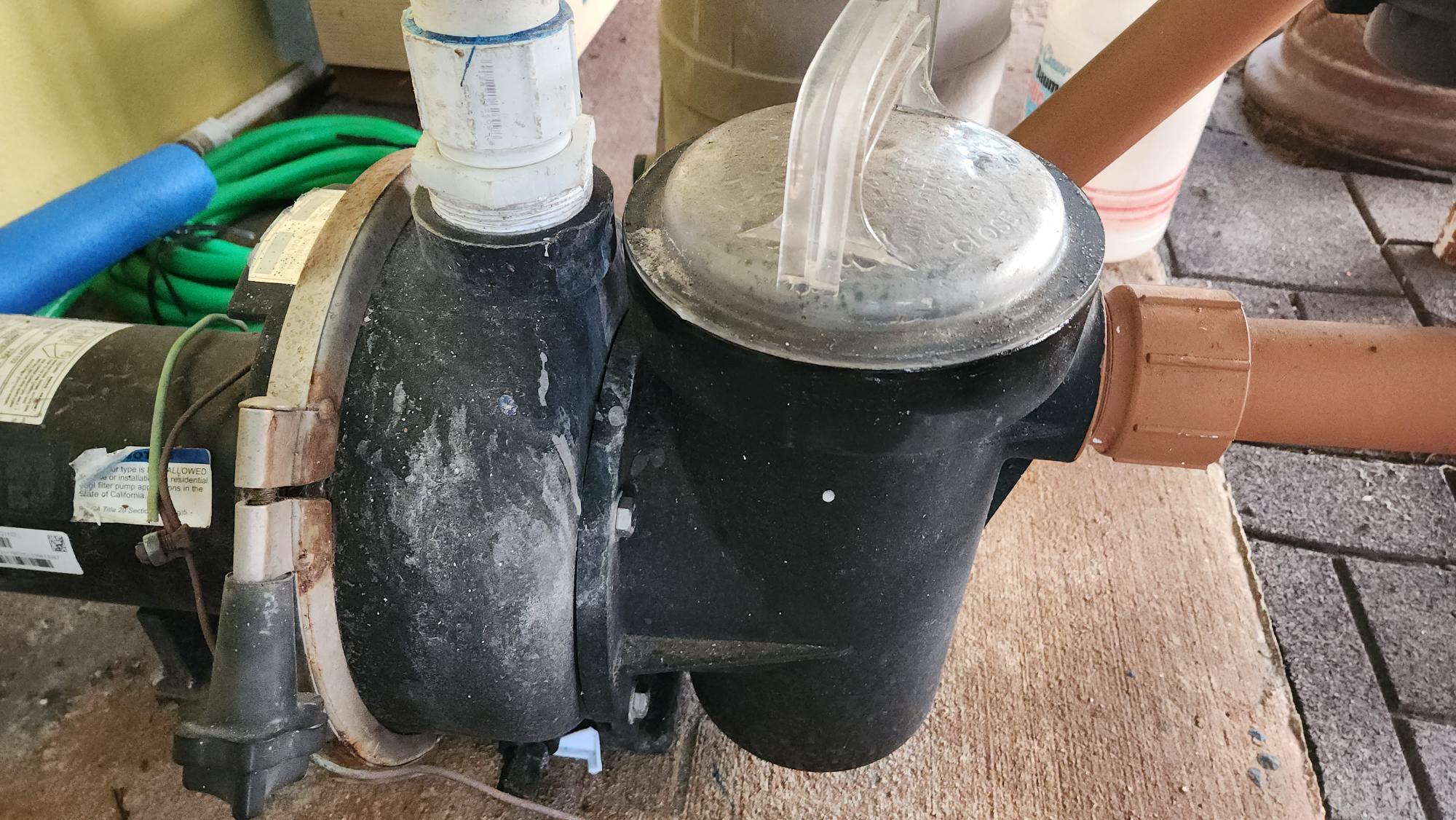

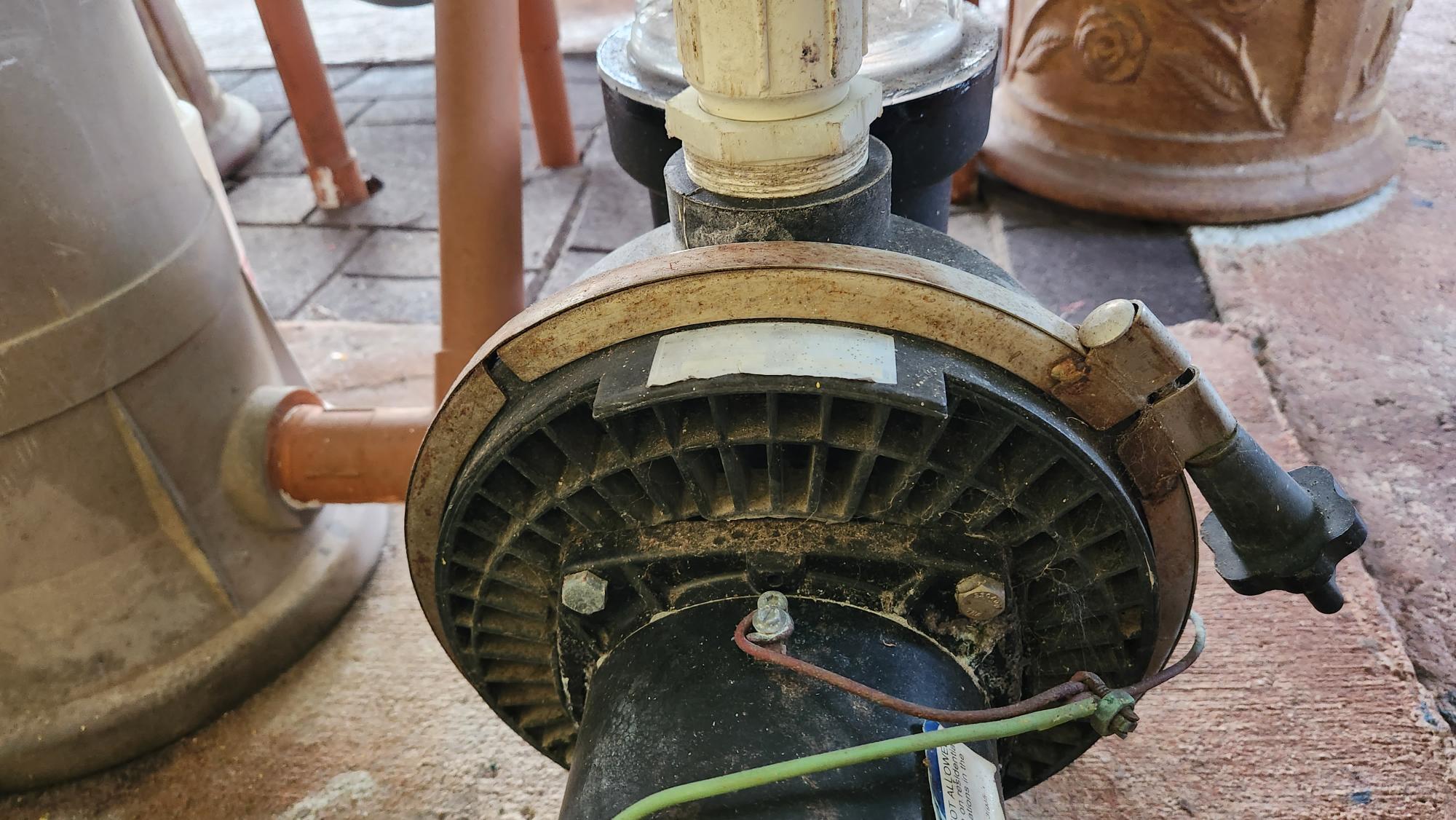

Will the impeller work that I currently have photos attached
Hi Scott, That motor information helps a lot. Your pump has a true HP of 2.2 HP so if you stayed with the same impeller you would need to go the 2.7 HP motor and if you wanted to go to the 1.65 HP then you would need to replace your impeller with this. 1.5 HP Uprated Challenger Impeller
Reply
This or the 2.7? I have a Whisperflo WFDS-26 2-speed. Uprated 1.5/.25 1.10 sf. 2 inch ports.
Reply
Hi, Steve. This ECM16SQU will operate the Whisperflo WFDS-26 pump. You will also need the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
i have a whipserflo pump and ordered a ECM16SQU to replace my A.O. Smith 1 HP Square Flange 56Y Full Rate EE Motor - B2841V1 sqyare flange. The new motor does not match up with the Whisperflo. Is there an adapter for this?
Reply
This motor will mount up the Pentair Whisperflo series pool pumps. You may need to make sure that seal plate is sitting correctly but this motor is compatible.
Reply
need to double check my research. I have Sta-Rite system MAX-E-Glas II, with pump model P4EA6E-186L (1HP). Since I live in California, I need to upgrade to a variable speed pump. Am I correct that the PART # ECM16SQU is the correct replacement motor, and PART # GOKIT38 would sill be the correct replacement seal kit.
Hi David, Thank you for the photos those are quite helpful. Everything you stated is correct and you will need the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU and the GOKIT38 Seal Kit.
Reply
My current motor is a 56J frame, 1HP, single speed. My housing is Hayward SPX1600AA super series, square flange. I want to upgrade to a varible speed motor. Will this fit my housing? The frame number is different. Do you have a VS motor that will fit?
Reply
Hi. This ECM16SQU motor will not fit, you will need the ECM16CU - 1.65 HP 56J Variable Speed Motor. You will also need to get the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
I see a couple of responses on here for the STA-RITE PHK2RA models. I have a PHK2E6E-102L pump. I am not sure what the difference is between the E and the RA models but they seem to have a different flow profile. For my PHK2E6E-102L pump is this motor still an appropriate match for the stock impeller? Thanks
Reply
Hello - the 'E' version of the StaRite Super Max means it the energy efficient (EE) version; whereas, the RA version is the standard efficiency motor. The ECM16SQU will be a correct match for your PHK2E6E-102L.
Reply
Is thie V-Green 165 variable speed pool pump energy star rated? Thanks, Mike
Reply
Only whole pumps are listed as being Energy Star certified. But the Pureline Prime 1.65 VS uses the V-Green 1.65, and it is Energy Star rated.
Reply
Hello - It looks like this is the correct motor to replace the one on my waterway pool pump. My motor works but the all of the buttons on the control board have stopped working. Can you purchase the control unit separately and if not can you confirm that this replacement will work?
Hi, Brad. Unfortunately, the current interface cannot be replaced. However, you can use the V-Green 270 User Interface - 2520652-001 or the VLink - VL100 to controller the motor since it still runs.
Reply
So if I go with the VL-100 it would completely bypass the existing interface that is attached to the pump instead of working in conjunction with it. After reading up on the issue I'm having I'm thinking water has gotten into the existing interface.
Reply
Hi - I want to use this to replace a QC 1072, .75HP. I understand it's a drop-in replacement... but what seal kit do I need? It's on a Sta-Rite MOD P6E6D - 2051 CODE 1MO5R (may be 1HO5R).
Also - we will be installing solar heating on the roof. Will this pump be able to handle the additional flow required to pump up to roof? Thanks!
Reply
Hi, CB. You are able to use this ECM16SQU as a replacement along with the Sta-Rite Max-E-Pro Tune Up Kit - GOKIT79. As for solar, you may need to increase the impeller and the diffuser to match if you need motor water flow.
Reply
So I purchased the VGreen 165 (208v) and replaced my older QC 1072 (120v) ... and it sure seems like the VGreen motor is slightly louder than the QC 1072, even at the same or slightly lower rpms. It's kind of a med/hi pitch whirring/whine. Does this sound right?
Reply
I have an SP3207EE and am considering this motor instead of the typical one-speed replacement. Since this is somewhat higher rated at max speed, would there be any value in many swapping the impeller for the SPX3210C? I'm happy NOT to swap it if it won't help, but I don't want a mismatched setup either. Thanks!
Reply
Hi, Eric. You will not need to replacement impeller if the water flow was sufficient using the SPX3207C impeller. Only if you want to increase the water flow, then you will want to replace the impeller with SPX3210C, you will have to make sure you filter is large enough.
Reply
Will this pump directly replace a USQ1152, which has the 48Y square flange. Currently my pump is 1.5HP but looking to go to a variable speed, will this work?
Reply
Hopefully these pics are good. Is this the right pump to replace my single speed, and what else do I need to purchase.
Hi Michael, yes the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct motor replacement for the Whisperfli. We would also recommend changing out the seals and gaskets which would be a GOKIT32 or GOKIT32SALT.
Reply
Is this the right variable speed replacement for this pump and single speed motor?
Yes, the ECM16SQU is a direct replacement for the 3/4 HP Square Flange 56Y Up Rate Motor - B2852
Reply
Anything else to get? Tune up kit? Upgraded impeller?
Reply
You really do not need to upgrade your impeller unless you have to get full power out of the upgraded total horsepower motor. Also, for a chlorine pool, the seal kit is the GOKIT32 and for a saltwater pool, the seal kit is the GOKIT32SALT.
Reply
Trying to find best replacement motor for a dura-glass pump.
Either dual speed or variable depending on best options.
This is a few of specs.
Duraglass pump
Swimpure plus Chlorination. T-15
Hayward Sand pro S244S
Roughly 42 Ft of head with two waterfalls
A.O Smith mother 56Y 1 1/2 HP 115V
24k gallons 50 GPM
Hoping for drop-in with little work.
What else do I need besides the motor during change? Kits, wiring change or propeller ?
Thank you
John
Hello John, yes based on the motor label information 177216 the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be your best replacement.
Reply
Great, thank you. Best method in determining rpm and length of time? John
Reply
Is this motor a direct replacement for a Century 1.65 Total HP, V- 208-230, A- 10.5-10.0 Ph1, S.F. 1.00, FR- 48Y.
I think the model number is M48AA90D58, Sn- DET-2631600007.
Reply
I cannot get my motor to turn on the day after the system timer is temporarily turned off to service the pool. The pool is serviced and the motor runs the rest of that day, but will not turn on the next morning as set. The timer clicks, but nothing happens to the motor. Now when I go and hit the Start button, it does not start either.
Reply
Hi, NE. If there is not a Fault which will be indicated when the Fault LED is illuminated, the motor is getting power, your motor has failed. In order to confirm, to will need to confirm.
Reply
I have a V-Green 165 variable speed motor. I can't get it to start. The power light flashes continually I can't get anything else to light. I've tried all the trouble shooting solutions to no avail.
Reply
Hello, Can you please call us at 407-834-2200 to trouble shoot this unit ?
Reply
what size impeller should I use with the V Green 165 in a Hayward Tri Star pump housing. Pool holds ~ 18,000 gallons including a hot tub spill over.
Reply
Is this VS motor a direct swap for what I have? Photo attached. (I just had new gaskets and a shaft seal installed to fix what sounded like a cavitated pump after I found a leak but now it won't work at all. It turned on for 2 seconds and died)
need to replace a motor on Pool pump would like to go to a Variable speed> will this motor attache to my sta-rite P6e6d_205l pump assy.
Hi, Craig. This ECM16SQU variable speed motor will work as a replacement. You will also need the Max-E-Pro Tune Up Kit - GOKIT79.
Reply
I have a dial timer set up to turn on my equipment. with the variable speed pump assy still work with the=is set up and retain its memory of setting or do i have to purchase the timer for the motor assy
Reply
Hi, Craig. You can use your existing 230 volts timer to control this motor or purchase the V-Green 270 User Interface - 2520652-001.
Reply
would be using this intermatic timer with the green motor assy. Will this turn the pump on and off as before with my old motor or do i have to add the 270 interface to program it on and off and adjust times and speeds.
Hi, Craig. You can use one on the timer to tell the motor when to turn on and off or use the V-Green 270 User Interface - 2520652-001 which will also turn it On and off.
Reply
have a stg right P6e6d_205l pump assy. would like to install the Vgreen 165 old motor is a 3/4 speed motor do i need to replace the impeller with a different one or will the one i have work.
Reply
Hi, Craig. You can use your existing Impeller with this ECM16SQU Variable Speed Motor. If you want to increase water flow, then you can replace the Impeller - C105-238PB, Diffuser - C1-271P1, and Tune Up Kit - GOKIT79.
Reply
I have two Hayward Eco Star SP3400VSP pumps with failed controllers. Lightning again. Third failure in 8 years. I would like to try the V-Green 1.65 HP motor and speed controller hooked up to my pump. Will this fit? I currently only run the current system at 700 RPM and have little need for the 2.7 HP on my small pool. I sent the controller off for repair but that may take two weeks or more before it is fixed. I would really like to try this set up because it seems like a good value.
Reply
Hello, You would have to go with the larger vsp motor. The eco star only comes in 3 HP and only has a 3hp impeller. Impellers are rated at the horse-power. This would be the motor we would recommend. http://www.inyopools.com/Products/00000017069223.htm
Reply
I have 2 ps165vsp pumps each lasted about 2 years. The motor is still good but I cannot buy the logic board any where. What good are throw away motors?
Reply
hi,
if I were to replace my 1 speed Motor with a variable one, which model do I need to get ?
my 1 speed model is : AO Smith century centurion, 2HP, pool and spa, cat B855, serial 07512CH, SF 1.1, permanent split capacitor, 230v, 56Y frame.
Thanks.

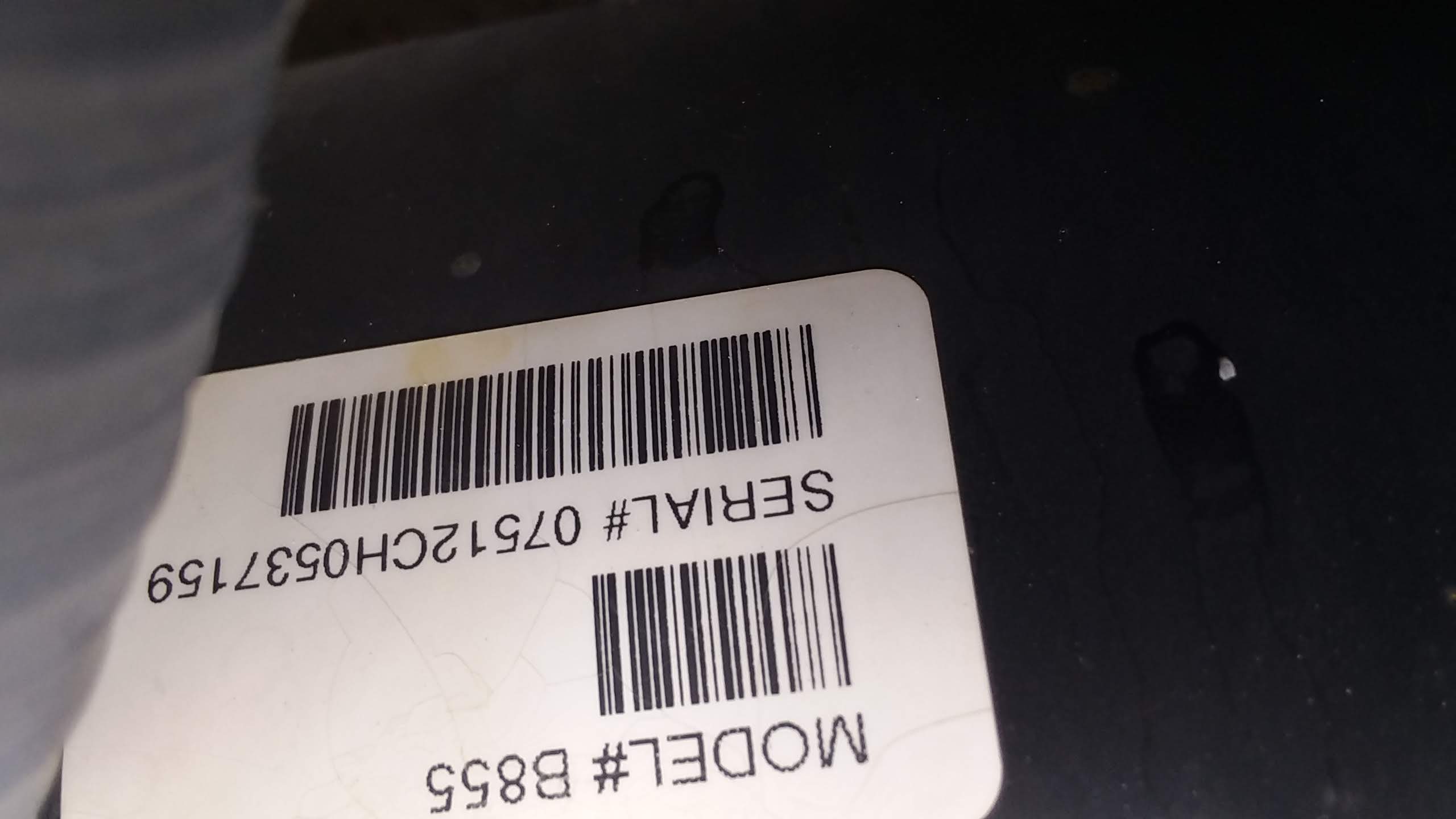

Hello - the correct variable speed replacement for the B855 2-HP Square Flange is the ECM27SQU
Reply
I want to upgrade from my current single phase Century AO Smith part 7-193994-06 to a variable speed pump. I also have a Aqualink RS4 controller is this the correct motor for the upgrade? Do I need to purchase anything else to work with the Aqualink RS4?
Actually the correct variable speed motor replacement is the model ECM27SQU and you would need the automation adapter part number 2517501-001.
Reply
What other parts do I need (seals/orings, parts convert from 56Y to 48Y etc) ?
I forgot to mention, I have a Zodiac MX380 cleaner that uses the same pump to clean my pool, thru a dedicated "outlet" while the pump is circulating. Can this motor take care of the cleaning or do i need to look into another option ?
Reply
This variable-speed motor would provide enough power for a dedicated cleaner line with your pump. There is not a seal kit that would convert the frame size on the motor however the seal kit is the first two items listed on the parts diagram here.
Reply
Will this fit a Hayward EcoStar, SP3400VSP?
Reply
Gorman, yes the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a Y or square frame motor. It will be a direct fit for your Hayward EcoStar SP3400VSP Series Pump.
Reply
I have a USQ-1152 1.5hp square face 48Y frame motor bolted to a Jandy PlusHP 1.5hp pump.
Can I replace my existing motor with this ECM16SQU as a direct bolt up ?
Reply
Rick, yes, the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU will work as a direct replacement for your A.O. Smith 1.5 HP Square Flange 48Y Up Rate Motor - USQ1152 on your Jandy Plus HP pump.
Reply
Can this be a direct replacement for a SQ1072 A.O. Smith 3/4 HP Square Flange 48Y Full Rate Motor?
Reply
Hi. Yes, this ECM16SQU can be used as a direct replacement for he SQ1072 motor.
Reply
What is the recommended seal kit?
Reply
Please provide the make and model of the pump housing or use our How To Find The Correct Pool Pump Shaft Seal For Your Pool guide.
Reply
Pump is a Sta-rite P2R5E-125L. I think the GOKIT6 is the right one. I just need confirmation.
Reply
I have a Pentair 342001 Pool Pump with a noisy motor bearing. The Pentair motor number is 353134s. I have been told that the motor is not repairable to replace the bearing. Also I came across a Century motor number EPA16SQ as a possible replacement, is this same as the above on your website. Also I saw on your website there was instructions for replacing the motor bearing, is this possible on the variable speed motor? I am located in Cape Coral.
Reply
I have a Pentair Superflo pump (not the VS), currently has a single speed 1.5 HP motor.
Can I use this motor to replace the motor in that pump?
Would I also need any other part?
Reply
Hi, Victor. Yes, you can use this ECM16SQU Variable Speed Motor along with the Superflo Tune Up Kit - GOKIT78 to convert your single speed pump to variable speed.
Reply
Thanks for the quick reply. Do I need any kind of plate to install and support this motor? I see it has a 48y frame, while the current single speed motor is 56y. I understand the attachment plate is the same size, but the motor itself is smaller.
Reply
I have a Pentair WhisperFlo pump WFE 3, currently has a single speed 3/4 HP motor, part no. 7-177449-03. Which is the proper motor (variable speed) to replace it in that pump? Would I also need any other part?
Thanks, Ricardo
Reply
Hi, Ricardo. Yes, this ECM16SQU will work as a replacement. You will also need the Whisperflo Tune Up Kit GOKIT32 or GOKIT32SALT.
Reply
I appreciate the response. You were absolutely correct, the fix unlocked the unit and it is operational again. I will definitely use your company for future needs. Thank You Again!
Reply
I currently have a ecm16squ that will not turn on. When any button is pushed the 1, 2 and 3 numbers light up and blink. Is there a fix for that code or will I need a new motor?
If I have to replace the pump I see I should replace the seals. I have a few numbers on the pump hoping you can assist with finding the correct kit. On the pump i have p4ra6c with code 1ho1o. Strainer lid is c3-185p and the tightening band is by r.g. ray 10120.
Thank You in Advance
Hi, Dale. The Keypad appears to be locked, to unlock the keypad by holding down the same three STEP buttons for at least three seconds. The “active LEDs” for STEP 1, STEP 2, and STEP 3 will illuminate temporarily indicating the keypad is unlocked.
Reply
I have a Sta-Rite Max E Pro pool pump Model P6E6E-L and the motor Model: K48L2PA105. HP:1 . Which is the correct replacement motor for my Pump. I live in California.
TIA for your help.
Reply
My motor went out. No noise, nothing. Control pad works and shows information such as prime and running, but motor no longer spins.
Which motor is the best upgrade for the attached picture? I want to add wifi capability.
I wish to upgrade my noisy single speed pump. Would this be a direct replacement for my Century HSQ165?
Reply
Hi there, I have an Eco EP4 , the motor needs to be replaced, its a B2982 Dual speed. the name plate says 56Y Fr. this ECM16SQU is a 48Y Fr. will this fit my pump ?? Also would you recommend I stay with a dual speed or sw. over to variable ( A need to order a motor ASAP, and you guys have the best price hands down!)
Reply
Will this replace the motor for a Flotec AT251001? I have received conflicting advice about the possibility.
Reply
Yes, the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct replacement motor.
Reply
Will this be a replacement for my pump? What else do I need to swap?
Hi, Adam. Yes, this ECM16SQU motor can be used to replace your existing motor. Use the Pentair / Pac Fab Challenger CH / CF Series Parts Diagram to locate the replacement seals for your pump.
Reply
I need a replacement motor for a Hayward Tristar SP3200VSP pump. I am wondering if the ECM16SQU motor will fit the Hayward pump housing.
I need a replacement the pump displayed in this photo. I am wondering if the ECM16SQU motor will fit the Hayward pump housing.
Hi, Alexander. This ECM16SQU motor will NOT for your pump housing, you will need the ECM16CU along with the MaxFlo Tune Up Kit - GOKIT1 or GOKIT1SALT.
Reply
Will this pump mate up with my Hayward SP1610Z1M?
Hi Ed, You would actually need this 2.7 HP Round Flange variable speed - ECM27CU replacement motor for your Hayward SP1610Z1M motor referenced in your photo. The ECM16SQU Variable Speed motor listed on this page is a Square Flange Motor and is not compatible with your pump also that motor is only 1.65 HP and your current motor has a true HP of 2.2 HP so you will require a 2.7 HP replacement, so you would require the round flange 2.7 motor. Thanks so much!
Reply
Thank you for the reply...I have a follow-up please. Can you explain how you arrived at the 2.2 hp number? That would be very helpful for my understanding. Thanks!
Reply
Will this replace any square flange motor?
What about this one?
Actually, your motor is a round flange. If you look at the image you can see that the motor is actually bolted to a plastic square plate hence showing that your motor is a round flange. With that confirmed your replacement variable speed motor would be the model ECM16CU.
Reply
Awesome, good thing I checked with you, any idea what seal kit I should buy with the motor?
Reply
Phil, You Will need the Hayward Super Pump Tune Up Kit - GOKIT3 or GOKIT3SALT.
Reply
Thanks, you are officially awesome.
Reply
Will the ECM16SQU VS motor replace my single speed Sta-Rite P6RA6F-206L? It is a 48Y square flange.
If so, which seal kit will I need.
I have a Century QC1102 pool pump and I want to replace with a variable speed pump. In the frequently asked questions you said a ECM16SQU could be the correct model I need. What is the part number of the seal and bearing kit needed to change pumps?
In order to locate the correct seal kit a.k.a. gokit please provide the front pump housing(wet end) model name or number that the motor attaches to so we can cross-reference that for you.
Reply
If I wanted to buy the full pump. What type would I need and what would be the cost?
Reply
Hi Steve, Thank you for your question, we would suggest this Waterway 1.65 HP Variable Speed Pump as your best option.
Reply
i'm looking to replace a B2984T 2 speed motor with 56Y frame. Would this be the correct replacement motor?
Reply
Will this pump work for my pool pump?
Thanks
Hi George, Unfortunately this motor does not work as a replacement for your BN25 motor in your photo and there is not a variable speed replacement for the BN25. You would need this motor here as a replacement - BN25 Replacement Pool Motor
Reply
I need to replace the pump motor in the pictures that I am sending to you. Will this system work with my pump//
Yes this would be the proper variable speed replacment motor for your pump in the photos. We would also suggest this Sta-Rite Seal Kit
Reply
How do you know if you need a round or square flange when replacing a motor?
Reply
Hi, Nick. You will have to reference the Frame (FR) size on your existing motor. A 56J Frame is Round and a 48Y or 56Y Frame is Square.
Reply
When buying a replacement motor, does it come with all new seals? Do you suggest installing a new shaft seal as well? Is this included with the new motor ?
Reply
Hi, Nick. You should replace the seals which are NOT included when replacing the motor.
Reply
I'm considering a new Century Variable Speed ECM16SQU 1.65 HP 48Y motor. What seal tune up kit and shaft seal should I purchase based on this motor? Please include costs. Also, do you have free shipping? If not, what are your shipping costs to 93720 zip in Fresno CA Thank you
Reply
Nick, Please provide the make and model of the pump housing so that we can identify it and locate the seals for that pump.
Reply
I'm ordering the Century ECM16SQU Variable Speed motor. What tune up kit should I get to go along with this, shaft seal to please.
Thanks
Reply
Hi Nick, If this motor is going on the same pump as your last order with us from 2017 then you will need this Sta Rite Seal Kit
Reply
Is this variable speed motor a direct replacement for my current Century pump motor? What additional accessories/parts would I need. Thank you!
Yes, this variable-speed motor would be a replacement for your motor. Most often the seals and gaskets are also replaced when a motor is replaced however you will need to know the model name or number of the front pump housing wet end that the motor is attached to in order to locate those.
Reply
I believe I have a Pentair Whisperflo housing? Does this help with deciding what other parts I need to swap motors? Also, I have an AquaRite Chlorine Generator salt sysytem connected to a standard Intermatic clock. Will the V-Green motor and the Chlorine Generator work together or will I require additional items?
The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 or GOKIT32SALT for salt pools. If you wire the motor and the salt system on the same load, you can use the timer for the on/off feature for both. Please see http://www.inyopools.com/blog/psc-ep-90-need-timer-salt-system/
Reply
Please note, the V-Green motors only operate at 208-230 /volts, they will not operate at 115 Volt. We offer How To Use a Multimeter to Test a Pool Pump Motor - Voltage http://www.inyopools.com/HowToPage/how-to-use-a-multimeter-to-test-a-pool-pump-motor.aspx
Reply
I've been waiting for my ancient pump motor to die and we're almost there. Will this motor replace my existing one? What else will I need to purchase to make the change?
Hi Jeremy, The ECM16CU is the proper variable speed motor replacement for the Hayward Super Pump shown in your photos. You will also need this Hayward Super Pump 1.5 HP Drive Train Upgrade Kit
Reply
I have been advised that this motor (48Y) will replace my B2854 (56Y). I have a Jandy Stealth SHPM 1.0 pump (L07FD4109) and know I also need to order an R0445500 (old style) shaft seal. I already have an R0446300 backplate O ring and an R0446500 kit. My question is, do I need anything else to complete this replacement? Thanks, I'd like to get this ordered today.
Reply
Hi, John. Those are all the parts that you will need.
Reply
Hi, Will this work on a Pentair Intelliflo i2 VS (P/N 011060)? What additional parts should I get for install?
Reply
For the Intelliflo series, we would recommend using variable speed motor model ECM27SQU that you can view by clicking here. We would also recommend replacing the seals and gaskets by either using the GOKIT32 for a chlorine swimming pool that you can view by clicking here, or the GOKIT32SALT that you can view by clicking here.
Reply
I have a Jandy PHPM 1.0 and would like to use the V-Green motor, what do I need to purchase? Thanks.
Reply
Is this the correct motor to replace a Hayward TriStar SP3207 series single speed 3/4 hp motor. Believe it is a 48y square mount. 1.39 total horse power. Do I need to replace the impeller with a different one as well? I am already ordering the seal kit and a few new parts from you as well.
Reply
Hi Steven, if your impeller is rated for 1.5 HP then you will not need to change the impeller. There should be a part number marking on it that is specific to the impeller HP rating.
Reply
Can this motor be a direct/ exact replacement motor for the Hayward Tristar pump in the attached picture?
Hi Li, yes, this is the correct replacement motor for the motor included in your photo. You will also need a Hayward TriStar/EcoStar seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will this work on a Sta-Rite P4EA6F-187L?
Reply
Hi Christopher, Yes this is the correct replacement motor a Sta-Rite P4EA6F-187L. You will also need a Sta Rite Max E Pro Seal Kit when you replace your motor.
Reply
Hey guys, my pump is on the way out and I want to replace with a variable speed motor. Can you recommend motor solutions and and seal kit.
Hi Bret, Yes this is the correct Variable Speed replacement motor for the motor included in your photos. You will also need a Pentair Challenger Seal Kit when you replace your motor. You will save a ton on your operational costs by upgrading to a variable speed motor.
Reply
Can you recommend an affordable in-line surge protector for the V-Green 1.65?
Reply
We would suggest the Intermatic PS3000 Surge Protector
Reply
Can the V-Green 1.65 motor be controlled by Hayward AquaPlus?
Reply
Hi, You would do all of the programming for the speeds on the V-Green directly on the controller of the V-Green motor and then the Aqua Plus can be set to turn the V-Green on and off and once turned on the programming settings from the V-Green would take over from there. If you wanted to change the speed of the pump that cannot be done from the Aqua Plus and that would be done directly on the V-Green controller.
Reply
My motor is dead. I think the pool is about 10 years old but the pump seems to be working just fine. I've attached a picture of the motor specs. Is this the right variable speed replacement for HP and compatibility with a WhisperFlo? Should I just replace the motor or the entire pump with a variable speed system? Thanks in advance!
Hi, Brent Yes this variable-speed motor would work on your 1 HP Pentair Whisperflo Pump. If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to a 1-1/2 HP Whisperflo Impeller. You will also require this Pentair Whisperflo Seal Kit. Our suggest would be to just replace the motor.
Reply
Bought this replacement but impeller doesnt fit the motor shaft, what should I do?
Reply
Hi William, for us to suggest the proper impeller could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo or quickest provide them using our live online chat feature. Once we get this photo we can make the proper recommendation for the impeller.
Reply
Hi. Please confirm the ECU16SQU is the right replacement for the Stealth Pump and motor (pic attached) and advise whether an impeller upgrade is recommended. Please also advise the correct seal kit. Note the pool has SWCG.
Reply
Hi Christopher, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? Also the model number and the serial number of the pump? You do not necessarily need to upgrade the impeller unless you need to get the full strength out of the motor. If it has higher horsepower and you have not added any new features to the swimming pool then you may not need the entire motor strength. To supply this photo simply click the reply link below and upload your photo or quickest provide them using our live online chat feature. Once we get these photos we can make the proper recommendation for the seal kit.
Reply
It's time to replace my pump motor and I'd like to go with a variable for all of the benefits that come with it. This motor looks like it will work with my current setup, is that correct?
Hi, yes this is the correct variable speed replacement motor for your motor included in your photos. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest, provide them using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Whats the warranty on the vgreen 165? have you seen a lot of complaints with this pump?
Reply
Rob, The motor has an 18-month warranty. We have not received many complaints other than some customers having trouble setting the programs.
Reply
Would this motor fit onto a JPA-150 (Jacuzzi brand)? The JPA 150 is not pushing out enough gpm on my large 30 foot round above ground pool (24,700 gallons).
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
It's a round falange
Hi Peter, Unfortunately this motor will not work since it can only be wired 230V and your pump is 115V. We don't sell a 115V variable-speed replacement motor but we do carry a complete 115V Variable Speed Replacement Pump which can be found here 1.4 HP Waterway Variable Speed Pump
Reply
Thanks Patrick!
Reply
Would this be a match to Pentair Superflo VS #34200 MFR in Jan of 2015?
Reply
Yes this would be a suitable replacement to your Superflo VS. However, if you have an indoor control system that controls your pool equipment then you will get less readout on the indoor control system. If you don't have an indoor control system then all is good.
Reply
Would I need anything else considering my pool is Salt? I control the Pentair on the motor. Only thing internal is the breaker box?
Reply
Hi Dave, You will also need a Super Flo Seal Kit outside of that you should be all set.
Reply
I currently have a 3/4 HP 1.67sf single speed motor. I am thinking about replacing it with the vgreen 165 do I need anything else. My pool guy said we need a different impeller. It's a whisperflo pump.
Reply
Hi Salvador, This 1.65 HP Variable Speed Replacement Motor. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump. If you wanted to take advantage of the higher speeds of the Variable Speed motor then I would suggest upgrading to this 1-1/2 HP Whisperflo Impeller. You will require this Whisperflo Seal Kit when you replace your motor.
Reply
I currently have a Pentair Whisper Flow Pump with a 1.5 HP single speed burnt out motor, service factor 1.10. Can I use this motor as a replacement?
Reply
Hi Bob, Yes this is the correct replacement for your pump and will work. You will also need a Pentair Whisperflo Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Will the V-Green 1.65 HP motor # ECM16SQU replace the two speed motor on my Hayward 1.5 HP Super pump? If not then what Variable speed motor will. I do realize that I will also require a new shaft seal Kit.
THANK YOU
Richard
Reply
Hi Richard, the seal kit for the Hayward Super Pump series is the GOKIT3. Could you send us a photo of your motor? Please take a close up shot of the motor label. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I currently have a Century cat no B2661 single speed pump. It is for residential use and usually runs maximum of 12 hours a day. I don’t like the noise a single speed pump makes and looking for something quieter. Would this variable speed pump work for my needs or is there any other recommendations?
Yes, the ECM16SQU Variable speed replacement motor will work as an ultra-quiet and energy-efficient motor for your B2661. When replacing your motor you will need a seal kit. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Photo of pump
Hi Paul, Its hard for me to tell if you have a Whisperflo or Superflo pump. Your photo shows a label on the white plastic housing, if that label says Whisperflo or has part #'s starting with WF- then you will need this Whisperflo Seal Kit and if that label says Superflo or has part #'s starting with SF- then you will need this Superflo Seal Kit
Reply
I have a Whisperflo, WFE-6, 1 1/2 HP, service factor 1.47. Will this motor work for me?
Reply
Hi Wahid, the correct replacement variable speed motor for your motor will be the ECM27SQU. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I am looking to upgrade to a VS pump and am wondering if I should change out the motor and impeller or replace entirely. My current motor is a 1HP Century on Hayward housing into a DE filter (2420). The motor is very loud and I believe it is undersized for my system which is a 30,000 gal pool. Takes a solid 5 minutes to prime each startup. Photos attached. It appears that the motor is a replacement and I am unsure of its age - I am not the original owner. The pool is about 20 years old.
Hi Jonathan, Yes you can upgrade the motor on your Hayward Super Pump to this 1.65 HP Variable Speed Motor If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to this 1-1/2 HP Super Pump Impeller and you will need this Hayward Super Pump Seal Kit when you replace your motor. You will save a ton on your operational costs by upgrading to Variable Speed and this would be our suggestion for your pool.
Reply
I ordered QC1102 (AOSQC1102) - Century 1.0 HP Square Flange 48Y Full Rate EE Motor - QC1102, but it can't be shipped to the wonderful state of California, so the order was cancelled. Will this pump work?
Reply
Hi Mike, Yes this is the California compliant version and will work as a direct replacement for the QC1102, this is what you need. We do have this motor in stock ready to ship!
Reply
NEED TO REPLACE 1.85 THP MOTOR PUMP ON HAYWARD, CANT FIND THAT HP MOTOR ????
Reply
Hi Brian, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have an A.O Smith 7-177449-03 with a Whisperflow WFE-3. Is this a direct drop in replcaement? Does the 7-177449-03 being an R56Y frame and this ECM16SQU being a 48Y frame have any impact? Also what would the correct seal for this combination be, GOKIT32?
Reply
Hi Ross, yes this is the correct variable speed motor and seal kit for your set up. The 48 frame motor will work however may not sit on the pump base the same way the 56 frame does.
Reply
Will this fit a Hayward variable speed pump
Reply
Hi Jim, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Is this a good replacement for my Max-E-Flo P6E6F-207L 1.5 HP motor? I did not see it on the Max-E-Flo replacement parts page. Thanks for your help.
Hi Richard, the correct variable speed replacement motor for the motor included in your photo is the ECM27SQU. You will also need a Sta-Rite Max E Pro seal kit(please see product details) when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Need a replacement motor for the Pentair 340038 SuperFlo High Performance Single Speed Pool Pump, 1 Horsepower. Is this the correct motor and what else should be purchased - current pump / motor 2.5 years old
Yes if your are looking to upgrade to a variable speed motor then yes this is the proper replacement motor. If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to this 1-1/2 HP SuperFlo Impeller and this 1.5 HP Super Flo Diffuser and you will need this Pentair Super Flo Seal Kit when you replace your motor.
Reply
i have a small 10k gallon pool with water feature, my current pentair 1 hp 1.25 service factor pump just died. would this be a suitable replacement or would the 085 be a better replacement?
Reply
If you have a square flange motor then yes this will be a suitable replacement motor. You can also provide us with your current motor model, part, or catalog number for us to confirm.
Reply
I currently have a 1 1/2 HO century SQ1152 motor with a Sta_rite P6E6F-207L will this VS be a good fit along with GOKIT79?
Reply
I have a 1 1/2 hp WhisperFlo, model WFE-6, serial no. 1-02-J00 and want to switch to a variable speed pump. Not sure but I suspect the date of manufacture is 1/2002. If so, would I be better off getting a new pump rather than just changing the motor? Thanks, JJ
Reply
Most home homeowners will usually replace the motor and seal kit if the housing is in good condition. If you have the original motor on the pump then your replacement variable speed motor will be the motor model ECM27SQU which currently is on backorder. The seal kit for a chlorine pool is the GOKIT32 and the seal kit for a saltwater swimming pool is the GOKIT32SALT.
Reply
I want to make sure that this VS Motor is a good replacement for my Century SQ1152 motor that is on my Sta-Rite P6E6G-207L. I know I will need GoKIT79 as well.
Will this replace an A.O. Smith 7-177450-40 on an old Pentair Whisperflo 011514?
Reply
Yes, this variable-speed motor will be a suitable motor replacement for your motor part number 177450.
Reply
Will this replace my HSQ125?
Hi Jeff, Yes you can upgrade the motor on your Pentair Super Flo to this 1.65 HP Variable Speed Motor If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to this 1-1/2 HP Super Flo Impeller and this 1-1/2 HP Super Flo Diffuser and you will need this Pentair Super Flo Seal Kit when you replace your motor. You will save a ton on your operational costs by upgrading to a Variable Speed Motor normally 50%-70%. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump.
Reply
For a 17,000 gal pool whose accessories (except filter) are supported by separate pumps, will the 1.65 HP VS Motor replace the motor on its current single speed Jandy Stealth SHPM2.0?
Reply
Hi David, the correct replacement variable speed motor for the Jandy Stealth SHPM20 model pool pump will be the ECM27SQU. You will also need to locate the serial number in order to replace the shaft seal with the correct one. Please see this parts diagram where the two options are listed at key number 5.
Reply
I have an AT251001 pump with bad seal corroding 1hp motor. I want to replace with a more efficient motor. If I go with the vgreen 165 variable speed motor do I need to upsize my impeller AND diffuser to the 1.5 hp size for most efficiency?
Hi Jesse, you do not necessarily need to replace the impeller and diffuser unless you know that you will need to utilize the additional horsepower the motor has. If you do, then the impeller part number is 5057-08A, and the diffuser is part number 5057-09A.
Reply
Received this motor and I am in the middle of replacing, this unit did not contain a screw to keep the impeller on. Was that supposed to come with the motor or do i need to purchase separately?
Reply
I'm planning on upgrading from my current Jandy FloPro FHPM 1.0 to this variable speed and will also be ordering shaft seal PS4280. My question is: Do I also need to upgrade my impeller to the 1-1.5 part #5020-092?
Hi Doug, you don't have to upgrade the impeller but if you know that you will need all of the motor capacity then yes the impeller part number 5020-092 would be correct. You would also need to upgrade the diffuser being part number 5020-096.
Reply
Hi. Just looking for advice on which variable speed motor to use as a replacement for my existing 196261-24 motor. (See pic)
Thanks.
Yes this ECM16SQU would be a compatible variable-speed motor to replace your model 196261 motor.
Reply
I replaced my Jandy stealth single speed pump with a Jandy epump variable speed pump just under 3 years ago. The epump motor has since stopped working. I believe the stealth was 1.5 hp while the epump is definitely 2.7 hp. I am not sure why the pool company increased the hp. If i originally had 1.5 hp can I go back to 1.5 hp and should I? I have read that the higher hp can damage my pool equipment. I need to verify all of this understanding with previous photos.
Reply
Hi Max, We would suggest going back to the 1.5 HP however if the pool company replaced the impeller to a 2.7 HP impeller when they replaced the motor then you will need to replace your impeller with the 1.5 HP impeller. You would require this 1.65 Variable Speed Motor and this 1.5 HP Impeller Kit Please note if you have an automated control system like the Jandy AquaLink then you would not be able to control the speeds of the pump from your indoor controller. All of the programming is done on the on-board controller of the motor. The automation system would just power the pump on and off and the programming you set on the motor controller would take over from there. When replacing your motor you will also need this Jandy Stealth Shaft Seal.
Reply
What is the down side to installing ECM16SQU instead of ECM27SQU (which matches the size of my old pump, SQ1152)?
will the 48Y frame VS drive motor replace a 56Y frame single speed motor on a pentair challenger pump?
Reply
Hi Robert, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I just ordered a ECM16SQU and I am thinking I should have ordered it as a pump and motor combo, what pump do I need?
Reply
For us to suggest the proper parts or pump could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
ihave a hayward sp2602vsp is this the right replacement?thank you
Reply
I have a Sta-Rite K48L2PA105 1.5 hp square flange 48Y motor I am considering upgrading to a VS motor. Is the ECM16SQU appropriate for use with the existing impeller?
Reply
Yes, this is the correct replacement variable-speed motor to replace your motor model K48L2PA105 and can use the same impeller.
Reply
Jim, I have the same motor as you. Did you go ahead and change yours? If so and recommendations or other parts you or moderator recommend? Thanks a bunch!
Reply
Hi Mike, we recommend also replacing the seals and gaskets for the pump when replacing the motor as well. If you can provide the model name or number of the front wet end pump housing or even a complete image of that, we can locate the correct seal kit for you.
Reply
Hi there, I currently have a Century USQ1152 (C48L2PA105C5) motor on a Purex Whisperflo pump (can't tell the model number except for it is 1.5 HP). Could you please confirm that this (ECM16SQU) is the correct variable speed replacement motor? Also, what's the recommended seal kit? Thank you!
Reply
Yes the ECM16SQU Variable Speed Motor would be the correct variable speed replacement. You will also require this Pentair Whisperflo Seal Kit
Reply
I currently need to replace the motor on a Pentair Whisperflo 1HP single speed pump for a waterfall feature. Will this variable speed pump fit my Whisperflo volute and will it be more energy efficient?
Reply
Hi Lee, yes, this is a correct variable speed replacement motor for your motor. You will also need a Pentair Whsiperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project. Variable speed motors can save up to 80 percent on your electrical costs when utilizing the lower RPM's.
Reply
Will this motor work to replace my old single speed motor? And if so what togokitwould I need? Thanks
Hi Phil, could you send us a few photos of your motor? This motor label image did not come through clear. Please take a close up shot of the motor label. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Have a Jandy FloPro 1 hp single speed motor will this 1.65 hp replace it?
Reply
Hello, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Will this replace a FHPM 1.0 Flo Pro self priming motor Serial# B11JA0921. Also if it does what else do I need.
Reply
Hi, Yes this is the proper variable speed replacement motor for your Jandy Flo Pro FHPM 1.0 and you will also need this Jandy Flo Pro Shaft Seal when you replace your motor.
Reply
v-green 165 pool pump. can the scheduling component be replaced with new
Reply
Hi Eric, yes you can replace this motor controller with the user interface 2520652-001.
Reply
replacing a sta-rite max e-pro model k48l2pa105 are there any additional parts I need for this project or just the motor?
Reply
Will the ECM16SQU motor replace my 1.5 HP,3450RPM motor with 48y frame?
Reply
Hi Lester, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I am going to install this motor on my Starite Supermax pump, it is currently driven by a 1HP motor.
Should I consider increasing to a bigger impeller and/or diffuser when installing this motor with that pump? Or will the current 1HP setup be adequate? Currently we have significantly more flow than needed with the 1HP motor.
Thanks!
Reply
Hi Adam, this motor should be good enough as you can merely adjust the RPM setting lower to better suit your application. Be sure to replace the seals using the Sta-Rite Super Max seal kit as well as it is recommended to replace the seals when replacing a motor.
Reply
Will this replace my Centurion 193186-24 56Y 1.5hp motor? Do I need any adaptor kit? What seal kit do I purchase for this motor?
Hi Isaac, yes, this is the correct variable speed replacement motor for the motor included in your photo. You will also need a Jandy Stealth shaft seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this motor compatible with the century HSQ165. Info is in photo. Thank you!
Hi Brick, yes this is the correct variable speed replacement motor for your motor model HSQ165. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Just installed the V-Green 165 and I have a continuous drip at the housing where the motor bolts onto the pump. Is this normal or what should I do?
MDB
Reply
Hi Michael, most often this is due to the shaft seal having failed or being compromised during installation. For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Will this work for a Hayward SP2300VSP?
Reply
Hi William, yes, this is a compatible variable speed replacement motor for the Hayward Max Flo Variable Speed Pump model SP2300VSP. You will also need a Hayward Max Flo pump shaft seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Have a hsq165 square flange motor. Will this replace my motor and do I need to replace anything on the challenger pac-fab 1 pump. The motor has been upgraded I believe by the previous homeowner but has shorted out.
Reply
Hi Rita, yes this is the correct variable speed replacement motor for your motor model hsq165. When replacing a pool motor we do suggest a Seal Kit. Could you locate the model number of the Challenger as it will be either a CH or CF series? If that is not legible then we can also use the diffuser or impeller part number that will be marked on them to confirm your series model. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
replacing a hsq165 wondering if the ecm16squ would replace it.
Hi Rita, yes this is the correct replacement motor for your motor model HSQ165. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Will this replace my sta-rite supermax p/n 351097 single speed to a 2 speed pump? Motor model no. 196250
Hi Clayton, yes this variable-speed motor is a suitable replacement for your motor part number 196250. It is also recommended to replace the seals when replacing a motor. For your Sta-Rite Supermax series pool pump, that kit will be the GOKIT78.
Reply
Can this replace my smith usq 1102 1 HP. with Sta-rite pumpP2RA50-120L or could be P2RA60 that part of 5 or 6 is not clear. does impeller fit shaft as well? and this motor is 220-240 only Correct.
Hi Michael, yes this is a compatible variable speed motor replacement for your motor model USQ1102. The impeller can be used as well and it is recommended to replace the seals as well when replacing a motor. For this pump, it will be the GOKIT54. Just be sure to remove the copper insert cone in the seal plate so the shaft seal will fit.
Reply
Will this for a Pentair SuperFlo #358020? If yes, which seal kit do you recommend?
Does this come with all the seals as a rebuild kit as well?
Reply
Hi Kendra, unfortunately, the seals do not come with these motors however for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I have a P6E6E-206L pump and K48L2PA105 motor, I would like to purchase a variable speed motor and seal kit, Can you recommend the part numbers?
Thank you
Reply
Hi Jeremy, yes, this is the correct replacement variable speed motor for the motor model K48L2PA105. You will also need a Sta-Rite Max-E-Pro seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
My Marathon Motor is starting to fail. It's a 1.5 HP with a 56Z frame.
Model: 5KC39UN6086X
Trying to confirm if the ECM16SQU is the compatible motor for the following pump:
sta-rite pool pump model mpfa6f-147l
Also which GoKit for a salt pool.
Thanks for your help!
Good luck reading the label, I had to wet it just to try to read it ; )
Hi Craig, yes, this is the correct replacement variable speed motor for the motor model 5KC39UN6086X included in your photo. You will also need a Sta-Rite Dyna-Glas & Dyna-Max seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
what model vs pump would you recommend to be my best replacement option; this one or the 2.7HP? I have a 27,000 gallon inground pool currently running Hayward Superpump on 115volts. Its a 56J flange.
Hi, Moustafa. The V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU is the variable speed replacement for your existing motor. However, that requires 230 volts. If you're unable to supply 230 volts, then you can use the Waterway Power Defender 140 Variable Speed Pool Pump 1.4 HP 115V/230V - PD-140.
Reply
What application would work for me? I have a 27000 gallon in ground pool running a Hayward super pump 2 horse power. This unit or the 2.7 horsepower pump? Or would you advise on something else? Flange is 56J.
Hi, Moustafa. The V-Green 2.7 HP Round Flange 56J Variable Speed Motor - ECM27CU is the variable speed replacement for your existing motor.
Reply
no need to replace any add hardware? I see another similar question where into suggested replacing some other components. Please see the earlier question regarding dame superpump . Thank you
Reply
Moustafa, The only other part you will need to get is the Hayward Super Pump Tune Up Kit GOKIT3 or GOKIT3SALT.
Reply
Greetings. My pump motor is screeching and probably needs new bearings. I would like to entertain the idea of moving from the single speed to a variable speed motor in order to save on electricity but still perform the cleaning needs of my pool. See attached pics. I have a Sta Rite P2R pump assembly beneath a Harmsco BetterFilter 84BKM cartridge filter. The PVC pipes are 1.5". I also have a Polaris 180 pool cleaner with separate booster pump. Pool is about 15k gallons. Recommendation?
Hi, Ken. This ECM16SQU variable speed motor can be used if you have or able to get 230 volts power. You will also need the Dura-Glas Tune Up Kit - GOKIT54.
Reply
Yes, the current electrical setup is 230V. My current pump motor is only 1.25 hp.....ECM16SQU shows as 1.65 hp. Would that extra hp be a problem or would just running at the programmed reduced RPM's be ok? Any chance you have a variable speed motor that is 1.25 hp?
Reply
Hi Ken, yes you can just adjust the RPM's on the motor to match your current motor strength, and unfortunately no, we do not carry a variable speed motor with a total horsepower of 1.25.
Reply
I am replacing the motor on an Pentair pump (38468400) with a USQ1102 Motor. Would this pump be a variable speed replacement for it?
I looking to upgrade my pump motor to a variable speed unit. I have attached a picture of the motor information plate. Will this motor work for my application, if not, which variable speed motor do I need?
Hello Kevin, based on part number 7-177449-03 the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct replacement motor when going to variable speed.
Reply
will the 1.65 hp century variable speed motor work on a Hayward Ecostar or Tristar pump housing?
Reply
Hello Ken, thank you for contacting INYO POOLS. The 1.65 would work on an Eco star if the total HP of the unit is 1.65 HP and lower. If you have a unit that is 2hp and higher we would suggest the V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU. Any time replacing a motor we also suggest the Tune Up Kit Hayward for TriStar/EcoStar - GOKIT81
Reply
I have a single speed A. O. Smith pump, mod K48M2PA105C4, Ser OD06, Type UAK, FR 48Y. I cannot find a single speed model as replacement.in your website. Can I replace it with the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU ? Can you recommend a lower cost single speed replacement? Thx.
Reply
Hi Kwok-Cheong, the correct single speed replacement motor for your motor model K48M2PA105C4 is part number SQ1152. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I need to replace our pool motor. Existing motor was 1HP Sta-rite. Motor nu- C48K2PA105
Please advice a variable speed pump for the pool size 20x40ft (deep end is 10ft )
Thanks,
Reply
This motor would be a compatible replacement variable speed motor for your C48K2PA105 motor.
Reply
I currently have a STA-RITE Model MPFA6E-146 with a Century HSQ125 motor with 48Y mounting. I am considering using the V-Green 085-156 variable speed motor. Is this a direct replacement. I don't see myself using the higher speed settings and may want to forego the 1.5 hp impeller upgrade.
Will the V-Green be a bolt on replacement?
Thanks
Reply
Hi Doug, yes, this is the correct variable speed replacement motor for the motor model HSQ125. You will also need a Sta-Rite Dyna-Glas & Dyna-Max seal kit. when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I would like to replace my century pump model usq1102 pool pump motor to save electricity. It looks like the v-green model ECM165SQU is the pump motor I need.
I believe I need a gasket kit of some sort for this. My pool pump is a pentair whisper flo high performance
Reply
Hi Thomas, yes, this is the correct variable speed replacement motor for the motor model USQ1102. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi.
I have a Challenger CHII-N1-2A pump, with a Century B855 motor. My pool is 18K gal. The water feature and pool cleaner have their own pumps.
Will this VS motor work with my Challenger pump or do I need to get the 2.7HP one? That seems like too much HP.
If I get this 1.65 VS motor, will I need a new impeller and diffuser?
Thanks.
Reply
Hi Ashish, the correct variable speed replacement motor for the motor catalog number B855 is the ECM27SQU. You can dial down the RPM on this motor if need be and do not need to change the impeller and diffuser as you should not need the maximum 2.7 hp from the motor. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I just ordered this motor and GOKIT32. I am replacing Century Motor B2661 3/4 HP. My pump is the WhisperFlo WFE-3 3/4 HP. Do I have to replace the impeller and diffuser or can I keep the existing ones. Thanks.
Reply
Hi Edward, most often the impeller and diffuser can be used again unless they have been badly worn, cracked, or heat warped.
Reply
I have an older Pentair Pinnacle (part # 342351) pump for a 10,000 gallon saltwater pool. I'd like to upgrade the motor to a variable speed but only saw info on the newer Superflo pumps. First question, can I use this V-Green 1.65hp motor w/ my current pump? Second question, I assume I'd have to upgrade the impeller, diffuser and shaft seal? If so, are these the correct part #'s... Diffuser: 5003-10; Impeller: 5002-05CA; Heavy Duty Shaft Seal: 5250-210; also the Tune Up Kit: GOKIT78. Thanks!
Hi KC, yes this would be the correct variable speed motor. You do not necessarily need to replace the diffuser and impeller unless you need to get the full 1.6 hp out of the variable speed motor. If so, then yes this is the correct diffuser and you would not need another impeller. The seal kit GOKIT24 has all of the seals and gaskets needed.
Reply
Is this motor compatible with my Pentair WFE-6 pump? I've read online at other places that it is compatible but in the Q&A on this site when asked it says it is not. My current motor is a Pentair 1.5hp.
Reply
Will this motor fit my Max-E-Pro P6EA6E-205L? Also could I get an equivalent part number for a single speed motor incase I decide to go that route?
Reply
Yes, this is the correct replacement variable speed motor for the motor on the Sta-Rite Max E Pro model P6EA6E-205L. The single-speed replacement motor is the UQC1102. You will also need a Sta-Rite Max E Pro seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I have a 1hp Starite MaxE Pro pump (2006) will this 1.65 square flag fit/work with it??
Reply
Hey Chuck,Yes, if you have the Sta-Rite Max-E-Pro Pump with a total HP rating at or under 1.65 you can use this motor. Also we would recommend changing the seals and gaskets which would be the Tune Up Kit Sta-Rite Max-E-Pro (Pre February 2015) - GOKIT79.
Reply
DO YOU HAVE A PUMP MOTOR THAT FITS THE SQUARE MOUNT ON A HAYWARD TRISTAR?
Reply
Good day, Dart,The Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be a motor that fits a Hayward Tristar with a 1.65 total and less.
Reply
Good morning, my 15 year old Jandy Stealth is leaking. And probably the shaft seals. So, I'm thinking the motor will be next to go since I'm not sure how long it has been leaking. Anyway, this is a good time for me to upgrade to a VS motor. My pump is a Stealth JHP .75, but my motor was changed to a 1.0 hp several years ago. What will I need for this change? Thanks....Billy
Reply
Good day Billy,Yes the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct motor and for the seals and gaskets we would recommend the Tune Up Kit Jandy JHP / JHPU Series Pump - GOKIT77.
Reply
i have a century 1.65 v green motor it has quit working ser #2551400892 hooked to a pentair superflo pump
i need another motor
Reply
Looking for replacement motor, please see attached file
This ECM6SQU is the correct replacement variable speed motor for your motor model m48aa92a04. If you need the seals as well, we will need to know the model number or name of the front pump housing wet end that the motor attaches to.
Reply
I have a timer that controls the single-speed Century B2854 motor and my AutoPilot chlorine generator. Does the V-Green's control eliminate the need for the timer? And if so, how do I interface the AutoPilot (or whatever chlorine generator I may use in the future) to it?
Reply
Hello Gary, this unit would be a stand-alone unit. That would not need an Intermatic timer. The 1.65 unit does not have an Aux port to control extra equipment.
Reply
Hello, please advise which motor to replace,, pictures attached. Thank you kindly.
Hi Rich, the correct replacement motor for the motor included in your photo is the ECM16CU. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this a good replacement for a STA-RITE Pump? Model # P6E6D-205L? The motor No. K48K2PA105C1, is 3/4HP; SF 1.65; 60Hz; 1PH; .75Kw; 3450RPM; Max Amps 13.8/6.9; Code M.
Reply
Hello Jesus, yes the Century Motors V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct motor replacement based on the K48K2PA105C1 and P6E6D-205L. The seal kit that would be needed is the Tune Up Kit Sta-Rite Max-E-Pro (Pre February 2015) - GOKIT79.
Reply
Hello, I just ordered this pump:
V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU
Does it come with a replacement shaft seal? If not, can you tell me the part I need?
Reply
When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
Hi, I am looking to replace my old single speed pool pump motor with a variable speed. What would be the best fit? Current motor is a Century 230V 2HP 48Frame with a 1.3 Service factor that serves an ~16,000 rectangular indoor pool with a waterslide. Pictures are enclosed. The motor is getting really loud, so I worry it is near failure and would like the energy efficiency benefits of a variable speed pump.
Thanks!
Hi David, the correct variable speed replacement motor for the motor included in your photo is the ECM27SQU. You will also need a Sta-Rite Dura Glass II/ Max E Glass II seal kit when you replace your motor. (please see product details) We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
What is the correct impeller size for this motor? I installed impeller 073128. My system is now very sensitive as to how clean the filters are. If they are slightly dirty pressure builds in filter housing and flow is reduced even on full speed.
Reply
Hello Thomas, that would be the correct impeller. Which is Impeller, 1 Hp Full 1 1/2 Hp Up. (073128)
Reply
Is this the correct replacement motor for the hayward model SP2603VSP pump
Reply
Please suggest which variable speed motor is the right fit for replacing the Pentair motor part no O-177450-03 and the pump model is WFE-6. I'm looking to replace the motor with a variable speed motor to save on electricity cost. Find attached the images of the motor and pump.
Reply
I have a Purex Triton Whisperflo pool pump Model WFE-6 1.5hp. I had a Marathon electric imPower variable speed motor sq flange on it for 10 years it finally went bad can I use the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU as an suitable replacement?
Thanks,
RG
Reply
Hi Ralph, the correct variable speed replacement motor for the original WFE-6 pool pump is the ECM27SQU. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hi, I'm looking to replace the single speed motor Pentair Part No O - 177450-03 and the pump model WFE-6. Can you please confirm which model of the variable speed motor will be a good replacement? I do not want to change the pump but just change the motor with a variable speed motor.
Reply
Hello, based on the information you can upgrade the motor to either the Dual Speed - B2982 or the Variable Speed - ECM16SQU. While also replacing the Tune Up Kit Pentair/Purex Whisperflo - GOKIT32.
Reply
Hi, Can you please confirm the voltage requirement for this motor. I checked on other sites and it says its supports 115 to 230 volts. I currently have 120 Volts supply to the motor to want to confirm that this will be able to work without requiring new wiring.
Reply
Hello, these motors require 230 voltage. Unfortunately, we do not carry these in 110/120 voltage. You may need to have that breaker changed to 220/240.
Reply
Hi, I'm looking to replace the single speed motor Pentair Part No O - 177450-03 and the pump model WFE-6. Can you please confirm which model of the variable speed motor will be a good replacement. I do not want to change the pump but just change the motor with a variable speed motor.
Reply
Hello, yes, this is the correct replacement variable speed motor for the motor part number 177450. You will also need a Pentair Whisperflo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I need to replace my current single speed motor. I currently have a Centurion motor B2854, P/N 0-F56AA40A01-24 (see pic of motor model). I have Pentair WhisperFlo pump P/N 011773. Is the VS ECM16SQU the correct VS motor to replace?
Is this the right replacement for this Hayward VSP
Hi Todd, yes, this is the correct variable speed replacement motor for the motor included in your photo. You will also need a Hayward Super Pump seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
If I use this motor with a Whisperflo pump and AquaPlus controller, will the chlorine generator and pool cleaner (Pentair Legend) work properly?
Reply
Hello Jay, in order to answer this question we would need to know more information about your pool and the pump model you have. The flow rates would vary depending on the distance between the pool and the pool equipment.
Reply
Will this V-Green 1.65 HP Square be a good replacement for single speed 1.5 HP US Motors C55CXKLT-5007 motor?
Reply
Hi Lou, yes this is the correct variable speed replacement motor for your motor part number C55CXKLT-5007. When replacing a pool motor we do suggest a Seal Kit. Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or quickest using our live online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
I have a Sta-Rite P6E6E-206L pump and I need a new impeller too. Will this motor work as a replacement?
Reply
Hi David, Yes, this is the correct variable speed replacement motor for the pump model P6E6E-206L. You will also need a Sta-Rite Max E Pro seal kit when you replace your motor and the correct impeller will be the 5055-11A. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
will this work on my pentair pump.
Please check the attached photo.
Hi Rolando, Yes, this is the correct variable speed replacement motor for the motor included in your photo. You will also need a Pentair WhisperFlo seal kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Is this motor self-priming?
If yes, Does have a timer built into it? or I have still use my regular timer?
Thank you
Reply
The motor itself isn't self-priming but the pump you would hook it up to is self-priming. The ECM16SQU does not have a built-in timer. You would still use the regular timer.
Reply
Is this the right motor to replace Jacuzzi 7-187332-20, and if so can it be used with Jacuzzi pump 1CYG? Thanks.
The correct replacement motor for your 7-187332-20 is the UQC1102. The necessary gasket kit for the Jacuzzi Cygnet is the GOKIT64.
Reply
Will this work with my Water Ace RSP10?
Reply
Yes, the ECM16SQU is the correct replacement motor for the Water Ace RSP10.
Reply
Will this motor work on my Pentair WF-24 as a replacement of the 1HP single speed motor that came with it?
Reply
Yes, the ECM16SQU is the correct motor VS upgrade for the Pentair WhisperFlo WF-4. The necessary gasket kit for the Pentair / Purex Whisperflo is the GOKIT32 or the GOKIT32SALT
Reply
Hello
This appears to work as a replacement on a Hayward SP2310X15 with a C48D43A04 Hayward Max Flo Self priming pump? If so are there any other recommended parts recommended?
Thanks in advance!
Yes, the ECM6SQU is the correct replacement motor for your C48D43A04. When replacing your pool pump motor, the shaft seal should be replaced as well to make sure no water leaks into your brand new electric motor. Your Hayward MaxFlo XL SP2300X Series requires the SPX2700SA shaft seal.
Reply
Need to replace my failing motor on a Pentair 340039 Superflo High Performance Single Speed Pool Pump, 1.5 horsepower, 115/230 volt, 1phase. I'm looking to upgrade to a variable speed motor. I need a California compliant motor. Would the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor-ECM16SQU be a direct replacement? Also, would I need any additional parts?
Is this the correct replacement motor for a 1 hp im power hayward variable speed sq flange motor. I also need the correct seal
Reply
Hello Bob. Yes, this would be a replacement for the 1 HP Impower VS square flange motor. The Century V-Green 1.65 HP motor has a slightly greater HP which is compatible. The correct shaft seal is determined by the pump model. Please provide that additional information either via new text or pictures of the entire pump inclusive of the plumbing connections in order to identify which Hayward pump model is currently installed.
Reply
Hello,
I have a pentair whisperflo WFE-26 with a 1.5(1.65)hp AO Smith motor that failed. I'd like to replace it with a more efficient motor that can reuse the pump which is in good shape. I am not sure whether this would be powerful enough for the original impeller. Could you advise on whether this motor would work best or if you recommend an alternative motor?
Thanks,
Mike
Reply
Hello Mike. The Century V-Green 1.65 HP square flange variable speed motor is an energy-efficient motor and is an excellent replacement for your single speed. It will fit the existing pump housing and is compatible with the existing impeller. When transitioning to a new motor, additional parts are necessary. A GOKIT will provide the necessary items. Attached please find that information. There are 2 varieties; one is for standard chlorine pools. The other is for saltwater pools. Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
Will the ECM16SQU work as a replacement motor for my whisperflo wfe-2 housing. The current motor has bearings that have gone bad. I was looking at the cheaper replacement motor, however I am leaning toward the variable speed and energy efficiency that this pump has to offer. My concern was with the current setup being a 56Y frame and the replacement appears to be a 48Y frame. Also would I need a seal kit like the GOKIT32. Thank you for the Help.
Hi, Sim Yes this variable-speed motor would work on your 1/2 HP Pentair Whisperflo Pump. If you wanted to take advantage of the higher speeds of this motor then I would suggest upgrading to a 1-1/2 HP Whisperflo Impeller and yes you will need this GOKIT32 Whisperflo Tune-Up Kit
Reply
How do I get the V green 165 to turn on at 8:30 am every morning when It started, initially, at 1:30 pm when installed. Is it on a 24 hour cycle?, thus in order to get it to start at 8:30 am I have to hit the start button on the next run day at the appropriate start up time that is @ 8:30 am. Does the system run on that basis, that is to start up on the last time you press the start button.
Reply
Hello Ernest. Some programming notes; Please be certain the total time of programming for Speed and Duration 1-3 does not exceed 24 hours. The V-Green 1.65 programming cycle is 24hours, then repeats itself. To adjust the start time of the 24-hour cycle, start the motor at the desired time of day. The motor will then start at that same time moving forward. There are a few circumstances that would interrupt this schedule. Attached please find a "How to Program a V-Green 165 Motor Manually From its Pad." How to Program a V-Green 165 Motor Manually From Its Pad
Reply
Is this the correct replacement for QC-1102 motor (needs to be CA compliant)?
The pump housing label is completely illegible but the trap cover number is C3-185p. Thanks in advance.
Hi Jacob, Yes this is the proper California Compliant replacement motor for your QC1102
Reply
Which impeller, diffuser and tune up kit would you recommend? Thanks again.
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Photos attached.
Hi Jacob, Thanks for the photos! It appears that you have a Sta-Rite Dura-Glas Pump and you will need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998.
Reply
Trying to find a more efficient and quieter motor and pump combo for a coy fish pond that runs 24/7. Current motor is a Century Centurion 7-177450-03 at 1 HP. Would this ECM16SQU be the most efficient replacement for the motor? I like that we can turn it to a slower speed when the fish are sleeping at night and don't need the same levels of oxygen.
For the pump and impeller side, is there something quieter? Part is 011513 PMP WFE-4. Lots of gurgling noises right now.
Hi Michael, Thanks for the photos! Yes this is the correct variable speed replacement motor for the pump shown in your photos. When replacing your motor you will also need this Whisperflo Seal Kit. You will save a ton on your operational costs by upgrading to a Variable Speed Motor normally 50%-70%. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump.
Reply
looking to replace a Century B2983 two speed motor with the v-green 165 on my PacFab
Challenger. I notice the frame is different this being 48Y and the B2983 being 56Y . Is there a better suggestion for a replacement variable speed motor.
Thanks in advance
Kevin
Reply
Yes, this is the correct replacement Variable Speed motor for your Challenger. You will also need a Pentair Challenger Seal Kit when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
serial no. 092073m, part 7-164034-24 hp1.5
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have jandy stealth SHPM 1.5hp square. Will this vgreen 1.65 work with this?
Diffuser R0445400, impeller r0445303. Should i get different impeller or diffuser?
Reply
Hello Corey. The Century V-Green 1.65 HP Variable Speed Motor, model ECM165SQU, is a compatible replacement for your Jandy Stealth pool pump. The Diffuser R0445400 and Impeller R0445303 are also compatible replacement parts for the Jandy Stealth and ECM165SQU VS Motor. Please note the Impeller r0445303 is currently out of stock but is replaced by the part number r0807202. A replacement shaft seal, r0479400 for pump serial number P08FF0001 and later, is also recommended for this project. Jandy Pump Shaft Seal 5/8" - R0479400 Impeller 1HP Full, 1.5HP Uprate w/Screw, Backplate O-Ring - R0807202 Diffuser Kit - R0445400 SHPF/PHPF/JEP, 0.5hp-3.0hp
Reply
I have Century Centurion (Pentair Challenger) 1.5HP B2854 Square 56Y motor, will ECM16SQU work as replacement motor?, frame is different, do I need adapter?
Hello Ajar. The V-Green Square Flange 48Y VS Motor, model ECM16squ is compatible with the Pentair Challenger pool pump. The difference between the 56Y and 48Y frames is that the 56Y frame is 1/2" larger in diameter but has identical hole placement on the Square Flange for installation onto the seal plate. They are interchangeable, no adapters required. When replacing the existing motor with the V-Green VS motor it is recommended that the shaft seal, seal plate gasket, and o-rings be replaced as well. The GOKIT5 contains these parts for the CHII Series Challenger Pumps. Tune Up Kit Pentair Challenger Pump (CHII Series) - GOKIT5
Reply
I have jandy stealth SHPM 1.5hp square. Will this vgreen 1.65 work with this?
Diffuser R0445400, impeller r0445303. Should i get different impeller or diffuser?
Reply
Hi Corey, Yes this is the proper variable speed motor replacement for your pump. Your impeller and diffuser are the correct match for this motor and would not need to be changed. We would suggest getting this Jandy Stealth Shaft Seal when replacing your motor.
Reply
Hello, I have a waterway pump SMF-110 C48AB45A79, I would like to know if I can upgrade the motor with this item “v-Green 1.65 HP 48Y VS Motor”. If feasible, What other part numbers I should buy for (example, sealer, impeller)?. the reason for the upgrade is because the pump loses the prime when I adjust the suction pressure with the valves to make works the vacuum. it seems to be there is no air leak in the suction pipes.
Is this the best and cost effective VS option for the upgrade?
Reply
Yes you can upgrade your pump to this 1.65 HP Variable Speed Motor. You will also need to replace the following parts - Waterway SMF Shaft Seal and Waterway SMF 1.5 HP Impeller. You will save a ton on your operational costs by upgrading to a Variable Speed Motor normally 50%-70%. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump.You will save a ton on your operational costs by upgrading to a Variable Speed Motor normally 50%-70%. Here is an article we wrote on the Energy Savings of a Single Speed Pool Pump Vs. a Variable Speed Pool Pump.
Reply
I have a Jandy VSSHP270AUT Pro Series Epump connected to a M48AA66D58 variable speed motor that got hit by lightning. The book says I have Regal Beloit Motor R0562200. My questions is as follows: which Vgreen variable speed motor can I use as a replacement? The 1.65 or the 2.7 and do you have one in stock. I would like to go with the 1.65 if possible. In summary, what do you recommend I replace my motor with and do you have it in stock.
Urby
Hi Urby, is your pump being controlled by a Jandy Aqua Link indoor control system? If so then you would need to go with this Jandy JEP2.7 Replacement Motor if you are not controlling this with a Jandy Aqua Link then please let us know and we can make suggestions in regards to the VGreen Options.
Reply
I have an existing Century SP3205Z1BE pool pump with motor failing PART
7-196341-20, SN# 04913J2.
Will this variable speed motor match up?
Hello Chris. Yes, the Century V-Green VS motor model ECM16SQU is a compatible replacement for your Hayward Tristar SP3205Z1BE. When replacing the motor it is recommended that the motor shaft seal, seal plate o-ring, and diffuser o-ring be replaced as well. The GOKIT 81 contains all these necessary parts. Tune Up Kit Hayward TriStar/EcoStar - GOKIT81
Reply
Is this the correct replacement for jandy flopro fhpm1.5 model 193986xcn and what shaft seal kit is recommended? Any other parts required?
Reply
Hello Richard. The Century V-Green VS Motor model ECM16SQ is a compatible replacement for your Jandy FloPro FHPM. The Diffuser & Impeller Hardware Kit, part 5020-041, contains the backplate o-ring, diffuser o-ring, and mounting screws. Diffuser & Impeller Hardware - R0480400 The correct shaft seal is part 5250-250. Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools) - PS-4280
Reply
is this the correct replacement motor for my Pentair superflo vs 1.5 hp pump model 342001?
Reply
Hello Kyle. The Century Motors V-Green Variable Speed Motor model ECM16SQU is a compatible replacement for the Pentair Superflo Variable Speed Pump model 342001. When replacing the motor it is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced as well. Attached please find links to thee parts. Pentair Shaft Seal 5/8" PSR-200 - 354545S O-RING, SEAL BRACKET PINN (Generic O-465) (355619) Diffuser O-ring (Square Ring) Medium Head - 355030 (O-395)
Reply
I have a Hayward Max Flo VS that did not survive the -27 degrees back in January. The unit still pumps but the motor sounds like it is running metal on metal. Is this the correct replacement motor for this pump? If so, what all do I need to resurrect it back to its original glory?
Hi Jeff, You will have 2 options, Option #1 would be to replace with the exact same motor and controller you currently have which would be this Hayward Power-end Assembly for SP23520VSP MaxFlo VS I would suggest this route if you are using a Hayward indoor control system like the Prologic or Aqualogic as you can control all the speeds for the pump from the indoor controller. If you are not using one of these indoor controllers then the ECM16SQU motor on this page would work just fine. For either option, you will also need this Hayward Max Flo Shaft Seal.
Reply
Is this compatible with a Sp3400vsp ? Would like to save some money and step down from the original 2.7hp to this 1.65hp motor. No need for any special automation options. Is that a valid option?
Thanks,
Reply
Hi Anthony, You could use this motor however you would need to replace your impeller with this 1.5 HP Impeller You will also need this Hayward Shaft Seal when you replace your motor.
Reply
Need to replace the motor on a WhisperFlo WFE-4. Is this motor compatible? Also, the WhisperFlo pump is Almond. There appears to be an Almond version of this motor (part number EPA16SQ) -- would that work, and do you carry that as well?
Reply
Hi Rob, Yes this is the proper variable speed replacement motor for your WFE-4 pump. Unfortunately we do not carry the almond version, however the only difference is the color of the motor. You will need this Whisperflo Seal Kit when you replace your motor. We have put together this Video on How to Replace a Variable Speed Pool Motor which you may find helpful when you tackle this project.
Reply
I have a pentair CFII-N1-1A pump and am considering replacing the original motor with this variable speed. Can you confirm this motor will fit and do I need to order anything else to make the conversion?
Thanks
Hello Scott. The Century Motors V-Green 1.65HP Variable Speed Motor model ECM16SQU is compatible with the Pentair/Pac Fab Challenger CFII Series Pump. It is recommended that the motor shaft seal, seal plate gasket, and diffuser O-ring be replaced at the same time. The GOKIT73 contains the necessary parts to complete this project. Tune Up Kit Pac Fab Challenger CFII/Pinnacle Series - GOKIT73
Reply
I need to replace a 3/4hp motor on a whisperflo. Would I need to get a larger impeller?
Reply
Hello Steve. In conjunction with the Century V-Green 1.65 HP Variable Speed motor, it would be recommended that the impeller be upgraded to the 1.5 HP Up Rate Impeller 5074-27B. Impeller, 1 Hp Full 1 1/2 Hp Up. (073128) Concurrent with the motor change the motor shaft seal, seal plate gasket and diffuser o-ring be replaced. The GOKIT32 contains the parts required to complete this project. Tune Up Kit Pentair/Purex Whisperflo - GOKIT32
Reply
I have a century pump and need a replacement? What do you recommend?
Yes, this is the correct replacement motor for the motor included in your photo. You will also need a Waterway SMF Shaft Seal when you replace your motor. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
I am replacing my Century USQ1152 1-1/2 HP, 1.1 Service Factor, 48Y Frame, Capacitor Start/Capacitor Run, ODP Enclosure, Square Flange Pool Motor. Will this one work as a replacement? I want to change from a single to variable speed motor.
Reply
Hello Rob. The Century Motors V-Green 1.65 HP Variable Speed Motor is a compatible replacement for your Century Motor model USQ1152. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced at the same time. These parts would be specific to the pump manufacturer/model and not the motor. Please provide your pump's manufacturer/model information and a recommendation can be made.
Reply
Is this the right variable speed motor for my pump? AO Smith Part No. O-193986-24 Frame 56Y 1.5 HP
I'm in California, so I understand it must be a dual speed or variable speed. What other parts would I also need? Thanks.
Hello Rick. The Century Motors V-Green Variable Speed Motor model ECM16SQU is compatible with your Jandy FloPro FHPM pump. It is recommended that the motor shaft seal, backplate o-ring, and diffuser o-ring be replaced at the same time. Attached please find links to these parts. Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools) - PS-4280 Diffuser & Impeller Hardware - R0480400
Reply
would this kit work with my pump? and would like to use the ECM16SQU as a replacement motor
Thank you for contacting Inyo Pools, I would probably go with the V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU depending on your pluming size and filter. Your total Hp 2.2, better to be a little over. If you get us some different angles of the pump we can suggest the right seal kit
Reply
My pump is overheating and turning off constantly. so I'm looking to replace with a more cost effective pump. would this work? I have a 30K gallon pool, de filter and looking to also add salt generator and live in Minnesota. Today I run 24/7 which is expensive and want a more cost effective motor. If this isn't the right one which is? also looking for running recommendations and a salt generator recommendation
Thank you for contacting Inyo Pools, This V-Green 1.65 is the right one for you. Here is a link to a good salt system AquaRite Chlorine Generator 40K - W3AQR15
Reply
I want to replace my single speed motor and I am wondering if this motor will work.
My current setup is:
AO Smith Part No: 7-193992-06
Jandy Pool Pump model No: SHPF .75, Serial No: M07FH240
Reply
Hello Mitchell. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM165SQU is a compatible replacement for the AO Smith motor model 7-193992-06 installed on the Jandy Stealth model SHPF. It is recommended that the motor shaft seal, backplate o-ring, and diffuser o-ring be replaced at the same time. Attached please find links to these parts. Pump Shaft Seal 3/4" - R0445500 Backplate O-Ring, Generic - R0446300 9-1/2" ID, 3/16" Cross Section O-521 Diffuser O-ring - R0622000
Reply
I had a Vgreen 270 that had the bearings fail after warranty expired. I am replacing it with a Vgreen 165 and want to use the user interface from the 270 that is already wall mounted but I can’t find any instructions on how to install it. Is it just a matter of plugging the user interface into the Jack on the 165 and program the interface or is there additional settings on the 165?
Reply
Hello Harold. According to the manufacturer, Century, the User Interface from the V-Green model 270 is not transferable to the V-Green model 165. The Century V-Green 270 User Interface, part number 2520652-001, is the compatible upgrade for the V-Green model 165. Although similar in appearance to the user interface installed on the model 270, the wiring harnesses for each are dissimilar. V-Green 270 User Interface - 2520652-001
Reply
Hi, I have a Jandy Stealth SHPM1.5 Pump w/ a Century Centurion 1.5HP part# F56AC15A01 Pump and am looking to replace it with a variable speed pump, is the V-Green 1.65HP ECM16SQU interchangeable with the existing motor?
Reply
Hello Michael. The Century Motors V-Green 1.65 HP Variable Speed Motor ECM16SQU would be a compatible replacement motor/drive assembly for the Jandy Stealth SHPM Series Pump. It is recommended that the motor shaft seal, backplate gasket, and diffuser o-ring be replaced at the same time. Attached please find an exploded parts diagram for the Jandy Stealth SHPM Pump Series which will provide a link to these parts. Please note Keys 5, 13, and 15. Additional note; the Stealth Pump's (not the motor's) serial number (located on the wet end) will identify the appropriate shaft seal. (Key 5) Jandy Stealth SHPF & SHPM Series Pump (2008-Current)
Reply
I have a USQ1152, is this the correct replacement if upgrading to a variable speed motor? Does it come with the gasket kit?
Reply
Thank you for contacting Inyo Pools, V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU Is the correct replacement. If you send Pictures of the pump I can recommend the correct seal kit.
Reply
I too have this exact same pump and want to replace the motor with a VS. This says it is a round flange but in my picture I believe I have a square flange. What VS motor can I use to replace?
Is this a replacement motor compatible with a Hayward SP2303VSP Max-Flo Pump Variable Speed Pump (230V)?
Reply
Good day, yes you can use this motor as a replacement for that unit. We would also recommend adding Tune Up Kit Hayward MaxFlo - GOKIT1.
Reply
my pool pump is really loud. so im assuming its spent.
can you tell me exactly what pump to i need to get w/ model #. im having a hard time finding one where all the numbers match.
here are pictures of what i currently have. thanks
Hello. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16CU is a compatible replacement motor & drive assy for the Hayward Super Pump VS Pump. V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU It is recommended that the motor shaft seal, seal plate gasket and diffuser o-ring be replaced concurrent with the new motor. Hayward Pump Shaft Seal (OEM) - SPX1600Z2 Housing Gasket - G-95 Diffuser Gasket (SPX1600R) (O-141)
Reply
Hi, will this motor replace the single speed motor shown here?
Hello Mike. The Century Motors V-Green model ECM16SQU is a compatible replacement for the Pentair Dura-Glas Pool Pump identified in the photo provided. It is recommended that the motor shaft seal, seal plate o-ring, and diffuser o-ring be replaced concurrent with the motor replacement. The GOKIT54 contains the parts required to complete this project. Tune Up Kit Sta-Rite Dura-Glas & Max-E-Glas Pump 1998 To Present - GOKIT54
Reply
Is this the motor I need for a Jandy EPump 1.5hp?
Reply
I have an HSQ165 and want to change it to a variable speed pump. I also have a spa controlled by a switch in the house. What is the proper replacement? I have attached the name plates and a picture of the flange. Thanks in advance.
Thank you for contacting Inyo Pools, The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be the correct replacement. Or you could replace the whole pump Hayward TriStar VS Pump - W3SP3202VSP
Reply
Hello, the motor on my Jandy FLoPro 3/4 HP Single speed pump went out. I want to replace it with a variable speed motor. Would this motor be compatible with this pump. Thanks
Hello Anthony. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is compatible with your Jandy FloPro FHPM Series Pump with a 3/4 HP motor. it is recommended that the motor shaft seal, backplate gasket, and diffuser o-ring be replaced concurrent with the new motor. Pump Seal, Extra Heavy Duty PS4280 (Saltwater Pools) - PS-4280 Backplate O-ring - R0480300 Diffuser & Impeller Hardware - R0480400
Reply
56YI currently have a 3/4 HP, 56Y motor mated to a Val-Pak V38-130 Pump (https://new.val-pakproducts.com/product/v38-130-ultra-flow-volute-2/). I am looking for the most economical dual or variable speed motor replacement. This part is listed as 48Y. Will this fit my setup?
Also, any chance the B2982T (( https://www.inyopools.com/Products/07501352062873.htm) is going to come back in stock?
Thanks,
Sujith
Reply
Hello Sujith. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is a compatible replacement motor for the Val-Pak V38-130 Pump. The V-Green Motor comes with a rubber spacer that fits underneath the motor and the pump's rear motor support to compensate for the difference in motor diameter: 48Y vs 56Y. Century Motors has not provided a return to stock date for motor B2982T. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT20 contains the necessary parts to complete this project. Tune Up Kit American Ultra Flow - GOKIT20
Reply
Will this motor work with a Hayward Super Pump in the attached picture?
Hello Jarred. The Century Motors V-Green Variable Speed Motor model ECM16CU is compatible with the Hayward Super Pump 1.5 HP Pool Pump. V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU The Century Motors V-Green model ECM16SQU is NOT compatible. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT3 contains the necessary parts to complete this project. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
Hi, Can this replace an old WhisperFlo WFE-4 1 HP motor?
Thank you!
Reply
Yes, the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be an excellent replacement for the motor on your WhisperFlo WFE-4 pump. We recommend ordering a Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 for freshwater pools or the Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT for saltwater pools to ensure a leak-free installation.
Reply
I have an existing Century B2847V1 pool pump 3/4 HP. Is this the correct variable speed pump replacement motor and do I need to upgrade the existing pump components (impellar, etc..?)
Reply
Hi Robert, the V-Green 1.65 HP Motor - ECM16SQU will be a perfect variable-speed replacement for your B2847V1. There is no need to replace anything other than the motor shaft seal and the motor o-rings when replacing the motor unless, of course, you notice something is damaged when you service it. Let us know what the model of the pump is that the motor attaches to so we can help you choose a new motor shaft seal or Tune-Up Kit to ensure a leak-free installation.
Reply
Here is my pump motor. Will this motor fit my pump?
Thanks
Hi Joshua, your old motor has a horsepower rating of 1.5 with a service factor of 1.6 so it is 2.4 total horsepower (this article on Are All Motors Created Equal? explains it better than I can), so you would need this V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU. Please note that the variable-speed motors need 220 volts to operate but your old one can operate on 110. Be sure you have the correct voltage at your equipment pad before ordering the new motor.
Reply
will this fit a Hayward Max-Flo XL .75 HP 1.27 SF 48Y frame ?
Reply
Hello John. The Century Motors V-Green Variable Speed Motor, ECM165SQU, is compatible with the Hayward MaxFlo XL Series Pool Pump. V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. Pump Shaft Seal Seal Plate Gasket Diffuser o-ring Attached please find an exploded parts diagram for the Hayward MaxFlo XL Pool Pump SP2300X Series. Hayward MaxFlo XL
Reply
I have a single speed Pentair Challenger 3/4 HP running on 220V. P/N 011512. The motor is singing now.
Is the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU compatible with the Pentair Challenger?
Hello Donald. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is a compatible motor replacement for the Pentair Challenger Pump. It is recommended that the motor shaft seal, seal plate o-ring, and diffuser o-ring be replaced concurrent with the new motor. The attached photo identifies the pump to be a Challenger. It actually appears to be a Whisperflo. Attached please find exploded parts diagrams for the Challenger and Whisperflo Pumps. Challenger Whisperflo Proper pump identification is required prior to selecting the correct TUNE UP KIT to complete this project.
Reply
Hello, can you tell me if this is a replacement for my single speed 1.5 hp century. I will attach 2 photos. Is there anything else I would need? Thanks Ron
Hello John. The Century Motors V-Green Variable Speed Motor model ECM16SQU is a compatible replacement for the Century Motors motor model USQ1152 installed on your Sta-Rite SuperMax Pump. Variable Speed Motor - ECM16SQU The GOKIT78 contains the required parts (seals and O-rings) to complete this project. GOKIT78 Attached please find an exploded parts diagram for the Sta-Rite SuperMax Pump fr reference. Sta-Rite SuperMax Pump
Reply
I have a Pentair Motor and it has the Fr as Y56Y. Will the 48y Frame work?
Reply
Hello Randy. The century motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is compatible with Pentair Pool Pumps with square flange motors. The difference in motor barrel diameter between the 56Y and 48Y frames is compensated with a rubber spacer, (provided with the ECM16SQU), inserted between the rear motor support and the ECM16SQU. V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU It is recommended that the motor shaft seal, seal plate gasket and diffuser o-ring be replaced concurrent with the new motor. These parts are specific to the pump model and not the motor. Please provide pump model information and a recommendation can be made.
Reply
I have an old Intelliflow VS 3050 manufactured in 2008 . Can I put a Century ECM 16SQU on this pump . THanks Max
Reply
Hi Max, this V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU will be a perfect replacement for your VS3050. We recommend getting a Tune-Up Kit when replacing the motor so you have new o-rings and a motor shaft seal to ensure a leak-free installation.
Reply
Hello, is this suitable replacement/upgrade motor for a P6RA6E-205L? Please see the pictures attached. If the frame is OK, is the correct power rating? Thanks a lot!
The ECM16SQU will be a perfect upgrade to your Sta-Rite Max-E-Pro 1 HP Up Rate Standard - P6RA6E205L. You can really save on your electric bill when you set up your variable-speed motor correctly. Don't forget to order a Tune Up Kit for Sta-Rite Max-E-Pro to ensure a leak-free installation.
Reply
Have a Sta-Rite P6EF-207L max -E- pro 1.5 hp 6/14/2010 matched up with a Century Centurion B2858 1.5 hp. Will the ECM16SQU be a compatible replacement with this pump? Can you advise the rubber rebuild kit as well? I would need the salt water shaft seal as well.
Hi Don, a variable-speed motor will save you a lot on your electric bill when it is set up properly. Your Sta-Rite Max-E-Pro has a 1-1/2HP motor but with a service factor of 1.5 so the total HP (click here for the explanation) is actually 2.25. You will need this V-Green 2.7 HP Variable Speed Motor - ECM27SQU and the GoKit79 for the seals. We do not have a saltwater version of that kit, so order the Heavy Duty(Saltwater Pools) Shaft Seal PS-3868 in addition to the GoKit.
Reply
Thanks that is great information. I checked in my notes from my pool service they recommended whenever the time comes to replace that motor it could be a 3/4 hp motor ( don’t know about the SF). Does that make sense or change the variable speed motor recommendation?
Reply
If the total HP on the motor is 2.25THP as shown in the images, it is best recommended to replace it with the ECM27SQU if you are seeking the most energy-efficient way to operate the circulation pump. The motor has the technology to circulate the water based on the weight of the impeller from 0.5THP to 2.70THP. If you only reduced to a 3/4THP motor you will run the risk of not having enough pump for priming purposes and circulation using the single speed 3/4HP motor and you will require changing the impeller and diffuser to meet the needs of the lower HP single speed motor.
Reply
Will this be a sufficient replacement option to upgrade to VS from an Emerson K63CXESC-4790; and is GOKIT73 the appropriate kit for mating this motor to a Pac Fab pump?
Reply
Hi Matt, the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU will be a great update to your pool pump from your old Emerson K63CXESC-4790. The Tune-Up Kit Pac Fab Challenger CFII/Pinnacle Series - GOKIT73 will be perfect if you have the CFII series pump and not the CHII series Pac-Fab pump; the CHII would need this GOKIT5 Tune-Up Kit.
Reply
Fantastic! Any tips on identifying which pump series I have? There are no stickers/decals left on the unit and the photos I found for both variants appear similar to each other.
Reply
Yes, you may remove the impeller or diffuser and check for a molded part number on either. Pentair / Pac Fab Challenger CHII / CFII Series parts page https://www.inyopools.com/pool_parts_pentair_pac_fab_challenger.aspx?Keywords=challenger+parts The two parts are different for CHII or CFII and this will confirm which model.
Reply
I want to replace a Hayward TriStar motor- model SP3210Z1BER, Frm-56Y, 1.0 FRHP, 1.85 THP, RPM-3450, 208-230v 1ph. It attaches to Hayward SP3210EE pump. The pool is ~15k gallons. I have attached pics for the motor, pump, and 4 bolt seal flange. You mention that normally Hayward is round flange but this one looks square.
Questions: Which VGreen motor should I purchase? What additional parts should I purchase?
Hello Jeff. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is compatible with the Hayward TriStar Pool Pump model SP3210EE. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. the GOKIT81 contains the necessary parts to complete this project. GOKIT81
Reply
I have a sta-rite supermax pump.It has a 1.5hp two speed motor.The frame is 56y.Is the vgreen ecm16squ the replacement motor that i need.If so does the go kit 78 have all the gaskets that i need to change the motor.
Hello James. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is a compatible replacement motor for the Sta-Rite Super Max Dual Speed 1.5 HP Pool Pump. ECM16SQU The GoKit 78 contains the necessary parts to complete this project. GOKIT78 Attached please find an exploded parts diagram for the Sta-Rite SuperMax Pool Pump for reference. Sta-Rite SuperMax Pump
Reply
Does this motor fit my Sta-Rite PHK2RA6E-102L SuperMax.
Reply
Hi Mark, the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU would be an excellent replacement motor for your Sta-Rite SuperMax Pump. Be sure you have 230 volts at your equipment pad since the variable-speed motors do not run on 115 volts. If all is well, be sure to get a Tune-Up Kit to ensure a leak-free installation, and check out our guide on How to Save Money Using a Variable Speed Motor to start saving on your electric bill right away.
Reply
Would this be a good replacement for this pump? What seal kit would I need for it?
Thank you
Hello Tico. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is a compatible motor replacement for the Century Motors HSQ125. The replacement seal kit is specific to the manufacturer/model of the pump and not the motor - HSQ125. Please provide pump manufacturer/model information and a recommendation can be made. If this information is not visible or available, please provide several photos of the entire pump inclusive of the intake and discharge ports to assist in identification.
Reply
Will this motor fit a WFE-3 Whisperflo 3/4HP 1.67SF Pump?
Reply
Hello Roger. The Century Motors V-Green 1.65 HP Variable Speed Motor ECM16SQU is a compatible motor replacement for the Pentair Whisperflo Pool Pump model WFE-3. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The GOKIT32 contains the necessary parts to complete this project. GOKIT32 Attached please find an exploded parts diagram for the Pentair Whisperflo Pool Pump for reference. Pentair Whisperflo Pump The Pentair Whisperflo VS Motor Upgrade Kit 1.65 HP MKIT32VS16 contains all parts necessary for the upgrade. MKIT32VS16
Reply
I have a Sta-Rite HPRA6E-147L pump with a Century Centurion B2848 motor (Square flange). I want to replace the motor but not the pump (I don't want to reconfigure the existing plumbing connections). Can I replace the pump with the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU? If so, what replacement seal kit will I need, and will I need to replace the impeller since the original motor is rated for 1 HP?
Reply
Hello Thomas. The Century Motors V-Green Variable Speed Motor model ECM16SQU is a compatible replacement motor for the Century Centurion model B2848. The Century Centurion Motor model B2848 is a 1.0 HP Full Rate motor with a Service Factor (SF) of 1.65 for a Total Horsepower (THP) of 1.65. HP x SF = THP Replacing the Impeller should not be necessary, the Impeller should be already sized to 1.5 HP. The Sta-Rite pump model HPRA6E-147L does not cross-reference to any Sta-Rite Pump model. Please check that model number against MPRA6E-147L, Sta-Rite Dyna-Glas. Sta-Rite Dyna-Glas The GOKIT47 contains the seals and gaskets for the MPRA6E-147L. GOKIT47
Reply
Is this the right VS motor to replace a single speed Century 193994XCN?
Hello Mike. The Century Motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU is a compatible variable speed motor replacement for the Century Centurion Motor model (part) 0-193994-06.
Reply
i have a century 1hp CT1102 115 VOLT MODELK48L2N100A1 AND WOULD LIKE TO CHANGE IT TO A VERIABLE SPEED MOTOR TO SAVE ON MY MONTHLY SCE BILL, WOULD IT SAVE MONEY? WHAT WOULD BE THE REPLACEMENT MOTOR? DO YOU HAVE THAT MODEL FOR SALE ,IF SO HOW MUCH? THANKS FOR YOUR TIME ,GOD BLESS HAVE A GREAT DAY
Reply
Hello Frank. A compatible Variable Speed Motor replacement for the Century 1.0 HP Full Rate Motor model CT1102 is the Century V-Green 1.65 HP Variable Speed Motor model ECM16CU. However, the ECM16CU requires a supply voltage of 208-230V. If the CT1102 has a supply voltage of 115V, the ECM16CU is not a compatible replacement. (the Century CT1102 can operate with 115V or 230V, please determine the current supply voltage) Attached please find brief tutorials on the subject of Variable Speed Motors. 5 Reasons To Get A Variable Speed Pool Pump Motor How to Save Money Using a Variable Speed Motor
Reply
Hello could this motor be a replacement to my current century M48AA93A04?
Thanks
Hello Rich. The Century Motors V-Green 1.65 HP Variable Speed Motor ECM16SQU is a compatible replacement for the M48AA93A04 (SP3210Z1). If TriStar VS Pump is connected to Pool Automation, installation of the ECM16SQU will exclude the ability to adjust motor speed through the automation. The automation would supply power, per the programming, then the ECM16SQU would operate the pump per its programming. The installation of the ECM16SQU would necessitate an impeller change Impeller w/ Screw 1.5 THP - SPX3210C and the Tune Up Kit Hayward TriStar/EcoStar - GOKIT81
Reply
Can you Replace a century SQ1102 with a century EMC 16 SQU thank you
Reply
Hello Larr. The Century Motors V-Green 1.65 HP Variable Speed Motor ECM16SQU is a compatible replacement for the Century Motors 1.0 HP Full Rate (THP1.65) Motor model SQ1102. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor, These parts are specific to the manufacturer/model of the pump, not the motor. Please provide pump manufacturer/model information and a recommendation can be made.
Reply
is I have three questions.
1) I HAVE A PENTAIR WF-24 / 011772. IS THE V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU THE CORRECT REPLACEMENT PUMP?
2) Where is this pump made?
3) what is the warranty?
Hello Glen. The Century V-Green 1.65 HP variable speed motor model ECM165SQU is a compatible replacement motor for the Pentair WhisperFlo model WF-24, 011772. It is recommended that the motor shaft seal, seal plate gasket, and diffuser o-ring be replaced concurrent with the new motor. The Pentair WhisperFlo VS Motor Upgrade Kit 1.65 HP, MKIT32VS16 contains all the necessary parts to complete this project. Pentair Whisperflo VS Motor Upgrade Kit - 1.65HP - MKIT32VS16 The ECM16SQU is warranted against defects in materials and workmanship for 18 months from the purchase date or 24 months from the manufacture date. The ECM16SQU is assembled in Mexico.
Reply
I have Pentair Whisperflo WFDS-26 2-speed motor w orig OEM pump housing. SEE PIC
1. Do I buy:
(a) V-Green 1.65 HP Square Flange 48Y Variable Speed Motor ECM16SQU
(b) -OR- the 56J
The 56J is $50 more. Is it necessary as they seem interchangeable w spacers?
I und I also need:
• GOKIT32
2. Is there advantage to OEM:
• Pentair Whisperflo VS Motor Upgrade Kit - 1.65HP - MKIT32VS16
Can I switch KIT32VS to KIT32 (4 our Chlorine Pool)
3. Previous Inyo Order #906422
Hello Ari. The Century Motors V-Green 1.65 HP Variable Speed Motor model V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is the correct V-Green variable speed motor model for the Pentair WhisperFlo WFDS-26. The ECM16CU, 56J, is NOT compatible. The Tune Up Kit Pentair/Purex Whisperflo - GOKIT32 contains the necessary parts to complete this project.
Reply
Hi, could you confirm the V-Green 1.65HP I need for my existing SS pump as well as the seal kit please.
Thanks,
Mike
Hello Mike. The Hayward Super II VS Motor Upgrade Kit - 1.65HP - MKIT2VS16 contains the necessary parts to upgrade the Hayward Super II Pool Pump identified in the attached photo. Utilizing the Impeller and Diffuser contained in this kit will increase circulation flow rate. It is possible to use the existing Impeller and Diffuser in which case the necessary parts are V-Green 1.65 HP Round Flange 56J Variable Speed Motor - ECM16CU and Tune Up Kit Hayward Super II - GOKIT2
Reply
Just checking to see if the V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is the correct replacement for my single speed A. O. Smith. (Pics included). And what kits do I need for the swap? Thanks for any help you can provide.
Hello Ron. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible replacement for the A. O. Smith Motor model USQ1102. Attached please find the Sta-Rite Dura-Glas II and Max-E-Glas II exploded parts diagram. From the attached photo, it appears that the pump is a Dura-Glas II (Max-E-Glas II). Please verify by comparing the pump basket shape, part key 19, to the current pump basket. The Tune Up Kit Sta-Rite P4E & P4EA Max-E-Glas II / DuraGlas II - GOKIT38 contains the necessary seals and gasket to complete the motor change for the Pentair/Sta-Rite Dura-Glas II Pump.
Reply
Is this motor a suitable replacement for a Century ST1152? It’s attached to a Hayward SP2610X15 pump. Any references for seal or upgrade kits would be great as well. Thanks!
Hello Jon. The Century Motors 1.65HP (1.65 total horsepower, THP) ECM16SQU by itself would not be a suitable replacement for the Century Motors ST1152 (2.20 total horsepower). The Hayward Super Pump VS Motor Upgrade Kit - 1.65HP - MKIT3VS16 includes the necessary impeller replacement, shaft seal, and gaskets for the Hayward Super Pump SP2610X15. If your pool circulation system has roof-mounted solar heating panels, water fountains, or other features you may consider the Hayward Super Pump VS Motor Upgrade Kit - 2.7HP - MKIT3VS27. The MKIT3VS27 would be more capable of matching the water flow volume of the SP2610X15 with the ST1152.
Reply
Hi would this motor be a suitable replacement for my single speed 1 1/2 hp pentair superflo motor #196239 and pump model No is 340039. The HP 1.50 and the S.F.HP 1.65?
Reply
Hello Dan. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible variable speed motor replacement for the Pentair SuperFlo model 340039, with the single speed motor model 196239. The Tune Up Kit Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78 contains the necessary seals and gaskets to complete the motor change.
Reply
Greetings - I think this is the VS motor replacement for my Jandy SPHF, can you please confirm? Then I will also need a gasket replacement kit as well - yes? Thank you very much!!
Hello Rick. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible replacement variable speed motor for the Jandy Stealth SHPF 1.0HP, THP 1.65. The Jandy Pump Shaft Seal 5/8" - R0479400 (compatible with serial number R10FH00990) and Backplate O-Ring should be replaced concurrent with the motor change. Attached is the Jandy Stealth SHPF & SHPM Series Pump (2008-Current) exploded parts diagram for reference.
Reply
Is this a replacement motor for the Pentair SF-N1-1A pump?
Hello Steve. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible variable speed motor for the Pentair SuperFlo Pool Pump model 340038, SF-N1-1A. The Tune Up Kit Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78 contains the seals and gaskets necessary to complete the motor replacement. Attached please find the Pentair SuperFlo Pump exploded parts diagram for reference.
Reply
Can this pump motor replace a 56Y Waterway 1.5 hp single speed pump? Amps on current single speed pump are 7.7/15.4
Hello Scott. The V-Green 1.65 HP Variable Speed Motor - ECM16SQU is a compatible motor replacement for the Waterway Champion CHAMPS - 115. The Pump Shaft Seal Face Plate Gasket Diffuser O-ring should be replaced concurrent with the new motor. Note: the ECM16SQU voltage requirement is 208-230 VAC. If the CHAMPS - 115 is wired for 115 VAC, a voltage adjustment is necessary. The CHAMPS - 115 motor is a 56Y frame, the ECM16SQU is a 48Y frame motor. The connection bolt pattern is identical. The ECM16SQU is slightly smaller in diameter and slightly longer. Please check the installation's dimensions
Reply
Hello, would this VS motor be a suitable replacement on my pictured setup. Apologies I do not see any branding on the pump, but any expert advice is appreciated. Thank you!
Hello Casey. The V-Green Variable Speed Motor - ECM16SQU is a compatible motor replacement for the pump in the attached photo. From the photo, the pump appears to be a Sta-Rite Dura-Glas II Please compare pump baskets, part key 19. Another pump option would be the Sta-Rite Dura-Glas Please compare pump baskets. Either the GOKIT38 or GOKIT54 (depending on pump model) contains the shaft seal, seal plate gasket, and diffuser o-ring necessary to complete the motor change.
Reply
Hello,
My current pump info is attached. Is the century motors V-Green 1.65 HP Variable Speed Motor model ECM16SQU a compatible replacement?
Thanks
Hello John. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible variable speed motor replacement for the Century Centurion Motor model B2853V1.
Reply
IS THIS COMPATIBLE WITH THE WATERWAY PD-VSC165. i DON'T KNOW WHAT FLANGE IT IS, SQUARE OR ROUND?
Reply
Hello Mani. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible variable speed motor replacement for the Waterway Power Defender model PD-VSC165. It is recommended that the Shaft Seal, Face Plate Gasket and Diffuser O-ring be replaced concurrent with the replacement motor. Attached please find the Waterway Power Defender 165 Variable Speed Pump exploded parts diagram for reference.
Reply
Can I use this as a replacement for the MPRA6E-147L motor? Picture attached.
Hello. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible variable speed motor replacement for the Sta-Rite Motor model C48K2PA105 installed on the Sta-Rite Dyna-Glas model MPRA6E-147L. The Tune Up Kit Sta-Rite Dyna-Glas & Dyna-Max - GOKIT47 contains the necessary shaft seal and gasket necessary to complete the motor change. Attached please find the Sta-Rite Dyna-Glas exploded parts diagram for reference.
Reply
Is the ECM16SQU a direct replacement for my USQ1202 single speed motor. I have a Max-E-Glas II sta-rite pool pump. My is 13,000 Gallons…
Hello Miguel. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is compatible with the Sta-Rite Max-E-Glas Pool Pump. The transition from the Century Motors USQ1202 to the Century V-Green ECM16SQU would require an impeller change to the Impeller 1 HP / 1.5 HP - C105-238PB. The Tune Up Kit Sta-Rite P4E & P4EA Max-E-Glas II - GOKIT38 contains the seals and gaskets necessary to complete the new motor installation.
Reply
Would this work as a replacement for an older model Pentair 7-168787-07 pump motor? Photo attached. Thanks!
Hello, unfortunately this would not be the variable speed motor replacement. It would actually be the ECM27SQU which is currently not in stock however you can add yourself to a list to be notified when it is. The direct single speed replacement motor is the model B849. Also please check our Finding the Tune-Up Kit for Your Pool Pump guide which is also recommended when replacing a motor.
Reply
is this a compatible model with the Century B2854 1.5 HP Frame 56Y motor?
Reply
Hi Jason, yes this is the correct variable speed replacement motor for your current motor model. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is a guide for "Finding the Tune-Up Kit for Your Pool Pump" that should assist you with that.
Reply
Will this be a good unit to replace the original marathon 5SME29DFT001 RB003 currently installed? It's not moving much water in a 30k gallon in ground. Currently it keeps cycling and sounds like the bearings are square. Does this have similar power requirements?
Hi Colin, yes this is the correct replacement motor for your model 5sme29dft001 motor and uses the same power requirement at 230 volt. We also recommend replacing the seals and gaskets when replacing a pool motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with that.
Reply
Is this an appropriate replacement motor for my Pentair Challenger 1.5HP pump (motor # 196250)? Thanks.
Hello Dan. The Century 1.5 HP Square Flange 56Y Up Rate Motor - B2854 is a compatible replacement motor for the Pentair motor model 196250. The Pentair Challenger Pump Tune Up Kit (CHII Series) - GOKIT5 contains the seals and gaskets necessary to complete the new motor installation on the Pentair Challenger model CHII N1 (per attached photo). Attached please find the Pentair Challenger Pump exploded parts diagram for reference.
Reply
Hi,, will this pump replace my Max-E-Pro A100ELL on my Model number is P6RA6E-205L Stay-Right Filter.
Thanks for your help.
Reply
Hello Miles. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU is a compatible replacement motor for the Sta-Rite Max-E-Pro pump model P6RA6E-205L. The Tune Up Kit Sta-Rite Max-E-Pro (Pre February 2015) - GOKIT79 contains the seals and gaskets necessary to complete the new motor installation. Attached please find the Sta-Rite Max-E-Pro Pump exploded parts diagram for reference.
Reply
Hi, We bought 2 replacement pump motors from you a few years ago that are still working great, but I want to replace the filter pump motor with a variable speed pump motor. I will leave the in ground cleaning motor as a single stage. The motors that we got were '1 HP Standard Motor - Full Rate (B2848) according to our receipt.
Is this the correct motor-and what tune up kit do I need? I believe that I have an extra kit (from another supplier) but it can't hurt to have another available. Thanks
Hello Bruce, yes this variable speed motor is compatible to replace your current motor model B2848. The correct seal kit for the Pentair Whisperflo pool pump in a standard chlorine pool is the GOKIT32 and the tune up kit best for a saltwater pool is the GOKIT32SALT.
Reply
I currently have a Century USQ1102 and looking to replace with a variable motor. Will this model work? I cant see much information on the pump itself to identify model but have attached pics
Hello Johnny, yes this variable speed motor is compatible to replace your motor model USQ1102. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Your seals will be key numbers 3 and 13 on this parts diagram. I have also emailed you an estimate that you convert to an order if you would like. Items currently in stock and ready to ship.
Reply
My current pump motor, Centurion/Century part number 7-168452-04, just stopped working. 19 yo doesn’t owe me anything. Is this variable pump motor compatible with my old pump motor.
Hello Dan, yes this variable speed moor is compatible to replace your motor part number 168452. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that should assist you with locating those.
Reply
Hi, is there a version of this that runs on 115V? I'm trying to replace a Dura-Glas C48L2PA105 single speed. Thanks!
Reply
Hello Jordan, the option for a variable speed motor replacement for your motor model C48L2PA105 is the EVQ225. We also recommend replacing the seals and gaskets when replacing a pool pump motor. Please click here to view your seal kit options. Yours will depend on whether your swimming pool is a chlorine or saltwater pool and the pump year of manufacturer. Pre 98 models have a copper cone around the shaft seal and after 98 does not as a tip.
Reply
Hey there, trying to replace my Jandy M48AA90D58 VSFHP165JEP motor. Is this a compatible replacement?
Reply
Hello Don, this is a compatible variable speed motor for your motor model M48AA90D58. When replacing a pool pump motor we also recommend replacing the seals and gaskets. Please click here to view your Jandy pump parts diagram where we recommend replacing key numbers 4A, 5, and 13.
Reply
Century (A.O. Smith) 1.65 HP Motor, V-Green, Square Flange 48Y, Variable Speed - Model ECM16SQU
$611.99 Limited Time: Up to $50 OFF | Applied at Checkout
PART # ECM16SQU
I would like to buy the above motor to replace a pool pump that I have for my pool.I wonder if it will fit in to my exiting pump see pictures .please let me know thank you
Hello Toan, yes this is is a compatible variable speed motor for your motor part number 169255. When replacing a pool pump motor we also recommend replacing the seals and gaskets. For your pool pump that kit will be the GOKIT3 in a standard chlorine swimming pool and for a saltwater pool that will be the GOKIT3SALT.
Reply
Can I replace my current SuperFlo high performance pump motor (Model SF-N1-1A / Part # 340038) with a more energy efficient variable speed motor? If so, what are my choices and what else would I need?
Reply
Hello, You would be able to replace your current motor with either the ECM16SQU or the EVQ165; these are higher HP motors, but because they are variable-speed, you can throttle down the RPMs as needed. To use these motors, you would need to replace the impeller and also replace the seals on your pump-- to replace those components, you would want to purchase Pentair Impeller for Challenger 1 HP Full Rate 1.5 HP Up Rate- 355074 and the Pentair SuperFlo, Sta-Rite SuperMax Saltwater Seal Kit - Model GOKIT78SALT.
Reply
I have Super Max 1.5 HP Pump - PHK2RA6F103L pump, but its motor was replaced with a Century HP 1.0, Service Factor 1.25, CAT B2853 motor. The motor has gone bad and makes loud noises (looks like has salt buildup on exterior. I switched to saltwater a year ago), so I want to replace the motor with this V-Green 165 motor and get the GOKIT78SALT.
Do I need to change the impeller & diffuser?
And for future reference, which impeller & diffuser does the V-Green 165 need?
Reply
You would want to replace the impeller to protect against potential overheating, and the impeller and diffuser you will need will be dependent on your pump housing. For your pump, you would want to purchase the Pentair Impeller for Challenger 1 HP Full Rate 1.5 HP Up Rate- 355074 and the Diffuser for Pentair PacFab Sta-Rite SuperFlo, SuperMax, Pinnacle Pool and Spa Pump, 1.5-2.0HP - 355618.
Reply
